College Physics for AP® Courses

17.1 Sound

College Physics for AP® Courses17.1 Sound

Learning Objectives

By the end of this section, you will be able to:

  • Define sound and hearing.
  • Describe sound as a longitudinal wave.
Photograph of a glass, half of which is shattered into small pieces by a high-intensity sound wave. The tiny glass bits are shattered all over the place.
Figure 17.2 This glass has been shattered by a high-intensity sound wave of the same frequency as the resonant frequency of the glass. While the sound is not visible, the effects of the sound prove its existence. (credit: ||read||, Flickr)

Sound can be used as a familiar illustration of waves. Because hearing is one of our most important senses, it is interesting to see how the physical properties of sound correspond to our perceptions of it. Hearing is the perception of sound, just as vision is the perception of visible light. But sound has important applications beyond hearing. Ultrasound, for example, is not heard but can be employed to form medical images and is also used in treatment.

The physical phenomenon of sound is defined to be a disturbance of matter that is transmitted from its source outward. Sound is a wave. On the atomic scale, it is a disturbance of atoms that is far more ordered than their thermal motions. In many instances, sound is a periodic wave, and the atoms undergo simple harmonic motion. In this text, we shall explore such periodic sound waves.

A vibrating string produces a sound wave as illustrated in Figure 17.3, Figure 17.4, and Figure 17.5. As the string oscillates back and forth, it transfers energy to the air, mostly as thermal energy created by turbulence. But a small part of the string’s energy goes into compressing and expanding the surrounding air, creating slightly higher and lower local pressures. These compressions (high pressure regions) and rarefactions (low pressure regions) move out as longitudinal pressure waves having the same frequency as the string—they are the disturbance that is a sound wave. (Sound waves in air and most fluids are longitudinal, because fluids have almost no shear strength. In solids, sound waves can be both transverse and longitudinal.) Figure 17.5 shows a graph of gauge pressure versus distance from the vibrating string.

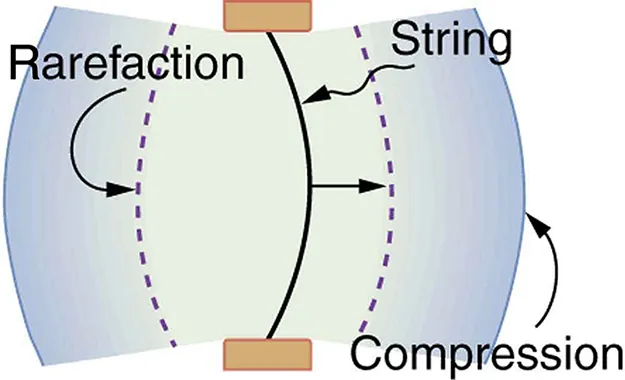

Diagram of a vibrating string held fixed at both ends. The string is shown to move toward the right. The compression and rarefaction of air is shown as bold and dotted line arcs around the string.
Figure 17.3 A vibrating string moving to the right compresses the air in front of it and expands the air behind it.

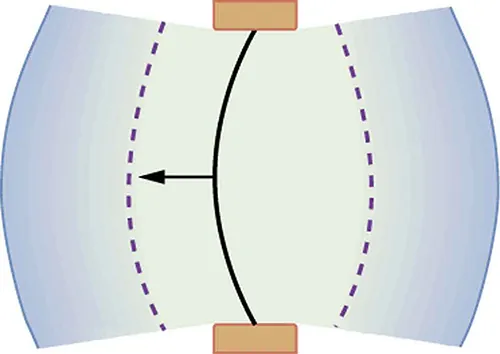

Diagram of a vibrating string held fixed at both the ends. The string is shown to move toward the left. The compression and rarefaction of air is shown as bold and dotted arcs around the string.
Figure 17.4 As the string moves to the left, it creates another compression and rarefaction as the ones on the right move away from the string.

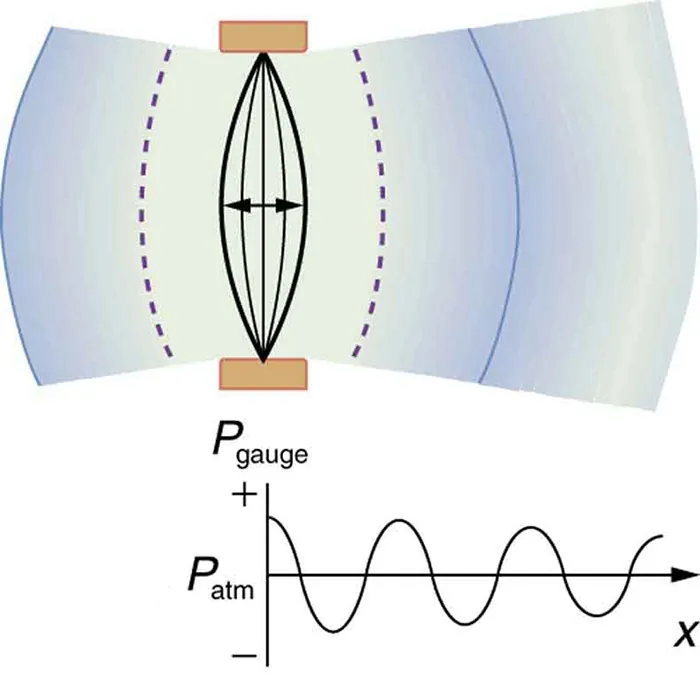

Part a of the diagram shows a vibrating string held fixed at both the ends. The string is shown to vibrate to and fro toward left and right. The compression and rarefaction of air is shown as bold and dotted arcs around the string. Part b shows a graph of pressure versus distance from the source. The pressure is along the y axis and the distance is along the x axis. The graph is a sine wave along the x axis.
Figure 17.5 After many vibrations, there are a series of compressions and rarefactions moving out from the string as a sound wave. The graph shows gauge pressure versus distance from the source. Pressures vary only slightly from atmospheric for ordinary sounds.

The amplitude of a sound wave decreases with distance from its source, because the energy of the wave is spread over a larger and larger area. But it is also absorbed by objects, such as the eardrum in Figure 17.6, and converted to thermal energy by the viscosity of air. In addition, during each compression a little heat transfers to the air and during each rarefaction even less heat transfers from the air, so that the heat transfer reduces the organized disturbance into random thermal motions. (These processes can be viewed as a manifestation of the second law of thermodynamics presented in Introduction to the Second Law of Thermodynamics: Heat Engines and Their Efficiency.) Whether the heat transfer from compression to rarefaction is significant depends on how far apart they are—that is, it depends on wavelength. Wavelength, frequency, amplitude, and speed of propagation are important for sound, as they are for all waves.

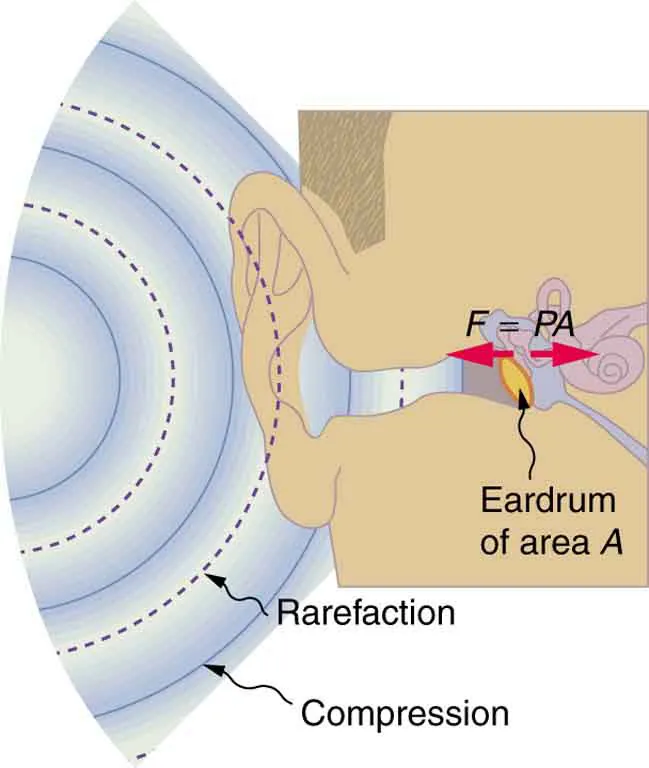

Diagram of an ear is shown with sound wave compressions and rare factions entering the ear as semicircular arcs of bold and dotted lines. The cross section of ear drum marked as A is shown to vibrate to and fro with a force F equals P times A.
Figure 17.6 Sound wave compressions and rarefactions travel up the ear canal and force the eardrum to vibrate. There is a net force on the eardrum, since the sound wave pressures differ from the atmospheric pressure found behind the eardrum. A complicated mechanism converts the vibrations to nerve impulses, which are perceived by the person.

PhET Explorations

Wave Interference

Make waves with a dripping faucet, audio speaker, or laser! Add a second source or a pair of slits to create an interference pattern.

Figure 17.7
