Learning Objectives

By the end of this section, you will be able to:

  • Describe the effects of a magnetic field on a moving charge.
  • Calculate the radius of curvature of the path of a charge that is moving in a magnetic field.

Magnetic force can cause a charged particle to move in a circular or spiral path. Cosmic rays are energetic charged particles in outer space, some of which approach the Earth. They can be forced into spiral paths by the Earth’s magnetic field. Protons in giant accelerators are kept in a circular path by magnetic force. The bubble chamber photograph in Figure 22.18 shows charged particles moving in such curved paths. The curved paths of charged particles in magnetic fields are the basis of a number of phenomena and can even be used analytically, such as in a mass spectrometer.

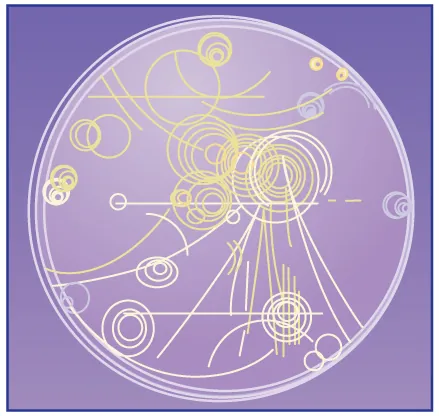

A drawing representing trails of bubbles in a bubble chamber.
Figure 22.18 Trails of bubbles are produced by high-energy charged particles moving through the superheated liquid hydrogen in this artist’s rendition of a bubble chamber. There is a strong magnetic field perpendicular to the page that causes the curved paths of the particles. The radius of the path can be used to find the mass, charge, and energy of the particle.

So does the magnetic force cause circular motion? Magnetic force is always perpendicular to velocity, so that it does no work on the charged particle. The particle’s kinetic energy and speed thus remain constant. The direction of motion is affected, but not the speed. This is typical of uniform circular motion. The simplest case occurs when a charged particle moves perpendicular to a uniform BB-field, such as shown in Figure 22.19. (If this takes place in a vacuum, the magnetic field is the dominant factor determining the motion.) Here, the magnetic force supplies the centripetal force Fc=mv2/rFc=mv2/r. Noting that sinθ=1sinθ=1, we see that F=qvBF=qvB.

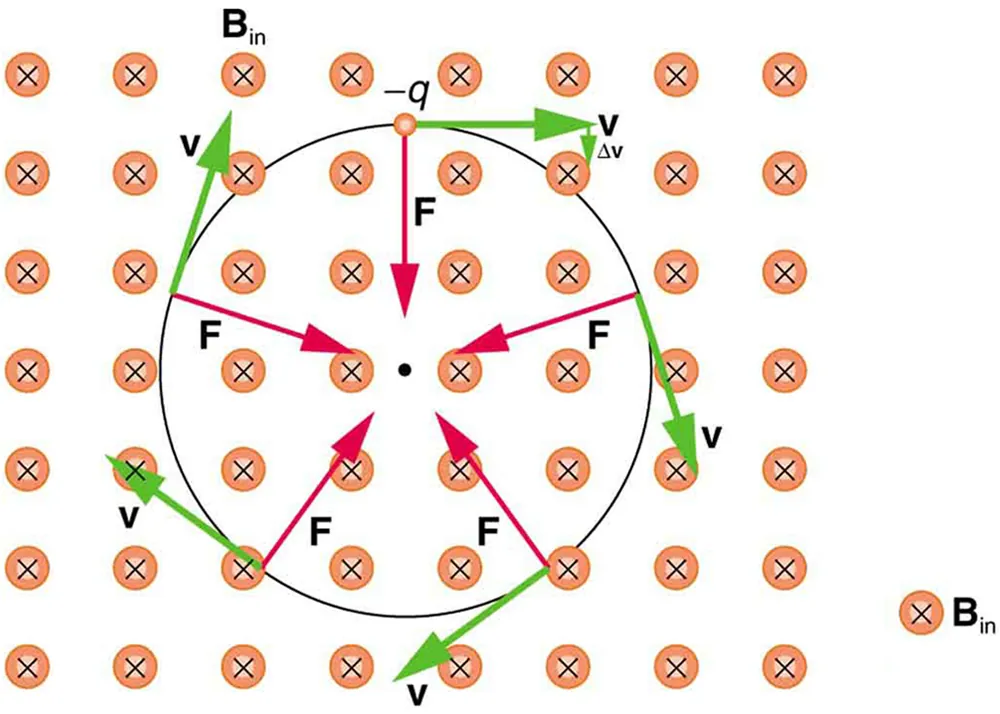

Diagram showing an electrical charge moving clockwise in the plane of the page. Velocity vectors are tangent to the circular path. The magnetic field B is oriented into the page. Force vectors show that the force on the charge is toward the center of the charge’s circular path as the charge moves.
Figure 22.19 A negatively charged particle moves in the plane of the page in a region where the magnetic field is perpendicular into the page (represented by the small circles with x’s—like the tails of arrows). The magnetic force is perpendicular to the velocity, and so velocity changes in direction but not magnitude. Uniform circular motion results.

Because the magnetic force FF supplies the centripetal force FcFc, we have

qvB = mv 2 r . qvB = mv 2 r .
22.6

Solving for rr yields

r = mv qB . r = mv qB .
22.7

Here, rr is the radius of curvature of the path of a charged particle with mass mm and charge qq, moving at a speed vv perpendicular to a magnetic field of strength BB. If the velocity is not perpendicular to the magnetic field, then vv is the component of the velocity perpendicular to the field. The component of the velocity parallel to the field is unaffected, since the magnetic force is zero for motion parallel to the field. This produces a spiral motion rather than a circular one.

Example 22.2

Calculating the Curvature of the Path of an Electron Moving in a Magnetic Field: A Magnet on a TV Screen

A magnet brought near an old-fashioned TV screen such as in Figure 22.20 (TV sets with cathode ray tubes instead of LCD screens) severely distorts its picture by altering the path of the electrons that make its phosphors glow. (Don’t try this at home, as it will permanently magnetize and ruin the TV.) To illustrate this, calculate the radius of curvature of the path of an electron having a velocity of 6.00×107m/s6.00×107m/s (corresponding to the accelerating voltage of about 10.0 kV used in some TVs) perpendicular to a magnetic field of strength B=0.500 TB=0.500 T (obtainable with permanent magnets).

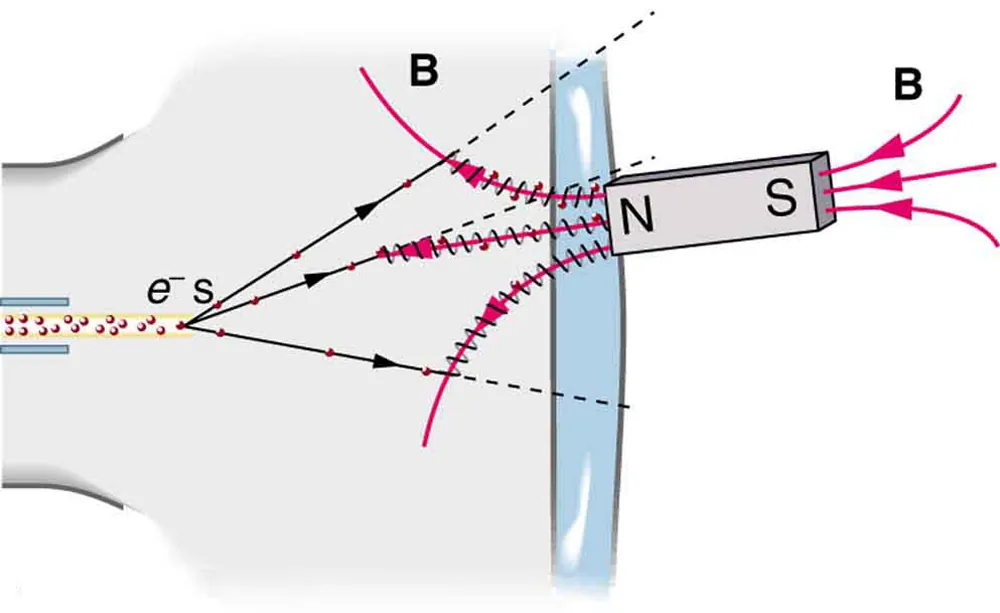

A bar magnet with the north pole set against the glass of a computer monitor. The magnetic field lines are shown running from the south pole through the magnet to the north pole. Paths of electrons that are emanating from the computer monitor are shown moving in straight lines until they encounter the magnetic field of the magnet. At that point, they change course and spiral around the magnetic field lines and toward the magnet.
Figure 22.20 Side view showing what happens when a magnet comes in contact with a computer monitor or TV screen. Electrons moving toward the screen spiral about magnetic field lines, maintaining the component of their velocity parallel to the field lines. This distorts the image on the screen.

Strategy

We can find the radius of curvature rr directly from the equation r = m v q B r = m v q B , since all other quantities in it are given or known.

Solution

Using known values for the mass and charge of an electron, along with the given values of vv and BB gives us

r = mv qB = 9 . 11 × 10 31 kg 6 . 00 × 10 7 m/s 1 . 60 × 10 19 C 0 . 500 T = 6 . 83 × 10 4 m r = mv qB = 9 . 11 × 10 31 kg 6 . 00 × 10 7 m/s 1 . 60 × 10 19 C 0 . 500 T = 6 . 83 × 10 4 m
22.8

or

r=0.683 mm.r=0.683 mm.
22.9

Discussion

The small radius indicates a large effect. The electrons in the TV picture tube are made to move in very tight circles, greatly altering their paths and distorting the image.

Figure 22.21 shows how electrons not moving perpendicular to magnetic field lines follow the field lines. The component of velocity parallel to the lines is unaffected, and so the charges spiral along the field lines. If field strength increases in the direction of motion, the field will exert a force to slow the charges, forming a kind of magnetic mirror, as shown below.

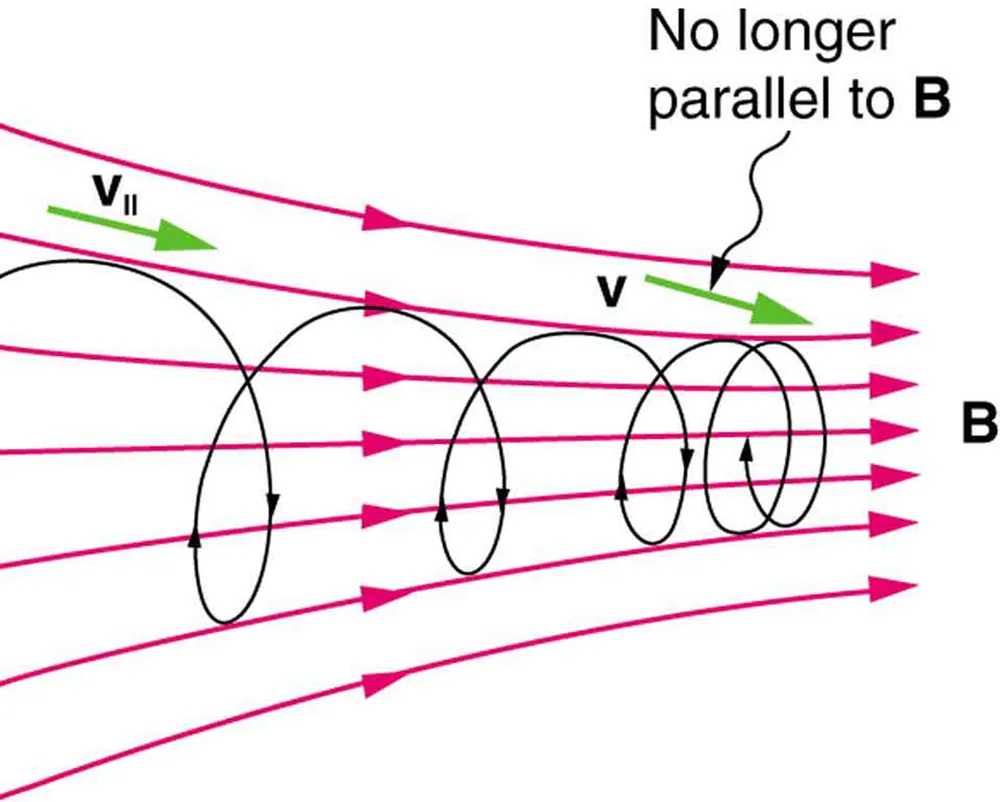

Diagram showing charged particles moving with velocity v along magnetic field lines. The velocity vector of a particle is parallel to the field line when it is in a region of weak magnetic field. When it moves into a stronger region, where field lines are denser, the vector is oriented at an angle to the field lines.
Figure 22.21 When a charged particle moves along a magnetic field line into a region where the field becomes stronger, the particle experiences a force that reduces the component of velocity parallel to the field. This force slows the motion along the field line and here reverses it, forming a “magnetic mirror.”

The properties of charged particles in magnetic fields are related to such different things as the Aurora Australis or Aurora Borealis and particle accelerators. Charged particles approaching magnetic field lines may get trapped in spiral orbits about the lines rather than crossing them, as seen above. Some cosmic rays, for example, follow the Earth’s magnetic field lines, entering the atmosphere near the magnetic poles and causing the southern or northern lights through their ionization of molecules in the atmosphere. This glow of energized atoms and molecules is seen in Introduction to Magnetism. Those particles that approach middle latitudes must cross magnetic field lines, and many are prevented from penetrating the atmosphere. Cosmic rays are a component of background radiation; consequently, they give a higher radiation dose at the poles than at the equator.

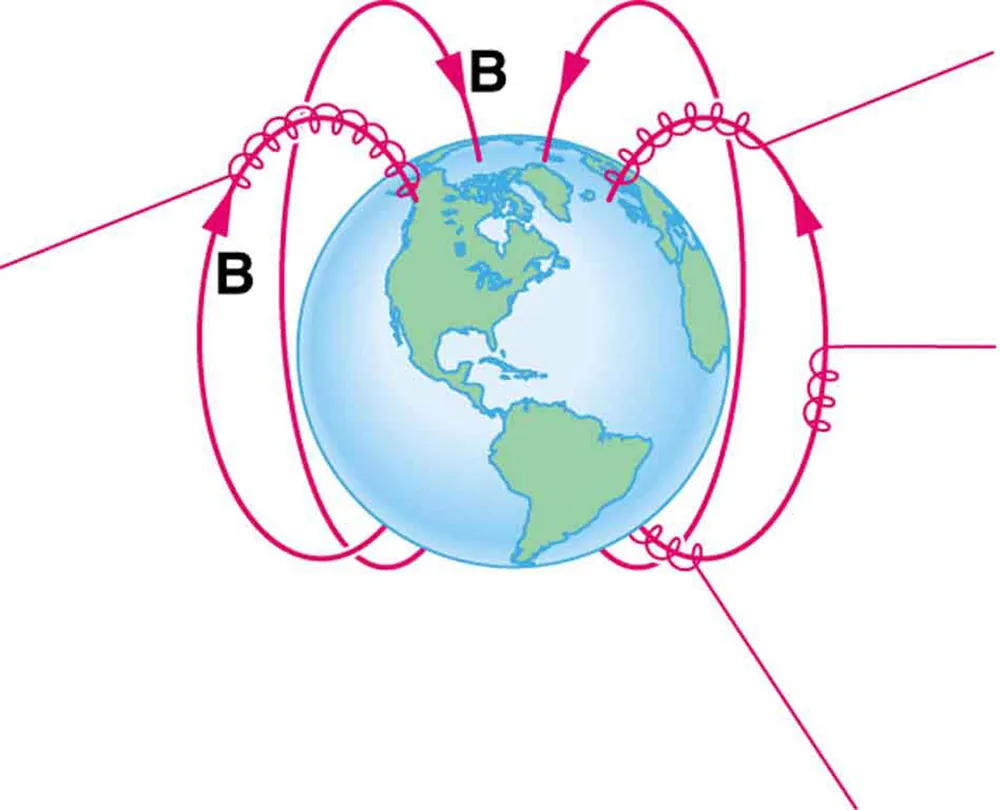

Diagram of the Earth showing its magnetic field lines running from the south pole, out around the Earth and to the north pole, and then through Earth back to the south pole. Charged particles travel on straight line.
Figure 22.22 Energetic electrons and protons, components of cosmic rays, from the Sun and deep outer space often follow the Earth’s magnetic field lines rather than cross them. (Recall that the Earth’s north magnetic pole is really a south pole in terms of a bar magnet.)

Some incoming charged particles become trapped in the Earth’s magnetic field, forming two belts above the atmosphere known as the Van Allen radiation belts after the discoverer James A. Van Allen, an American astrophysicist. (See Figure 22.23.) Particles trapped in these belts form radiation fields (similar to nuclear radiation) so intense that piloted space flights avoid them and satellites with sensitive electronics are kept out of them. In the few minutes it took lunar missions to cross the Van Allen radiation belts, astronauts received radiation doses more than twice the allowed annual exposure for radiation workers. Other planets have similar belts, especially those having strong magnetic fields like Jupiter.

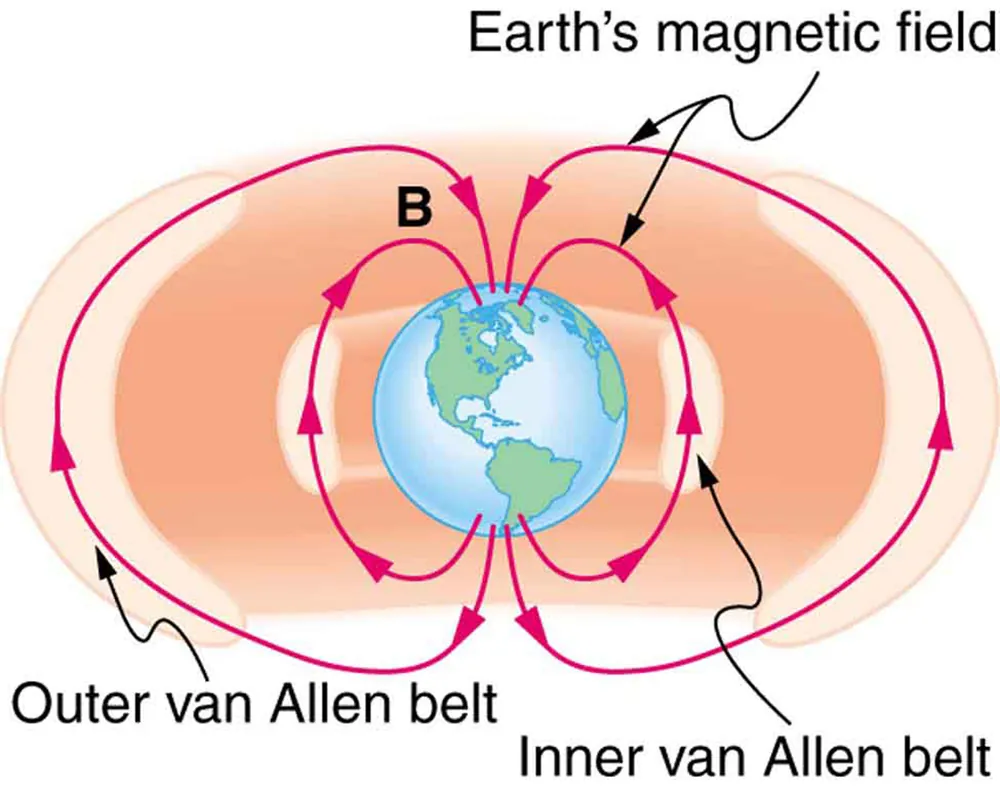

Diagram showing the Earth with magnetic field lines running from the south pole around to the north pole. A region near the Earth circling the equatorial to mid-latitudes and oriented along a magnetic field line is highlighted and labeled Inner Van Allen radiation belt. A region farther out circles the Earth, except in the polar regions, also following the magnetic field lines, and is labeled Outer Van Allen radiation belt.
Figure 22.23 The Van Allen radiation belts are two regions in which energetic charged particles are trapped in the Earth’s magnetic field. One belt lies about 300 km above the Earth’s surface, the other about 16,000 km. Charged particles in these belts migrate along magnetic field lines and are partially reflected away from the poles by the stronger fields there. The charged particles that enter the atmosphere are replenished by the Sun and sources in deep outer space.

Back on Earth, we have devices that employ magnetic fields to contain charged particles. Among them are the giant particle accelerators that have been used to explore the substructure of matter. (See Figure 22.24.) Magnetic fields not only control the direction of the charged particles, they also are used to focus particles into beams and overcome the repulsion of like charges in these beams.

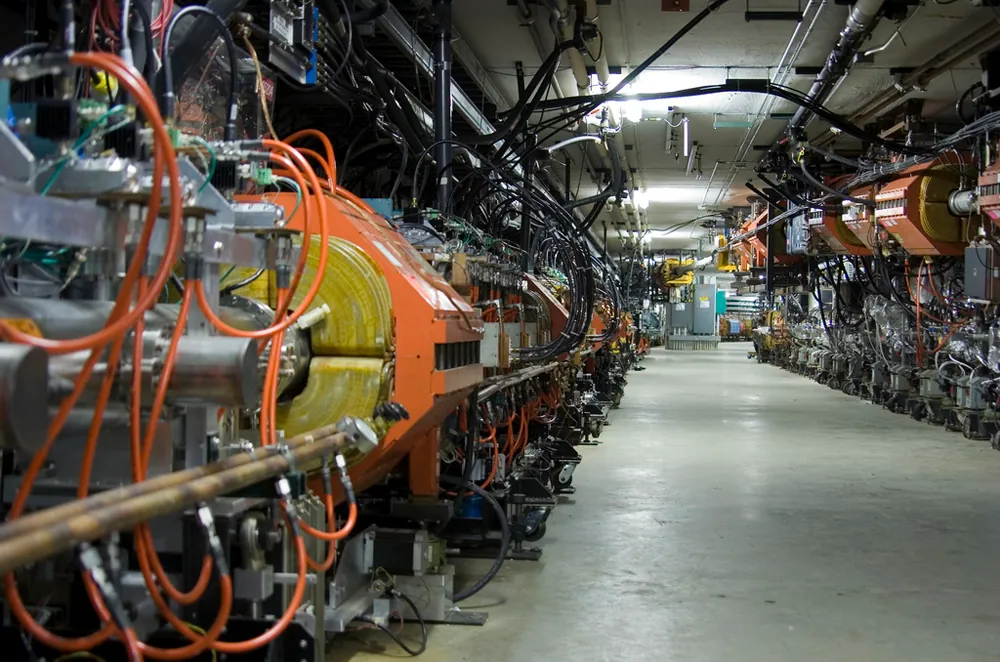

A view of a section of the accelerator at Fermilab. Down each side of a long corridor are tubes surrounded by orange magnets. Lots of tubes and wires and other electronics are visible.
Figure 22.24 The Fermilab facility in Illinois has a large particle accelerator (the most powerful in the world until 2008) that employs magnetic fields (magnets seen here in orange) to contain and direct its beam. This and other accelerators have been in use for several decades and have allowed us to discover some of the laws underlying all matter. (credit: ammcrim, Flickr)

Thermonuclear fusion (like that occurring in the Sun) is a hope for a future clean energy source. One of the most promising devices is the tokamak, which uses magnetic fields to contain (or trap) and direct the reactive charged particles. (See Figure 22.25.) Less exotic, but more immediately practical, amplifiers in microwave ovens use a magnetic field to contain oscillating electrons. These oscillating electrons generate the microwaves sent into the oven.

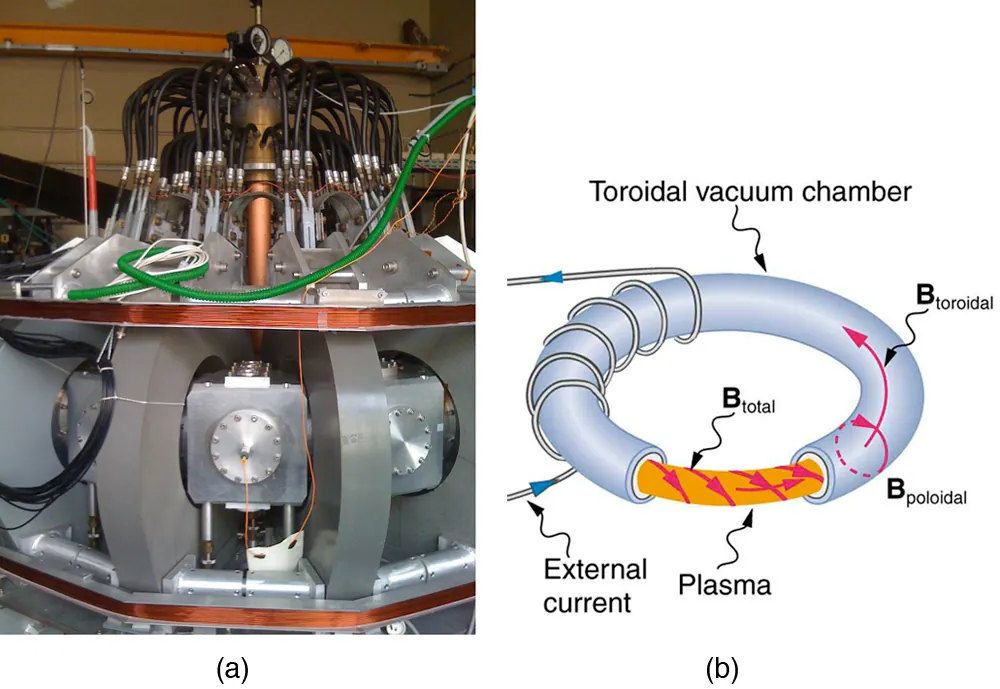

Figure a shows a tokamak in a lab. Figure b is a diagram of a tokamak. A current-carrying wire wraps around a donut-shaped vacuum chamber. Inside the chamber is plasma. The magnetic field has a toroidal and poloidal shape inside the chamber.
Figure 22.25 Tokamaks such as the one shown in the figure are being studied with the goal of economical production of energy by nuclear fusion. Magnetic fields in the doughnut-shaped device contain and direct the reactive charged particles. (credit: David Mellis, Flickr)

Mass spectrometers have a variety of designs, and many use magnetic fields to measure mass. The curvature of a charged particle’s path in the field is related to its mass and is measured to obtain mass information. (See More Applications of Magnetism.) Historically, such techniques were employed in the first direct observations of electron charge and mass. Today, mass spectrometers (sometimes coupled with gas chromatographs) are used to determine the make-up and sequencing of large biological molecules.
