22.1 Magnets

College Physics for AP® Courses 2e22.1 Magnets

Learning Objectives

By the end of this section, you will be able to:

  • Describe the difference between the north and south poles of a magnet.
  • Describe how magnetic poles interact with each other.

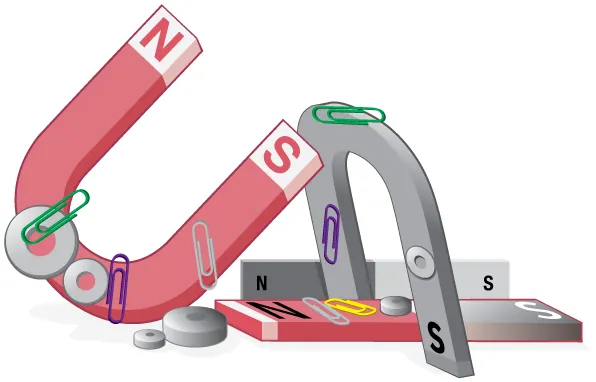

Bar magnets, horseshoe magnets, and disc-shaped magnets attract and repel each other. Metal paperclips stick to some of the magnets.
Figure 22.3 Magnets come in various shapes, sizes, and strengths. All have both a north pole and a south pole. There is never an isolated pole (a monopole).

All magnets attract iron, such as that in a refrigerator door. However, magnets may attract or repel other magnets. Experimentation shows that all magnets have two poles. If freely suspended, one pole will point toward the north. The two poles are thus named the north magnetic pole and the south magnetic pole (or more properly, north-seeking and south-seeking poles, for the attractions in those directions).

Universal Characteristics of Magnets and Magnetic Poles

It is a universal characteristic of all magnets that like poles repel and unlike poles attract. (Note the similarity with electrostatics: unlike charges attract and like charges repel.)

Further experimentation shows that it is impossible to separate north and south poles in the manner that + and − charges can be separated.

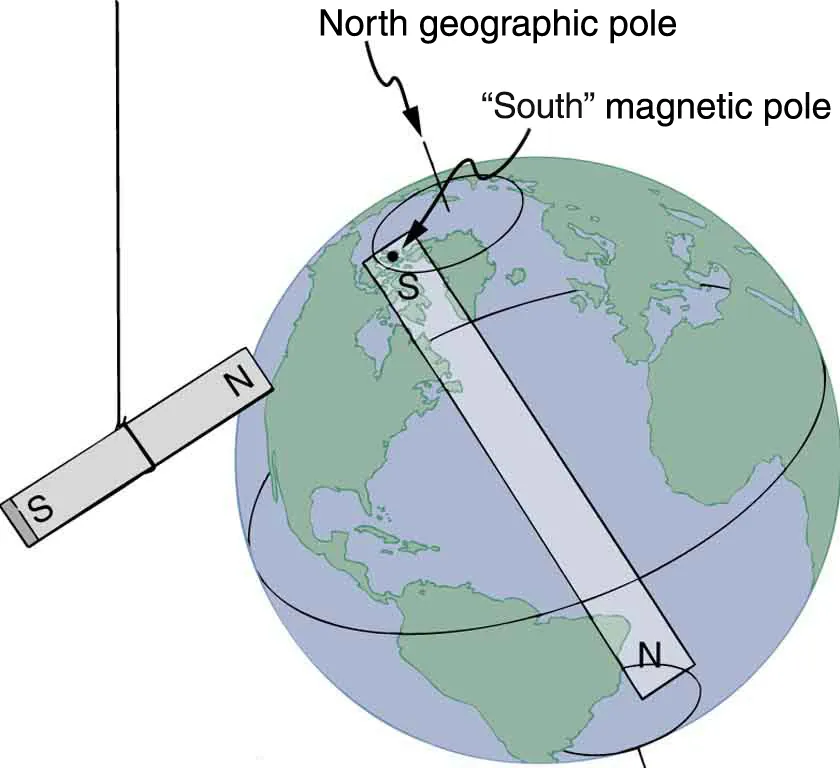

A globe of the Earth with a bar magnet inside it. The south pole of the bar magnet inside the globe is at the south magnetic pole and is near, but not exactly on, the north geographic pole. The north pole of the bar magnet inside the globe is near the south geographic pole. Another bar magnet hangs beside the globe. The north pole of this magnet is pointing toward the north pole of the globe (or the south pole of the magnet inside the globe).
Figure 22.4 One end of a bar magnet is suspended from a thread that points toward north. The magnet’s two poles are labeled N and S for north-seeking and south-seeking poles, respectively.

Misconception Alert: Earth’s Magnetic Poles

Earth acts like a very large bar magnet with its south-seeking pole near the geographic North Pole. That is why the north pole of your compass is attracted toward the geographic north pole of Earth—because the magnetic pole that is near the geographic North Pole is actually a south magnetic pole! Confusion arises because the geographic term “North Pole” has come to be used (incorrectly) for the magnetic pole that is near the North Pole. Thus, “north magnetic pole” is actually a misnomer—it should be called the south magnetic pole.

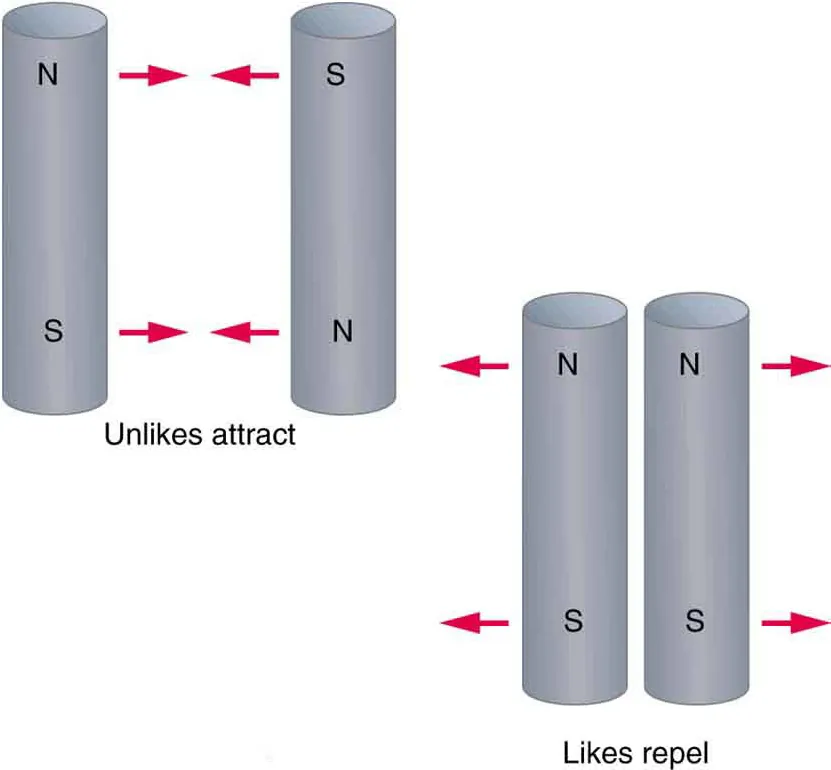

Two sets of bar magnets. The first set of magnets are oriented with the unlike poles adjacent to each other. Force arrows show that these magnets are pulling on each other. The second set of magnets is oriented with the like poles adjacent to each other. Force arrows show that these magnets are pushing each other away.
Figure 22.5 Unlike poles attract, whereas like poles repel.

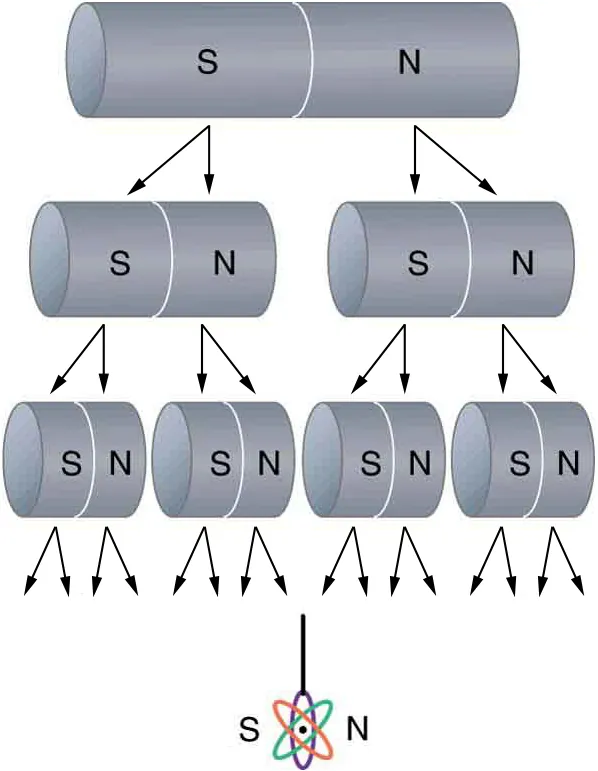

A bar magnet is split in half several times. The original magnet has a south pole and a north pole. Each time the magnet is split, each new half has both a south pole and a north pole.
Figure 22.6 North and south poles always occur in pairs. Attempts to separate them result in more pairs of poles. If we continue to split the magnet, we will eventually get down to an iron atom with a north pole and a south pole—these, too, cannot be separated.

The fact that magnetic poles always occur in pairs of north and south is true from the very large scale—for example, sunspots always occur in pairs that are north and south magnetic poles—all the way down to the very small scale. Magnetic atoms have both a north pole and a south pole, as do many types of subatomic particles, such as electrons, protons, and neutrons.

Making Connections: Take-Home Experiment—Refrigerator Magnets

We know that like magnetic poles repel and unlike poles attract. See if you can show this for two refrigerator magnets. Will the magnets stick if you turn them over? Why do they stick to the door anyway? What can you say about the magnetic properties of the door next to the magnet? Do refrigerator magnets stick to metal or plastic spoons? Do they stick to all types of metal?
