Learning Objectives

By the end of this section, you will be able to:

Calculate the total force (magnitude and direction) exerted on a test charge from more than one charge
Describe an electric field diagram of a positive point charge; of a negative point charge with twice the magnitude of positive charge
Draw the electric field lines between two points of the same charge; between two points of opposite charge.

Drawings using lines to represent electric fields around charged objects are very useful in visualizing field strength and direction. Since the electric field has both magnitude and direction, it is a vector. Like all vectors, the electric field can be represented by an arrow that has length proportional to its magnitude and that points in the correct direction. (We have used arrows extensively to represent force vectors, for example.)

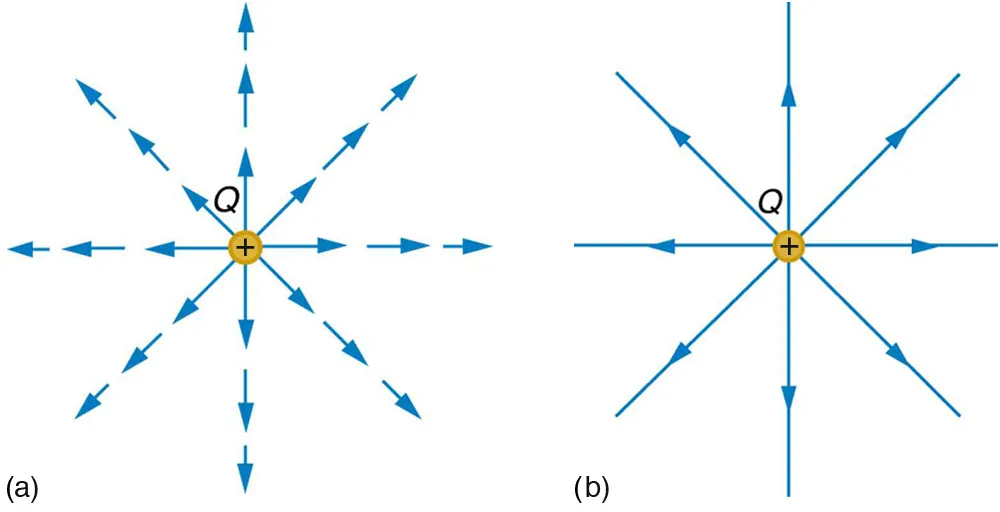

Figure 18.27 shows two pictorial representations of the same electric field created by a positive point charge $Q$ . Figure 18.27 (b) shows the standard representation using continuous lines. Figure 18.27 (a) shows numerous individual arrows with each arrow representing the force on a test charge $q$ . Field lines are essentially a map of infinitesimal force vectors.

In part a, electric field lines emanating from the charge Q are shown by the vector arrows pointing outward in every direction of two dimensional space. In part b, electric field lines emanating from the charge Q are shown by the vector arrows pointing outward in every direction of two dimensional space.

Figure 18.27 Two equivalent representations of the electric field due to a positive charge

Q

. (a) Arrows representing the electric field’s magnitude and direction. (b) In the standard representation, the arrows are replaced by continuous field lines having the same direction at any point as the electric field. The closeness of the lines is directly related to the strength of the electric field. A test charge placed anywhere will feel a force in the direction of the field line; this force will have a strength proportional to the density of the lines (being greater near the charge, for example).

Note that the electric field is defined for a positive test charge $q$ , so that the field lines point away from a positive charge and toward a negative charge. (See Figure 18.28.) The electric field strength is exactly proportional to the number of field lines per unit area, since the magnitude of the electric field for a point charge is $E = k | Q | / r^{2}$ and area is proportional to $r^{2}$ . This pictorial representation, in which field lines represent the direction and their closeness (that is, their areal density or the number of lines crossing a unit area) represents strength, is used for all fields: electrostatic, gravitational, magnetic, and others.

In part a, electric field lines emanating from a positive charge is shown by the vector arrows in all direction of two dimensional space and the density of these field lines is less. In part b, electric field lines entering the negative charge is shown by the vector arrows coming from all direction of two dimensional space and the density of these field lines is less. In part c, electric field lines entering the negative charge is shown by the vector arrows coming from all direction of two dimensional space and the density of these field lines is large.

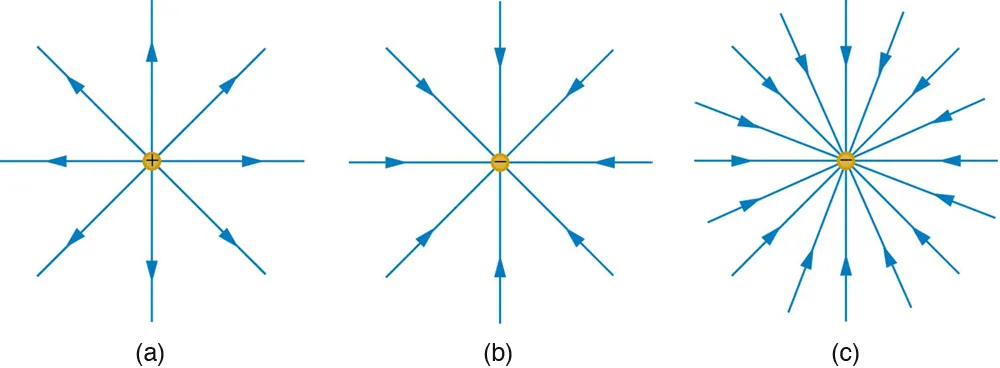

Figure 18.28 The electric field surrounding three different point charges. (a) A positive charge. (b) A negative charge of equal magnitude. (c) A larger negative charge.

In many situations, there are multiple charges. The total electric field created by multiple charges is the vector sum of the individual fields created by each charge. The following example shows how to add electric field vectors.

Example 18.4

Adding Electric Fields

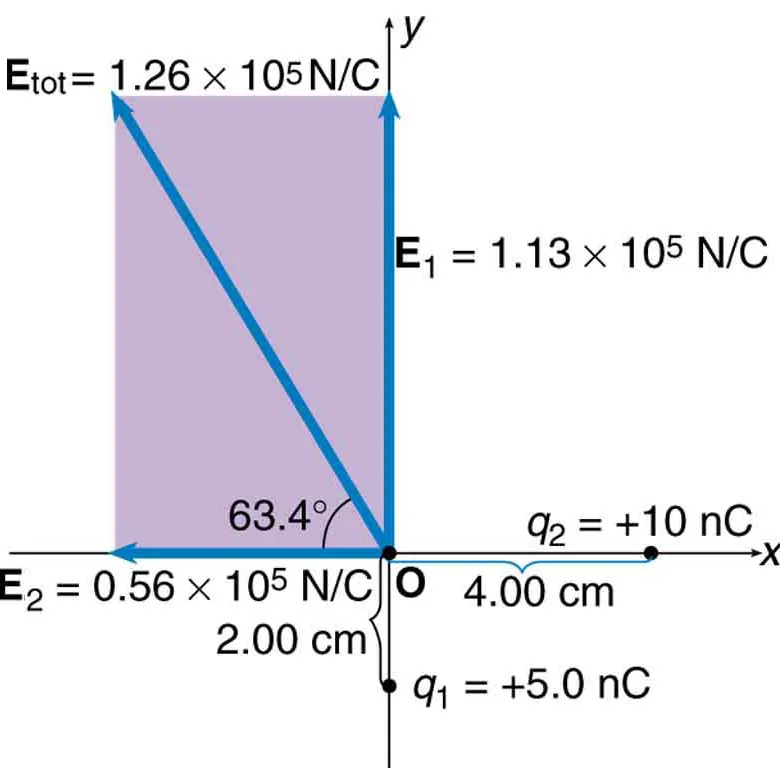

Find the magnitude and direction of the total electric field due to the two point charges, $q_{1}$ and $q_{2}$ , at the origin of the coordinate system as shown in Figure 18.29.

Two charges are placed on a coordinate axes. Q two is at the position x equals 4 and y equals 0 centimeters. Q one is at the position x equals 0 and y equals two centimeters. Charge on q one is plus five point zero nano coulomb and charge on q two is plus ten nano coulomb. The electric field, E one having a magnitude of one point one three multiplied by ten raise to the power five Newton per coulomb is represented by a vector arrow along positive y axis starting from the origin. The electric field, E two having magnitude zero point five six multiplied by ten raise to the power five Newton per coulomb is represented by a vector arrow along negative x axis starting from the origin. The resultant field makes an angle of sixty three point four degree above the negative y axis having magnitude one point two six multiplied by ten raise to the power five Newton per coulomb is represented by a vector arrow pointing away from the origin in the second quadrant.

Figure 18.29 The electric fields

E_{1}

and

E_{2}

at the origin O add to

E_{tot}

.

Strategy

Since the electric field is a vector (having magnitude and direction), we add electric fields with the same vector techniques used for other types of vectors. We first must find the electric field due to each charge at the point of interest, which is the origin of the coordinate system (O) in this instance. We pretend that there is a positive test charge, $q$ , at point O, which allows us to determine the direction of the fields $E_{1}$ and $E_{2}$ . Once those fields are found, the total field can be determined using vector addition.

Solution

The electric field strength at the origin due to $q_{1}$ is labeled $E_{1}$ and is calculated:

\begin{array}{l} E_{1} = k \frac{q_{1}}{r_{1}^{2}} = (8 . 99 \times 10^{9} N \cdot m^{2} {/C}^{2}) \frac{(5 . 00 \times 10^{- 9} C)}{{(2 . 00 \times 10^{- 2} m)}^{2}} \\ E_{1} = 1 . 124 \times 10^{5} N/C . \end{array}

18.16

Similarly, $E_{2}$ is

\begin{array}{l} E_{2} = k \frac{q_{2}}{r_{2}^{2}} = (8 . 99 \times 10^{9} N \cdot m^{2} {/C}^{2}) \frac{(10 . 0 \times 10^{- 9} C)}{{(4 . 00 \times 10^{- 2} m)}^{2}} \\ E_{2} = 0 . 5619 \times 10^{5} N/C . \end{array}

18.17

Four digits have been retained in this solution to illustrate that $E_{1}$ is exactly twice the magnitude of $E_{2}$ . Now arrows are drawn to represent the magnitudes and directions of $E_{1}$ and $E_{2}$ . (See Figure 18.29.) The direction of the electric field is that of the force on a positive charge so both arrows point directly away from the positive charges that create them. The arrow for $E_{1}$ is exactly twice the length of that for $E_{2}$ . The arrows form a right triangle in this case and can be added using the Pythagorean theorem. The magnitude of the total field $E_{tot}$ is

\begin{array}{l} E_{tot} & = & (E_{1}^{2} + E_{2}^{2})^{1/2} \\ = & {(1.124 \times 10^{5} N/C)^{2} + (0.5619 \times 10^{5} N/C)^{2}}^{1/2} \\ = & 1.26 \times 10^{5} N/C. \end{array}

18.18

The direction is

\begin{array}{l} θ & = & {tan}^{- 1} (\frac{E_{1}}{E_{2}}) \\ = & {tan}^{- 1} (\frac{1 . 124 \times 10^{5} N/C}{0 . 5619 \times 10^{5} N/C}) \\ = & 63 . 4º, \end{array}

18.19

or $63.4º$ above the x-axis.

Discussion

In cases where the electric field vectors to be added are not perpendicular, vector components or graphical techniques can be used. The total electric field found in this example is the total electric field at only one point in space. To find the total electric field due to these two charges over an entire region, the same technique must be repeated for each point in the region. This impossibly lengthy task (there are an infinite number of points in space) can be avoided by calculating the total field at representative points and using some of the unifying features noted next.

Figure 18.30 shows how the electric field from two point charges can be drawn by finding the total field at representative points and drawing electric field lines consistent with those points. While the electric fields from multiple charges are more complex than those of single charges, some simple features are easily noticed.

For example, the field is weaker between like charges, as shown by the lines being farther apart in that region. (This is because the fields from each charge exert opposing forces on any charge placed between them.) (See Figure 18.30 and Figure 18.31(a).) Furthermore, at a great distance from two like charges, the field becomes identical to the field from a single, larger charge.

Figure 18.31(b) shows the electric field of two unlike charges. The field is stronger between the charges. In that region, the fields from each charge are in the same direction, and so their strengths add. The field of two unlike charges is weak at large distances, because the fields of the individual charges are in opposite directions and so their strengths subtract. At very large distances, the field of two unlike charges looks like that of a smaller single charge.

Two charges q one and q two are placed at a distance and their field lines shown by curved arrows move away from each other. At a point P on the field lines emanating from q one, the resultant electric field is represented by a vector arrow tangent to the curve representing this field line. A point P prime on a field line emanating from the charge q two and the resultant electric field is represented by a vector arrow tangent to the curve representing this field line.

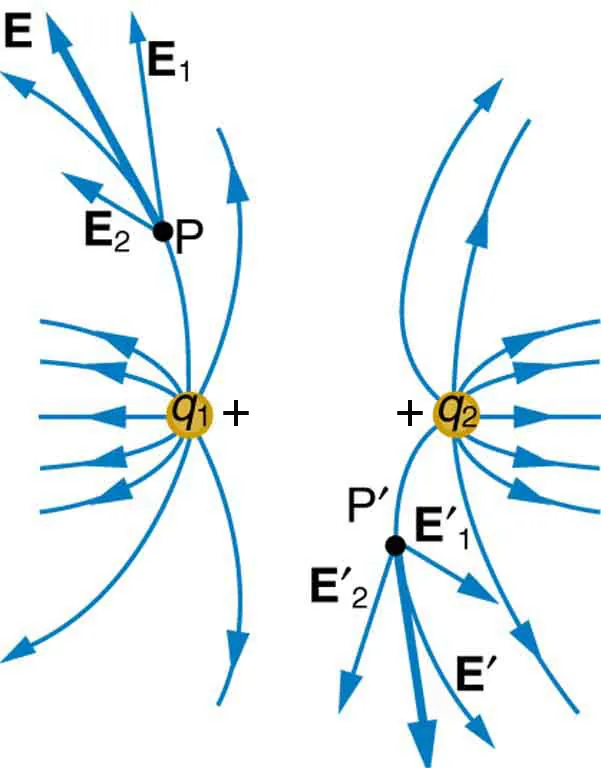

Figure 18.30 Two positive point charges

q_{1}

and

q_{2}

produce the resultant electric field shown. The field is calculated at representative points and then smooth field lines drawn following the rules outlined in the text.

In part a, two negative charges of magnitude minus q are placed at some distance. Their field lines are represented by curved arrows terminating into the negative charges. The curves are divergent. In part b, two charges are placed at a distance where one is positive labeled as plus q and other is negative labeled as minus q. The field lines represented by curved arrows start from the positive charge and end at the negative charge. The curves are convergent.

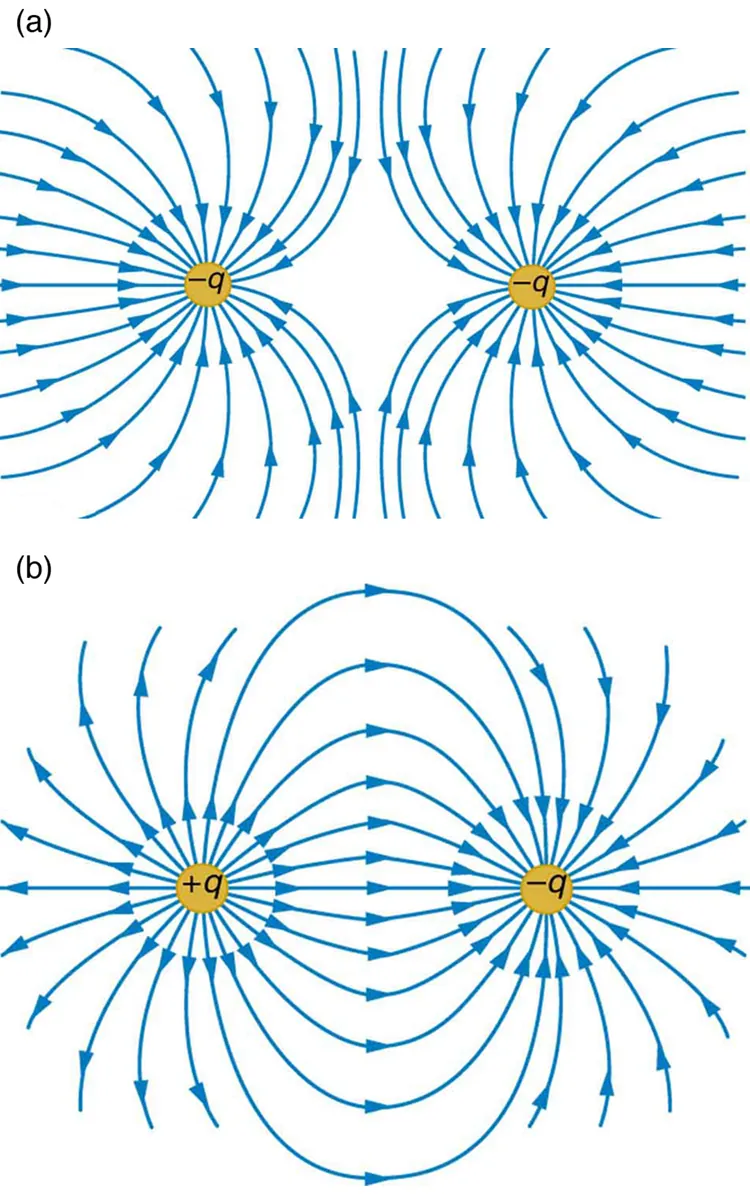

Figure 18.31 (a) Two negative charges produce the fields shown. It is very similar to the field produced by two positive charges, except that the directions are reversed. The field is clearly weaker between the charges. The individual forces on a test charge in that region are in opposite directions. (b) Two opposite charges produce the field shown, which is stronger in the region between the charges.

We use electric field lines to visualize and analyze electric fields (the lines are a pictorial tool, not a physical entity in themselves). The properties of electric field lines for any charge distribution can be summarized as follows:

Field lines must begin on positive charges and terminate on negative charges, or at infinity in the hypothetical case of isolated charges.
The number of field lines leaving a positive charge or entering a negative charge is proportional to the magnitude of the charge.
The strength of the field is proportional to the closeness of the field lines—more precisely, it is proportional to the number of lines per unit area perpendicular to the lines.
The direction of the electric field is tangent to the field line at any point in space.
Field lines can never cross.

The last property means that the field is unique at any point. The field line represents the direction of the field; so if they crossed, the field would have two directions at that location (an impossibility if the field is unique).
