Chapter 4

The protons in the nucleus do not change during normal chemical reactions. Only the outer electrons move. Positive charges form when electrons are lost.

P, I, Cl, and O would form anions because they are nonmetals. Mg, In, Cs, Pb, and Co would form cations because they are metals.

(a) P^3–; (b) Mg²⁺; (c) Al³⁺; (d) O^2–; (e) Cl^–; (f) Cs⁺

(a) [Ar]4s²3d¹⁰4p⁶; (b) [Kr]4d¹⁰5s²5p⁶ (c) 1s² (d) [Kr]4d¹⁰; (e) [He]2s²2p⁶; (f) [Ar]3d¹⁰; (g) 1s² (h) [He]2s²2p⁶ (i) [Kr]4d¹⁰5s² (j) [Ar]3d⁷ (k) [Ar]3d⁶, (l) [Ar]3d¹⁰4s²

(a) 1s²2s²2p⁶3s²3p¹; Al³⁺: 1s²2s²2p⁶; (b) 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p⁵; 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p⁶; (c) 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p⁶5s²; Sr²⁺: 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p⁶; (d) 1s²2s¹; Li⁺: 1s²; (e) 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p³; 1s²2s²2p⁶3s²3p⁶3d¹⁰4s²4p⁶; (f) 1s²2s²2p⁶3s²3p⁴; 1s²2s²2p⁶3s²3p⁶

NaCl consists of discrete ions arranged in a crystal lattice, not covalently bonded molecules.

ionic: (b), (d), (e), (g), and (i); covalent: (a), (c), (f), (h), (j), and (k)

(a) Cl; (b) O; (c) O; (d) S; (e) N; (f) P; (g) N

(a) H, C, N, O, F; (b) H, I, Br, Cl, F; (c) H, P, S, O, F; (d) Na, Al, H, P, O; (e) Ba, H, As, N, O

N, O, F, and Cl

(a) HF; (b) CO; (c) OH; (d) PCl; (e) NH; (f) PO; (g) CN

(a) cesium chloride; (b) barium oxide; (c) potassium sulfide; (d) beryllium chloride; (e) hydrogen bromide; (f) aluminum fluoride

(a) RbBr; (b) MgSe; (c) Na₂O; (d) CaCl₂; (e) HF; (f) GaP; (g) AlBr₃; (h) (NH₄)₂SO₄

(a) ClO₂; (b) N₂O₄; (c) K₃P; (d) Ag₂S; (e) AIF₃∙3H₂O; (f) SiO₂

(a) chromium(III) oxide; (b) iron(II) chloride; (c) chromium(VI) oxide; (d) titanium(IV) chloride; (e) cobalt(II) chloride hexahydrate; (f) molybdenum(IV) sulfide

(a) K₃PO₄; (b) CuSO₄; (c) CaCl₂; (d) TiO₂; (e) NH₄NO₃; (f) NaHSO₄

(a) manganese(IV) oxide; (b) mercury(I) chloride; (c) iron(III) nitrate; (d) titanium(IV) chloride; (e) copper(II) bromide

(a) eight electrons:

(b) eight electrons:

(c) no electrons Be²⁺
(d) eight electrons:

(e) no electrons Ga³⁺
(f) no electrons Li⁺
(g) eight electrons:

(a)

(b)

(c)

(d)

(e)

(f)

(a)

In this case, the Lewis structure is inadequate to depict the fact that experimental studies have shown two unpaired electrons in each oxygen molecule.
(b)

(c)

(d)

(e)

(f)

(g)

(h)

(i)

(j)

(k)

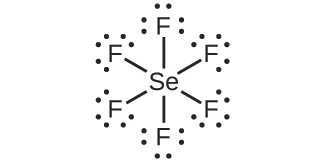

(a) SeF₆:

(b) XeF₄:

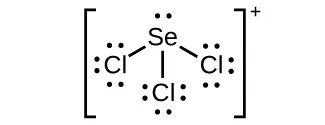

(c) ${\text{SeCl}}_3{}^{\text{+}}\text{:}$

(d) Cl₂BBCl₂:

Two valence electrons per Pb atom are transferred to Cl atoms; the resulting Pb²⁺ ion has a 6s² valence shell configuration. Two of the valence electrons in the HCl molecule are shared, and the other six are located on the Cl atom as lone pairs of electrons.

(a)

(b)

(c)

(d)

(e)

Each bond includes a sharing of electrons between atoms. Two electrons are shared in a single bond; four electrons are shared in a double bond; and six electrons are shared in a triple bond.

(a)

(b)

(c)

(d)

(e)

(a)

(b)

CO has the strongest carbon-oxygen bond because there is a triple bond joining C and O. CO₂ has double bonds.

(a) H: 0, Cl: 0; (b) C: 0, F: 0; (c) P: 0, Cl 0; (d) P: 0, F: 0

Cl in Cl₂: 0; Cl in BeCl₂: 0; Cl in ClF₅: 0

(a)

(b)

(c)

(d)

HOCl

The structure that gives zero formal charges is consistent with the actual structure:

NF₃;

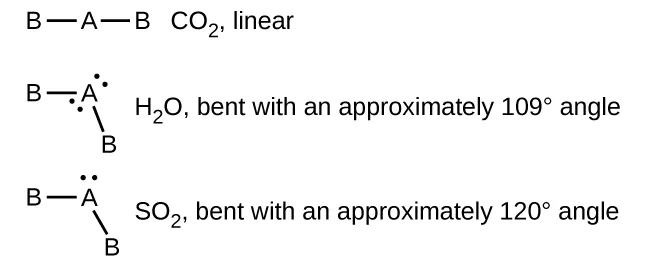

The placement of the two sets of unpaired electrons in water forces the bonds to assume a tetrahedral arrangement, and the resulting HOH molecule is bent. The HBeH molecule (in which Be has only two electrons to bond with the two electrons from the hydrogens) must have the electron pairs as far from one another as possible and is therefore linear.

Space must be provided for each pair of electrons whether they are in a bond or are present as lone pairs. Electron-pair geometry considers the placement of all electrons. Molecular structure considers only the bonding-pair geometry.

As long as the polar bonds are compensated (for example. two identical atoms are found directly across the central atom from one another), the molecule can be nonpolar.

(a) Both the electron geometry and the molecular structure are octahedral. (b) Both the electron geometry and the molecular structure are trigonal bipyramid. (c) Both the electron geometry and the molecular structure are linear. (d) Both the electron geometry and the molecular structure are trigonal planar.

(a) electron-pair geometry: octahedral, molecular structure: square pyramidal; (b) electron-pair geometry: tetrahedral, molecular structure: bent; (c) electron-pair geometry: octahedral, molecular structure: square planar; (d) electron-pair geometry: tetrahedral, molecular structure: trigonal pyramidal; (e) electron-pair geometry: trigonal bypyramidal, molecular structure: seesaw; (f) electron-pair geometry: tetrahedral, molecular structure: bent (109°)

(a) electron-pair geometry: trigonal planar, molecular structure: bent (120°); (b) electron-pair geometry: linear, molecular structure: linear; (c) electron-pair geometry: trigonal planar, molecular structure: trigonal planar; (d) electron-pair geometry: tetrahedral, molecular structure: trigonal pyramidal; (e) electron-pair geometry: tetrahedral, molecular structure: tetrahedral; (f) electron-pair geometry: trigonal bipyramidal, molecular structure: seesaw; (g) electron-pair geometry: tetrahedral, molecular structure: trigonal pyramidal

All of these molecules and ions contain polar bonds. Only ClF₅, ${\text{ClO}}_2{}^{\text{−}},$ PCl₃, SeF₄, and ${\text{PH}}_2{}^{\text{−}}$ have dipole moments.

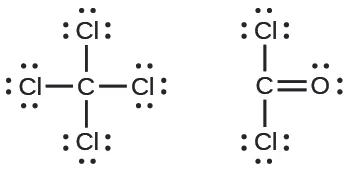

SeS₂, CCl₂F₂, PCl₃, and ClNO all have dipole moments.

P

nonpolar

(a) tetrahedral; (b) trigonal pyramidal; (c) bent (109°); (d) trigonal planar; (e) bent (109°); (f) bent (109°); (g) CH₃CCH tetrahedral, CH₃CCH linear; (h) tetrahedral; (i) H₂CCCH₂ linear; H₂CCCH₂ trigonal planar

(a)

(b)

(c)

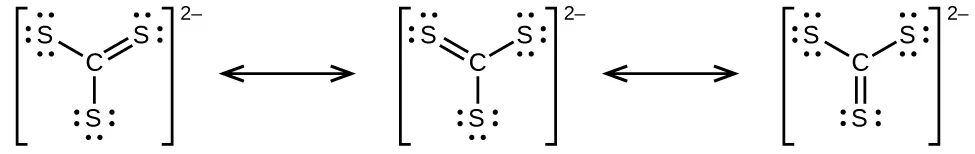

(d) ${\text{CS}}_3{}^{\text{2−}}$ includes three regions of electron density (all are bonds with no lone pairs); the shape is trigonal planar; CS₂ has only two regions of electron density (all bonds with no lone pairs); the shape is linear

The Lewis structure is made from three units, but the atoms must be rearranged:

The molecular dipole points away from the hydrogen atoms.

The structures are very similar. In the model mode, each electron group occupies the same amount of space, so the bond angle is shown as 109.5°. In the “real” mode, the lone pairs are larger, causing the hydrogens to be compressed. This leads to the smaller angle of 104.5°.
