Learning Objectives

In this section, you will explore the following question:

How do carbohydrate metabolic pathways, glycolysis, and the citric acid cycle interrelate with protein and lipid metabolism pathways?

Connection for AP^® Courses

The breakdown and synthesis of carbohydrates, proteins, lipids, and nucleic acids connect with the metabolic pathways of glycolysis and the citric acid cycle but enter the pathways at different points. Thus, these macromolecules can be used as sources of free energy.

Information presented and the examples highlighted in the section support concepts and Learning Objectives outlined in Big Idea 2 of the AP^® Biology Curriculum Framework, as shown in the table. The Learning Objectives listed in the Curriculum Framework provide a transparent foundation for the AP^® Biology course, an inquiry-based laboratory experience, instructional activities, and AP^® exam questions. A Learning Objective merges required content with one or more of the seven Science Practices.

Essential Knowledge	2.A.2 Organisms capture and store free energy for use in biological processes.
Science Practice	6.2 The student can construct explanations of phenomena based on evidence produced through scientific practices.
Learning Objective	2.5 The student is able to construct explanations of the mechanisms and structural features of cells that allow organisms to capture, store, or use free energy.
Essential Knowledge	2.A.1 All living systems require constant input of free energy.
Science Practice	6.1 The student can justify claims with evidence.
Learning Objective	2.2 The student is able to justify a scientific claim that free energy is required for living systems to maintain organization, to grow or to reproduce, but that multiple strategies exist in different living systems.

Teacher Support

Discuss with students how metabolic reactions include both the breakdown of molecules and the synthesis of larger molecules. For example as discussed in Anatomy and Physiology here.

Metabolic processes are constantly taking place in the body. Metabolism is the sum of all of the chemical reactions that are involved in catabolism and anabolism. The reactions governing the breakdown of food to obtain energy are called catabolic reactions. Conversely, anabolic reactions use the energy produced by catabolic reactions to synthesize larger molecules from smaller ones, such as when the body forms proteins by stringing together amino acids. Both sets of reactions are critical to maintaining life.

Because catabolic reactions produce energy and anabolic reactions use energy, ideally, energy usage would balance the energy produced. If the net energy change is positive (catabolic reactions release more energy than the anabolic reactions use), then the body stores the excess energy by building fat molecules for long-term storage. On the other hand, if the net energy change is negative (catabolic reactions release less energy than anabolic reactions use), the body uses stored energy to compensate for the deficiency of energy released by catabolism.

Have students create a visual representation of the interaction of various metabolic pathways. For example:

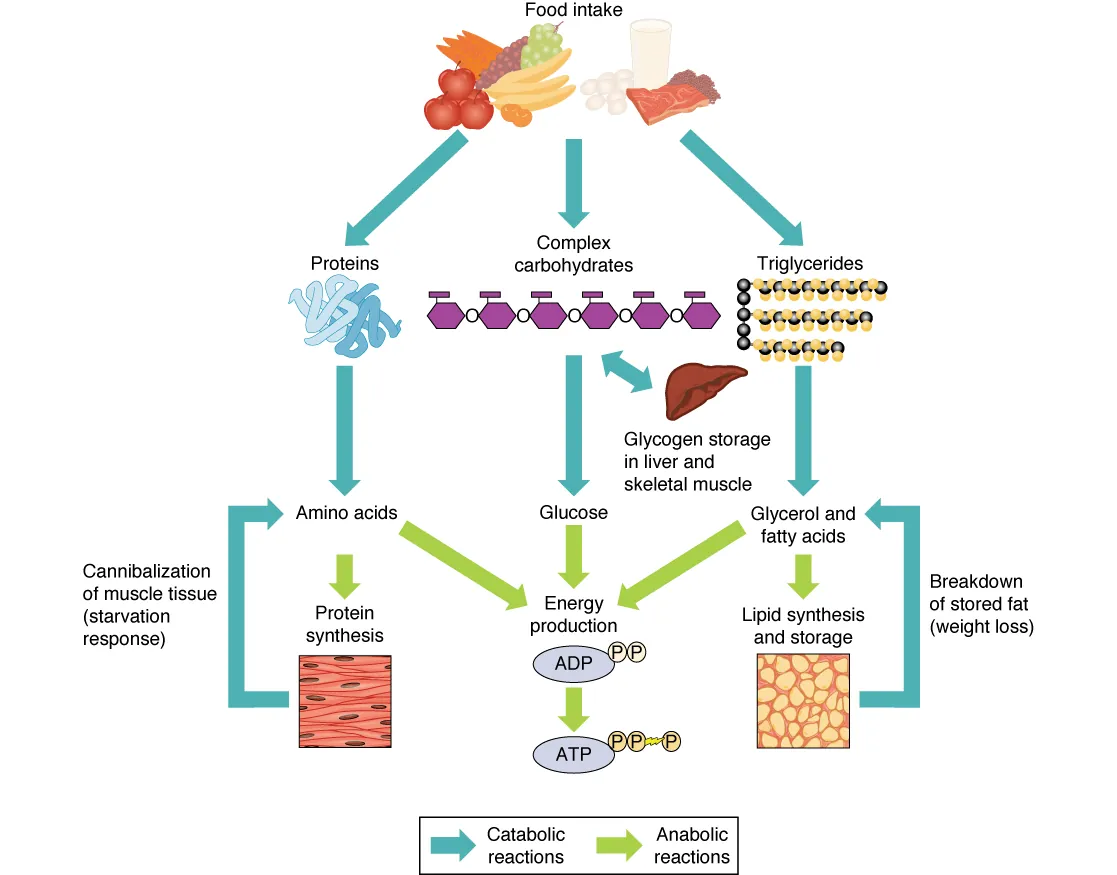

This flowchart shows the various reactions converting food to energy and the breakdown of fat and muscle to produce energy. Catabolic reactions occur in the breakdown of food, proteins, carbohydrates, and triglycerides into amino acids, glycogen and glucose, and glycerol and fatty acids. Catabolic reactions are also involved in cannibalization of muscle tissue to amino acids in a starvation response, and the breakdown of stored fat to glycerol and fatty acids. Anabolic reactions convert amino acids, glucose and glycerol and fatty acids to ADP. The conversion of ADP to ATP is also an anabolic reaction.

Figure 7.17

The Science Practice Challenge Questions contain additional test questions for this section that will help you prepare for the AP exam. These questions address the following standards:
[APLO 2.5][APLO 2.15][APLO 3.20][APLO 1.5][APLO 1.26][APLO 4.18]

You have learned about the catabolism of glucose, which provides energy to living cells. But living things consume more than glucose for food. How does a turkey sandwich end up as ATP in your cells? This happens because all of the catabolic pathways for carbohydrates, proteins, and lipids eventually connect into glycolysis and the citric acid cycle pathways (see Figure 7.18). Metabolic pathways should be thought of as porous—that is, substances enter from other pathways, and intermediates leave for other pathways. These pathways are not closed systems. Many of the substrates, intermediates, and products in a particular pathway are reactants in other pathways.

Connections of Other Sugars to Glucose Metabolism

Glycogen, a polymer of glucose, is an energy storage molecule in animals. When there is adequate ATP present, excess glucose is shunted into glycogen for storage. Glycogen is made and stored in both liver and muscle. The glycogen will be hydrolyzed into glucose 1-phosphate monomers (G-1-P) if blood sugar levels drop. The presence of glycogen as a source of glucose allows ATP to be produced for a longer period of time during exercise. Glycogen is broken down into G-1-P and converted into G-6-P in both muscle and liver cells, and this product enters the glycolytic pathway.

Sucrose is a disaccharide with a molecule of glucose and a molecule of fructose bonded together with a glycosidic linkage. Fructose is one of the three dietary monosaccharides, along with glucose and galactose (which is part of the milk sugar, the disaccharide lactose), which are absorbed directly into the bloodstream during digestion. The catabolism of both fructose and galactose produces the same number of ATP molecules as glucose.

Connections of Proteins to Glucose Metabolism

Proteins are hydrolyzed by a variety of enzymes in cells. Most of the time, the amino acids are recycled into the synthesis of new proteins. If there are excess amino acids, however, or if the body is in a state of starvation, some amino acids will be shunted into the pathways of glucose catabolism ([link]). Each amino acid must have its amino group removed prior to entry into these pathways. The amino group is converted into ammonia. In mammals, the liver synthesizes urea from two ammonia molecules and a carbon dioxide molecule. Thus, urea is the principal waste product in mammals, produced from the nitrogen originating in amino acids, and it leaves the body in urine.

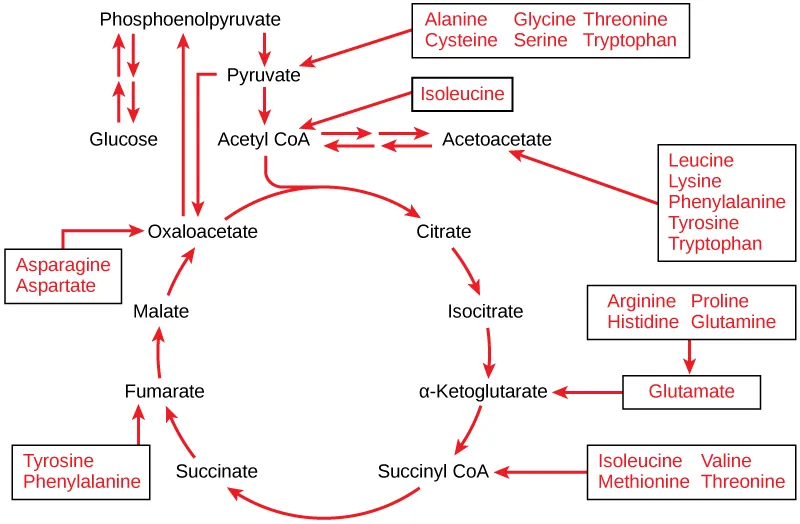

This illustration shows that the amino acids alanine, glycine, threonine, cysteine, and serine can be converted into pyruvate. Leucine, lysine, phenylalanine, tyrosine, tryptophan, and isoleucine can be converted into acetyl CoA. Arginine, proline, histidine, glutamine, and glutamate can be converted into α-ketoglutarate. Isoleucine, valine, methionine, and threonine can be converted into succinyl CoA. Tyrosine and phenylalanine can be converted into fumarate, and aspartate and asparagine can be converted into oxaloacetate.

The carbon skeletons of certain amino acids (indicated in boxes) derived from proteins can feed into the citric acid cycle. (credit: modification of work by Mikael Häggström)

Connections of Lipid and Glucose Metabolisms

The lipids that are connected to the glucose pathways are cholesterol and triglycerides. Cholesterol is a lipid that contributes to cell membrane flexibility and is a precursor of steroid hormones. The synthesis of cholesterol starts with acetyl groups and proceeds in only one direction. The process cannot be reversed.

Triglycerides are a form of long-term energy storage in animals. Triglycerides are made of glycerol and three fatty acids. Animals can make most of the fatty acids they need. Triglycerides can be both made and broken down through parts of the glucose catabolism pathways. Glycerol can be phosphorylated to glycerol-3-phosphate, which continues through glycolysis. Fatty acids are catabolized in a process called beta-oxidation that takes place in the matrix of the mitochondria and converts their fatty acid chains into two carbon units of acetyl groups. The acetyl groups are picked up by CoA to form acetyl CoA that proceeds into the citric acid cycle.

This illustration shows that glycogen, fats, and proteins can be catabolized via aerobic respiration. Glycogen is broken down into glucose, which feeds into glycolysis at the start. Fats are broken down into glycerol, which is processed by glycolysis, and fatty acids are converted into acetyl CoA. Proteins are broken down into amino acids, which are processed at various stages of aerobic respiration, including glycolysis, acetyl CoA formation, and the citric acid cycle.

Figure 7.18 Glycogen from the liver and muscles, hydrolyzed into glucose-1-phosphate, together with fats and proteins, can feed into the catabolic pathways for carbohydrates.

Evolution Connection

Pathways of Photosynthesis and Cellular Metabolism

The processes of photosynthesis and cellular metabolism consist of several very complex pathways. It is generally thought that the first cells arose in an aqueous environment—a “soup” of nutrients—probably on the surface of some porous clays. If these cells reproduced successfully and their numbers climbed steadily, it follows that the cells would begin to deplete the nutrients from the medium in which they lived as they shifted the nutrients into the components of their own bodies. This hypothetical situation would have resulted in natural selection favoring those organisms that could exist by using the nutrients that remained in their environment and by manipulating these nutrients into materials upon which they could survive. Selection would favor those organisms that could extract maximal value from the nutrients to which they had access.

An early form of photosynthesis developed that harnessed the sun’s energy using water as a source of hydrogen atoms, but this pathway did not produce free oxygen (anoxygenic photosynthesis). (Early photosynthesis did not produce free oxygen because it did not use water as the source of hydrogen ions; instead, it used materials like hydrogen sulfide and consequently produced sulfur). It is thought that glycolysis developed at this time and could take advantage of the simple sugars being produced, but these reactions were unable to fully extract the energy stored in the carbohydrates. The development of glycolysis probably predated the evolution of photosynthesis, as it was well suited to extract energy from materials spontaneously accumulating in the “primeval soup.” A later form of photosynthesis used water as a source of electrons and hydrogen, and generated free oxygen. Over time, the atmosphere became oxygenated, but not before the oxygen released oxidized metals in the ocean and created a “rust” layer in the sediment, permitting the dating of the rise of the first oxygenic photosynthesizers. Living things adapted to exploit this new atmosphere that allowed aerobic respiration as we know it to evolve. When the full process of oxygenic photosynthesis developed and the atmosphere became oxygenated, cells were finally able to use the oxygen expelled by photosynthesis to extract considerably more energy from the sugar molecules using the citric acid cycle and oxidative phosphorylation.

Refer to Pathways of Photosynthesis and Cellular Metabolism

According to the Evolution Connection passage, in what order did the metabolic pathways evolve?

1. anoxygenic photosynthesis
2. glycolysis
3. oxygenic photosynthesis
4. citric acid cycle and oxidative phosphorylation
1. glycolysis
2. citric acid cycle and oxidative phosphorylation
3. anoxygenic photosynthesis
4. oxygenic photosynthesis
1. anoxygenic photosynthesis
2. oxygenic photosynthesis
3. glycolysis
4. citric acid cycle and oxidative phosphorylation
1. glycolysis
2. anoxygenic photosynthesis
3. oxygenic photosynthesis
4. citric acid cycle and oxidative phosphorylation

Science Practice Connection for AP® Courses

Think About It

Explain how free energy can be obtained from the metabolism of carbohydrates, proteins, lipids, and even nucleic acids. Which of these molecules provides the largest amount of free energy? Justify your answer.

Teacher Support

This question is an application of Learning Objective 2.2 and Science Practice 6.1 because students are asked to justify the claim that organisms have multiple strategies to obtain free energy necessary to power cellular processes.

Possible answer:

Fatty acids and some amino acids contribute to cellular energy metabolism by providing a carbon source for entry into the citric acid cycle; carbohydrates, some amino acids and glycerol can enter glycolysis. Fats provide the most energy per molecule. Fats are broken down into fatty acids and glycerol. Glycerol is converted into glyceraldehyde phosphate, an intermediate of glycolysis. Also, the process of beta oxidation breaks fatty acids into two-carbon fragments, which enter the citric acid cycle as acetyl CoA.
