5.2 Mail Merge in Microsoft Word

What Is Mail Merge?

Many businesses stay in touch with their clients and customers using some form of communication. Some of these communications may be printed ads; some may be email newsletters. These communications are sometimes personalized with the name of the recipient. How do businesses automate this personalized process? One way to do this is by using mail merge. Mail merge is a tool in Word that lets the user write a form letter or advertisement, while leaving some areas of the document blank. These blanks are fields that can be programmed to contain personalized information: the recipient’s given name, phone number, address, or any other type of customized field.

The mail merge tool makes sending letters or emails to hundreds or thousands of people relatively easy. The process typically begins with the composition of the communication that you want to send to the recipients; this is referred to as the main document. The main document will have blank spaces, or fields, where personalized information will go. Then, you need to create your source document, a separate document that has all the required information that will go into the blank customizable fields, such as postal addresses or email addresses. The source document can be a document that already exists, such as a list in Microsoft Excel or Access (we will talk about these programs later in the text). Or, you can create a new list of names and addresses. A business may already have this document in Excel or Access, as some businesses keep a running contact list. Finally, information in the source document and the information in the main document are combined to create the merged document. This merged document will show the personalized customer information in the designated blank fields on the main document, then multiply this form by the number of recipients. For example, if the form letter is one page and you have fifty clients, Word will create a merged document of fifty letters that can be printed.

Let’s walk through an example of how to use the mail merge tool to send out a set of personalized letters to customers. You will learn how to build a main document, your source document, insert merged fields, and merge to finalize your letter.

The Main Document

The first step of the mail merge is to compose your main document. The main document could be an existing document, a template (.dotx) document, or a brand-new document. In this example, let’s use a business letter template as the main document. You can type it up yourself based on the example in Figure 5.19, or use the text provided in the downloadable Mail Merge document. This letter will be sent to WorldCorp customers, informing them of the upcoming holiday hours for the warehouses so that they can plan for delayed shipments.

Figure 5.19 shows a form letter to inform the customers of the holiday closures. The template used is called Business Letter (simple design) to create the letter. We also added a simple WorldCorp logo at the top of the letter. We have highlighted in green where we want the mail merge tool to create the personalized fields. These are not the actual fields, yet; this highlighting is simply to help us mark those locations for when we do add them. In this letter, we will insert the customer’s address and the greeting line with their name. You can certainly use more fields than these. But for this example, keep it simple so you can learn the process.

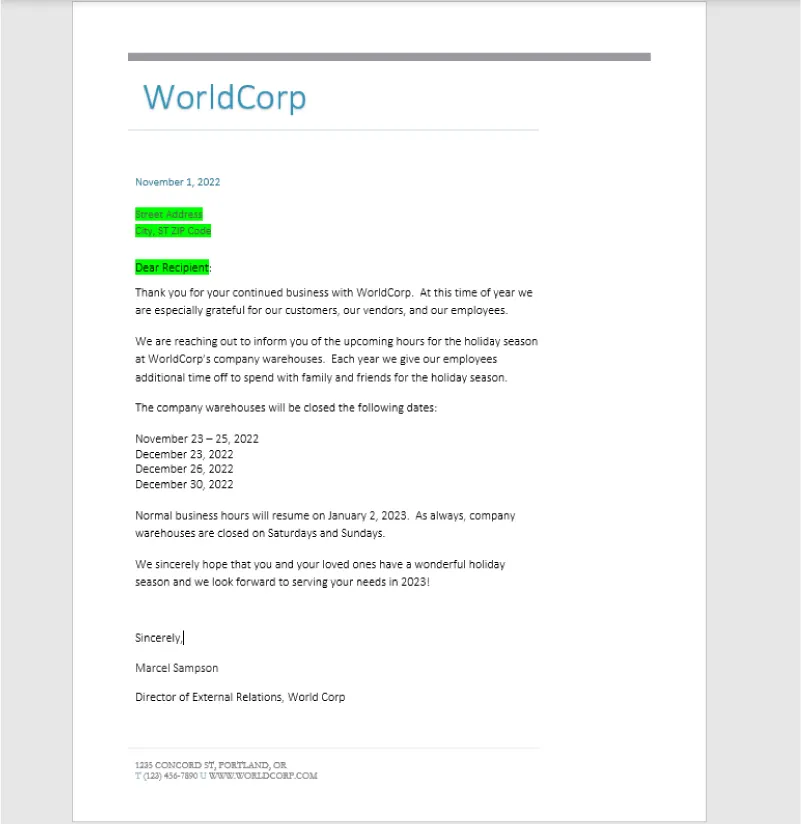

Figure 5.19 Templates can be used to create the main document for mail merge. (Used with permission from Microsoft)

The Source Document

The source document needs to be a listing created in Excel or Access. But this walk-through will build a new list rather than using an existing list. You will build the new list with just a few customers so you can see how mail merge works. But remember, mail merge can be used with many customers and is virtually limitless. The capacity of the mail merge is limited by the capacity of your computer.

The source document is built with the intended recipients. To begin, go to the Mailings tab, Select Recipients, and choose Type a New List from the menu (Figure 5.20).

Notice there are two other choices: Use an Existing List and Choose from Outlook Contacts. When you have finished entering in the information for the customers, click OK.

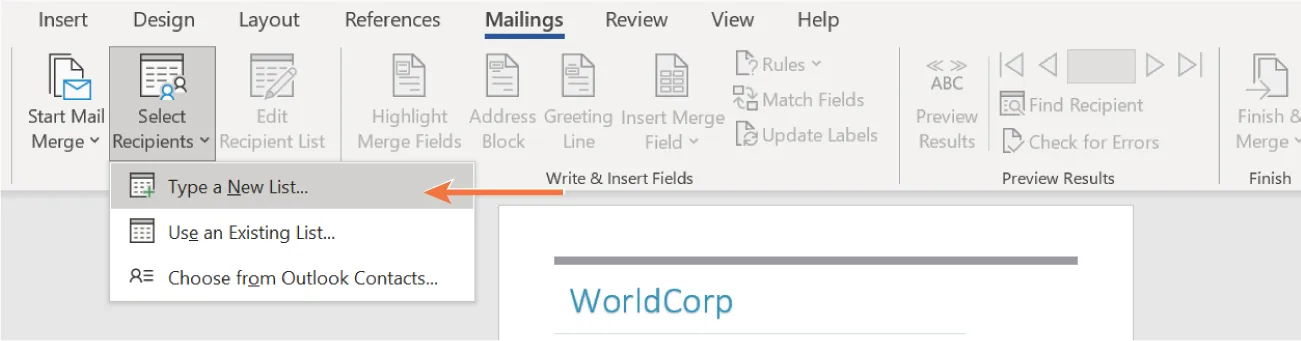

Figure 5.20 Although you can create a new recipient list, if you have a long list, it is better to work from an existing file. (Used with permission from Microsoft)

When you choose to create a new list, a dialog box will open so that you can build your list of recipients. Here, you type in the relevant information for the mail merge, as shown in Figure 5.21. By choosing Customize Columns at the bottom of the dialog box, you can add or remove the fields that you are not using. Make sure you add all the information you think you will need for your custom fields. When you do the final mail merge, you will only be able to choose from the defined information you provided in the source document. For this example, we need the customer name and address.

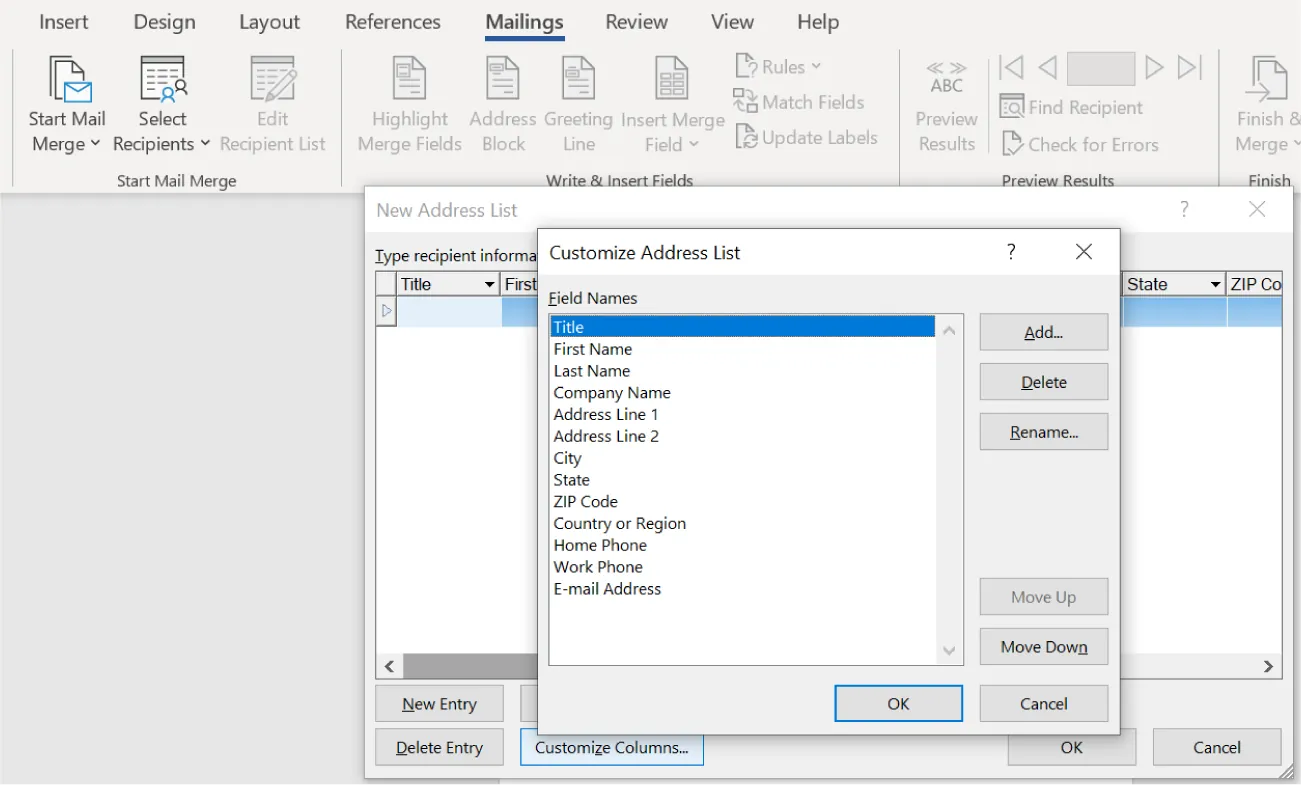

Figure 5.21 You can customize the fields used in the list. (Used with permission from Microsoft)

When you finish selecting the fields needed for the mail merge, you will be prompted to save the list as a new file for use as the source document in the mail merge (see Figure 5.22). The default location for the file is in a folder called “My Data Sources” (Figure 5.23). You might consider a descriptive name to tell you that this file contains data used in a mail merge.

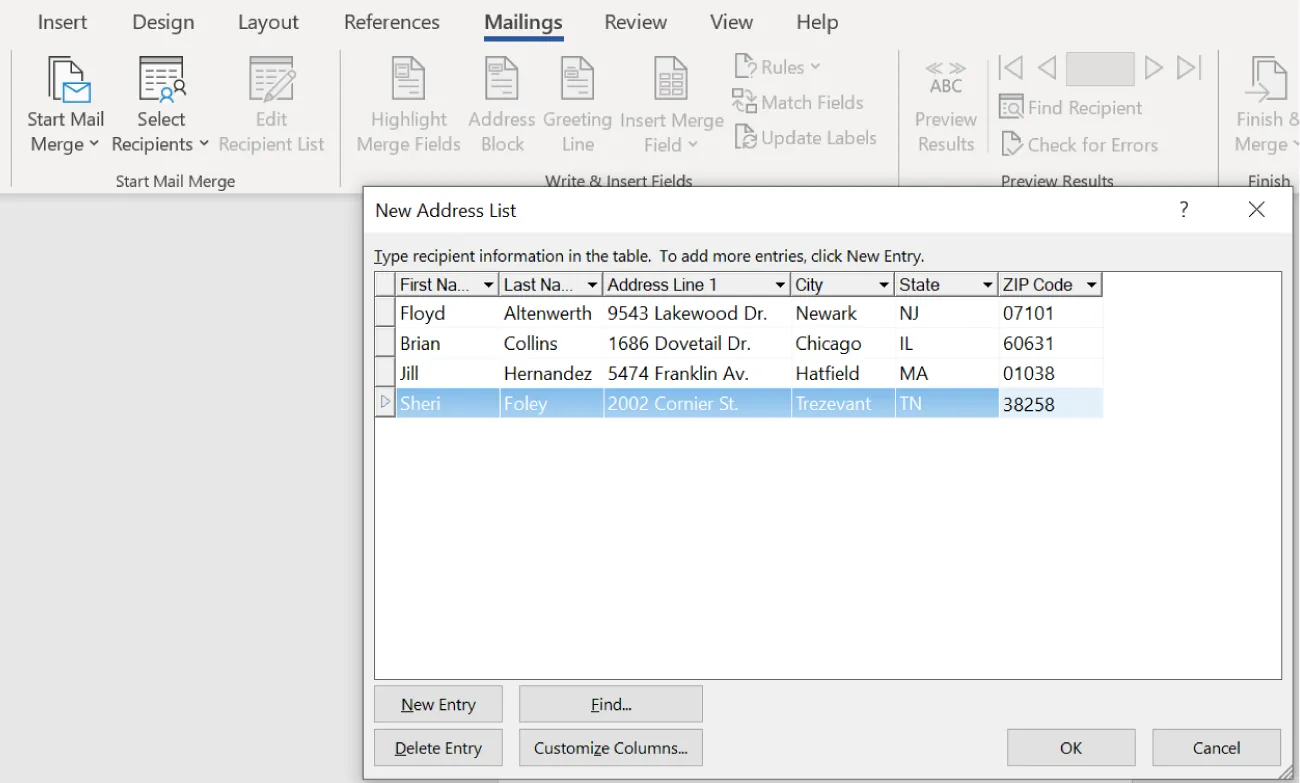

Figure 5.22 When you finish entering the information, click OK to save the file. (Used with permission from Microsoft)

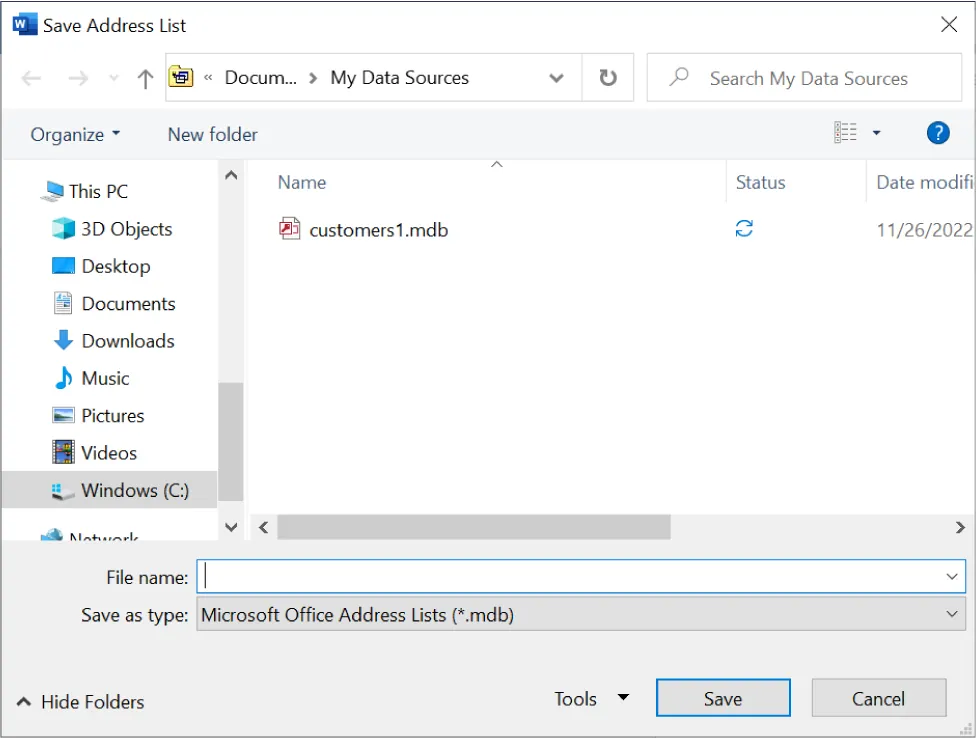

Figure 5.23 The list will be saved as a file with a special extension so that Word knows the list is the source document for mail merge. (Used with permission from Microsoft)

Merge Fields

Now that you have created the main document, and created and saved the source document, you now need to insert the merge fields into the main document. First, insert the blank fields on the letter so that Word can automatically fill them with personalized information: First name, Last name, Address, City, State, and Zip. In Figure 5.24, you can see the icons in the Write & Insert Fields command group on the Mailings tab. These give us some common merge fields: Address Block, Greeting Line, and Insert Merge Field. For this example, use Insert Merge Field. When you select the option, you will notice that the fields available in the drop-down list are the fields from your source document. Therefore, make sure the fields in your document are descriptive and as separated as you would like them to be, for example, if you are sending a mailing out to voters, consider whether you should include all the members of the household in one mailer, or if you should address them separately (in which case, you should list each of their names individually).

To insert the field, put your cursor where you want the field inserted into the letter. For our example, we want “Address_Line_1” to replace our highlighted green street address placeholder (see Figure 5.25). Simply click on the field from the list and it will be inserted at the cursor location. Repeat this process for the other fields. Notice the fields are denoted by “« »”. This notation tells Word to get the relevant information from the source document to put into that line in the document.

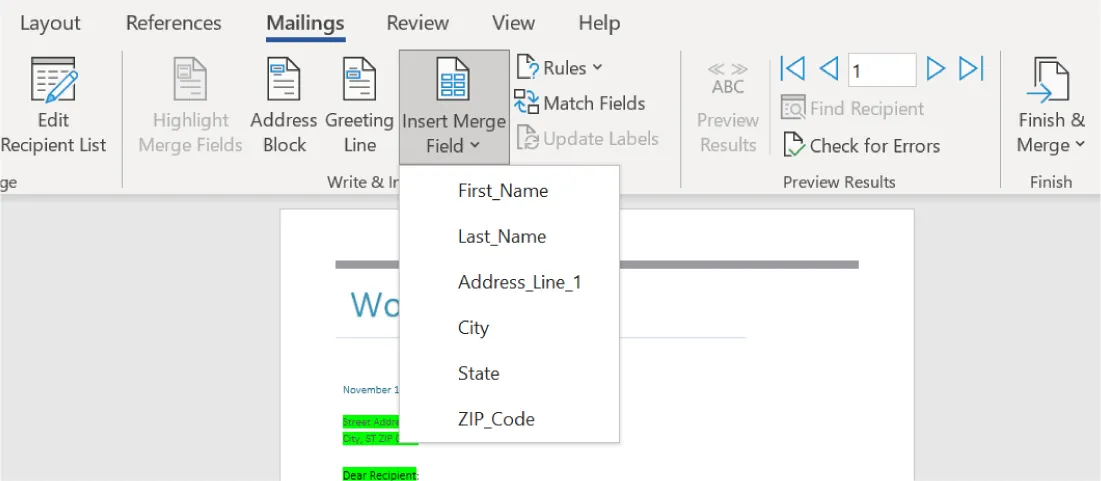

Figure 5.24 The fields in your source document are in the Insert Merge Field drop-down menu. (Used with permission from Microsoft)

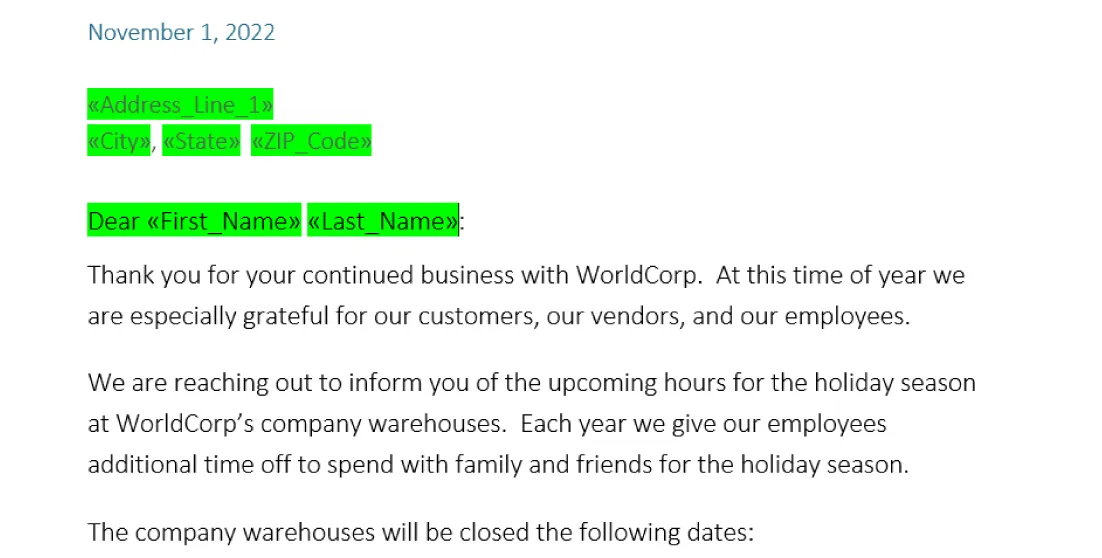

Figure 5.25 Be sure to remove the green highlighting in the document as we just used this to show where we wanted to insert the merge fields. (Used with permission from Microsoft)

Now that we have our source document with all of the customer information saved, and we have inserted the custom fields into the main document, we can complete the mail merge process. First, you should always preview the document to make sure it looks as it is supposed to. Go to the Mailings tab and select Preview Results, as shown in Figure 5.26a. This allows you to see all of the letters with the actual, personalized information in place, as in Figure 5.26b. All the merge fields you designated in the main document will be substituted by the actual information. You can use the left and right arrows at the top-right area of the ribbon to toggle between recipients.

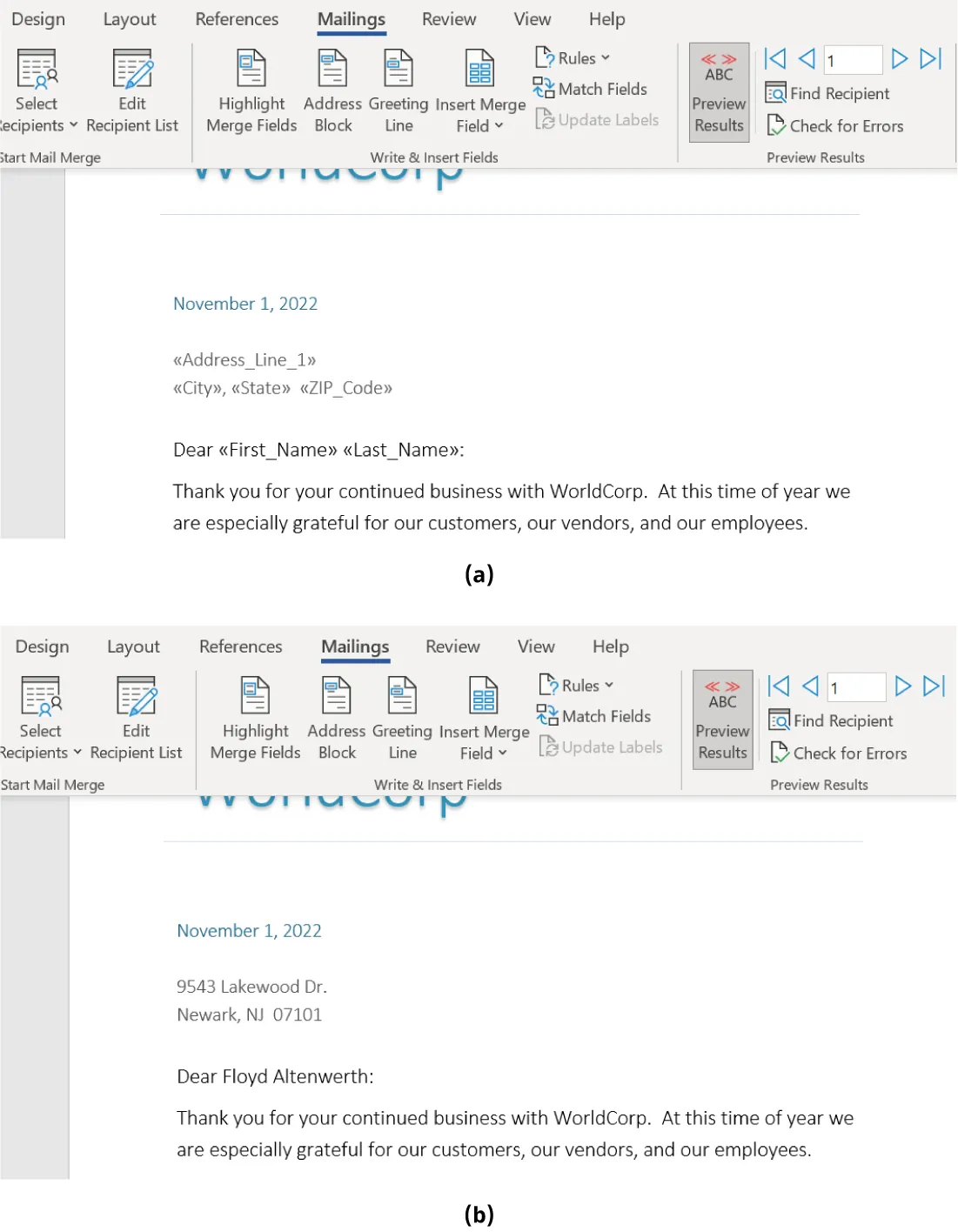

Figure 5.26 (a) Before you complete the merge, preview the results so that everything looks as it should. (b) Notice the fields have been replaced with the first name in our recipient list. (Used with permission from Microsoft)

If everything looks okay, then you can complete the mail merge. Go to the last icon on the Mailings tab, Finish & Merge. The drop-down menu gives you options to edit, print, or send emails with the merged documents. In this case, we are going to mail the letters to the customers, so we will choose Print documents from the list. If there were any issues when you previewed the letters, you could select Edit Individual Documents to make the necessary changes. When you choose to print, you are given the option to select which ones you want to print. We will choose “All” for our example. The Print dialog box will open with the default printer displayed. You can choose to send the letters directly to the printer now by selecting OK, or you can choose to print the file to a .pdf file so that it will be saved. This .pdf file will have four pages, one for each of the four recipients in the source document list.

What you have just walked through is a mail merge from scratch. There is also a “Step-by-Step Mail Merge Wizard” that guides you through the same steps. You can use mail merge for a wide variety of applications, such as creating name tags for an event; making labels for mailing packages/letters; creating envelopes, business cards, or postcards; or sending emails to a large group. Even though the tool is called mail merge, its capabilities go beyond simply creating a mailing.
