Check Your Understanding

1.1

2.1% (to two significant figures)

1.2

15.1°15.1°

1.3

air to water, because the condition that the second medium must have a smaller index of refraction is not satisfied

1.4

9.3 cm

1.5

AAAA becomes longer, ABAB tilts further away from the surface, and the refracted ray tilts away from the normal.

1.6

also 90.0%90.0%

1.7

There will be only refraction but no reflection.

Conceptual Questions

1.

Light can be modeled as a ray when devices are large compared to wavelength, and as a wave when devices are comparable or small compared to wavelength.

3.

This fact simply proves that the speed of light is greater than that of sound. If one knows the distance to the location of the lightning and the speed of sound, one could, in principle, determine the speed of light from the data. In practice, because the speed of light is so great, the data would have to be known to impractically high precision.

5.

Powder consists of many small particles with randomly oriented surfaces. This leads to diffuse reflection, reducing shine.

7.

“toward” when increasing n (air to water, water to glass); “away” when decreasing n (glass to air)

9.

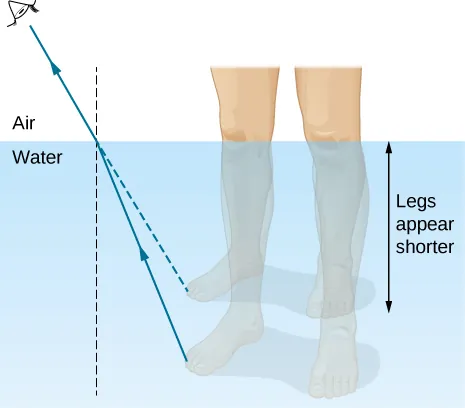

A ray from a leg emerges from water after refraction. The observer in air perceives an apparent location for the source, as if a ray traveled in a straight line. See the dashed ray below.

The figure is illustration of the formation of the image of a leg under water, as seen by a viewer in the air above the water. A ray is shown leaving the leg and refracting at the water air interface. The refracted ray bends away from the normal. Extrapolating the refracted ray back into the water, the extrapolated ray is above the actual ray so that the image of the leg is above the actual leg and the leg appears shorter.
11.

The gemstone becomes invisible when its index of refraction is the same, or at least similar to, the water surrounding it. Because diamond has a particularly high index of refraction, it can still sparkle as a result of total internal reflection, not invisible.

13.

One can measure the critical angle by looking for the onset of total internal reflection as the angle of incidence is varied. Equation 1.5 can then be applied to compute the index of refraction.

15.

In addition to total internal reflection, rays that refract into and out of diamond crystals are subject to dispersion due to varying values of n across the spectrum, resulting in a sparkling display of colors.

17.

yes

19.

No. Sound waves are not transverse waves.

21.

Energy is absorbed into the filters.

23.

Sunsets are viewed with light traveling straight from the Sun toward us. When blue light is scattered out of this path, the remaining red light dominates the overall appearance of the setting Sun.

25.

The axis of polarization for the sunglasses has been rotated 90°90°.

Problems

27.

2.99705×108m/s2.99705×108m/s; 1.97×108m/s1.97×108m/s

29.

ice at 0°C0°C

31.

1.03 ns

33.

337 m

35.

proof

37.

proof

39.

reflection, 70°70°; refraction, 45°45°

41.

42°42°

43.

1.53

45.

a. 2.9 m; b. 1.4 m

47.

a. 24.42°24.42°; b. 31.33°31.33°

49.

79.11°79.11°

51.

a. 1.43, fluorite; b. 44.2°44.2°

53.

a. 48.2°48.2°; b. 27.3°27.3°

55.

46.5°46.5° for red, 46.0°46.0° for violet

57.

a. 0.04°0.04°; b. 1.3 m

59.

72.8°72.8°

61.

53.5°53.5° for red, 55.2°55.2° for violet

63.

0.500

65.

0.125 or 1/8

67.

84.3°84.3°

69.

0.250I00.250I0

71.

a. 0.500; b. 0.250; c. 0.187

73.

67.54°67.54°

75.

53.1°53.1°

Additional Problems

77.

114 radian/s

79.

3.72 mm

81.

41.2°41.2°

83.

a. 1.92. The gem is not a diamond (it is zircon). b. 55.2°55.2°

85.

a. 0.898; b. We cannot have n<1.00n<1.00, since this would imply a speed greater than c. c. The refracted angle is too big relative to the angle of incidence.

87.

0.707B10.707B1

89.

a. 1.69×10−2°C/s1.69×10−2°C/s; b. yes

Challenge Problems

91.

First part: 88.6°88.6°. The remainder depends on the complexity of the solution the reader constructs.

93.

proof; 1.33

95.

a. 0.750; b. 0.563; c. 1.33
