Learning Objectives

By the end of this section, you will be able to:
  • Describe the hydrogen atom in terms of wave function, probability density, total energy, and orbital angular momentum
  • Identify the physical significance of each of the quantum numbers (n,l,mn,l,m) of the hydrogen atom
  • Distinguish between the Bohr and Schrödinger models of the atom
  • Use quantum numbers to calculate important information about the hydrogen atom

The hydrogen atom is the simplest atom in nature and, therefore, a good starting point to study atoms and atomic structure. The hydrogen atom consists of a single negatively charged electron that moves about a positively charged proton (Figure 8.2). In Bohr’s model, the electron is pulled around the proton in a perfectly circular orbit by an attractive Coulomb force. The proton is approximately 1800 times more massive than the electron, so the proton moves very little in response to the force on the proton by the electron. (This is analogous to the Earth-Sun system, where the Sun moves very little in response to the force exerted on it by Earth.) An explanation of this effect using Newton’s laws is given in Photons and Matter Waves.

The Bohr model of the hydrogen atom has the proton, charge q = plus e, at the center and the electron, charge q = minus e, in a circular orbit centered on the proton.

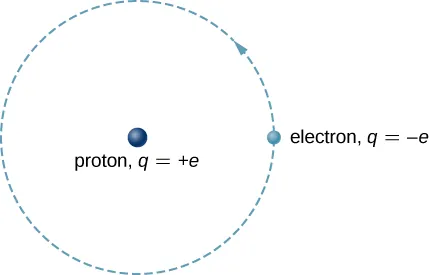

Figure 8.2 A representation of the Bohr model of the hydrogen atom.

With the assumption of a fixed proton, we focus on the motion of the electron.

In the electric field of the proton, the potential energy of the electron is

U(r)=ke2r,U(r)=ke2r,
(8.1)

where k=1/4πε0k=1/4πε0 and r is the distance between the electron and the proton. As we saw earlier, the force on an object is equal to the negative of the gradient (or slope) of the potential energy function. For the special case of a hydrogen atom, the force between the electron and proton is an attractive Coulomb force.

Notice that the potential energy function U(r) does not vary in time. As a result, Schrödinger’s equation of the hydrogen atom reduces to two simpler equations: one that depends only on space (x, y, z) and another that depends only on time (t). (The separation of a wave function into space- and time-dependent parts for time-independent potential energy functions is discussed in Quantum Mechanics.) We are most interested in the space-dependent equation:

22me(2ψx2+2ψy2+2ψz2)ke2rψ=Eψ,22me(2ψx2+2ψy2+2ψz2)ke2rψ=Eψ,
(8.2)

where ψ=ψ(x,y,z)ψ=ψ(x,y,z) is the three-dimensional wave function of the electron, meme is the mass of the electron, and E is the total energy of the electron. Recall that the total wave function Ψ(x,y,z,t),Ψ(x,y,z,t), is the product of the space-dependent wave function ψ=ψ(x,y,z)ψ=ψ(x,y,z) and the time-dependent wave function φ=φ(t)φ=φ(t).

In addition to being time-independent, U(r) is also spherically symmetrical. This suggests that we may solve Schrödinger’s equation more easily if we express it in terms of the spherical coordinates (r,θ,ϕ)(r,θ,ϕ) instead of rectangular coordinates (x,y,z)(x,y,z). A spherical coordinate system is shown in Figure 8.3. In spherical coordinates, the variable r is the radial coordinate, θθ is the polar angle (relative to the vertical z-axis), and ϕϕ is the azimuthal angle (relative to the x-axis). The relationship between spherical and rectangular coordinates is x=rsinθcosϕ,y=rsinθsinϕ,z=rcosθ.x=rsinθcosϕ,y=rsinθsinϕ,z=rcosθ.

An x y z coordinate system is shown, along with a point P and the vector r from the origin to P. In this figure, the point P has positive x, y, and z coordinates. The vector r is inclined by an angle theta from the positive z axis. Its projection on the x y plane makes an angle theta from the positive x axis toward the positive y axis.

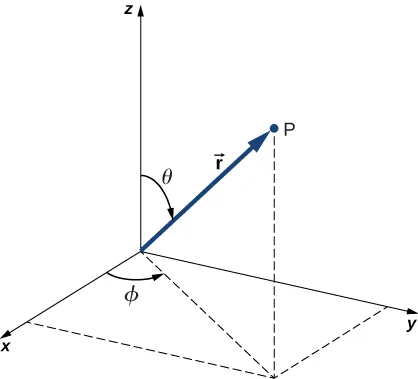

Figure 8.3 The relationship between the spherical and rectangular coordinate systems.

The factor rsinθrsinθ is the magnitude of a vector formed by the projection of the polar vector onto the xy-plane. Also, the coordinates of x and y are obtained by projecting this vector onto the x- and y-axes, respectively. The inverse transformation gives

r=x2+y2+z2,θ=cos−1(zr),ϕ=cos−1(xx2+y2).r=x2+y2+z2,θ=cos−1(zr),ϕ=cos−1(xx2+y2).

Schrödinger’s wave equation for the hydrogen atom in spherical coordinates is discussed in more advanced courses in modern physics, so we do not consider it in detail here. However, due to the spherical symmetry of U(r), this equation reduces to three simpler equations: one for each of the three coordinates (r,θ,andϕ).(r,θ,andϕ). Solutions to the time-independent wave function are written as a product of three functions:

ψ(r,θ,ϕ)=R(r)Θ(θ)Φ(ϕ),ψ(r,θ,ϕ)=R(r)Θ(θ)Φ(ϕ),

where R is the radial function dependent on the radial coordinate r only; ΘΘ is the polar function dependent on the polar coordinate θθ only; and ΦΦ is the phi function of ϕϕ only. Valid solutions to Schrödinger’s equation ψ(r,θ,ϕ)ψ(r,θ,ϕ) are labeled by the quantum numbers n, l, and m.

n:principal quantum numberl:angular momentum quantum numberm:angular momentum projection quantum numbern:principal quantum numberl:angular momentum quantum numberm:angular momentum projection quantum number

(The reasons for these names will be explained in the next section.) The radial function R depends only on n and l; the polar function ΘΘ depends only on l and m; and the phi function ΦΦ depends only on m. The dependence of each function on quantum numbers is indicated with subscripts:

ψnlm(r,θ, ϕ)=Rnl(r)Θlm(θ)Φm(ϕ).ψnlm(r,θ, ϕ)=Rnl(r)Θlm(θ)Φm(ϕ).

Not all sets of quantum numbers (n, l, m) are possible. For example, the orbital angular quantum number l can never be greater or equal to the principal quantum number n(l<n)n(l<n). Specifically, we have

n=1,2,3,l=0,1,2,,(n1)m=l,(l+1),,0,,(+l1),+ln=1,2,3,l=0,1,2,,(n1)m=l,(l+1),,0,,(+l1),+l

Notice that for the ground state, n=1n=1, l=0l=0, and m=0m=0. In other words, there is only one quantum state with the wave function for n=1n=1, and it is ψ100ψ100. However, for n=2n=2, we have

l=0,m=0 l=1,m=−1,0,1.l=0,m=0 l=1,m=−1,0,1.

Therefore, the allowed states for the n=2n=2 state are ψ200ψ200, ψ211,ψ210ψ211,ψ210, and ψ211ψ211. Example wave functions for the hydrogen atom are given in Table 8.1. Note that some of these expressions contain the letter i, which represents −1−1. When probabilities are calculated, these complex numbers do not appear in the final answer.

n=1,l=0,ml=0n=1,l=0,ml=0 ψ100=1π1a03/2er/a0ψ100=1π1a03/2er/a0
n=2,l=0,ml=0n=2,l=0,ml=0 ψ200=142π1a03/2(2ra0)er/2a0ψ200=142π1a03/2(2ra0)er/2a0
n=2,l=1,ml=−1n=2,l=1,ml=−1 ψ211=18π1a03/2ra0er/2a0sinθeiϕψ211=18π1a03/2ra0er/2a0sinθeiϕ
n=2,l=1,ml=0n=2,l=1,ml=0 ψ210=142π1a03/2ra0er/2a0cosθψ210=142π1a03/2ra0er/2a0cosθ
n=2,l=1,ml=1n=2,l=1,ml=1 ψ211=18π1a03/2ra0er/2a0sinθeiϕψ211=18π1a03/2ra0er/2a0sinθeiϕ
Table 8.1 Wave Functions of the Hydrogen Atom

Physical Significance of the Quantum Numbers

Each of the three quantum numbers of the hydrogen atom (n, l, m) is associated with a different physical quantity. The principal quantum number n is associated with the total energy of the electron, EnEn. According to Schrödinger’s equation:

En=(mek2e422)(1n2)=E0(1n2),En=(mek2e422)(1n2)=E0(1n2),
(8.3)

where E0=−13.6eV.E0=−13.6eV. Notice that this expression is identical to that of Bohr’s model. As in the Bohr model, the electron in a particular state of energy does not radiate.

Example 8.1

How Many Possible States? For the hydrogen atom, how many possible quantum states correspond to the principal number n=3n=3? What are the energies of these states?

Strategy For a hydrogen atom of a given energy, the number of allowed states depends on its orbital angular momentum. We can count these states for each value of the principal quantum number, n=1,2,3.n=1,2,3. However, the total energy depends on the principal quantum number only, which means that we can use Equation 8.3 and the number of states counted.

Solution If n=3n=3, the allowed values of l are 0, 1, and 2. If l=0l=0, m=0m=0 (1 state). If l=1l=1, m=1,0,+1m=1,0,+1 (3 states); and if l=2l=2, m=2,1,0,+1,+2m=2,1,0,+1,+2 (5 states). In total, there are 1+3+5=91+3+5=9 allowed states. Because the total energy depends only on the principal quantum number, n=3n=3, the energy of each of these states is

En3=E0(1n2)=−13.6eV9=−1.51eV.En3=E0(1n2)=−13.6eV9=−1.51eV.

Significance An electron in a hydrogen atom can occupy many different angular momentum states with the very same energy. As the orbital angular momentum increases, the number of the allowed states with the same energy increases.

The angular momentum orbital quantum number l is associated with the orbital angular momentum of the electron in a hydrogen atom. Quantum theory tells us that when the hydrogen atom is in the state ψnlmψnlm, the magnitude of its orbital angular momentum is

L=l(l+1),L=l(l+1),
(8.4)

where

l=0,1,2,,(n1).l=0,1,2,,(n1).

This result is slightly different from that found with Bohr’s theory, which quantizes angular momentum according to the rule L=n,wheren=1,2,3,....L=n,wheren=1,2,3,....

Quantum states with different values of orbital angular momentum are distinguished using spectroscopic notation (Table 8.2). The designations s, p, d, and f result from early historical attempts to classify atomic spectral lines. (The letters stand for sharp, principal, diffuse, and fundamental, respectively.) After f, the letters continue alphabetically.

The ground state of hydrogen is designated as the 1s state, where “1” indicates the energy level (n=1)(n=1) and “s” indicates the orbital angular momentum state (l=0l=0). When n=2n=2, l can be either 0 or 1. The n=2n=2, l=0l=0 state is designated “2s.” The n=2n=2, l=1l=1 state is designated “2p.” When n=3n=3, l can be 0, 1, or 2, and the states are 3s, 3p, and 3d, respectively. Notation for other quantum states is given in Table 8.3.

The angular momentum projection quantum number m is associated with the azimuthal angle ϕϕ (see Figure 8.3) and is related to the z-component of orbital angular momentum of an electron in a hydrogen atom. This component is given by

Lz=m,Lz=m,
(8.5)

where

m=l,l+1,,0,,+l1,l.m=l,l+1,,0,,+l1,l.

The z-component of angular momentum is related to the magnitude of angular momentum by

Lz=Lcosθ,Lz=Lcosθ,
(8.6)

where θθ is the angle between the angular momentum vector and the z-axis. Note that the direction of the z-axis is determined by experiment—that is, along any direction, the experimenter decides to measure the angular momentum. For example, the z-direction might correspond to the direction of an external magnetic field. The relationship between LzandLLzandL is given in Figure 8.4.

An x y z coordinate system is shown. The vector L is at an angle theta to the positive z axis and has positive z component L sub z equal to m times h bar. The x and y components are positive but not specified.

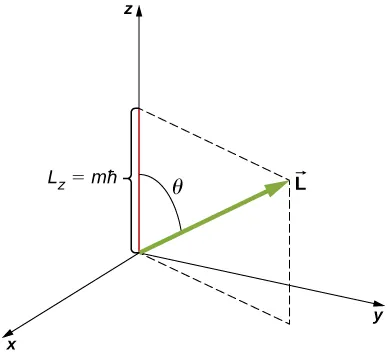

Figure 8.4 The z-component of angular momentum is quantized with its own quantum number m.
Orbital Quantum Number l Angular Momentum State Spectroscopic Name
0 0 s Sharp
1 2h2h p Principal
2 6h6h d Diffuse
3 12h12h f Fundamental
4 20h20h g
5 30h30h h
Table 8.2 Spectroscopic Notation and Orbital Angular Momentum
l=0l=0 l=1l=1 l=2l=2 l=3l=3 l=4l=4 l=5l=5
n=1n=1 1s
n=2n=2 2s 2p
n=3n=3 3s 3p 3d
n=4n=4 4s 4p 4d 4f
n=5n=5 5s 5p 5d 5f 5g
n=6n=6 6s 6p 6d 6f 6g 6h
Table 8.3 Spectroscopic Description of Quantum States

The quantization of LzLz is equivalent to the quantization of θθ. Substituting l(l+1)l(l+1) for L and m for LzLz into this equation, we find

m=l(l+1)cosθ.m=l(l+1)cosθ.
(8.7)

Thus, the angle θθ is quantized with the particular values

θ=cos−1(ml(l+1)).θ=cos−1(ml(l+1)).
(8.8)

Notice that both the polar angle (θθ) and the projection of the angular momentum vector onto an arbitrary z-axis (LzLz) are quantized.

The quantization of the polar angle for the l=3l=3 state is shown in Figure 8.5. The orbital angular momentum vector lies somewhere on the surface of a cone with an opening angle θθ relative to the z-axis (unless m=0,m=0, in which case θ=90°θ=90° and the vector points are perpendicular to the z-axis).

Seven vector, all of the same length L, are drawn at 7 different angles to the z axis. The z components of the vectors are indicated both by horizontal lines from the tip of the vector to the z axis and by labels on the z axis. For four of the vectors, the angle between the z axis and the vector is also labeled. The z component values are 3 h bar at angle theta sub three, 2 h bar at angle theta sub two, h bar at angle theta sub one, zero at angle theta sub zero, minus h bar, minus 2 h bar, and minus 3 h bar.

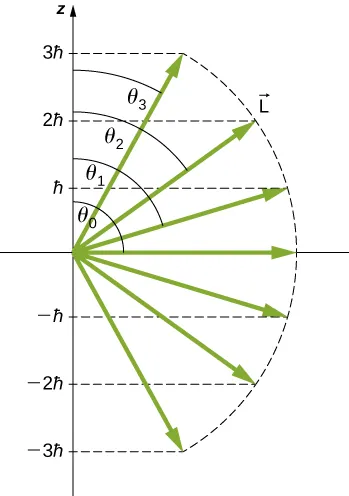

Figure 8.5 The quantization of orbital angular momentum. Each vector lies on the surface of a cone with axis along the z-axis.

A detailed study of angular momentum reveals that we cannot know all three components simultaneously. In the previous section, the z-component of orbital angular momentum has definite values that depend on the quantum number m. This implies that we cannot know both x- and y-components of angular momentum, LxLx and LyLy, with certainty. As a result, the precise direction of the orbital angular momentum vector is unknown.

Example 8.2

What Are the Allowed Directions? Calculate the angles that the angular momentum vector LL can make with the z-axis for l=1l=1, as shown in Figure 8.6.

The image shows three possible values of a component of a given angular momentum along z-axis. The upper circular orbit is shown for m sub t = 1 at a distance L sub z above the origin. The vector L makes an angle of theta one with the z axis. The radius of the orbit is the component of L perpendicular to the z axis. The middle circular orbit is shown for m sub t = 0. It is in the x y plane. The vector L makes an angle of theta two of 90 degrees with the z axis. The radius of the orbit is L. The lower circular orbit is shown for m sub t = -1 at a distance L sub z below the origin. The vector L makes an angle of theta three with the z axis. The radius of the orbit is the component of L perpendicular to the z axis.

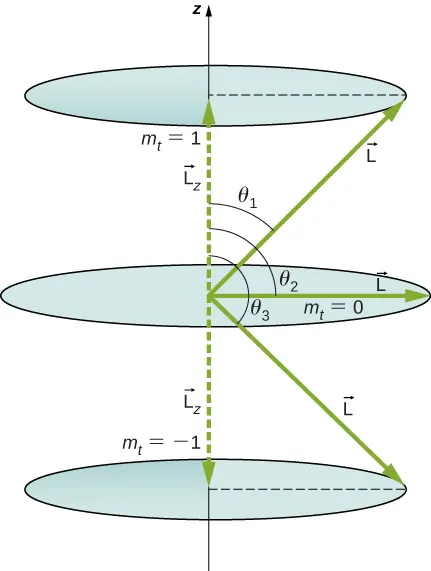

Figure 8.6 The component of a given angular momentum along the z-axis (defined by the direction of a magnetic field) can have only certain values. These are shown here for l=1l=1, for which m=−1,0,and+1.m=−1,0,and+1. The direction of LL is quantized in the sense that it can have only certain angles relative to the z-axis.

Strategy The vectors LL and LzLz (in the z-direction) form a right triangle, where LL is the hypotenuse and LzLz is the adjacent side. The ratio of LzLz to |LL| is the cosine of the angle of interest. The magnitudes L=|L|L=|L| and LzLz are given by

L=l(l+1)andLz=m.L=l(l+1)andLz=m.

Solution We are given l=1l=1, so ml can be +1,0,or1.+1,0,or1. Thus, L has the value given by

L=l(l+1)=2.L=l(l+1)=2.

The quantity LzLz can have three values, given by Lz=mlLz=ml.

Lz=ml={,ml=+10,ml=0,ml=−1Lz=ml={,ml=+10,ml=0,ml=−1

As you can see in Figure 8.6, cosθ=Lz/L,cosθ=Lz/L, so for m=+1m=+1, we have

cosθ1=LZL=2=12=0.707.cosθ1=LZL=2=12=0.707.

Thus,

θ1=cos−10.707=45.0°.θ1=cos−10.707=45.0°.

Similarly, for m=0m=0, we find cosθ2=0;cosθ2=0; this gives

θ2=cos−10=90.0°.θ2=cos−10=90.0°.

Then for ml=−1ml=−1:

cos θ 3 = L Z L = 2 = 1 2 = −0.707 , cos θ 3 = L Z L = 2 = 1 2 = −0.707 ,

so that

θ3=cos−1(−0.707)=135.0°.θ3=cos−1(−0.707)=135.0°.

Significance The angles are consistent with the figure. Only the angle relative to the z-axis is quantized. L can point in any direction as long as it makes the proper angle with the z-axis. Thus, the angular momentum vectors lie on cones, as illustrated. To see how the correspondence principle holds here, consider that the smallest angle (θ1θ1 in the example) is for the maximum value of ml,ml, namely ml=l.ml=l. For that smallest angle,

cosθ=LzL=ll(l+1),cosθ=LzL=ll(l+1),

which approaches 1 as l becomes very large. If cosθ=1cosθ=1, then θ=0ºθ=0º. Furthermore, for large l, there are many values of mlml, so that all angles become possible as l gets very large.

Check Your Understanding 8.1

Can the magnitude of LzLz ever be equal to L?

Using the Wave Function to Make Predictions

As we saw earlier, we can use quantum mechanics to make predictions about physical events by the use of probability statements. It is therefore proper to state, “An electron is located within this volume with this probability at this time,” but not, “An electron is located at the position (x, y, z) at this time.” To determine the probability of finding an electron in a hydrogen atom in a particular region of space, it is necessary to integrate the probability density |ψnlm|2|ψnlm|2 over that region:

Probability=volume|ψnlm|2dV,Probability=volume|ψnlm|2dV,
(8.9)

where dV is an infinitesimal volume element. If this integral is computed for all space, the result is 1, because the probability of the particle to be located somewhere is 100% (the normalization condition). In a more advanced course on modern physics, you will find that |ψnlm|2=ψnlm*ψnlm,|ψnlm|2=ψnlm*ψnlm, where ψnlm*ψnlm* is the complex conjugate. This eliminates the occurrences of i=−1i=−1 in the above calculation.

Consider an electron in a state of zero angular momentum (l=0l=0). In this case, the electron’s wave function depends only on the radial coordinate r. (Refer to the states ψ100ψ100 and ψ200ψ200 in Table 8.1.) The infinitesimal volume element corresponds to a spherical shell of radius r and infinitesimal thickness dr, written as

dV=4πr2dr.dV=4πr2dr.
(8.10)

The probability of finding the electron in the region r to r+drr+dr (“at approximately r”) is

P(r)dr=|ψn00|24πr2dr.P(r)dr=|ψn00|24πr2dr.
(8.11)

Here P(r) is called the radial probability density function (a probability per unit length). For an electron in the ground state of hydrogen, the probability of finding an electron in the region r to r+drr+dr is

|ψn00|24πr2dr=(4/a03)r2exp(−2r/a0)dr,|ψn00|24πr2dr=(4/a03)r2exp(−2r/a0)dr,
(8.12)

where a0=0.5a0=0.5 angstroms. The radial probability density function P(r) is plotted in Figure 8.7. The area under the curve between any two radial positions, say r1r1 and r2r2, gives the probability of finding the electron in that radial range. To find the most probable radial position, we set the first derivative of this function to zero (dP/dr=0dP/dr=0) and solve for r. The most probable radial position is not equal to the average or expectation value of the radial position because |ψn00|2|ψn00|2 is not symmetrical about its peak value.

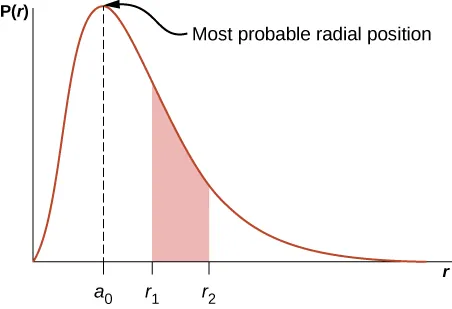

A graph of the function P of r as a function of r is shown. It is zero at r = 0, rises to a maximum at r = a sub 0, then gradually decreases and goes asymptotically to zero at large r. The maximum is at the most probable radial position. The area of the region under the curve from r sub 1 to r sub 2 is shaded.
Figure 8.7 The radial probability density function for the ground state of hydrogen.

If the electron has orbital angular momentum (l0l0), then the wave functions representing the electron depend on the angles θθ and ϕ;ϕ; that is, ψnlm=ψnlm=ψnlmψnlm (r, θθ, ϕϕ). Atomic orbitals for three states with n=2n=2 and l=1l=1 are shown in Figure 8.8. An atomic orbital is a region in space that encloses a certain percentage (usually 90%) of the electron probability. (Sometimes atomic orbitals are referred to as “clouds” of probability.) Notice that these distributions are pronounced in certain directions. This directionality is important to chemists when they analyze how atoms are bound together to form molecules.

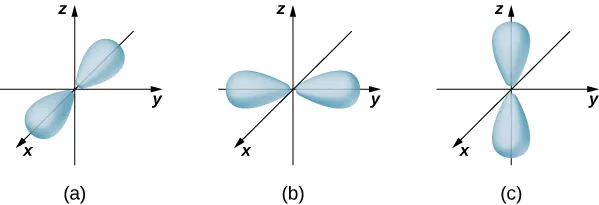

This diagram illustrates the shapes of p orbitals. The orbitals are dumbbell shaped and oriented along the x, y, and z axes.
Figure 8.8 The probability density distributions for three states with n=2n=2 and l=1l=1. The distributions are directed along the (a) x-axis, (b) y-axis, and (c) z-axis.

A slightly different representation of the wave function is given in Figure 8.9. In this case, light and dark regions indicate locations of relatively high and low probability, respectively. In contrast to the Bohr model of the hydrogen atom, the electron does not move around the proton nucleus in a well-defined path. Indeed, the uncertainty principle makes it impossible to know how the electron gets from one place to another.

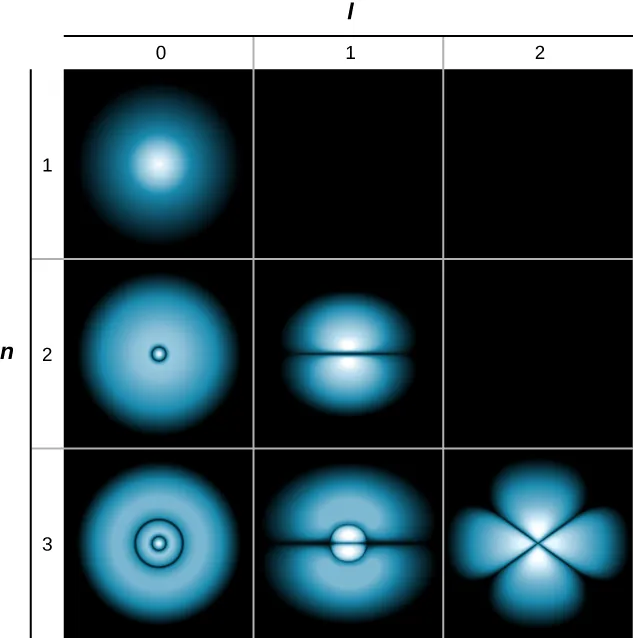

The figure shows probability clouds for electrons in the n equals 1, 2 and 3, l equals 0, 1 and 2 states in a 3 by 3 grid. n=1, l=0 is a spherically symmetric distribution, brighter in the center and gradually fading with increasing radius, with no nodes. n=2, l=0 is a spherically symmetric distribution with a spherical, concentric node. The node appears as a black circle within the cloud. The cloud is brightest in the center, fading to black at the node, brightening again to outside the node (but not as bright as at the center of the cloud), then fading again at large r. n=2, l=1 has a planar node along the diameter of the cloud, appearing as a dark line across the distribution and indentations at the edges. The cloud is brightest near the center, above and below the node. n=3, l=0 is a spherically symmetric distribution with two spherical, concentric nodes. The nodes appear as concentric black circles within the cloud. The cloud is brightest in the center, fading to black at the first node, brightening again to a maximum brightness outside the node, fading to black at the second node brightening again, then fading again at large r. The local maxima (at the center, between the nodes, and outside the outer node) decrease in intensity. n=3, l=2 has both a concentric circular node and a planar node along the diameter, appearing as a circle in and line across the cloud. The cloud is brightest inside the circular node. A second local maximum brightness is seen within the lobes above and below the planar node. n=3, l=2 has two planar nodes, which appear as an X across the cloud. The quarters of the cloud thus defined are deeply indented at the edges, forming rounded lobes. The cloud is brightest near the center.
Figure 8.9 Probability clouds for the electron in the ground state and several excited states of hydrogen. The probability of finding the electron is indicated by the shade of color; the lighter the coloring, the greater the chance of finding the electron.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-3/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-3/pages/1-introduction
Citation information

© Sep 29, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
