5.4 Length Contraction

Proper Length

Two observers passing each other always see the same value of their relative speed. Even though time dilation implies that the train passenger and the observer standing alongside the tracks measure different times for the train to pass, they still agree that relative speed, which is distance divided by elapsed time, is the same. If an observer on the ground and one on the train measure a different time for the length of the train to pass the ground observer, agreeing on their relative speed means they must also see different distances traveled.

The muon discussed in Example 5.3 illustrates this concept (Figure 5.9). To an observer on Earth, the muon travels at 0.950c for 7.05 μs from the time it is produced until it decays. Therefore, it travels a distance relative to Earth of:

In the muon frame, the lifetime of the muon is 2.20 μs. In this frame of reference, the Earth, air, and ground have only enough time to travel:

The distance between the same two events (production and decay of a muon) depends on who measures it and how they are moving relative to it.

The earthbound observer measures the proper length $L_0$ because the points at which the muon is produced and decays are stationary relative to Earth. To the muon, Earth, air, and clouds are moving, so the distance L it sees is not the proper length.

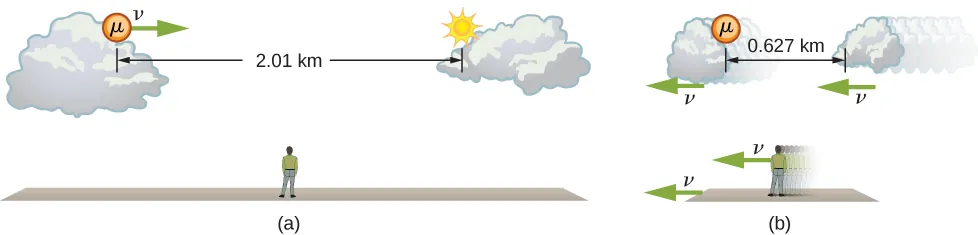

Figure 5.9 (a) The earthbound observer sees the muon travel 2.01 km. (b) The same path has length 0.627 km seen from the muon’s frame of reference. The Earth, air, and clouds are moving relative to the muon in its frame, and have smaller lengths along the direction of travel.

Length Contraction

To relate distances measured by different observers, note that the velocity relative to the earthbound observer in our muon example is given by

The time relative to the earthbound observer is $\text{Δ}t,$ because the object being timed is moving relative to this observer. The velocity relative to the moving observer is given by

The moving observer travels with the muon and therefore observes the proper time $\text{Δ}\tau .$ The two velocities are identical; thus,

We know that $\text{Δ}t=\gamma \text{Δ}\tau .$ Substituting this equation into the relationship above gives

Substituting for $\gamma$ gives an equation relating the distances measured by different observers.

If we measure the length of anything moving relative to our frame, we find its length L to be smaller than the proper length $L_0$ that would be measured if the object were stationary. For example, in the muon’s rest frame, the distance Earth moves between where the muon was produced and where it decayed is shorter than the distance traveled as seen from the Earth’s frame. Those points are fixed relative to Earth but are moving relative to the muon. Clouds and other objects are also contracted along the direction of motion as seen from muon’s rest frame.

Thus, two observers measure different distances along their direction of relative motion, depending on which one is measuring distances between objects at rest.

But what about distances measured in a direction perpendicular to the relative motion? Imagine two observers moving along their x-axes and passing each other while holding meter sticks vertically in the y-direction. Figure 5.10 shows two meter sticks M and $\text{M}\prime$ that are at rest in the reference frames of two boys S and $\text{S}\prime ,$ respectively. A small paintbrush is attached to the top (the 100-cm mark) of stick $\text{M}\prime \text{.}$ Suppose that $\text{S}\prime$ is moving to the right at a very high speed v relative to S, and the sticks are oriented so that they are perpendicular, or transverse, to their relative velocity vector. The sticks are held so that as they pass each other, their lower ends (the 0-cm marks) coincide. Assume that when S looks at his stick M afterwards, he finds a line painted on it, just below the top of the stick. Because the brush is attached to the top of the other boy’s stick $\text{M}\prime \text{,}$ S can only conclude that stick $\text{M}\prime$ is less than 1.0 m long.

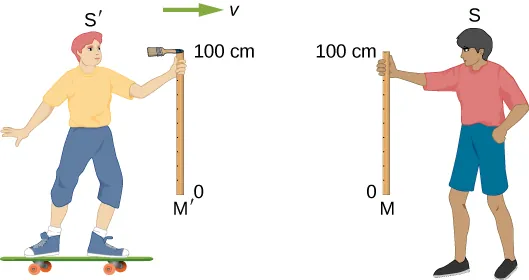

Figure 5.10 Meter sticks M and $\text{M}\prime$ are stationary in the reference frames of observers S and $\text{S}\prime ,$ respectively. As the sticks pass, a small brush attached to the 100-cm mark of $\text{M}\prime$ paints a line on M.

Now when the boys approach each other, $\text{S}\prime \text{,}$ like S, sees a meter stick moving toward him with speed v. Because their situations are symmetric, each boy must make the same measurement of the stick in the other frame. So, if S measures stick $\text{M}\prime$ to be less than 1.0 m long, $\text{S}\prime$ must measure stick M to be also less than 1.0 m long, and $\text{S}\prime$ must see his paintbrush pass over the top of stick M and not paint a line on it. In other words, after the same event, one boy sees a painted line on a stick, while the other does not see such a line on that same stick!

Einstein’s first postulate requires that the laws of physics (as, for example, applied to painting) predict that S and $\text{S}\prime \text{,}$ who are both in inertial frames, make the same observations; that is, S and $\text{S}\prime$ must either both see a line painted on stick M, or both not see that line. We are therefore forced to conclude our original assumption that S saw a line painted below the top of his stick was wrong! Instead, S finds the line painted right at the 100-cm mark on M. Then both boys will agree that a line is painted on M, and they will also agree that both sticks are exactly 1 m long. We conclude then that measurements of a transverse length must be the same in different inertial frames.

Example 5.5

Calculating Length Contraction

Suppose an astronaut, such as the twin in the twin paradox discussion, travels so fast that $\gamma =30.00.$ (a) The astronaut travels from Earth to the nearest star system, Alpha Centauri, 4.300 light years (ly) away as measured by an earthbound observer. How far apart are Earth and Alpha Centauri as measured by the astronaut? (b) In terms of c, what is the astronaut’s velocity relative to Earth? You may neglect the motion of Earth relative to the sun (Figure 5.11).

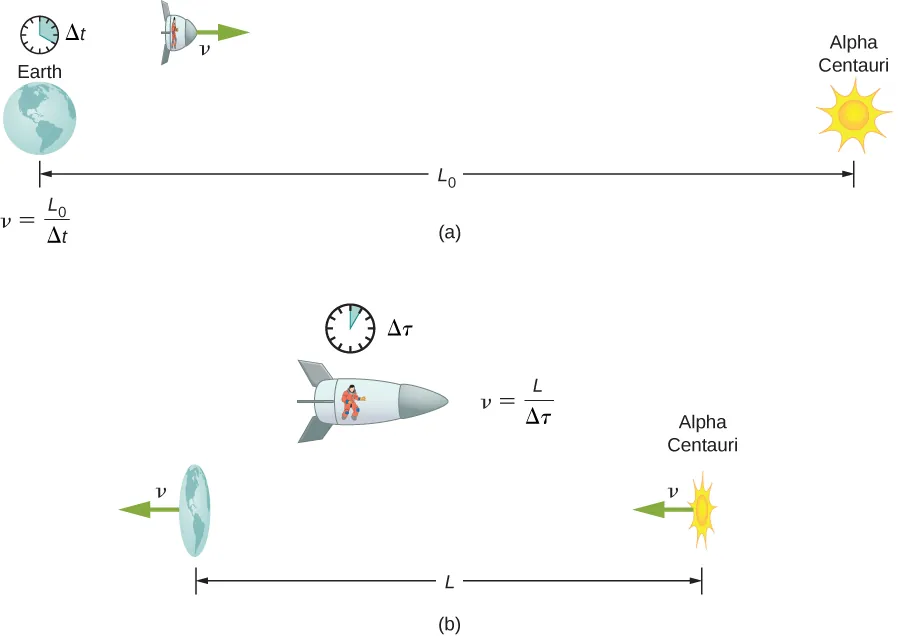

Figure 5.11 (a) The earthbound observer measures the proper distance between Earth and Alpha Centauri. (b) The astronaut observes a length contraction because Earth and Alpha Centauri move relative to her ship. She can travel this shorter distance in a smaller time (her proper time) without exceeding the speed of light.

Strategy

First, note that a light year (ly) is a convenient unit of distance on an astronomical scale—it is the distance light travels in a year. For part (a), the 4.300-ly distance between Alpha Centauri and Earth is the proper distance $L_0,$ because it is measured by an earthbound observer to whom both stars are (approximately) stationary. To the astronaut, Earth and Alpha Centauri are moving past at the same velocity, so the distance between them is the contracted length L. In part (b), we are given $\gamma ,$ so we can find v by rearranging the definition of $\gamma$ to express v in terms of c.

Solution for (a)

For part (a):

1. Identify the knowns: $L_0=4.300\text{ly;}\gamma =30.00.$
2. Identify the unknown: L.
3. Express the answer as an equation: $L=\frac{L_0}{\gamma }.$
4. Do the calculation:
   $$\begin{array}{cc}\hfill L& =\frac{L_0}{\gamma }\hfill \\ & =\frac{4.300\text{ly}}{30.00}\hfill \\ & =0.1433\text{ly.}\hfill \end{array}$$

Solution for (b)

For part (b):

1. Identify the known: $\gamma =30.00.$
2. Identify the unknown: v in terms of c.
3. Express the answer as an equation. Start with:
   $$\gamma =\frac{1}{\sqrt{1-\frac{v^2}{c^2}}}.$$
   Then solve for the unknown v/c by first squaring both sides and then rearranging:
   $$\begin{array}{ccc}\hfill {\gamma }^2& =\hfill & \frac{1}{1-\frac{v^2}{c^2}}\hfill \\ \hfill \frac{v^2}{c^2}& =\hfill & 1-\frac{1}{{\gamma }^2}\hfill \\ \hfill \frac{v}{c}& =\hfill & \sqrt{1-\frac{1}{{\gamma }^2}}.\hfill \end{array}$$
4. Do the calculation:
   $$\begin{array}{cc}\hfill \frac{v}{c}& =\sqrt{1-\frac{1}{{\gamma }^2}}\hfill \\ & =\sqrt{1-\frac{1}{{\left(30.00\right)}^2}}\hfill \\ & =0.99944\hfill \end{array}$$
   or
   $$v=0.9994c.$$

Significance

Remember not to round off calculations until the final answer, or you could get erroneous results. This is especially true for special relativity calculations, where the differences might only be revealed after several decimal places. The relativistic effect is large here $\left(\gamma =30.00\right),$ and we see that v is approaching (not equaling) the speed of light. Because the distance as measured by the astronaut is so much smaller, the astronaut can travel it in much less time in her frame.

People traveling at extremely high velocities could cover very large distances (thousands or even millions of light years) and age only a few years on the way. However, like emigrants in past centuries who left their home, these people would leave the Earth they know forever. Even if they returned, thousands to millions of years would have passed on Earth, obliterating most of what now exists. There is also a more serious practical obstacle to traveling at such velocities; immensely greater energies would be needed to achieve such high velocities than classical physics predicts can be attained. This will be discussed later in the chapter.

Why don’t we notice length contraction in everyday life? The distance to the grocery store does not seem to depend on whether we are moving or not. Examining the equation $L=L_0\sqrt{1-\frac{v^2}{c^2}},$ we see that at low velocities $(v\text{<}\text{<}c),$ the lengths are nearly equal, which is the classical expectation. But length contraction is real, if not commonly experienced. For example, a charged particle such as an electron traveling at relativistic velocity has electric field lines that are compressed along the direction of motion as seen by a stationary observer (Figure 5.12). As the electron passes a detector, such as a coil of wire, its field interacts much more briefly, an effect observed at particle accelerators such as the 3-km-long Stanford Linear Accelerator (SLAC). In fact, to an electron traveling down the beam pipe at SLAC, the accelerator and Earth are all moving by and are length contracted. The relativistic effect is so great that the accelerator is only 0.5 m long to the electron. It is actually easier to get the electron beam down the pipe, because the beam does not have to be as precisely aimed to get down a short pipe as it would to get down a pipe 3 km long. This, again, is an experimental verification of the special theory of relativity.

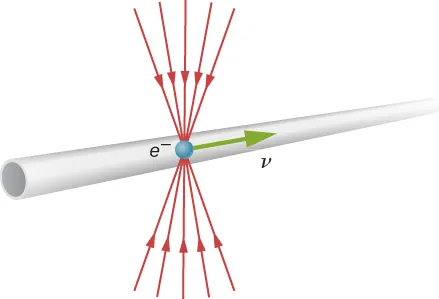

Figure 5.12 The electric field lines of a high-velocity charged particle are compressed along the direction of motion by length contraction, producing an observably different signal as the particle goes through a coil.
