### Additional Problems

White light falls on two narrow slits separated by 0.40 mm. The interference pattern is observed on a screen 3.0 m away. (a) What is the separation between the first maxima for red light $(\text{\lambda}=700\phantom{\rule{0.2em}{0ex}}\text{nm})$ and violet light $(\text{\lambda}=400\phantom{\rule{0.2em}{0ex}}\text{nm})?$ (b) At what point nearest the central maximum will a maximum for yellow light $(\text{\lambda}=600\phantom{\rule{0.2em}{0ex}}\text{nm})$ coincide with a maximum for violet light? Identify the order for each maximum.

Microwaves of wavelength 10.0 mm fall normally on a metal plate that contains a slit 25 mm wide. (a) Where are the first minima of the diffraction pattern? (b) Would there be minima if the wavelength were 30.0 mm?

*Quasars*, or *quasi-stellar radio sources*, are astronomical objects discovered in 1960. They are distant but strong emitters of radio waves with angular size so small, they were originally unresolved, the same as stars. The quasar 3C405 is actually two discrete radio sources that subtend an angle of 82 arcsec. If this object is studied using radio emissions at a frequency of 410 MHz, what is the minimum diameter of a radio telescope that can resolve the two sources?

Two slits each of width 1800 nm and separated by the center-to-center distance of 1200 nm are illuminated by plane waves from a krypton ion laser-emitting at wavelength 461.9 nm. Find the number of interference peaks in the central diffraction peak.

A microwave of an unknown wavelength is incident on a single slit of width 6 cm. The angular width of the central peak is found to be $25\text{\xb0}$. Find the wavelength.

Red light (wavelength 632.8 nm in air) from a Helium-Neon laser is incident on a single slit of width 0.05 mm. The entire apparatus is immersed in water of refractive index 1.333. Determine the angular width of the central peak.

A light ray of wavelength 461.9 nm emerges from a 2-mm circular aperture of a krypton ion laser. Due to diffraction, the beam expands as it moves out. How large is the central bright spot at (a) 1 m, (b) 1 km, (c) 1000 km, and (d) at the surface of the moon at a distance of 400,000 km from Earth.

How far apart must two objects be on the moon to be distinguishable by eye if only the diffraction effects of the eye’s pupil limit the resolution? Assume 550 nm for the wavelength of light, the pupil diameter 5.0 mm, and 400,000 km for the distance to the moon.

How far apart must two objects be on the moon to be resolvable by the 8.1-m-diameter Gemini North telescope at Mauna Kea, Hawaii, if only the diffraction effects of the telescope aperture limit the resolution? Assume 550 nm for the wavelength of light and 400,000 km for the distance to the moon.

A spy satellite is reputed to be able to resolve objects 10. cm apart while operating 197 km above the surface of Earth. What is the diameter of the aperture of the telescope if the resolution is only limited by the diffraction effects? Use 550 nm for light.

Monochromatic light of wavelength 530 nm passes through a horizontal single slit of width $1.5\phantom{\rule{0.2em}{0ex}}\mu \text{m}$ in an opaque plate. A screen of dimensions $2.0\phantom{\rule{0.2em}{0ex}}\text{m}\phantom{\rule{0.2em}{0ex}}\times \phantom{\rule{0.2em}{0ex}}2.0\phantom{\rule{0.2em}{0ex}}\text{m}$ is 1.2 m away from the slit. (a) Which way is the diffraction pattern spread out on the screen? (b) What are the angles of the minima with respect to the center? (c) What are the angles of the maxima? (d) How wide is the central bright fringe on the screen? (e) How wide is the next bright fringe on the screen?

A monochromatic light of unknown wavelength is incident on a slit of width $20\phantom{\rule{0.2em}{0ex}}\mu \text{m}$. A diffraction pattern is seen at a screen 2.5 m away where the central maximum is spread over a distance of 10.0 cm. Find the wavelength.

A source of light having two wavelengths 550 nm and 600 nm of equal intensity is incident on a slit of width $1.8\phantom{\rule{0.2em}{0ex}}\mu \text{m}$. Find the separation of the $m=1$ bright spots of the two wavelengths on a screen 30.0 cm away.

A single slit of width 2100 nm is illuminated normally by a wave of wavelength 632.8 nm. Find the phase difference between waves from the top and one third from the bottom of the slit to a point on a screen at a horizontal distance of 2.0 m and vertical distance of 10.0 cm from the center.

A single slit of width $3.0\phantom{\rule{0.2em}{0ex}}\mu \text{m}$ is illuminated by a sodium yellow light of wavelength 589 nm. Find the intensity at a $15\text{\xb0}$ angle to the axis in terms of the intensity of the central maximum.

A single slit of width 0.10 mm is illuminated by a mercury lamp of wavelength 576 nm. Find the intensity at a $10\text{\xb0}$ angle to the axis in terms of the intensity of the central maximum.

A diffraction grating produces a second maximum that is 89.7 cm from the central maximum on a screen 2.0 m away. If the grating has 6000 lines per centimeter, what is the wavelength of the light that produces the diffraction pattern?

A grating with 4000 lines per centimeter is used to diffract light that contains all wavelengths between 400 and 650 nm. How wide is the first-order spectrum on a screen 3.0 m from the grating?

A diffraction grating with 2000 lines per centimeter is used to measure the wavelengths emitted by a hydrogen gas discharge tube. (a) At what angles will you find the maxima of the two first-order blue lines of wavelengths 410 and 434 nm? (b) The maxima of two other first-order lines are found at ${\theta}_{1}=0.097\phantom{\rule{0.2em}{0ex}}\text{rad}$ and ${\theta}_{2}=0.132\phantom{\rule{0.2em}{0ex}}\text{rad}$. What are the wavelengths of these lines?

For white light $\left(400\phantom{\rule{0.2em}{0ex}}\text{nm}\phantom{\rule{0.2em}{0ex}}\text{<}\phantom{\rule{0.2em}{0ex}}\lambda \text{<}\phantom{\rule{0.2em}{0ex}}700\phantom{\rule{0.2em}{0ex}}\text{nm}\right)$ falling normally on a diffraction grating, show that the second and third-order spectra overlap no matter what the grating constant *d* is.

How many complete orders of the visible spectrum $\left(400\phantom{\rule{0.2em}{0ex}}\text{nm}\phantom{\rule{0.2em}{0ex}}\text{<}\phantom{\rule{0.2em}{0ex}}\lambda \text{<}\phantom{\rule{0.2em}{0ex}}700\phantom{\rule{0.2em}{0ex}}\text{nm}\right)$ can be produced with a diffraction grating that contains 5000 lines per centimeter?

Two lamps producing light of wavelength 589 nm are ﬁxed 1.0 m apart on a wooden plank. What is the maximum distance an observer can be and still resolve the lamps as two separate sources of light, if the resolution is affected solely by the diffraction of light entering the eye? Assume light enters the eye through a pupil of diameter 4.5 mm.

On a bright clear day, you are at the top of a mountain and looking at a city 12 km away. There are two tall towers 20.0 m apart in the city. Can your eye resolve the two towers if the diameter of the pupil is 4.0 mm? If not, what should be the minimum magniﬁcation power of the telescope needed to resolve the two towers? In your calculations use 550 nm for the wavelength of the light.

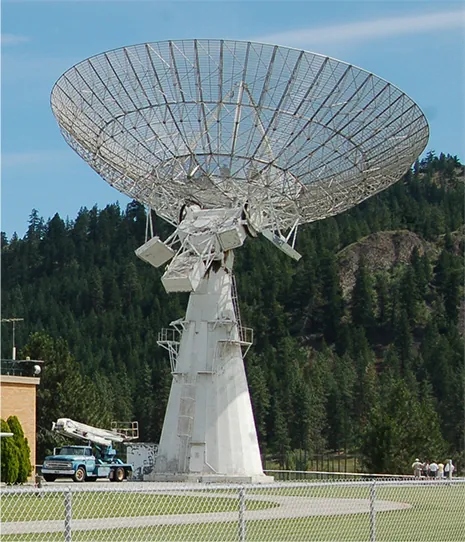

Radio telescopes are telescopes used for the detection of radio emission from space. Because radio waves have much longer wavelengths than visible light, the diameter of a radio telescope must be very large to provide good resolution. For example, the radio telescope in Penticton, BC in Canada, has a diameter of 26 m and can be operated at frequencies as high as 6.6 GHz. (a) What is the wavelength corresponding to this frequency? (b) What is the angular separation of two radio sources that can be resolved by this telescope? (c) Compare the telescope’s resolution with the angular size of the moon.

Calculate the wavelength of light that produces its first minimum at an angle of $36.9\text{\xb0}$ when falling on a single slit of width $1.00\phantom{\rule{0.2em}{0ex}}\mu \text{m}$.

(a) Find the angle of the third diffraction minimum for 633-nm light falling on a slit of width $20.0\phantom{\rule{0.2em}{0ex}}\mu \text{m}$. (b) What slit width would place this minimum at $85.0\text{\xb0}$ ?

As an example of diffraction by apertures of everyday dimensions, consider a doorway of width 1.0 m. (a) What is the angular position of the first minimum in the diffraction pattern of 600-nm light? (b) Repeat this calculation for a musical note of frequency 440 Hz (A above middle C). Take the speed of sound to be 343 m/s.

What are the angular positions of the first and second minima in a diffraction pattern produced by a slit of width 0.20 mm that is illuminated by 400 nm light? What is the angular width of the central peak?

How far would you place a screen from the slit of the previous problem so that the second minimum is a distance of 2.5 mm from the center of the diffraction pattern?

How narrow is a slit that produces a diffraction pattern on a screen 1.8 m away whose central peak is 1.0 m wide? Assume $\text{\lambda}=589\phantom{\rule{0.2em}{0ex}}\text{nm}$.

Suppose that the central peak of a single-slit diffraction pattern is so wide that the first minima can be assumed to occur at angular positions of $\pm 90\text{\xb0}$. For this case, what is the ratio of the slit width to the wavelength of the light?

The central diffraction peak of the double-slit interference pattern contains exactly nine fringes. What is the ratio of the slit separation to the slit width?

Determine the intensities of three interference peaks other than the central peak in the central maximum of the diffraction, if possible, when a light of wavelength 500 nm is incident normally on a double slit of width 1000 nm and separation 1500 nm. Use the intensity of the central spot to be ${1\phantom{\rule{0.2em}{0ex}}\text{mW/cm}}^{2}$.

The yellow light from a sodium vapor lamp *seems* to be of pure wavelength, but it produces two first-order maxima at $36.093\text{\xb0}$ and $36.129\text{\xb0}$ when projected on a 10,000 line per centimeter diffraction grating. What are the two wavelengths to an accuracy of 0.1 nm?

Structures on a bird feather act like a reflection grating having 8000 lines per centimeter. What is the angle of the first-order maximum for 600-nm light?

If a diffraction grating produces a first-order maximum for the shortest wavelength of visible light at $30.0\text{\xb0}$, at what angle will the first-order maximum be for the largest wavelength of visible light?

(a) What visible wavelength has its fourth-order maximum at an angle of $25.0\text{\xb0}$ when projected on a 25,000-line per centimeter diffraction grating? (b) What is unreasonable about this result? (c) Which assumptions are unreasonable or inconsistent?

Consider a spectrometer based on a diffraction grating. Construct a problem in which you calculate the distance between two wavelengths of electromagnetic radiation in your spectrometer. Among the things to be considered are the wavelengths you wish to be able to distinguish, the number of lines per meter on the diffraction grating, and the distance from the grating to the screen or detector. Discuss the practicality of the device in terms of being able to discern between wavelengths of interest.

An amateur astronomer wants to build a telescope with a diffraction limit that will allow him to see if there are people on the moons of Jupiter. (a) What diameter mirror is needed to be able to see 1.00-m detail on a Jovian moon at a distance of $7.50\phantom{\rule{0.2em}{0ex}}\times \phantom{\rule{0.2em}{0ex}}{10}^{8}\phantom{\rule{0.2em}{0ex}}\text{km}$ from Earth? The wavelength of light averages 600 nm. (b) What is unreasonable about this result? (c) Which assumptions are unreasonable or inconsistent?
