Learning Objectives

By the end of this section, you will be able to:
  • Describe how an image is formed by a plane mirror.
  • Distinguish between real and virtual images.
  • Find the location and characterize the orientation of an image created by a plane mirror.

You only have to look as far as the nearest bathroom to find an example of an image formed by a mirror. Images in a plane mirror are the same size as the object, are located behind the mirror, and are oriented in the same direction as the object (i.e., “upright”).

To understand how this happens, consider Figure 2.2. Two rays emerge from point P, strike the mirror, and reflect into the observer’s eye. Note that we use the law of reflection to construct the reflected rays. If the reflected rays are extended backward behind the mirror (see dashed lines in Figure 2.2), they seem to originate from point Q. This is where the image of point P is located. If we repeat this process for point PP, we obtain its image at point QQ. You should convince yourself by using basic geometry that the image height (the distance from Q to QQ) is the same as the object height (the distance from P to PP). By forming images of all points of the object, we obtain an upright image of the object behind the mirror.

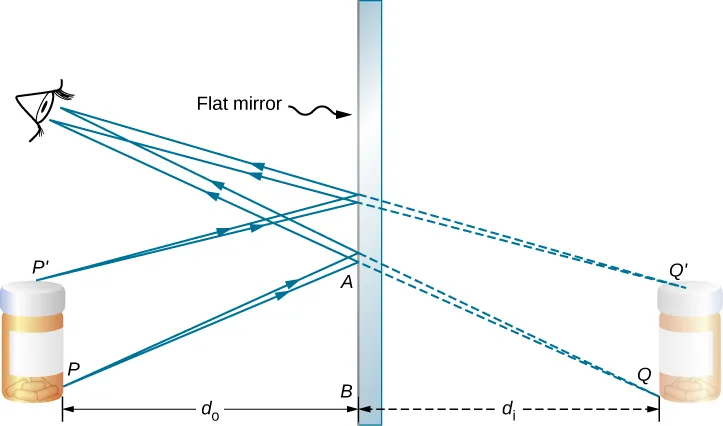

Figure shows cross section of a flat mirror in the center, a bottle to its left and a faded bottle (indicating that it is an image) to its right. The distances of the object and the image from the base of the mirror are labeled d subscript o and d subscript i respectively. Two rays originating from point P, at the base of the object hit the mirror at two separate points. The reflected rays from these points reach the eye of the observer, shown at the top left. The rays are extended to the right by dotted lines, such that they seem to originate from point Q, at the base of the image. Similarly, two rays, starting from point P prime, at the top of the object hit the mirror and are reflected to the eye of the observer. When extended at the back, these reflected rays seem to originate from point Q prime, at the top of the image.
Figure 2.2 Two light rays originating from point P on an object are reflected by a flat mirror into the eye of an observer. The reflected rays are obtained by using the law of reflection. Extending these reflected rays backward, they seem to come from point Q behind the mirror, which is where the virtual image is located. Repeating this process for point PP gives the image point QQ. The image height is thus the same as the object height, the image is upright, and the object distance dodo is the same as the image distance didi. (credit: modification of work by Kevin Dufendach)

Notice that the reflected rays appear to the observer to come directly from the image behind the mirror. In reality, these rays come from the points on the mirror where they are reflected. The image behind the mirror is called a virtual image because it cannot be projected onto a screen—the rays only appear to originate from a common point behind the mirror. If you walk behind the mirror, you cannot see the image, because the rays do not go there. However, in front of the mirror, the rays behave exactly as if they come from behind the mirror, so that is where the virtual image is located.

Later in this chapter, we discuss real images; a real image can be projected onto a screen because the rays physically go through the image. You can certainly see both real and virtual images. The difference is that a virtual image cannot be projected onto a screen, whereas a real image can.

Locating an Image in a Plane Mirror

The law of reflection tells us that the angle of incidence is the same as the angle of reflection. Applying this to triangles PAB and QAB in Figure 2.2 and using basic geometry shows that they are congruent triangles. This means that the distance PB from the object to the mirror is the same as the distance BQ from the mirror to the image. The object distance (denoted dodo) is the distance from the mirror to the object (or, more generally, from the center of the optical element that creates its image). Similarly, the image distance (denoted didi) is the distance from the mirror to the image (or, more generally, from the center of the optical element that creates it). If we measure distances from the mirror, then the object and image are in opposite directions, so for a plane mirror, the object and image distances should have the opposite signs:

do=di.do=di.
(2.1)

An extended object such as the container in Figure 2.2 can be treated as a collection of points, and we can apply the method above to locate the image of each point on the extended object, thus forming the extended image.

Multiple Images

If an object is situated in front of two mirrors, you may see images in both mirrors. In addition, the image in the first mirror may act as an object for the second mirror, so the second mirror may form an image of the image. If the mirrors are placed parallel to each other and the object is placed at a point other than the midpoint between them, then this process of image-of-an-image continues without end, as you may have noticed when standing in a hallway with mirrors on each side. This is shown in Figure 2.3, which shows three images produced by the blue object. Notice that each reflection reverses front and back, just like pulling a right-hand glove inside out produces a left-hand glove (this is why a reflection of your right hand is a left hand). Thus, the fronts and backs of images 1 and 2 are both inverted with respect to the object, and the front and back of image 3 is inverted with respect to image 2, which is the object for image 3.

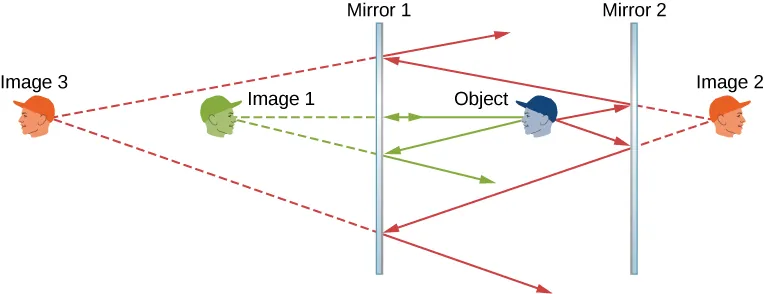

Figure shows cross sections of two mirrors placed parallel to each other, mirror 1 being on the left and mirror 2 on the right. Four human faces are shown, labeled object, image 1, image 2 and image 3. The object is in between the two mirrors, facing left towards mirror 1. Image 1 is to the left of mirror 1, facing right. Image 2 is to the right of mirror 2, facing right. Image 3 is to the far left, facing left. It is smaller than the other three faces.
Figure 2.3 Two parallel mirrors can produce, in theory, an infinite number of images of an object placed off center between the mirrors. Three of these images are shown here. The front and back of each image is inverted with respect to its object. Note that the colors are only to identify the images. For normal mirrors, the color of an image is essentially the same as that of its object.

You may have noticed that image 3 is smaller than the object, whereas images 1 and 2 are the same size as the object. The ratio of the image height with respect to the object height is called magnification. More will be said about magnification in the next section.

Infinite reflections may terminate. For instance, two mirrors at right angles form three images, as shown in part (a) of Figure 2.4. Images 1 and 2 result from rays that reflect from only a single mirror, but image 1,2 is formed by rays that reflect from both mirrors. This is shown in the ray-tracing diagram in part (b) of Figure 2.4. To find image 1,2, you have to look behind the corner of the two mirrors.

Figure a shows mirror 1 and mirror 2 placed at right angles to each other and a lego man in front of them. Mirror 1 shows image 1, mirror 2 shows image 2 and the image of image 1, labeled image 1,2. Figure b shows cross section of two mirrors at right angles to each other. Mirror 1 is placed horizontally at the top and mirror 2, vertically, to the right. The object is a human face, upright and facing right, towards mirror 2. Image 1 is above mirror 1, upside down and facing right. Image 2 is to the right of mirror 2, upright and facing left. Image 1,2 is at the top right corner, upside down and facing left.
Figure 2.4 Two mirrors can produce multiple images. (a) Three images of a plastic head are visible in the two mirrors at a right angle. (b) A single object reflecting from two mirrors at a right angle can produce three images, as shown by the green, purple, and red images.
