Learning Objectives

By the end of this section, you will be able to:
  • Describe two medical uses of nuclear technology
  • Explain the origin of biological effects due to nuclear radiation
  • List common sources of radiation and their effects
  • Estimate exposure for nuclear radiation using common dosage units

Nuclear physics is an integral part of our everyday lives (Figure 10.26). Radioactive compounds are used to identify cancer, study ancient artifacts, and power our cities. Nuclear fusion also powers the Sun, the primary source of energy on Earth. The focus of this chapter is nuclear radiation. In this section, we ask such questions as: How is nuclear radiation used to benefit society? What are its health risks? How much nuclear radiation is the average person exposed to in a lifetime?

A photograph of a woman setting a mummy in a scanning machine.
Figure 10.26 Dr. Tori Randall, a curator at the San Diego Museum of Man, uses nuclear radiation to study a 500-year-old Peruvian child mummy. The origin of this radiation is the transformation of one nucleus to another. (credit: Samantha A. Lewis, U.S. Navy)

Medical Applications

Medical use of nuclear radiation is quite common in today’s hospitals and clinics. One of the most important uses of nuclear radiation is the location and study of diseased tissue. This application requires a special drug called a radiopharmaceutical. A radiopharmaceutical contains an unstable radioactive isotope. When the drug enters the body, it tends to concentrate in inflamed regions of the body. (Recall that the interaction of the drug with the body does not depend on whether a given nucleus is replaced by one of its isotopes, since this interaction is determined by chemical interactions.) Radiation detectors used outside the body use nuclear radiation from the radioisotopes to locate the diseased tissue. Radiopharmaceuticals are called radioactive tags because they allow doctors to track the movement of drugs in the body. Radioactive tags are for many purposes, including the identification of cancer cells in the bones, brain tumors, and Alzheimer’s disease (Figure 10.27). Radioactive tags are also used to monitor the function of body organs, such as blood flow, heart muscle activity, and iodine uptake in the thyroid gland.

Two images of brains are shown. The one on the left has many red and orange areas and some blue areas. The one on the right is mostly blue with very small areas in red and yellow.

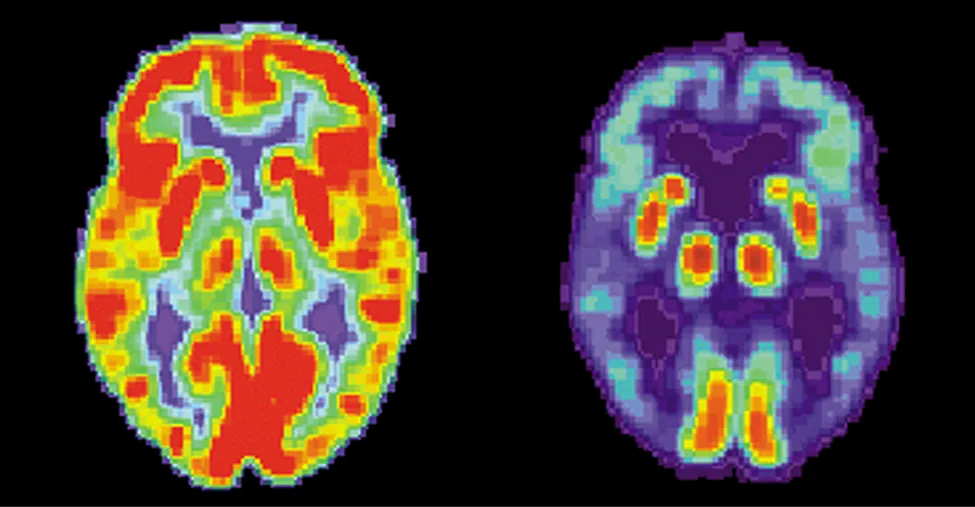

Figure 10.27 These brain images are produced using a radiopharmaceutical. The colors indicate relative metabolic or biochemical activity (red indicates high activity and blue indicates low activity). The figure on the left shows the normal brain of an individual and the figure on the right shows the brain of someone diagnosed with Alzheimer’s disease. The brain image of the normal brain indicates much greater metabolic activity (a larger fraction of red and orange areas). (credit: modification of works by National Institutes of Health)

Table 10.2 lists some medical diagnostic uses of radiopharmaceuticals, including isotopes and typical activity (A) levels. One common diagnostic test uses iodine to image the thyroid, since iodine is concentrated in that organ. Another common nuclear diagnostic is the thallium scan for the cardiovascular system, which reveals blockages in the coronary arteries and examines heart activity. The salt TlCl can be used because it acts like NaCl and follows the blood. Note that Table 10.2 lists many diagnostic uses for 99mTc99mTc, where “m” stands for a metastable state of the technetium nucleus. This isotope is used in many compounds to image the skeleton, heart, lungs, and kidneys. About 80%80% of all radiopharmaceuticals employ 99mTc99mTc because it produces a single, easily identified, 0.142-MeV γγ ray and has a short 6.0-h half-life, which reduces radiation exposure.

Procedure, Isotope Activity (mCi), where 1mCi=3.7×107Bq1mCi=3.7×107Bq Procedure, Isotope Activity (mCi), where 1mCi=3.7×107Bq1mCi=3.7×107Bq
Brain scan Thyroid scan
99mTc99mTc 7.5 131I131I 0.05
15O15O (PET) 50 123I123I 0.07
Lung scan Liver scan
133Xe133Xe 7.5 198Au198Au (colloid) 0.1
99mTc99mTc 2 99mTc99mTc (colloid) 2
Cardiovascular blood pool Bone scan
131I131I 0.2 85Sr85Sr 0.1
99mTc99mTc 2 99mTc99mTc 10
Cardiovascular arterial flow Kidney scan
201Tl201Tl 3 197Hg197Hg 0.1
24Na24Na 7.5 99mTc99mTc 1.5
Table 10.2 Diagnostic Uses of Radiopharmaceuticals

The first radiation detectors produced two-dimensional images, like a photo taken from a camera. However, a circular array of detectors that can be rotated can be used to produce three-dimensional images. This technique is similar to that used in X-ray computed tomography (CT) scans. One application of this technique is called single-photon-emission CT (SPECT) (Figure 10.28). The spatial resolution of this technique is about 1 cm.

A photograph of a person lying in an imaging machine.

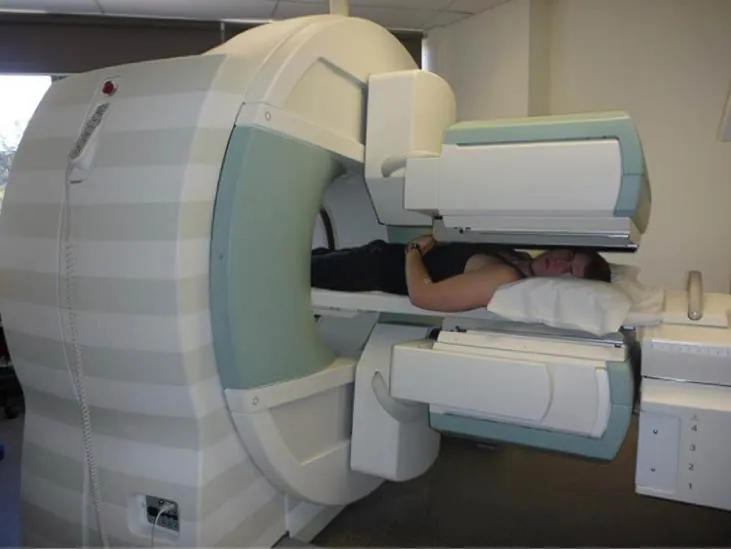

Figure 10.28 The SPECT machine uses radiopharmaceutical compounds to produce an image of the human body. The machine takes advantage of the physics of nuclear beat decays and electron-positron collisions. (credit: “Woldo”/Wikimedia Commons)

Improved image resolution is achieved by a technique known as positron emission tomography (PET). This technique use radioisotopes that decay by β+β+ radiation. When a positron encounters an electron, these particle annihilate to produce two gamma-ray photons. This reaction is represented by

e++e2γ.e++e2γ.

These γγ-ray photons have identical 0.511-MeV energies and move directly away from one another (Figure 10.29). This easily identified decay signature can be used to identify the location of the radioactive isotope. Examples of β+β+-emitting isotopes used in PET include 11C,13N,15O,and18F11C,13N,15O,and18F. The nuclei have the advantage of being able to function as tags for natural body compounds. Its resolution of 0.5 cm is better than that of SPECT.

The figure of a person lying with his head within a circular chamber. Two rays labeled gamma radiate outwards from his head. Their point of origin is labeled e positive plus e negative annihilation.

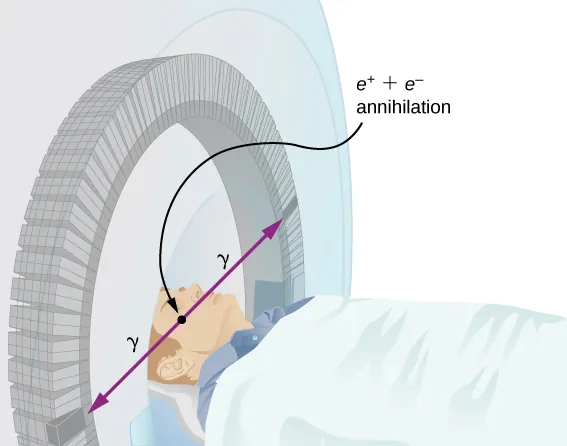

Figure 10.29 A PET system takes advantage of the two identical γγ-ray photons produced by positron-electron annihilation. These γγ rays are emitted in opposite directions, so that the line along which each pair is emitted is determined.

PET scans are especially useful to examine the brain’s anatomy and function. For example, PET scans can be used to monitor the brain’s use of oxygen and water, identify regions of decreased metabolism (linked to Alzheimer’s disease), and locate different parts of the brain responsible for sight, speech, and fine motor activity

Interactive

Is it a tumor? View an animation of simplified magnetic resonance imaging (MRI) to see if you can tell. Your head is full of tiny radio transmitters (the nuclear spins of the hydrogen nuclei of your water molecules). In an MRI unit, these little radios can be made to broadcast their positions, giving a detailed picture of the inside of your head.

Biological Effects

Nuclear radiation can have both positive and negative effects on biological systems. However, it can also be used to treat and even cure cancer. How do we understand these effects? To answer this question, consider molecules within cells, particularly DNA molecules.

Cells have long, double-helical DNA molecules containing chemical codes that govern the function and processes of the cell. Nuclear radiation can alter the structural features of the DNA chain, leading to changes in the genetic code. In human cells, we can have as many as a million individual instances of damage to DNA per cell per day. DNA contains codes that check whether the DNA is damaged and can repair itself. This repair ability of DNA is vital for maintaining the integrity of the genetic code and for the normal functioning of the entire organism. It should be constantly active and needs to respond rapidly. The rate of DNA repair depends on various factors such as the type and age of the cell. If nuclear radiation damages the ability of the cell to repair DNA, the cell can

  1. Retreat to an irreversible state of dormancy (known as senescence);
  2. Commit suicide (known as programmed cell death); or
  3. Progress into unregulated cell division, possibly leading to tumors and cancers.

Nuclear radiation can harm the human body is many other ways as well. For example, high doses of nuclear radiation can cause burns and even hair loss.

Biological effects of nuclear radiation are expressed by many different physical quantities and in many different units. A common unit to express the biological effects of nuclear radiation is the rad or radiation dose unit. One rad is equal to 1/100 of a joule of nuclear energy deposited per kilogram of tissue, written:

1rad=0.01J/kg.1rad=0.01J/kg.

For example, if a 50.0-kg person is exposed to nuclear radiation over her entire body and she absorbs 1.00 J, then her whole-body radiation dose is

(1.00J)/(50.0kg)=0.0200J/kg=2.00rad.(1.00J)/(50.0kg)=0.0200J/kg=2.00rad.

Nuclear radiation damages cells by ionizing atoms in the cells as they pass through the cells (Figure 10.30). The effects of ionizing radiation depend on the dose in rads, but also on the type of radiation (alpha, beta, gamma, or X-ray) and the type of tissue. For example, if the range of the radiation is small, as it is for αα rays, then the ionization and the damage created is more concentrated and harder for the organism to repair. To account for such affects, we define the relative biological effectiveness (RBE). Sample RBE values for several types of ionizing nuclear radiation are given in Table 10.3.

Two rows of nine cells each are shown. A gamma ray of low ionization density passes through the upper row. Two cells are damaged. An alpha ray of high ionization density passes through the lower row. Five cells are damaged.

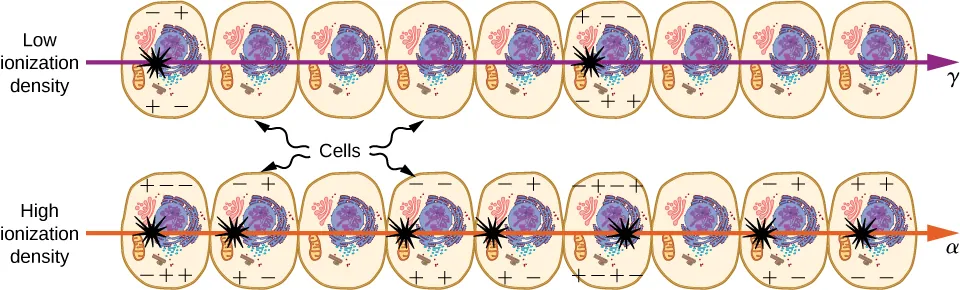

Figure 10.30 The image shows ionization created in cells by αα and γγ radiation. Because of its shorter range, the ionization and damage created by αα rays is more concentrated and harder for the organism to repair. Thus, the RBE for αα rays is greater than the RBE for γγ rays, even though they create the same amount of ionization at the same energy.
Type and Energy of Radiation RBE[1]
X-rays 1
γγ rays 1
ββ rays greater than 32 keV 1
ββ rays less than 32 keV 1.7
Neutrons, thermal to slow (<20 keV) 2–5
Neutrons, fast (1–10 MeV) 10 (body), 32 (eyes)
Protons (1–10 MeV) 10 (body), 32 (eyes)
αα rays from radioactive decay 10–20
Heavy ions from accelerators 10–20
Table 10.3 Relative Biological Effectiveness [1] Values approximate. Difficult to determine.

A dose unit more closely related to effects in biological tissue is called the roentgen equivalent man (rem) and is defined to be the dose (in rads) multiplied by the relative biological effectiveness (RBE). Thus, if a person had a whole-body dose of 2.00 rad of γγ radiation, the dose in rem would be (2.00rad)(1)=2.00(2.00rad)(1)=2.00 rem for the whole body. If the person had a whole-body dose of 2.00 rad of αα radiation, then the dose in rem would be (2.00rad)(20)=40.0(2.00rad)(20)=40.0 rem for the whole body. The αα rays would have 20 times the effect on the person than the γγ rays for the same deposited energy. The SI equivalent of the rem, and the more standard term, is the sievert (Sv) is

1Sv=100rem.1Sv=100rem.

The RBEs given in Table 10.3 are approximate but reflect an understanding of nuclear radiation and its interaction with living tissue. For example, neutrons are known to cause more damage than γγ rays, although both are neutral and have large ranges, due to secondary radiation. Any dose less than 100 mSv (10 rem) is called a low dose, 0.1 Sv to 1 Sv (10 to 100 rem) is called a moderate dose, and anything greater than 1 Sv (100 rem) is called a high dose. It is difficult to determine if a person has been exposed to less than 10 mSv.

Biological effects of different levels of nuclear radiation on the human body are given in Table 10.4. The first clue that a person has been exposed to radiation is a change in blood count, which is not surprising since blood cells are the most rapidly reproducing cells in the body. At higher doses, nausea and hair loss are observed, which may be due to interference with cell reproduction. Cells in the lining of the digestive system also rapidly reproduce, and their destruction causes nausea. When the growth of hair cells slows, the hair follicles become thin and break off. High doses cause significant cell death in all systems, but the lowest doses that cause fatalities do so by weakening the immune system through the loss of white blood cells.

Dose in Sv[1] Effect
0–0.10 No observable effect.
0.1–1 Slight to moderate decrease in white blood cell counts.
0.5 Temporary sterility; 0.35 for women, 0.50 for men.
1–2 Significant reduction in blood cell counts, brief nausea and vomiting. Rarely fatal.
2–5 Nausea, vomiting, hair loss, severe blood damage, hemorrhage, fatalities.
4.5 Lethal to 50%50% of the population within 32 days after exposure if not treated.
5–20 Worst effects due to malfunction of small intestine and blood systems. Limited survival.
>20 Fatal within hours due to collapse of central nervous system.
Table 10.4 Immediate Effects of Radiation (Adults, Whole-Body, Single Exposure) [1] Multiply by 100 to obtain dose in rem.

Sources of Radiation

Human are also exposed to many sources of nuclear radiation. A summary of average radiation doses for different sources by country is given in Table 10.5. Earth emits radiation due to the isotopes of uranium, thorium, and potassium. Radiation levels from these sources depend on location and can vary by a factor of 10. Fertilizers contain isotopes of potassium and uranium, which we digest in the food we eat. Fertilizers have more than 3000 Bq/kg radioactivity, compared to just 66 Bq/kg for Carbon-14.

Source Dose (mSv/y)[1]
Australia Germany US World
Natural radiation – external
Cosmic rays 0.30 0.28 0.30 0.39
Soil, building materials 0.40 0.40 0.30 0.48
Radon gas 0.90 1.1 2.0 1.2
Natural radiation – internal
40K,14C,226Ra40K,14C,226Ra 0.24 0.28 0.40 0.29
Artificial radiation
Medical and dental 0.80 0.90 0.53 0.40
TOTAL 2.6 3.0 3.5 2.8
Table 10.5 Background Radiation Sources and Average Doses [1] Multiply by 100 to obtain does in mrem/y.

Medical visits are also a source of nuclear radiation. A sample of common nuclear radiation doses is given in Table 10.6. These doses are generally low and can be lowered further with improved techniques and more sensitive detectors. With the possible exception of routine dental X-rays, medical use of nuclear radiation is used only when the risk-benefit is favorable. Chest X-rays give the lowest doses—about 0.1 mSv to the tissue affected, with less than 5%5% scattering into tissues that are not directly imaged. Other X-ray procedures range upward to about 10 mSv in a CT scan, and about 5 mSv (0.5 rem) per dental X-ray, again both only affecting the tissue imaged. Medical images with radiopharmaceuticals give doses ranging from 1 to 5 mSv, usually localized.

Procedure Effective Dose (mSv)
Chest 0.02
Dental 0.01
Skull 0.07
Leg 0.02
Mammogram 0.40
Barium enema 7.0
Upper GI 3.0
CT head 2.0
CT abdomen 10.0
Table 10.6 Typical Doses Received During Diagnostic X-Ray Exams

Example 10.12

What Mass of 137Cs137Cs Escaped Chernobyl? The Chernobyl accident in Ukraine (formerly in the Soviet Union) exposed the surrounding population to a large amount of radiation through the decay of 137Cs137Cs. The initial radioactivity level was approximately A=6.0MCi.A=6.0MCi. Calculate the total mass of 137Cs137Cs involved in this accident.

Strategy The total number of nuclei, N, can be determined from the known half-life and activity of 137Cs137Cs (30.2 y). The mass can be calculated from N using the concept of a mole.

Solution Solving the equation A=0.693Nt1/2A=0.693Nt1/2 for N gives

N=At1/20.693.N=At1/20.693.

Entering the given values yields

N=(6.0MCi)(30.2y)0.693.N=(6.0MCi)(30.2y)0.693.

To convert from curies to becquerels and years to seconds, we write

N=(6.0×106Ci)(3.7×1010Bq/Ci)(30.2y)(3.16×107s/y)0.693=3.1×1026.N=(6.0×106Ci)(3.7×1010Bq/Ci)(30.2y)(3.16×107s/y)0.693=3.1×1026.

One mole of a nuclide AXAX has a mass of A grams, so that one mole of 137Cs137Cs has a mass of 137 g. A mole has 6.02×10236.02×1023 nuclei. Thus the mass of 137Cs137Cs released was

m=(137g6.02×1023)(3.1×1026)=70×103g=70kg.m=(137g6.02×1023)(3.1×1026)=70×103g=70kg.

Significance The mass of 137Cs137Cs involved in the Chernobyl accident is a small material compared to the typical amount of fuel used in a nuclear reactor. However, approximately 250 people were admitted to local hospitals immediately after the accident, and diagnosed as suffering acute radiation syndrome. They received external radiation dosages between 1 and 16 Sv. Referring to biological effects in Table 10.4, these dosages are extremely hazardous. The eventual death toll is estimated to be around 4000 people, primarily due to radiation-induced cancer.

Check Your Understanding 10.7

Radiation propagates in all directions from its source, much as electromagnetic radiation from a light bulb. Is activity concept more analogous to power, intensity, or brightness?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-3/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-3/pages/1-introduction
Citation information

© Sep 29, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
