Challenge Problems

61.

The 335-kV ac electricity from a power transmission line is fed into the primary winding of a transformer. The ratio of the number of turns in the secondary winding to the number in the primary winding is $N_{s} / N_{p} = 1000$ . (a) What voltage is induced in the secondary winding? (b) What is unreasonable about this result? (c) Which assumption or premise is responsible?

62.

A $1.5 -k Ω$ resistor and 30-mH inductor are connected in series, as shown below, across a 120-V (rms) ac power source oscillating at 60-Hz frequency. (a) Find the current in the circuit. (b) Find the voltage drops across the resistor and inductor. (c) Find the impedance of the circuit. (d) Find the power dissipated in the resistor. (e) Find the power dissipated in the inductor. (f) Find the power produced by the source.

Series circuit with voltage source V parentheses t parentheses, a 30 mH inductor and a 1.5 kilo ohm resistor

63.

A $20 - Ω$ resistor, $50 - μ F$ capacitor, and 30-mH inductor are connected in series with an ac source of amplitude 10 V and frequency 125 Hz. (a) What is the impedance of the circuit? (b) What is the amplitude of the current in the circuit? (c) What is the phase constant of the current? Is it leading or lagging the source voltage? (d) Write voltage drops across the resistor, capacitor, and inductor and the source voltage as a function of time. (e) What is the power factor of the circuit? (f) How much energy is used by the resistor in 2.5 s?

64.

A $200 - Ω$ resistor, $150 - μ F$ capacitor, and 2.5-H inductor are connected in series with an ac source of amplitude 10 V and variable angular frequency $ω$ . (a) What is the value of the resonance frequency $ω_{R}$ ? (b) What is the amplitude of the current if $ω = ω_{R}$ ? (c) What is the phase constant of the current when $ω = ω_{R}$ ? Is it leading or lagging the source voltage, or is it in phase? (d) Write an equation for the voltage drop across the resistor as a function of time when $ω = ω_{R}$ . (e) What is the power factor of the circuit when $ω = ω_{R}$ ? (f) How much energy is used up by the resistor in 2.5 s when $ω = ω_{R}$ ?

65.

Find the reactances of the following capacitors and inductors in ac circuits with the given frequencies in each case: (a) 2-mH inductor with a frequency 60-Hz of the ac circuit; (b) 2-mH inductor with a frequency 600-Hz of the ac circuit; (c) 20-mH inductor with a frequency 6-Hz of the ac circuit; (d) 20-mH inductor with a frequency 60-Hz of the ac circuit; (e) 2-mF capacitor with a frequency 60-Hz of the ac circuit; and (f) 2-mF capacitor with a frequency 600-Hz of the AC circuit.

66.

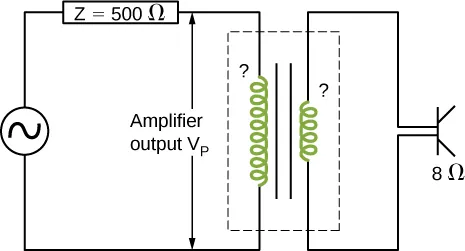

An output impedance of an audio amplifier has an impedance of $500 Ω$ and has a mismatch with a low-impedance $8 - Ω$ loudspeaker. You are asked to insert an appropriate transformer to match the impedances. What turns ratio will you use, and why? Use the simplified circuit shown below.

Figure shows a transformer with more windings in the primary coil. The primary coil is connected to a voltage source through an impedance Z equal to 500 ohm. The voltage across the windings is labeled amplifier output V subscript P. The two ends of the secondary coil of the transformer are connected across a resistance of 8 ohm.

67.

Show that the SI unit for capacitive reactance is the ohm. Show that the SI unit for inductive reactance is also the ohm.

68.

A coil with a self-inductance of 16 mH and a resistance of $6.0 Ω$ is connected to an ac source whose frequency can be varied. At what frequency will the voltage across the coil lead the current through the coil by $45 ° ?$

69.

An RLC series circuit consists of a $50 - Ω$ resistor, a $200 - μ F$ capacitor, and a 120-mH inductor whose coil has a resistance of $20 Ω$ . The source for the circuit has an rms emf of 240 V at a frequency of 60 Hz. Calculate the rms voltages across the (a) resistor, (b) capacitor, and (c) inductor.

70.

An RLC series circuit consists of a $10 - Ω$ resistor, an $8.0 - μ F$ capacitor, and a 50-mH inductor. A 110-V (rms) source of variable frequency is connected across the combination. What is the power output of the source when its frequency is set to one-half the resonant frequency of the circuit?

71.

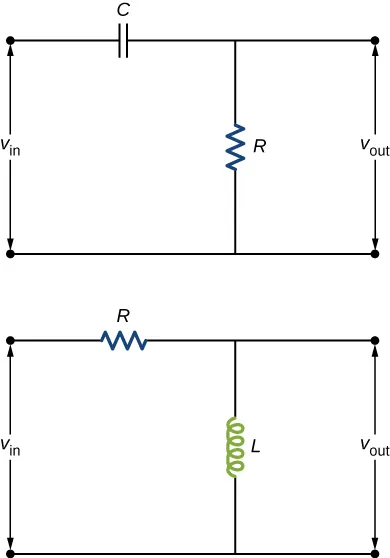

Shown below are two circuits that act as crude high-pass filters. The input voltage to the circuits is $v_{in}$ , and the output voltage is $v_{out} .$ (a) Show that for the capacitor circuit,

$\frac{v_{out}}{v_{in}} = \frac{1}{\sqrt{1 + 1 / ω^{2} R^{2} C^{2}}},$

and for the inductor circuit,

$\frac{v_{out}}{v_{in}} = \frac{ω L}{\sqrt{R^{2} + ω^{2} L^{2}}} .$

(b) Show that for high frequencies, $v_{out} \approx v_{in},$ but for low frequencies, $v_{out} \approx 0 .$

Figure shows two circuits. The first shows a capacitor and resistor in series with a voltage source labeled V in. V out is measured across the resistor. The second circuit shows an inductor and resistor in series with a voltage source labeled V in. V out is measured across the inductor.

72.

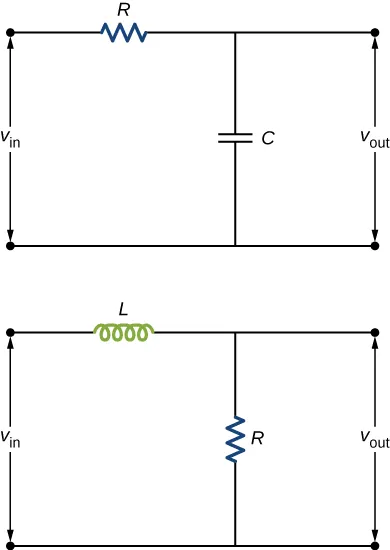

The two circuits shown below act as crude low-pass filters. The input voltage to the circuits is $v_{in}$ , and the output voltage is $v_{out} .$ (a) Show that for the capacitor circuit,

$\frac{v_{out}}{v_{in}} = \frac{1}{\sqrt{1 + ω^{2} R^{2} C^{2}}},$

and for the inductor circuit,

$\frac{v_{out}}{v_{in}} = \frac{R}{\sqrt{R^{2} + ω^{2} L^{2}}} .$

(b) Show that for low frequencies, $v_{out} \approx v_{in},$ but for high frequencies, $v_{out} \approx 0 .$

Figure shows two circuits. The first shows a capacitor and resistor in series with a voltage source labeled V in. V out is measured across the capacitor. The second circuit shows an inductor and resistor in series with a voltage source labeled V in. V out is measured across the resistor.
