Learning Objectives

By the end of this section, you will be able to:

Use one-dimensional motion in perpendicular directions to analyze projectile motion.
Calculate the range, time of flight, and maximum height of a projectile that is launched and impacts a flat, horizontal surface.
Find the time of flight and impact velocity of a projectile that lands at a different height from that of launch.
Calculate the trajectory of a projectile.

Projectile motion is the motion of an object thrown or projected into the air, subject only to acceleration as a result of gravity. The applications of projectile motion in physics and engineering are numerous. Some examples include meteors as they enter Earth’s atmosphere, fireworks, and the motion of any ball in sports. Such objects are called projectiles and their path is called a trajectory. The motion of falling objects as discussed in Motion Along a Straight Line is a simple one-dimensional type of projectile motion in which there is no horizontal movement. In this section, we consider two-dimensional projectile motion, and our treatment neglects the effects of air resistance.

The most important fact to remember here is that motions along perpendicular axes are independent and thus can be analyzed separately. We discussed this fact in Displacement and Velocity Vectors, where we saw that vertical and horizontal motions are independent. The key to analyzing two-dimensional projectile motion is to break it into two motions: one along the horizontal axis and the other along the vertical. (This choice of axes is the most sensible because acceleration resulting from gravity is vertical; thus, there is no acceleration along the horizontal axis when air resistance is negligible.) As is customary, we call the horizontal axis the x-axis and the vertical axis the y-axis. It is not required that we use this choice of axes; it is simply convenient in the case of gravitational acceleration. In other cases we may choose a different set of axes. Figure 4.11 illustrates the notation for displacement, where we define $\vec{s}$ to be the total displacement, and $\vec{x}$ and $\vec{y}$ are its component vectors along the horizontal and vertical axes, respectively. The magnitudes of these vectors are s, x, and y.

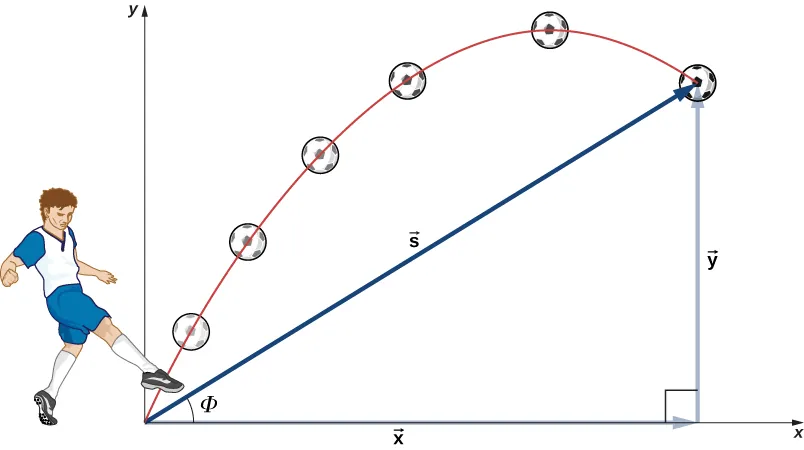

An illustration of a soccer player kicking a ball. The soccer player’s foot is at the origin of an x y coordinate system. The trajectory of the soccer ball and its location at 6 instants in time are shown. The trajectory is a parabola. The vector s is the displacement from the origin to the final position of the soccer ball. Vector s and its x and y components form a right triangle, with s as the hypotenuse and an angle phi between the x axis and s.

Figure 4.11 The total displacement s of a soccer ball at a point along its path. The vector

\vec{s}

has components

\vec{x}

and

\vec{y}

along the horizontal and vertical axes. Its magnitude is s and it makes an angle Φ with the horizontal.

To describe projectile motion completely, we must include velocity and acceleration, as well as displacement. We must find their components along the x- and y-axes. Let’s assume all forces except gravity (such as air resistance and friction, for example) are negligible. Defining the positive direction to be upward, the components of acceleration are then very simple:

a_{y} = − g = −9.8 m / s^{2} (- 32 ft / s^{2}) .

Because gravity is vertical, $a_{x} = 0 .$ If $a_{x} = 0,$ this means the initial velocity in the x direction is equal to the final velocity in the x direction, or $v_{x} = v_{0 x} .$ With these conditions on acceleration and velocity, we can write the kinematic Equation 4.11 through Equation 4.18 for motion in a uniform gravitational field, including the rest of the kinematic equations for a constant acceleration from Motion with Constant Acceleration. The kinematic equations for motion in a uniform gravitational field become kinematic equations with $a_{y} = − g, a_{x} = 0 :$

Horizontal Motion

v_{0 x} = v_{x}, x = x_{0} + v_{x} t

4.19

Vertical Motion

y = y_{0} + \frac{1}{2} (v_{0 y} + v_{y}) t

4.20

v_{y} = v_{0 y} - g t

4.21

y = y_{0} + v_{0 y} t - \frac{1}{2} g t^{2}

4.22

v_{y}^{2} = v_{0 y}^{2} - 2 g (y - y_{0})

4.23

Using this set of equations, we can analyze projectile motion, keeping in mind some important points.

Problem-Solving Strategy

Projectile Motion

Resolve the motion into horizontal and vertical components along the x- and y-axes. The magnitudes of the components of displacement $\vec{s}$ along these axes are x and y. The magnitudes of the components of velocity $\vec{v}$ are $v_{x} = v cos θ and v_{y} = v sin θ,$ where v is the magnitude of the velocity and θ is its direction relative to the horizontal, as shown in Figure 4.12.
Treat the motion as two independent one-dimensional motions: one horizontal and the other vertical. Use the kinematic equations for horizontal and vertical motion presented earlier.
Solve for the unknowns in the two separate motions: one horizontal and one vertical. Note that the only common variable between the motions is time t. The problem-solving procedures here are the same as those for one-dimensional kinematics and are illustrated in the following solved examples.
Recombine quantities in the horizontal and vertical directions to find the total displacement $\vec{s}$ and velocity $\vec{v} .$ Solve for the magnitude and direction of the displacement and velocity using

$s = \sqrt{x^{2} + y^{2}}, Φ = {tan}^{−1} (y / x), v = \sqrt{v_{x}^{2} + v_{y}^{2}},$

where Φ is the direction of the displacement $\vec{s} .$

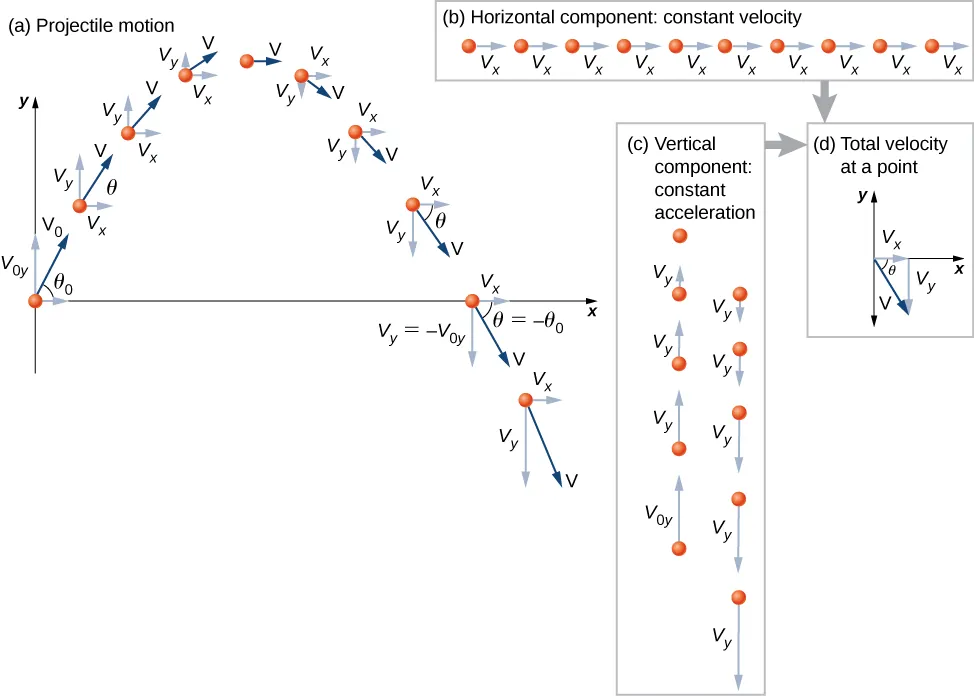

Figure a shows the locations and velocities of a projectile on an x y coordinate system at 10 instants in time. When the projectile is at the origin, it has a velocity v sub 0 y which makes an angle theta sub 0 with the horizontal. The velocity is shown as a dark blue arrow, and its x and y components are shown as light blue arrow. The projectile’s position follows a downward-opening parabola, moving up to a maximum height, then back to y = 0, and continuing below the x axis The velocity, V, at each time makes an angle theta which changes in time, and has x component V sub x and y component v sub y. The x component of the velocity V sub x is the same at all times. The y component v sub y points up but gets smaller, until the projectile reaches the maximum height, where the velocity is horizontal and has no y component. After the maximum height, the velocity has a y component pointing down and growing larger. As the projectile reaches the same elevation on the way down as it had on the way up, its velocity is below the horizontal by the same angle theta as it was above the horizontal on the way up. In particular, when it comes back to y = 0 on the way down, the angle between the vector v and the horizontal is minus s=theta sub zero and the y component of the velocity is minus v sub 0 y. The last position shown is below the x axis, and the y component of the velocity is larger than it was initially. The graph clearly shows that the horizontal distances travelled in each of the time intervals are equal, while the vertical distances decrease on the way up and increase on the way down. Figure b shows the horizontal component, constant velocity. The horizontal positions and x components of the velocity of the projectile are shown along a horizontal line. The positions are evenly spaced, and the x components of the velocities are all the same, and point to the right. Figure c shows the vertical component, constant acceleration. The vertical positions and y components of the velocity of the projectile are shown along a vertical line. The positions are get closer together on the way up, then further apart on the way down. The y components of the velocities initially point up, decreasing in magnitude until there is no y component to the velocity at the maximum height. After the maximum height, the y components of the velocities point down and increase in magnitude. Figure d shows that putting the horizontal and vertical components of figures b and c together gives the total velocity at a point. The velocity V has an x component of V sub x, has y component of V sub y, and makes an angle of theta with the horizontal. In the example shown, the velocity has a downward y component.

Figure 4.12 (a) We analyze two-dimensional projectile motion by breaking it into two independent one-dimensional motions along the vertical and horizontal axes. (b) The horizontal motion is simple, because

a_{x} = 0

and

v_{x}

is a constant. (c) The velocity in the vertical direction begins to decrease as the object rises. At its highest point, the vertical velocity is zero. As the object falls toward Earth again, the vertical velocity increases again in magnitude but points in the opposite direction to the initial vertical velocity. (d) The x and y motions are recombined to give the total velocity at any given point on the trajectory.

Example 4.7

A Fireworks Projectile Explodes High and Away

During a fireworks display, a shell is shot into the air with an initial speed of 70.0 m/s at an angle of

75.0 °

above the horizontal, as illustrated in Figure 4.13. The fuse is timed to ignite the shell just as it reaches its highest point above the ground. (a) Calculate the height at which the shell explodes. (b) How much time passes between the launch of the shell and the explosion? (c) What is the horizontal displacement of the shell when it explodes? (d) What is the total displacement from the point of launch to the highest point?

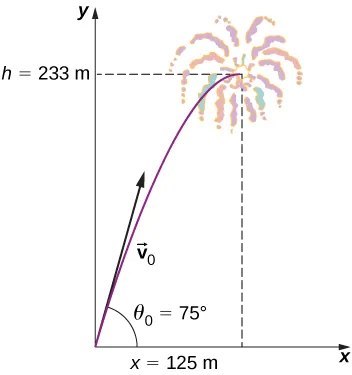

The trajectory of a fireworks shell from its launch to its highest point is shown as the left half of a downward-opening parabola in a graph of y as a function of x. The maximum height is h = 233 meters and its x displacement at that time is x = 125 meters. The initial velocity vector v sub 0 is up and to the right, tangent to the trajectory curve, and makes an angle of theta sub 0 equal to 75 degrees.

Figure 4.13 The trajectory of a fireworks shell. The fuse is set to explode the shell at the highest point in its trajectory, which is found to be at a height of 233 m and 125 m away horizontally.

Strategy

The motion can be broken into horizontal and vertical motions in which

a_{x} = 0

and

a_{y} = − g .

We can then define

x_{0}

and

y_{0}

to be zero and solve for the desired quantities.

Solution

(a) By “height” we mean the altitude or vertical position y above the starting point. The highest point in any trajectory, called the apex, is reached when

v_{y} = 0 .

Since we know the initial and final velocities, as well as the initial position, we use the following equation to find y:

v_{y}^{2} = v_{0 y}^{2} - 2 g (y - y_{0}) .

Because $y_{0}$ and $v_{y}$ are both zero, the equation simplifies to

0 = v_{0 y}^{2} - 2 g y .

Solving for y gives

y = \frac{v_{0 y}^{2}}{2 g} .

Now we must find $v_{0 y},$ the component of the initial velocity in the y direction. It is given by $v_{0 y} = v_{0} sin θ_{0},$ where $v_{0}$ is the initial velocity of 70.0 m/s and $θ_{0} = 75 °$ is the initial angle. Thus,

v_{0 y} = v_{0} sin θ = (70.0 m / s) sin 75 ° = 67.6 m / s

and y is

y = \frac{{(67.6 m / s)}^{2}}{2 (9.80 m / s^{2})} .

Thus, we have

y = 233 m .

Note that because up is positive, the initial vertical velocity is positive, as is the maximum height, but the acceleration resulting from gravity is negative. Note also that the maximum height depends only on the vertical component of the initial velocity, so that any projectile with a 67.6-m/s initial vertical component of velocity reaches a maximum height of 233 m (neglecting air resistance). The numbers in this example are reasonable for large fireworks displays, the shells of which do reach such heights before exploding. In practice, air resistance is not completely negligible, so the initial velocity would have to be somewhat larger than that given to reach the same height.

(b) As in many physics problems, there is more than one way to solve for the time the projectile reaches its highest point. In this case, the easiest method is to use $v_{y} = v_{0 y} - g t .$ Because $v_{y} = 0$ at the apex, this equation reduces to simply

0 = v_{0 y} - g t

or

t = \frac{v_{0 y}}{g} = \frac{67.6 m / s}{9.80 m / s^{2}} = 6.90 s .

This time is also reasonable for large fireworks. If you are able to see the launch of fireworks, notice that several seconds pass before the shell explodes. Another way of finding the time is by using $y = y_{0} + \frac{1}{2} (v_{0 y} + v_{y}) t .$ This is left for you as an exercise to complete.

(c) Because air resistance is negligible, $a_{x} = 0$ and the horizontal velocity is constant, as discussed earlier. The horizontal displacement is the horizontal velocity multiplied by time as given by $x = x_{0} + v_{x} t,$ where $x_{0}$ is equal to zero. Thus,

x = v_{x} t,

where $v_{x}$ is the x-component of the velocity, which is given by

v_{x} = v_{0} cos θ = (70.0 m / s) cos 75 ° = 18.1 m / s .

Time t for both motions is the same, so x is

x = (18.1 m / s) 6.90 s = 125 m .

Horizontal motion is a constant velocity in the absence of air resistance. The horizontal displacement found here could be useful in keeping the fireworks fragments from falling on spectators. When the shell explodes, air resistance has a major effect, and many fragments land directly below.

(d) The horizontal and vertical components of the displacement were just calculated, so all that is needed here is to find the magnitude and direction of the displacement at the highest point:

\vec{s} = 125 \hat{i} + 233 \hat{j}

| \vec{s} | = \sqrt{125^{2} + 233^{2}} = 264 m

Φ = {tan}^{−1} (\frac{233}{125}) = 61.8 ° .

Note that the angle for the displacement vector is less than the initial angle of launch. To see why this is, review Figure 4.11, which shows the curvature of the trajectory toward the ground level.

When solving Example 4.7(a), the expression we found for y is valid for any projectile motion when air resistance is negligible. Call the maximum height y = h. Then,

h = \frac{v_{0 y}^{2}}{2 g} .

This equation defines the maximum height of a projectile above its launch position and it depends only on the vertical component of the initial velocity.

Check Your Understanding 4.3

A rock is thrown horizontally off a cliff $100.0 m$ high with a velocity of 15.0 m/s. (a) Define the origin of the coordinate system. (b) Which equation describes the horizontal motion? (c) Which equations describe the vertical motion? (d) What is the rock’s velocity at the point of impact?

Example 4.8

Calculating Projectile Motion: Tennis Player

A tennis player wins a match at Arthur Ashe stadium and hits a ball into the stands at 30 m/s and at an angle

45 °

above the horizontal (Figure 4.14). On its way down, the ball is caught by a spectator 10 m above the point where the ball was hit. (a) Calculate the time it takes the tennis ball to reach the spectator. (b) What are the magnitude and direction of the ball’s velocity at impact?

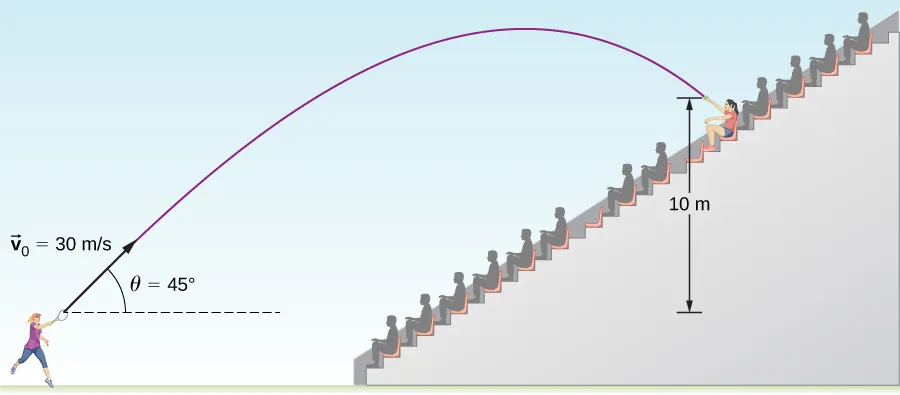

An illustration of a tennis ball launched into the stands. The player is to the left of the stands and hits the ball up and to the right at an angle of theta equal to 45 degrees and velocity of v sub 0 equal to 30 meters per second. The ball reaches a spectator who is seated 10 meters above the initial height of the ball.

Figure 4.14 The trajectory of a tennis ball hit into the stands.

Strategy

Again, resolving this two-dimensional motion into two independent one-dimensional motions allows us to solve for the desired quantities. The time a projectile is in the air is governed by its vertical motion alone. Thus, we solve for t first. While the ball is rising and falling vertically, the horizontal motion continues at a constant velocity. This example asks for the final velocity. Thus, we recombine the vertical and horizontal results to obtain

\vec{v}

at final time t, determined in the first part of the example.

Solution

(a) While the ball is in the air, it rises and then falls to a final position 10.0 m higher than its starting altitude. We can find the time for this by using Equation 4.22:

y = y_{0} + v_{0 y} t - \frac{1}{2} g t^{2} .

If we take the initial position $y_{0}$ to be zero, then the final position is y = 10 m. The initial vertical velocity is the vertical component of the initial velocity:

v_{0 y} = v_{0} sin θ_{0} = (30.0 m / s) sin 45 ° = 21.2 m / s .

Substituting into Equation 4.22 for y gives us

10.0 m = (21.2 m/s) t - (4.90 {m/s}^{2}) t^{2} .

Rearranging terms gives a quadratic equation in t:

(4.90 {m/s}^{2}) t^{2} - (21.2 m/s) t + 10.0 m = 0 .

Use of the quadratic formula yields t = 3.79 s and t = 0.54 s. Since the ball is at a height of 10 m at two times during its trajectory—once on the way up and once on the way down—we take the longer solution for the time it takes the ball to reach the spectator:

t = 3.79 s .

The time for projectile motion is determined completely by the vertical motion. Thus, any projectile that has an initial vertical velocity of 21.2 m/s and lands 10.0 m above its starting altitude spends 3.79 s in the air.

(b) We can find the final horizontal and vertical velocities $v_{x}$ and $v_{y}$ with the use of the result from (a). Then, we can combine them to find the magnitude of the total velocity vector $\vec{v}$ and the angle $θ$ it makes with the horizontal. Since $v_{x}$ is constant, we can solve for it at any horizontal location. We choose the starting point because we know both the initial velocity and the initial angle. Therefore,

v_{x} = v_{0} cos θ_{0} = (30 m / s) cos 45 ° = 21.2 m / s .

The final vertical velocity is given by Equation 4.21:

v_{y} = v_{0 y} - g t .

Since $v_{0 y}$ was found in part (a) to be 21.2 m/s, we have

v_{y} = 21.2 m / s - 9.8 m / s^{2} (3.79 s) = −15.9 m / s .

The magnitude of the final velocity $\vec{v}$ is

v = \sqrt{v_{x}^{2} + v_{y}^{2}} = \sqrt{{(21.2 m / s)}^{2} + {(− 15 .9 m / s)}^{2}} = 26.5 m / s .

The direction $θ_{v}$ is found using the inverse tangent:

θ_{v} = {tan}^{−1} (\frac{v_{y}}{v_{x}}) = {tan}^{−1} (\frac{−15.9}{21.2}) = 36.9 ° below the horizon.

Significance

(a) As mentioned earlier, the time for projectile motion is determined completely by the vertical motion. Thus, any projectile that has an initial vertical velocity of 21.2 m/s and lands 10.0 m above its starting altitude spends 3.79 s in the air. (b) The negative angle means the velocity is

36.9 °

below the horizontal at the point of impact. This result is consistent with the fact that the ball is impacting at a point on the other side of the apex of the trajectory and therefore has a negative y component of the velocity. The magnitude of the velocity is less than the magnitude of the initial velocity we expect since it is impacting 10.0 m above the launch elevation.

Time of Flight, Trajectory, and Range

Of interest are the time of flight, trajectory, and range for a projectile launched on a flat horizontal surface and impacting on the same surface. In this case, kinematic equations give useful expressions for these quantities, which are derived in the following sections.

Time of flight

We can solve for the time of flight of a projectile that is both launched and impacts on a flat horizontal surface by performing some manipulations of the kinematic equations. We note the position and displacement in y must be zero at launch and at impact on an even surface. Thus, we set the displacement in y equal to zero and find

y - y_{0} = v_{0 y} t - \frac{1}{2} g t^{2} = (v_{0} sin θ_{0}) t - \frac{1}{2} g t^{2} = 0 .

Factoring, we have

t (v_{0} sin θ_{0} - \frac{g t}{2}) = 0 .

Solving for t gives us

T_{tof} = \frac{2 (v_{0} sin θ_{0})}{g} .

4.24

This is the time of flight for a projectile both launched and impacting on a flat horizontal surface. Equation 4.24 does not apply when the projectile lands at a different elevation than it was launched, as we saw in Example 4.8 of the tennis player hitting the ball into the stands. The other solution, t = 0, corresponds to the time at launch. The time of flight is linearly proportional to the initial velocity in the y direction and inversely proportional to g. Thus, on the Moon, where gravity is one-sixth that of Earth, a projectile launched with the same velocity as on Earth would be airborne six times as long.

Trajectory

The trajectory of a projectile can be found by eliminating the time variable t from the kinematic equations for arbitrary t and solving for y(x). We take $x_{0} = y_{0} = 0$ so the projectile is launched from the origin. The kinematic equation for x gives

x = v_{0 x} t \Rightarrow t = \frac{x}{v_{0 x}} = \frac{x}{v_{0} cos θ_{0}} .

Substituting the expression for t into the equation for the position $y = (v_{0} sin θ_{0}) t - \frac{1}{2} g t^{2}$ gives

y = (v_{0} sin θ_{0}) (\frac{x}{v_{0} cos θ_{0}}) - \frac{1}{2} g {(\frac{x}{v_{0} cos θ_{0}})}^{2} .

Rearranging terms, we have

y = (tan θ_{0}) x - [\frac{g}{2 {(v_{0} cos θ_{0})}^{2}}] x^{2} .

4.25

This trajectory equation is of the form $y = a x + b x^{2},$ which is an equation of a parabola with coefficients

a = tan θ_{0}, b = - \frac{g}{2 {(v_{0} cos θ_{0})}^{2}} .

Range

From the trajectory equation we can also find the range, or the horizontal distance traveled by the projectile. Factoring Equation 4.25, we have

y = x [tan θ_{0} - \frac{g}{2 {(v_{0} cos θ_{0})}^{2}} x] .

The position y is zero for both the launch point and the impact point, since we are again considering only a flat horizontal surface. Setting y = 0 in this equation gives solutions x = 0, corresponding to the launch point, and

x = \frac{2 v_{0}^{2} sin θ_{0} cos θ_{0}}{g},

corresponding to the impact point. Using the trigonometric identity $2 sin θ cos θ = sin 2 θ$ and setting x = R for range, we find

R = \frac{v_{0}^{2} sin 2 θ_{0}}{g} .

4.26

Note particularly that Equation 4.26 is valid only for launch and impact on a horizontal surface. We see the range is directly proportional to the square of the initial speed $v_{0}$ and $sin 2 θ_{0}$ , and it is inversely proportional to the acceleration of gravity. Thus, on the Moon, the range would be six times greater than on Earth for the same initial velocity. Furthermore, we see from the factor $sin 2 θ_{0}$ that the range is maximum at $45 ° .$ These results are shown in Figure 4.15. In (a) we see that the greater the initial velocity, the greater the range. In (b), we see that the range is maximum at $45 ° .$ This is true only for conditions neglecting air resistance. If air resistance is considered, the maximum angle is somewhat smaller. It is interesting that the same range is found for two initial launch angles that sum to $90 ° .$ The projectile launched with the smaller angle has a lower apex than the higher angle, but they both have the same range.

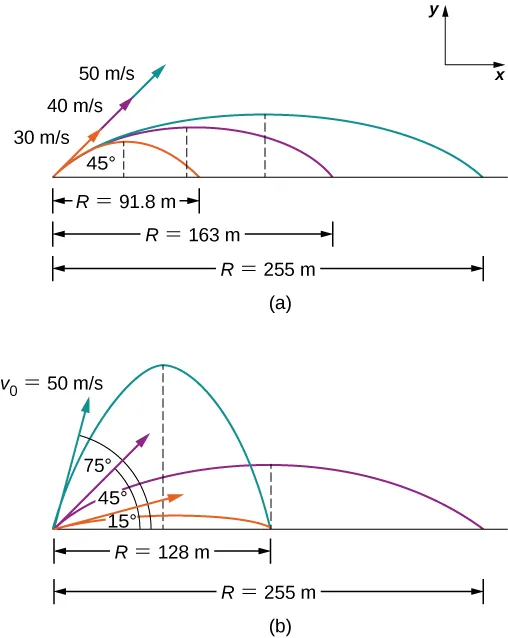

Figure a shows the trajectories of projectiles launched at the same initial 45 degree angle above the horizontal and different initial velocities. The trajectories are shown from launch to landing back at the initial elevation. In orange is the trajectory for 30 meters per second, giving a range R (distance from launch to landing) of 91.8 m. In purple is the trajectory for 40 meters per second, giving a range R of 163 m. In blue is the trajectory for 50 meters per second, giving a range R of 255 m. The maximum height of the projectile increases with initial speed. Figure b shows the trajectories of projectiles launched at the same initial speed of 50 meters per second and different launch angles. The trajectories are shown from launch to landing back at the initial elevation. In orange is the trajectory for an angle of 15 degrees above the horizontal, giving a range R of 128 m. In purple is the trajectory for an angle of 45 degrees above the horizontal, giving a range R of 255 m. In blue is the trajectory for an angle of 75 degrees above the horizontal, giving a range R of 128 m, the same as for the 15 degree trajectory. The maximum height increases with launch angle.

Figure 4.15 Trajectories of projectiles on level ground. (a) The greater the initial speed

v_{0},

the greater the range for a given initial angle. (b) The effect of initial angle

θ_{0}

on the range of a projectile with a given initial speed. Note that the range is the same for initial angles of

15 °

and

75 °,

although the maximum heights of those paths are different.

Example 4.9

Comparing Golf Shots

A golfer encounters two different situations on different holes. On the second hole they are 120 m from the green and want to hit the ball 90 m and let it run onto the green. They angle the shot low to the ground at

30 °

to the horizontal to let the ball roll after impact. On the fourth hole they are 90 m from the green and want to let the ball drop with a minimum amount of rolling after impact. Here, they angle the shot at

70 °

to the horizontal to minimize rolling after impact. Both shots are hit and impacted on a level surface.

(a) What is the initial speed of the ball at the second hole?

(b) What is the initial speed of the ball at the fourth hole?

(c) Write the trajectory equation for both cases.

(d) Graph the trajectories.

Strategy

We see that the range equation has the initial speed and angle, so we can solve for the initial speed for both (a) and (b). When we have the initial speed, we can use this value to write the trajectory equation.

Solution

(a)

R = \frac{v_{0}^{2} sin 2 θ_{0}}{g} \Rightarrow v_{0} = \sqrt{\frac{R g}{sin 2 θ_{0}}} = \sqrt{\frac{90.0 m (9.8 m / s^{2})}{sin (2 (30 °))}} = 31.9 m / s

(b) $R = \frac{v_{0}^{2} sin 2 θ_{0}}{g} \Rightarrow v_{0} = \sqrt{\frac{R g}{sin 2 θ_{0}}} = \sqrt{\frac{90.0 m (9.8 m / s^{2})}{sin (2 (70 °))}} = 37.0 m / s$

(c)
$\begin{matrix} y = x [tan θ_{0} - \frac{g}{2 {(v_{0} cos θ_{0})}^{2}} x] \\ Second hole: y = x [tan 30 ° - \frac{9.8 m / s^{2}}{2 {[(31.9 m / s)(cos 30 °)]}^{2}} x] = 0.58 x - 0.0064 x^{2} \\ Fourth hole: y = x [tan 70 ° - \frac{9.8 m / s^{2}}{2 {[(37.0 m / s)(cos 70 °)]}^{2}} x] = 2.75 x - 0.0306 x^{2} \end{matrix}$

(d) Using a graphing utility, we can compare the two trajectories, which are shown in Figure 4.16.

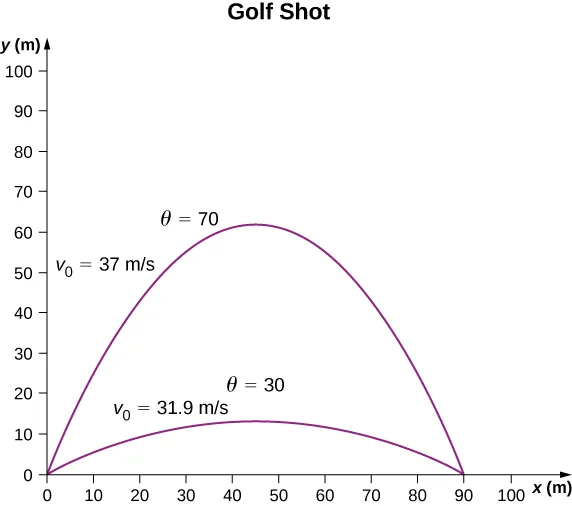

Two parabolic functions are shown. The range for both trajectories is 90 meters. One shot travels much higher than the other. The higher shot has an initial velocity of 37 meters per second and an angle of 70 degrees. The lower shot has an initial velocity of 31.9 meters per second and an angle of 30 degrees.

Figure 4.16 Two trajectories of a golf ball with a range of 90 m. The impact points of both are at the same level as the launch point.

Significance

The initial speed for the shot at

70 °

is greater than the initial speed of the shot at

30 ° .

Note from Figure 4.16 that if the two projectiles were launched at the same speed but at different angles, the projectiles would have the same range as long as the angles were less than

90 ° .

The launch angles in this example add to give a number greater than

90 ° .

Thus, the shot at

70 °

has to have a greater launch speed to reach 90 m, otherwise it would land at a shorter distance.

Check Your Understanding 4.4

If the two golf shots in Example 4.9 were launched at the same speed, which shot would have the greatest range?

When we speak of the range of a projectile on level ground, we assume R is very small compared with the circumference of Earth. If, however, the range is large, Earth curves away below the projectile and the acceleration resulting from gravity changes direction along the path. The range is larger than predicted by the range equation given earlier because the projectile has farther to fall than it would on level ground, as shown in Figure 4.17, which is based on a drawing in Newton’s Principia. If the initial speed is great enough, the projectile goes into orbit. Earth’s surface drops 5 m every 8000 m. In 1 s an object falls 5 m without air resistance. Thus, if an object is given a horizontal velocity of 8000 m/s (or 18,000 mi/hr) near Earth’s surface, it will go into orbit around the planet because the surface continuously falls away from the object. This is roughly the speed of the Space Shuttle in a low Earth orbit when it was operational, or any satellite in a low Earth orbit. These and other aspects of orbital motion, such as Earth’s rotation, are covered in greater depth in Gravitation.

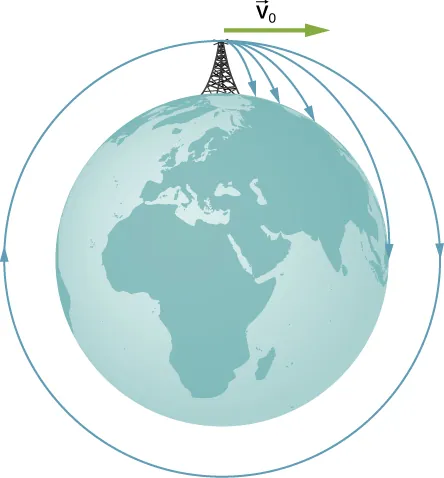

The figure shows a drawing of the earth with a tall tower at the north pole and a horizontal arrow labeled v 0 pointing to the right. 5 trajectories that start at the top of the tower are shown. The first reaches the earth near the tower. The second reaches the earth farther from the tower, and the third even farther. The fourth trajectory hits the earth at the equator, and is tangent to the surface at the equator. The fifth trajectory is a circle concentric with the earth.

Figure 4.17 Projectile to satellite. In each case shown here, a projectile is launched from a very high tower to avoid air resistance. With increasing initial speed, the range increases and becomes longer than it would be on level ground because Earth curves away beneath its path. With a speed of 8000 m/s, orbit is achieved.

Interactive

At PhET Explorations: Projectile Motion, learn about projectile motion in terms of the launch angle and initial velocity.
