Learning Objectives

By the end of this section, you will be able to:

  • State the forces that act on a simple pendulum
  • Determine the angular frequency, frequency, and period of a simple pendulum in terms of the length of the pendulum and the acceleration due to gravity
  • Define the period for a physical pendulum
  • Define the period for a torsional pendulum

Pendulums are in common usage. Grandfather clocks use a pendulum to keep time and a pendulum can be used to measure the acceleration due to gravity. For small displacements, a pendulum is a simple harmonic oscillator.

The Simple Pendulum

A simple pendulum is defined to have a point mass, also known as the pendulum bob, which is suspended from a string of length L with negligible mass (Figure 15.20). Here, the only forces acting on the bob are the force of gravity (i.e., the weight of the bob) and tension from the string. The mass of the string is assumed to be negligible as compared to the mass of the bob.

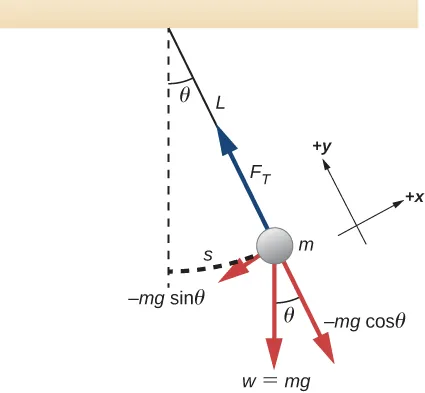

In the figure, a horizontal bar is shown. A string of length L extends from the bar at an angle theta counterclockwise from the vertical. The vertical direction is indicated by a dashed line extending down from where the string is attached to the bar. A circular bob of mass m is attached to the lower end of the string. The arc from the mass to the vertical is indicated by another dashed line and is a length s. A red arrow showing the time T of the oscillation of the mob is shown along the string line toward the bar. A coordinate system is shown near the bob with the positive y direction aligned with the string and pointing toward the pivot point and the positive x direction pointing tangent to the arc and away from the equilibrium position. An blue arrow from the bob toward the pivot, along the string, is labeled F sub T. A red arrow from the bob pointing down is labeled w = m g. A red arrow pointing tangent to the arc and toward equilibrium, in the minus x direction, is labeled minus m g sine theta. A red arrow at an angle theta counterclockwise from w is labeled minus m g cosine theta.
Figure 15.20 A simple pendulum has a small-diameter bob and a string that has a very small mass but is strong enough not to stretch appreciably. The linear displacement from equilibrium is s, the length of the arc. Also shown are the forces on the bob, which result in a net force of mgsinθmgsinθ toward the equilibrium position—that is, a restoring force.

Consider the torque on the pendulum. The force providing the restoring torque is the component of the weight of the pendulum bob that acts along the arc length. The torque is the length of the string L times the component of the net force that is perpendicular to the radius of the arc. The minus sign indicates the torque acts in the opposite direction of the angular displacement:

τ=L(mgsinθ);Iα=L(mgsinθ);Id2θdt2=L(mgsinθ);mL2d2θdt2=L(mgsinθ);d2θdt2=gLsinθ.τ=L(mgsinθ);Iα=L(mgsinθ);Id2θdt2=L(mgsinθ);mL2d2θdt2=L(mgsinθ);d2θdt2=gLsinθ.

The solution to this differential equation involves advanced calculus, and is beyond the scope of this text. But note that for small angles (less than 15 degrees), sinθsinθ and θθ differ by less than 1%, so we can use the small angle approximation sinθθ.sinθθ. The angle θθ describes the position of the pendulum. Using the small angle approximation gives an approximate solution for small angles,

d2θdt2=gLθ.d2θdt2=gLθ.
15.17

Because this equation has the same form as the equation for SHM, the solution is easy to find. The angular frequency is

ω=gLω=gL
15.18

and the period is

T=2πLg.T=2πLg.
15.19

The period of a simple pendulum depends on its length and the acceleration due to gravity. The period is completely independent of other factors, such as mass and the maximum displacement. As with simple harmonic oscillators, the period T for a pendulum is nearly independent of amplitude, especially if θθ is less than about 15°.15°. Even simple pendulum clocks can be finely adjusted and remain accurate.

Note the dependence of T on g. If the length of a pendulum is precisely known, it can actually be used to measure the acceleration due to gravity, as in the following example.

Example 15.3

Measuring Acceleration due to Gravity by the Period of a Pendulum

What is the acceleration due to gravity in a region where a simple pendulum having a length 75.000 cm has a period of 1.7357 s?

Strategy

We are asked to find g given the period T and the length L of a pendulum. We can solve T=2πLgT=2πLg for g, assuming only that the angle of deflection is less than 15°15°.

Solution

  1. Square T=2πLgT=2πLg and solve for g:
    g=4π2LT2.g=4π2LT2.
  2. Substitute known values into the new equation:
    g=4π20.75000m(1.7357s)2.g=4π20.75000m(1.7357s)2.
  3. Calculate to find g:
    g=9.8281m/s2.g=9.8281m/s2.

Significance

This method for determining g can be very accurate, which is why length and period are given to five digits in this example. For the precision of the approximation sinθθsinθθ to be better than the precision of the pendulum length and period, the maximum displacement angle should be kept below about 0.5°0.5°.

Check Your Understanding 15.4

An engineer builds two simple pendulums. Both are suspended from small wires secured to the ceiling of a room. Each pendulum hovers 2 cm above the floor. Pendulum 1 has a bob with a mass of 10 kg. Pendulum 2 has a bob with a mass of 100 kg. Describe how the motion of the pendulums will differ if the bobs are both displaced by 12°12°.

Physical Pendulum

Any object can oscillate like a pendulum. Consider a coffee mug hanging on a hook in the pantry. If the mug gets knocked, it oscillates back and forth like a pendulum until the oscillations die out. We have described a simple pendulum as a point mass and a string. A physical pendulum is any object whose oscillations are similar to those of the simple pendulum, but cannot be modeled as a point mass on a string, and the mass distribution must be included into the equation of motion.

As for the simple pendulum, the restoring force of the physical pendulum is the force of gravity. With the simple pendulum, the force of gravity acts on the center of the pendulum bob. In the case of the physical pendulum, the force of gravity acts on the center of mass (CM) of an object. The object oscillates about a point O. Consider an object of a generic shape as shown in Figure 15.21.

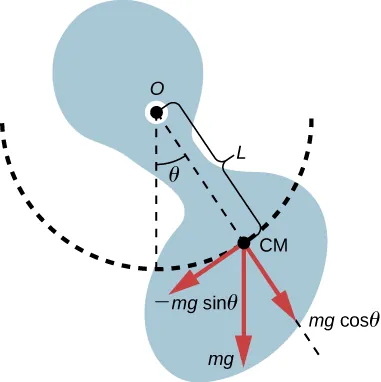

A drawing of a physical pendulum. In the figure, the pendulum is an irregularly shaped object. The center of mass, C M, is a distance L from the pivot point, O. The center of mass traces a circular arc, centered at O. The line from O to L makes an angle theta counterclockwise from the vertical. Three forces are depicted by red arrows at the center of mass. The force m g points down. Its components are minus m g sine theta which points tangent to the arc traced by the center of mass, and m g cosine theta which points radially outward.
Figure 15.21 A physical pendulum is any object that oscillates as a pendulum, but cannot be modeled as a point mass on a string. The force of gravity acts on the center of mass (CM) and provides the restoring force that causes the object to oscillate. The minus sign on the component of the weight that provides the restoring force is present because the force acts in the opposite direction of the increasing angle θθ.

When a physical pendulum is hanging from a point but is free to rotate, it rotates because of the torque applied at the CM, produced by the component of the object’s weight that acts tangent to the motion of the CM. Taking the counterclockwise direction to be positive, the component of the gravitational force that acts tangent to the motion is mgsinθmgsinθ. The minus sign is the result of the restoring force acting in the opposite direction of the increasing angle. Recall that the torque is equal to τ=r×Fτ=r×F. The magnitude of the torque is equal to the length of the radius arm times the tangential component of the force applied, |τ|=rFsinθ|τ|=rFsinθ. Here, the length L of the radius arm is the distance between the point of rotation and the CM. To analyze the motion, start with the net torque. Like the simple pendulum, consider only small angles so that sinθθsinθθ. Recall from Fixed-Axis Rotation on rotation that the net torque is equal to the moment of inertia I=r2dmI=r2dm times the angular acceleration α,α, where α=d2θdt2α=d2θdt2:

Iα=τnet=L(mg)sinθ.Iα=τnet=L(mg)sinθ.

Using the small angle approximation and rearranging:

Iα=L(mg)θ;Id2θdt2=L(mg)θ; d2θdt2=(mgLI)θ.Iα=L(mg)θ;Id2θdt2=L(mg)θ; d2θdt2=(mgLI)θ.

Once again, the equation says that the second time derivative of the position (in this case, the angle) equals minus a constant (mgLI)(mgLI) times the position. The solution is

θ(t)=Θcos(ωt+ϕ),θ(t)=Θcos(ωt+ϕ),

where ΘΘ is the maximum angular displacement. The angular frequency is

ω=mgLI.ω=mgLI.
15.20

The period is therefore

T=2πImgL.T=2πImgL.
15.21

Note that for a simple pendulum, the moment of inertia is I=r2dm=mL2I=r2dm=mL2 and the period reduces to T=2πLgT=2πLg.

Example 15.4

Reducing the Swaying of a Skyscraper

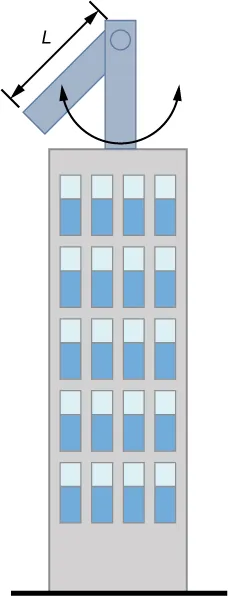

In extreme conditions, skyscrapers can sway up to two meters with a frequency of up to 20.00 Hz due to high winds or seismic activity. Several companies have developed physical pendulums that are placed on the top of the skyscrapers. As the skyscraper sways to the right, the pendulum swings to the left, reducing the sway. Assuming the oscillations have a frequency of 0.50 Hz, design a pendulum that consists of a long beam, of constant density, with a mass of 100 metric tons and a pivot point at one end of the beam. What should be the length of the beam? The figure depicts a tall building with a column on its roof and a long rod of length L that swings on a pivot point near the top of the column.

Strategy

We are asked to find the length of the physical pendulum with a known mass. We first need to find the moment of inertia of the beam. We can then use the equation for the period of a physical pendulum to find the length.

Solution

  1. Find the moment of inertia for the CM:
  2. Use the parallel axis theorem to find the moment of inertia about the point of rotation:
    I=ICM+L42M=112ML2+14ML2=13ML2.I=ICM+L42M=112ML2+14ML2=13ML2.
  3. The period of a physical pendulum has a period of T=2πImgLT=2πImgL. Use the moment of inertia to solve for the length L:
    T = 2πIMgL=2π13ML2MgL2=2π2L3g; L = 3T2g8π2=1.49m. T = 2πIMgL=2π13ML2MgL2=2π2L3g; L = 3T2g8π2=1.49m.

Significance

There are many ways to reduce the oscillations, including modifying the shape of the skyscrapers, using multiple physical pendulums, and using tuned-mass dampers.

Torsional Pendulum

A torsional pendulum consists of a rigid body suspended by a light wire or spring (Figure 15.22). When the body is twisted some small maximum angle (Θ)(Θ) and released from rest, the body oscillates between (θ=+Θ)(θ=+Θ) and (θ=Θ)(θ=Θ). The restoring torque is supplied by the shearing of the string or wire.

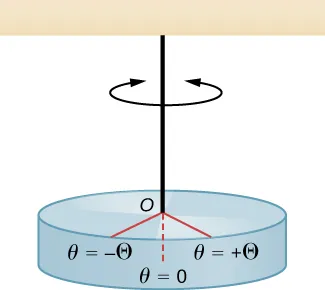

A torsional pendulum is illustrated in this figure. The pendulum consists of a horizontal disk that hangs by a string from the ceiling. The string attaches to the disk at its center, at point O. The disk and string can oscillate in a horizontal plane between angles plus Theta and minus Theta. The equilibrium position is between these, at theta = 0.
Figure 15.22 A torsional pendulum consists of a rigid body suspended by a string or wire. The rigid body oscillates between θ=+Θθ=+Θ and θ=Θθ=Θ.

The restoring torque can be modeled as being proportional to the angle:

τ=κθ.τ=κθ.

The variable kappa (κ)(κ) is known as the torsion constant of the wire or string. The minus sign shows that the restoring torque acts in the opposite direction to increasing angular displacement. The net torque is equal to the moment of inertia times the angular acceleration:

Id2θdt2=κθ; d2θdt2=κIθ.Id2θdt2=κθ; d2θdt2=κIθ.

This equation says that the second time derivative of the position (in this case, the angle) equals a negative constant times the position. This looks very similar to the equation of motion for the SHM d2xdt2=kmxd2xdt2=kmx, where the period was found to be T=2πmkT=2πmk. Therefore, the period of the torsional pendulum can be found using

T=2πIκ.T=2πIκ.
15.22

The units for the torsion constant are [κ]=N-m=(kgms2)m=kgm2s2[κ]=N-m=(kgms2)m=kgm2s2 and the units for the moment of inertial are [I]=kg-m2,[I]=kg-m2, which show that the unit for the period is the second.

Example 15.5

Measuring the Torsion Constant of a String

A rod has a length of l=0.30ml=0.30m and a mass of 4.00 kg. A string is attached to the CM of the rod and the system is hung from the ceiling (Figure 15.23). The rod is displaced 10 degrees from the equilibrium position and released from rest. The rod oscillates with a period of 0.5 s. What is the torsion constant κκ?

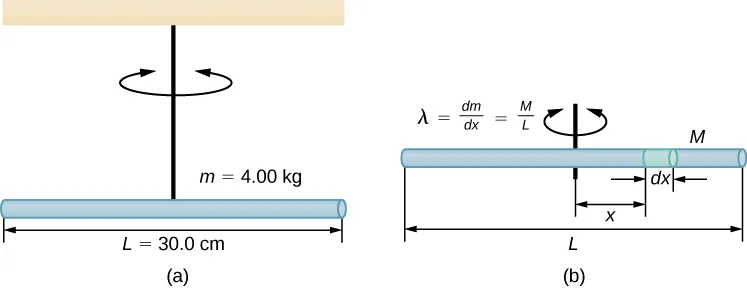

Figure a shows a horizontal rod, length 30.0 centimeters and mass 4.00 kilograms, hanging by a string from the ceiling. The string attaches to the middle of the rod. The rod rotates with the string in the horizontal plane. Figure b shows the rod with the details needed for finding its moment of inertia. The rod’s length, end to end, is L and its total mass is M. It has linear mass density lambda equals d m d x which also equals M over L. A small segment of the rod that has length d x at a distance x from the center of the rod is highlighted. The string is attached to the rod at the center of the rod.
Figure 15.23 (a) A rod suspended by a string from the ceiling. (b) Finding the rod’s moment of inertia.

Strategy

We are asked to find the torsion constant of the string. We first need to find the moment of inertia.

Solution

  1. Find the moment of inertia for the CM:
    ICM=x2dm=L/2+L/2x2λdx=λ[x33]L/2+L/2=λ2L324=(ML)2L324=112ML2.ICM=x2dm=L/2+L/2x2λdx=λ[x33]L/2+L/2=λ2L324=(ML)2L324=112ML2.
  2. Calculate the torsion constant using the equation for the period:
    T=2πIκ;κ=I(2πT)2=(112ML2)(2πT)2;=(112(4.00kg)(0.30m)2)(2π0.50s)2=4.73N·m.T=2πIκ;κ=I(2πT)2=(112ML2)(2πT)2;=(112(4.00kg)(0.30m)2)(2π0.50s)2=4.73N·m.

Significance

Like the force constant of the system of a block and a spring, the larger the torsion constant, the shorter the period.
Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Apr 5, 2023 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License . The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
