Problems

10.1 Rotational Variables

28.

Calculate the angular velocity of Earth.

29.

A track star runs a 400-m race on a 400-m circular track in 45 s. What is his angular velocity assuming a constant speed?

30.

A wheel rotates at a constant rate of 2.0×103rev/min2.0×103rev/min. (a) What is its angular velocity in radians per second? (b) Through what angle does it turn in 10 s? Express the solution in radians and degrees.

31.

A particle moves 3.0 m along a circle of radius 1.5 m. (a) Through what angle does it rotate? (b) If the particle makes this trip in 1.0 s at a constant speed, what is its angular velocity? (c) What is its acceleration?

32.

A compact disc rotates at 500 rev/min. If the diameter of the disc is 120 mm, (a) what is the tangential speed of a point at the edge of the disc? (b) At a point halfway to the center of the disc?

33.

Unreasonable results. The propeller of an aircraft is spinning at 10 rev/s when the pilot shuts off the engine. The propeller reduces its angular velocity at a constant 2.0rad/s22.0rad/s2 for a time period of 40 s. What is the rotation rate of the propeller in 40 s? Is this a reasonable situation?

34.

A gyroscope slows from an initial rate of 32.0 rad/s at a rate of 0.700rad/s20.700rad/s2. How long does it take to come to rest?

35.

On takeoff, the propellers on a UAV (unmanned aerial vehicle) increase their angular velocity from rest at a rate of ω=(25.0t)rad/sω=(25.0t)rad/s for 3.0 s. (a) What is the instantaneous angular velocity of the propellers at t=2.0st=2.0s? (b) What is the angular acceleration?

36.

The angular position of a rod varies as 20.0t220.0t2 radians from time t=0t=0. The rod has two beads on it as shown in the following figure, one at 10 cm from the rotation axis and the other at 20 cm from the rotation axis. (a) What is the instantaneous angular velocity of the rod at t=5s?t=5s? (b) What is the angular acceleration of the rod? (c) What are the tangential speeds of the beads at t=5s?t=5s? (d) What are the tangential accelerations of the beads at t=5s?t=5s? (e) What are the centripetal accelerations of the beads at t=5s?t=5s?

Figure is a drawing of a rod that rotates counterclockwise. Rod has two beads on it, one at 10 cm from the rotation axis and the other at 20 cm from the rotation axis.

10.2 Rotation with Constant Angular Acceleration

37.

A wheel has a constant angular acceleration of 5.0rad/s25.0rad/s2. Starting from rest, it turns through 300 rad. (a) What is its final angular velocity? (b) How much time elapses while it turns through the 300 radians?

38.

During a 6.0-s time interval, a flywheel with a constant angular acceleration turns through 500 radians that acquire an angular velocity of 100 rad/s. (a) What is the angular velocity at the beginning of the 6.0 s? (b) What is the angular acceleration of the flywheel?

39.

The angular velocity of a rotating rigid body increases from 500 to 1500 rev/min in 120 s. (a) What is the angular acceleration of the body? (b) Through what angle does it turn in this 120 s?

40.

A flywheel slows from 600 to 400 rev/min while rotating through 40 revolutions. (a) What is the angular acceleration of the flywheel? (b) How much time elapses during the 40 revolutions?

41.

A wheel 1.0 m in radius rotates with an angular acceleration of 4.0rad/s24.0rad/s2. (a) If the wheel’s initial angular velocity is 2.0 rad/s, what is its angular velocity after 10 s? (b) Through what angle does it rotate in the 10-s interval? (c) What are the tangential speed and acceleration of a point on the rim of the wheel at the end of the 10-s interval?

42.

A vertical wheel with a diameter of 50 cm starts from rest and rotates with a constant angular acceleration of 5.0rad/s25.0rad/s2 around a fixed axis through its center counterclockwise. (a) Where is the point that is initially at the bottom of the wheel at t=10s?t=10s? (b) What is the point’s linear acceleration at this instant?

43.

A circular disk of radius 10 cm has a constant angular acceleration of 1.0rad/s21.0rad/s2; at t=0t=0 its angular velocity is 2.0 rad/s. (a) Determine the disk’s angular velocity at t=5.0st=5.0s. (b) What is the angle it has rotated through during this time? (c) What is the tangential acceleration of a point on the disk at t=5.0s?t=5.0s?

44.

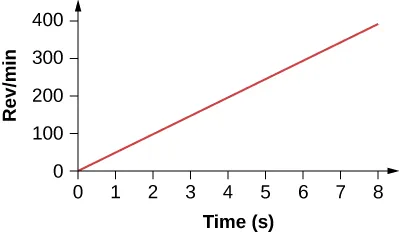

The angular velocity vs. time for a fan on a hovercraft is shown below. (a) What is the angle through which the fan blades rotate in the first 8 seconds? (b) Verify your result using the kinematic equations.

Figure is a graph of the angular velocity in rev per minute plotted versus time in seconds. Angular velocity is zero when the time is equal to zero and increases linearly with time.
45.

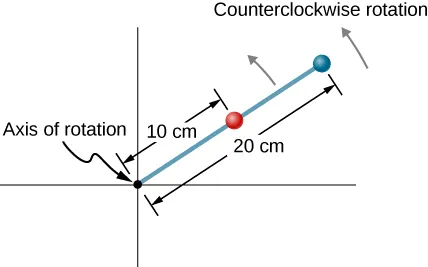

A rod of length 20 cm has two beads attached to its ends. The rod with beads starts rotating from rest. If the beads are to have a tangential speed of 20 m/s in 7 s, what is the angular acceleration of the rod to achieve this?

10.3 Relating Angular and Translational Quantities

46.

At its peak, a tornado is 60.0 m in diameter and carries 500 km/h winds. What is its angular velocity in revolutions per second?

47.

A man stands on a merry-go-round that is rotating at 2.5 rad/s. If the coefficient of static friction between the man’s shoes and the merry-go-round is μS=0.5μS=0.5, how far from the axis of rotation can he stand without sliding?

48.

An ultracentrifuge accelerates from rest to 100,000 rpm in 2.00 min. (a) What is the average angular acceleration in rad/s2rad/s2? (b) What is the tangential acceleration of a point 9.50 cm from the axis of rotation? (c) What is the centripetal acceleration in m/s2m/s2 and multiples of g of this point at full rpm? (d) What is the total distance travelled by a point 9.5 cm from the axis of rotation of the ultracentrifuge?

49.

A wind turbine is rotating counterclockwise at 0.5 rev/s and slows to a stop in 10 s. Its blades are 20 m in length. (a) What is the angular acceleration of the turbine? (b) What is the centripetal acceleration of the tip of the blades at t=0s?t=0s? (c) What is the magnitude and direction of the total linear acceleration of the tip of the blades at t=0s?t=0s?

50.

What is (a) the angular speed and (b) the linear speed of a point on Earth’s surface at latitude 30°30° N. Take the radius of the Earth to be 6309 km. (c) At what latitude would your linear speed be 10 m/s?

51.

A child with mass 40 kg sits on the edge of a merry-go-round at a distance of 3.0 m from its axis of rotation. The merry-go-round accelerates from rest up to 0.4 rev/s in 10 s. If the coefficient of static friction between the child and the surface of the merry-go-round is 0.6, does the child fall off before 5 s?

52.

A bicycle wheel with radius 0.3 m rotates from rest to 3 rev/s in 5 s. What is the magnitude and direction of the total acceleration vector at the edge of the wheel at 1.0 s?

53.

The angular velocity of a flywheel with radius 1.0 m varies according to ω(t)=2.0tω(t)=2.0t. Plot ac(t)andat(t)ac(t)andat(t) from t=0 to 3.0 st=0 to 3.0 s for r=1.0mr=1.0m. Analyze these results to explain when acatacat and when acatacat for a point on the flywheel at a radius of 1.0 m.

10.4 Moment of Inertia and Rotational Kinetic Energy

54.

A system of point particles is shown in the following figure. Each particle has mass 0.3 kg and they all lie in the same plane. (a) What is the moment of inertia of the system about the given axis? (b) If the system rotates at 5 rev/s, what is its rotational kinetic energy?

Figure shows an XYZ coordinate system. Three particles are located on the X axis at 20 cm from the center, at an Y axis at 60 centimeters from the center and at a Z axis at 40 centimeters from the center.
55.

(a) Calculate the rotational kinetic energy of Earth on its axis. (b) What is the rotational kinetic energy of Earth in its orbit around the Sun?

56.

Calculate the rotational kinetic energy of a 12-kg motorcycle wheel if its angular velocity is 120 rad/s and its inner radius is 0.280 m and outer radius 0.330 m.

57.

A baseball pitcher throws the ball in a motion where there is rotation of the forearm about the elbow joint as well as other movements. If the linear velocity of the ball relative to the elbow joint is 20.0 m/s at a distance of 0.480 m from the joint and the moment of inertia of the forearm is 0.500kg-m20.500kg-m2, what is the rotational kinetic energy of the forearm?

58.

A diver goes into a somersault during a dive by tucking her limbs. If her rotational kinetic energy is 100 J and her moment of inertia in the tuck is 9.0kg·m29.0kg·m2, what is her rotational rate during the somersault?

59.

An aircraft is coming in for a landing at 300 meters height when the propeller falls off. The aircraft is flying at 40.0 m/s horizontally. The propeller has a rotation rate of 20 rev/s, a moment of inertia of 70.0kg-m270.0kg-m2, and a mass of 200 kg. Neglect air resistance. (a) With what translational velocity does the propeller hit the ground? (b) What is the rotation rate of the propeller at impact?

60.

If air resistance is present in the preceding problem and reduces the propeller’s rotational kinetic energy at impact by 30%, what is the propeller’s rotation rate at impact?

61.

A neutron star of mass 2×1030kg2×1030kg and radius 10 km rotates with a period of 0.02 seconds. What is its rotational kinetic energy?

62.

An electric sander consisting of a rotating disk of mass 0.7 kg and radius 10 cm rotates at 15 rev/sec. When applied to a rough wooden wall the rotation rate decreases by 20%. (a) What is the final rotational kinetic energy of the rotating disk? (b) How much has its rotational kinetic energy decreased?

63.

A system consists of a disk of mass 2.0 kg and radius 50 cm upon which is mounted an annular cylinder of mass 1.0 kg with inner radius 20 cm and outer radius 30 cm (see below). The system rotates about an axis through the center of the disk and annular cylinder at 10 rev/s. (a) What is the moment of inertia of the system? (b) What is its rotational kinetic energy?

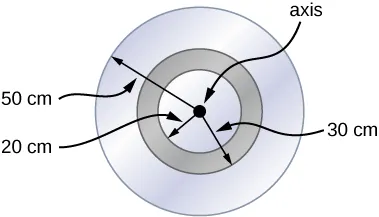

Figure shows a disk of radius 50 cm upon which is mounted an annular cylinder with inner radius 20 cm and outer radius 30 cm

10.5 Calculating Moments of Inertia

64.

While punting a football, a kicker rotates his leg about the hip joint. The moment of inertia of the leg is 3.75kg-m23.75kg-m2 and its rotational kinetic energy is 175 J. (a) What is the angular velocity of the leg? (b) What is the velocity of tip of the punter’s shoe if it is 1.05 m from the hip joint?

65.

Using the parallel axis theorem, what is the moment of inertia of the rod of mass m about the axis shown below?

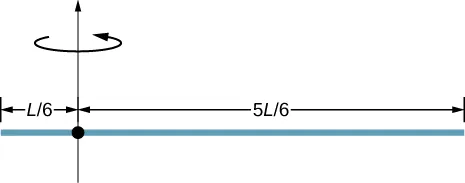

Figure shows a rod that rotates around the axis that passes through it at 1/6 of length from one end and 5/6 of length from the opposite end.
66.

Find the moment of inertia of the rod in the previous problem by direct integration.

67.

A uniform rod of mass 1.0 kg and length 2.0 m is free to rotate about one end (see the following figure). If the rod is released from rest at an angle of 60°60° with respect to the horizontal, what is the speed of the tip of the rod as it passes the horizontal position?

Figure shows a rod that is released from rest at an angle of 60 degrees with respect to the horizontal.
68.

A pendulum consists of a rod of mass 2 kg and length 1 m with a solid sphere at one end with mass 0.3 kg and radius 20 cm (see the following figure). If the pendulum is released from rest at an angle of 30°30°, what is the angular velocity at the lowest point?

Figure shows a pendulum that consists of a rod of mass 2 kg and length 1 m with a solid sphere at one end with mass 0.3 kg and radius 20 cm. The pendulum is released from rest at an angle of 30 degrees.
69.

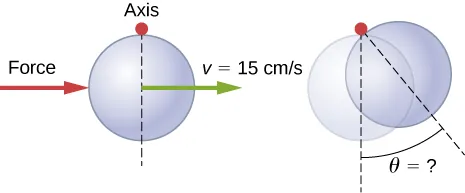

A solid sphere of radius 10 cm is allowed to rotate freely about an axis. The sphere is given a sharp blow so that its center of mass starts from the position shown in the following figure with speed 15 cm/s. What is the maximum angle that the diameter makes with the vertical?

Left figure shows a solid sphere of radius 10 cm that first rotates freely about an axis and then received a sharp blow in its center of mass. Right figure is the image of the same sphere after the blow. An angle that the diameter makes with the vertical is marked as theta.
70.

Calculate the moment of inertia by direct integration of a thin rod of mass M and length L about an axis through the rod at L/3, as shown below. Check your answer with the parallel-axis theorem.

Figure shows a rod that rotates around the axis that passes through it at 1/3 of length from one end and 2/3 of length from the opposite end.

10.6 Torque

71.

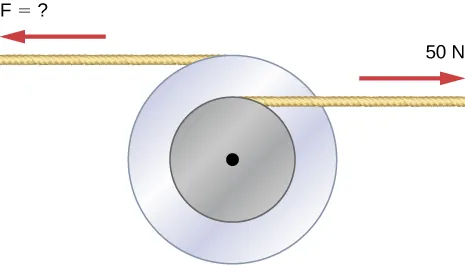

Two flywheels of negligible mass and different radii are bonded together and rotate about a common axis (see below). The smaller flywheel of radius 30 cm has a cord that has a pulling force of 50 N on it. What pulling force needs to be applied to the cord connecting the larger flywheel of radius 50 cm such that the combination does not rotate?

Figure shows two flywheels of different radii that are bonded together and rotate about a common axis. A force of 50 N is applied to the smaller flywheel. A force of unknown magnitude is applied to the larger flywheel and pulls it into the opposite direction.
72.

The cylindrical head bolts on a car are to be tightened with a torque of 62.0 N·m·m. If a mechanic uses a wrench of length 20 cm, what perpendicular force must he exert on the end of the wrench to tighten a bolt correctly?

73.

(a) When opening a door, you push on it perpendicularly with a force of 55.0 N at a distance of 0.850 m from the hinges. What torque are you exerting relative to the hinges? (b) Does it matter if you push at the same height as the hinges? There is only one pair of hinges.

74.

When tightening a bolt, you push perpendicularly on a wrench with a force of 165 N at a distance of 0.140 m from the center of the bolt. How much torque are you exerting in newton-meters (relative to the center of the bolt)?

75.

What hanging mass must be placed on the cord to keep the pulley from rotating (see the following figure)? The mass on the frictionless plane is 5.0 kg. The inner radius of the pulley is 20 cm and the outer radius is 30 cm.

Figure shows the pulley in which a mass of 5 kg rests on an inclined plane at a 45 degree angle and acts as a counterweight to an object of the unknown mass that hangs in the air.
76.

A simple pendulum consists of a massless tether 50 cm in length connected to a pivot and a small mass of 1.0 kg attached at the other end. What is the torque about the pivot when the pendulum makes an angle of 40°40° with respect to the vertical?

77.

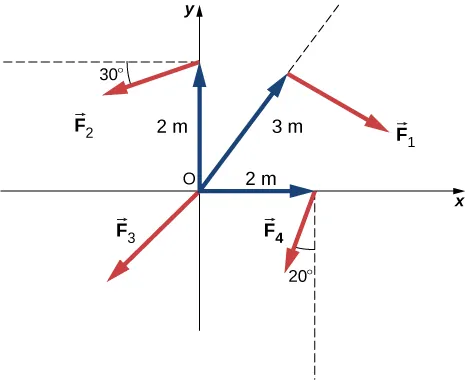

Calculate the torque about the z-axis that is out of the page at the origin in the following figure, given that F1=3N,F2=2N,F3=3N,F4=1.8NF1=3N,F2=2N,F3=3N,F4=1.8N.

Figure shows the XY coordinate system. Force F1 is applied from the point that is located at the line that originates from the center of the coordinate system and is directed towards the top right corner. Point is 3 meters away from the origin and force F1 is directed towards the right bottom corner. Force F2 is applied from the point that is located at the Y axis, 2 meters above the center of the coordinate system. Force F2 forms 30 degree angle with the line parallel to the X axis and is directed towards the left bottom corner. Force F3 is applied from the center of coordinate system and is directed towards the left bottom corner. Force F4 is applied from the point that is located at the X axis, 2 meters to the right from the center of the coordinate system. Force F2 forms 20 degree angle with the line parallel to the Y axis and is directed towards the left bottom corner.
78.

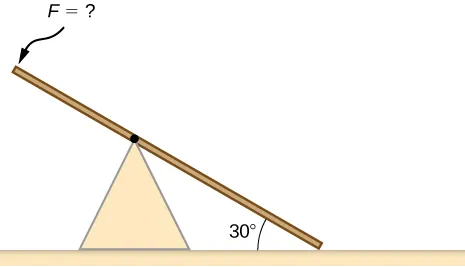

A seesaw has length 10.0 m and uniform mass 10.0 kg and is resting at an angle of 30°30° with respect to the ground (see the following figure). The pivot is located at 6.0 m. What magnitude of force needs to be applied perpendicular to the seesaw at the raised end so as to allow the seesaw to barely start to rotate?

Figure shows a seesaw. One of the ends of the seesaw rests on the ground forming 30 degree angle with it, another end is hanging in the air.
79.

A pendulum consists of a rod of mass 1 kg and length 1 m connected to a pivot with a solid sphere attached at the other end with mass 0.5 kg and radius 30 cm. What is the torque about the pivot when the pendulum makes an angle of 30°30° with respect to the vertical?

80.

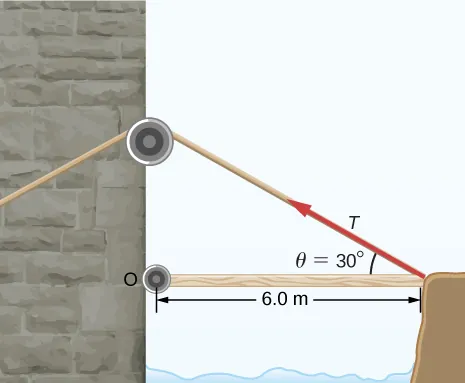

A torque of 5.00×103N·m5.00×103N·m is required to raise a drawbridge (see the following figure). What is the tension necessary to produce this torque? Would it be easier to raise the drawbridge if the angle θθ were larger or smaller?

Figure shows the drawbridge that has a length of 6 meters. A force is applied at a 30 degree angle towards the drawbridge.
81.

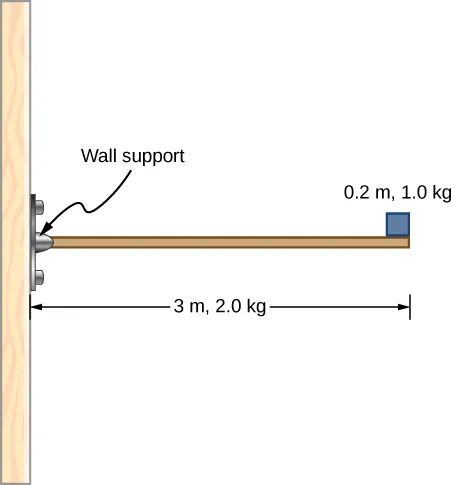

A horizontal beam of length 3 m and mass 2.0 kg has a mass of 1.0 kg and width 0.2 m sitting at the end of the beam (see the following figure). What is the torque of the system about the support at the wall?

Figure shows a horizontal beam that is connected to the wall. Beam has a length of 3 m and mass 2.0 kg. In addition, a mass of 1.0 kg and width 0.2 m sits at the end of the beam.
82.

What force must be applied to end of a rod along the x-axis of length 2.0 m in order to produce a torque on the rod about the origin of 8.0k^N·m8.0k^N·m ?

83.

What is the torque about the origin of the force (5.0i^2.0j^+1.0k^)N(5.0i^2.0j^+1.0k^)N if it is applied at the point whose position is: r=(−2.0i^+4.0j^)m?r=(−2.0i^+4.0j^)m?

10.7 Newton’s Second Law for Rotation

84.

You have a grindstone (a disk) that is 90.0 kg, has a 0.340-m radius, and is turning at 90.0 rpm, and you press a steel axe against it with a radial force of 20.0 N. (a) Assuming the kinetic coefficient of friction between steel and stone is 0.20, calculate the angular acceleration of the grindstone. (b) How many turns will the stone make before coming to rest?

85.

Suppose you exert a force of 180 N tangential to a 0.280-m-radius, 75.0-kg grindstone (a solid disk). (a)What torque is exerted? (b) What is the angular acceleration assuming negligible opposing friction? (c) What is the angular acceleration if there is an opposing frictional force of 20.0 N exerted 1.50 cm from the axis?

86.

A flywheel (I=50kg-m2I=50kg-m2) starting from rest acquires an angular velocity of 200.0 rad/s while subject to a constant torque from a motor for 5 s. (a) What is the angular acceleration of the flywheel? (b) What is the magnitude of the torque?

87.

A constant torque is applied to a rigid body whose moment of inertia is 4.0kg-m24.0kg-m2 around the axis of rotation. If the wheel starts from rest and attains an angular velocity of 20.0 rad/s in 10.0 s, what is the applied torque?

88.

A torque of 50.0 N-m is applied to a grinding wheel (I=20.0kg-m2I=20.0kg-m2) for 20 s. (a) If it starts from rest, what is the angular velocity of the grinding wheel after the torque is removed? (b) Through what angle does the wheel move while the torque is applied?

89.

A flywheel (I=100.0kg-m2I=100.0kg-m2) rotating at 500.0 rev/min is brought to rest by friction in 2.0 min. What is the frictional torque on the flywheel?

90.

A uniform cylindrical grinding wheel of mass 50.0 kg and diameter 1.0 m is turned on by an electric motor. The friction in the bearings is negligible. (a) What torque must be applied to the wheel to bring it from rest to 120 rev/min in 20 revolutions? (b) A tool whose coefficient of kinetic friction with the wheel is 0.60 is pressed perpendicularly against the wheel with a force of 40.0 N. What torque must be supplied by the motor to keep the wheel rotating at a constant angular velocity?

91.

Suppose when Earth was created, it was not rotating. However, after the application of a uniform torque after 6 days, it was rotating at 1 rev/day. (a) What was the angular acceleration during the 6 days? (b) What torque was applied to Earth during this period? (c) What force tangent to Earth at its equator would produce this torque?

92.

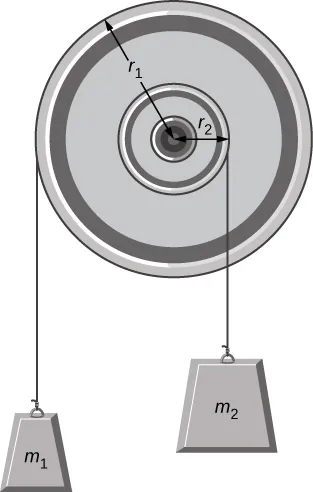

A pulley of moment of inertia 2.0kg-m22.0kg-m2 is mounted on a wall as shown in the following figure. Light strings are wrapped around two circumferences of the pulley and weights are attached. What are (a) the angular acceleration of the pulley and (b) the linear acceleration of the weights? Assume the following data: r1=50cm,r2=20cm,m1=1.0kg,m2=2.0kgr1=50cm,r2=20cm,m1=1.0kg,m2=2.0kg.

Figure shows a pulley mounted on a wall. Light strings are wrapped around two circumferences of the pulley and weights are attached. Smaller weight m1 is attached to the outer circumference of radius r1. Larger weight M2 is attached to the inner circumference of radius r2.
93.

A block of mass 3 kg slides down an inclined plane at an angle of 45°45° with a massless tether attached to a pulley with mass 1 kg and radius 0.5 m at the top of the incline (see the following figure). The pulley can be approximated as a disk. The coefficient of kinetic friction on the plane is 0.4. What is the acceleration of the block?

Figure shows a block that slides down an inclined plane at an angle of 45 degrees with a tether attached to a pulley.
94.

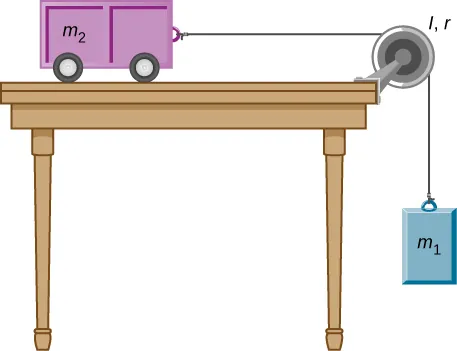

The cart shown below moves across the table top as the block falls. What is the acceleration of the cart? Neglect friction and assume the following data:m1=2.0kg,m2=4.0kg,I=0.4kg-m2,r=20cmm1=2.0kg,m2=4.0kg,I=0.4kg-m2,r=20cm

Figure shows the pulley installed on a table. A cart of mass m2 is attached to one side of the pulley. A weight m1 is attached at another side and hangs in air.
95.

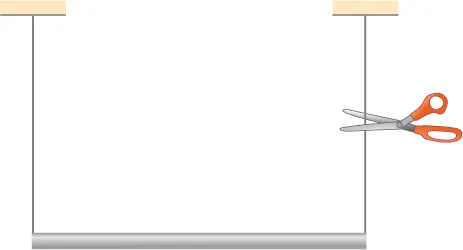

A uniform rod of mass and length is held vertically by two strings of negligible mass, as shown below. (a) Immediately after the string is cut, what is the linear acceleration of the free end of the stick? (b) Of the middle of the stick?

Figure shows a rod that is held vertically by two strings connected at its ends. One of the strings is cut with scissors.
96.

A thin stick of mass 0.2 kg and length L=0.5mL=0.5m is attached to the rim of a metal disk of mass M=2.0kgM=2.0kg and radius R=0.3mR=0.3m. The stick is free to rotate around a horizontal axis through its other end (see the following figure). (a) If the combination is released with the stick horizontal, what is the speed of the center of the disk when the stick is vertical? (b) What is the acceleration of the center of the disk at the instant the stick is released? (c) At the instant the stick passes through the vertical?

Figure A shows a thin stick attached to the rim of a metal disk. Figure B shows a thin stick that is attached to the rim of a metal disk and rotates around a horizontal axis through its other end.

10.8 Work and Power for Rotational Motion

97.

A wind turbine rotates at 20 rev/min. If its power output is 2.0 MW, what is the torque produced on the turbine from the wind?

98.

A clay cylinder of radius 20 cm on a potter’s wheel spins at a constant rate of 10 rev/s. The potter applies a force of 10 N to the clay with his hands where the coefficient of friction is 0.1 between his hands and the clay. What is the power that the potter has to deliver to the wheel to keep it rotating at this constant rate?

99.

A uniform cylindrical grindstone has a mass of 10 kg and a radius of 12 cm. (a) What is the rotational kinetic energy of the grindstone when it is rotating at 1.5×103rev/min?1.5×103rev/min? (b) After the grindstone’s motor is turned off, a knife blade is pressed against the outer edge of the grindstone with a perpendicular force of 5.0 N. The coefficient of kinetic friction between the grindstone and the blade is 0.80. Use the work energy theorem to determine how many turns the grindstone makes before it stops.

100.

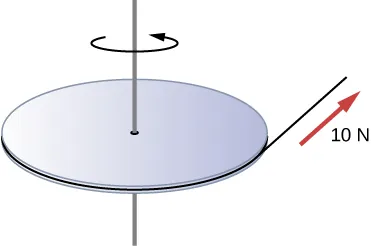

A uniform disk of mass 500 kg and radius 0.25 m is mounted on frictionless bearings so it can rotate freely around a vertical axis through its center (see the following figure). A cord is wrapped around the rim of the disk and pulled with a force of 10 N. (a) How much work has the force done at the instant the disk has completed three revolutions, starting from rest? (b) Determine the torque due to the force, then calculate the work done by this torque at the instant the disk has completed three revolutions? (c) What is the angular velocity at that instant? (d) What is the power output of the force at that instant?

Figure shows a uniform disk that rotates around a vertical axis through its center. A cord is wrapped around the rim of the disk and pulled with a force of 10 N.
101.

A propeller is accelerated from rest to an angular velocity of 1000 rev/min over a period of 6.0 seconds by a constant torque of 2.0×103N·m2.0×103N·m. (a) What is the moment of inertia of the propeller? (b) What power is being provided to the propeller 3.0 s after it starts rotating?

102.

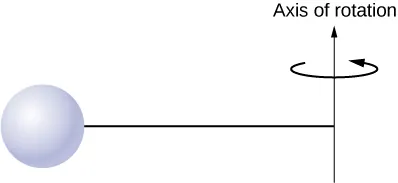

A sphere of mass 1.0 kg and radius 0.5 m is attached to the end of a massless rod of length 3.0 m. The rod rotates about an axis that is at the opposite end of the sphere (see below). The system rotates horizontally about the axis at a constant 400 rev/min. After rotating at this angular speed in a vacuum, air resistance is introduced and provides a force 0.15N0.15N on the sphere opposite to the direction of motion. What is the power provided by air resistance to the system 100.0 s after air resistance is introduced?

Figure shows a sphere attached to the end of a rod. The rod rotates about an axis that is at the opposite end of the sphere.
103.

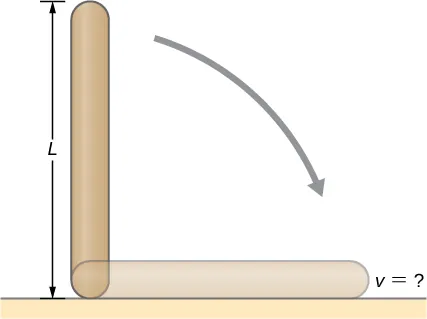

A uniform rod of length L and mass M is held vertically with one end resting on the floor as shown below. When the rod is released, it rotates around its lower end until it hits the floor. Assuming the lower end of the rod does not slip, what is the linear velocity of the upper end when it hits the floor?

Figure shows a uniform rod of length L and mass M is held vertically with one end resting on the floor. When the rod is released, it rotates around its lower end until it hits the floor.
104.

An athlete in a gym applies a constant force of 50 N to the pedals of a bicycle at a rate of the pedals moving 60 rev/min. The length of the pedal arms is 30 cm. What is the power delivered to the bicycle by the athlete?

105.

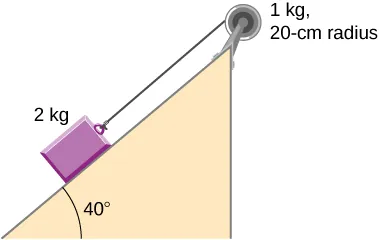

A 2-kg block on a frictionless inclined plane at 40°40° has a cord attached to a pulley of mass 1 kg and radius 20 cm (see the following figure). (a) What is the acceleration of the block down the plane? (b) What is the work done by the gravitational force to move the block 50 cm?

Figure shows a 2 kg block on an inclined plane at an angle of 40 degrees with a tether attached to a pulley of mass 1 kg and radius 20 cm.
106.

Small bodies of mass m1andm2m1andm2 are attached to opposite ends of a thin rigid rod of length L and mass M. The rod is mounted so that it is free to rotate in a horizontal plane around a vertical axis (see below). What distance d from m1m1 should the rotational axis be so that a minimum amount of work is required to set the rod rotating at an angular velocity ω?ω?

Figure shows a thin rod of length L that has masses m1 and m2 connected to the opposite ends. The rod rotates around the axis that passes through it at a d distance from m1 and L-d distance from m2.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Sep 19, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
