The standardized normal distribution is a type of normal distribution, with a mean of 0 and standard deviation of 1. It represents a distribution of standardized scores, called z-scores, as opposed to raw scores (the actual data values). A z-score indicates the number of standard deviation a score falls above or below the mean. Z-scores allow for comparison of scores, occurring in different data sets, with different means and standard deviations. It would not make sense to compare apples and oranges. Likewise, it does not make sense to compare scores from two different samples that have different means and standard deviations. Z-scores can be looked up in a Z-Table of Standard Normal Distribution, in order to find the area under the standard normal curve, between a score and the mean, between two scores, or above or below a score. The standard normal distribution allows us to interpret standardized scores and provides us with one table that we may use, in order to compute areas under the normal curve, for an infinite number of data sets, no matter what the mean or standard deviation.

A z-score is calculated as z= xμ σ z= xμ σ . The score itself can be found by using algebra and solving for x. Multiplying both sides of the equation by σ gives: ( z )( σ )=xμ ( z )( σ )=xμ . Adding μ to both sides of the equation gives μ+( z )( σ )=x μ+( z )( σ )=x .

Suppose we have a data set with a mean of 5 and standard deviation of 2. We want to determine the number of standard deviations the score of 11 falls above the mean. We can find this answer (or z-score) by writing

z= 115 2 =3 z= 115 2 =3
6.1

or

5+( z )( 2 )=11 , 5+( z )( 2 )=11 ,
6.2

we can solve for z.

2z=6 z=3 2z=6 z=3
6.3

We have determined that the score of 11 falls 3 standard deviations above the mean of 5.

With a standard normal distribution, we indicate the distribution by writing Z ~ N(0, 1) which shows the normal distribution has a mean of 0 and standard deviation of 1. This notation simply indicates that a standard normal distribution is being used.

Z-Scores

As described previously, if X is a normally distributed random variable and X ~ N(μ, σ), then the z-score is

z= x  μ σ . z= x  μ σ .

The z-score tells you how many standard deviations the value x is above, to the right of, or below, to the left of, the mean, μ. Values of x that are larger than the mean have positive z-scores, and values of x that are smaller than the mean have negative z-scores. If x equals the mean, then x has a z-score of zero.

When determining the z-score for an x-value, for a normal distribution, with a given mean and standard deviation, the notation above for a normal distribution, will be given.

Example 6.1

Suppose X ~ N(5, 6). This equation says that X is a normally distributed random variable with mean μ = 5 and standard deviation σ = 6. Suppose x = 17. Then,

z= xμ σ = 175 6 =2 . z= xμ σ = 175 6 =2 .

This means that x = 17 is two standard deviations (2σ) above, or to the right, of the mean μ = 5.

Notice that 5 + (2)(6) = 17. The pattern is μ + = x.

Now suppose x = 1. Then, z = xμ σ xμ σ = 15 6 15 6 = –0.67, rounded to two decimal places.

This means that x = 1 is 0.67 standard deviations (–0.67σ) below or to the left of the mean μ = 5. This z-score shows that x = 1 is less than 1 standard deviation below the mean of 5. Therefore, the score doesn't fall very far below the mean.

Summarizing, when z is positive, x is above or to the right of μ, and when z is negative, x is to the left of or below μ. Or, when z is positive, x is greater than μ, and when z is negative, x is less than μ. The absolute value of z indicates how far the score is from the mean, in either direction.

Try It 6.1

What is the z-score of x, when x = 1 and X ~ N(12, 3)?

Example 6.2

Some doctors believe that a person can lose five pounds, on average, in a month by reducing his or her fat intake and by consistently exercising. Suppose weight loss has a normal distribution. Let X = the amount of weight lost, in pounds, by a person in a month. Use a standard deviation of two pounds. X ~ N(5, 2). Fill in the blanks.

Problem

a. Suppose a person lost 10 pounds in a month. The z-score when x = 10 pounds is z = 2.5 (verify). This z-score tells you that x = 10 is ________ standard deviations to the ________ (right or left) of the mean _____ (What is the mean?).

Problem

b. Suppose a person gained three pounds, a negative weight loss. Then z = __________. This z-score tells you that x = –3 is ________ standard deviations to the __________ (right or left) of the mean.

Problem

c. Suppose the random variables X and Y have the following normal distributions: X ~ N(5, 6) and Y ~ N(2, 1). If x = 17, then z = 2. This was previously shown. If y = 4, what is z?

Try It 6.2

Fill in the blanks.

Jerome averages 16 points a game with a standard deviation of four points. X ~ N(16, 4). Suppose Jerome scores 10 points in a game. The z-score when x = 10 is –1.5. This score tells you that x = 10 is _____ standard deviations to the ______ (right or left) of the mean______ (What is the mean?).

The Empirical Rule If X is a random variable and has a normal distribution with mean µ and standard deviation σ, then the Empirical Rule states the following:

  • About 68 percent of the x values lie between –1σ and +1σ of the mean µ (within one standard deviation of the mean).
  • About 95 percent of the x values lie between –2σ and +2σ of the mean µ (within two standard deviations of the mean).
  • About 99.7 percent of the x values lie between –3σ and +3σ of the mean µ (within three standard deviations of the mean). Notice that almost all the x values lie within three standard deviations of the mean.
  • The z-scores for +1σ and –1σ are +1 and –1, respectively.
  • The z-scores for +2σ and –2σ are +2 and –2, respectively.
  • The z-scores for +3σ and –3σ are +3 and –3, respectively.

So, in other words, this is that about 68 percent of the values lie between z-scores of –1 and 1, about 95% of the values lie between z-scores of –2 and 2, and about 99.7 percent of the values lie between z-scores of -3 and 3. These facts can be checked, by looking up the mean to z area in a z-table for each positive z-score and multiplying by 2.

The empirical rule is also known as the 68–95–99.7 rule.

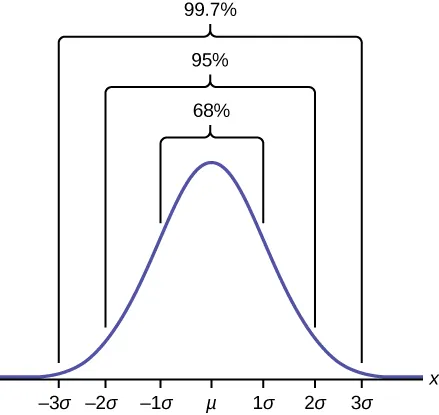

This graph shows a bell-shaped curve for the plot line. The highest point of the bell occurs at the following point on the x axis where a greek lowercase letter mu is found on the x axis. The next highest points at the bar coincide with negative 1 sigma to the left and 1 sigma to the right. These points comprise 68 percent of the total distribution of the bell curve. Moving out toward the next lowest points on the bell we find negative 2 sigma on the left and positive 2 sigma on the right. These points comprise 95 percent of the total distribution of the bell curve. Moving out to the outermost points on the bell we find negative 3 sigma to the extreme left and positive 3 sigma to the extreme right. These points comprise 99.7 percent of the total distribution of the bell curve.
Figure 6.3

Example 6.3

The mean height of 15-to 18-year-old males from Chile from 2009 to 2010 was 170 cm with a standard deviation of 6.28 cm. Male heights are known to follow a normal distribution. Let X = the height of a 15-to 18-year-old male from Chile in 2009–2010. Then X ~ N(170, 6.28).

Problem

a. Suppose a 15-to 18-year-old male from Chile was 168 cm tall in 2009–2010. The z-score when x = 168 cm is z = _______. This z-score tells you that x = 168 is ________ standard deviations to the ________ (right or left) of the mean _____ (What is the mean?).

Problem

b. Suppose that the height of a 15-to 18-year-old male from Chile in 2009–2010 has a z-score of z = 1.27. What is the male’s height? The z-score (z = 1.27) tells you that the male’s height is ________ standard deviations to the __________ (right or left) of the mean.

Try It 6.3

Use the information in Example 6.3 to answer the following questions:

  1. Suppose a 15-to 18-year-old male from Chile was 176 cm tall from 2009–2010. The z-score when x = 176 cm is z = _______. This z-score tells you that x = 176 cm is ________ standard deviations to the ________ (right or left) of the mean _____ (What is the mean?).
  2. Suppose that the height of a 15-to 18-year-old male from Chile in 2009–2010 has a z-score of z = –2. What is the male’s height? The z-score (z = –2) tells you that the male’s height is ________ standard deviations to the __________ (right or left) of the mean.

Example 6.4

Problem

From 1984 to 1985, the mean height of 15-to 18-year-old males from Chile was 172.36 cm, and the standard deviation was 6.34 cm. Let Y = the height of 15-to 18-year-old males from 1984–1985, and y = the height of one male from this group. Then Y ~ N(172.36, 6.34).

The mean height of 15-to 18-year-old males from Chile in 2009–2010 was 170 cm with a standard deviation of 6.28 cm. Male heights are known to follow a normal distribution. Let X = the height of a 15-to 18-year-old male from Chile in 2009–2010, and x = the height of one male from this group. Then X ~ N(170, 6.28).

Find the z-scores for x = 160.58 cm and y = 162.85 cm. Interpret each z-score. What can you say about x = 160.58 cm and y = 162.85 cm as they compare to their respective means and standard deviations?

Try It 6.4

In 2012, 1,664,479 students took the SAT exam. The distribution of scores in the verbal section of the SAT had a mean µ = 496 and a standard deviation σ = 114. Let X = a SAT exam verbal section score in 2012. Then, X ~ N(496, 114).

Find the z-scores for x1 = 325 and x2 = 366.21. Interpret each z-score. What can you say about x1 = 325 and x2 = 366.21, as they compare to their respective means and standard deviations?

Example 6.5

Suppose x has a normal distribution with mean 50 and standard deviation 6.

  • About 68 percent of the x values lie within one standard deviation of the mean. Therefore, about 68 percent of the x values lie between –1σ = (–1)(6) = –6 and 1σ = (1)(6) = 6 of the mean 50. The values 50 – 6 = 44 and 50 + 6 = 56 are within one standard deviation from the mean 50. The z-scores are –1 and +1 for 44 and 56, respectively.
  • About 95 percent of the x values lie within two standard deviations of the mean. Therefore, about 95 percent of the x values lie between –2σ = (–2)(6) = –12 and 2σ = (2)(6) = 12. The values 50 – 12 = 38 and 50 + 12 = 62 are within two standard deviations from the mean 50. The z-scores are –2 and +2 for 38 and 62, respectively.
  • About 99.7 percent of the x values lie within three standard deviations of the mean. Therefore, about 95 percent of the x values lie between –3σ = (–3)(6) = –18 and 3σ = (3)(6) = 18 of the mean 50. The values 50 – 18 = 32 and 50 + 18 = 68 are within three standard deviations from the mean 50. The z-scores are –3 and +3 for 32 and 68, respectively.

Try It 6.5

Suppose X has a normal distribution with mean 25 and standard deviation five. Between what values of x do 68 percent of the values lie?

Example 6.6

Problem

From 1984–1985, the mean height of 15-to 18-year-old males from Chile was 172.36 cm, and the standard deviation was 6.34 cm. Let Y = the height of 15-to 18-year-old males in 1984–1985. Then Y ~ N(172.36, 6.34).

  1. About 68 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________, respectively.
  2. About 95 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________ respectively.
  3. About 99.7 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________, respectively.

Try It 6.6

The scores on a college entrance exam have an approximate normal distribution with mean, µ = 52 points and a standard deviation, σ = 11 points.

  1. About 68 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________, respectively.
  2. About 95 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________, respectively.
  3. About 99.7 percent of the y values lie between what two values? These values are ________________. The z-scores are ________________, respectively.
Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute Texas Education Agency (TEA). The original material is available at: https://www.texasgateway.org/book/tea-statistics . Changes were made to the original material, including updates to art, structure, and other content updates.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/statistics/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/statistics/pages/1-introduction
Citation information

© Jan 18, 2023 Texas Education Agency (TEA). The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
