As we noted in our discussion of open market operations, in a limited reserves environment the FOMC can affect banks' balance sheets and the money supply. The following figures shows this process in detail.
Changes in Happy Bank's Balance Sheet

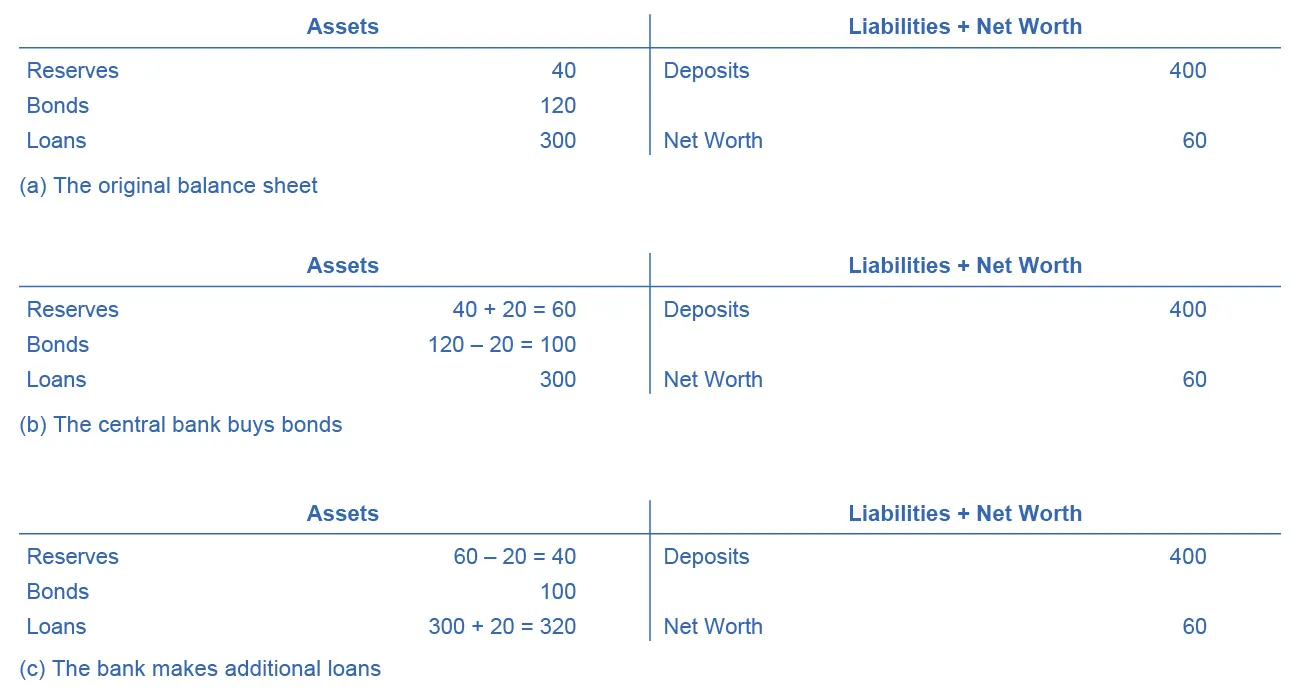

Figure E1 (a) shows that Happy Bank starts with $460 million in assets, divided among reserves, bonds and loans, and $400 million in liabilities in the form of deposits, with a net worth of $60 million. When the central bank purchases $20 million in bonds from Happy Bank, the bond holdings of Happy Bank fall by $20 million and the bank’s reserves rise by $20 million, as Figure E1 (b) shows. However, Happy Bank only wants to hold $40 million in reserves (the quantity of reserves with which it started in Figure 15.5) (a), so the bank decides to loan out the extra $20 million in reserves and its loans rise by $20 million, as Figure E1 (c) shows.

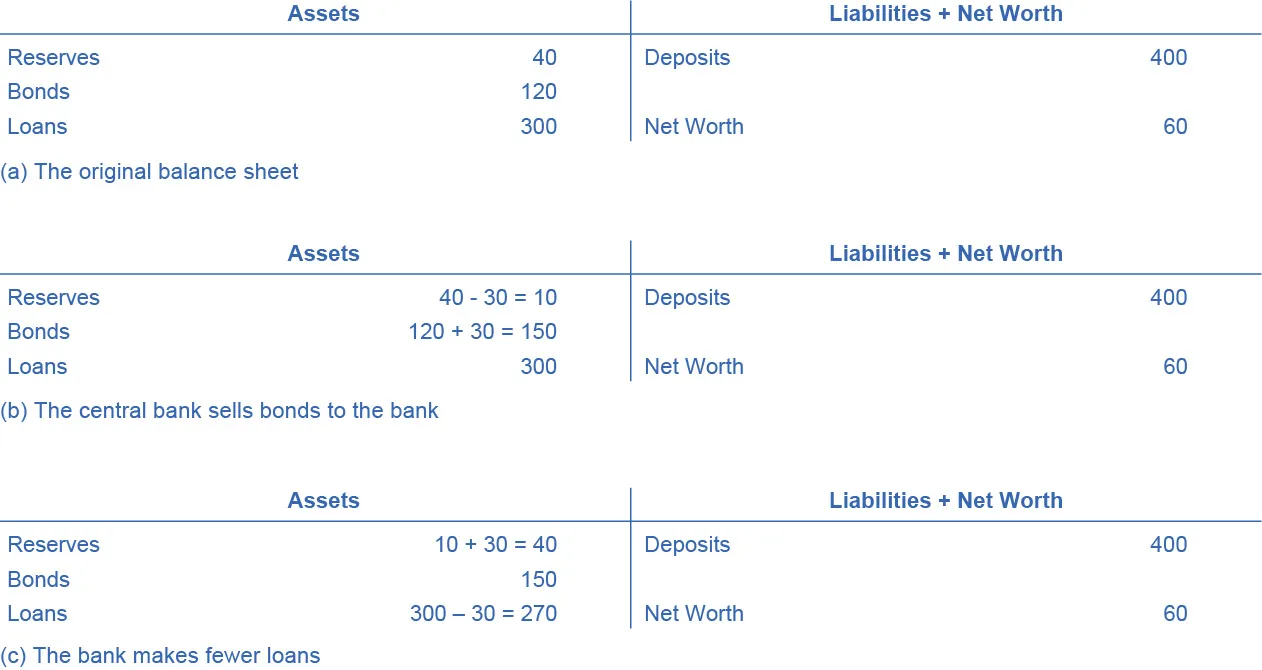

Figure E2 (a) shows the balance sheet of Happy Bank before the central bank sells bonds in the open market. When Happy Bank purchases $30 million in bonds, Happy Bank sends $30 million of its reserves to the central bank, but now holds an additional $30 million in bonds, as Figure E2 (b) shows. However, Happy Bank wants to hold $40 million in reserves, as in Figure E2 (a), so it will adjust down the quantity of its loans by $30 million, to bring its reserves back to the desired level, as Figure E2 (c) shows.
