Learning Objectives
In this section, you will:
 Identify the domain of a logarithmic function.
 Graph logarithmic functions.
In Graphs of Exponential Functions, we saw how creating a graphical representation of an exponential model gives us another layer of insight for predicting future events. How do logarithmic graphs give us insight into situations? Because every logarithmic function is the inverse function of an exponential function, we can think of every output on a logarithmic graph as the input for the corresponding inverse exponential equation. In other words, logarithms give the cause for an effect.

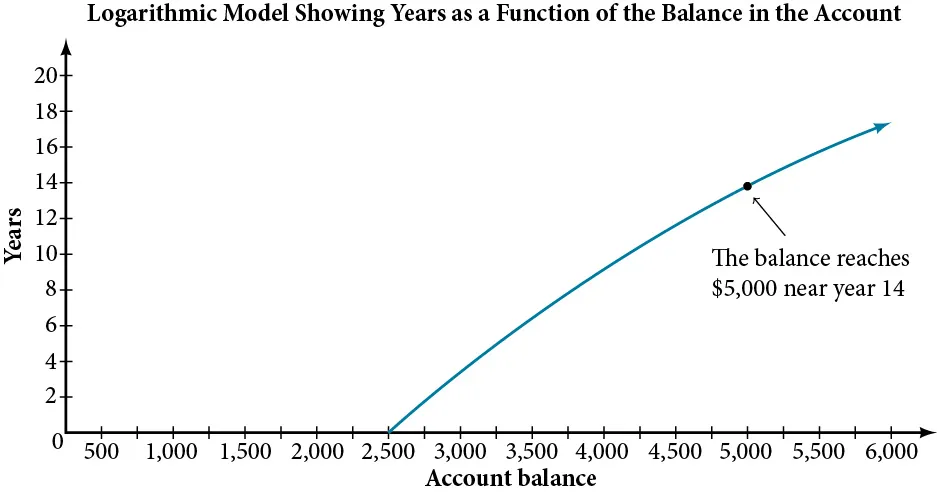

To illustrate, suppose we invest $\text{\$}2500$ in an account that offers an annual interest rate of $5\%,$ compounded continuously. We already know that the balance in our account for any year $t$ can be found with the equation $A=2500{e}^{0.05t}.$
But what if we wanted to know the year for any balance? We would need to create a corresponding new function by interchanging the input and the output; thus we would need to create a logarithmic model for this situation. By graphing the model, we can see the output (year) for any input (account balance). For instance, what if we wanted to know how many years it would take for our initial investment to double? Figure 1 shows this point on the logarithmic graph.
In this section we will discuss the values for which a logarithmic function is defined, and then turn our attention to graphing the family of logarithmic functions.
Finding the Domain of a Logarithmic Function
Before working with graphs, we will take a look at the domain (the set of input values) for which the logarithmic function is defined.
Recall that the exponential function is defined as $y={b}^{x}$ for any real number $x$ and constant $b>0,$ $b\ne 1,$ where
 The domain of $y$ is $\left(\infty ,\infty \right).$
 The range of $y$ is $\left(0,\infty \right).$
In the last section we learned that the logarithmic function $y={\mathrm{log}}_{b}\left(x\right)$ is the inverse of the exponential function $y={b}^{x}.$ So, as inverse functions:
 The domain of $y={\mathrm{log}}_{b}\left(x\right)$ is the range of $y={b}^{x}:$ $\left(0,\infty \right).$
 The range of $y={\mathrm{log}}_{b}\left(x\right)$ is the domain of $y={b}^{x}:$ $\left(\infty ,\infty \right).$
Transformations of the parent function $y={\mathrm{log}}_{b}\left(x\right)$ behave similarly to those of other functions. Just as with other parent functions, we can apply the four types of transformations—shifts, stretches, compressions, and reflections—to the parent function without loss of shape.
In Graphs of Exponential Functions we saw that certain transformations can change the range of $y={b}^{x}.$ Similarly, applying transformations to the parent function $y={\mathrm{log}}_{b}\left(x\right)$ can change the domain. When finding the domain of a logarithmic function, therefore, it is important to remember that the domain consists only of positive real numbers. That is, the argument of the logarithmic function must be greater than zero.
For example, consider $f(x)={\mathrm{log}}_{4}\left(2x3\right).$ This function is defined for any values of $x$ such that the argument, in this case $2x3,$ is greater than zero. To find the domain, we set up an inequality and solve for $x:$
In interval notation, the domain of $f(x)={\mathrm{log}}_{4}\left(2x3\right)$ is $\left(1.5,\infty \right).$
How To
Given a logarithmic function, identify the domain.
 Set up an inequality showing the argument greater than zero.
 Solve for $x.$
 Write the domain in interval notation.
Example 1
Identifying the Domain of a Logarithmic Shift
What is the domain of $f(x)={\mathrm{log}}_{2}(x+3)?$
Solution
The logarithmic function is defined only when the input is positive, so this function is defined when $x+3>0.$ Solving this inequality,
The domain of $f(x)={\mathrm{log}}_{2}(x+3)$ is $\left(3,\infty \right).$
Try It #1
What is the domain of $f(x)={\mathrm{log}}_{5}(x2)+1?$
Example 2
Identifying the Domain of a Logarithmic Shift and Reflection
What is the domain of $f(x)=\mathrm{log}(52x)?$
Solution
The logarithmic function is defined only when the input is positive, so this function is defined when $5\u20132x>0.$ Solving this inequality,
The domain of $f(x)=\mathrm{log}(52x)$ is $\left(\u2013\infty ,\frac{5}{2}\right).$
Try It #2
What is the domain of $f(x)=\mathrm{log}(x5)+2?$
Graphing Logarithmic Functions
Now that we have a feel for the set of values for which a logarithmic function is defined, we move on to graphing logarithmic functions. The family of logarithmic functions includes the parent function $y={\mathrm{log}}_{b}\left(x\right)$ along with all its transformations: shifts, stretches, compressions, and reflections.
We begin with the parent function $y={\mathrm{log}}_{b}\left(x\right).$ Because every logarithmic function of this form is the inverse of an exponential function with the form $y={b}^{x},$ their graphs will be reflections of each other across the line $y=x.$ To illustrate this, we can observe the relationship between the input and output values of $y={2}^{x}$ and its equivalent $x={\mathrm{log}}_{2}(y)$ in Table 1.
$x$  $3$  $2$  $1$  $0$  $1$  $2$  $3$
${2}^{x}=y$  $\frac{1}{8}$  $\frac{1}{4}$  $\frac{1}{2}$  $1$  $2$  $4$  $8$
${\mathrm{log}}_{2}\left(y\right)=x$  $3$  $2$  $1$  $0$  $1$  $2$  $3$
Using the inputs and outputs from Table 1, we can build another table to observe the relationship between points on the graphs of the inverse functions $f(x)={2}^{x}$ and $g(x)={\mathrm{log}}_{2}(x).$ See Table 2.
$f(x)={2}^{x}$  $\left(3,\frac{1}{8}\right)$  $\left(2,\frac{1}{4}\right)$  $\left(1,\frac{1}{2}\right)$  $\left(0,1\right)$  $\left(1,2\right)$  $\left(2,4\right)$  $\left(3,8\right)$
$g(x)={\mathrm{log}}_{2}\left(x\right)$  $\left(\frac{1}{8},3\right)$  $\left(\frac{1}{4},2\right)$  $\left(\frac{1}{2},1\right)$  $\left(1,0\right)$  $\left(2,1\right)$  $\left(4,2\right)$  $\left(8,3\right)$

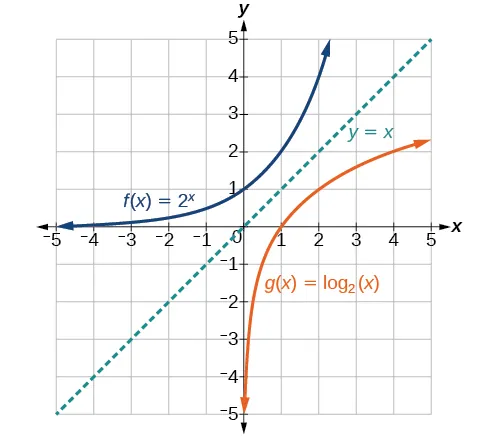

As we’d expect, the x and ycoordinates are reversed for the inverse functions. Figure 2 shows the graph of $f$ and $g.$
Observe the following from the graph:
 $f(x)={2}^{x}$ has a yintercept at $(0,1)$ and $g(x)={\mathrm{log}}_{2}\left(x\right)$ has an x intercept at $(1,0).$
 The domain of $f(x)={2}^{x},$ $\left(\infty ,\infty \right),$ is the same as the range of $g(x)={\mathrm{log}}_{2}\left(x\right).$
 The range of $f(x)={2}^{x},$ $\left(0,\infty \right),$ is the same as the domain of $g(x)={\mathrm{log}}_{2}\left(x\right).$
Characteristics of the Graph of the Parent Function, $f(x)={\mathrm{log}}_{b}\left(x\right):$
For any real number $x$ and constant $b>0,$ $b\ne 1,$ we can see the following characteristics in the graph of $f(x)={\mathrm{log}}_{b}\left(x\right):$
 onetoone function
 vertical asymptote: $x=0$
 domain: $(0,\infty )$
 range: $\left(\infty ,\infty \right)$
 xintercept: $(1,0)$ and key point $(b,1)$
 yintercept: none
 increasing if $b>1$
 decreasing if $0<b<1$
See Figure 3.

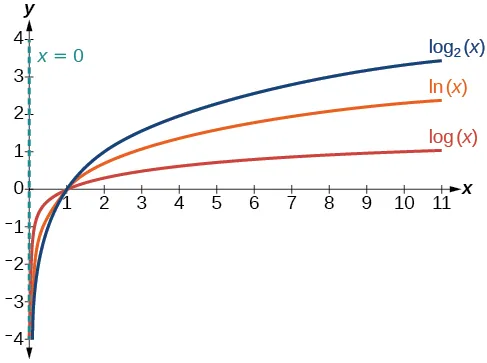

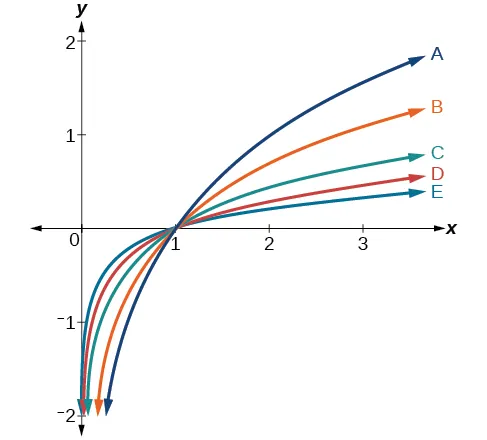

Figure 4 shows how changing the base $b$ in $f(x)={\mathrm{log}}_{b}\left(x\right)$ can affect the graphs. Observe that the graphs compress vertically as the value of the base increases. (Note: recall that the function $\mathrm{ln}\left(x\right)$ has base $e\approx \text{2}.\text{718.)}$
How To
Given a logarithmic function with the form $f(x)={\mathrm{log}}_{b}\left(x\right),$ graph the function.
 Draw and label the vertical asymptote, $x=0.$
 Plot the xintercept, $\left(1,0\right).$
 Plot the key point $\left(b,1\right).$
 Draw a smooth curve through the points.
 State the domain, $\left(0,\infty \right),$ the range, $\left(\infty ,\infty \right),$ and the vertical asymptote, $x=0.$
Example 3
Graphing a Logarithmic Function with the Form f(x) = log_{b}(x).
Graph $f(x)={\mathrm{log}}_{5}\left(x\right).$ State the domain, range, and asymptote.
Solution
Before graphing, identify the behavior and key points for the graph.
 Since $b=5$ is greater than one, we know the function is increasing. The left tail of the graph will approach the vertical asymptote $x=0,$ and the right tail will increase slowly without bound.
 The xintercept is $\left(1,0\right).$
 The key point $\left(5,1\right)$ is on the graph.

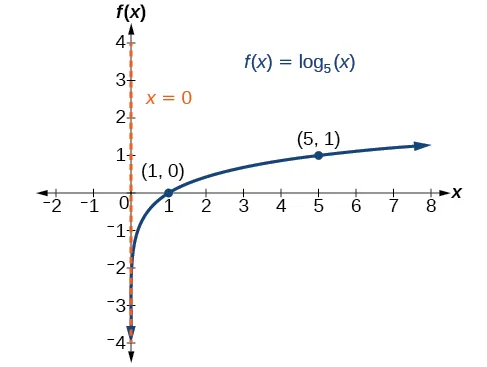

 We draw and label the asymptote, plot and label the points, and draw a smooth curve through the points (see Figure 5).
The domain is $\left(0,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Try It #3
Graph $f(x)={\mathrm{log}}_{\frac{1}{5}}(x).$ State the domain, range, and asymptote.
Graphing Transformations of Logarithmic Functions
As we mentioned in the beginning of the section, transformations of logarithmic graphs behave similarly to those of other parent functions. We can shift, stretch, compress, and reflect the parent function $y={\mathrm{log}}_{b}\left(x\right)$ without loss of shape.
Graphing a Horizontal Shift of f(x) = log_{b}(x)
When a constant $c$ is added to the input of the parent function $f(x)=lo{g}_{b}(x),$ the result is a horizontal shift $c$ units in the opposite direction of the sign on $c.$ To visualize horizontal shifts, we can observe the general graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ and for $c>0$ alongside the shift left, $g(x)={\mathrm{log}}_{b}\left(x+c\right),$ and the shift right, $h(x)={\mathrm{log}}_{b}\left(xc\right).$ See Figure 6.

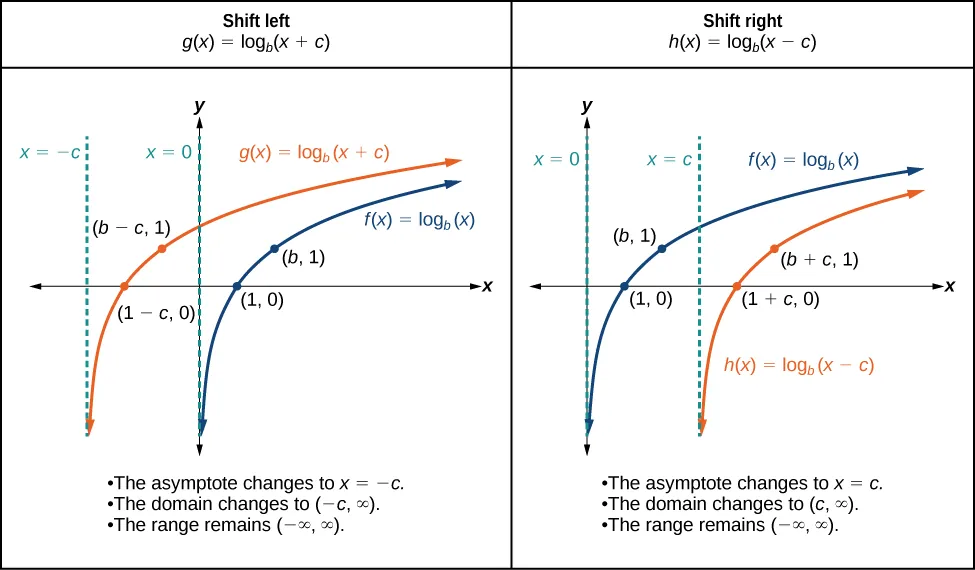

Horizontal Shifts of the Parent Function $f(x)={\mathrm{log}}_{b}\left(x\right)$
For any constant $c,$ the function $f(x)={\mathrm{log}}_{b}\left(x+c\right)$
 shifts the parent function $y={\mathrm{log}}_{b}\left(x\right)$ left $c$ units if $c>0.$
 shifts the parent function $y={\mathrm{log}}_{b}\left(x\right)$ right $c$ units if $c<0.$
 has the vertical asymptote $x=c.$
 has domain $\left(c,\infty \right).$
 has range $\left(\infty ,\infty \right).$
How To
Given a logarithmic function with the form $f(x)={\mathrm{log}}_{b}\left(x+c\right),$ graph the translation.
 Identify the horizontal shift:
 If $c>0,$ shift the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ left $c$ units.
 If $c<0,$ shift the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ right $c$ units.
 Draw the vertical asymptote $x=c.$
 Identify three key points from the parent function. Find new coordinates for the shifted functions by subtracting $c$ from the $x$ coordinate.
 Label the three points.
 The Domain is $\left(c,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=c.$
Example 4
Graphing a Horizontal Shift of the Parent Function y = log_{b}(x)
Sketch the horizontal shift $f(x)={\mathrm{log}}_{3}(x2)$ alongside its parent function. Include the key points and asymptotes on the graph. State the domain, range, and asymptote.
Solution
Since the function is $f(x)={\mathrm{log}}_{3}(x2),$ we notice $x+\left(2\right)=x\u20132.$
Thus $c=2,$ so $c<0.$ This means we will shift the function $f(x)={\mathrm{log}}_{3}(x)$ right 2 units.
The vertical asymptote is $x=(2)$ or $x=2.$
Consider the three key points from the parent function, $\left(\frac{1}{3},\mathrm{1}\right),$ $\left(1,0\right),$ and $\left(3,1\right).$
The new coordinates are found by adding 2 to the $x$ coordinates.
Label the points $\left(\frac{7}{3},\mathrm{1}\right),$ $\left(3,0\right),$ and $\left(5,1\right).$
The domain is $\left(2,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=2.$
Try It #4
Sketch a graph of $f(x)={\mathrm{log}}_{3}(x+4)$ alongside its parent function. Include the key points and asymptotes on the graph. State the domain, range, and asymptote.
Graphing a Vertical Shift of y = log_{b}(x)

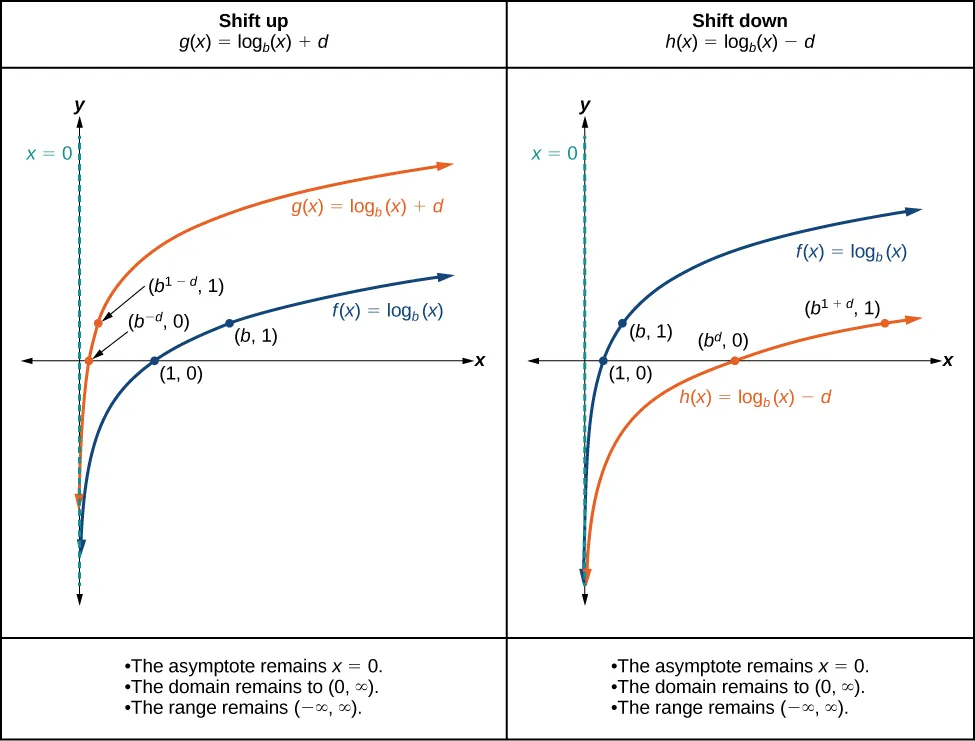

When a constant $d$ is added to the parent function $f(x)={\mathrm{log}}_{b}\left(x\right),$ the result is a vertical shift $d$ units in the direction of the sign on $d.$ To visualize vertical shifts, we can observe the general graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ alongside the shift up, $g(x)={\mathrm{log}}_{b}\left(x\right)+d$ and the shift down, $h(x)={\mathrm{log}}_{b}\left(x\right)d.$ See Figure 8.
Vertical Shifts of the Parent Function $y={\mathrm{log}}_{b}\left(x\right)$
For any constant $d,$ the function $f(x)={\mathrm{log}}_{b}\left(x\right)+d$
 shifts the parent function $y={\mathrm{log}}_{b}\left(x\right)$ up $d$ units if $d>0.$
 shifts the parent function $y={\mathrm{log}}_{b}\left(x\right)$ down $d$ units if $d<0.$
 has the vertical asymptote $x=0.$
 has domain $\left(0,\infty \right).$
 has range $\left(\infty ,\infty \right).$
How To
Given a logarithmic function with the form $f(x)={\mathrm{log}}_{b}\left(x\right)+d,$ graph the translation.
 Identify the vertical shift:
 If $d>0,$ shift the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ up $d$ units.
 If $d<0,$ shift the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ down $d$ units.
 Draw the vertical asymptote $x=0.$
 Identify three key points from the parent function. Find new coordinates for the shifted functions by adding $d$ to the $y$ coordinate.
 Label the three points.
 The domain is $\left(\mathrm{0,}\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Example 5
Graphing a Vertical Shift of the Parent Function y = log_{b}(x)

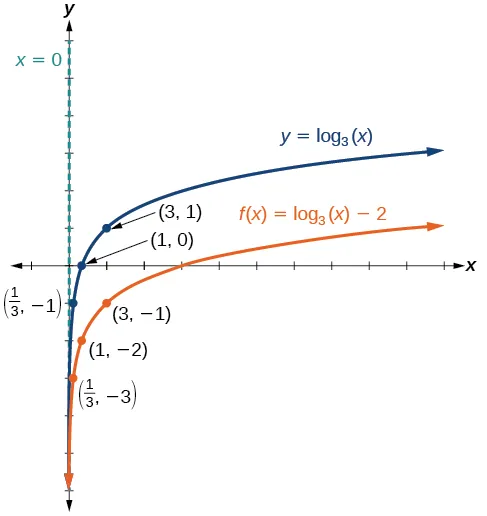

Sketch a graph of $f(x)={\mathrm{log}}_{3}(x)2$ alongside its parent function. Include the key points and asymptote on the graph. State the domain, range, and asymptote.
Solution
Since the function is $f(x)={\mathrm{log}}_{3}(x)2,$ we will notice $d=\u20132.$ Thus $d<0.$
This means we will shift the function $f(x)={\mathrm{log}}_{3}(x)$ down 2 units.
The vertical asymptote is $x=0.$
Consider the three key points from the parent function, $\left(\frac{1}{3},\mathrm{1}\right),$ $\left(1,0\right),$ and $\left(3,1\right).$
The new coordinates are found by subtracting 2 from the y coordinates.
Label the points $\left(\frac{1}{3},\mathrm{3}\right),$ $\left(1,\mathrm{2}\right),$ and $\left(3,\mathrm{1}\right).$
The domain is $\left(0,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
The domain is $\left(0,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Try It #5
Sketch a graph of $f(x)={\mathrm{log}}_{2}(x)+2$ alongside its parent function. Include the key points and asymptote on the graph. State the domain, range, and asymptote.
Graphing Stretches and Compressions of y = log_{b}(x)

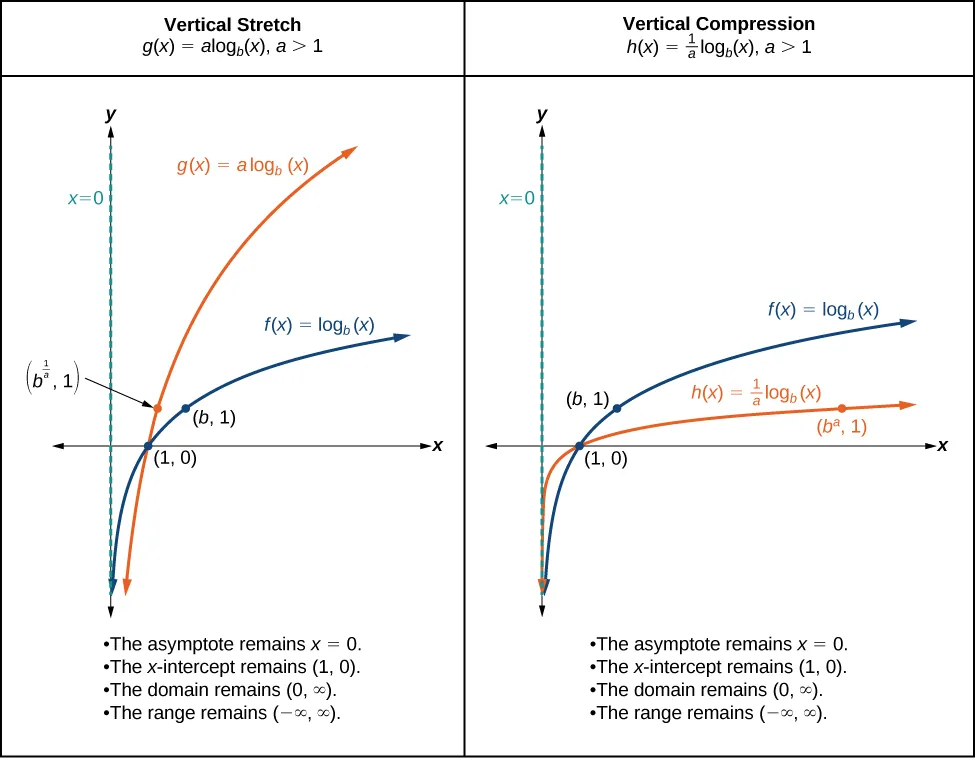

When the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ is multiplied by a constant $a>0,$ the result is a vertical stretch or compression of the original graph. To visualize stretches and compressions, we set $a>1$ and observe the general graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ alongside the vertical stretch, $g(x)=a{\mathrm{log}}_{b}\left(x\right)$ and the vertical compression, $h(x)=\frac{1}{a}{\mathrm{log}}_{b}\left(x\right).$ See Figure 10.
Vertical Stretches and Compressions of the Parent Function $y={\mathrm{log}}_{b}\left(x\right)$
For any constant $a>1,$ the function $f(x)=a{\mathrm{log}}_{b}\left(x\right)$
 stretches the parent function $y={\mathrm{log}}_{b}\left(x\right)$ vertically by a factor of $a$ if $a>1.$
 compresses the parent function $y={\mathrm{log}}_{b}\left(x\right)$ vertically by a factor of $a$ if $0<a<1.$
 has the vertical asymptote $x=0.$
 has the xintercept $\left(1,0\right).$
 has domain $\left(0,\infty \right).$
 has range $\left(\infty ,\infty \right).$
How To
Given a logarithmic function with the form $f(x)=a{\mathrm{log}}_{b}\left(x\right),$ $a>0,$ graph the translation.
 Identify the vertical stretch or compressions:
 If $\lefta\right>1,$ the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ is stretched by a factor of $a$ units.
 If $\lefta\right<1,$ the graph of $f(x)={\mathrm{log}}_{b}\left(x\right)$ is compressed by a factor of $a$ units.
 Draw the vertical asymptote $x=0.$
 Identify three key points from the parent function. Find new coordinates for the shifted functions by multiplying the $y$ coordinates by $a.$
 Label the three points.
 The domain is $\left(0,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Example 6
Graphing a Stretch or Compression of the Parent Function y = log_{b}(x)
Sketch a graph of $f(x)=2{\mathrm{log}}_{4}(x)$ alongside its parent function. Include the key points and asymptote on the graph. State the domain, range, and asymptote.
Solution
Since the function is $f(x)=2{\mathrm{log}}_{4}(x),$ we will notice $a=2.$
This means we will stretch the function $f(x)={\mathrm{log}}_{4}(x)$ by a factor of 2.
The vertical asymptote is $x=0.$
Consider the three key points from the parent function, $\left(\frac{1}{4},\mathrm{1}\right),$ $(1,0),$ and $\left(4,1\right).$
The new coordinates are found by multiplying the $y$ coordinates by 2.
Label the points $\left(\frac{1}{4},\mathrm{2}\right),$ $\left(1,0\right)\phantom{\rule{0.8em}{0ex}},$ and $\left(4,\text{2}\right).$
The domain is $\left(\mathrm{0,}\phantom{\rule{0.8em}{0ex}}\infty \right),$ the range is $(\infty ,\infty ),$ and the vertical asymptote is $x=0.$ See Figure 11.
The domain is $\left(0,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Try It #6
Sketch a graph of $f(x)=\frac{1}{2}\phantom{\rule{0.8em}{0ex}}{\mathrm{log}}_{4}(x)$ alongside its parent function. Include the key points and asymptote on the graph. State the domain, range, and asymptote.
Example 7
Combining a Shift and a Stretch
Sketch a graph of $f(x)=5\mathrm{log}(x+2).$ State the domain, range, and asymptote.
Solution
Remember: what happens inside parentheses happens first. First, we move the graph left 2 units, then stretch the function vertically by a factor of 5, as in Figure 12. The vertical asymptote will be shifted to $x=\mathrm{2.}$ The xintercept will be $(\mathrm{1,}0).$ The domain will be $\left(\mathrm{2},\infty \right).$ Two points will help give the shape of the graph: $(\mathrm{1},0)$ and $(8,5).$ We chose $x=8$ as the xcoordinate of one point to graph because when $x=\mathrm{8,}$ $x+2=\mathrm{10,}$ the base of the common logarithm.
The domain is $\left(2,\infty \right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=2.$
Try It #7
Sketch a graph of the function $f(x)=3\mathrm{log}(x2)+1.$ State the domain, range, and asymptote.
Graphing Reflections of f(x) = log_{b}(x)
When the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ is multiplied by $\mathrm{1},$ the result is a reflection about the xaxis. When the input is multiplied by $\mathrm{1},$ the result is a reflection about the yaxis. To visualize reflections, we restrict $b>\mathrm{1,}$ and observe the general graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ alongside the reflection about the xaxis, $g(x)={\mathrm{log}}_{b}\left(x\right)$ and the reflection about the yaxis, $h(x)={\mathrm{log}}_{b}\left(x\right).$

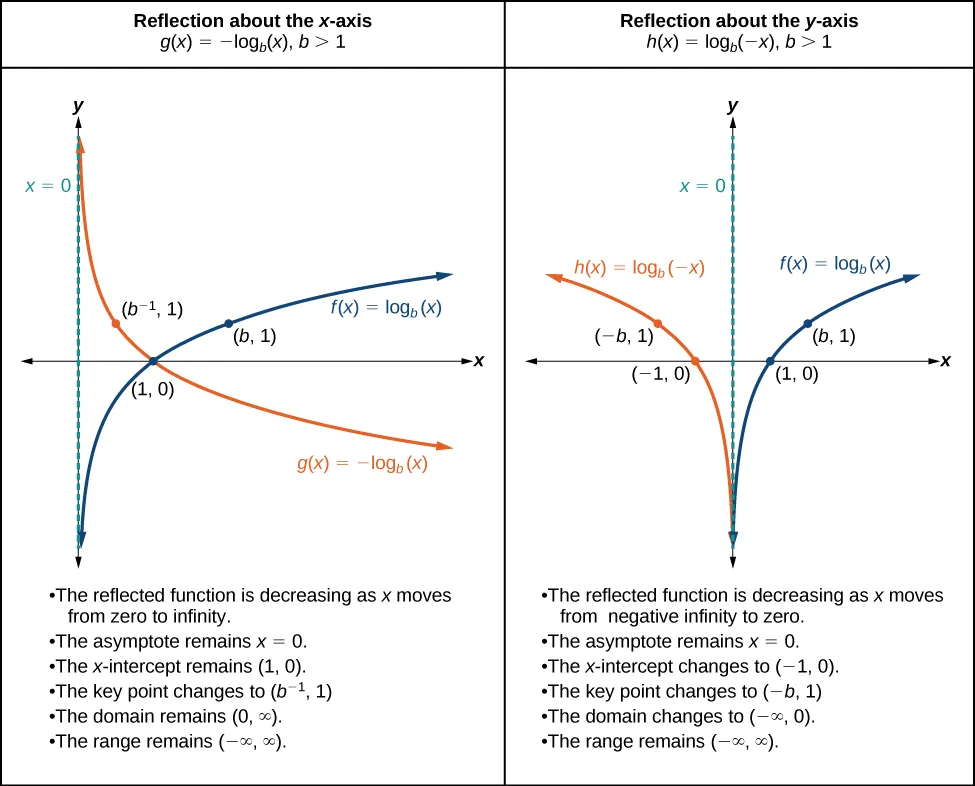

Reflections of the Parent Function $y={\mathrm{log}}_{b}\left(x\right)$
The function $f(x)={\mathrm{log}}_{b}\left(x\right)$
 reflects the parent function $y={\mathrm{log}}_{b}\left(x\right)$ about the xaxis.
 has domain, $\left(0,\infty \right),$ range, $\left(\infty ,\infty \right),$ and vertical asymptote, $x=0,$ which are unchanged from the parent function.
The function $f(x)={\mathrm{log}}_{b}\left(x\right)$
 reflects the parent function $y={\mathrm{log}}_{b}\left(x\right)$ about the yaxis.
 has domain $\left(\infty ,0\right).$
 has range, $\left(\infty ,\infty \right),$ and vertical asymptote, $x=0,$ which are unchanged from the parent function.
How To
Given a logarithmic function with the parent function $f(x)={\mathrm{log}}_{b}\left(x\right),$ graph a translation.
$\text{If}f(x)={\mathrm{log}}_{b}(x)$  $\text{If}f(x)={\mathrm{log}}_{b}(x)$

1. Draw the vertical asymptote, $x=0.$  1. Draw the vertical asymptote, $x=0.$
2. Plot the xintercept, $\left(1,0\right).$  2. Plot the xintercept, $\left(1,0\right).$
3. Reflect the graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ about the xaxis.  3. Reflect the graph of the parent function $f(x)={\mathrm{log}}_{b}\left(x\right)$ about the yaxis.
4. Draw a smooth curve through the points.  4. Draw a smooth curve through the points.
5. State the domain, (0, ∞), the range, (−∞, ∞), and the vertical asymptote $x=0$.  5. State the domain, (−∞, 0) the range, (−∞, ∞) and the vertical asymptote $x=0.$
Example 8
Graphing a Reflection of a Logarithmic Function

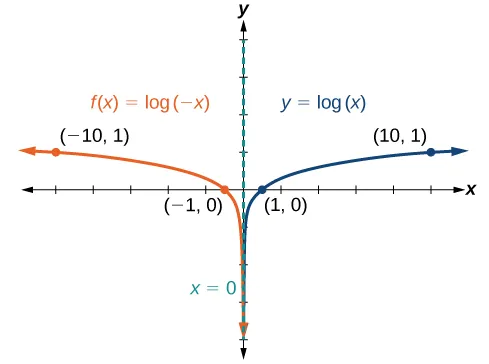

Sketch a graph of $f(x)=\mathrm{log}(x)$ alongside its parent function. Include the key points and asymptote on the graph. State the domain, range, and asymptote.
Solution
Before graphing $f(x)=\mathrm{log}(x),$ identify the behavior and key points for the graph.
 Since $b=10$ is greater than one, we know that the parent function is increasing. Since the input value is multiplied by $\mathrm{1},$ $f$ is a reflection of the parent graph about the yaxis. Thus, $f(x)=\mathrm{log}(x)$ will be decreasing as $x$ moves from negative infinity to zero, and the right tail of the graph will approach the vertical asymptote $x=0.$
 The xintercept is $\left(\mathrm{1},0\right).$
 We draw and label the asymptote, plot and label the points, and draw a smooth curve through the points.
The domain is $\left(\infty ,0\right),$ the range is $\left(\infty ,\infty \right),$ and the vertical asymptote is $x=0.$
Try It #8
Graph $f(x)=\mathrm{log}(x).$ State the domain, range, and asymptote.
How To
Given a logarithmic equation, use a graphing calculator to approximate solutions.
 Press [Y=]. Enter the given logarithm equation or equations as Y_{1}= and, if needed, Y_{2}=.
 Press [GRAPH] to observe the graphs of the curves and use [WINDOW] to find an appropriate view of the graphs, including their point(s) of intersection.
 To find the value of $x,$ we compute the point of intersection. Press [2ND] then [CALC]. Select “intersect” and press [ENTER] three times. The point of intersection gives the value of $x,$ for the point(s) of intersection.
Example 9
Approximating the Solution of a Logarithmic Equation
Solve $4\mathrm{ln}\left(x\right)+1=2\mathrm{ln}\left(x1\right)$ graphically. Round to the nearest thousandth.
Solution
Press [Y=] and enter $4\mathrm{ln}\left(x\right)+1$ next to Y_{1}=. Then enter $2\mathrm{ln}\left(x1\right)$ next to Y_{2}=. For a window, use the values 0 to 5 for $x$ and –10 to 10 for $y.$ Press [GRAPH]. The graphs should intersect somewhere a little to right of $x=1.$
For a better approximation, press [2ND] then [CALC]. Select [5: intersect] and press [ENTER] three times. The xcoordinate of the point of intersection is displayed as 1.3385297. (Your answer may be different if you use a different window or use a different value for Guess?) So, to the nearest thousandth, $x\approx \mathrm{1.339.}$
Try It #9
Solve $5\mathrm{log}\left(x+2\right)=4\mathrm{log}\left(x\right)$ graphically. Round to the nearest thousandth.
Summarizing Translations of the Logarithmic Function
Now that we have worked with each type of translation for the logarithmic function, we can summarize each in Table 4 to arrive at the general equation for translating exponential functions.
Translations of the Parent Function $y={\mathrm{log}}_{b}\left(x\right)$

Translation  Form
Shift

$y={\mathrm{log}}_{b}\left(x+c\right)+d$
Stretch and Compress

$y=a{\mathrm{log}}_{b}\left(x\right)$
Reflect about the xaxis  $y={\mathrm{log}}_{b}\left(x\right)$
Reflect about the yaxis  $y={\mathrm{log}}_{b}\left(x\right)$
General equation for all translations  $y=a{\mathrm{log}}_{b}(x+c)+d$
Translations of Logarithmic Functions
All translations of the parent logarithmic function, $y={\mathrm{log}}_{b}\left(x\right),$ have the form
where the parent function, $y={\mathrm{log}}_{b}\left(x\right),b>1,$ is
 shifted vertically up $d$ units.
 shifted horizontally to the left $c$ units.
 stretched vertically by a factor of $\lefta\right$ if $\lefta\right>0.$
 compressed vertically by a factor of $\lefta\right$ if $0<\lefta\right<1.$
 reflected about the xaxis when $a<0.$
For $f\left(x\right)=\mathrm{log}\left(x\right),$ the graph of the parent function is reflected about the yaxis.
Example 10
Finding the Vertical Asymptote of a Logarithm Graph
What is the vertical asymptote of $f(x)=\mathrm{2}{\mathrm{log}}_{3}(x+4)+5?$
Solution
The vertical asymptote is at $x=4.$
Analysis
The coefficient, the base, and the upward translation do not affect the asymptote. The shift of the curve 4 units to the left shifts the vertical asymptote to $x=\mathrm{4.}$
Try It #10
What is the vertical asymptote of $f(x)=3+\mathrm{ln}(x1)?$
Example 11
Finding the Equation from a Graph
Find a possible equation for the common logarithmic function graphed in Figure 15.
Solution
This graph has a vertical asymptote at $x=\mathrm{\u20132}$ and has been vertically reflected. We do not know yet the vertical shift or the vertical stretch. We know so far that the equation will have form:
It appears the graph passes through the points $\left(\mathrm{\u20131},1\right)$ and $\left(2,\mathrm{\u20131}\right).$ Substituting $\left(\mathrm{\u20131},1\right),$
Next, substituting in $\left(2,\mathrm{\u20131}\right)$ ,
This gives us the equation $f(x)=\u2013\frac{2}{\mathrm{log}(4)}\mathrm{log}(x+2)+1.$
Try It #11

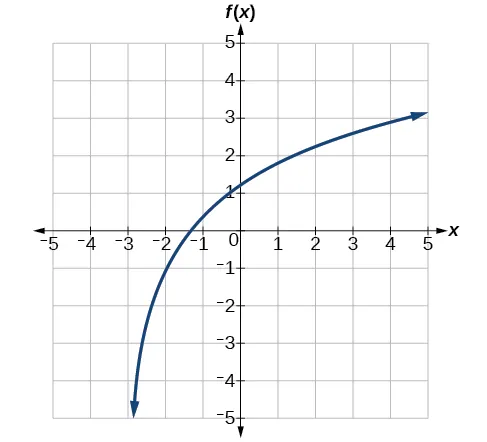

Give the equation of the natural logarithm graphed in Figure 16.
Q&A
Is it possible to tell the domain and range and describe the end behavior of a function just by looking at the graph?
Yes, if we know the function is a general logarithmic function. For example, look at the graph in Figure 16. The graph approaches $x=\mathrm{3}$ (or thereabouts) more and more closely, so $x=\mathrm{3}$ is, or is very close to, the vertical asymptote. It approaches from the right, so the domain is all points to the right, $\left\{x\phantom{\rule{0.8em}{0ex}}\right\phantom{\rule{0.8em}{0ex}}x>\mathrm{3}\}.$ The range, as with all general logarithmic functions, is all real numbers. And we can see the end behavior because the graph goes down as it goes left and up as it goes right. The end behavior is that as $x\to {3}^{+},f(x)\to \infty $ and as $x\to \infty ,f(x)\to \infty .$
Media
Access these online resources for additional instruction and practice with graphing logarithms.
4.4 Section Exercises
Verbal
The inverse of every logarithmic function is an exponential function and viceversa. What does this tell us about the relationship between the coordinates of the points on the graphs of each?
What type(s) of translation(s), if any, affect the range of a logarithmic function?
Consider the general logarithmic function $f(x)={\mathrm{log}}_{b}\left(x\right).$ Why can’t $x$ be zero?
Algebraic
For the following exercises, state the domain and range of the function.
$f(x)={\mathrm{log}}_{3}\left(x+4\right)$
$g(x)={\mathrm{log}}_{5}\left(2x+9\right)2$
$f(x)={\mathrm{log}}_{2}\left(123x\right)3$
For the following exercises, state the domain and the vertical asymptote of the function.
$g(x)=\mathrm{ln}(3x)$
$f(x)=3\mathrm{log}(x)+2$
For the following exercises, state the domain, vertical asymptote, and end behavior of the function.
$f(x)=\mathrm{ln}\left(2x\right)$
$h(x)=\mathrm{log}\left(3x4\right)+3$
$f(x)={\mathrm{log}}_{3}\left(155x\right)+6$
For the following exercises, state the domain, range, and x and yintercepts, if they exist. If they do not exist, write DNE.
$f(x)=\mathrm{log}\left(5x+10\right)+3$
$f(x)={\mathrm{log}}_{2}\left(x+2\right)5$
Graphical

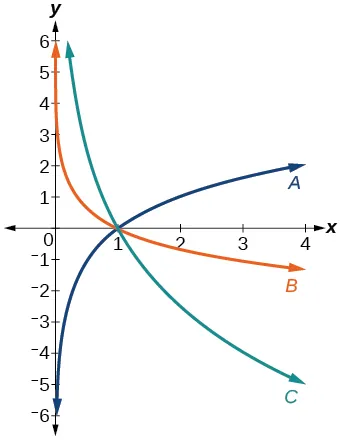

For the following exercises, match each function in Figure 17 with the letter corresponding to its graph.
$d(x)=\mathrm{log}\left(x\right)$
$g(x)={\mathrm{log}}_{2}\left(x\right)$
$j(x)={\mathrm{log}}_{25}\left(x\right)$
For the following exercises, match each function in Figure 18 with the letter corresponding to its graph.
$g(x)={\mathrm{log}}_{2}\left(x\right)$
For the following exercises, sketch the graphs of each pair of functions on the same axis.
$f(x)=\mathrm{log}(x)$ and $g(x)={10}^{x}$
$f(x)={\mathrm{log}}_{4}(x)$ and $g(x)=\mathrm{ln}(x)$

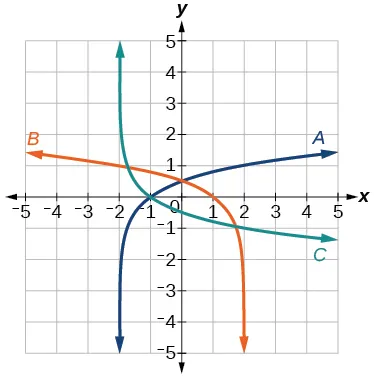

For the following exercises, match each function in Figure 19 with the letter corresponding to its graph.
$f(x)={\mathrm{log}}_{4}\left(x+2\right)$
$h(x)={\mathrm{log}}_{4}\left(x+2\right)$
For the following exercises, sketch the graph of the indicated function.
$f(x)=2\mathrm{log}(x)$
$g(x)=\mathrm{log}\left(4x+16\right)+4$
$h(x)=\frac{1}{2}\mathrm{ln}\left(x+1\right)3$

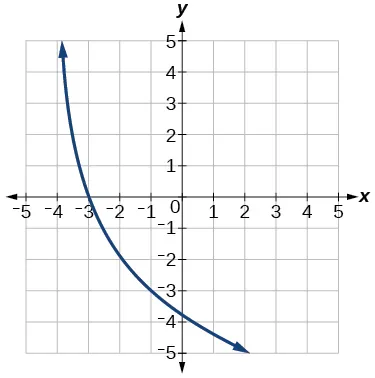

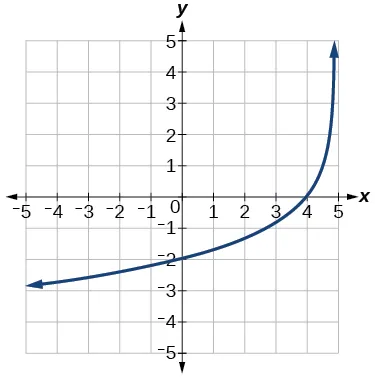

For the following exercises, write a logarithmic equation corresponding to the graph shown.
Use $f(x)={\mathrm{log}}_{3}(x)$ as the parent function.

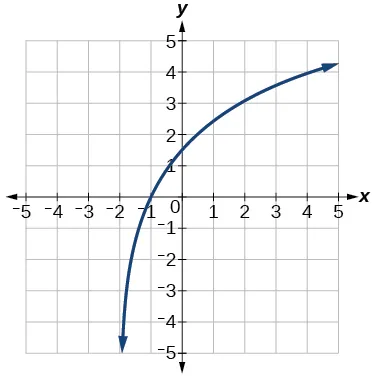

Use $f(x)={\mathrm{log}}_{5}(x)$ as the parent function.
Technology
For the following exercises, use a graphing calculator to find approximate solutions to each equation.
$\mathrm{log}\left(2x3\right)+2=\mathrm{log}\left(2x3\right)+5$
$2\mathrm{ln}\left(5x+1\right)=\frac{1}{2}\mathrm{ln}\left(5x\right)+1$
Extensions
Let $b$ be any positive real number such that $b\ne 1.$ What must ${\mathrm{log}}_{b}1$ be equal to? Verify the result.
Explore and discuss the graphs of $f(x)={\mathrm{log}}_{\frac{1}{2}}\left(x\right)$ and $g(x)={\mathrm{log}}_{2}\left(x\right).$ Make a conjecture based on the result.
Prove the conjecture made in the previous exercise.
What is the domain of the function $f(x)=\mathrm{ln}\left(\frac{x+2}{x4}\right)?$ Discuss the result.
Use properties of exponents to find the xintercepts of the function $f(x)=\mathrm{log}\left({x}^{2}+4x+4\right)$ algebraically. Show the steps for solving, and then verify the result by graphing the function.
