8.8 Vectors

A Geometric View of Vectors

A vector is a specific quantity drawn as a line segment with an arrowhead at one end. It has an initial point, where it begins, and a terminal point, where it ends. A vector is defined by its magnitude, or the length of the line, and its direction, indicated by an arrowhead at the terminal point. Thus, a vector is a directed line segment. There are various symbols that distinguish vectors from other quantities:

• Lower case, boldfaced type, with or without an arrow on top such as $v,$ $u,$ $w,$ $\overrightarrow{v},$ $\overrightarrow{u},\overrightarrow{w}.$
• Given initial point $P$ and terminal point $Q,$ a vector can be represented as $\overrightarrow{PQ}.$ The arrowhead on top is what indicates that it is not just a line, but a directed line segment.
• Given an initial point of $\left(0,0\right)$ and terminal point $\left(a,b\right),$ a vector may be represented as $\langle a,b\rangle .$

This last symbol $\langle a,b\rangle$ has special significance. It is called the standard position. The position vector has an initial point $\left(0,0\right)$ and a terminal point $\left(a,b\right).$ To change any vector into the position vector, we think about the change in the x-coordinates and the change in the y-coordinates. Thus, if the initial point of a vector $\overrightarrow{CD}$ is $C\left(x_1,y_1\right)$ and the terminal point is $D\left(x_2,y_2\right),$ then the position vector is found by calculating

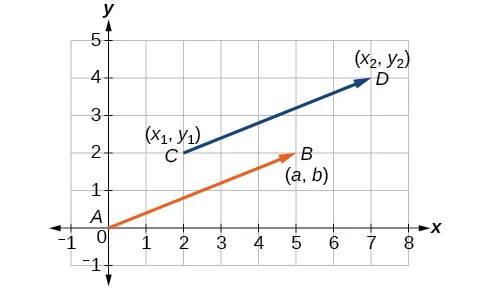

In Figure 2, we see the original vector $\overrightarrow{CD}$ and the position vector $\overrightarrow{Ab}.$

Figure 2

Example 1

Find the Position Vector

Consider the vector whose initial point is $P\left(2,3\right)$ and terminal point is $Q\left(6,4\right).$ Find the position vector.

Solution

The position vector is found by subtracting one x-coordinate from the other x-coordinate, and one y-coordinate from the other y-coordinate. Thus

$$\begin{array}{l}v=\langle 6-2,4-3\rangle \hfill \\ =\langle 4,1\rangle \hfill \end{array}$$

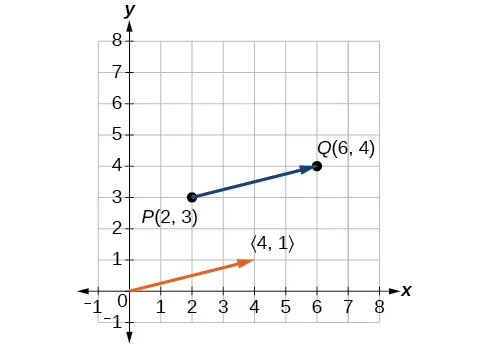

The position vector begins at $\left(0,0\right)$ and terminates at $\left(4,1\right).$ The graphs of both vectors are shown in Figure 3.

Figure 3

We see that the position vector is $\langle 4,1\rangle .$

Example 2

Drawing a Vector with the Given Criteria and Its Equivalent Position Vector

Find the position vector given that vector $v$ has an initial point at $\left(-3,2\right)$ and a terminal point at $\left(4,5\right),$ then graph both vectors in the same plane.

Solution

The position vector is found using the following calculation:

$$\begin{array}{l}v=\langle 4-(-3),5-2\rangle \hfill \\ =\langle 7,3\rangle \hfill \end{array}$$

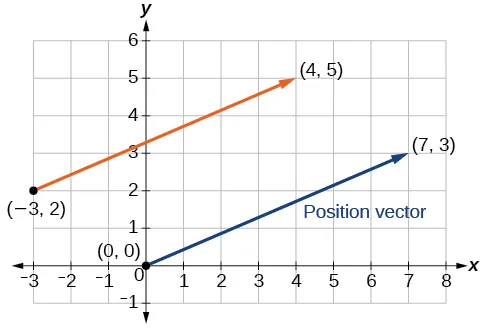

Thus, the position vector begins at $\left(0,0\right)$ and terminates at $\left(7,3\right).$ See Figure 4.

Figure 4

Finding Magnitude and Direction

To work with a vector, we need to be able to find its magnitude and its direction. We find its magnitude using the Pythagorean Theorem or the distance formula, and we find its direction using the inverse tangent function.

Magnitude and Direction of a Vector

Given a position vector $v$ $=\langle a,b\rangle ,$ the magnitude is found by $\left|v\right|=\sqrt{a^2+b^2}.$ The direction is equal to the angle formed with the x-axis, or with the y-axis, depending on the application. For a position vector, the direction is found by $\tan \theta =\left(\frac{b}{a}\right)\Rightarrow \theta ={\tan }^{-1}\left(\frac{b}{a}\right),$ as illustrated in Figure 5.

Figure 5

Two vectors v and u are considered equal if they have the same magnitude and the same direction. Additionally, if both vectors have the same position vector, they are equal.

Example 3

Finding the Magnitude and Direction of a Vector

Find the magnitude and direction of the vector with initial point $P\left(-8,1\right)$ and terminal point $Q\left(-2,-5\right).$ Draw the vector.

Solution

First, find the position vector.

$$\begin{array}{l}u=\langle \mathrm{-2},-(\mathrm{-8}),\mathrm{-5}\mathrm{-1}\rangle \hfill \\ =\langle 6,-6\rangle \hfill \end{array}$$

We use the Pythagorean Theorem to find the magnitude.

$$\begin{array}{l}\left|u\right|=\sqrt{{(6)}^2+{(-6)}^2}\hfill \\ =\sqrt{72}\hfill \\ =6\sqrt{2}\hfill \end{array}$$

The direction is given as

$$\begin{array}{l}\tan \theta =\frac{\mathrm{-6}}{6}=\mathrm{-1}\Rightarrow \theta ={\tan }^{\mathrm{-1}}(\mathrm{-1})\hfill \\ =-\mathrm{45°}\hfill \end{array}$$

However, the angle terminates in the fourth quadrant, so we add 360° to obtain a positive angle. Thus, $-\mathrm{45°}+\mathrm{360°}=\mathrm{315°}.$ See Figure 6.

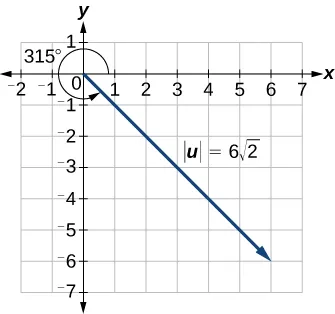

Figure 6

Example 4

Showing That Two Vectors Are Equal

Show that vector v with initial point at $\left(5,\mathrm{-3}\right)$ and terminal point at $\left(\mathrm{-1},2\right)$ is equal to vector u with initial point at $\left(\mathrm{-1},\mathrm{-3}\right)$ and terminal point at $\left(\mathrm{-7},2\right).$ Draw the position vector on the same grid as v and u. Next, find the magnitude and direction of each vector.

Solution

As shown in Figure 7, draw the vector $v$ starting at initial $\left(5,\mathrm{-3}\right)$ and terminal point $\left(\mathrm{-1},2\right).$ Draw the vector $u$ with initial point $\left(\mathrm{-1},\mathrm{-3}\right)$ and terminal point $\left(\mathrm{-7},2\right).$ Find the standard position for each.

Next, find and sketch the position vector for v and u. We have

$$\begin{array}{l}v=\langle \mathrm{-1}-5,2-(-3)\rangle \hfill \\ =\langle \mathrm{-6},5\rangle \hfill \\ \hfill \\ u=\langle \mathrm{-7}-(\mathrm{-1}),2-(\mathrm{-3})\rangle \hfill \\ =\langle \mathrm{-6},5\rangle \hfill \end{array}$$

Since the position vectors are the same, v and u are the same.

An alternative way to check for vector equality is to show that the magnitude and direction are the same for both vectors. To show that the magnitudes are equal, use the Pythagorean Theorem.

$$\begin{array}{l}\left|v\right|=\sqrt{{(\mathrm{-1}-5)}^2+{(2-(\mathrm{-3}))}^2}\hfill \\ =\sqrt{{(\mathrm{-6})}^2+{(5)}^2}\hfill \\ =\sqrt{36+25}\hfill \\ =\sqrt{61}\hfill \\ \left|u\right|=\sqrt{{(\mathrm{-7}-(\mathrm{-1}))}^2+{(2-(\mathrm{-3}))}^2}\hfill \\ =\sqrt{{(\mathrm{-6})}^2+{(5)}^2}\hfill \\ =\sqrt{36+25}\hfill \\ =\sqrt{61}\hfill \end{array}$$

As the magnitudes are equal, we now need to verify the direction. Using the tangent function with the position vector gives

$$\begin{array}{l}\tan \theta =-\frac{5}{6}\Rightarrow \theta ={\tan }^{-1}\left(-\frac{5}{6}\right)\hfill \\ =-\mathrm{39.8°}\hfill \end{array}$$

However, we can see that the position vector terminates in the second quadrant, so we add $\mathrm{180°}.$ Thus, the direction is $-\mathrm{39.8°}+\mathrm{180°}=\mathrm{140.2°}.$

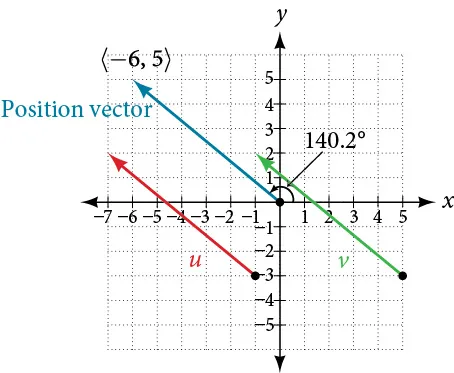

Figure 7

Performing Vector Addition and Scalar Multiplication

Now that we understand the properties of vectors, we can perform operations involving them. While it is convenient to think of the vector $u$ $=\langle x,y\rangle$ as an arrow or directed line segment from the origin to the point $(x,y),$ vectors can be situated anywhere in the plane. The sum of two vectors u and v, or vector addition, produces a third vector u+ v, the resultant vector.

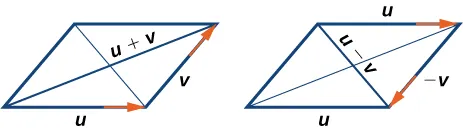

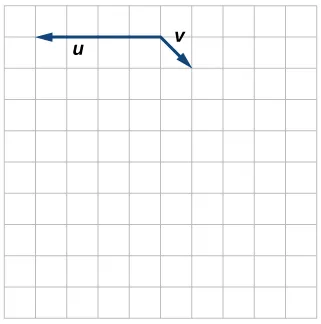

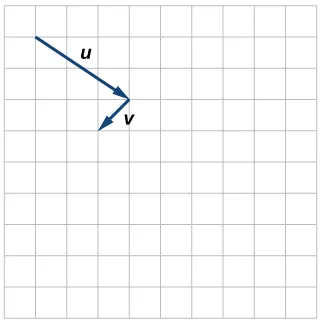

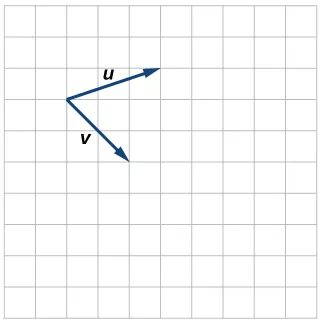

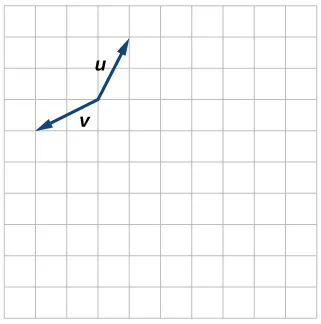

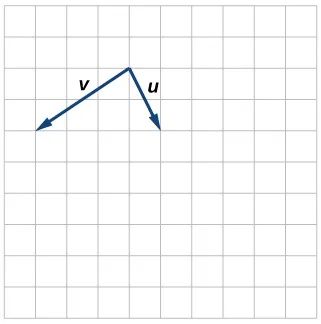

To find u + v, we first draw the vector u, and from the terminal end of u, we drawn the vector v. In other words, we have the initial point of v meet the terminal end of u. This position corresponds to the notion that we move along the first vector and then, from its terminal point, we move along the second vector. The sum u + v is the resultant vector because it results from addition or subtraction of two vectors. The resultant vector travels directly from the beginning of u to the end of v in a straight path, as shown in Figure 8.

Figure 8

Vector subtraction is similar to vector addition. To find u − v, view it as u + (−v). Adding −v is reversing direction of v and adding it to the end of u. The new vector begins at the start of u and stops at the end point of −v. See Figure 9 for a visual that compares vector addition and vector subtraction using parallelograms.

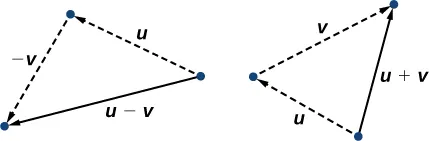

Figure 9

Example 5

Adding and Subtracting Vectors

Given $u$ $=\langle 3,-2\rangle$ and $v$ $=\langle \mathrm{-1},4\rangle ,$ find two new vectors u + v, and u − v.

Solution

To find the sum of two vectors, we add the components. Thus,

$$\begin{array}{l}u+v=\langle 3,-2\rangle +\langle -1,4\rangle \hfill \\ =\langle 3+(-1),-2+4\rangle \hfill \\ =\langle 2,2\rangle \hfill \end{array}$$

See Figure 10(a).

To find the difference of two vectors, add the negative components of $v$ to $u.$ Thus,

$$\begin{array}{l}u+(-v)=\langle 3,-2\rangle +\langle 1,-4\rangle \hfill \\ =\langle 3+1,-2+(-4)\rangle \hfill \\ =\langle 4,-6\rangle \hfill \end{array}$$

See Figure 10(b).

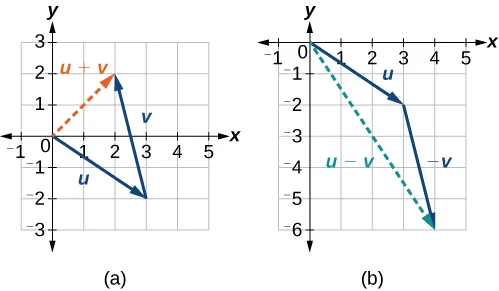

Figure 10 (a) Sum of two vectors (b) Difference of two vectors

Multiplying By a Scalar

While adding and subtracting vectors gives us a new vector with a different magnitude and direction, the process of multiplying a vector by a scalar, a constant, changes only the magnitude of the vector or the length of the line. Scalar multiplication has no effect on the direction unless the scalar is negative, in which case the direction of the resulting vector is opposite the direction of the original vector.

Example 6

Performing Scalar Multiplication

Given vector $v$ $=\langle 3,1\rangle ,$ find 3v, $\frac{1}{2}$ $v,$ and −v.

Solution

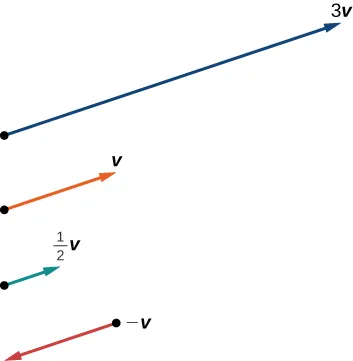

See Figure 11 for a geometric interpretation. If $v$ $=\langle 3,1\rangle ,$ then

$$\begin{array}{l}3v=\langle 3\cdot 3,3\cdot 1\rangle \hfill \\ =\langle 9,3\rangle \hfill \\ \frac{1}{2}v=\langle \frac{1}{2}\cdot 3,\frac{1}{2}\cdot 1\rangle \hfill \\ =\langle \frac{3}{2},\frac{1}{2}\rangle \hfill \\ -v=\langle \mathrm{-3},\mathrm{-1}\rangle \hfill \end{array}$$

Figure 11

Analysis

Notice that the vector 3v is three times the length of v, $\frac{1}{2}$ $v$ is half the length of v, and –v is the same length of v, but in the opposite direction.

Finding Component Form

In some applications involving vectors, it is helpful for us to be able to break a vector down into its components. Vectors are comprised of two components: the horizontal component is the $x$ direction, and the vertical component is the $y$ direction. For example, we can see in the graph in Figure 12 that the position vector $\langle 2,3\rangle$ comes from adding the vectors v₁ and v₂. We have v₁ with initial point $\left(0,0\right)$ and terminal point $\left(2,0\right).$

We also have v₂ with initial point $\left(0,0\right)$ and terminal point $\left(0,3\right).$

Therefore, the position vector is

Using the Pythagorean Theorem, the magnitude of v₁ is 2, and the magnitude of v₂ is 3. To find the magnitude of v, use the formula with the position vector.

The magnitude of v is $\sqrt{13}.$ To find the direction, we use the tangent function $\tan \theta =\frac{y}{x}.$

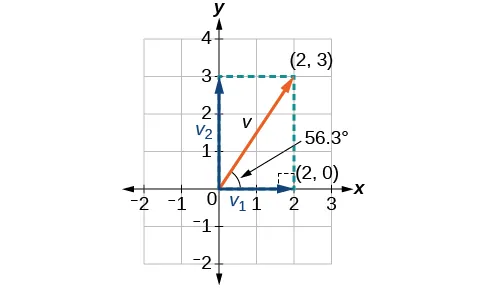

Figure 12

Thus, the magnitude of $v$ is $\sqrt{13}$ and the direction is ${56.3}^{\circ }$ off the horizontal.

Example 8

Finding the Components of the Vector

Find the components of the vector $v$ with initial point $\left(3,2\right)$ and terminal point $\left(7,4\right).$

Solution

First find the standard position.

$$\begin{array}{l}v=\langle 7-3,4-2\rangle \hfill \\ =\langle 4,2\rangle \hfill \end{array}$$

See the illustration in Figure 13.

Figure 13

The horizontal component is $v_1$ $=\langle 4,0\rangle$ and the vertical component is $v_2$ $=\langle 0,2\rangle .$

Finding the Unit Vector in the Direction of v

In addition to finding a vector’s components, it is also useful in solving problems to find a vector in the same direction as the given vector, but of magnitude 1. We call a vector with a magnitude of 1 a unit vector. We can then preserve the direction of the original vector while simplifying calculations.

Unit vectors are defined in terms of components. The horizontal unit vector is written as $i$ $=\langle 1,0\rangle$ and is directed along the positive horizontal axis. The vertical unit vector is written as $j$ $=\langle 0,1\rangle$ and is directed along the positive vertical axis. See Figure 14.

Figure 14

Example 9

Finding the Unit Vector in the Direction of v

Find a unit vector in the same direction as $v$ $=\langle \mathrm{-5},12\rangle .$

Solution

First, we will find the magnitude.

$$\begin{array}{l}\left|v\right|=\sqrt{{(-5)}^2+{(12)}^2}\hfill \\ =\sqrt{25+144}\hfill \\ =\sqrt{169}\hfill \\ =13\hfill \end{array}$$

Then we divide each component by $|v|,$ which gives a unit vector in the same direction as v:

$$\frac{v}{\left|v\right|}=-\frac{5}{13}i+\frac{12}{13}j$$

or, in component form

$$\frac{v}{\left|v\right|}=\langle -\frac{5}{13},\frac{12}{13}\rangle$$

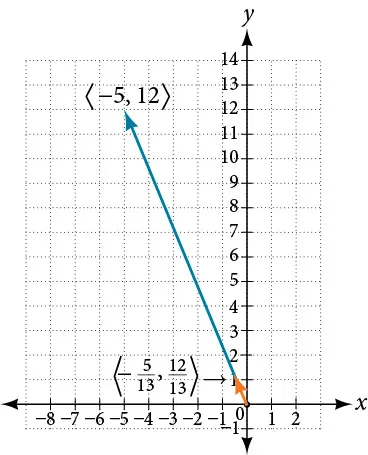

See Figure 15.

Figure 15

Verify that the magnitude of the unit vector equals 1. The magnitude of $-\frac{5}{13}i+\frac{12}{13}j$ is given as

$$\begin{array}{l}\sqrt{{\left(-\frac{5}{13}\right)}^2+{\left(\frac{12}{13}\right)}^2}=\sqrt{\frac{25}{169}+\frac{144}{169}}\hfill \\ =\sqrt{\frac{169}{169}}=1\hfill \end{array}$$

The vector u $=\frac{5}{13}$ i $+\frac{12}{13}$ j is the unit vector in the same direction as v $=\langle -5,12\rangle .$

Performing Operations with Vectors in Terms of i and j

So far, we have investigated the basics of vectors: magnitude and direction, vector addition and subtraction, scalar multiplication, the components of vectors, and the representation of vectors geometrically. Now that we are familiar with the general strategies used in working with vectors, we will represent vectors in rectangular coordinates in terms of i and j.

Vectors in the Rectangular Plane

Given a vector $v$ with initial point $P=\left(x_1,y_1\right)$ and terminal point $Q=(x_2,y_2),$ v is written as

$$v=\left(x_2-x_1\right)i+\left(y_2-y_1\right)j$$

The position vector from $\left(0,0\right)$ to $\left(a,b\right),$ where $\left(x_2-x_1\right)=a$ and $\left(y_2-y_1\right)=b,$ is written as v = ai + bj. This vector sum is called a linear combination of the vectors i and j.

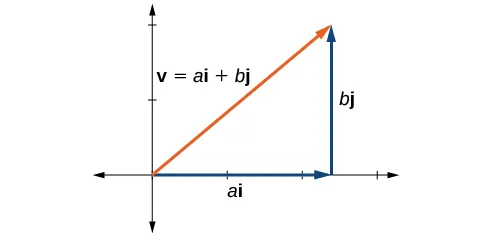

The magnitude of v = ai + bj is given as $\left|v\right|=\sqrt{a^2+b^2}.$ See Figure 16.

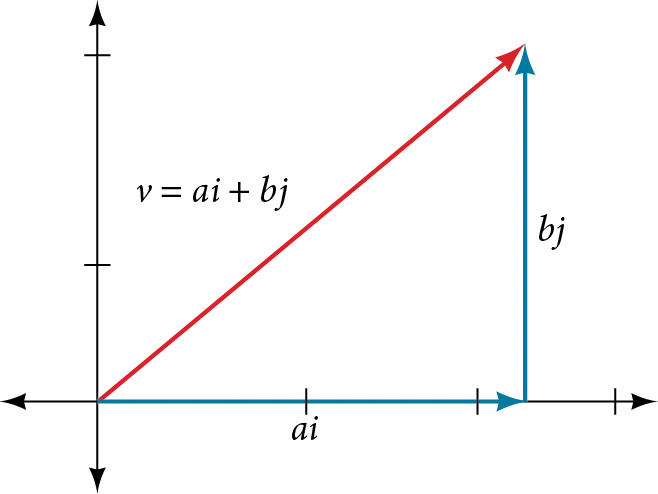

Figure 16

Performing Operations on Vectors in Terms of i and j

When vectors are written in terms of $i$ and $j,$ we can carry out addition, subtraction, and scalar multiplication by performing operations on corresponding components.

Calculating the Component Form of a Vector: Direction

We have seen how to draw vectors according to their initial and terminal points and how to find the position vector. We have also examined notation for vectors drawn specifically in the Cartesian coordinate plane using $i\text{and}j.$ For any of these vectors, we can calculate the magnitude. Now, we want to combine the key points, and look further at the ideas of magnitude and direction.

Calculating direction follows the same straightforward process we used for polar coordinates. We find the direction of the vector by finding the angle to the horizontal. We do this by using the basic trigonometric identities, but with $\left|v\right|$ replacing $r.$

Finding the Dot Product of Two Vectors

As we discussed earlier in the section, scalar multiplication involves multiplying a vector by a scalar, and the result is a vector. As we have seen, multiplying a vector by a number is called scalar multiplication. If we multiply a vector by a vector, there are two possibilities: the dot product and the cross product. We will only examine the dot product here; you may encounter the cross product in more advanced mathematics courses.

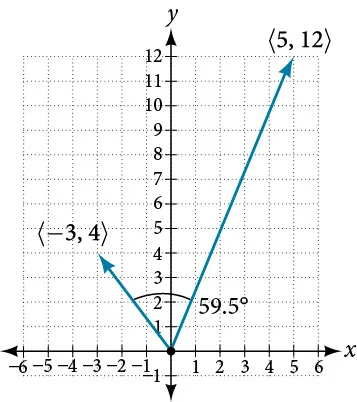

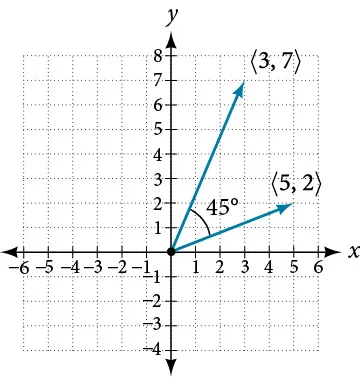

The dot product of two vectors involves multiplying two vectors together, and the result is a scalar.
