### Section Learning Objectives

By the end of this section, you will be able to do the following:

- Describe and apply the work–energy theorem
- Describe and calculate work and power

### Teacher Support

#### Teacher Support

The learning objectives in this section will help your students master the following standards:

- (6) Science concepts. The student knows that changes occur within a physical system and applies the laws of conservation of energy and momentum. The student is expected to:
- (A) describe and apply the work–energy theorem;
- (C) describe and calculate work and power.

In addition, the High School Physics Laboratory Manual addresses the following standards:

- (6) Science concepts. The student knows that changes occur within a physical system and applies the laws of conservation of energy and momentum. The student is expected to:
- (C) calculate the mechanical energy of, power generated within, impulse applied to, and momentum of a physical system.

Use the lab titled Work and Energy as a supplement to address content in this section.

### Section Key Terms

energy | gravitational potential energy | joule | kinetic energy | mechanical energy |

potential energy | power | watt | work | work–energy theorem |

### Teacher Support

#### Teacher Support

In this section, students learn how work determines changes in kinetic energy and that power is the rate at which work is done.

[BL][OL] Review understanding of mass, velocity, and acceleration due to gravity. Define the general definitions of the words *potential* and *kinetic*.

[AL][AL] Remind students of the equation $W=P{E}_{e}=fmg$ . Point out that acceleration due to gravity is a constant, therefore *PE _{e}* that results from work done by gravity will also be constant. Compare this to acceleration due to other forces, such as applying muscles to lift a rock, which may not be constant.

### The Work–Energy Theorem

In physics, the term work has a very specific definition. Work is application of force, $f$, to move an object over a distance, *d*, in the direction that the force is applied. Work, *W*, is described by the equation

Some things that we typically consider to be work are not work in the scientific sense of the term. Let’s consider a few examples. Think about why each of the following statements is true.

- Homework
*is not*work. - Lifting a rock upwards off the ground
*is*work. - Carrying a rock in a straight path across the lawn at a constant speed
*is not*work.

The first two examples are fairly simple. Homework is not work because objects are not being moved over a distance. Lifting a rock up off the ground is work because the rock is moving in the direction that force is applied. The last example is less obvious. Recall from the laws of motion that force is *not *required to move an object at constant velocity. Therefore, while some force may be applied to keep the rock up off the ground, no net force is applied to keep the rock moving forward at constant velocity.

### Teacher Support

#### Teacher Support

[BL][OL] Explain that, when this theorem is applied to an object that is initially at rest and then accelerates, the $\frac{1}{2}m{v}_{1}^{2}$ term equals zero.

[OL][AL] Work is measured in joules and $W=fd$ . Force is measured in newtons and distance in meters, so joules are equivalent to newton-meters $\left(\text{N}\cdot \text{m}\right)$

Work and energy are closely related. When you do work to move an object, you change the object’s energy. You (or an object) also expend energy to do work. In fact, energy can be defined as the ability to do work. Energy can take a variety of different forms, and one form of energy can transform to another. In this chapter we will be concerned with mechanical energy, which comes in two forms: kinetic energy and potential energy.

- Kinetic energy is also called energy of motion. A moving object has kinetic energy.
- Potential energy, sometimes called stored energy, comes in several forms. Gravitational potential energy is the stored energy an object has as a result of its position above Earth’s surface (or another object in space). A roller coaster car at the top of a hill has gravitational potential energy.

Let’s examine how doing work on an object changes the object’s energy. If we apply force to lift a rock off the ground, we increase the rock’s potential energy, *PE*. If we drop the rock, the force of gravity increases the rock’s kinetic energy as the rock moves downward until it hits the ground.

The force we exert to lift the rock is equal to its weight, *w*, which is equal to its mass, *m*, multiplied by acceleration due to gravity, **g**.

The work we do on the rock equals the force we exert multiplied by the distance, *d*, that we lift the rock. The work we do on the rock also equals the rock’s gain in gravitational potential energy, *PE _{e}*.

Kinetic energy depends on the mass of an object and its velocity, **v**.

When we drop the rock the force of gravity causes the rock to fall, giving the rock kinetic energy. When work done on an object increases only its kinetic energy, then the net work equals the change in the value of the quantity $\frac{1}{2}m{v}^{2}$ . This is a statement of the work–energy theorem, which is expressed mathematically as

The subscripts _{2} and _{1} indicate the final and initial velocity, respectively. This theorem was proposed and successfully tested by James Joule, shown in Figure 9.2.

Does the name Joule sound familiar? The joule (J) is the metric unit of measurement for both work and energy. The measurement of work and energy with the same unit reinforces the idea that work and energy are related and can be converted into one another. 1.0 J = 1.0 N∙m, the units of force multiplied by distance. 1.0 N = 1.0 k∙m/s^{2}, so 1.0 J = 1.0 k∙m^{2}/s^{2}. Analyzing the units of the term (1/2)*m***v**^{2} will produce the same units for joules.

### Watch Physics

#### Work and Energy

This video explains the work energy theorem and discusses how work done on an object increases the object’s KE.

### Grasp Check

True or false—The energy increase of an object acted on only by a gravitational force is equal to the product of the object's weight and the distance the object falls.

- True
- False

### Teacher Support

#### Teacher Support

Repeat the information on kinetic and potential energy discussed earlier in the section. Have the students distinguish between and understand the two ways of increasing the energy of an object (1) applying a horizontal force to increase KE and (2) applying a vertical force to increase PE.

### Calculations Involving Work and Power

In applications that involve work, we are often interested in how fast the work is done. For example, in roller coaster design, the amount of time it takes to lift a roller coaster car to the top of the first hill is an important consideration. Taking a half hour on the ascent will surely irritate riders and decrease ticket sales. Let’s take a look at how to calculate the time it takes to do work.

Recall that a rate can be used to describe a quantity, such as work, over a period of time. Power is the rate at which work is done. In this case, rate means *per unit of time*. Power is calculated by dividing the work done by the time it took to do the work.

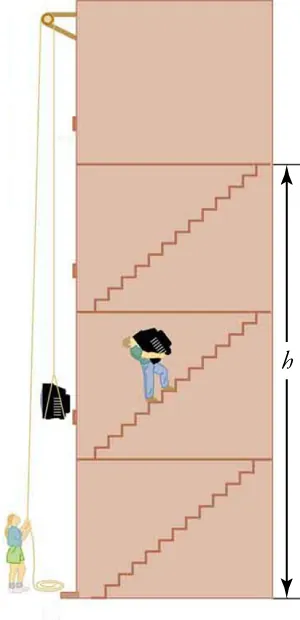

Let’s consider an example that can help illustrate the differences among work, force, and power. Suppose the woman in Figure 9.3 lifting the TV with a pulley gets the TV to the fourth floor in two minutes, and the man carrying the TV up the stairs takes five minutes to arrive at the same place. They have done the same amount of work $\left(fd\right)$ on the TV, because they have moved the same mass over the same vertical distance, which requires the same amount of upward force. However, the woman using the pulley has generated more power. This is because she did the work in a shorter amount of time, so the denominator of the power formula, *t*, is smaller. (For simplicity’s sake, we will leave aside for now the fact that the man climbing the stairs has also done work on himself.)

Power can be expressed in units of watts (W). This unit can be used to measure power related to any form of energy or work. You have most likely heard the term used in relation to electrical devices, especially light bulbs. Multiplying power by time gives the amount of energy. Electricity is sold in kilowatt-hours because that equals the amount of electrical energy consumed.

The watt unit was named after James Watt (1736–1819) (see Figure 9.4). He was a Scottish engineer and inventor who discovered how to coax more power out of steam engines.

### Teacher Support

#### Teacher Support

[BL][OL] Review the concept that work changes the energy of an object or system. Review the units of work, energy, force, and distance. Use the equations for mechanical energy and work to show what is work and what is not. Make it clear why holding something off the ground or carrying something over a level surface is not work in the scientific sense.

[OL] Ask the students to use the mechanical energy equations to explain why each of these is or is not work. Ask them to provide more examples until they understand the difference between the scientific term *work* and a task that is simply difficult but not literally work (in the scientific sense).

[BL][OL] Stress that power is a rate and that rate means "per unit of time." In the metric system this unit is usually seconds. End the section by clearing up any misconceptions about the distinctions between force, work, and power.

[AL] Explain relationships between the units for force, work, and power. If $W=fd$ and work can be expressed in J, then $P=\frac{W}{t}=\frac{fd}{t}$ so power can be expressed in units of $\frac{\text{N}\cdot \text{m}}{\text{s}}$

Also explain that we buy electricity in kilowatt-hours because, when power is multiplied by time, the time units cancel, which leaves work or energy.

### Links To Physics

#### Watt’s Steam Engine

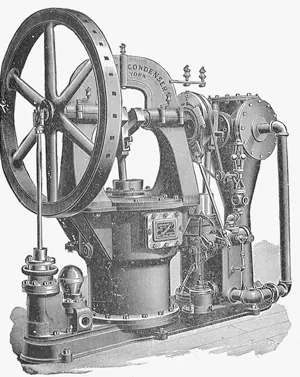

James Watt did not invent the steam engine, but by the time he was finished tinkering with it, it was more useful. The first steam engines were not only inefficient, they only produced a back and forth, or reciprocal, motion. This was natural because pistons move in and out as the pressure in the chamber changes. This limitation was okay for simple tasks like pumping water or mashing potatoes, but did not work so well for moving a train. Watt was able build a steam engine that converted reciprocal motion to circular motion. With that one innovation, the industrial revolution was off and running. The world would never be the same. One of Watt's steam engines is shown in Figure 9.5. The video that follows the figure explains the importance of the steam engine in the industrial revolution.

#### Teacher Support

##### Teacher Support

Initiate a discussion on the historical significance of suddenly increasing the amount of power available to industries and transportation. Have students consider the fact that the speed of transportation increased roughly tenfold. Changes in how goods were manufactured were just as great. Ask students how they think the resulting changes in lifestyle compare to more recent changes brought about by innovations such as air travel and the Internet.

### Watch Physics

#### Watt's Role in the Industrial Revolution

This video demonstrates how the watts that resulted from Watt's inventions helped make the industrial revolution possible and allowed England to enter a new historical era.

### Grasp Check

Which form of mechanical energy does the steam engine generate?

- Potential energy
- Kinetic energy
- Nuclear energy
- Solar energy

Before proceeding, be sure you understand the distinctions among force, work, energy, and power. Force exerted on an object over a distance does work. Work can increase energy, and energy can do work. Power is the rate at which work is done.

### Worked Example

#### Applying the Work–Energy Theorem

An ice skater with a mass of 50 kg is gliding across the ice at a speed of 8 m/s when her friend comes up from behind and gives her a push, causing her speed to increase to 12 m/s. How much work did the friend do on the skater?

### Strategy

The work–energy theorem can be applied to the problem. Write the equation for the theorem and simplify it if possible.

Work done on an object or system increases its energy. In this case, the increase is to the skater’s kinetic energy. It follows that the increase in energy must be the difference in KE before and after the push.

#### Tips For Success

This problem illustrates a general technique for approaching problems that require you to apply formulas: Identify the unknown and the known variables, express the unknown variables in terms of the known variables, and then enter all the known values.

#### Teacher Support

##### Teacher Support

Identify the three variables and choose the relevant equation. Distinguish between initial and final velocity and pay attention to the minus sign.

Identify the variables. *m* = 50 kg,

Substitute.

### Practice Problems

- $0\phantom{\rule{thinmathspace}{0ex}}\text{J}$
- $100\phantom{\rule{thinmathspace}{0ex}}\text{J}$
- $200\phantom{\rule{thinmathspace}{0ex}}\text{J}$
- $400\phantom{\rule{thinmathspace}{0ex}}\text{J}$

Identify which of the following actions generates more power. Show your work.

- carrying a $100\phantom{\rule{thinmathspace}{0ex}}\text{N}$ TV to the second floor in $50\phantom{\rule{thinmathspace}{0ex}}\text{s}$ or
- carrying a $24\phantom{\rule{thinmathspace}{0ex}}\text{N}$ watermelon to the second floor in $10\phantom{\rule{thinmathspace}{0ex}}\text{s}$?

- Carrying a $100\phantom{\rule{thinmathspace}{0ex}}\text{N}$ TV generates more power than carrying a $24\phantom{\rule{thinmathspace}{0ex}}\text{N}$ watermelon to the same height because power is defined as work done times the time interval.
- Carrying a $100\phantom{\rule{thinmathspace}{0ex}}\text{N}$ TV generates more power than carrying a $24\phantom{\rule{thinmathspace}{0ex}}\text{N}$ watermelon to the same height because power is defined as the ratio of work done to the time interval.
- Carrying a $24\phantom{\rule{thinmathspace}{0ex}}\text{N}$ watermelon generates more power than carrying a $100\phantom{\rule{thinmathspace}{0ex}}\text{N}$ TV to the same height because power is defined as work done times the time interval.
- Carrying a $24\phantom{\rule{thinmathspace}{0ex}}\text{N}$ watermelon generates more power than carrying a $100\phantom{\rule{thinmathspace}{0ex}}\text{N}$ TV to the same height because power is defined as the ratio of work done and the time interval.

### Check Your Understanding

- work and force
- energy and weight
- work and energy
- weight and force

When a coconut falls from a tree, work *W* is done on it as it falls to the beach. This work is described by the equation

Identify the quantities *F*, *d*, *m*, *v*_{1}, and *v*_{2} in this event.

*F*is the force of gravity, which is equal to the weight of the coconut,*d*is the distance the nut falls,*m*is the mass of the earth,*v*_{1}is the initial velocity, and*v*_{2}is the velocity with which it hits the beach.*F*is the force of gravity, which is equal to the weight of the coconut,*d*is the distance the nut falls,*m*is the mass of the coconut,*v*_{1}is the initial velocity, and*v*_{2}is the velocity with which it hits the beach.*F*is the force of gravity, which is equal to the weight of the coconut,*d*is the distance the nut falls,*m*is the mass of the earth,*v*_{1}is the velocity with which it hits the beach, and*v*_{2}is the initial velocity.*F*is the force of gravity, which is equal to the weight of the coconut,*d*is the distance the nut falls,*m*is the mass of the coconut,*v*_{1}is the velocity with which it hits the beach, and*v*_{2}is the initial velocity.

### Teacher Support

#### Teacher Support

Use Check Your Understanding questions to assess students’ achievement of the section’s learning objectives. If students are struggling with a specific objective, the Check Your Understanding will help identify which one and direct students to the relevant content.
