Paul Peter Urone; Roger Hinrichs

Section Learning Objectives

By the end of this section, you will be able to do the following:

Explain Newton’s law of universal gravitation and compare it to Einstein’s theory of general relativity
Perform calculations using Newton’s law of universal gravitation

Teacher Support

The learning objectives in this section will help your students master the following standards:

(4) Science concepts. The student knows and applies the laws governing motion in a variety of situations. The student is expected to:
- (D) calculate the effect of forces on objects, including the law of inertia, the relationship between force and acceleration, and the nature of force pairs between objects;

(5) Science concepts. The student knows the nature of forces in the physical world. The student is expected to:
- (A) research and describe the historical development of the concepts of gravitational, electromagnetic, weak nuclear, and strong nuclear forces;
- (B) describe and calculate how the magnitude of the gravitational force between two objects depends on their masses and the distance between their centers.

Section Key Terms

Einstein’s theory of general relativity

gravitational constant

Newton’s universal law of gravitation

Teacher Support

In this section, students will apply Newton’s law of universal gravitation to objects close at hand and far off in the depths of the solar system.

[BL][OL] Compare the contributions of Kepler, Newton, and Einstein. Place them historically with dates.

[AL] Ask if anyone knows the difference between special relativity and general relativity. Special relativity is a theory of spacetime and applies to observers moving at constant velocity. General relativity is a theory of gravity and applies to observers that are accelerating. General relativity is broader and includes special relativity, which was published first.

Concepts Related to Newton’s Law of Universal Gravitation

Sir Isaac Newton was the first scientist to precisely define the gravitational force, and to show that it could explain both falling bodies and astronomical motions. See Figure 7.7. But Newton was not the first to suspect that the same force caused both our weight and the motion of planets. His forerunner, Galileo Galilei, had contended that falling bodies and planetary motions had the same cause. Some of Newton’s contemporaries, such as Robert Hooke, Christopher Wren, and Edmund Halley, had also made some progress toward understanding gravitation. But Newton was the first to propose an exact mathematical form and to use that form to show that the motion of heavenly bodies should be conic sections—circles, ellipses, parabolas, and hyperbolas. This theoretical prediction was a major triumph. It had been known for some time that moons, planets, and comets follow such paths, but no one had been able to propose an explanation of the mechanism that caused them to follow these paths and not others.

A painting shows a man sitting under a tree, from which an apple is falling.

Figure 7.7 The popular legend that Newton suddenly discovered the law of universal gravitation when an apple fell from a tree and hit him on the head has an element of truth in it. A more probable account is that he was walking through an orchard and wondered why all the apples fell in the same direction with the same acceleration. Great importance is attached to it because Newton’s universal law of gravitation and his laws of motion answered very old questions about nature and gave tremendous support to the notion of underlying simplicity and unity in nature. Scientists still expect underlying simplicity to emerge from their ongoing inquiries into nature.

Teacher Support

[BL][OL]Ask students if it really is obvious why all things fall straight down. Ask them to back up their reasons. Ask if the name Halley rings a bell.

[OL][AL]Ask if anyone thinks it is strange or even mysterious that a force can act at a distance across empty space. Ask the students to compare and contrast gravitational force with magnetic and electrostatic forces. Note how much force at a distance is like magic or having superpowers.

The gravitational force is relatively simple. It is always attractive, and it depends only on the masses involved and the distance between them. Expressed in modern language, Newton’s universal law of gravitation states that every object in the universe attracts every other object with a force that is directed along a line joining them. The force is directly proportional to the product of their masses and inversely proportional to the square of the distance between them. This attraction is illustrated by Figure 7.8.

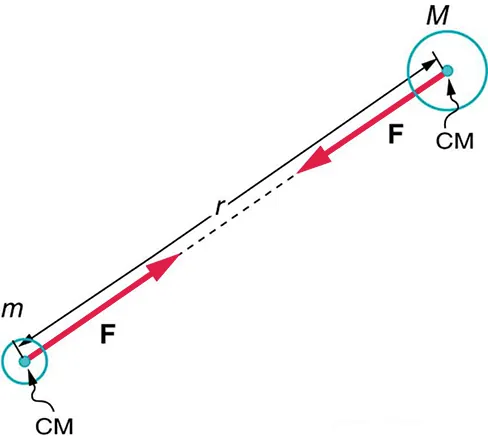

A figure shows a small circle and a large circle. A black line goes from one circle to the other. A red line with an arrow extends outward from each circle. The red lines have arrows on one end, pointing away from the circles, towards the midpoint of the space in between the circles.

Figure 7.8 Gravitational attraction is along a line joining the centers of mass (CM) of the two bodies. The magnitude of the force on each body is the same, consistent with Newton’s third law (action-reaction).

For two bodies having masses m and M with a distance r between their centers of mass, the equation for Newton’s universal law of gravitation is

F = G \frac{m M}{r^{2}}

where F is the magnitude of the gravitational force and G is a proportionality factor called the gravitational constant. G is a universal constant, meaning that it is thought to be the same everywhere in the universe. It has been measured experimentally to be $G = 6.673 \times 10^{- 11} N \cdot m^{2} {/kg}^{2}$ .

If a person has a mass of 60.0 kg, what would be the force of gravitational attraction on him at Earth’s surface? G is given above, Earth’s mass M is 5.97 × 10²⁴ kg, and the radius r of Earth is 6.38 × 10⁶ m. Putting these values into Newton’s universal law of gravitation gives

F = G \frac{m M}{r^{2}} = (6.673 \times 10^{- 11} \frac{N \cdot m^{2}}{{kg}^{2}}) (\frac{(60.0 kg) (5.97 \times 10^{24} kg)}{{(6.38 \times 10^{6} m)}^{2}}) = 584 N

We can check this result with the relationship: $F = m g = (60 kg) (9.8 {m/s}^{2}) = 588 N$

You may remember that g, the acceleration due to gravity, is another important constant related to gravity. By substituting g for a in the equation for Newton’s second law of motion we get $F = m g$ . Combining this with the equation for universal gravitation gives

m g = G \frac{m M}{r^{2}}

Cancelling the mass m on both sides of the equation and filling in the values for the gravitational constant and mass and radius of the Earth, gives the value of g, which may look familiar.

g = G \frac{M}{r^{2}} = (6.67 \times 10^{- 11} \frac{N \cdot m^{2}}{{kg}^{2}}) (\frac{5.98 \times 10^{24} kg}{{(6.38 \times 10^{6} m)}^{2}}) = 9.80 {m/s}^{2}

This is a good point to recall the difference between mass and weight. Mass is the amount of matter in an object; weight is the force of attraction between the mass within two objects. Weight can change because g is different on every moon and planet. An object’s mass m does not change but its weight mg can.

Teacher Support

[BL][OL]Be sure no one is confusing G with g.

[AL]Ask if anyone can explain why G is a universal constant that applies anywhere in the universe. Have them discuss the idea that the laws of physics are the same everywhere and that, at one time, people were not so sure about this. Emphasize that g is not a universal constant.

Virtual Physics

Gravity and Orbits

Move the sun, Earth, moon and space station in this simulation to see how it affects their gravitational forces and orbital paths. Visualize the sizes and distances between different heavenly bodies. Turn off gravity to see what would happen without it!

Access multimedia content

Why doesn’t the Moon travel in a smooth circle around the Sun?

The Moon is not affected by the gravitational field of the Sun.
The Moon is not affected by the gravitational field of the Earth.
The Moon is affected by the gravitational fields of both the Earth and the Sun, which are always additive.
The moon is affected by the gravitational fields of both the Earth and the Sun, which are sometimes additive and sometimes opposite.

Teacher Support

This is a good animation of the Earth-Moon-Sun system. Have the students try all of the buttons. This will show the paths of the Earth and the moon separately and together. Explain the gravitational force and velocity vectors. Point out the interesting shape of the moon’s path around the sun. Explain that the velocity vector of the moon changes because sometimes the moon is traveling in the direction of Earth’s orbit and sometimes it is traveling in the opposite direction.

Snap Lab

Take-Home Experiment: Falling Objects

In this activity you will study the effects of mass and air resistance on the acceleration of falling objects. Make predictions (hypotheses) about the outcome of this experiment. Write them down to compare later with results.

Four sheets of $8 - 1 / 2 \times 11$ -inch paper

Procedure

Take four identical pieces of paper.
- Crumple one up into a small ball.
- Leave one uncrumpled.
- Take the other two and crumple them up together, so that they make a ball of exactly twice the mass of the other crumpled ball.
- Now compare which ball of paper lands first when dropped simultaneously from the same height.
  1. Compare crumpled one-paper ball with crumpled two-paper ball.
  2. Compare crumpled one-paper ball with uncrumpled paper.

Why do some objects fall faster than others near the surface of the Earth if the force of gravity is proportional to the mass?

Some objects fall faster because of air resistance, which acts in the direction of the motion of the object and exerts more force on objects with less surface area.
Some objects fall faster because of air resistance, which acts in the direction opposite the motion of the object and exerts more force on objects with less surface area.
Some objects fall faster because of air resistance, which acts in the direction of motion of the object and exerts more force on objects with more surface area.
Some objects fall faster because of air resistance, which acts in the direction opposite the motion of the object and exerts more force on objects with more surface area.

Teacher Support

Ask for predictions (hypotheses) about the outcome of this experiment. Have the students write them down to compare later with results.

It is possible to derive Kepler’s third law from Newton’s law of universal gravitation. Applying Newton’s second law of motion to angular motion gives an expression for centripetal force, which can be equated to the expression for force in the universal gravitation equation. This expression can be manipulated to produce the equation for Kepler’s third law. We saw earlier that the expression r³/T² is a constant for satellites orbiting the same massive object. The derivation of Kepler’s third law from Newton’s law of universal gravitation and Newton’s second law of motion yields that constant:

\frac{r^{3}}{T^{2}} = \frac{G M}{4 π^{2}}

where M is the mass of the central body about which the satellites orbit (for example, the sun in our solar system). The usefulness of this equation will be seen later.

Teacher Support

[OL]This equation illustrates the difference between Kepler’s and Newton’s work. Ask the students to explain why this is so.

[AL]Ask the students what the attraction would be between two 10 kg balls separated by a distance of 1.0 m. Could they feel it? Later, ask them to calculate it after they have done some similar calculations. Solution:

F = G \frac{m M}{r^{2}} = (6.67 \times 10^{- 11} \frac{N \cdot m^{2}}{{kg}^{2}}) (\frac{10 kg \times 10 kg}{{(1 m)}^{2}}) = 6.67 \times 10^{- 9} N

The universal gravitational constant G is determined experimentally. This determination was first done accurately in 1798 by English scientist Henry Cavendish (1731–1810), more than 100 years after Newton published his universal law of gravitation. The measurement of G is very basic and important because it determines the strength of one of the four forces in nature. Cavendish’s experiment was very difficult because he measured the tiny gravitational attraction between two ordinary-sized masses (tens of kilograms at most) by using an apparatus like that in Figure 7.9. Remarkably, his value for G differs by less than 1% from the modern value.

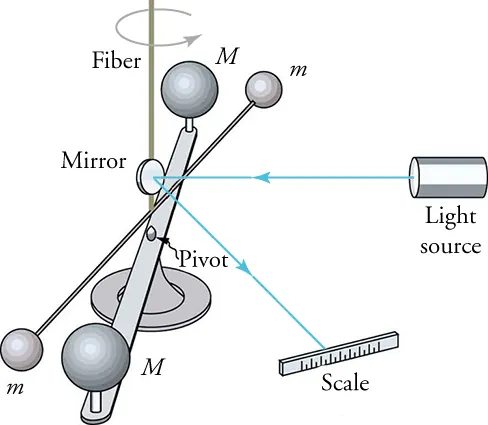

Apparatus consisting of two large spheres, one on each end of a horizontal rod centered on a pivot. Two smaller spheres are at the extremity of a smaller horizontal rod also centered on same pivot point. Light source shines laser beam that hits mirror and reflects onto scale to show pivot angle of spheres.

Figure 7.9 Cavendish used an apparatus like this to measure the gravitational attraction between two suspended spheres (m) and two spheres on a stand (M) by observing the amount of torsion (twisting) created in the fiber. The distance between the masses can be varied to check the dependence of the force on distance. Modern experiments of this type continue to explore gravity.

Einstein’s Theory of General Relativity

Einstein’s theory of general relativity explained some interesting properties of gravity not covered by Newton’s theory. Einstein based his theory on the postulate that acceleration and gravity have the same effect and cannot be distinguished from each other. He concluded that light must fall in both a gravitational field and in an accelerating reference frame. Figure 7.10 shows this effect (greatly exaggerated) in an accelerating elevator. In Figure 7.10 (a), the elevator accelerates upward in zero gravity. In Figure 7.10 (b), the room is not accelerating but is subject to gravity. The effect on light is the same: it “falls” downward in both situations. The person in the elevator cannot tell whether the elevator is accelerating in zero gravity or is stationary and subject to gravity. Thus, gravity affects the path of light, even though we think of gravity as acting between masses, while photons are massless.

Teacher Support

[BL][OL]Ask the students to discuss the postulate. Can they relate the identity of gravity and acceleration to experience?

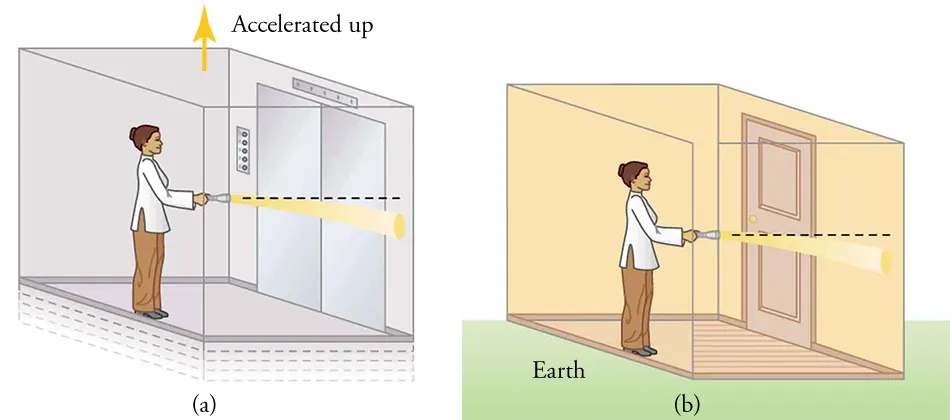

Left panel shows a person in an elevator who shines a light beam on the wall. Beam of light bends down. Elevator is labelled “accelerated up.” Right panel shows same picture, but person is in a room on Earth.

Figure 7.10 (a) A beam of light emerges from a flashlight in an upward-accelerating elevator. Since the elevator moves up during the time the light takes to reach the wall, the beam strikes lower than it would if the elevator were not accelerated. (b) Gravity must have the same effect on light, since it is not possible to tell whether the elevator is accelerating upward or is stationary and acted upon by gravity.

Einstein’s theory of general relativity got its first verification in 1919 when starlight passing near the sun was observed during a solar eclipse. (See Figure 7.11.) During an eclipse, the sky is darkened and we can briefly see stars. Those on a line of sight nearest the sun should have a shift in their apparent positions. Not only was this shift observed, but it agreed with Einstein’s predictions well within experimental uncertainties. This discovery created a scientific and public sensation. Einstein was now a folk hero as well as a very great scientist. The bending of light by matter is equivalent to a bending of space itself, with light following the curve. This is another radical change in our concept of space and time. It is also another connection that any particle with mass or energy (e.g., massless photons) is affected by gravity.

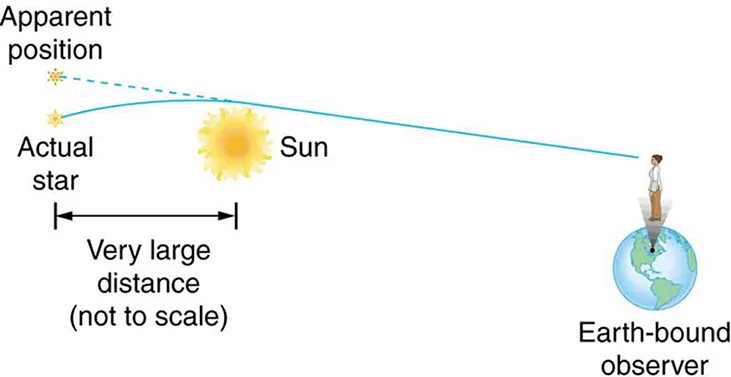

Schematic drawing of sun at left and Earth at right. A person is standing on Earth. Two stars to left of sun. Lines drawn from starts to person’s eyes. Lower star has curved solid line, and upper star has straight dashed line.

Figure 7.11 This schematic shows how light passing near a massive body like the sun is curved toward it. The light that reaches the Earth then seems to be coming from different locations than the known positions of the originating stars. Not only was this effect observed, but the amount of bending was precisely what Einstein predicted in his general theory of relativity.

To summarize the two views of gravity, Newton envisioned gravity as a tug of war along the line connecting any two objects in the universe. In contrast, Einstein envisioned gravity as a bending of space-time by mass.

Boundless Physics

NASA gravity probe B

NASA’s Gravity Probe B (GP-B) mission has confirmed two key predictions derived from Albert Einstein’s general theory of relativity. The probe, shown in Figure 7.12 was launched in 2004. It carried four ultra-precise gyroscopes designed to measure two effects hypothesized by Einstein’s theory:

The geodetic effect, which is the warping of space and time by the gravitational field of a massive body (in this case, Earth)
The frame-dragging effect, which is the amount by which a spinning object pulls space and time with it as it rotates

Figure 7.12 Artist concept of Gravity Probe B spacecraft in orbit around the Earth. (credit: NASA/MSFC)

Both effects were measured with unprecedented precision. This was done by pointing the gyroscopes at a single star while orbiting Earth in a polar orbit. As predicted by relativity theory, the gyroscopes experienced very small, but measureable, changes in the direction of their spin caused by the pull of Earth’s gravity.

The principle investigator suggested imagining Earth spinning in honey. As Earth rotates it drags space and time with it as it would a surrounding sea of honey.

According to the general theory of relativity, a gravitational field bends light. What does this have to do with time and space?

Gravity has no effect on the space-time continuum, and gravity only affects the motion of light.
The space-time continuum is distorted by gravity, and gravity has no effect on the motion of light.
Gravity has no effect on either the space-time continuum or on the motion of light.
The space-time continuum is distorted by gravity, and gravity affects the motion of light.

Teacher Support

Explain that it is very exciting when a prediction of relativity theory is tested successfully. Some of the predictions were in doubt because they sounded so bizarre.

Calculations Based on Newton’s Law of Universal Gravitation

Tips For Success

When performing calculations using the equations in this chapter, use units of kilograms for mass, meters for distances, newtons for force, and seconds for time.

The mass of an object is constant, but its weight varies with the strength of the gravitational field. This means the value of g varies from place to place in the universe. The relationship between force, mass, and acceleration from the second law of motion can be written in terms of g.

F = m a = m g

In this case, the force is the weight of the object, which is caused by the gravitational attraction of the planet or moon on which the object is located. We can use this expression to compare weights of an object on different moons and planets.

Teacher Support

[BL] Check to make sure students are clear about the distinction between mass and weight.

[OL] Recall the antics of astronauts of on the moon performed to illustrate the effect of a different value for g.

Watch Physics

Mass and Weight Clarification

This video shows the mathematical basis of the relationship between mass and weight. The distinction between mass and weight are clearly explained. The mathematical relationship between mass and weight are shown mathematically in terms of the equation for Newton’s law of universal gravitation and in terms of his second law of motion.

Access multimedia content

Grasp Check

Would you have the same mass on the moon as you do on Earth? Would you have the same weight?

You would weigh more on the moon than on Earth because gravity on the moon is stronger than gravity on Earth.
You would weigh less on the moon than on Earth because gravity on the moon is weaker than gravity on Earth.
You would weigh less on the moon than on Earth because gravity on the moon is stronger than gravity on Earth.
You would weigh more on the moon than on Earth because gravity on the moon is weaker than gravity on Earth.

Teacher Support

This may be a rather long-winded explanation of the mass-weight distinction, but it should drive home the point.

Two equations involving the gravitational constant, G, are often useful. The first is Newton’s equation, $F = G \frac{m M}{r^{2}}$ . Several of the values in this equation are either constants or easily obtainable. F is often the weight of an object on the surface of a large object with mass M, which is usually known. The mass of the smaller object, m, is often known, and G is a universal constant with the same value anywhere in the universe. This equation can be used to solve problems involving an object on or orbiting Earth or other massive celestial object. Sometimes it is helpful to equate the right-hand side of the equation to mg and cancel the m on both sides.

The equation $\frac{r^{3}}{T^{2}} = \frac{G M}{4 π^{2}}$ is also useful for problems involving objects in orbit. Note that there is no need to know the mass of the object. Often, we know the radius r or the period T and want to find the other. If these are both known, we can use the equation to calculate the mass of a planet or star.

Watch Physics

Mass and Weight Clarification

This video demonstrates calculations involving Newton’s universal law of gravitation.

Access multimedia content

What is the difference between g and G?

g and G are both unchanging constants but have different units.
G is a universal constant that relates force with a pair of masses at a distance, while g relates force with mass and varies with location.
g describes acceleration while G describes gravitational force.
g describes gravitational force while G describes acceleration.

Teacher Support

This video is a thorough demonstration of many of the calculations to be learned in this subsection.

Worked Example

Change in g

The value of g on the planet Mars is 3.71 m/s². If you have a mass of 60.0 kg on Earth, what would be your mass on Mars? What would be your weight on Mars?

Strategy

Weight equals acceleration due to gravity times mass: $W = m g$ . An object’s mass is constant. Call acceleration due to gravity on Mars g_M and weight on Mars W_M.

Solution

Mass on Mars would be the same, 60 kg.

W_{M} = m g_{M} = (60.0 kg) (3.71 {m/s}^{2}) = 223 N

7.4

Discussion

The value of g on any planet depends on the mass of the planet and the distance from its center. If the material below the surface varies from point to point, the value of g will also vary slightly.

Teacher Support

This is a typical mass-weight calculation.

Worked Example

Earth’s g at the Moon

Find the acceleration due to Earth’s gravity at the distance of the moon.

\begin{array}{l} G = 6 .67 \times 10^{–11} {N · m}^{2} {/kg}^{2} \\ Earth-moon distance = 3.84 \times 10^{8} m \\ Earth’s mass = 5.98 \times 10^{24} kg \end{array}

7.5

Express the force of gravity in terms of g.

F = W = m a = m g

7.6

Combine with the equation for universal gravitation.

m g = m G \frac{M}{r^{2}}

7.7

Solution

Cancel m and substitute.

g = G \frac{M}{r^{2}} = (6.67 \times 10^{- 11} \frac{N \cdot m^{2}}{{kg}^{2}}) (\frac{5.98 \times 10^{24} kg}{{(3.84 \times 10^{8} m)}^{2}}) = 2.70 \times 10^{- 3} {m/s}^{2}

7.8

Discussion

The value of g for the moon is 1.62 m/s². Comparing this value to the answer, we see that Earth’s gravitational influence on an object on the moon’s surface would be insignificant.

Teacher Support

[BL][OL] Review the meanings of all the symbols in these equations: F, G, m, M, r, T, and $π$ .

[OL][AL] Have the students memorize the values of G, g, and π to three significant figures.

Practice Problems

6 .

What is the mass of a person who weighs

600\,\text{N}

?

$6.00\,\text{kg}$
$61.2\,\text{kg}$
$600\,\text{kg}$
$610\,\text{kg}$

7 .

Calculate Earth’s mass given that the acceleration due to gravity at the North Pole is

9.830\text{m/s}^2\!

and the radius of the Earth is

6371\,\text{km}

from pole to center.

$5.94\times10^{17}\,\text{kg}$
$5.94\times10^{24}\text{kg}$
$9.36\times10^{17}\text{kg}$
$9.36\times10^{24}\text{kg}$

Check Your Understanding

8 .

Some of Newton’s predecessors and contemporaries also studied gravity and proposed theories. What important advance did Newton make in the study of gravity that the other scientists had failed to do?

He gave an exact mathematical form for the theory.
He added a correction term to a previously existing formula.
Newton found the value of the universal gravitational constant.
Newton showed that gravitational force is always attractive.

9 .

State the law of universal gravitation in words only.

Gravitational force between two objects is directly proportional to the sum of the squares of their masses and inversely proportional to the square of the distance between them.
Gravitational force between two objects is directly proportional to the product of their masses and inversely proportional to the square of the distance between them.
Gravitational force between two objects is directly proportional to the sum of the squares of their masses and inversely proportional to the distance between them.
Gravitational force between two objects is directly proportional to the product of their masses and inversely proportional to the distance between them.

10.

Newton’s law of universal gravitation explains the paths of what?

A charged particle
A ball rolling on a plane surface
A planet moving around the sun
A stone tied to a string and whirled at constant speed in a horizontal circle

Teacher Support

Use the Check Your Answers questions to assess whether students master the learning objectives for this section. If students are struggling with a specific objective, the Check Your Answers will help identify which objective is causing the problem and direct students to the relevant content.

7.2 Newton's Law of Universal Gravitation and Einstein's Theory of General Relativity

Teacher Support

Section Key Terms

Teacher Support

Concepts Related to Newton’s Law of Universal Gravitation

Teacher Support

Teacher Support

Gravity and Orbits

Teacher Support

Take-Home Experiment: Falling Objects

Teacher Support

Teacher Support

Einstein’s Theory of General Relativity

Teacher Support

NASA gravity probe B

Teacher Support

Calculations Based on Newton’s Law of Universal Gravitation

Teacher Support

Mass and Weight Clarification

Teacher Support

Mass and Weight Clarification

Teacher Support

Change in g

Teacher Support

Earth’s g at the Moon

Teacher Support

Practice Problems

Check Your Understanding

Teacher Support
