# 2.1Relative Motion, Distance, and Displacement

Physics2.1 Relative Motion, Distance, and Displacement

### Section Learning Objectives

By the end of this section, you will be able to do the following:

• Describe motion in different reference frames
• Define distance and displacement, and distinguish between the two
• Solve problems involving distance and displacement

### Teacher Support

#### Teacher Support

• (4) Science concepts. The student knows and applies the laws governing motion in a variety of situations. The student is expected to:
• (B) describe and analyze motion in one dimension using equations with the concepts of distance, displacement, speed, average velocity, instantaneous velocity, and acceleration;
• (F) identify and describe motion relative to different frames of reference.

### Section Key Terms

 displacement distance kinematics magnitude position reference frame scalar vector

### Teacher Support

#### Teacher Support

[BL][OL] Start by asking what position is and how it is defined. You can use a toy car or other object. Then ask how they know the object has moved. Lead them to the idea of a defined starting point. Then bring in the concept of a numbered line as a way of quantifying motion.

[AL] Ask students to describe the path of movement and emphasize that direction is a necessary component of a definition of motion. Ask the students to form pairs, and ask each pair to come up with their own definition of motion. Then compare and discuss definitions as a class. What components are necessary for a definition of motion?

### Defining Motion

Our study of physics opens with kinematics—the study of motion without considering its causes. Objects are in motion everywhere you look. Everything from a tennis game to a space-probe flyby of the planet Neptune involves motion. When you are resting, your heart moves blood through your veins. Even in inanimate objects, atoms are always moving.

How do you know something is moving? The location of an object at any particular time is its position. More precisely, you need to specify its position relative to a convenient reference frame. Earth is often used as a reference frame, and we often describe the position of an object as it relates to stationary objects in that reference frame. For example, a rocket launch would be described in terms of the position of the rocket with respect to Earth as a whole, while a professor’s position could be described in terms of where she is in relation to the nearby white board. In other cases, we use reference frames that are not stationary but are in motion relative to Earth. To describe the position of a person in an airplane, for example, we use the airplane, not Earth, as the reference frame. (See Figure 2.2.) Thus, you can only know how fast and in what direction an object's position is changing against a background of something else that is either not moving or moving with a known speed and direction. The reference frame is the coordinate system from which the positions of objects are described.

Figure 2.2 Are clouds a useful reference frame for airplane passengers? Why or why not? (Paul Brennan, Public Domain)

### Teacher Support

#### Teacher Support

[OL][AL]Explain that the word kinematics comes from a Greek term meaning motion. It is related to other English words, such as cinema (movies, or moving pictures) and kinesiology (the study of human motion).

Your classroom can be used as a reference frame. In the classroom, the walls are not moving. Your motion as you walk to the door, can be measured against the stationary background of the classroom walls. You can also tell if other things in the classroom are moving, such as your classmates entering the classroom or a book falling off a desk. You can also tell in what direction something is moving in the classroom. You might say, “The teacher is moving toward the door.” Your reference frame allows you to determine not only that something is moving but also the direction of motion.

You could also serve as a reference frame for others’ movement. If you remained seated as your classmates left the room, you would measure their movement away from your stationary location. If you and your classmates left the room together, then your perspective of their motion would be change. You, as the reference frame, would be moving in the same direction as your other moving classmates. As you will learn in the Snap Lab, your description of motion can be quite different when viewed from different reference frames.

### Teacher Support

#### Teacher Support

[BL][OL] You may want to introduce the concept of a reference point as the starting point of motion. Relate this to the origin of a coordinate grid.

[AL] Explain that the reference frames considered in this chapter are inertial reference frames, which means they are not accelerating. Engage students in a discussion of how it is the difference in motion between the reference frame of the observer and the reference frame of the object that is important in describing motion. The reference frames used in this chapter might be moving at a constant speed relative to each other, but they are not accelerating relative to each other.

[BL][OL][Visual] Misconception: Students may assume that a reference frame is a background of motion instead of the frame from which motion is viewed. Demonstrate the difference by having one student stand at the front of the class. Explain that this student represents the background. Walk once across the room between the student and the rest of the class. Ask the student and others in the class to describe the direction of your motion. The class might describe your motion as to the right, but the student who is standing as a background to your motion would describe the motion as to the left. Conclude by reminding students that the reference frame is the viewpoint of the observer, not the background.

[BL] Have students practice describing simple examples of motion in the class from different reference frames. For example, slide a book across a desk. Ask students to describe its motion from their reference point, from the book's reference point, and from another student's reference point.

### Snap Lab

#### Looking at Motion from Two Reference Frames

In this activity you will look at motion from two reference frames. Which reference frame is correct?

• Choose an open location with lots of space to spread out so there is less chance of tripping or falling due to a collision and/or loose basketballs.
Procedure
1. Work with a partner. Stand a couple of meters away from your partner. Have your partner turn to the side so that you are looking at your partner’s profile. Have your partner begin bouncing the basketball while standing in place. Describe the motion of the ball.
2. Next, have your partner again bounce the ball, but this time your partner should walk forward with the bouncing ball. You will remain stationary. Describe the ball's motion.
3. Again have your partner walk forward with the bouncing ball. This time, you should move alongside your partner while continuing to view your partner’s profile. Describe the ball's motion.
4. Switch places with your partner, and repeat Steps 1–3.

### Grasp Check

How do the different reference frames affect how you describe the motion of the ball?

1. The motion of the ball is independent of the reference frame and is same for different reference frames.
2. The motion of the ball is independent of the reference frame and is different for different reference frames.
3. The motion of the ball is dependent on the reference frame and is same for different reference frames.
4. The motion of the ball is dependent on the reference frames and is different for different reference frames.

### Teacher Support

#### Teacher Support

Before students begin the lab, arrange a location where pairs of students can have ample room to walk forward at least several meters.

As students work through the lab, encourage lab partners to discuss their observations. In Steps 1 and 3, students should observe the ball move straight up and straight down. In Step 2, students should observe the ball in a zigzag path away from the stationary observer.

After the lab, lead students in discussing their observations. Ask them which reference frame is the correct one. Then emphasize that there is not a single correct reference frame. All reference frames are equally valid.

#### Distance vs. Displacement

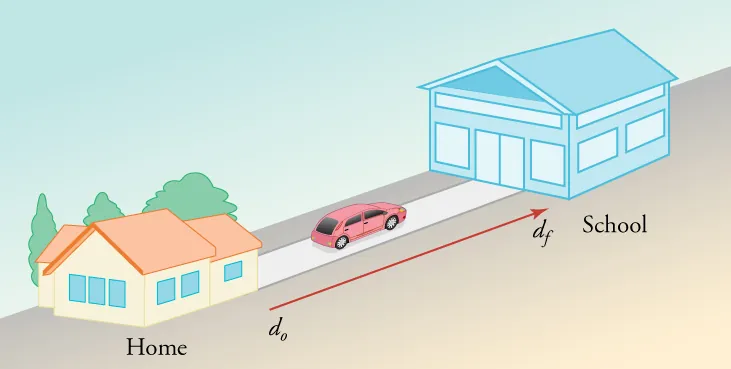

As we study the motion of objects, we must first be able to describe the object’s position. Before your parent drives you to school, the car is sitting in your driveway. Your driveway is the starting position for the car. When you reach your high school, the car has changed position. Its new position is your school.

Physicists use variables to represent terms. We will use d to represent car’s position. We will use a subscript to differentiate between the initial position, d0, and the final position, df. In addition, vectors, which we will discuss later, will be in bold or will have an arrow above the variable. Scalars will be italicized.

### Tips For Success

In some books, x or s is used instead of d to describe position. In d0, said d naught, the subscript 0 stands for initial. When we begin to talk about two-dimensional motion, sometimes other subscripts will be used to describe horizontal position, dx, or vertical position, dy. So, you might see references to d0x and dfy.

Now imagine driving from your house to a friend's house located several kilometers away. How far would you drive? The distance an object moves is the length of the path between its initial position and its final position. The distance you drive to your friend's house depends on your path. As shown in Figure 2.5, distance is different from the length of a straight line between two points. The distance you drive to your friend's house is probably longer than the straight line between the two houses.

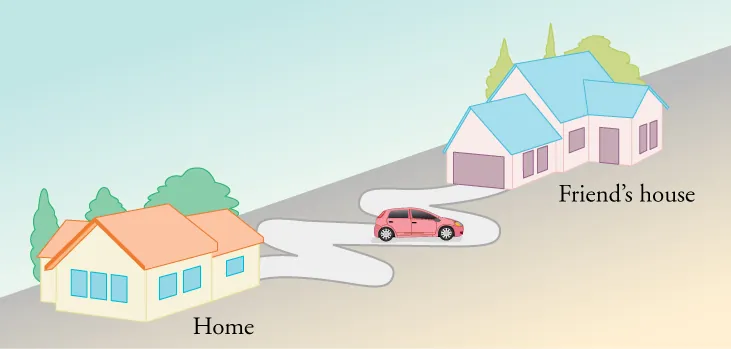

Figure 2.5 A short line separates the starting and ending points of this motion, but the distance along the path of motion is considerably longer.

We often want to be more precise when we talk about position. The description of an object’s motion often includes more than just the distance it moves. For instance, if it is a five kilometer drive to school, the distance traveled is 5 kilometers. After dropping you off at school and driving back home, your parent will have traveled a total distance of 10 kilometers. The car and your parent will end up in the same starting position in space. The net change in position of an object is its displacement, or $Δ d. Δ d.$ The Greek letter delta, $Δ Δ$, means change in.

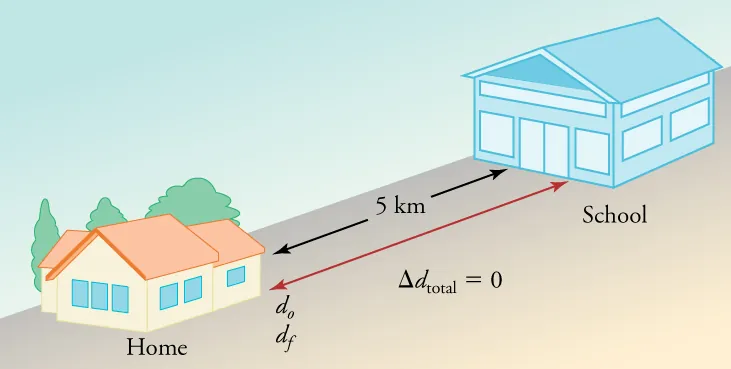

Figure 2.6 The total distance that your car travels is 10 km, but the total displacement is 0.

### Teacher Support

#### Teacher Demonstration

Help students learn the difference between distance and displacement by showing examples of motion.

1. As students watch, walk straight across the room and have students estimate the length of your path.
2. Then, at same starting point, walk along a winding path to the same ending point.
3. Again, have students estimate the length of your path.

Ask—Which motion showed displacement? Which showed distance? Point out that the first motion shows displacement, and the second shows distance along a path. In both cases, the starting and ending points were the same.

[OL] Be careful that students do not assume that initial position is always zero. Emphasize that although initial position is often zero, motion can start from any position relative to a starting point.

[Visual] Demonstrate positive and negative displacement by placing two meter sticks on the ground with their zero marks end-to-end. As students watch, place a small car at the zero mark. Slowly move the car to students' right a short distance and ask students what its displacement is. Then move the car to the left of the zero mark. Point out that the car now has a negative displacement.

Students will learn more about vectors and scalars later when they study two-dimensional motion. For now, it is sufficient to introduce the terms and let students know that a vector includes information about direction.

[BL] Ask students whether each of the following is a vector quantity or a scalar quantity: temperature (scalar), force (vector), mass (scalar).

[OL] Ask students to provide examples of vector quantities and scalar quantities.

[Kinesthetic] Provide students with large arrows cut from construction paper. Have them use the arrows to identify the magnitude (number or length of arrows) and direction of displacement. Emphasize that distance cannot be represented by arrows because distance does not include direction.

### Snap Lab

#### Distance vs. Displacement

In this activity you will compare distance and displacement. Which term is more useful when making measurements?

• 1 recorded song available on a portable device
• 1 tape measure
• 3 pieces of masking tape
• A room (like a gym) with a wall that is large and clear enough for all pairs of students to walk back and forth without running into each other.
Procedure
1. One student from each pair should stand with their back to the longest wall in the classroom. Students should stand at least 0.5 meters away from each other. Mark this starting point with a piece of masking tape.
2. The second student from each pair should stand facing their partner, about two to three meters away. Mark this point with a second piece of masking tape.
3. Student pairs line up at the starting point along the wall.
4. The teacher turns on the music. Each pair walks back and forth from the wall to the second marked point until the music stops playing. Keep count of the number of times you walk across the floor.
5. When the music stops, mark your ending position with the third piece of masking tape.
6. Measure from your starting, initial position to your ending, final position.
7. Measure the length of your path from the starting position to the second marked position. Multiply this measurement by the total number of times you walked across the floor. Then add this number to your measurement from step 6.
8. Compare the two measurements from steps 6 and 7.

### Grasp Check

1. Which measurement is your total distance traveled?
2. Which measurement is your displacement?
3. When might you want to use one over the other?
1. Measurement of the total length of your path from the starting position to the final position gives the distance traveled, and the measurement from your initial position to your final position is the displacement. Use distance to describe the total path between starting and ending points,and use displacement to describe the shortest path between starting and ending points.
2. Measurement of the total length of your path from the starting position to the final position is distance traveled, and the measurement from your initial position to your final position is displacement. Use distance to describe the shortest path between starting and ending points, and use displacement to describe the total path between starting and ending points.
3. Measurement from your initial position to your final position is distance traveled, and the measurement of the total length of your path from the starting position to the final position is displacement. Use distance to describe the total path between starting and ending points, and use displacement to describe the shortest path between starting and ending points.
4. Measurement from your initial position to your final position is distance traveled, and the measurement of the total length of your path from the starting position to the final position is displacement. Use distance to describe the shortest path between starting and ending points, and use displacement to describe the total path between starting and ending points.

### Teacher Support

#### Teacher Support

Choose a room that is large enough for all students to walk unobstructed. Make sure the total path traveled is short enough that students can walk back and forth across it multiple times during the course of a song. Have them measure the distance between the two points and come to a consensus. When students measure their displacement, make sure that they measure forward from the direction they marked as the starting position. After they have completed the lab, have them discuss their results.

If you are describing only your drive to school, then the distance traveled and the displacement are the same—5 kilometers. When you are describing the entire round trip, distance and displacement are different. When you describe distance, you only include the magnitude, the size or amount, of the distance traveled. However, when you describe the displacement, you take into account both the magnitude of the change in position and the direction of movement.

In our previous example, the car travels a total of 10 kilometers, but it drives five of those kilometers forward toward school and five of those kilometers back in the opposite direction. If we ascribe the forward direction a positive (+) and the opposite direction a negative (–), then the two quantities will cancel each other out when added together.

A quantity, such as distance, that has magnitude (i.e., how big or how much) but does not take into account direction is called a scalar. A quantity, such as displacement, that has both magnitude and direction is called a vector.

### Watch Physics

#### Vectors & Scalars

This video introduces and differentiates between vectors and scalars. It also introduces quantities that we will be working with during the study of kinematics.

### Grasp Check

How does this video help you understand the difference between distance and displacement? Describe the differences between vectors and scalars using physical quantities as examples.
1. It explains that distance is a vector and direction is important, whereas displacement is a scalar and it has no direction attached to it.
2. It explains that distance is a scalar and direction is important, whereas displacement is a vector and it has no direction attached to it.
3. It explains that distance is a scalar and it has no direction attached to it, whereas displacement is a vector and direction is important.
4. It explains that both distance and displacement are scalar and no directions are attached to them.

### Teacher Support

#### Teacher Support

Define the concepts of vectors and scalars before watching the video.

[OL][BL] Come up with some examples of vectors and scalars and have the students classify each.

[AL] Discuss how the concept of direction might be important for the study of motion.

##### Displacement Problems

Hopefully you now understand the conceptual difference between distance and displacement. Understanding concepts is half the battle in physics. The other half is math. A stumbling block to new physics students is trying to wade through the math of physics while also trying to understand the associated concepts. This struggle may lead to misconceptions and answers that make no sense. Once the concept is mastered, the math is far less confusing.

So let’s review and see if we can make sense of displacement in terms of numbers and equations. You can calculate an object's displacement by subtracting its original position, d0, from its final position df. In math terms that means

$Δd= d f − d 0 . Δd= d f − d 0 .$

If the final position is the same as the initial position, then $Δd=0 Δd=0$ .

To assign numbers and/or direction to these quantities, we need to define an axis with a positive and a negative direction. We also need to define an origin, or O. In Figure 2.6, the axis is in a straight line with home at zero and school in the positive direction. If we left home and drove the opposite way from school, motion would have been in the negative direction. We would have assigned it a negative value. In the round-trip drive, df and d0 were both at zero kilometers. In the one way trip to school, df was at 5 kilometers and d0 was at zero km. So, $Δd Δd$ was 5 kilometers.

### Tips For Success

You may place your origin wherever you would like. You have to make sure that you calculate all distances consistently from your zero and you define one direction as positive and the other as negative. Therefore, it makes sense to choose the easiest axis, direction, and zero. In the example above, we took home to be zero because it allowed us to avoid having to interpret a solution with a negative sign.

### Worked Example

#### Calculating Distance and Displacement

A cyclist rides 3 km west and then turns around and rides 2 km east. (a) What is her displacement? (b) What distance does she ride? (c) What is the magnitude of her displacement? ### Strategy

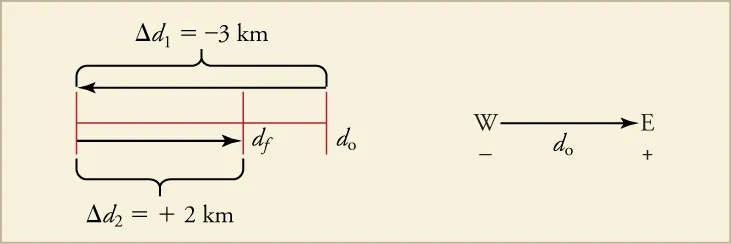

To solve this problem, we need to find the difference between the final position and the initial position while taking care to note the direction on the axis. The final position is the sum of the two displacements, $Δ d 1 Δ d 1$ and $Δ d 2 Δ d 2$ .

Discussion

The displacement is negative because we chose east to be positive and west to be negative. We could also have described the displacement as 1 km west. When calculating displacement, the direction mattered, but when calculating distance, the direction did not matter. The problem would work the same way if the problem were in the north–south or y-direction.

### Tips For Success

Physicists like to use standard units so it is easier to compare notes. The standard units for calculations are called SI units (International System of Units). SI units are based on the metric system. The SI unit for displacement is the meter (m), but sometimes you will see a problem with kilometers, miles, feet, or other units of length. If one unit in a problem is an SI unit and another is not, you will need to convert all of your quantities to the same system before you can carry out the calculation.

### Teacher Support

#### Teacher Support

Point out to students that the distance for each segment is the absolute value of the displacement along a straight path.

### Practice Problems

1.

On an axis in which moving from right to left is positive, what is the displacement and distance of a student who walks 32 m to the right and then 17 m to the left?

1. Displacement is -15 m and distance is -49 m.
2. Displacement is -15 m and distance is 49 m.
3. Displacement is 15 m and distance is -49 m.
4. Displacement is 15 m and distance is 49 m.
2.

Tiana jogs 1.5 km along a straight path and then turns and jogs 2.4 km in the opposite direction. She then turns back and jogs 0.7 km in the original direction. Let Tiana’s original direction be the positive direction. What are the displacement and distance she jogged?

1. Displacement is 4.6 km,and distance is -0.2 km.
2. Displacement is -0.2 km, and distance is 4.6 km.
3. Displacement is 4.6 km, and distance is +0.2 km.
4. Displacement is +0.2 km, and distance is 4.6 km.

### Work In Physics

#### Mars Probe Explosion

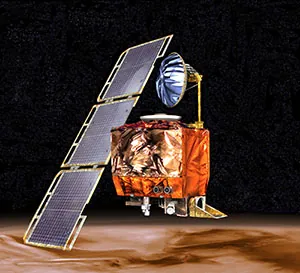

Figure 2.7 The Mars Climate Orbiter disaster illustrates the importance of using the correct calculations in physics. (NASA)

Physicists make calculations all the time, but they do not always get the right answers. In 1998, NASA, the National Aeronautics and Space Administration, launched the Mars Climate Orbiter, shown in Figure 2.7, a \$125-million-dollar satellite designed to monitor the Martian atmosphere. It was supposed to orbit the planet and take readings from a safe distance. The American scientists made calculations in English units (feet, inches, pounds, etc.) and forgot to convert their answers to the standard metric SI units. This was a very costly mistake. Instead of orbiting the planet as planned, the Mars Climate Orbiter ended up flying into the Martian atmosphere. The probe disintegrated. It was one of the biggest embarrassments in NASA’s history.

### Grasp Check

In 1999 the Mars Climate Orbiter crashed because calculation were performed in English units instead of SI units. At one point the orbiter was just 187,000 feet above the surface, which was too close to stay in orbit. What was the height of the orbiter at this time in kilometers? (Assume 1 meter equals 3.281 feet.)
1. 16 km
2. 18 km
3. 57 km
4. 614 km

### Teacher Support

#### Teacher Support

The text feature describes a real-life miscalculation made by astronomers at NASA. In this case, the Mars Climate Orbiter’s orbit needed to be calculated precisely because its machinery was designed to withstand only a certain amount of atmospheric pressure. The orbiter had to be close enough to the planet to take measurements and far enough away that it could remain structurally sound. One way to teach this concept would be to pick an orbital distance from Mars and have the students calculate the distance of the path and the height from the surface both in SI units and in English units. Ask why failure to convert might be a problem.

3.

What does it mean when motion is described as relative?

1. It means that motion of any object is described relative to the motion of Earth.
2. It means that motion of any object is described relative to the motion of any other object.
3. It means that motion is independent of the frame of reference.
4. It means that motion depends on the frame of reference selected.
4.
If you and a friend are standing side-by-side watching a soccer game, would you both view the motion from the same reference frame?
1. Yes, we would both view the motion from the same reference point because both of us are at rest in Earth’s frame of reference.
2. Yes, we would both view the motion from the same reference point because both of us are observing the motion from two points on the same straight line.
3. No, we would both view the motion from different reference points because motion is viewed from two different points; the reference frames are similar but not the same.
4. No, we would both view the motion from different reference points because response times may be different; so, the motion observed by both of us would be different.
5.
What is the difference between distance and displacement?
1. Distance has both magnitude and direction, while displacement has magnitude but no direction.
2. Distance has magnitude but no direction, while displacement has both magnitude and direction.
3. Distance has magnitude but no direction, while displacement has only direction.
4. There is no difference. Both distance and displacement have magnitude and direction.
6.
Which statement correctly describes a race car's distance traveled and magnitude of displacement during a one-lap car race around an oval track?
1. The perimeter of the race track is the distance; the shortest distance between the start line and the finish line is the magnitude of displacement.
2. The perimeter of the race track is the magnitude of displacement; the shortest distance between the start and finish line is the distance.
3. The perimeter of the race track is both the distance and magnitude of displacement.
4. The shortest distance between the start and the finish line is the magnitude of the displacement vector.
7.
Why is it important to specify a reference frame when describing motion?
1. Because Earth is continuously in motion; an object at rest on Earth will be in motion when viewed from outer space.
2. Because the position of a moving object can be defined only when there is a fixed reference frame.
3. Because motion is a relative term; it appears differently when viewed from different reference frames.
4. Because motion is always described in Earth’s frame of reference; if another frame is used, it has to be specified with each situation.

### Teacher Support

#### Teacher Support

Use the questions under Check Your Understanding to assess students’ achievement of the section’s learning objectives. If students are struggling with a specific objective, the formative assessment will help direct students to the relevant content.
