Section Learning Objectives

By the end of this section, you will be able to do the following:

  • Describe positive and negative electric charges
  • Use conservation of charge to calculate quantities of charge transferred between objects
  • Characterize materials as conductors or insulators based on their electrical properties
  • Describe electric polarization and charging by induction

Teacher Support

Teacher Support

The learning objectives in this section will help your students master the following standards

  • (5) The student knows the nature of forces in the physical world. The student is expected to:
    • (C) describe and calculate how the magnitude of the electrical force between two objects depends on their charges and the distance between them; and
    • (E) characterize materials as conductors or insulators based on their electrical properties.

In addition, the High School Physics Laboratory Manual addresses content in this section in the lab titled Electric Charge as well as the following standards:

  • (5) The student knows the nature of forces in the physical world. The student is expected to:
    • (C) describe and calculate how the magnitude of the electrical force between two objects depends on their charges and the distance between them; and
    • (E) characterize materials as conductors or insulators based on their electrical properties.

Section Key Terms

conduction conductor electron induction
insulator law of conservation of charge polarization proton

Electric Charge

You may know someone who has an electric personality, which usually means that other people are attracted to this person. This saying is based on electric charge, which is a property of matter that causes objects to attract or repel each other. Electric charge comes in two varieties, which we call positive and negative. Like charges repel each other, and unlike charges attract each other. Thus, two positive charges repel each other, as do two negative charges. A positive charge and a negative charge attract each other.

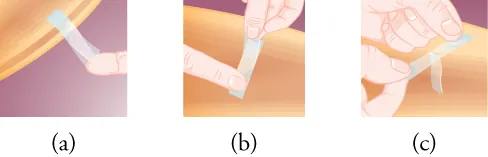

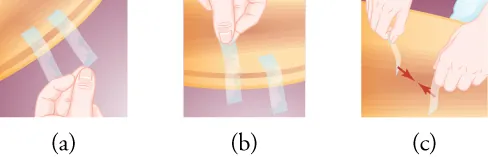

How do we know there are two types of electric charge? When various materials are rubbed together in controlled ways, certain combinations of materials always result in a net charge of one type on one material and a net charge of the opposite type on the other material. By convention, we call one type of charge positive and the other type negative. For example, when glass is rubbed with silk, the glass becomes positively charged and the silk negatively charged. Because the glass and silk have opposite charges, they attract one another like clothes that have rubbed together in a dryer. Two glass rods rubbed with silk in this manner will repel one another, because each rod has positive charge on it. Similarly, two silk cloths rubbed in this manner will repel each other, because both cloths have negative charge. Figure 18.2 shows how these simple materials can be used to explore the nature of the force between charges.

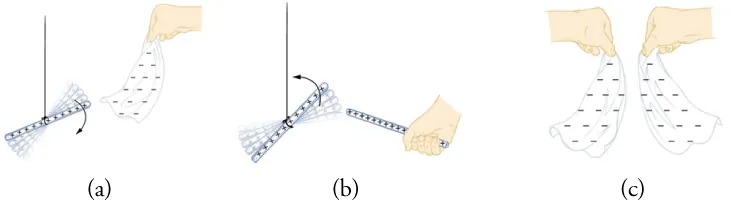

This figure has three parts. Part a: It shows a glass rod suspended from its middle by a string and a nearby silk cloth held from its upper edge by a hand. The glass rod has a series of plus signs, and the silk cloth has many minus signs. There are several faded images of the glass rod and a downward pointing arrow, suggesting the rod's movement toward the cloth. The lower edge of the cloth bends toward the rod. Part b: It shows two glass rods near each other, each with a series of plus signs. One rod is held from one end by a hand, and the other rod is suspended from its middle by a string. There are several faded images of the suspended rod and an upward pointing arrow, suggesting its movement away from the handheld rod. Part c: It shows two silk cloths held by hand near each other, each with a number of minus signs. The lower edges of the cloths curve away from each other.
Figure 18.2 A glass rod becomes positively charged when rubbed with silk, whereas the silk becomes negatively charged. (a) The glass rod is attracted to the silk, because their charges are opposite. (b) Two similarly charged glass rods repel. (c) Two similarly charged silk cloths repel.

Teacher Support

Teacher Support

Teacher Demonstration

Prepare a demonstration of static electricity. A simple demonstration may be to charge a glass rod or comb by rubbing it with wool, silk, or other cloth and then charge an inflated balloon by rubbing it on your shirt or hair. Place the balloon on a nonconducting tabletop, and use the glass rod or comb to repel the balloon and make it roll across the tabletop. Amuse the students by pushing the balloon first in one direction and then quickly moving the glass rod or comb to the opposite side of the balloon to make it decelerate and then move in the opposite direction. Ask which type of force is at work between the balloon and the glass rod or comb (a repulsive force).

It took scientists a long time to discover what lay behind these two types of charges. The word electric itself comes from the Greek word elektron for amber, because the ancient Greeks noticed that amber, when rubbed by fur, attracts dry straw. Almost 2,000 years later, the English physicist William Gilbert proposed a model that explained the effect of electric charge as being due to a mysterious electrical fluid that would pass from one object to another. This model was debated for several hundred years, but it was finally put to rest in 1897 by the work of the English physicist J. J. Thomson and French physicist Jean Perrin. Along with many others, Thomson and Perrin were studying the mysterious cathode rays that were known at the time to consist of particles smaller than the smallest atom. Perrin showed that cathode rays actually carried negative electrical charge. Later, Thomson’s work led him to declare, “I can see no escape from the conclusion that [cathode rays] are charges of negative electricity carried by particles of matter.”

It took several years of further experiments to confirm Thomson’s interpretation of the experiments, but science had in fact discovered the particle that carries the fundamental unit of negative electrical charge. We now know this particle as the electron.

Atoms, however, were known to be electrically neutral, which means that they carry the same amount of positive and negative charge, so their net charge is zero. Because electrons are negative, some other part of the atom must contain positive charge. Thomson put forth what is called the plum pudding model, in which he described atoms as being made of thousands of electrons swimming around in a nebulous mass of positive charge, as shown by the left-side image of Figure 18.3. His student, Ernest Rutherford, originally believed that this model was correct and used it (along with other models) to try to understand the results of his experiments bombarding gold foils with alpha particles (i.e., helium atoms stripped of their electrons). The results, however, did not confirm Thomson’s model but rather destroyed it! Rutherford found that most of the space occupied by the gold atoms was actually empty and that almost all of the matter of each atom was concentrated into a tiny, extremely dense nucleus, as shown by the right-side image of Figure 18.3. The atomic nucleus was later found to contain particles called protons, each of which carries a unit of positive electric charge.1

This figure has two drawings, side by side. The drawing on the left shows a large blue sphere, one-eighth of which has been cut out. A number of small red spheres are on the surface of the blue sphere and within the cut-away part of the blue sphere. Also, a number of faded red spheres lie within the blue sphere. The drawing on the right shows four ellipses evenly spaced around a common center, with a small blue sphere in each ellipse. Near the top is the word “Electrons,” with two lines connecting that word to two of the blue spheres. The common center contains a clump of four small red spheres and five small gray spheres. Near the top is another word, “Nucleus,” with a line connecting that word to the clump of spheres at the center.

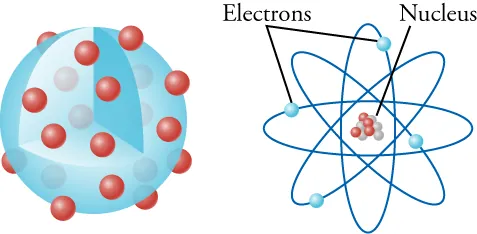

Figure 18.3 The left drawing shows Thompson’s plum-pudding model, in which the electrons swim around in a nebulous mass of positive charge. The right drawing shows Rutherford’s model, in which the electrons orbit around a tiny, massive nucleus. Note that the size of the nucleus is vastly exaggerated in this drawing. Were it drawn to scale with respect to the size of the electron orbits, the nucleus would not be visible to the naked eye in this drawing. Also, as far as science can currently detect, electrons are point particles, which means that they have no size at all!

Protons and electrons are thus the fundamental particles that carry electric charge. Each proton carries one unit of positive charge, and each electron carries one unit of negative charge. To the best precision that modern technology can provide, the charge carried by a proton is exactly the opposite of that carried by an electron. The SI unit for electric charge is the coulomb (abbreviated as “C”), which is named after the French physicist Charles Augustin de Coulomb, who studied the force between charged objects. The proton carries +1.602× 10 −19 C. +1.602× 10 −19 C. and the electron carries −1.602× 10 −19 C, −1.602× 10 −19 C, . The number n of protons required to make +1.00 C is

n=1.00C× 1proton 1.602× 10 19 C =6.25× 10 18 protons. n=1.00C× 1proton 1.602× 10 19 C =6.25× 10 18 protons.
18.1

The same number of electrons is required to make −1.00 C of electric charge. The fundamental unit of charge is often represented as e. Thus, the charge on a proton is e, and the charge on an electron is −e. Mathematically, e=+1.602× 10 −19 C. e=+1.602× 10 −19 C.

Snap Lab

Like and Unlike Charges

This activity investigates the repulsion and attraction caused by static electrical charge.

  • Adhesive tape
  • Nonconducting surface, such as a plastic table or chair

Instructions

Procedure for Part (a)
  1. Prepare two pieces of tape about 4 cm long. To make a handle, double over about 0.5 cm at one end so that the sticky side sticks together.
  2. Attach the pieces of tape side by side onto a nonmetallic surface, such as a tabletop or the seat of a chair, as shown in Figure 18.5(a).
  3. Peel off both pieces of tape and hang them downward, holding them by the handles, as shown in Figure 18.5(b). If the tape bends upward and sticks to your hand, try using a shorter piece of tape, or simply shake the tape so that it no longer sticks to your hand.
  4. Now slowly bring the two pieces of tape together, as shown in Figure 18.5(c). What happens?
This image has three parts. Part a shows two pieces of sticky tape attached to the edge of an arc-shaped object, with someone's fingers near the end of one tape. Part b shows someone's fingers lifting one tape piece away from the arc-shaped object, while the other tape piece remains attached to the object. Part c shows a left hand and a right hand, each holding a piece of tape from one end. Two short red arrows, each starting from the free end of a piece of tape, point toward each other.
Figure 18.5
Procedure for Part (b)
  1. Stick one piece of tape on the nonmetallic surface, and stick the second piece of tape on top of the first piece, as shown in Figure 18.6(a).
  2. Slowly peel off the two pieces by pulling on the handle of the bottom piece.
  3. Gently stroke your finger along the top of the second piece of tape (i.e., the nonsticky side), as shown in Figure 18.6(b).
  4. Peel the two pieces of tape apart by pulling on their handles, as shown in Figure 18.6(c).
  5. Slowly bring the two pieces of tape together. What happens?
This image has three parts. Part a shows two pieces of sticky tape, with one stuck over the other, and with the lower tape attached to the edge of an arc-shaped object. The two tapes are slightly separated from each other at one end. In part b, someone's hand holds the two pieces of tape from the end where they are separated, while a finger touches the other end. Part c shows two hands pulling the two pieces of tape apart.
Figure 18.6

Grasp Check

In step 4, why did the two pieces of tape repel each other? In step 9, why did they attract each other?

  1. Like charges attract, while unlike charges repel each other.
  2. Like charges repel, while unlike charges attract each other.
  3. Tapes having positive charge repel, while tapes having negative charge attract each other.
  4. Tapes having negative charge repel, while tapes having positive charge attract each other.

Conservation of Charge

Teacher Support

Teacher Support

[BL][OL]Discuss what is meant by conservation in the physics sense. Point out how conservation laws serve as accounting rules that allow us to keep track of certain quantities. This is similar to knowing how many students are on a field trip and using that information to ensure that no students go missing. Because students cannot vanish into thin air, counting the students allows the teacher to know whether any students are not present. If they are not present, then they must be elsewhere, and a search can begin.

[AL]Ask what other laws of conservation they have encountered in physics, and discuss how these laws are used.

Because the fundamental positive and negative units of charge are carried on protons and electrons, we would expect that the total charge cannot change in any system that we define. In other words, although we might be able to move charge around, we cannot create or destroy it. This should be true provided that we do not create or destroy protons or electrons in our system. In the twentieth century, however, scientists learned how to create and destroy electrons and protons, but they found that charge is still conserved. Many experiments and solid theoretical arguments have elevated this idea to the status of a law. The law of conservation of charge says that electrical charge cannot be created or destroyed.

The law of conservation of charge is very useful. It tells us that the net charge in a system is the same before and after any interaction within the system. Of course, we must ensure that no external charge enters the system during the interaction and that no internal charge leaves the system. Mathematically, conservation of charge can be expressed as

q initial = q final . q initial = q final .
18.2

where q initial q initial is the net charge of the system before the interaction, and q final, q final, is the net charge after the interaction.

Worked Example

What is the missing charge?

Figure 18.7 shows two spheres that initially have +4 C and +8 C of charge. After an interaction (which could simply be that they touch each other), the blue sphere has +10 C of charge, and the red sphere has an unknown quantity of charge. Use the law of conservation of charge to find the final charge on the red sphere.

Strategy

The net initial charge of the system is q initial =+4C+8C=+12C q initial =+4C+8C=+12C . The net final charge of the system is q final =+10C+ q red q final =+10C+ q red , where q red q red is the final charge on the red sphere. Conservation of charge tells us that q initial = q final q initial = q final , so we can solve for q red q red .

Discussion

Like all conservation laws, conservation of charge is an accounting scheme that helps us keep track of electric charge.

Practice Problems

1.

Which equation describes conservation of charge?

  1. qinitial = qfinal = constant
  2. qinitial = qfinal = 0
  3. qinitialqfinal = 0
  4. qinitial/qfinal = constant
2.
An isolated system contains two objects with charges q 1 and q 2 . If object 1 loses half of its charge, what is the final charge on object 2?
  1. q 2 2
  2. 3 q 2 2
  3. q 2 q 1 2
  4. q 2 + q 1 2

Conductors and Insulators

Teacher Support

Teacher Support

[BL]Have students define the meaning of conductor and insulator. Explain how these terms are used in physics to mean materials that allow a quantity to pass through and those that do not.

[OL]Ask students whether they have encountered conductors and insulators in their everyday lives. What are the properties of these materials? Be prepared to discuss and differentiate thermal conductors and insulators.

[AL]Ask whether students recall other conductors and insulators in physics. Discuss how thermal insulators and conductors function with regard to thermal energy.

Materials can be classified depending on whether they allow charge to move. If charge can easily move through a material, such as metals, then these materials are called conductors. This means that charge can be conducted (i.e., move) through the material rather easily. If charge cannot move through a material, such as rubber, then this material is called an insulator.

Most materials are insulators. Their atoms and molecules hold on more tightly to their electrons, so it is difficult for electrons to move between atoms. However, it is not impossible. With enough energy, it is possible to force electrons to move through an insulator. However, the insulator is often physically destroyed in the process. In metals, the outer electrons are loosely bound to their atoms, so not much energy is required to make electrons move through metal. Such metals as copper, silver, and aluminum are good conductors. Insulating materials include plastics, glass, ceramics, and wood.

The conductivity of some materials is intermediate between conductors and insulators. These are called semiconductors. They can be made conductive under the right conditions, which can involve temperature, the purity of the material, and the force applied to push electrons through them. Because we can control whether semiconductors are conductors or insulators, these materials are used extensively in computer chips. The most commonly used semiconductor is silicon. Figure 18.8 shows various materials arranged according to their ability to conduct electrons.

Thirteen materials are arranged in a horizontal series, according to their ability to conduct electric charge. The materials, ranging from the least conductive on the left to the most conductive on the right, are: “Dry air”, “Dry wood”, “Rubber8, “Glass”, “Silicon”, “Germanium”, “Sea water”, “Carbon”, “Mercury”, “Iron”, “Aluminum”, “Copper”, and “Silver”. Above the names of the materials is a long, horizontal arrow pointing rightward. The arrow is broken in two places, producing three segments. The left segment, labeled “Insulators”, is above the materials Dry air to Glass; the middle segment, labeled “Semiconductors”, is above Silicon and Germanium; and the right segment, labeled “Conductors”, is above the materials Sea water to Silver. Below the names of the materials are numbers that give the resistivity of each material in ohm-meter.

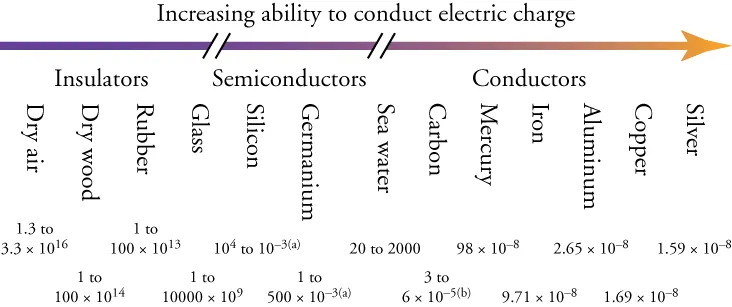

Figure 18.8 Materials can be arranged according to their ability to conduct electric charge. The slashes on the arrow mean that there is a very large gap in conducting ability between conductors, semiconductors, and insulators, but the drawing is compressed to fit on the page. The numbers below the materials give their resistivity in Ω•m (which you will learn about below). The resistivity is a measure of how hard it is to make charge move through a given material.

Teacher Support

Teacher Support

Point out that the scale is not linear, which means that the conductivity of the insulators is much, much less than that of conductors. Also point out that semiconductors are often made to act as insulators or as conductors, but not as materials with a conductivity that is between that of insulators and conductors.

What happens if an excess negative charge is placed on a conducting object? Because like charges repel each other, they will push against each other until they are as far apart as they can get. Because the charge can move in a conductor, it moves to the outer surfaces of the object. Figure 18.9(a) shows schematically how an excess negative charge spreads itself evenly over the outer surface of a metal sphere.

What happens if the same is done with an insulating object? The electrons still repel each other, but they are not able to move, because the material is an insulator. Thus, the excess charge stays put and does not distribute itself over the object. Figure 18.9(b) shows this situation.

This figure has two parts, each consisting of a sphere. In Part a, there are minus signs distributed relatively evenly around the sphere. In Part b, there are minus signs concentrated in the upper right quadrant of the face of the sphere.

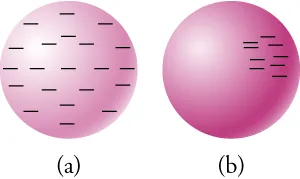

Figure 18.9 (a) A conducting sphere with excess negative charge (i.e., electrons). The electrons repel each other and spread out to cover the outer surface of the sphere. (b) An insulating sphere with excess negative charge. The electrons cannot move, so they remain in their original positions.

Teacher Support

Teacher Support

Point out that static buildup does not remain forever on an object. Ask students how a static charge may escape from an object. Point out that this static buildup is dissipated faster on humid days than on dry days.

Transfer and Separation of Charge

Teacher Support

Teacher Support

[BL][OL]Ask how the concept of static electricity can be compatible with transfer of charge. Isn’t transfer of charge the movement of charge, which contradicts being static?

[AL]Ask students to define separation of charge. Prepare to explain why this does not mean splitting electrons apart.

Most objects we deal with are electrically neutral, which means that they have the same amount of positive and negative charge. However, transferring negative charge from one object to another is fairly easy to do. When negative charge is transferred from one object to another, an excess of positive charge is left behind. How do we know that the negative charge is the mobile charge? The positive charge is carried by the proton, which is stuck firmly in the nucleus of atoms, and the atoms are stuck in place in solid materials. Electrons, which carry the negative charge, are much easier to remove from their atoms or molecules and can therefore be transferred more easily.

Electric charge can be transferred in several manners. One of the simplest ways to transfer charge is charging by contact, in which the surfaces of two objects made of different materials are placed in close contact. If one of the materials holds electrons more tightly than the other, then it takes some electrons with it when the materials are separated. Rubbing two surfaces together increases the transfer of electrons, because it creates a closer contact between the materials. It also serves to present fresh material with a full supply of electrons to the other material. Thus, when you walk across a carpet on a dry day, your shoes rub against the carpet, and some electrons are removed from the carpet by your shoes. The result is that you have an excess of negative charge on your shoes. When you then touch a doorknob, some of your excess of electrons transfer to the neutral doorknob, creating a small spark.

Touching the doorknob with your hand demonstrates a second way to transfer electric charge, which is charging by conduction. This transfer happens because like charges repel, and so the excess electrons that you picked up from the carpet want to be as far away from each other as possible. Some of them move to the doorknob, where they will distribute themselves over the outer surface of the metal. Another example of charging by conduction is shown in the top row of Figure 18.10. A metal sphere with 100 excess electrons touches a metal sphere with 50 excess electrons, so 25 electrons from the first sphere transfer to the second sphere. Each sphere finishes with 75 excess electrons.

The same reasoning applies to the transfer of positive charge. However, because positive charge essentially cannot move in solids, it is transferred by moving negative charge in the opposite direction. For example, consider the bottom row of Figure 18.10. The first metal sphere has 100 excess protons and touches a metal sphere with 50 excess protons, so the second sphere transfers 25 electrons to the first sphere. These 25 extra electrons will electrically cancel 25 protons so that the first metal sphere is left with 75 excess protons. This is shown in the bottom row of Figure 18.10. The second metal sphere lost 25 electrons so it has 25 more excess protons, for a total of 75 excess protons. The end result is the same if we consider that the first ball transferred a net positive charge equal to that of 25 protons to the first ball.

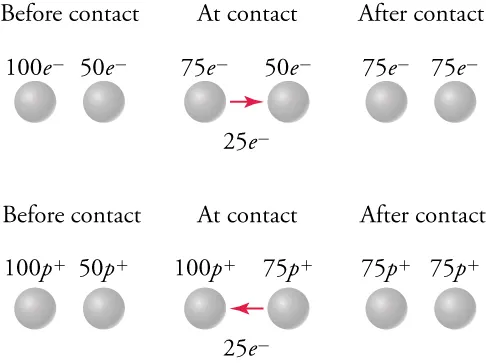

This figure consists of two rows, and each row is divided into three columns labeled as “Before contact”, “At contact”, and “After contact”. Each column contains two small spheres. First consider the top row: In the “Before contact” column, the left sphere is labeled “100 e superscript minus”, the right sphere is labeled “50 e superscript minus”. In the “At contact” column, the left sphere is labeled “75 e superscript minus”, the right sphere is labeled “50 e superscript minus”. An arrow points from the left sphere to the right one and is labeled “25 e superscript minus”. In the “After contact” column, the left sphere is labeled “75 e superscript minus”, the right sphere is labeled “75 e superscript minus”. Next consider the bottom row: In the “Before contact” column, the left sphere is labeled “100 p superscript plus”, the right sphere is labeled “50 p superscript plus”. In the “At contact” column, the left sphere is labeled “100 p superscript plus”, the right sphere is labeled “75 p superscript plus”. An arrow points from the right sphere to the left one and is labeled “25 e superscript minus”. In the “After contact” column, the left sphere is labeled “75 p superscript plus”, the right sphere is labeled “75 p superscript plus”.
Figure 18.10 In the top row, a metal sphere with 100 excess electrons transfers 25 electrons to a metal sphere with an excess of 50 electrons. After the transfer, both spheres have 75 excess electrons. In the bottom row, a metal sphere with 100 excess protons receives 25 electrons from a ball with 50 excess protons. After the transfer, both spheres have 75 excess protons.

Teacher Support

Teacher Support

Point out how the total charge at each instant is the same. Discuss how moving electrons to the right is equivalent to moving the same magnitude of positive charge to the left, but be sure to clarify that, in most situations, only negative charges actually move in solids.

[BL][OL]Discuss the meaning of polarization in everyday language. For example, discuss what is meant by a polarizing debate or a polarized Congress. Compare and contrast the everyday meaning with the physics meaning.

[AL]Ask what other examples of polarization they can think of from everyday life.

In this discussion, you may wonder how the excess electrons originally got from your shoes to your hand to create the spark when you touched the doorknob. The answer is that no electrons actually traveled from your shoes to your hands. Instead, because like charges repel each other, the excess electrons on your shoe simply pushed away some of the electrons in your feet. The electrons thus dislodged from your feet moved up into your leg and in turn pushed away some electrons in your leg. This process continued through your whole body until a distribution of excess electrons covered the extremities of your body. Thus your head, your hands, the tip of your nose, and so forth all received their doses of excess electrons that had been pushed out of their normal positions. All this was the result of electrons being pushed out of your feet by the excess electrons on your shoes.

This type of charge separation is called polarization. As soon as the excess electrons leave your shoes (by rubbing off onto the floor or being carried away in humid air), the distribution of electrons in your body returns to normal. Every part of your body is again electrically neutral (i.e., zero excess charge).

The phenomenon of polarization is seen in Figure 18.1. The child has accumulated excess positive charge by sliding on the slide. This excess charge repels itself and so becomes distributed over the extremities of the child’s body, notably in his hair. As a result, the hair stands on end, because the excess negative charge on each strand repels the excess positive charge on neighboring strands.

Polarization can be used to charge objects. Consider the two metallic spheres shown in Figure 18.11. The spheres are electrically neutral, so they carry the same amounts of positive and negative charge. In the top picture (Figure 18.11(a)), the two spheres are touching, and the positive and negative charge is evenly distributed over the two spheres. We then approach a glass rod that carries an excess positive charge, which can be done by rubbing the glass rod with silk, as shown in Figure 18.11(b). Because opposite charges attract each other, the negative charge is attracted to the glass rod, leaving an excess positive charge on the opposite side of the right sphere. This is an example of charging by induction, whereby a charge is created by approaching a charged object with a second object to create an unbalanced charge in the second object. If we then separate the two spheres, as shown in Figure 18.11(c), the excess charge is stuck on each sphere. The left sphere now has an excess negative charge, and the right sphere has an excess positive charge. Finally, in the bottom picture, the rod is removed, and the opposite charges attract each other, so they move as close together as they can get.

This figure has four parts, each consisting of a pair of spheres adjacent to each other. Each sphere is on a short pedestal, and all spheres and pedestals are equal in size. In Parts (a) and (b), the pair of spheres are touching each other, but in Parts (c) and (d), the pair of spheres are slightly separated from each other. In Part (a), there is no charge on either sphere. In Part (b), a rod marked with plus signs is shown close to the left sphere, which in turn has minus signs along its left edge. The right sphere has plus signs along its right edge. Part (c) is similar to Part (b), except for separation between the pair of spheres. In Part (d), minus signs are aligned along the right edge of the left sphere, and plus signs are aligned along the left edge of the right sphere. There is no rod in Part (d).

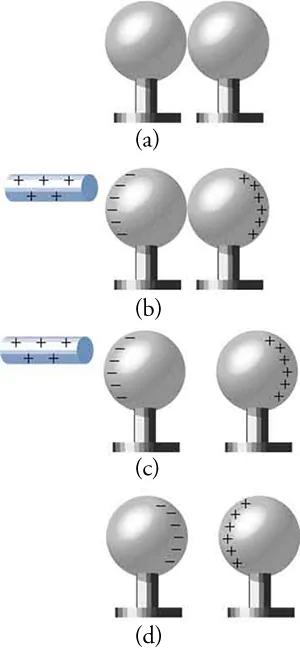

Figure 18.11 (a) Two neutral conducting spheres are touching each other, so the charge is evenly spread over both spheres. (b) A positively charged rod approaches, which attracts negative charges, leaving excess positive charge on the right sphere. (c) The spheres are separated. Each sphere now carries an equal magnitude of excess charge. (d) When the positively charged rod is removed, the excess negative charge on the left sphere is attracted to the excess positive charge on the right sphere.

Teacher Support

Teacher Support

Discuss the analogous situation with insulating spheres. Point out how the spheres remain neutral despite being polarized in panels (b) and (c).

Fun In Physics

Create a Spark in a Science Fair

Van de Graaff generators are devices that are used not only for serious physics research but also for demonstrating the physics of static electricity at science fairs and in classrooms. Because they deliver relatively little electric current, they can be made safe for use in such environments. The first such generator was built by Robert Van de Graaff in 1931 for use in nuclear physics research. Figure 18.12 shows a simplified sketch of a Van de Graaff generator.

Van de Graaff generators use smooth and pointed surfaces and conductors and insulators to generate large static charges. In the version shown in Figure 18.12, electrons are “sprayed” from the tips of the lower comb onto a moving belt, which is made of an insulating material like, such as rubber. This technique of charging the belt is akin to charging your shoes with electrons by walking across a carpet. The belt raises the charges up to the upper comb, where they transfer again, akin to your touching the doorknob and transferring your charge to it. Because like charges repel, the excess electrons all rush to the outer surface of the globe, which is made of metal (a conductor). Thus, the comb itself never accumulates too much charge, because any charge it gains is quickly depleted by the charge moving to the outer surface of the globe.

This is a diagram in which two small circles are arranged vertically and are labeled “Upper roller” and “Lower roller”. The two circles are connected by a band labeled “Rubber belt”. A comb-shaped structure touches each circle, and these structures are labeled “Upper comb” and “Lower comb”. The upper circle is in the center of a larger circle labeled “Metal sphere”, and the lower circle is enclosed in a rectangle. A bent line connects the upper comb to the larger circle, and another bent line connects the lower comb to the rectangle and to the ground below the rectangle. A series of minus signs, labeled “Electrons”, is accompanied by a series of arrows, suggesting the flow of electrons from within the rectangle and the lower circle to the upper circle and then to the larger circle.

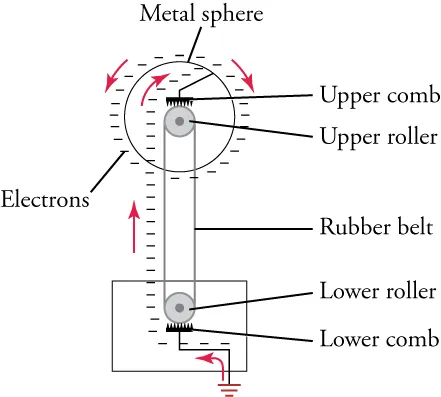

Figure 18.12 Van de Graaff generators transfer electrons onto a metallic sphere, where the electrons distribute themselves uniformly over the outer surface.

Van de Graaff generators are used to demonstrate many interesting effects caused by static electricity. By touching the globe, a person gains excess charge, so his or her hair stands on end, as shown in Figure 18.13. You can also create mini lightning bolts by moving a neutral conductor toward the globe. Another favorite is to pile up aluminum muffin tins on top of the uncharged globe, then turn on the generator. Being made of conducting material, the tins accumulate excess charge. They then repel each other and fly off the globe one by one. A quick Internet search will show many examples of what you can do with a Van de Graaff generator.

This is a photograph of a man touching the large sphere of a Van de Graaff generator, causing his hair to stand on end. The picture also shows two observers, one of whom has extended his right arm toward the man touching the generator.

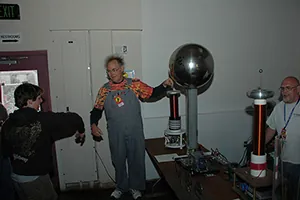

Figure 18.13 The man touching the Van de Graaff generator has excess charge, which spreads over his hair and repels hair strands from his neighbors. (credit: Jon “ShakataGaNai” Davis)

Grasp Check

Why don’t the electrons stay on the rubber belt when they reach the upper comb?

  1. The upper comb has no excess electrons, and the excess electrons in the rubber belt get transferred to the comb by contact.
  2. The upper comb has no excess electrons, and the excess electrons in the rubber belt get transferred to the comb by conduction.
  3. The upper comb has excess electrons, and the excess electrons in the rubber belt get transferred to the comb by conduction.
  4. The upper comb has excess electrons, and the excess electrons in the rubber belt get transferred to the comb by contact.

Virtual Physics

Balloons and Static Electricity

This simulation allows you to observe negative charge accumulating on a balloon as you rub it against a sweater. You can then observe how two charged balloons interact and how they cause polarization in a wall.

Grasp Check

Click the reset button, and start with two balloons. Charge a first balloon by rubbing it on the sweater, and then move it toward the second balloon. Why does the second balloon not move?

  1. The second balloon has an equal number of positive and negative charges.
  2. The second balloon has more positive charges than negative charges.
  3. The second balloon has more negative charges than positive charges.
  4. The second balloon is positively charged and has polarization.

Snap Lab

Polarizing Tap Water

This lab will demonstrate how water molecules can easily be polarized.

  • Plastic object of small dimensions, such as comb or plastic stirrer
  • Source of tap water

Instructions

Procedure
  1. Thoroughly rub the plastic object with a dry cloth.
  2. Open the faucet just enough to let a smooth filament of water run from the tap.
  3. Move an edge of the charged plastic object toward the filament of running water.

What do you observe? What happens when the plastic object touches the water filament? Can you explain your observations?

Grasp Check

Why does the water curve around the charged object?
  1. The charged object induces uniform positive charge on the water molecules.
  2. The charged object induces uniform negative charge on the water molecules.
  3. The charged object attracts the polarized water molecules and ions that are dissolved in the water.
  4. The charged object depolarizes the water molecules and the ions dissolved in the water.

Worked Example

Charging Ink Droplets

Electrically neutral ink droplets in an ink-jet printer pass through an electron beam created by an electron gun, as shown in Figure 18.14. Some electrons are captured by the ink droplet, so that it becomes charged. After passing through the electron beam, the net charge of the ink droplet is q inkdrop =−1× 10 −10 C q inkdrop =−1× 10 −10 C . How many electrons are captured by the ink droplet?

Six small purple spheres, each marked as “e superscript minus”, are arranged vertically and labeled as “electrons”. The three lowest spheres are enclosed in a rectangle, the fourth one above them is crossing the upper edge of the rectangle, and the two uppermost spheres are outside the rectangle. An arrow next to the two uppermost spheres is pointing upward, suggesting the direction of movement of the purple spheres. A much larger black sphere, labeled “Ink droplet”, is above and to the left of the column of purple spheres, and an arrow pointing toward the right suggests the direction of movement of the black sphere.

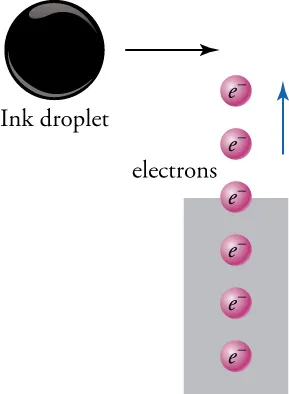

Figure 18.14 Electrons from an electron gun charge a passing ink droplet.

Strategy

A single electron carries a charge of q e =−1.602× 10 −19 C q e =−1.602× 10 −19 C . Dividing the net charge of the ink droplet by the charge q e q e of a single electron will give the number of electrons captured by the ink droplet.

Discussion

This is almost a billion electrons! It seems like a lot, but it is quite small compared to the number of atoms in an ink droplet, which number about 10 16 . 10 16 . Thus, each extra electron is shared between about 10 16 / ( 6× 10 8 ) 10 7 10 16 / ( 6× 10 8 ) 10 7 atoms.

Practice Problems

3.

How many protons are needed to make 1 nC of charge? 1 nC = 10−9 C

  1. 1.6 × 10−28
  2. 1.6 × 10−10
  3. 3 × 109
  4. 6 × 109
4.
In a physics lab, you charge up three metal spheres, two with + 3 nC and one with 5 nC . When you bring all three spheres together so that they all touch one another, what is the total charge on the three spheres?
  1. + 1 nC
  2. + 3 nC
  3. + 5 nC
  4. + 6 nC

Check Your Understanding

5.

How many types of electric charge exist?

  1. one type
  2. two types
  3. three types
  4. four types
6.

Which are the two main electrical classifications of materials based on how easily charges can move through them?

  1. conductor and insulator
  2. semiconductor and insulator
  3. conductor and superconductor
  4. conductor and semiconductor
7.

True or false—A polarized material must have a nonzero net electric charge.

  1. true
  2. false
8.

Describe the force between two positive point charges that interact.

  1. The force is attractive and acts along the line joining the two point charges.
  2. The force is attractive and acts tangential to the line joining the two point charges.
  3. The force is repulsive and acts along the line joining the two point charges.
  4. The force is repulsive and acts tangential to the line joining the two point charges.
9.

How does a conductor differ from an insulator?

  1. Electric charges move easily in an insulator but not in a conducting material.
  2. Electric charges move easily in a conductor but not in an insulator.
  3. A conductor has a large number of electrons.
  4. More charges are in an insulator than in a conductor.
10.

True or false—Charging an object by polarization requires touching it with an object carrying excess charge.

  1. true
  2. false

Footnotes

  • 1Protons were later found to contain sub particles called quarks, which have fractional electric charge. But that is another story that we leave for subsequent physics courses.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute “Texas Education Agency (TEA)." The original material is available at: https://www.texasgateway.org/book/tea-physics . Changes were made to the original material, including updates to art, structure, and other content updates.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
Citation information

© Sep 25, 2020 Texas Education Agency (TEA). The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
