17.2 Applications of Diffraction, Interference, and Coherence

Physics17.2 Applications of Diffraction, Interference, and Coherence

Section Learning Objectives

By the end of this section, you will be able to do the following:

  • Explain behaviors of waves, including reflection, refraction, diffraction, interference, and coherence, and describe applications based on these behaviors
  • Perform calculations related to applications based on wave properties of light

Teacher Support

Teacher Support

The learning objectives in this section will help your students master the following standards:

  • (7) Science concepts. The student knows the characteristics and behavior of waves. The student is expected to:
    • (D) investigate behaviors of waves, including reflection, refraction, diffraction, interference, resonance, and the Doppler effect and
    • (F) describe the role of wave characteristics and behaviors in medical and industrial applications.

Section Key Terms

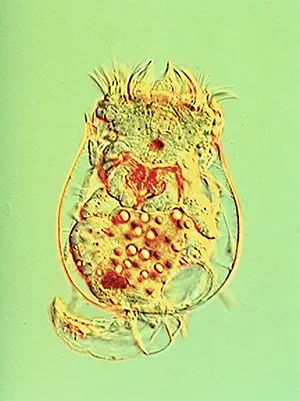

differential interference contrast (DIC) diffraction grating iridescence laser
monochromator Rayleigh criterion resolution

Wave-Based Applications of Light

Teacher Support

Teacher Support

[BL]Define the terms laser, diffraction grating, and resolution.

[OL]Remind students of the meaning of coherent light in terms of wave properties. Ask students to name examples of lasers and diffraction gratings. Suggest common ones they miss, such as lasers used in surgery, as pointers, for reading CDs, and diffraction gratings on the surface of CDs, iridescent minerals, backs of beetles, and in spectroscopes.

[AL]Explain how, for very short wavelengths ( λ< 10 −12  m λ< 10 −12  m ), the limit of resolution is related to Heisenberg’s uncertainty principle.

Misconception Alert

Perfect resolution is impossible. There will always be some blurring of images, no matter what the size of the aperture or the wavelength of light used to make an image.

In 1917, Albert Einstein was thinking about photons and excited atoms. He considered an atom excited by a certain amount of energy and what would happen if that atom were hit by a photon with the same amount of energy. He suggested that the atom would emit a photon with that amount of energy, and it would be accompanied by the original photon. The exciting part is that you would have two photons with the same energy and they would be in phase. Those photons could go on to hit other excited atoms, and soon you would have a stream of in-phase photons. Such a light stream is said to be coherent. Some four decades later, Einstein’s idea found application in a process called, light amplification by stimulated emission of radiation. Take the first letters of all the words (except by and “of”) and write them in order. You get the word laser (see Figure 17.2 (a)), which is the name of the device that produces such a beam of light.

Laser beams are directional, very intense, and narrow (only about 0.5 mm in diameter). These properties lead to a number of applications in industry and medicine. The following are just a few examples:

  • This chapter began with a picture of a compact disc (see Figure 17.1). Those audio and data-storage devices began replacing cassette tapes during the 1990s. CDs are read by interpreting variations in reflections of a laser beam from the surface.
  • Some barcode scanners use a laser beam.
  • Lasers are used in industry to cut steel and other metals.
  • Lasers are bounced off reflectors that astronauts left on the Moon. The time it takes for the light to make the round trip can be used to make precise calculations of the Earth-Moon distance.
  • Laser beams are used to produce holograms. The name hologram means entire picture (from the Greek holo-, as in holistic), because the image is three-dimensional. A viewer can move around the image and see it from different perspectives. Holograms take advantage of the wave properties of light, as opposed to traditional photography which is based on geometric optics. A holographic image is produced by constructive and destructive interference of a split laser beam.
  • One of the advantages of using a laser as a surgical tool is that it is accompanied by very little bleeding.
  • Laser eye surgery has improved the vision of many people, without the need for corrective lenses. A laser beam is used to change the shape of the lens of the eye, thus changing its focal length.

Virtual Physics

Lasers

This animation allows you to examine the workings of a laser. First view the picture of a real laser. Change the energy of the incoming photons, and see if you can match it to an excitation level that will produce pairs of coherent photons. Change the excitation level and try to match it to the incoming photon energy.

In the animation there is only one excited atom. Is that the case for a real laser? Explain.

  1. No, a laser would have two excited atoms.
  2. No, a laser would have several million excited atoms.
  3. Yes, a laser would have only one excited atom.
  4. No, a laser would have on the order of 1023 excited atoms.

An interesting thing happens if you pass light through a large number of evenly-spaced parallel slits. Such an arrangement of slits is called a diffraction grating. An interference pattern is created that is very similar to the one formed by double-slit diffraction (see Figure 17.8 and Figure 17.9). A diffraction grating can be manufactured by scratching glass with a sharp tool to form a number of precisely positioned parallel lines, which act like slits. Diffraction gratings work both for transmission of light, as in Figure 17.13, and for reflection of light, as on the butterfly wings or the Australian opal shown in Figure 17.14, or the CD pictured in the opening illustration of this chapter. In addition to their use as novelty items, diffraction gratings are commonly used for spectroscopic dispersion and analysis of light. What makes them particularly useful is the fact that they form a sharper pattern than do double slits. That is, their bright regions are narrower and brighter, while their dark regions are darker. Figure 17.15 shows idealized graphs demonstrating the sharper pattern. Natural diffraction gratings occur in the feathers of certain birds. Tiny, fingerlike structures in regular patterns act as reflection gratings, producing constructive interference that gives the feathers colors not solely due to their pigmentation. The effect is called iridescence.

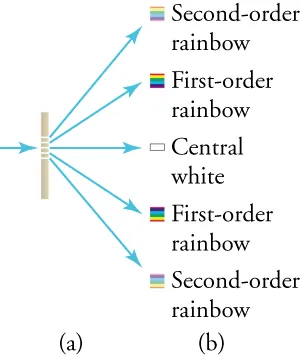

(a) Drawing of a vertical screen with five equally spaced horizontal slits that take up the middle third. A single blue arrow to the left of the barrier point to the right. Five blue arrows from the five slits point to the right, to five small diagrams arranged vertically. (b) Five small diagrams arranged vertically. The middle diagram is a white rectangle. It is labeled “Central white.” Above it is a square with colored bands; from the top, they are red, yellow, green, blue, and purple. The square is labeled “First-order rainbow.” Above the first rainbow is another small square, with the same colors as the one below, but fainter. It is labeled “Second-order rainbow.” Below the central white square is another square with colored bands. They are purple, blue, green, yellow, and red (the opposite order from the upper rainbows), and the square is labeled “First-order rainbow.” The lowest of the five diagrams is a fainter version of the square above it. It is labeled “Second-order rainbow.”
Figure 17.13 A diffraction grating consists of a large number of evenly-spaced parallel slits. (a) Light passing through the grating is diffracted in a pattern similar to a double slit, with bright regions at various angles. (b) The pattern obtained for white light incident on a grating. The central maximum is white, and the higher-order maxima disperse white light into a rainbow of colors.
(a) Photograph of an opal, with a rounded triangular shape. Most of the upper portion of the triangle is red and yellow. The lower portion is blue, green, and purple. (b) Photograph of a butterfly on a leaf. The wings are blue with white spots at the points of the wings and black bands at the rear edges of the wings.
Figure 17.14 (a) This Australian opal and (b) the butterfly wings have rows of reflectors that act like reflection gratings, reflecting different colors at different angles. (credit: (a) Opals-On-Black.com, via Flickr (b) whologwhy, Flickr)

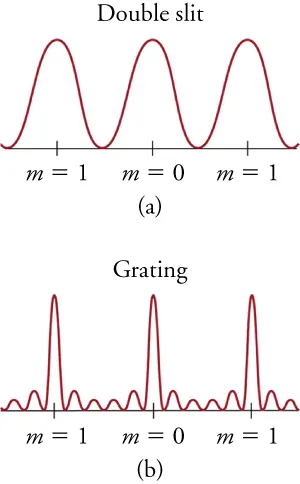

(a) Graph labeled “double slit.” A sine curve with three peaks is plotted with its troughs on a horizontal axis. Three points on the axis are labeled, corresponding to three maxima. Left to right, the points are labeled “m equals 1,” m equals zero,” and “m equals 1.” (b) Graph labeled “grating.” A curve with three tall narrow peaks is plotted with its troughs on a horizontal axis. On either side of the three peaks are two much smaller peaks (the larger peaks are separated by a total of four smaller peaks). Three points on the axis are labeled, corresponding to three maxima. Left to right, the points are labeled “m equals 1,” m equals zero,” and “m equals 1.”
Figure 17.15 Idealized graphs of the intensity of light passing through a double slit (a) and a diffraction grating (b) for monochromatic light. Maxima can be produced at the same angles, but those for the diffraction grating are narrower, and hence sharper. The maxima become narrower and the regions between become darker as the number of slits is increased.

Snap Lab

Diffraction Grating

  • A CD (compact disc) or DVD
  • A measuring tape
  • Sunlight near a white wall

Instructions

Procedure
  1. Hold the CD in direct sunlight near the wall, and move it around until a circular rainbow pattern appears on the wall.
  2. Measure the distance from the CD to the wall and the distance from the center of the circular pattern to a color in the rainbow. Use those two distances to calculate tanθ tanθ . Find sinθ sinθ .
  3. Look up the wavelength of the color you chose. That is λ λ .
  4. Solve dsinθ=mλ dsinθ=mλ for d.
  5. Compare your answer to the usual spacing between CD tracks, which is 1,600 nm (1.6 μm).

    How do you know what number to use for m?

    1. Count the rainbow rings preceding the chosen color.
    2. Calculate mfrom the frequency of the light of the chosen color.
    3. Calculate m from the wavelength of the light of the chosen color.
    4. The value of m is fixed for every color.

Fun In Physics

CD Players

Can you see the grooves on a CD or DVD (see Figure 17.16)? You may think you can because you know they are there, but they are extremely narrow—1,600 in a millimeter. Because the width of the grooves is similar to wavelengths of visible light, they form a diffraction grating. That is why you see rainbows on a CD. The colors are attractive, but they are incidental to the functions of storing and retrieving audio and other data.

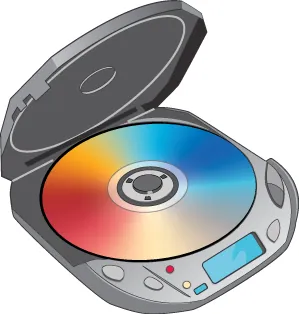

Drawing of a portable CD player. Its cover is open, showing a CD that has a red sector on the lower left, of about 90 degrees, a blue sector on the upper right of about 120 degrees, and a yellow sector between them of about 30 degrees.
Figure 17.16 For its size, this CD holds a surprising amount of information. Likewise, the CD player it is in houses a surprising number of electronic devices.

The grooves are actually one continuous groove that spirals outward from the center. Data are recorded in the grooves as binary code (zeroes and ones) in small pits. Information in the pits is detected by a laser that tracks along the groove. It gets even more complicated: The speed of rotation must be varied as the laser tracks toward the circumference so that the linear speed along the groove remains constant. There is also an error correction mechanism to prevent the laser beam from getting off track. A diffraction grating is used to create the first two maxima on either side of the track. If those maxima are not the same distance from the track, an error is indicated and then corrected.

The pits are reflective because they have been coated with a thin layer of aluminum. That allows the laser beam to be reflected back and directed toward a photodiode detector. The signal can then be processed and converted to the audio we hear.

The longest wavelength of visible light is about 780 nm . How does that compare to the distance between CD grooves?

  1. The grooves are about 3 times the longest wavelength of visible light.
  2. The grooves are about 2 times the longest wavelength of visible light.
  3. The grooves are about 2 times the shortest wavelength of visible light.
  4. The grooves are about 3 times the shortest wavelength of visible light.

Where are diffraction gratings used? Diffraction gratings are key components of monochromators—devices that separate the various wavelengths of incoming light and allow a beam with only a specific wavelength to pass through. Monochromators are used, for example, in optical imaging of particular wavelengths from biological or medical samples. A diffraction grating can be chosen to specifically analyze a wavelength of light emitted by molecules in diseased cells in a biopsy sample, or to help excite strategic molecules in the sample with a selected frequency of light. Another important use is in optical fiber technologies where fibers are designed to provide optimum performance at specific wavelengths. A range of diffraction gratings is available for selecting specific wavelengths for such use.

Diffraction gratings are used in spectroscopes to separate a light source into its component wavelengths. When a material is heated to incandescence, it gives off wavelengths of light characteristic of the chemical makeup of the material. A pure substance will produce a spectrum that is unique, thus allowing identification of the substance. Spectroscopes are also used to measure wavelengths both shorter and longer than visible light. Such instruments have become especially useful to astronomers and chemists. Figure 17.18 shows a diagram of a spectroscope.

Drawing of a spectroscope. Drawing shows a flame, two mirrors, grating and detector. A yellow flame at the upper left is labeled “source.” A horizontal arrow from the source extends to a small circular arc, which is concave to the left and slightly downward. The arc is one of two that are labeled “mirrors.” A second arrow extends to the left and downward from the point where the first arrow strikes the mirror, and in turn strikes a rectangular object that is tilted from vertical slightly to the left. The object is labeled “grating.” From the point where the second arrow strikes the grating, a number of colored arrows fan out downward and to the right, forming a narrow triangle. Those arrows in turn strike the second circular arc, labeled as one of the “mirrors,” which is concave to the left and slightly upward. From the second mirror, five colored arrows fan out to the left and slightly downward to form a wider triangle, and they strike a vertical surface labeled “detector.” The purple arrow strikes the top of the detector and the blue arrow slightly below it. The green arrow strikes the middle of the detector, the yellow arrow slightly lower, and the red arrow the bottom of the detector.
Figure 17.18 The diagram shows the function of a diffraction grating in a spectroscope.

Light diffracts as it moves through space, bending around obstacles and interfering constructively and destructively. While diffraction allows light to be used as a spectroscopic tool, it also limits the detail we can obtain in images.

Why are diffraction gratings used in spectroscopes rather than just two slits?
  1. The bands produced by diffraction gratings are dimmer but sharper than the bands produced by two slits.
  2. The bands produced by diffraction gratings are brighter, though less sharp, than the bands produced by two slits.
  3. The bands produced by diffraction gratings are brighter and sharper than the bands produced by two slits.
  4. The bands produced by diffraction gratings are dimmer and less sharp, but more widely dispersed, than the bands produced by two slits.

Figure 17.19 (a) shows the effect of passing light through a small circular aperture. Instead of a bright spot with sharp edges, a spot with a fuzzy edge surrounded by circles of light is obtained. This pattern is caused by diffraction similar to that produced by a single slit. Light from different parts of the circular aperture interferes constructively and destructively. The effect is most noticeable when the aperture is small, but the effect is there for large apertures, too.

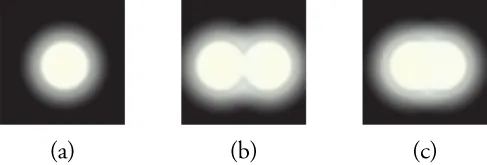

(a) A white circle on a black background is surrounded by a ring that fades outward from gray to black. (b) Two circles, one on the left and one on the right, are surrounded by gray rings. Their circumferences touch, but the circles are distinguishable. (c)Two circles, with surrounding gray rings, have moved closer together and now are indistinguishable. They form a horizontal oval.
Figure 17.19 (a) Monochromatic light passed through a small circular aperture produces this diffraction pattern. (b) Two point light sources that are close to one another produce overlapping images because of diffraction. (c) If they are closer together, they cannot be resolved, that is, distinguished.

How does diffraction affect the detail that can be observed when light passes through an aperture? Figure 17.19 (b) shows the diffraction pattern produced by two point light sources that are close to one another. The pattern is similar to that for a single point source, and it is just barely possible to tell that there are two light sources rather than one. If they are closer together, as in Figure 17.19 (c), you cannot distinguish them, thus limiting the detail, or resolution, you can obtain. That limit is an inescapable consequence of the wave nature of light.

There are many situations in which diffraction limits the resolution. The acuity of vision is limited because light passes through the pupil, the circular aperture of the eye. Be aware that the diffraction-like spreading of light is due to the limited diameter of a light beam, not the interaction with an aperture. Thus light passing through a lens with a diameter of D shows the diffraction effect and spreads, blurring the image, just as light passing through an aperture of diameter D does. Diffraction limits the resolution of any system having a lens or mirror. Telescopes are also limited by diffraction, because of the finite diameter, D, of their primary mirror.

Calculations Involving Diffraction Gratings and Resolution

Teacher Support

Teacher Support

[BL]Review problem-solving techniques: Identify the knowns and unknowns. Convert measurements of the same property to the same units of measurements. Choose the equation and rearrange it, if necessary, to solve for the unknown.

[OL]Review the meaning of arcsine in particular and of inverse trigonometric functions in general. Explain the radian as a unit of measure for angles, and relate it to degrees.

Early in the chapter, it was mentioned that when light passes from one medium to another, its speed and wavelength change, but its frequency remains constant. The equation

λ n = λ n λ n = λ n

shows how to the wavelength in a given medium, λ n λ n , is related to the wavelength in a vacuum, λ λ, and the refractive index, n, of the medium. The equation is useful for calculating the change in wavelength of a monochromatic laser beam in various media. The analysis of a diffraction grating is very similar to that for a double slit. As you know from the discussion of double slits in Young’s double-slit experiment, light is diffracted by, and spreads out after passing through, each slit. Rays travel at an angle θ θ relative to the incident direction. Each ray travels a different distance to a common point on a screen far away. The rays start in phase, and they can be in or out of phase when they reach a screen, depending on the difference in the path lengths traveled. Each ray travels a distance that differs by dsinθ dsinθ from that of its neighbor, where d is the distance between slits. If dsinθ dsinθ equals an integral number of wavelengths, the rays all arrive in phase, and constructive interference (a maximum) is obtained. Thus, the condition necessary to obtain constructive interference for a diffraction grating is

dsinθ=mλ,for m=0,1,1,2,2,, dsinθ=mλ,for m=0,1,1,2,2,,

where d is the distance between slits in the grating, λ λ is the wavelength of the light, and m is the order of the maximum. Note that this is exactly the same equation as for two slits separated by d. However, the slits are usually closer in diffraction gratings than in double slits, producing fewer maxima at larger angles.

Watch Physics

Diffraction Grating

This video explains the geometry behind the diffraction pattern produced by a diffraction grating.

Watch Physics: Diffraction Grating. This video explains diffraction of light through several holes.
The equation that gives the points of constructive interference produced by a diffraction grating is d sin θ = m λ . Why does that equation look familiar?
  1. It is the same as the equation for destructive interference for a double-slit diffraction pattern.
  2. It is the same as the equation for constructive interference for a double-slit diffraction pattern.
  3. It is the same as the equation for constructive interference for a single-slit diffraction pattern.
  4. It is the same as the equation for destructive interference for a single-slit diffraction pattern.

Just what is the resolution limit of an aperture or lens? To answer that question, consider the diffraction pattern for a circular aperture, which, similar to the diffraction pattern of light passing through a slit, has a central maximum that is wider and brighter than the maxima surrounding it (see Figure 17.19 (a)). It can be shown that, for a circular aperture of diameter D, the first minimum in the diffraction pattern occurs at θ=1.22λ/D θ=1.22λ/D, provided that the aperture is large compared with the wavelength of light, which is the case for most optical instruments. The accepted criterion for determining the diffraction limit to resolution based on diffraction was developed by Lord Rayleigh in the 19th century. The Rayleigh criterion for the diffraction limit to resolution states that two images are just resolvable when the center of the diffraction pattern of one is directly over the first minimum of the diffraction pattern of the other. See Figure 17.20 (b). The first minimum is at an angle of θ=1.22λ/D θ=1.22λ/D, so that two point objects are just resolvable if they are separated by the angle

θ=1.22 λ D , θ=1.22 λ D ,

where λ λ is the wavelength of the light (or other electromagnetic radiation) and D is the diameter of the aperture, lens, mirror, etc., with which the two objects are observed. In the expression above, θ θ has units of radians.

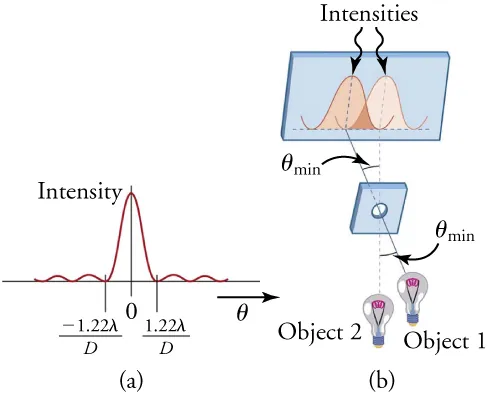

(a) A graph with five peaks. The valleys are on a horizontal axis. The central peak is largest, and it is labeled “intensity.” Four much smaller peaks are arranged symmetrically, two to the left and two to the right. An arrow below the horizontal axis points to the right and is labeled “theta.” Three points are labeled on the horizontal axis, “zero” for the central peak, “negative 1.22 lamda divided by D” for the valley on its left, and “1.22 lamda divided by D” for the valley on its right. (b) A drawing shows two lightbulbs at the bottom. One is labeled “Object 1,” and it is to the right and slightly above the other, labeled “Object 2.” In the middle of the drawing is a vertical screen with a circular hole in it. At the top of the drawing is a vertical screen with two wide peaks graphed on it, which are labeled “Intensities.” A line from Object 1 extends through the hole in the screen and strikes the horizontal axis of the graph directly below the left peak on the graph. Another line from Object two extends through the hole in the screen and strikes the horizontal axis of the graph directly below the right peak on the graph. The angle formed when the two lines cross (where they pass through the hole in the middle screen) is labeled “theta min.”
Figure 17.20 (a) Graph of intensity of the diffraction pattern for a circular aperture. Note that, similar to a single slit, the central maximum is wider and brighter than those to the sides. (b) Two point objects produce overlapping diffraction patterns. Shown here is the Rayleigh criterion for their being just resolvable. The central maximum of one pattern lies on the first minimum of the other.

Snap Lab

Resolution

  • A sheet of white paper
  • A black pen or pencil
  • A measuring tape

Instructions

Procedure
  1. Draw two lines several mm apart on a white sheet of paper.
  2. Move away from the sheet as it is held upright, and measure the distance at which you can just distinguish (resolve) the lines as separate.
  3. Use θ=1.22 λ D θ=1.22 λ D to calculate D the diameter of your pupil. Use the distance between the lines and the maximum distance at which they were resolved to calculate θ θ . Use the average wavelength for visible light as the value for λ λ .
  4. Compare your answer to the average pupil diameter of 3 mm.

Describe resolution in terms of minima and maxima of diffraction patterns.
  1. The limit for resolution is when the minimum of the pattern for one of the lines is directly over the first minimum of the pattern for the other line.
  2. The limit for resolution is when the maximum of the pattern for one of the lines is directly over the first minimum of the pattern for the other line.
  3. The limit for resolution is when the maximum of the pattern for one of the lines is directly over the second minimum of the pattern for the other line.
  4. The limit for resolution is when the minimum of the pattern for one of the lines is directly over the second maximum of the pattern for the other line.

Worked Example

Change of Wavelength

A monochromatic laser beam of green light with a wavelength of 550 nm passes from air to water. The refractive index of water is 1.33. What will be the wavelength of the light after it enters the water?

Strategy

You can assume that the refractive index of air is the same as that of light in a vacuum because they are so close. You then have all the information you need to solve for λ n λ n .

Discussion

The refractive index of air is 1.0003, so the approximation holds for three significant figures. You would not see the light change color, however. Color is determined by frequency, not wavelength.

Worked Example

Diffraction Grating

A diffraction grating has 2000 lines per centimeter. At what angle will the first-order maximum form for green light with a wavelength of 520 nm?

Strategy

You are given enough information to calculate d, and you are given the values of λ λ and m. You will have to find the arcsin of a number to find θ θ .

Discussion

This angle seems reasonable for the first maximum. Recall that the meaning of sin‒1 (or arcsin) is the angle with a sine that is (the unknown). Remember that the value of sinθ sinθ will not be greater than 1 for any value of θ θ .

Worked Example

Resolution

What is the minimum angular spread of a 633-nm-wavelength He-Ne laser beam that is originally 1.00 mm in diameter?

Strategy

The diameter of the beam is the same as if it were coming through an aperture of that size, so D = 1.00 mm. You are given λ λ, and you must solve for θ θ .

Discussion

The conversion factor for radians to degrees is 1.000 radian = 57.3°. The spread is very small and would not be noticeable over short distances. The angle represents the angular separation of the central maximum and the first minimum.

Practice Problems

6.

A beam of yellow light has a wavelength of 600 nm in a vacuum and a wavelength of 397 nm in Plexiglas. What is the refractive index of Plexiglas?

  1. 1.51
  2. 2.61
  3. 3.02
  4. 3.77
7.

What is the angle between two just-resolved points of light for a 3.00 mm diameter pupil, assuming an average wavelength of 550 nm?

  1. 224 rad
  2. 183 rad
  3. 1.83 × 10–4 rad
  4. 2.24 × 10–4 rad

Check Your Understanding

Teacher Support

Teacher Support

Use these questions to assess student achievement of the section’s learning objectives. If students are struggling with a specific objective, these questions will help identify which and direct students to the relevant content.

8 .
How is an interference pattern formed by a diffraction grating different from the pattern formed by a double slit?
  1. The pattern is colorful.
  2. The pattern is faded.
  3. The pattern is sharper.
  4. The pattern is curved.
9 .
A beam of light always spreads out. Why can a beam not be produced with parallel rays to prevent spreading?
  1. Light is always polarized.
  2. Light is always reflected.
  3. Light is always refracted.
  4. Light is always diffracted.
10 .
Compare interference patterns formed by a double slit and by a diffraction grating in terms of brightness and narrowness of bands.
  1. The pattern formed by a diffraction grating has broader and brighter bands.
  2. The pattern formed by a diffraction grating has broader and duller bands.
  3. The pattern formed by a diffraction grating has narrower and duller bands.
  4. The pattern formed by a diffraction grating has narrower and brighter bands.
11 .
Describe the slits in a diffraction grating in terms of number and spacing, as compared to a two-slit diffraction setup.
  1. The slits in a diffraction grating are broader, with space between them that is greater than the separation of the two slits in two-slit diffraction.
  2. The slits in a diffraction grating are broader, with space between them that is the same as the separation of the two slits in two-slit diffraction.
  3. The slits in a diffraction grating are narrower, with space between them that is the same as the separation of the two slits in two-slit diffraction.
  4. The slits in a diffraction grating are narrower, with space between them that is greater than the separation of the two slits in two-slit diffraction.
