# 15.2The Behavior of Electromagnetic Radiation

Physics15.2 The Behavior of Electromagnetic Radiation

### Section Learning Objectives

By the end of this section, you will be able to do the following:

• Describe the behavior of electromagnetic radiation
• Solve quantitative problems involving the behavior of electromagnetic radiation

### Teacher Support

#### Teacher Support

• (7) Science concepts. The student knows the characteristics and behavior of waves. The student is expected to
• (B) investigate and analyze characteristics of waves, including velocity, frequency, amplitude, and wavelength, and calculate using the relationship between wave speed, frequency, and wavelength;
• (C) compare characteristics and behaviors of transverse waves, including electromagnetic waves and the electromagnetic spectrum, and characteristics and behaviors of longitudinal waves, including sound waves; and
• (D) investigate behaviors of waves, including reflection, refraction, diffraction, interference, resonance, and the Doppler Effect.

### Section Key Terms

 illuminance interference lumens luminous flux lux polarized light

### Teacher Support

#### Teacher Support

[BL]Impress on students how incredibly fast light travels. Start with 3.00 × 108 m/s and express it as 300,000 km/s, or roughly the distance to the moon or the odometer reading on an old, very durable car.

[OL]Discuss fundamental physical constants. Ask students to name some others in addition to the speed of light. Supply the gravitational constant and Planck’s constant. Note that these are different from mathematical constants, such as pi.

[AL]Explain that physical constants have the same value everywhere in the universe. This realization was an important event in the history of science.

Both light and sound seem to travel very rapidly from a human perspective. Impress on students that the speed of sound is many orders of magnitude slower than the speed of light.

### Types of Electromagnetic Wave Behavior

In a vacuum, all electromagnetic radiation travels at the same incredible speed of 3.00 × 108 m/s, which is equal to 671 million miles per hour. This is one of the fundamental physical constants. It is referred to as the speed of light and is given the symbol c. The space between celestial bodies is a near vacuum, so the light we see from the Sun, stars, and other planets has traveled here at the speed of light. Keep in mind that all EM radiation travels at this speed. All the different wavelengths of radiation that leave the Sun make the trip to Earth in the same amount of time. That trip takes 8.3 minutes. Light from the nearest star, besides the Sun, takes 4.2 years to reach Earth, and light from the nearest galaxy—a dwarf galaxy that orbits the Milky Way—travels 25,000 years on its way to Earth. You can see why we call very long distances astronomical.

When light travels through a physical medium, its speed is always less than the speed of light. For example, light travels in water at three-fourths the value of c. In air, light has a speed that is just slightly slower than in empty space: 99.97 percent of c. Diamond slows light down to just 41 percent of c. When light changes speeds at a boundary between media, it also changes direction. The greater the difference in speeds, the more the path of light bends. In other chapters, we look at this bending, called refraction, in greater detail. We introduce refraction here to help explain a phenomenon called thin-film interference.

### Teacher Support

#### Teacher Support

[BL]Describe the rainbow colors that result from thin-film interference and ask students for examples. Fill in the ones they miss with soap bubbles, oil slicks, and compact discs.

[OL]Describe refraction qualitatively. Base the discussion on change of speed; there is no need to introduce refractive index yet. Give some examples from everyday experience. For example, explain why objects underwater are not exactly where they appear to be.

[AL]Explain refraction with the analogy of a four-wheeled vehicle veering from solid pavement into sand. When wheels on one side enter the sand—the slower medium—the vehicle swerves toward the sand. This is because the wheels on that side move more slowly than those on the pavement side.

Have you ever wondered about the rainbow colors you often see on soap bubbles, oil slicks, and compact discs? This occurs when light is both refracted by and reflected from a very thin film. The diagram shows the path of light through such a thin film. The symbols n1, n2, and n3 indicate that light travels at different speeds in each of the three materials. Learn more about this topic in the chapter on diffraction and interference.

Figure 15.9 shows the result of thin film interference on the surface of soap bubbles. Because ray 2 travels a greater distance, the two rays become out of phase. That is, the crests of the two emerging waves are no longer moving together. This causes interference, which reinforces the intensity of the wavelengths of light that create the bands of color. The color bands are separated because each color has a different wavelength. Also, the thickness of the film is not uniform, and different thicknesses cause colors of different wavelengths to interfere in different places. Note that the film must be very, very thin—somewhere in the vicinity of the wavelengths of visible light.

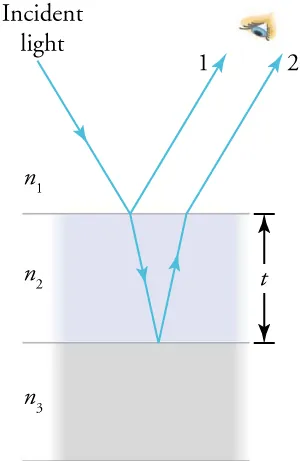

Figure 15.9 Light striking a thin film is partially reflected (ray 1) and partially refracted at the top surface. The refracted ray is partially reflected at the bottom surface and emerges as ray 2. These rays will interfere in a way that depends on the thickness of the film and the indices of refraction of the various media.

### Teacher Support

#### Teacher Support

Do not confuse polar molecules with polarized light. If a molecule is polar, it refers to a separation of negative and positive electric charges. Polarized light is light whose electric field component vibrates in a specific plane.

You have probably experienced how polarized sunglasses reduce glare from the surface of water or snow. The effect is caused by the wave nature of light. Looking back at Figure 15.2, we see that the electric field moves in only one direction perpendicular to the direction of propagation. Light from most sources vibrates in all directions perpendicular to propagation. Light with an electric field that vibrates in only one direction is called polarized. A diagram of polarized light would look like Figure 15.2.

Polarized glasses are an example of a polarizing filter. These glasses absorb most of the horizontal light waves and transmit the vertical waves. This cuts down glare, which is caused by horizontal waves. Figure 15.10 shows how waves traveling along a rope can be used as a model of how a polarizing filter works. The oscillations in one rope are in a vertical plane and are said to be vertically polarized. Those in the other rope are in a horizontal plane and are horizontally polarized. If a vertical slit is placed on the first rope, the waves pass through. However, a vertical slit blocks the horizontally polarized waves. For EM waves, the direction of the electric field oscillation is analogous to the disturbances on the ropes.

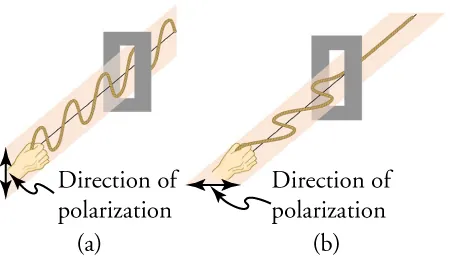

Figure 15.10 The transverse oscillations in one rope are in a vertical plane, and those in the other rope are in a horizontal plane. The first is said to be vertically polarized, and the other is said to be horizontally polarized. Vertical slits pass vertically polarized waves and block horizontally polarized waves.

Light can also be polarized by reflection. Most of the light reflected from water, glass, or any highly reflective surface is polarized horizontally. Figure 15.11 shows the effect of a polarizing lens on light reflected from the surface of water.

Figure 15.11 These two photographs of a river show the effect of a polarizing filter in reducing glare in light reflected from the surface of water. Part (b) of this figure was taken with a polarizing filter and part (a) was taken without. As a result, the reflection of clouds and sky observed in part (a) is not observed in part (b). Polarizing sunglasses are particularly useful on snow and water.

### Watch Physics

#### Polarization of Light, Linear and Circular

This video explains the polarization of light in great detail. Before viewing the video, look back at the drawing of an electromagnetic wave from the previous section. Try to visualize the two-dimensional drawing in three dimensions.

### Grasp Check

How do polarized glasses reduce glare reflected from the ocean?

1. They block horizontally polarized and vertically polarized light.
2. They are transparent to horizontally polarized and vertically polarized light.
3. They block horizontally polarized rays and are transparent to vertically polarized rays.
4. They are transparent to horizontally polarized light and block vertically polarized light.

### Teacher Support

#### Teacher Support

The video explains how to generate linear polarized light, and how, by uniformly changing the phase of linear polarized light, circularly polarized light can be produced.

### Snap Lab

#### Polarized Glasses

• EYE SAFETY—Looking at the Sun directly can cause permanent eye damage. Avoid looking directly at the Sun.
• two pairs of polarized sunglasses
OR
• two lenses from one pair of polarized sunglasses
Procedure
1. Look through both or either polarized lens and record your observations.
2. Hold the lenses, one in front of the other. Hold one lens stationary while you slowly rotate the other lens. Record your observations, including the relative angles of the lenses when you make each observation.
3. Find a reflective surface on which the Sun is shining. It could be water, glass, a mirror, or any other similar smooth surface. The results will be more dramatic if the sunlight strikes the surface at a sharp angle.
4. Observe the appearance of the surface with your naked eye and through one of the polarized lenses.
5. Observe any changes as you slowly rotate the lens, and note the angles at which you see changes.

### Teacher Support

#### Teacher Support

Explain your observations made through the polarized lenses. Describe what happened when you held the lenses together and rotated one of them. Explain the changes during rotation in terms of planes of polarization. Explain your observation of the reflective surface in terms of planes of polarization.

### Grasp Check

If you buy sunglasses in a store, how can you be sure that they are polarized?

1. When one pair of sunglasses is placed in front of another and rotated in the plane of the body, the light passing through the sunglasses will be blocked at two positions due to refraction of light.
2. When one pair of sunglasses is placed in front of another and rotated in the plane of the body, the light passing through the sunglasses will be blocked at two positions due to reflection of light.
3. When one pair of sunglasses is placed in front of another and rotated in the plane of the body, the light passing through the sunglasses will be blocked at two positions due to the polarization of light.
4. When one pair of sunglasses is placed in front of another and rotated in the plane of the body, the light passing through the sunglasses will be blocked at two positions due to the bending of light waves.

### Teacher Support

#### Teacher Support

[BL]Remember that the equation for speed is v = d/t, where v is velocity or speed, d is distance, and t is time. Rearrange the equation so that it can be used to solve for either distance or time if the other two values are known.

[OL]Ask students to recall ****the metric units of frequency and wavelength. The answer is $s −1 , s −1 ,$ or Hz for frequency and meters or any other metric distance unit for wavelength.

A light year is a measure of distance, not time.

We can use the speed of light, c, to carry out several simple but interesting calculations. If we know the distance to a celestial object, we can calculate how long it takes its light to reach us. Of course, we can also make the reverse calculation if we know the time it takes for the light to travel to us. For an object at a very great distance from Earth, it takes many years for its light to reach us. This means that we are looking at the object as it existed in the distant past. The object may, in fact, no longer exist. Very large distances in the universe are measured in light years. One light year is the distance that light travels in one year, which is $9.46× 10 12 9.46× 10 12$ kilometers or $5.88× 10 12 5.88× 10 12$ miles (…and 1012 is a trillion!).

A useful equation involving c is

$c=fλ c=fλ$
15.1

where f is frequency in Hz, and $λ λ$ is wavelength in meters.

### Worked Example

#### Frequency and Wavelength Calculation

For example, you can calculate the frequency of yellow light with a wavelength of $6.00× 10 −7 6.00× 10 −7$ m.

### Strategy

Rearrange the equation to solve for frequency.

$f= c λ f= c λ$
15.2
Discussion

Manipulating exponents of 10 in a fraction can be tricky. Be sure you keep track of the + and – exponents correctly. Checking back to the diagram of the electromagnetic spectrum in the previous section shows that 1014 is a reasonable order of magnitude for the frequency of yellow light.

The frequency of a wave is proportional to the energy the wave carries. The actual proportionality constant will be discussed in a later chapter. Since frequency is inversely proportional to wavelength, we also know that wavelength is inversely proportional to energy. Keep these relationships in mind as general rules.

### Teacher Support

#### Teacher Support

[BL]Good lighting for reading is important. We will see that moving twice as far away from a light source does not give you half as much light. It decreases much more than that.

[AL]Recall the inverse-square law for gravitational force. Any force or radiation that spreads out in all directions will decrease with the square of the distance.

The rate at which light is radiated from a source is called luminous flux, P, and it is measured in lumens (lm). Energy-saving light bulbs, which provide more luminous flux for a given use of electricity, are now available. One of these bulbs is called a compact fluorescent lamp; another is an LED (light-emitting diode) bulb. If you wanted to replace an old incandescent bulb with an energy saving bulb, you would want the new bulb to have the same brightness as the old one. To compare bulbs accurately, you would need to compare the lumens each one puts out. Comparing wattage—that is, the electric power used—would be misleading. Both wattage and lumens are stated on the packaging.

The luminous flux of a bulb might be 2,000 lm. That accounts for all the light radiated in all directions. However, what we really need to know is how much light falls on an object, such as a book, at a specific distance. The number of lumens per square meter is called illuminance, and is given in units of lux (lx). Picture a light bulb in the middle of a sphere with a 1-m radius. The total surface of the sphere equals 4πr2 m2. The illuminance then is given by

15.4

What happens if the radius of the sphere is increased 2 m? The illuminance is now only one-fourth as great, because the r2 term in the denominator is 4 instead of 1. Figure 15.12 shows how illuminance decreases with the inverse square of the distance.

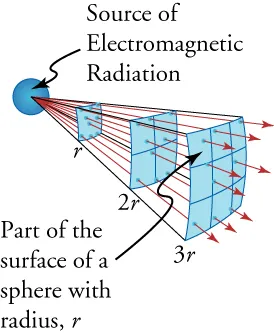

Figure 15.12 The diagram shows why the illuminance varies inversely with the square of the distance from a source of light.

### Worked Example

#### Calculating Illuminance

A woman puts a new bulb in a floor lamp beside an easy chair. If the luminous flux of the bulb is rated at 2,000 lm, what is the illuminance on a book held 2.00 m from the bulb?

### Strategy

Choose the equation and list the knowns.

Equation:

P = 2,000 lm

π = 3.14

r = 2.00 m

Discussion

Try some other distances to illustrate how greatly light fades with distance from its source. For example, at 3 m the illuminance is only 17.7 lux. Parents often scold children for reading in light that is too dim. Instead of shouting, “You’ll ruin your eyes!” it might be better to explain the inverse square law of illuminance to the child.

### Practice Problems

6.

Red light has a wavelength of 7.0 × 10−7 m and a frequency of 4.3 × 1014 Hz. Use these values to calculate the speed of light in a vacuum.

1. 3 × 1020 m/s
2. 3 × 1015 m/s
3. 3 × 1014 m/s
4. 3 × 108 m/s
7.
A light bulb has a luminous flux of 942 lumens. What is the illuminance on a surface 3.00\,\text{m} from the bulb when it is lit?
1. 33.32\,\text{lx}
2. 26.15\,\text{lx}
3. 2.77\,\text{lx}
4. 8.33\,\text{lx}

### Teacher Support

#### Teacher Support

Use these questions to assess student achievement of the section’s Learning Objectives. If students are struggling with a specific objective, these questions will help identify any gaps and direct students to the relevant content.

8.

Give an example of a place where light travels at the speed of 3.00 × 108 m/s.

1. outer space
2. water
3. Earth’s atmosphere
4. quartz glass
9.

Explain in terms of distances and the speed of light why it is currently very unlikely that humans will visit planets that circle stars other than our Sun.

1. The spacecrafts used for travel are very heavy and thus very slow.
2. Spacecrafts do not have a constant source of energy to run them.
3. If a spacecraft could attain a maximum speed equal to that of light, it would still be too slow to cover astronomical distances.
4. Spacecrafts can attain a maximum speed equal to that of light, but it is difficult to locate planets around stars.
