27.1 • Waxes, Fats, and Oils

Waxes are mixtures of esters of long-chain carboxylic acids with long-chain alcohols. The carboxylic acid usually has an even number of carbons from 16 to 36, while the alcohol has an even number of carbons from 24 to 36. One of the major components of beeswax, for instance, is triacontyl hexadecanoate, the ester of the C30 alcohol (1-triacontanol) and the C16 acid (hexadecanoic acid). The waxy protective coatings on most fruits, berries, leaves, and animal furs have similar structures.

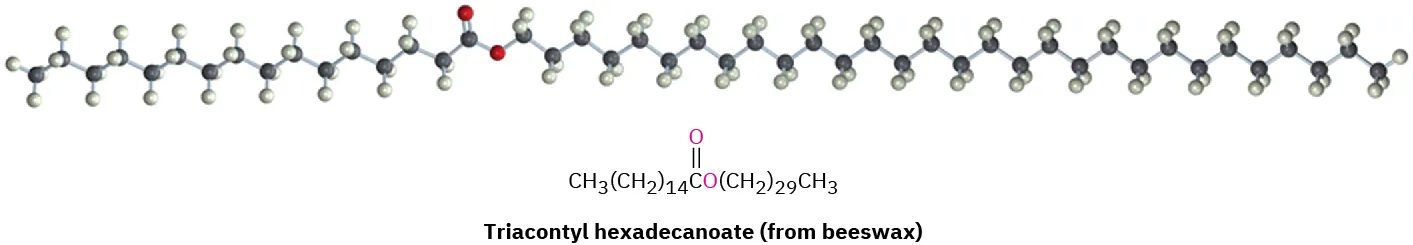

The ball-and-stick model of beeswax. The structure of triacontyl hexadecanoate is the major constituent of beeswax.

Animal fats and vegetable oils are the most widely occurring lipids. Although they appear different—animal fats like butter and lard are solids, whereas vegetable oils like corn and peanut oil are liquid—their structures are closely related. Chemically, fats and oils are triglycerides, or triacylglycerols—triesters of glycerol with three long-chain carboxylic acids called fatty acids. Animals use fats for long-term energy storage because they are far less highly oxidized than carbohydrates and provide about six times as much energy as an equal weight of stored, hydrated glycogen.

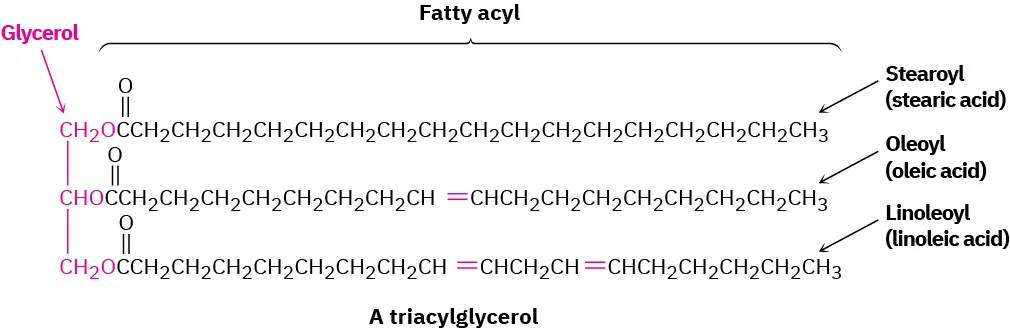

The structure of a triacylglycerol comprises stearoyl (stearic acid), oleoyl (oleic acid), and linoleoyl (linoleic acid). The glycerol and fatty acyl groups are labeled in the structure.

Hydrolysis of a fat or oil with aqueous NaOH yields glycerol and three fatty acids. The fatty acids are generally unbranched and contain an even number of carbon atoms between 12 and 20. If double bonds are present, they have mostly, although not entirely, Z, or cis, geometry. The three fatty acids of a specific triacylglycerol molecule need not be the same, and the fat or oil from a given source is likely to be a complex mixture of many different triacylglycerols. Table 27.1 lists some of the commonly occurring fatty acids, and Table 27.2 lists the approximate composition of fats and oils from different sources.

Table 27.1 Structures of Some Common Fatty Acids
Name No. of carbons Melting point (°C) Structure
Lauric 12 43.2 CH3(CH2)10CO2H
Myristic 14 53.9 CH3(CH2)12CO2H
Palmitic 16 63.1 CH3(CH2)14CO2H
Stearic 18 68.8 CH3(CH2)16CO2H
Arachidic 20 76.5 CH3(CH2)18CO2H
Palmitoleic 16 –0.1 (Z)-CH3(CH2)5CH═CH(CH2)7CO2H(Z)-CH3(CH2)5CH═CH(CH2)7CO2H
Oleic 18 13.4 (Z)-CH3(CH2)7CH═CH(CH2)7CO2H(Z)-CH3(CH2)7CH═CH(CH2)7CO2H
Linoleic 18 –12   (Z,Z)-CH3(CH2)4(CH═CHCH2)2(CH2)6CO2H(Z,Z)-CH3(CH2)4(CH═CHCH2)2(CH2)6CO2H
Linolenic 18 –11   (all Z)-CH3CH2(CH═CHCH2)3(CH2)6CO2H(all Z)-CH3CH2(CH═CHCH2)3(CH2)6CO2H
Arachidonic 20 –49.5 (all Z)-CH3(CH2)4(CH═CHCH2)4CH2CH2CO2H(all Z)-CH3(CH2)4(CH═CHCH2)4CH2CH2CO2H
Table 27.2 Composition of Some Fats and Oils
  Saturated fatty acids (%) Unsaturated fatty acids (%)
Source C12 lauric C14 myristic C16 palmitic C18 stearic C18 oleic C18 linoleic
Animal fat
Lard  1 25 15 50  6
Butter  2 10 25 10 25  5
Human fat  1  3 25  8 46 10
Whale blubber  8 12  3 35 10
Vegetable oil
Coconut 50 18  8  2  6  1
Corn  1 10  4 35 45
Olive  1  5  5 80  7
Peanut  7  5 60 20

More than 100 different fatty acids are known and about 40 occur widely. Palmitic acid (C16) and stearic acid (C18) are the most abundant saturated fatty acids; oleic and linoleic acids (both C18) are the most abundant unsaturated ones. Oleic acid is monounsaturated because it has only one double bond, whereas linoleic, linolenic, and arachidonic acids are polyunsaturated fatty acids because they have more than one double bond. Linoleic and linolenic acids occur in cream and are essential in the human diet; infants grow poorly and develop skin lesions if fed a diet of nonfat milk for prolonged periods. Linolenic acid, in particular, is an example of an omega-3 fatty acid, which has been found to lower blood triglyceride levels and reduce the risk of heart attack. The name omega-3 means that there is a double bond three carbons in from the noncarboxyl end of the chain.

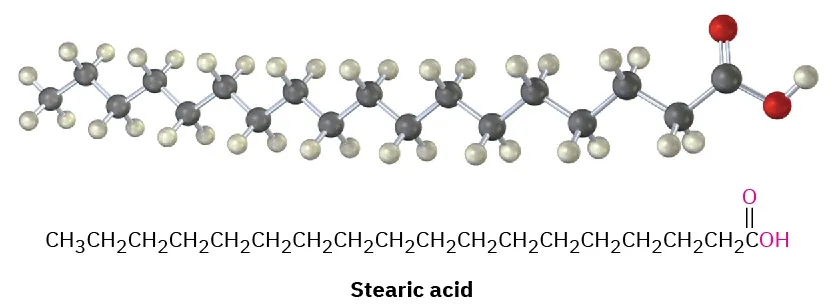

The ball-and-stick model and structure of stearic acid. It is an eighteen-carbon chain with a carboxylic acid group. Black, gray, and red spheres denote carbon, hydrogen, and oxygen, respectively.

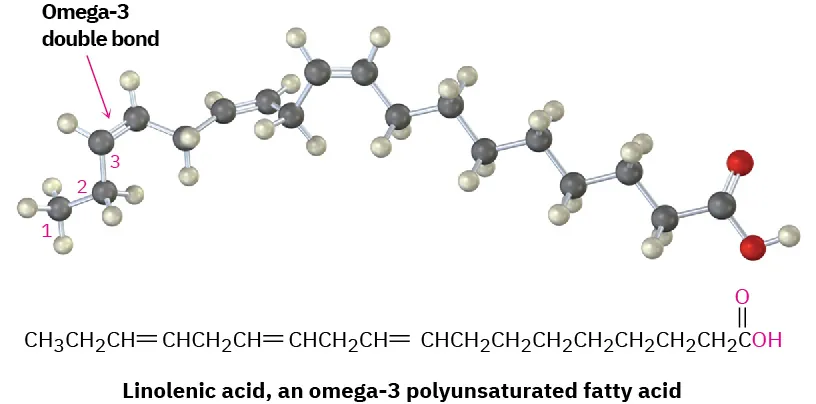

A ball-and-stick model of linolenic acid. It is an eighteen-carbon chain with double bond and carboxylic acid group. Black, gray, and red spheres denote carbon, hydrogen, and oxygen, respectively.

The data in Table 27.1 show that unsaturated fatty acids generally have lower melting points than their saturated counterparts, a trend that is also true for triacylglycerols. Since vegetable oils generally have a higher proportion of unsaturated to saturated fatty acids than animal fats (Table 27.2), they have lower melting points. The difference is a consequence of structure. Saturated fats have a uniform shape that allows them to pack together efficiently in a crystal lattice. In unsaturated vegetable oils, however, the CCCC bonds introduce bends and kinks into the hydrocarbon chains, making crystal formation more difficult. The more double bonds there are, the harder it is for the molecules to crystallize and the lower the melting point of the oil.

The CCCC bonds in vegetable oils can be reduced by catalytic hydrogenation, typically carried out at high temperature using a nickel catalyst, to produce saturated solid or semisolid fats. Prior to 2015, industrially produced margarine and shortening were produced by hydrogenating soybean, peanut, or cottonseed oil until the proper consistency is obtained. As of 2015, trans fats are no longer considered safe by the FDA and have since been phased out of industrially produced foods. Unfortunately, the hydrogenation reaction is accompanied by some cis–trans isomerization of the remaining double bonds, producing fats with about 10% to 15% trans unsaturated fatty acids. Dietary intake of trans fatty acids increases cholesterol levels in the blood, thereby increasing the risk of heart problems. The conversion of linoleic acid into elaidic acid is an example.

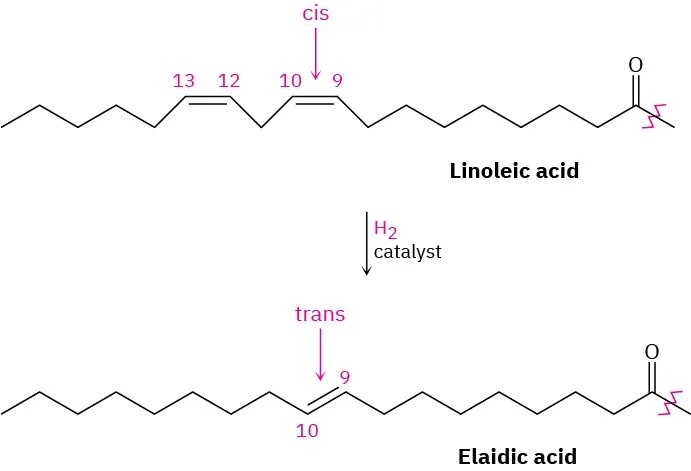

Linoleic acid reacts with hydrogen in the presence of catalyst to form elaidic acid. The double bond is in cis position for the reactant and trans position for the product.
Problem 27-1
Carnauba wax, used in floor and furniture polishes, contains an ester of a C32 straight-chain alcohol with a C20 straight-chain carboxylic acid. Draw its structure.
Problem 27-2
Draw structures of glyceryl tripalmitate and glyceryl trioleate. Which would you expect to have a higher melting point?
