13.9 Uses of 1H NMR Spectroscopy

Organic Chemistry13.9 Uses of 1H NMR Spectroscopy

13.9 • Uses of 1H NMR Spectroscopy

NMR is used to help identify the product of nearly every reaction run in the laboratory. For example, we said in Section 8.5 that hydroboration–oxidation of alkenes occurs with non-Markovnikov regiochemistry to yield the less highly substituted alcohol. With the help of NMR, we can now prove this statement.

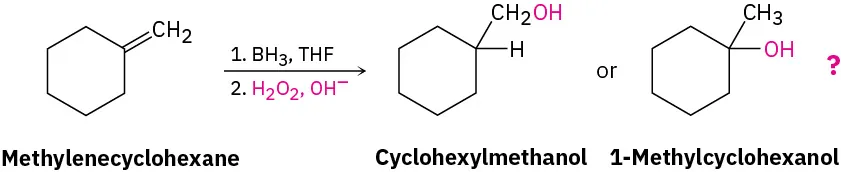

Does hydroboration–oxidation of methylenecyclohexane yield cyclohexylmethanol or 1-methylcyclohexanol?

Methylenecyclohexane reacts first with borane and tetrahydrofuran, then hydrogen peroxide and hydroxide to form cyclohexylmethanol or 1-methylcyclohexanol; question mark near structures indicates product is unknown, could be either.

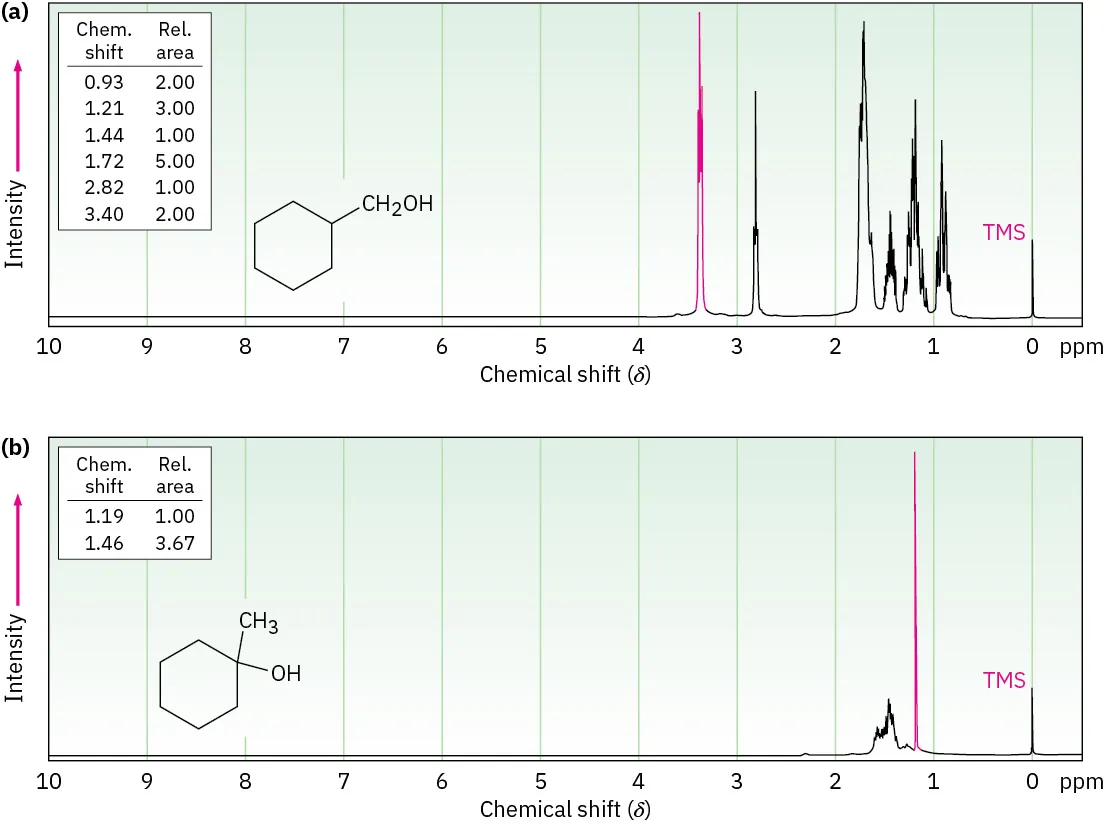

The 1H NMR spectrum of the reaction product is shown in Figure 13.16a. The spectrum shows a two-proton peak at 3.40 δ, indicating that the product has a –CH2– group bonded to an electronegative oxygen atom (–CH2OH). Furthermore, the spectrum shows no large three-proton singlet absorption near 1 δ, where we would expect the signal of a quaternary –CH3 group to appear. (Figure 13.16b) gives the spectrum of 1-methylcyclohexanol, the alternative product.) Thus, it’s clear that cyclohexylmethanol is the reaction product.

The 1 H N M R spectrum of cyclohexylmethanol (peaks at 0, 0.9, 1.2, 1.4, 1.7, 2.8. and 3.4) and 1-methylcyclohexanol (peaks at 0, 1.1, and 1.4).
Figure 13.16 (a) The 1H NMR spectrum of cyclohexylmethanol, the product from hydroboration–oxidation of methylenecyclohexane, and (b) the 1H NMR spectrum of 1-methylcyclohexanol, the possible alternative reaction product.
Problem 13-16
How could you use 1H NMR to determine the regiochemistry of electrophilic addition to alkenes? For example, does addition of HCl to 1-methylcyclohexene yield 1-chloro-1-methylcyclohexane or 1-chloro-2-methylcyclohexane?
