John McMurry, Professor Emeritus

11 • Additional Problems

Visualizing Chemistry

Problem 11-21

Write the product you would expect from reaction of each of the following alkyl halides with (1) Na⁺ ^–SCH₃ and (2) Na^{+ –}OH (green = Cl):

(a)

A ball-and-stick model of an alkyl halide comprising a two-carbon chain. The gray, black, and green spheres represent hydrogen, carbon, and chlorine, respectively.

(b)

A ball-and-stick model of an alkyl halide comprising a four-carbon chain. The gray, black, and green spheres represent hydrogen, carbon, and chlorine, respectively.

(c)

A ball-and-stick model of an alkyl halide comprising a six-carbon chain. The gray, black, and green spheres represent hydrogen, carbon, and chlorine, respectively.

Problem 11-22

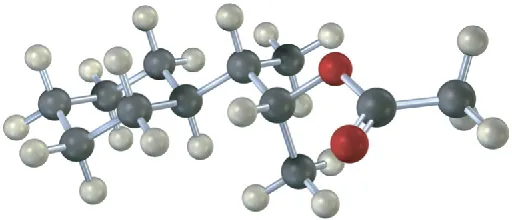

From what alkyl bromide was the following alkyl acetate made by S_N2 reaction? Write the reaction, showing all stereochemistry.

A ball-and-stick model of an alkyl acetate. The gray, black, and red spheres represent hydrogen, carbon, and bromine, respectively.

Problem 11-23

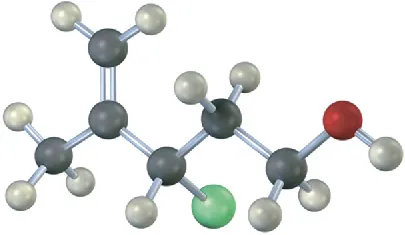

Assign R or S configuration to the following molecule, write the product you would expect from S_N2 reaction with NaCN, and assign R or S configuration to the product (green = Cl):

A ball-and-stick model of an alkyl chloride having a double bond. The gray, black, and green spheres represent hydrogen, carbon, and chlorine, respectively.

Problem 11-24

Draw the structure and assign Z or E stereochemistry to the product you expect from E2 reaction of the following molecule with NaOH (green = Cl):

A ball-and-stick model of an alkyl chloride having a cyclohexane ring. The gray, black, green, and red spheres represent hydrogen, carbon, chlorine and bromine, respectively.

Mechanism Problems

Problem 11-25

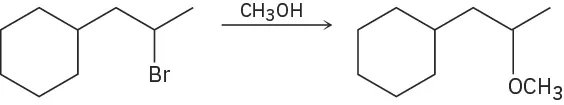

Predict the product(s) and show the mechanism for each of the following reactions. What do the mechanisms have in common? Why?

(a)

(b)

(c)

(d)

Problem 11-26

Show the mechanism for each of the following reactions. What do the mechanisms have in common? Why?

(a)

(b)

3-chloro-1-butene reacts with sodium acetate and acetic acid to form a product in which O C O C H 3 has replaced Cl.

(c)

A three-carbon chain with cyclohexane on C 1 and bromine on C 2 reacts with methanol to produce a three-carbon chain with cyclohexane on C 1and methoxy on C 2.

Problem 11-27

Predict the product(s) for each of the following elimination reactions. In each case show the mechanism. What do the mechanisms have in common? Why?

(a)

An incomplete reaction between 1,1-dimethyl-1-propanol and sulfuric acid to form unknown product(s).

(b)

An incomplete reaction between 3-chloro-1-butene and sodium acetate with acetic acid to form unknown product(s).

(c)

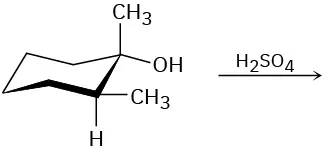

An incomplete reaction between 1S,2S-1,2-dimethylcyclohexanol in sulfuric acid to form unknown product(s).

Problem 11-28

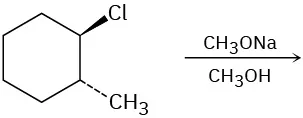

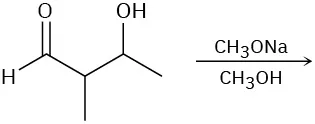

Predict the product(s) for each of the following elimination reactions. In each case show the mechanism. What do the mechanisms have in common? Why?

(a)

(b)

An incomplete reaction between 1R,2R-1-chloro-2-methylcyclohexane in sodium methoxide and methanol to form unknown product(s).

(c)

An incomplete reaction between 1-bromo-2-methylpropane in potassium t-butoxide and T H F to form unknown product(s).

Problem 11-29

Predict the product(s) for each of the following elimination reactions. In each case show the mechanism. What do the mechanisms have in common? Why?

(a)

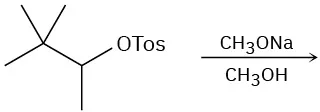

An incomplete reaction between the tosylate of 1,2,2-trimethylpropan-1-ol and sodium methoxide in methanol to form unknown product(s).

(b)

An incomplete reaction between 4-hydroxy-2-hexanone and sodium methoxide in methanol to form unknown product(s).

(c)

An incomplete reaction between 3-hydroxy-2-methylcyclohexanone and Na O H in water to form unknown product(s).

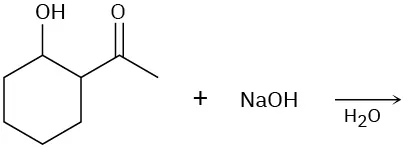

Problem 11-30

Predict the product of each of the following reactions, and indicate if the mechanism is likely to be S_N1, S_N2, E1, E2, or E1cB.

(a)

(b)

(c)

(d)

Problem 11-31

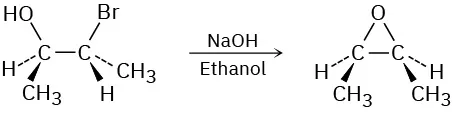

We saw in Section 8.7 that bromohydrins are converted into epoxides when treated with base. Propose a mechanism, using curved arrows to show the electron flow.

An illustration shows the reaction of a bromohydrin in the presence of NaOH and ethanol to yield epoxide. Bromohydrin shows two carbon atoms single bonded. C1 is single bonded to a hydroxyl group dash bonded to a hydrogen and wedge bonded to methyl group. C2 is single bonded to a bromine atom wedge bonded to a hydrogen and dash bonded to methyl group. Epoxide shows a 3-membered ring with an oxygen and 2 carbon atoms. Each carbon is dash bonded to a hydrogen and wedge bonded to methyl group.

Problem 11-32

The following tertiary alkyl bromide does not undergo a nucleophilic substitution reaction by either S_N1 or S_N2 mechanisms. Explain.

The structure of bicyclo[2.2.2]octane with a bromine at a bridgehead carbon.

Problem 11-33

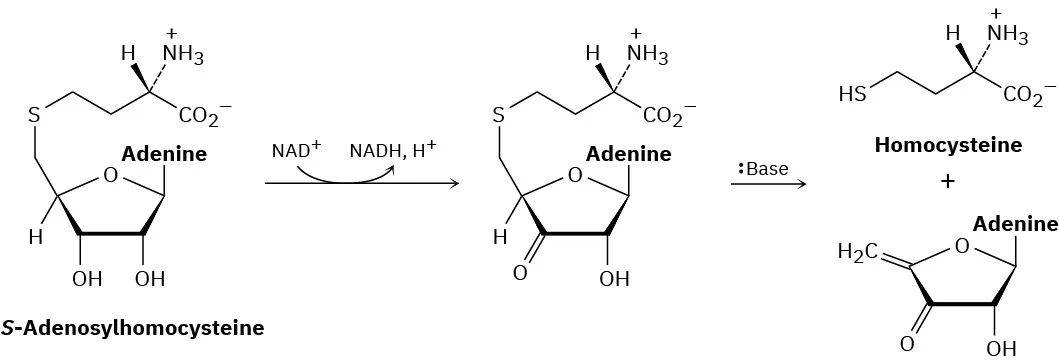

Metabolism of S-adenosylhomocysteine (Section 11.6) involves the following sequence. Propose a mechanism for the second step.

The reaction of S-Adenosylhomocysteine forms an intermediate through the conversion of N A D plus to N A D H, which further reacts with a base to yield homocysteine and another product.

Problem 11-34

Reaction of iodoethane with CN^– yields a small amount of isonitrile, CH₃CH₂N

\text{≡}

C, along with the nitrile CH₃CH₂C

\text{≡}

N as the major product. Write electron-dot structures for both products, assign formal charges as necessary, and propose mechanisms to account for their formation.

Problem 11-35

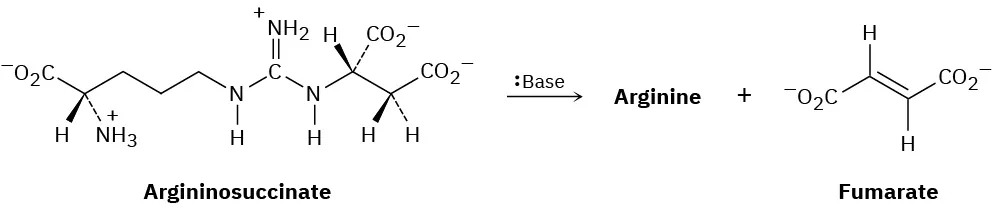

One step in the urea cycle for ridding the body of ammonia is the conversion of argininosuccinate to the amino acid arginine plus fumarate. Propose a mechanism for the reaction, and show the structure of arginine.

The reaction of argininosuccinate in the presence of base forms arginine and fumarate.

Problem 11-36

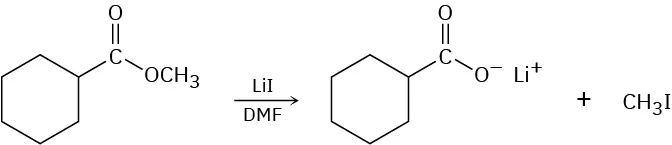

Methyl esters (RCO₂CH₃) undergo a cleavage reaction to yield carboxylate ions plus iodomethane on heating with LiI in dimethylformamide:

The reaction of methyl cyclohexanoate with lithium iodide in dimethylformamide forms lithium cyclohexanoate and methyl iodide.

The following evidence has been obtained: (1) The reaction occurs much faster in DMF than in ethanol. (2) The corresponding ethyl ester (RCO₂CH₂CH₃) cleaves approximately 10 times more slowly than the methyl ester. Propose a mechanism for the reaction. What other kinds of experimental evidence could you gather to support your hypothesis?

Problem 11-37

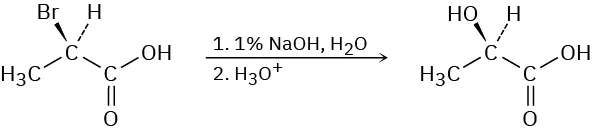

S_N2 reactions take place with inversion of configuration, and S_N1 reactions take place with racemization. The following substitution reaction, however, occurs with complete retention of configuration. Propose a mechanism. (Hint: two inversions = retention.)

The reaction of (R)-2-bromopropanoic acid first with one percent sodium hydroxide and water, and then with hydronium ion, forms (R)-2-hydroxypropanoic acid.

Problem 11-38

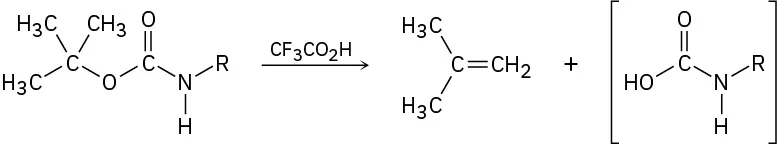

Propose a mechanism for the following reaction, an important step in the laboratory synthesis of proteins:

The reaction of a carbonyl compound in the presence of trifluoroacetic acid yields an alkene and carboxylic acid.

Nucleophilic Substitution Reactions

Problem 11-39

Draw all isomers of C₄H₉Br, name them, and arrange them in order of decreasing reactivity in the S_N2 reaction.

Problem 11-40

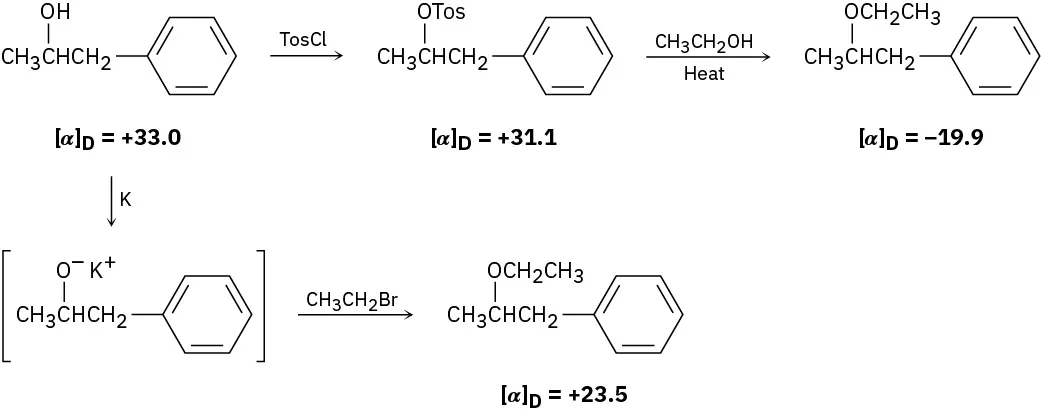

The following Walden cycle has been carried out: Explain the results, and indicate where inversion occurs.

Two reactions of a compound with alpha subscript D equals 33. In first and second reactions, compounds with alpha subscript D equal to negative 19.9 and 23.5, respectively, are formed.

Problem 11-41

Which compound in each of the following pairs will react faster in an S_N2 reaction with OH^–?

(a)

CH₃Br or CH₃I

(b)

CH₃CH₂I in ethanol or in dimethyl sulfoxide

(c)

(CH₃)₃CCl or CH₃Cl

(d)

H₂C

\text{=}

CHBr or H₂C

\text{=}

CHCH₂Br

Problem 11-42

Which reactant in each of the following pairs is more nucleophilic? Explain.

(a)

^–NH₂ or NH₃

(b)

H₂O or CH₃CO₂^–

(c)

BF₃ or F^–

(d)

(CH₃)₃P or (CH₃)₃N

(e)

I^– or Cl^–

(f)

^–C

\text{≡}

N or ^–OCH₃

Problem 11-43

What effect would you expect the following changes to have on the rate of the S_N2 reaction of 1-iodo-2-methylbutane with cyanide ion?

(a)

The CN^– concentration is halved, and the 1-iodo-2-methylbutane concentration is doubled.

(b)

Both the CN^– and the 1-iodo-2-methylbutane concentrations are tripled.

Problem 11-44

What effect would you expect the following changes to have on the rate of the reaction of ethanol with 2-iodo-2-methylbutane?

(a)

The concentration of the halide is tripled.

(b)

The concentration of the ethanol is halved by adding diethyl ether as an inert solvent.

Problem 11-45

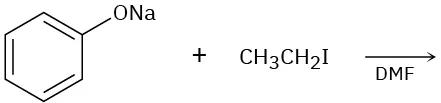

How might you prepare each of the following using a nucleophilic substitution reaction at some step?

(a)

The chemical structure of 4-methyl-2-pentyne.

(b)

The chemical structure of methyl t-butyl ether.

(c)

(d)

Problem 11-46

Which reaction in each of the following pairs would you expect to be faster?

(a)

The S_N2 displacement by I^– on CH₃Cl or on CH₃OTos

(b)

The S_N2 displacement by CH₃CO₂^– on bromoethane or on bromocyclohexane

(c)

The S_N2 displacement on 2-bromopropane by CH₃CH₂O^– or by CN^–

(d)

The S_N2 displacement by HC

\text{≡}

C^– on bromomethane in benzene or in acetonitrile

Problem 11-47

Predict the product and give the stereochemistry resulting from reaction of each of the following nucleophiles with (R)-2-bromooctane:

(a)

^–CN

(b)

CH₃CO₂^–

(c)

CH₃S^–

Problem 11-48

(R)-2-Bromooctane undergoes racemization to give (±)-2-bromooctane when treated with NaBr in dimethyl sulfoxide. Explain.

Elimination Reactions

Problem 11-49

Propose structures for compounds that fit the following descriptions:

(a)

An alkyl halide that gives a mixture of three alkenes on E2 reaction

(b)

An organohalide that will not undergo nucleophilic substitution

(c)

An alkyl halide that gives the non-Zaitsev product on E2 reaction

(d)

An alcohol that reacts rapidly with HCl at 0 °C

Problem 11-50

What products would you expect from the reaction of 1-bromopropane with each of the following?

(a)

NaNH₂

(b)

KOC(CH₃)₃

(c)

NaI

(d)

NaCN

(e)

NaC

\text{≡}

CH

(f)

Mg, then H₂O

Problem 11-51

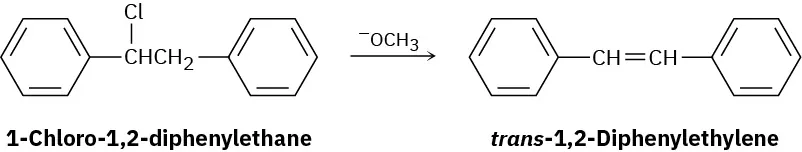

1-Chloro-1,2-diphenylethane can undergo E2 elimination to give either cis- or trans-1,2-diphenylethylene (stilbene). Draw Newman projections of the reactive conformations leading to both possible products, and suggest a reason why the trans alkene is the major product.

The conversion of 1-chloro-1,2-diphenylethane to trans-1,2-Diphenylethylene in the presence of methoxy ion.

Problem 11-52

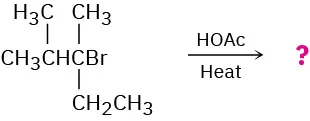

Predict the major alkene product of the following E1 reaction:

The reaction of 3-bromo-2,3-dimethylpentane in acetic acid and heat yields an unknown product, depicted by a question mark.

Problem 11-53

There are eight diastereomers of 1,2,3,4,5,6-hexachlorocyclohexane. Draw each in its more stable chair conformation. One isomer loses HCl in an E2 reaction nearly 1000 times more slowly than the others. Which isomer reacts so slowly, and why?

General Problems

Problem 11-54

The following reactions are unlikely to occur as written. Tell what is wrong with each, and predict the actual product.

(a)

The reaction of 2-bromobutane with potassium t-butoxide in t-butanol yields s-butyl t-butyl ether.

(b)

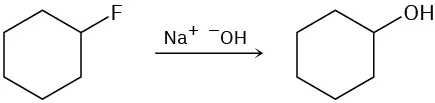

The reaction of fluorocyclohexane with Na O H yields cyclohexanol.

(c)

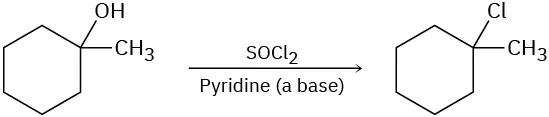

The reaction of 1-methylcyclohexanol with thionyl chloride and pyridine (a base) yields 1-chloro-1-methylcyclohexane.

Problem 11-55

Arrange the following carbocations in order of increasing stability.

(a)

Three cations of 3-methylcyclopentene. The carbocation is on C 4, the methyl group, and C 5 respectively.

(b)

Three cations of 2-methylpentane. The carbocation is on C 5, C 4, and C 2 respectively.

(c)

Three cations of 3-methyl-1-pentene. The carbocation is on C 3, C 4, and the methyl group respectively.

Problem 11-56

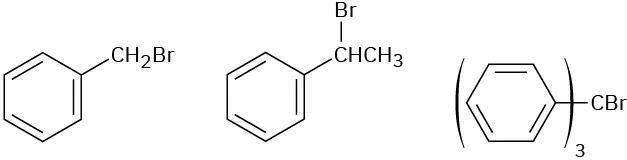

Order each of the following sets of compounds with respect to S_N1 reactivity:

(a)

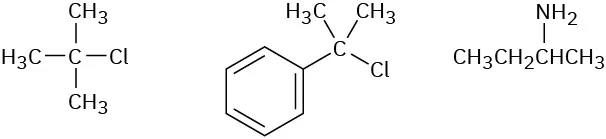

Chemical structures of t-butyl chloride, a benzene ring bonded to a carbon that has a chlorine and two methyl substituents, and 2-aminobutane.

(b)

(c)

Chemical structures of benzene bonded to methyl bromide, benzene bonded to ethyl bromide ethyl C 1, and carbon bonded to three benzene rings and a bromine.

Problem 11-57

Order each of the following sets of compounds with respect to S_N2 reactivity:

(a)

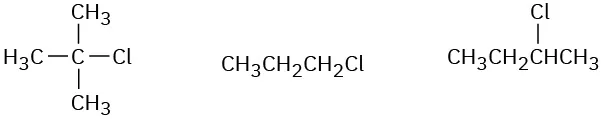

Chemical structures of t-butyl chloride, 1-chloropropane, and 2-chlorobutane.

(b)

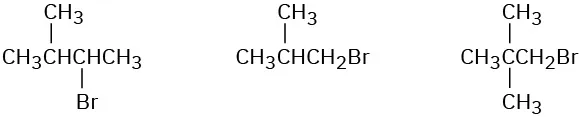

Chemical structures of 2-bromo-3-methylbutane, 1-bromo-2-methylpropane, and 1-bromo-2,2-dimethylpropane.

(c)

Problem 11-58

Predict the major product(s) of each of the following reactions. Identify those reactions where you would expect the product mixture to rotate plane-polarized light.

(a)

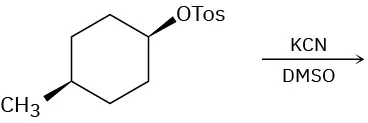

An incomplete reaction between the tosylate of cis-4-methyl-1-cyclohexanol and K C N in D M S O to form unknown product(s).

(b)

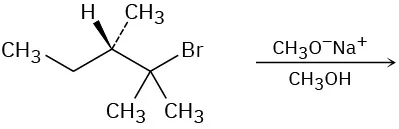

An incomplete reaction between (S)-2-bromo-2,3-dimethylpentane in sodium methoxide and methanol to form unknown product(s).

(c)

An incomplete reaction between (1S,2S)-1-chloro-1,2-dimethylcyclopentane and methanol to form unknown product(s).

Problem 11-59

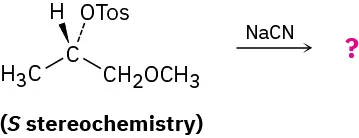

Reaction of the following S tosylate with cyanide ion yields a nitrile product that also has S stereochemistry. Explain.

An incomplete reaction between tosylate having S configuration in the presence of sodium cyanide yields an unknown product, depicted by a question mark.

Problem 11-60

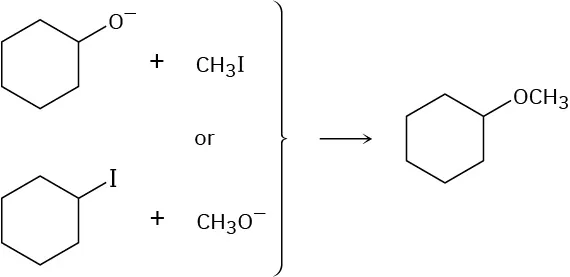

Ethers can often be prepared by S_N2 reaction of alkoxide ions, RO^–, with alkyl halides. Suppose you wanted to prepare cyclohexyl methyl ether. Which of the following two possible routes would you choose? Explain.

An illustration shows two reactions that yield cyclohexyl methyl ether as product. In the first reaction an alkoxide ion reacts with iodomethane. The alkoxide ion shows a cyclo-hexane bonded to an oxygen anion. In the second reaction iodobenzene reacts with methoxy anion (CH3 O minus). Cyclohexyl methyl ether shows a cyclohexane bonded to a methoxy group.

Problem 11-61

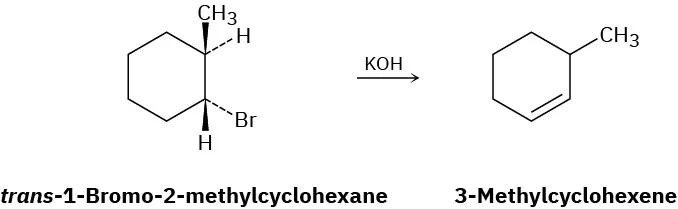

How can you explain the fact that trans-1-bromo-2-methylcyclohexane yields the non-Zaitsev elimination product 3-methylcyclohexene on treatment with base?

A reaction in which trans-1-bromo-2-methylcyclohexane forms 3-methylcyclohexene in the presence of K O H.

Problem 11-62

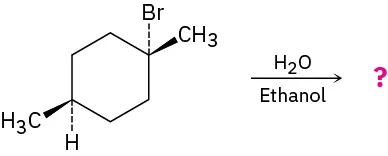

Predict the product(s) of the following reaction, indicating stereochemistry where necessary:

A reaction of 1-bromo-1,4-dimethylcyclohexane (methy groups are cis to one another) in the presence of water and ethanol yields an unknown product, depicted by a question mark.

Problem 11-63

Alkynes can be made by dehydrohalogenation of vinylic halides in a reaction that is essentially an E2 process. In studying the stereochemistry of this elimination, it was found that (Z)-2-chloro-2-butenedioic acid reacts 50 times as fast as the corresponding E isomer. What conclusion can you draw about the stereochemistry of eliminations in vinylic halides? How does this result compare with eliminations of alkyl halides?

A reaction in which (Z)-2-chloro-2-butenedioic acid forms an alkyne in the presence of sodium amide and hydronium ion.

Problem 11-64

Based on your answer to Problem 11-63, predict the product(s) and show the mechanism for each of the following reactions.

(a)

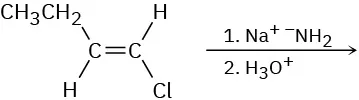

An incomplete reaction between trans-1-chloro-1-butene first with sodium amide and then with hydronium to form unknown product(s).

(b)

An incomplete reaction between an alkene with bromine (up) and phenyl on the left and methyl (up) and hydrogen on the right, first with sodium amide and then with hydronium.

(c)

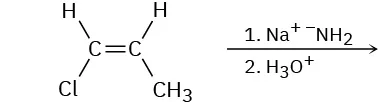

An incomplete reaction between cis-1-chloro-1-propene, first with sodium amide and then with hydronium.

Problem 11-65

(S)-2-Butanol slowly racemizes on standing in dilute sulfuric acid. Explain.

Problem 11-66

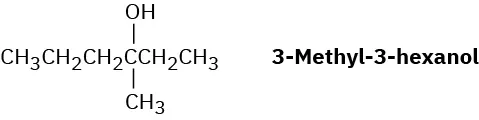

Reaction of HBr with (R)-3-methyl-3-hexanol leads to racemic 3-bromo-3-methylhexane. Explain.

An illustration shows the structure of 3-Methyl-3-hexanol. A central carbon is bonded to a hydroxyl group at the top methyl group at the bottom an ethyl group on the right and a propyl group on the left.

Problem 11-67

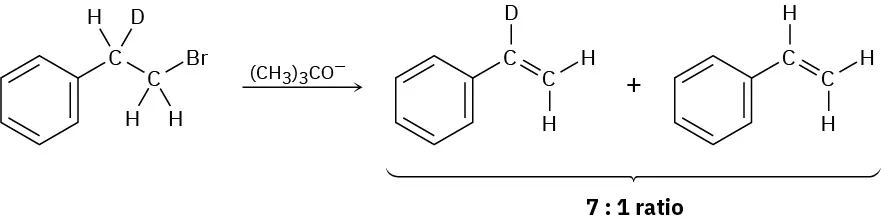

Treatment of 1-bromo-2-deuterio-2-phenylethane with strong base leads to a mixture of deuterated and nondeuterated phenylethylenes in an approximately 7 : 1 ratio. Explain.

A reaction in which 1-bromo-2-deuterio-2-phenylethane reacts with (C H 3)3 C O minus to form deuterated and non deuterated phenylethylene structures.

Problem 11-68

Propose a structure for an alkyl halide that gives only (E)-3-methyl-2-phenyl-2-pentene on E2 elimination. Make sure you indicate the stereochemistry.

Problem 11-69

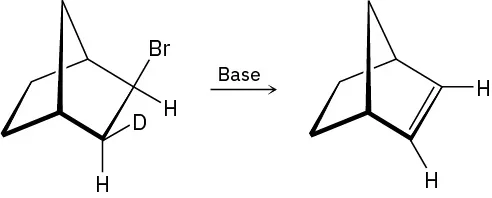

Although anti periplanar geometry is preferred for E2 reactions, it isn’t absolutely necessary. The following deuterated bromo compound reacts with strong base to yield an undeuterated alkene. A syn elimination has occurred. Make a molecular model of the reactant, and explain the result.

A reaction in which a deuterated bromo compound reacts with a base to form an undeuterated alkene. The double bond in the product is bonded to two hydrogen atoms.

Problem 11-70

The reaction of 1-chlorooctane with CH₃CO₂^– to give octyl acetate is greatly accelerated by adding a small quantity of iodide ion. Explain.

Problem 11-71

Compound X is optically inactive and has the formula C₁₆H₁₆Br₂. On treatment with strong base, X gives hydrocarbon Y, C₁₆H₁₄. Compound Y absorbs 2 equivalents of hydrogen when reduced over a palladium catalyst and reacts with ozone to give two fragments. One fragment, Z, is an aldehyde with formula C₇H₆O. The other fragment is glyoxal, (CHO)₂. Write the reactions involved, and suggest structures for X, Y, and Z. What is the stereochemistry of X?

Problem 11-72

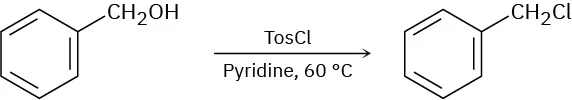

When a primary alcohol is treated with p-toluenesulfonyl chloride at room temperature in the presence of an organic base such as pyridine, a tosylate is formed. When the same reaction is carried out at higher temperature, an alkyl chloride is often formed. Explain.

The reaction of benzyl alcohol with tosyl chloride and pyridine at 60 degrees Celsius yields benzyl chloride.

Problem 11-73

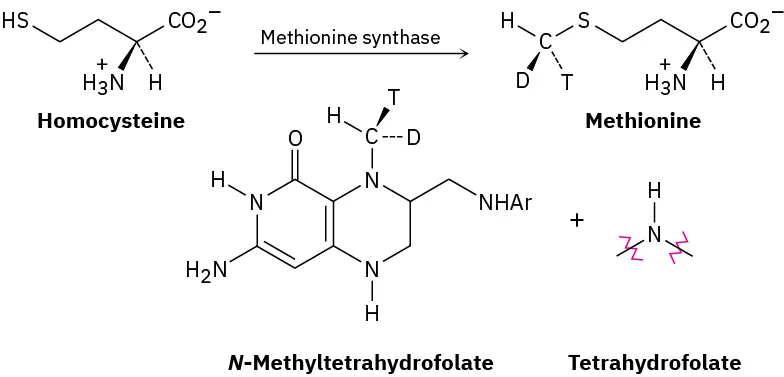

The amino acid methionine is formed by a methylation reaction of homocysteine with N-methyltetrahydrofolate. The stereochemistry of the reaction has been probed by carrying out the transformation using a donor with a “chiral methyl group,” which contains protium (H), deuterium (D), and tritium (T) isotopes of hydrogen. Does the methylation reaction occur with inversion or retention of configuration?

The reaction of homocysteine in the presence of methionine synthase forms methionine, N-methyltetrahydrofolate, and Tetrahydrofolate.

Problem 11-74

Amines are converted into alkenes by a two-step process called the Hofmann elimination. S_N2 reaction of the amine with an excess of CH₃I in the first step yields an intermediate that undergoes E2 reaction when treated with silver oxide as base. Pentylamine, for example, yields 1-pentene. Propose a structure for the intermediate, and explain why it readily undergoes elimination.

Problem 11-75

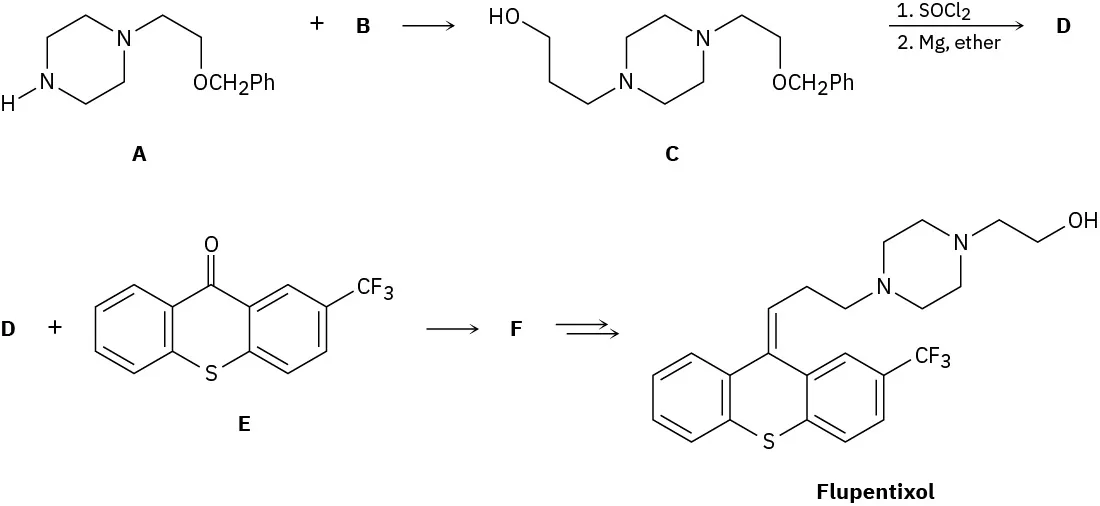

The antipsychotic drug flupentixol is prepared by the following scheme:

Compound A undergoes a multi-step reaction to produce Flupentixol through the formation of intermediate compounds B, C, D, and E.

(a)

What alkyl chloride B reacts with amine A to form C?

(b)

Compound C is treated with SOCl₂, and the product is allowed to react with magnesium metal to give a Grignard reagent D. What is the structure of D?

(c)

We’ll see in Section 19.7 that Grignard reagents add to ketones, such as E, to give tertiary alcohols, such as F. Because of the newly formed chirality center, compound F exists as a pair of enantiomers. Draw both, and assign R,S configurations.

(d)

Two stereoisomers of flupentixol are subsequently formed from F, but only one is shown. Draw the other isomer, and identify the type of stereoisomerism.
