Barbara Illowsky; Susan Dean

Here are some facts about the F distribution.

The curve is not symmetrical but skewed to the right.
There is a different curve for each set of dfs.
The F statistic is greater than or equal to zero.
As the degrees of freedom for the numerator and for the denominator get larger, the curve approximates the normal.
Other uses for the F distribution include comparing two variances and two-way Analysis of Variance. Two-Way Analysis is beyond the scope of this chapter.

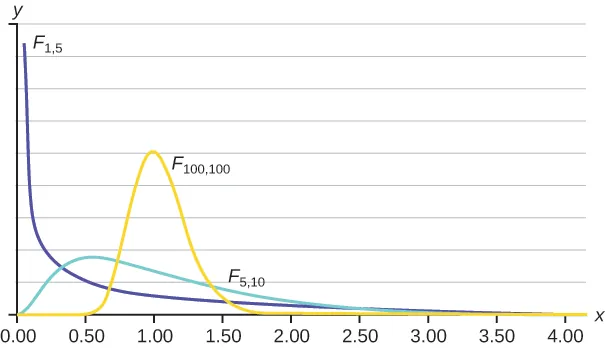

This graph has an unmarked Y axis and then an X axis that ranges from 0.00 to 4.00. It has three plot lines. The plot line labelled F subscript 1, 5 starts near the top of the Y axis at the extreme left of the graph and drops quickly to near the bottom at 0.50, at which point is slowly decreases in a curved fashion to the 4.00 mark on the X axis. The plot line labelled F subscript 100, 100 remains at Y = 0 for much of its length, except for a distinct peak between 0.50 and 1.50. The peak is a smooth curve that reaches about half way up the Y axis at its peak. The plot line labeled F subscript 5, 10 increases slightly as it progresses from 0.00 to 0.50, after which it peaks and slowly decreases down the remainder of the X axis. The peak only reaches about one fifth up the height of the Y axis.

Figure 13.3

Example 13.2

Problem

Let’s return to the slicing tomato exercise in Try It 13.1. The means of the tomato yields under the five mulching conditions are represented by μ₁, μ₂, μ₃, μ₄, μ₅. We will conduct a hypothesis test to determine if all means are the same or at least one is different. Using a significance level of 5%, test the null hypothesis that there is no difference in mean yields among the five groups against the alternative hypothesis that at least one mean is different from the rest.

Solution

The null and alternative hypotheses are:

H₀: μ₁ = μ₂ = μ₃ = μ₄ = μ₅

H_a: μ_i ≠ μ_j some i ≠ j

The one-way ANOVA results are shown in [link]

Source of Variation	Sum of Squares (SS)	Degrees of Freedom (df)	Mean Square (MS)	F
Factor (Between)	36,648,561	5 – 1 = 4	$\frac{36,648,561}{4} = 9,162,140$	$\frac{9,162,140}{2,044,672 .6} = 4 .4810$
Error (Within)	20,446,726	15 – 5 = 10	$\frac{20,446,726}{10} = 2,044,672 .6$
Total	57,095,287	15 – 1 = 14

Table 13.5

Distribution for the test: F_4,10

df(num) = 5 – 1 = 4

df(denom) = 15 – 5 = 10

Test statistic: F = 4.4810

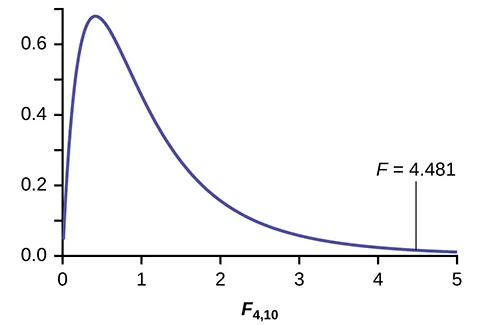

This graph shows a nonsymmetrical F distribution curve. The horizontal axis extends from 0 - 5, and the vertical axis ranges from 0 - 0.7. The curve is strongly skewed to the right.

Figure 13.4

Probability Statement: p-value = P(F > 4.481) = 0.0248.

Compare α and the p-value: α = 0.05, p-value = 0.0248

Make a decision: Since α > p-value, we reject H₀.

Conclusion: At the 5% significance level, we have reasonably strong evidence that differences in mean yields for slicing tomato plants grown under different mulching conditions are unlikely to be due to chance alone. We may conclude that at least some of mulches led to different mean yields.

Using the TI-83, 83+, 84, 84+ Calculator

To find these results on the calculator:

Press STAT. Press 1:EDIT. Put the data into the lists L₁, L₂, L₃, L₄, L₅.

Press STAT, and arrow over to TESTS, and arrow down to ANOVA. Press ENTER, and then enter L₁, L₂, L₃, L₄, L₅). Press ENTER. You will see that the values in the foregoing ANOVA table are easily produced by the calculator, including the test statistic and the p-value of the test.

The calculator displays:
F = 4.4810
p = 0.0248 (p-value)
Factor
df = 4
SS = 36648560.9
MS = 9162140.23
Error
df = 10
SS = 20446726
MS = 2044672.6

Try It 13.2

MRSA, or Staphylococcus aureus, can cause a serious bacterial infections in hospital patients. Table 13.6 shows various colony counts from different patients who may or may not have MRSA. The data from the table is plotted in Figure 13.5.

Conc = 0.6	Conc = 0.8	Conc = 1.0	Conc = 1.2	Conc = 1.4
9	16	22	30	27
66	93	147	199	168
98	82	120	148	132

Table 13.6

Plot of the data for the different concentrations:

This graph is a scatterplot for the data provided. The horizontal axis is labeled 'Colony counts' and extends from 0 - 200. The vertical axis is labeled 'Tryptone concentrations' and extends from 0.6 - 1.4.

Figure 13.5

Test whether the mean number of colonies are the same or are different. Construct the ANOVA table (by hand or by using a TI-83, 83+, or 84+ calculator), find the p-value, and state your conclusion. Use a 5% significance level.

Example 13.3

Four sororities took a random sample of sisters regarding their grade means for the past term. The results are shown in Table 13.7.

Sorority 1	Sorority 2	Sorority 3	Sorority 4
2.17	2.63	2.63	3.79
1.85	1.77	3.78	3.45
2.83	3.25	4.00	3.08
1.69	1.86	2.55	2.26
3.33	2.21	2.45	3.18

Table 13.7 MEAN GRADES FOR FOUR SORORITIES

Problem

Using a significance level of 1%, is there a difference in mean grades among the sororities?

Solution

Let μ₁, μ₂, μ₃, μ₄ be the population means of the sororities. Remember that the null hypothesis claims that the sorority groups are from the same normal distribution. The alternate hypothesis says that at least two of the sorority groups come from populations with different normal distributions. Notice that the four sample sizes are each five.

Note

This is an example of a balanced design, because each factor (i.e., sorority) has the same number of observations.

H₀: μ₁ = μ₂ = μ₃ = μ₄

H_a: Not all of the means μ₁, μ₂, μ₃, μ₄ are equal.

Distribution for the test: F_3,16

where k = 4 groups and n = 20 samples in total

df(num)= k – 1 = 4 – 1 = 3

df(denom) = n – k = 20 – 4 = 16

Calculate the test statistic: F = 2.23

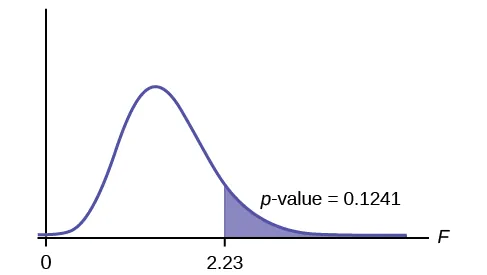

Graph:

Figure 13.6

Probability statement: p-value = P(F > 2.23) = 0.1241

Compare α and the p-value: α = 0.01
p-value = 0.1241
α < p-value

Make a decision: Since α < p-value, you cannot reject H₀.

Conclusion: There is not sufficient evidence to conclude that there is a difference among the mean grades for the sororities.

Using the TI-83, 83+, 84, 84+ Calculator

Put the data into lists L₁, L₂, L₃, and L₄. Press STAT and arrow over to TESTS. Arrow down to F:ANOVA. Press ENTER and Enter (L1,L2,L3,L4).

The calculator displays the F statistic, the p-value and the values for the one-way ANOVA table:
F = 2.2303
p = 0.1241 (p-value)
Factor
df = 3
SS = 2.88732
MS = 0.96244
Error
df = 16
SS = 6.9044
MS = 0.431525

Try It 13.3

Four sports teams took a random sample of players regarding their GPAs for the last year. The results are shown in Table 13.8.

Basketball	Baseball	Hockey	Lacrosse
3.6	2.1	4.0	2.0
2.9	2.6	2.0	3.6
2.5	3.9	2.6	3.9
3.3	3.1	3.2	2.7
3.8	3.4	3.2	2.5

Table 13.8 GPAs FOR FOUR SPORTS TEAMS

Use a significance level of 5%, and determine if there is a difference in GPA among the teams.

Example 13.4

A fourth grade class is studying the environment. One of the assignments is to grow bean plants in different soils. Tommy chose to grow his bean plants in soil found outside his classroom mixed with dryer lint. Tara chose to grow her bean plants in potting soil bought at the local nursery. Nick chose to grow his bean plants in soil from his mother's garden. No chemicals were used on the plants, only water. They were grown inside the classroom next to a large window. Each child grew five plants. At the end of the growing period, each plant was measured, producing the data (in inches) in Table 13.9.

Tommy's Plants	Tara's Plants	Nick's Plants
24	25	23
21	31	27
23	23	22
30	20	30
23	28	20

Table 13.9

Problem

Does it appear that the three media in which the bean plants were grown produce the same mean height? Test at a 3% level of significance.

Solution

This time, we will perform the calculations that lead to the F' statistic. Notice that each group has the same number of plants, so we will use the formula F' = $\frac{n \cdot s_{\bar{x}}^{2}}{s^{2}_{pooled}}$ .

First, calculate the sample mean and sample variance of each group.

	Tommy's Plants	Tara's Plants	Nick's Plants
Sample Mean	24.2	25.4	24.4
Sample Variance	11.7	18.3	16.3

Table 13.10

Next, calculate the variance of the three group means (Calculate the variance of 24.2, 25.4, and 24.4). Variance of the group means = 0.413 = $s_{\bar{x}}^{2}$

Then MS_between = $n s_{\bar{x}}^{2}$ = (5)(0.413) where n = 5 is the sample size (number of plants each child grew).

Calculate the mean of the three sample variances (Calculate the mean of 11.7, 18.3, and 16.3). Mean of the sample variances = 15.433 = s² pooled

Then MS_within = s²_pooled = 15.433.

The F statistic (or F ratio) is $F = \frac{M S_{between}}{M S_{within}} = \frac{n s_{\bar{x}}^{2}}{s^{2}_{p o o l e d}} = \frac{(5) (0.413)}{15.433} = 0.134$

The dfs for the numerator = the number of groups – 1 = 3 – 1 = 2.

The dfs for the denominator = the total number of samples – the number of groups = 15 – 3 = 12

The distribution for the test is F_2,12 and the F statistic is F = 0.134

The p-value is P(F > 0.134) = 0.8759.

Decision: Since α = 0.03 and the p-value = 0.8759, do not reject H₀. (Why?)

Conclusion: With a 3% level of significance, from the sample data, the evidence is not sufficient to conclude that the mean heights of the bean plants are different.

Using the TI-83, 83+, 84, 84+ Calculator

To calculate the p-value:

*Press 2nd DISTR

*Arrow down to Fcdf(and press ENTER.

*Enter 0.134, E99, 2, 12)

*Press ENTER

The p-value is 0.8759.

Try It 13.4

Another fourth grader also grew bean plants, but this time in a jelly-like mass. The heights were (in inches) 24, 28, 25, 30, and 32. Do a one-way ANOVA test on the four groups. Are the heights of the bean plants different? Use the same method as shown in Example 13.4.

Collaborative Exercise

From the class, create four groups of the same size as follows: men under 22, men at least 22, women under 22, women at least 22. Have each member of each group record the number of states in the United States he or she has visited. Run an ANOVA test to determine if the average number of states visited in the four groups are the same. Test at a 1% level of significance. Use one of the solution sheets in Appendix E Solution Sheets.
