10.1 Points, Lines, and Planes

Contemporary Mathematics10.1 Points, Lines, and Planes

A detail of the School of Athens by Raphael shows Euclid drawing the figure of a hexagram with a compass.
Figure 10.2 The lower right-hand corner of The School of Athens depicts a figure representing Euclid illustrating to students how to use a compass on a small chalkboard. (credit: modification of work “School of Athens” by Raphael (1483–1520), Vatican Museums/Wikimedia, Public Domain)

Learning Objectives

After completing this section, you should be able to:

  1. Identify and describe points, lines, and planes.
  2. Express points and lines using proper notation.
  3. Determine union and intersection of sets.

In this section, we will begin our exploration of geometry by looking at the basic definitions as defined by Euclid. These definitions form the foundation of the geometric theories that are applied in everyday life.

In The Elements, Euclid summarized the geometric principles discovered earlier and created an axiomatic system, a system composed of postulates. A postulate is another term for axiom, which is a statement that is accepted as truth without the need for proof or verification. There were no formal geometric definitions before Euclid, and when terms could not be defined, they could be described. In order to write his postulates, Euclid had to describe the terms he needed and he called the descriptions “definitions.” Ultimately, we will work with theorems, which are statements that have been proved and can be proved.

Points and Lines

The first definition Euclid wrote was that of a point. He defined a point as “that which has no part.” It was later expanded to “an indivisible location which has no width, length, or breadth.” Here are the first two of the five postulates, as they are applicable to this first topic:

  1. Postulate 1: A straight line segment can be drawn joining any two points.
  2. Postulate 2: Any straight line segment can be extended indefinitely in a straight line.

Before we go further, we will define some of the symbols used in geometry in Figure 10.3:

A table with three columns titled, Symbol, Definition, and Picture. The first row displays: Symbol, a point; Definition, Points are defined with capital letters, like point A; Picture, a point A. The second row displays: Symbol, A B with a line above it; Definition, A line segment from point A to point B; Picture, a line segment A B. The third row displays: Symbol, A B with an arrow above it; Definition, A ray from point A in the direction of B; Picture, a ray A B. The fourth row displays: Symbol, B A with an arrow above it, Definition, A ray from point B in the direction of A; Picture, a ray B A. The fifth row displays: Symbol, A B with a double-sided arrow above it; Definition, A line that includes the points A and B goes off indefinitely in both directions; Picture, a line A B. The sixth row displays: Symbol, A B with a circle and arrow above it; Definition, A half line from, but not including, point A in the direction of point B; Picture, a half-line A B. The seventh row displays: Symbol, B A with a circle and arrow above it; Definition, A half line from, but not including, point B in the direction of A; Picture, a half-line B A.
Figure 10.3 Basic Geometric Symbols for Points and Lines

From Figure 10.3, we see the variations in lines, such as line segments, rays, or half-lines. What is consistent is that two collinear points (points that lie on the same line) are required to form a line. Notice that a line segment is defined by its two endpoints showing that there is a definite beginning and end to a line segment. A ray is defined by two points on the line; the first point is where the ray begins, and the second point gives the line direction. A half-line is defined by two points, one where the line starts and the other to give direction, but an open circle at the starting point indicates that the starting point is not part of the half-line. A regular line is defined by any two points on the line and extends infinitely in both directions. Regular lines are typically drawn with arrows on each end.

Example 10.1

Defining Lines

For the following exercises, use this line (Figure 10.4).

A line with three points, D, E, and F marked on it.
Figure 10.4
  1. Define DE¯DE¯.
  2. Define FF.
  3. Define DFDF.
  4. Define EF¯EF¯.

Your Turn 10.1

For the following exercises, use this line.
A line with four points, A, B, C, and D marked on it.
1.
Define B D
2.
Define A B ¯
3.
B A
4.
A D

There are numerous applications of line segments in daily life. For example, airlines working out routes between cities, where each city’s airport is a point, and the points are connected by line segments. Another example is a city map. Think about the intersection of roads, such that the center of each intersection is a point, and the points are connected by line segments representing the roads. See Figure 10.5.

A diagram shows the airline routes. The regions included in the diagram are Honolulu, Guam, Okinawa, Taipei, Hong Kong, Bangkok, Colombo, Bombay, San Francisco Oakland, Los Angeles, Phoenix, Las Vegas, Tucson, Denver, Albu Querque, To Europe, Kansas City, Wichita, Amarillo, Oklahoma City, Chicago, St. Louis, Tulsa, Tampa, Miami, Atlanta, Nashville, Louisville, Cincinnati, Dayton, Indianapolis, Detroit, Boston, Hartford, Cleveland, Columbus, Pittsburgh, New York, Harrisburg, Philadelphia, Baltimore Washington, Paris, Geneva, Milan, Rome, Athens, Shannon, London, Frankfurt, Zurich, Telaviv, Dhahran, Cairo, Nairobi, Tripoli, Azores, Lisbon, Madrid, Tunis, Entebbe/Kampala, and Dar es Salaam.
Figure 10.5 Air Line Routes

Example 10.2

Determining the Best Route

View the street map (Figure 10.6) as a series of line segments from point to point. For example, we have vertical line segments AB¯AB¯, BC¯,BC¯, and CD¯CD¯ on the right. On the left side of the map, we have vertical line segments HI¯HI¯, FG.¯FG.¯ The horizontal line segments are HA¯HA¯, EI¯EI¯, IE¯IE¯, EB¯EB¯, FC¯FC¯, CF¯,CF¯, and GB¯.GB¯. There are two diagonal line segments, AE¯AE¯ and EF¯.EF¯. Assume that each location is on a corner and that you live next door to the library.

An illustration shows line segments representing streets. The horizontal line segments are H A, I E, E B, F C, and G D. The vertical line segments are H I, A B, B C, C D, and F G. Two slant line segments are F E and E A. Grocery is located near I. Post office is located near F. Dry cleaners is located near C. Home and library are located near G.
Figure 10.6 Street Map
  1. Let’s say that you want to stop at the grocery store on your way home from school. Come up with three routes you might take to do your errand and then go home. In other words, name the three ways by the line segments in the order you would walk, and which way do you think would be the most efficient route?
  2. How about stopping at the library after school? Name four ways you might travel to the library and which way do you think is the most efficient?
  3. Suppose you need to go to the post office and the dry cleaners on your way home from school. Name three ways you might walk to do your errands and end up at home. Which way do you think is the most efficient way to walk, get your errands done, and go home?

Your Turn 10.2

1.
Using the street map in Figure 10.6, find two ways you would stop at the dry cleaners and the grocery store after school on your way home.

Parallel Lines

Parallel lines are lines that lie in the same plane and move in the same direction, but never intersect. To indicate that the line l1l1 and the line l2l2 are parallel we often use the symbol l1l2.l1l2. The distance dd between parallel lines remains constant as the lines extend infinitely in both directions. See Figure 10.7.

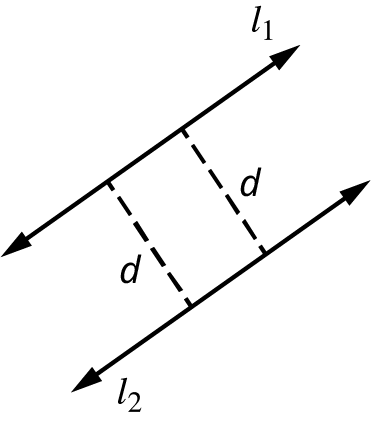

Two parallel lines, l subscript 1 and l subscript 2 are separated by a distance of d.
Figure 10.7 Parallel Lines

Perpendicular Lines

Two lines that intersect at a 9090 angle are perpendicular lines and are symbolized by . If l1l1 and l2l2 are perpendicular, we write l1l2.l1l2. When two lines form a right angle, a 9090 angle, we symbolize it with a little square .. See Figure 10.8.

Two perpendicular lines, l subscript 1 and l subscript 2 intersect forming a 90 degrees angle.
Figure 10.8 Perpendicular Lines

Example 10.3

Identifying Parallel and Perpendicular Lines

Identify the sets of parallel and perpendicular lines in Figure 10.9.

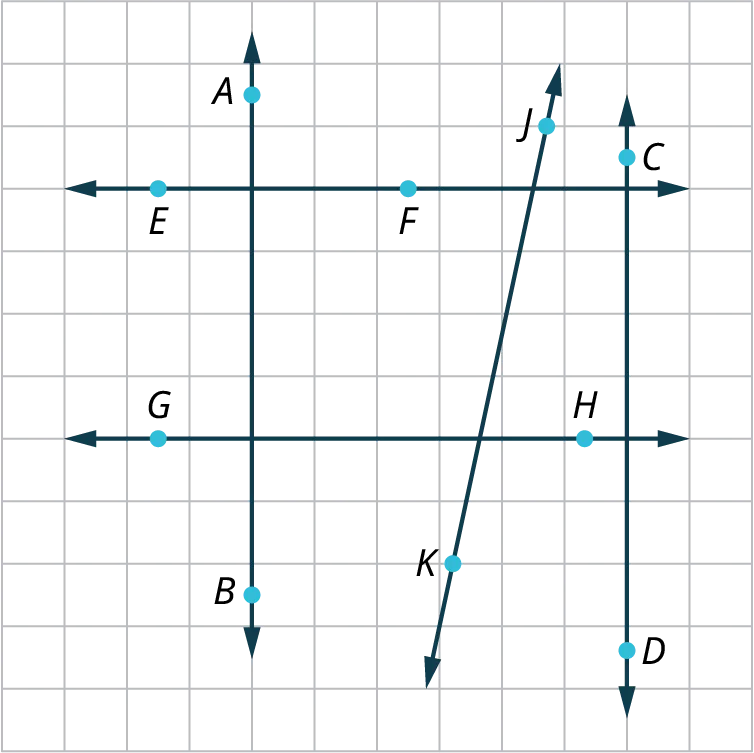

Four lines are graphed on a square grid. The lines, R S and U V are vertical and parallel. The lines, R S and X Y are perpendicular. The lines, U V and X Y are perpendicular. A decreasing line intersects X Y and U V at two different points.
Figure 10.9

Your Turn 10.3

1.
Identify the sets of parallel and perpendicular lines in the given figure.
Four lines are graphed on a square grid. The lines, R S and U V are vertical and parallel. The lines, R S and X Y are perpendicular. The lines, U V and X Y are perpendicular. A decreasing line intersects X Y and U V at two different points.

Defining Union and Intersection of Sets

Union and intersection of sets is a topic from set theory that is often associated with points and lines. So, it seems appropriate to introduce a mini-version of set theory here. First, a set is a collection of objects joined by some common criteria. We usually name sets with capital letters. For example, the set of odd integers between 0 and 10 looks like this: A={1,3,5,7,9}.A={1,3,5,7,9}. When it involves sets of lines, line segments, or points, we are usually referring to the union or intersection of set.

The union of two or more sets contains all the elements in either one of the sets or elements in all the sets referenced, and is written by placing this symbol in between each of the sets. For example, let set A={1,2,3},A={1,2,3}, and let set B={4,5,6}.B={4,5,6}. Then, the union of sets A and B is AB={1,2,3,4,5,6}.AB={1,2,3,4,5,6}.

The intersection of two or more sets contains only the elements that are common to each set, and we place this symbol in between each of the sets referenced. For example, let’s say that set A={1,3,5},A={1,3,5}, and let set B={5,7,9}.B={5,7,9}. Then, the intersection of sets AA and BB is AB={5}.AB={5}.

Example 10.4

Defining Union and Intersection of Sets

Use the line (Figure 10.10) for the following exercises. Draw each answer over the main drawing.

A line with four points, A, B, C, and D marked on it.
Figure 10.10

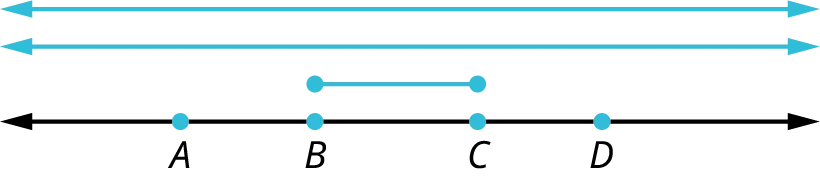

  1. Find BDCABDCA.

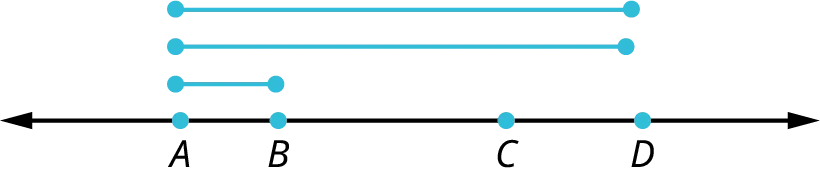

  2. Find AB¯AD¯AB¯AD¯.

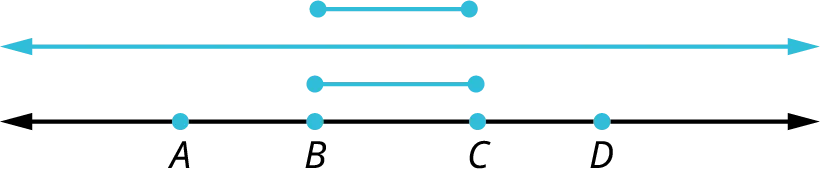

  3. Find ADBC¯ADBC¯.
  4. Find ADBC¯ADBC¯.

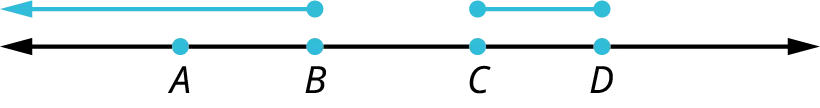

  5. Find BACD¯BACD¯.

Your Turn 10.4

For the following exercises, use the line shown to identify and draw the union or intersection of sets.
A line with three points, A, B, and C marked on it.
1.
A B ¯ B C ¯
2.
B C C A
3.
B C ¯ A C ¯

Planes

A plane, as defined by Euclid, is a “surface which lies evenly with the straight lines on itself.” A plane is a two-dimensional surface with infinite length and width, and no thickness. We also identify a plane by three noncollinear points, or points that do not lie on the same line. Think of a piece of paper, but one that has infinite length, infinite width, and no thickness. However, not all planes must extend infinitely. Sometimes a plane has a limited area.

We usually label planes with a single capital letter, such as Plane PP, as shown in Figure 10.16, or by all points that determine the edges of a plane. In the following figure, Plane PP contains points AA and BB, which are on the same line, and point CC, which is not on that line. By definition, PP is a plane. We can move laterally in any direction on a plane.

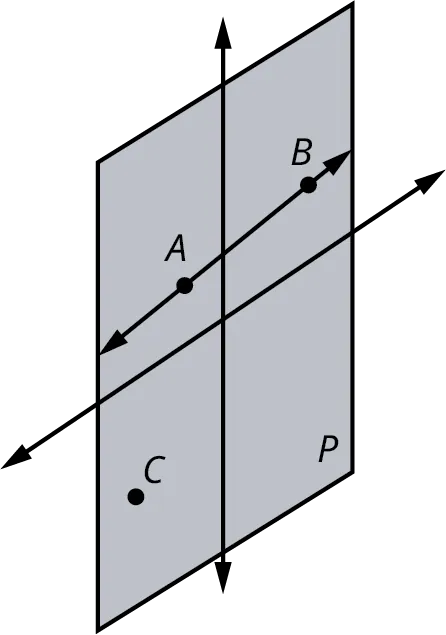

A plane P with a horizontal axis and a vertical axis. Two points, A and B are on the same line. A point, C is not on the line.
Figure 10.16 Plane PP

One way to think of a plane is the Cartesian coordinate system with the xx-axis marked off in horizontal units, and yy-axis marked off in vertical units. In the Cartesian plane, we can identify the different types of lines as they are positioned in the system, as well as their locations. See Figure 10.17.

A point and a line segment are graphed on an x y coordinate grid. The x-axis ranges from negative 6 to 6, in increments of 1. The y-axis ranges from negative 5 to 6, in increments of 1. The point, S is marked at (negative 3, 4). The line segment, T R begins at T (negative 1, negative 1) and R (4, 2).
Figure 10.17 Cartesian Coordinate Plane

This plane contains points SS, TT, and RR. Points TT and RR are colinear and form a line segment. Point SS is not on that line segment. Therefore, this represents a plane.

To give the location of a point on the Cartesian plane, remember that the first number in the ordered pair is the horizontal move and the second number is the vertical move. Point RR is located at (4,2);(4,2); point SS is located at (3,4);(3,4); and point TT is located at (1,1).(1,1). We can also identify the line segment as TR¯.TR¯.

Two other concepts to note: Parallel planes do not intersect and the intersection of two planes is a straight line. The equation of that line of intersection is left to a study of three-dimensional space. See Figure 10.18.

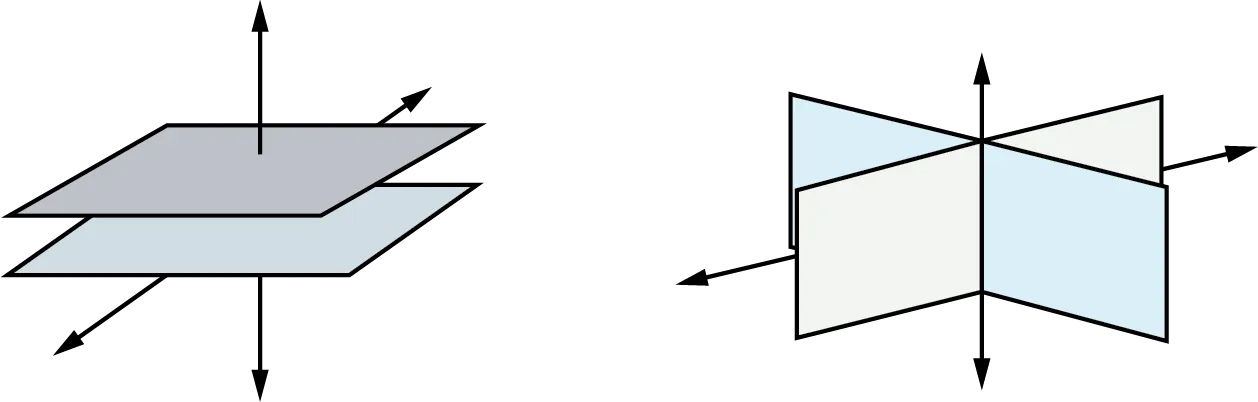

Two parallel horizontal planes and two perpendicular planes.
Figure 10.18 Parallel and Intersecting Planes

To summarize, some of the properties of planes include:

  • Three points including at least one noncollinear point determine a plane.
  • A line and a point not on the line determine a plane.
  • The intersection of two distinct planes is a straight line.

Example 10.5

Identifying a Plane

For the following exercises, refer to Figure 10.19

A ray and a line segment are graphed on an x y coordinate plane. The x-axis ranges from negative 7 to 6, in increments of 1. The y-axis ranges from negative 7 to 6, in increments of 1. The line segment, A D begins at A (4, 3) and D (1, 1). The ray, C B passes through the points, C (negative 2, negative 3), B (negative 4, 1), and (negative 5, 3).
Figure 10.19
  1. Identify the location of points AA, BB, CC, and DD.
  2. Describe the line from point AA to point DD.
  3. Describe the line from point CC containing point BB.
  4. Does this figure represent a plane?

Your Turn 10.5

For the following exercises, refer to the given figure.

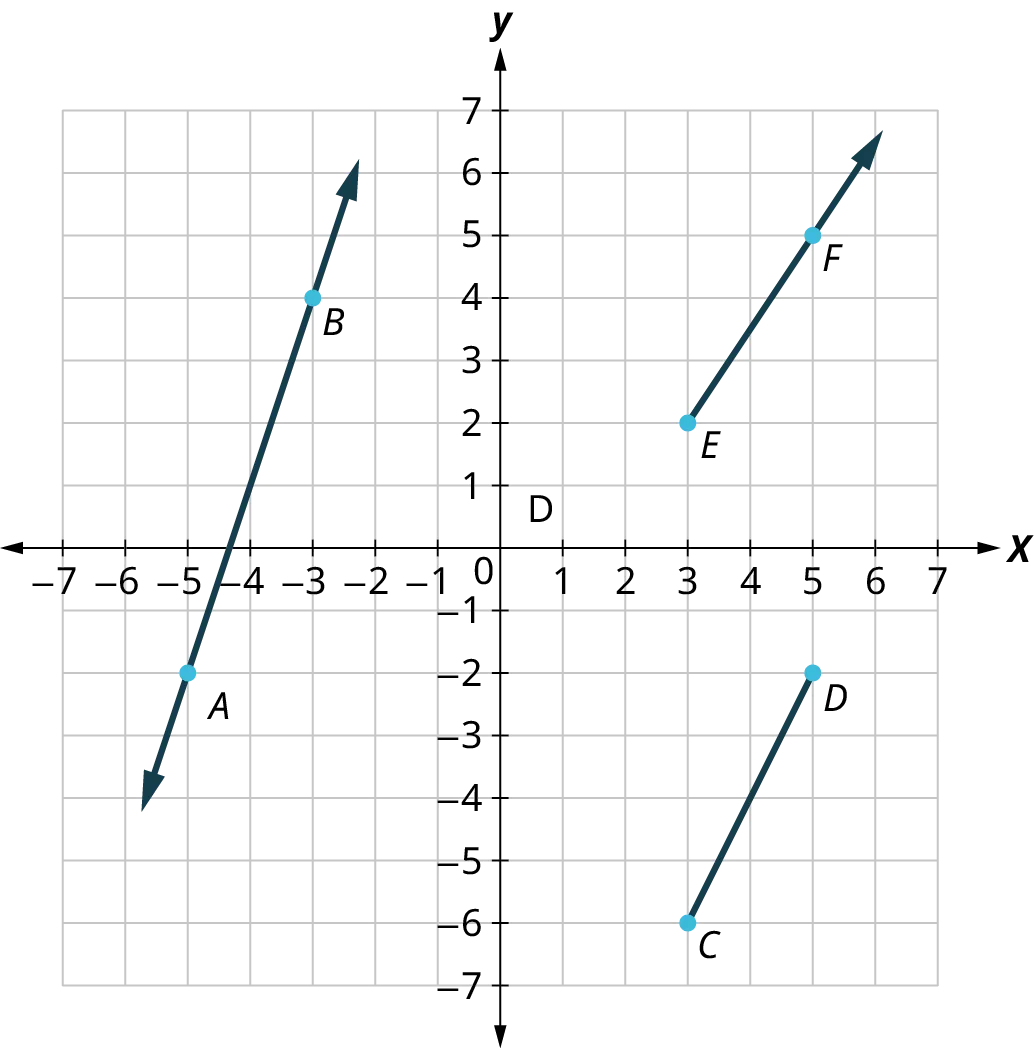

A line, a ray, and a line segment are graphed on an x y coordinate plane. The x and y axes range from negative 7 to 7, in increments of 1. The line segment, C D begins at C (3, negative 6) and D (5, negative 2). The ray, EF passes through the points, E (3, 2) and F (5, 5). The line, A B passes through the points, A (negative 5, negative 2) and B (negative 3, 4).
1.
Identify the location of points A , B , C , D , E , and F .
2.
Describe the line that includes point A and point B .
3.
Describe the line from E to point F .
4.
Describe the line from C to point D .
5.
Does this figure represent a plane?

Example 10.6

Intersecting Planes

Name two pairs of intersecting planes on the shower enclosure illustration (Figure 10.20).

An illustration shows three planes, A B C D, C D E F, and E F G H. The planes are placed next to each other.
Figure 10.20

Your Turn 10.6

1.
Name two pairs of intersecting planes on the shower enclosure shown.
An illustration shows three planes, M N O P, O P Q R, and Q R S T. The planes are placed next to each other.

People in Mathematics

Plato

Part of a remarkable chain of Greek mathematicians, Plato (427–347 BC) is known as the teacher. He was responsible for shaping the development of Western thought perhaps more powerfully than anyone of his time. One of his greatest achievements was the founding of the Academy in Athens where he emphasized the study of geometry. Geometry was considered by the Greeks to be the “ultimate human endeavor.” Above the doorway to the Academy, an inscription read, “Let no one ignorant of geometry enter here.”

The curriculum of the Academy was a 15-year program. The students studied the exact sciences for the first 10 years. Plato believed that this was the necessary foundation for preparing students’ minds to study relationships that require abstract thinking. The next 5 years were devoted to the study of the “dialectic.” The dialectic is the art of question and answer. In Plato’s view, this skill was critical to the investigation and demonstration of innate mathematical truths. By training young students how to prove propositions and test hypotheses, he created a culture in which the systematic process was guaranteed. The Academy was essentially the world’s first university and held the reputation as the ultimate center of learning for more than 900 years.

Check Your Understanding

Use the graph for the following exercises.

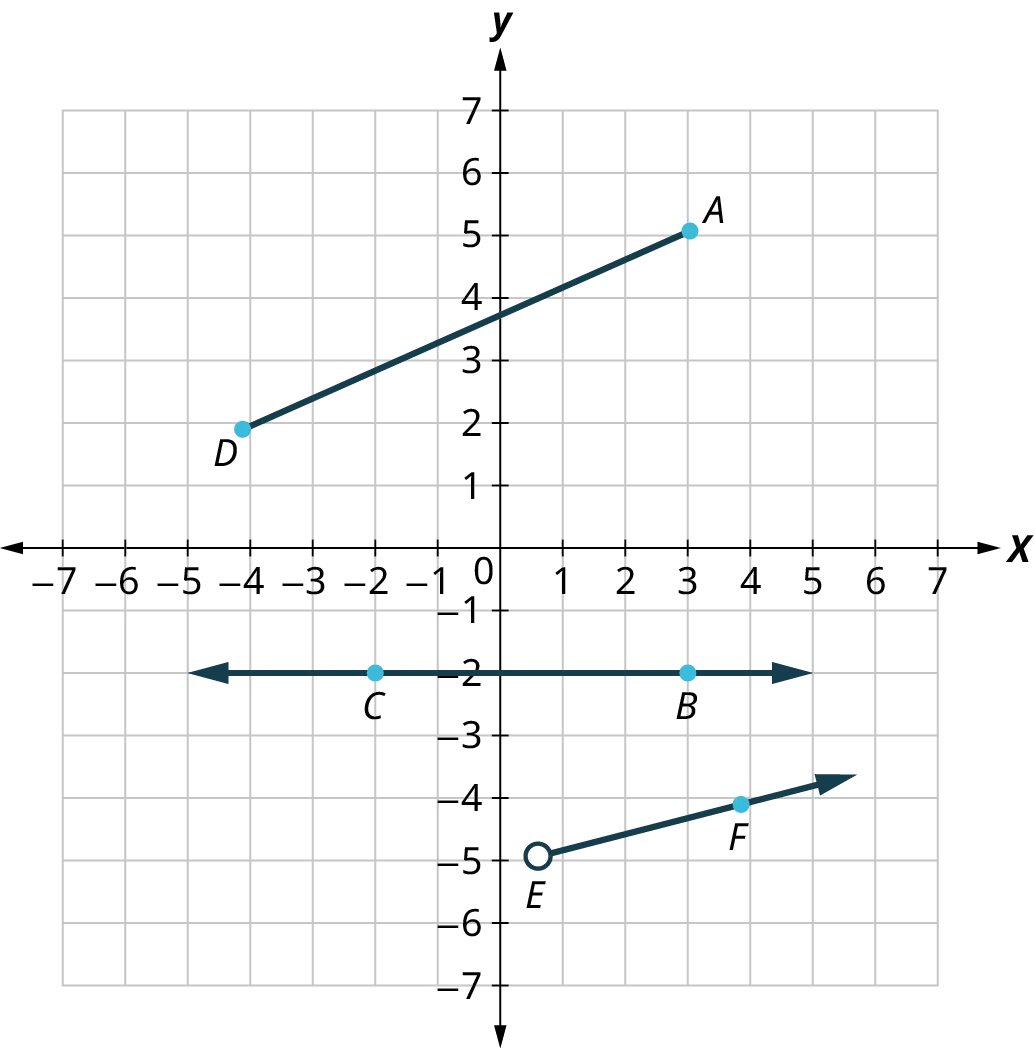

A line, a ray, and a line segment are graphed on an x y coordinate plane. The x and y axes range from negative 6 to 6, in increments of 1. The line segment, A D begins at A (3, 5) and D (negative 4, 2). The ray, EF passes through the points, E (0.5, negative 5) and F (4, negative 4). The line, C B passes through the points, C (negative 2, negative 2) and B (3, negative 2).
1.
Identify the type of line containing point D and point A .
2.
Identify the type of line containing points C and B .
3.
Identify the type of line that references point E and contains point F .
Use the line for the following exercises.

A line with four points, A, B, C, and D marked on it.
4.
Determine A B ¯ B D ¯ .
5.
Determine B D B C ¯ .
6.
Determine B A B D .
7.
How can you determine whether two lines are parallel?
8.
How can you determine whether two lines are perpendicular?
9.
Determine if the illustration represents a plane.

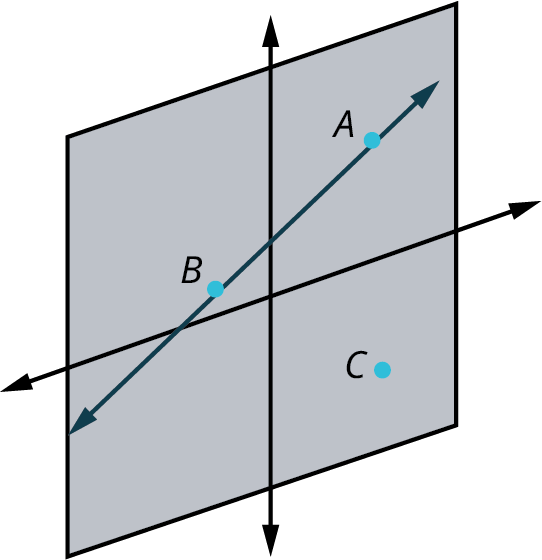

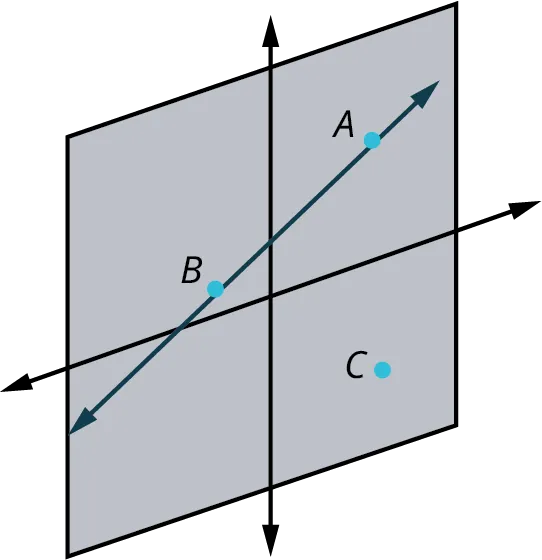

A plane with a horizontal axis and a vertical axis. Two points, A and B lie on a line. A point, C is out of the line.

Section 10.1 Exercises

Use this graph for the following exercises.

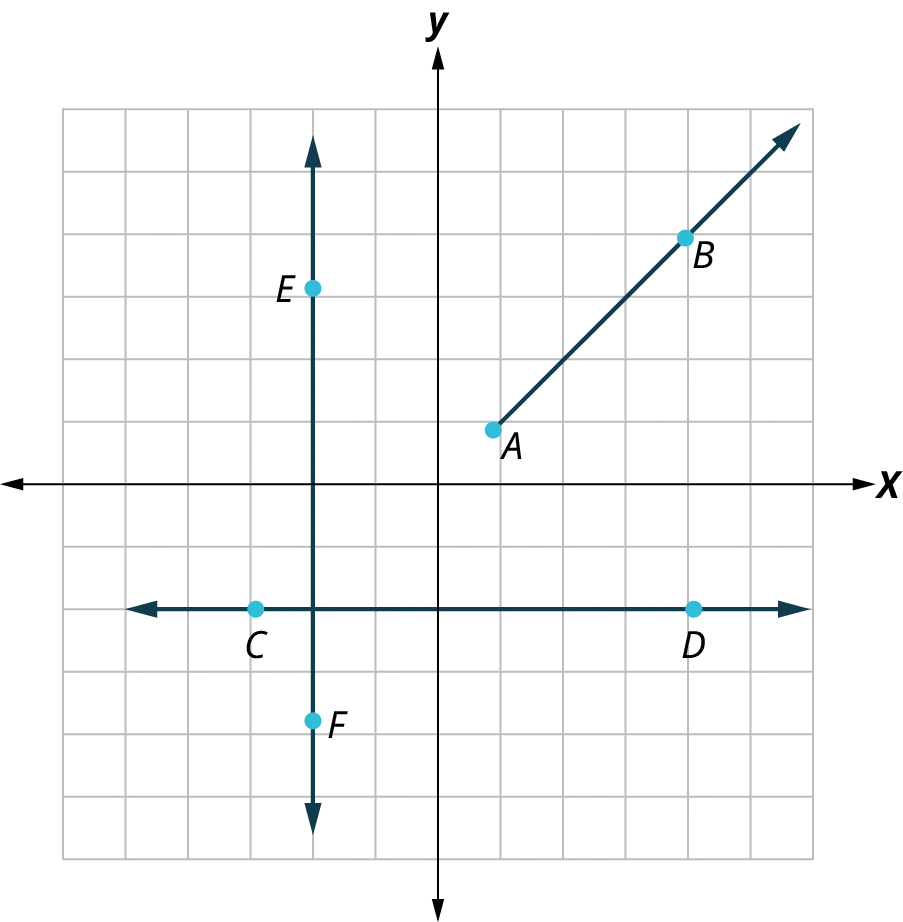

Two lines and a ray are graphed on a square grid. The line, E F passes through the points, E (negative 2, 3) and F (negative 2, 4). The line, C D passes through the points, C (negative 3, negative 2) and D (4, negative 2). The lines, E F and C D intersect at (negative 2, negative 2). The ray, A B passes through the points, A (1, 1) and B (4, 4).
1 .
Identify the kind of line passing through the points A and B .
2 .
Identify the kind of line passing through the points C and D .
3 .
Identify all sets of parallel lines.
4 .
Identify all sets of perpendicular lines.
Use the line for the following exercises.

A line with four points, A, B, C, and D marked on it.
5 .
Find B A B C ¯ .
6 .
Find A D C D .
7 .
Find A C ¯ B D ¯ .
8 .
Find C A B D
9 .
Find A B ¯ B D ¯
10 .
Find B C B D ¯
For the following exercises, reference this line.

A line with eight points, E, F, G, H, I, J, K, and L marked on it.
11 .
Name the points in the set F H G H ¯ .
12 .
Name the points contained in the set H L J L ¯ .
13 .
Name the points in the set E L G H ¯ .
14 .
Name the points in the set G E K L .
15 .
Name the points in the set G E K L .
16 .
Name the points in the set H K J F .
17 .
Name the points in the set G L K .
18 .
Name the points in the set H E K L .
Use the given figure for the following exercises.

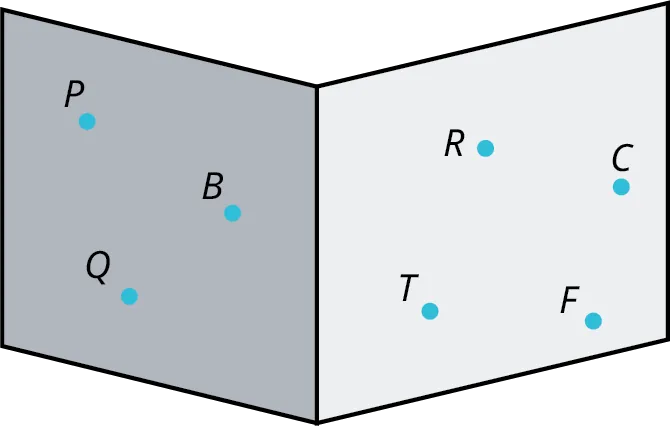

Two planes next to each other. The green plane has three points, P, B, and Q. The yellow plane has four points, T, R, C, and F.
19 .
Describe the lighter plane (right) in the drawing.
20 .
Describe the darker plane (left) in the drawing.
