# 4.7Further Applications of Newton’s Laws of Motion

College Physics4.7 Further Applications of Newton’s Laws of Motion

There are many interesting applications of Newton’s laws of motion, a few more of which are presented in this section. These serve also to illustrate some further subtleties of physics and to help build problem-solving skills.

### Example 4.7

#### Drag Force on a Barge

Suppose two tugboats push on a barge at different angles, as shown in Figure 4.22. The first tugboat exerts a force of $2.7×105 N2.7×105 N size 12{2 "." 7 times "10" rSup { size 8{5} } " N"} {}$ in the x-direction, and the second tugboat exerts a force of $3.6×105 N3.6×105 N size 12{3 "." 6 times "10" rSup { size 8{5} } " N"} {}$ in the y-direction.

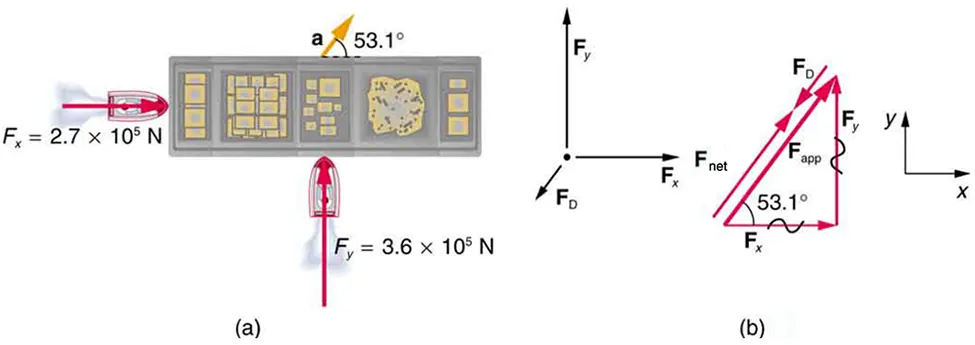

Figure 4.22 (a) A view from above of two tugboats pushing on a barge. (b) The free-body diagram for the ship contains only forces acting in the plane of the water. It omits the two vertical forces—the weight of the barge and the buoyant force of the water supporting it cancel and are not shown. Since the applied forces are perpendicular, the x- and y-axes are in the same direction as $F x F x size 12{F rSub { size 8{x} } } {}$ and $F y F y size 12{F rSub { size 8{y} } } {}$. The problem quickly becomes a one-dimensional problem along the direction of $F app F app size 12{F rSub { size 8{"app"} } } {}$, since friction is in the direction opposite to $F app F app size 12{F rSub { size 8{"app"} } } {}$.

If the mass of the barge is $5.0×106 kg5.0×106 kg size 12{5 times "10" rSup { size 8{6} } " kg"} {}$ and its acceleration is observed to be $7.5×10−2 m/s27.5×10−2 m/s2 size 12{7 "." "52" times "10" rSup { size 8{ - 2} } " m/s" rSup { size 8{2} } } {}$ in the direction shown, what is the drag force of the water on the barge resisting the motion? (Note: drag force is a frictional force exerted by fluids, such as air or water. The drag force opposes the motion of the object.)

#### Strategy

The directions and magnitudes of acceleration and the applied forces are given in Figure 4.22(a). We will define the total force of the tugboats on the barge as $FappFapp size 12{F rSub { size 8{"app"} } } {}$ so that:

$F app = F x + F y F app = F x + F y size 12{F rSub { size 8{ ital "app"} } ital "= F" rSub { size 8{x} } ital "+ F" rSub { size 8{y} } } {}$
4.59

Since the barge is flat bottomed, the drag of the water $FDFD size 12{F rSub { size 8{D} } } {}$ will be in the direction opposite to $FappFapp size 12{F rSub { size 8{"app"} } } {}$, as shown in the free-body diagram in Figure 4.22(b). The system of interest here is the barge, since the forces on it are given as well as its acceleration. Our strategy is to find the magnitude and direction of the net applied force $FappFapp size 12{F rSub { size 8{"app"} } } {}$, and then apply Newton’s second law to solve for the drag force $FDFD size 12{F rSub { size 8{D} } } {}$.

#### Solution

Since $FxFx size 12{F rSub { size 8{x} } } {}$ and $FyFy size 12{F rSub { size 8{y} } } {}$ are perpendicular, the magnitude and direction of $FappFapp size 12{F rSub { size 8{"app"} } } {}$ are easily found. First, the resultant magnitude is given by the Pythagorean theorem:

F app = F x 2 + F y 2 F app = ( 2.7 × 10 5 N ) 2 + ( 3.6 × 10 5 N ) 2 = 4.5 × 10 5 N. F app = F x 2 + F y 2 F app = ( 2.7 × 10 5 N ) 2 + ( 3.6 × 10 5 N ) 2 = 4.5 × 10 5 N. alignl { stack { size 12{F rSub { size 8{ ital "app"} } = $$F rSub { size 8{x} rSup { size 8{2} } } + F rSub { size 8{y} rSup { size 8{2} } }$$ rSup { size 8{1/2} } } {} # F rSub { size 8{ ital "app"} } = $$\( 2 "." 7 times "10" rSup { size 8{5} } " N"$$ rSup { size 8{2} } + $$3 "." 6 times "10" rSup { size 8{5} } " N"$$ rSup { size 8{2} } \) rSup { size 8{1/2} } =4 "." "50" times "10" rSup { size 8{5} } " N" "." {} } } {}
4.60

The angle is given by

θ = tan − 1 F y F x θ = tan − 1 3.6 × 10 5 N 2.7 × 10 5 N = 53º , θ = tan − 1 F y F x θ = tan − 1 3.6 × 10 5 N 2.7 × 10 5 N = 53º , alignl { stack { size 12{θ="tan" rSup { size 8{ - 1} } left ( { {F rSub { size 8{y} } } over {F rSub { size 8{x} } } } right )} {} # θ="tan" rSup { size 8{ - 1} } left ( { { $$2 "." 7 times "10" rSup { size 8{5} } " N"$$ } over { $$3 "." 6 times "10" rSup { size 8{5} } " N"$$ } } right )="53" "." 1°, {} } } {}
4.61

which we know, because of Newton’s first law, is the same direction as the acceleration. $FDFD size 12{F rSub { size 8{D} } } {}$ is in the opposite direction of $FappFapp size 12{F rSub { size 8{"app"} } } {}$, since it acts to slow down the acceleration. Therefore, the net external force is in the same direction as $FappFapp size 12{F rSub { size 8{"app"} } } {}$, but its magnitude is slightly less than $FappFapp size 12{F rSub { size 8{"app"} } } {}$. The problem is now one-dimensional. From Figure 4.22(b), we can see that

$Fnet=Fapp−FD.Fnet=Fapp−FD size 12{F rSub { size 8{"net"} } =F rSub { size 8{"app"} } - F rSub { size 8{D} } } {}.$
4.62

But Newton’s second law states that

$Fnet=ma.Fnet=ma size 12{F rSub { size 8{"net"} } = ital "ma"} {}.$
4.63

Thus,

$Fapp−FD=ma.Fapp−FD=ma size 12{F rSub { size 8{"app"} } - F rSub { size 8{D} } = ital "ma"} {}.$
4.64

This can be solved for the magnitude of the drag force of the water $FDFD size 12{F rSub { size 8{D} } } {}$ in terms of known quantities:

$FD=Fapp−ma.FD=Fapp−ma size 12{F rSub { size 8{D} } =F rSub { size 8{"app"} } - ital "ma"} {}.$
4.65

Substituting known values gives

$FD=(4.5×105 N)−(5.0×106 kg)(7.5×10–2 m/s2)=7.5×104 N.FD=(4.5×105 N)−(5.0×106 kg)(7.5×10–2 m/s2)=7.5×104 N size 12{F rSub { size 8{D} } = $$4 "." "50" times "10" rSup { size 8{5} } " N"$$ - $$5 "." "00" times "10" rSup { size 8{6} } " kg"$$ $$7 "." "50" times "10" rSup { size 8{"-2"} } " m/s" rSup { size 8{2} }$$ =7 "." "50" times "10" rSup { size 8{4} } " N"} {}.$
4.66

The direction of $FDFD size 12{F rSub { size 8{D} } } {}$ has already been determined to be in the direction opposite to $FappFapp size 12{F rSub { size 8{"app"} } } {}$, or at an angle of $53º53º size 12{"53" "." 1°} {}$ south of west.

#### Discussion

The numbers used in this example are reasonable for a moderately large barge. It is certainly difficult to obtain larger accelerations with tugboats, and small speeds are desirable to avoid running the barge into the docks. Drag is relatively small for a well-designed hull at low speeds, consistent with the answer to this example, where $FDFD size 12{F rSub { size 8{D} } } {}$ is less than 1/600th of the weight of the ship.

In the earlier example of a tightrope walker we noted that the tensions in wires supporting a mass were equal only because the angles on either side were equal. Consider the following example, where the angles are not equal; slightly more trigonometry is involved.

### Example 4.8

#### Different Tensions at Different Angles

Consider the traffic light (mass 15.0 kg) suspended from two wires as shown in Figure 4.23. Find the tension in each wire, neglecting the masses of the wires.

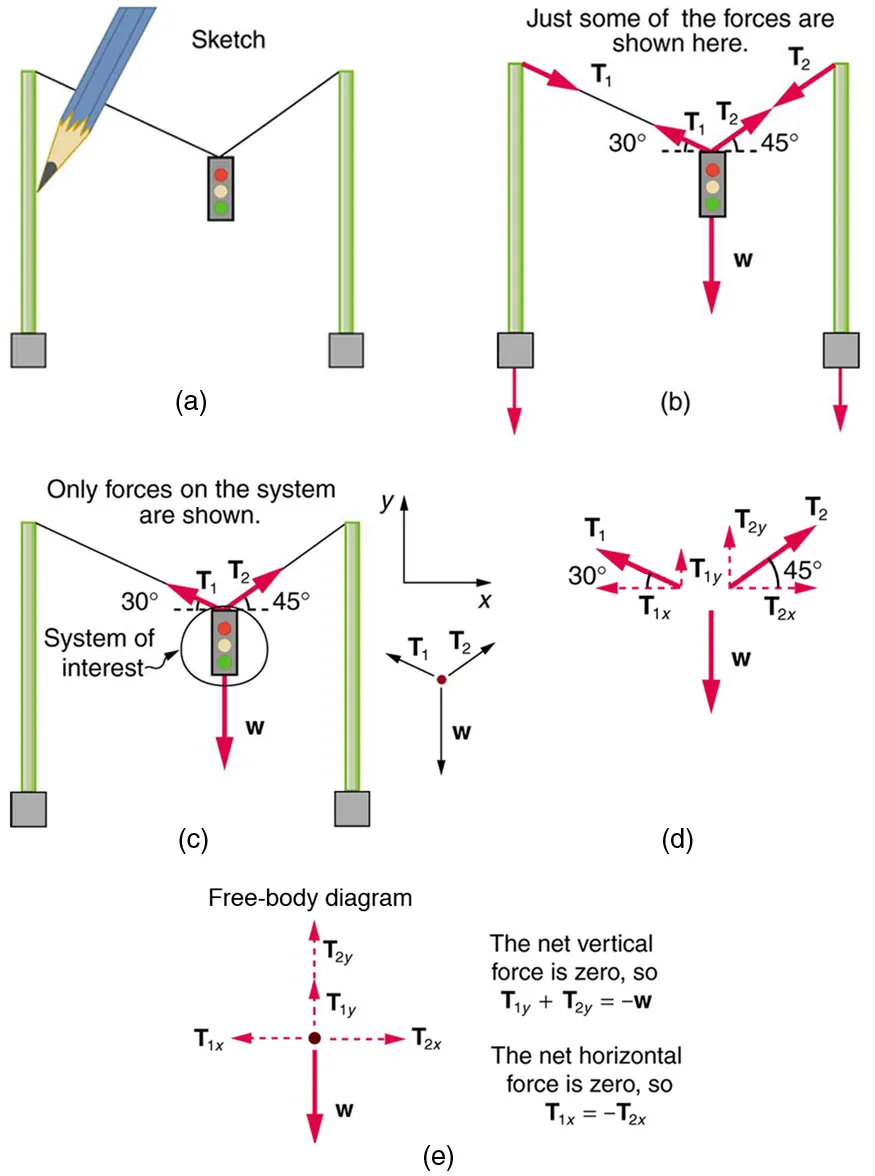

Figure 4.23 A traffic light is suspended from two wires. (b) Some of the forces involved. (c) Only forces acting on the system are shown here. The free-body diagram for the traffic light is also shown. (d) The forces projected onto vertical (y) and horizontal (x) axes. The horizontal components of the tensions must cancel, and the sum of the vertical components of the tensions must equal the weight of the traffic light. (e) The free-body diagram shows the vertical and horizontal forces acting on the traffic light.

#### Strategy

The system of interest is the traffic light, and its free-body diagram is shown in Figure 4.23(c). The three forces involved are not parallel, and so they must be projected onto a coordinate system. The most convenient coordinate system has one axis vertical and one horizontal, and the vector projections on it are shown in part (d) of the figure. There are two unknowns in this problem ($T 1 T 1 size 12{T rSub { size 8{1} } } {}$ and $T2T2 size 12{T rSub { size 8{2} } } {}$), so two equations are needed to find them. These two equations come from applying Newton’s second law along the vertical and horizontal axes, noting that the net external force is zero along each axis because acceleration is zero.

#### Solution

First consider the horizontal or x-axis:

$Fnet x=T2x−T1x=0.Fnet x=T2x−T1x=0 size 12{F rSub { size 8{"net x"} } =T rSub { size 8{"2x"} } - T rSub { size 8{"1x"} } =0} {}.$
4.67

Thus, as you might expect,

$T1x=T2x.T1x=T2x size 12{T rSub { size 8{"1x"} } = T rSub { size 8{"2x"} } } {}.$
4.68

This gives us the following relationship between $T1T1 size 12{T rSub { size 8{1} } } {}$ and $T2T2 size 12{T rSub { size 8{2} } } {}$:

$T1cos(30º)=T2cos(45º).T1cos(30º)=T2cos(45º) size 12{T rSub { size 8{1} } "cos" $$"30"°$$ =T rSub { size 8{2} } "cos" $$"45"°$$ } {}.$
4.69

Thus,

$T2=(1.225)T1.T2=(1.225)T1 size 12{T rSub { size 8{2} } = $$1 "." "225"$$ T rSub { size 8{1} } } {}.$
4.70

Note that $T1T1 size 12{T rSub { size 8{1} } } {}$ and $T2T2 size 12{T rSub { size 8{2} } } {}$ are not equal in this case, because the angles on either side are not equal. It is reasonable that $T2T2 size 12{T rSub { size 8{2} } } {}$ ends up being greater than $T1T1 size 12{T rSub { size 8{1} } } {}$, because it is exerted more vertically than $T1T1 size 12{T rSub { size 8{1} } } {}$.

Now consider the force components along the vertical or y-axis:

$Fnet y=T1y+T2y−w=0.Fnet y=T1y+T2y−w=0 size 12{F rSub { size 8{"net y"} } =T rSub { size 8{"1y"} } +T rSub { size 8{"2y"} } - w=0} {}.$
4.71

This implies

$T1y+T2y=w.T1y+T2y=w size 12{T rSub { size 8{"1y"} } +T rSub { size 8{"2y"} } =w} {}.$
4.72

Substituting the expressions for the vertical components gives

$T1sin(30º)+T2sin(45º)=w.T1sin(30º)+T2sin(45º)=w size 12{T rSub { size 8{1} } "sin" $$"30"°$$ + T rSub { size 8{2} } "sin" $$"45"°$$ =w} {}.$
4.73

There are two unknowns in this equation, but substituting the expression for $T2T2 size 12{T rSub { size 8{2} } } {}$ in terms of $T1T1 size 12{T rSub { size 8{1} } } {}$ reduces this to one equation with one unknown:

$T1(0.500)+(1.225T1)(0.707)=w=mg,T1(0.500)+(1.225T1)(0.707)=w=mg size 12{T rSub { size 8{1} } $$0 "." "500"$$ + $$1 "." "225"T rSub { size 8{1} }$$ $$0 "." "707"$$ =w= ital "mg"} {},$
4.74

which yields

$1.366T1=(15.0 kg)(9.80 m/s2).1.366T1=(15.0 kg)(9.80 m/s2) size 12{ left (1 "." "366" right )T rSub { size 8{1} } = $$"15" "." "0 kg"$$ $$9 "." "80 m/s" rSup { size 8{2} }$$ } {}.$
4.75

Solving this last equation gives the magnitude of $T1T1 size 12{T rSub { size 8{1} } } {}$ to be

$T1=108 N.T1=108 N size 12{T rSub { size 8{1} } ="108"" N"} {}.$
4.76

Finally, the magnitude of $T2T2 size 12{T rSub { size 8{2} } } {}$ is determined using the relationship between them, $T2T2 size 12{T rSub { size 8{1} } } {}$ = 1.225 $T1T1 size 12{T rSub { size 8{2} } } {}$, found above. Thus we obtain

$T 2 = 132 N . T 2 = 132 N size 12{T rSub { size 8{2} } ="132 N"} {} .$
4.77

#### Discussion

Both tensions would be larger if both wires were more horizontal, and they will be equal if and only if the angles on either side are the same (as they were in the earlier example of a tightrope walker).

The bathroom scale is an excellent example of a normal force acting on a body. It provides a quantitative reading of how much it must push upward to support the weight of an object. But can you predict what you would see on the dial of a bathroom scale if you stood on it during an elevator ride? Will you see a value greater than your weight when the elevator starts up? What about when the elevator moves upward at a constant speed: will the scale still read more than your weight at rest? Consider the following example.

### Example 4.9

#### What Does the Bathroom Scale Read in an Elevator?

Figure 4.24 shows a 75.0-kg man (weight of about 165 lb) standing on a bathroom scale in an elevator. Calculate the scale reading: (a) if the elevator accelerates upward at a rate of $1.20 m/s21.20 m/s2 size 12{1 "." "20 m/s" rSup { size 8{2} } } {}$, and (b) if the elevator moves upward at a constant speed of 1 m/s.

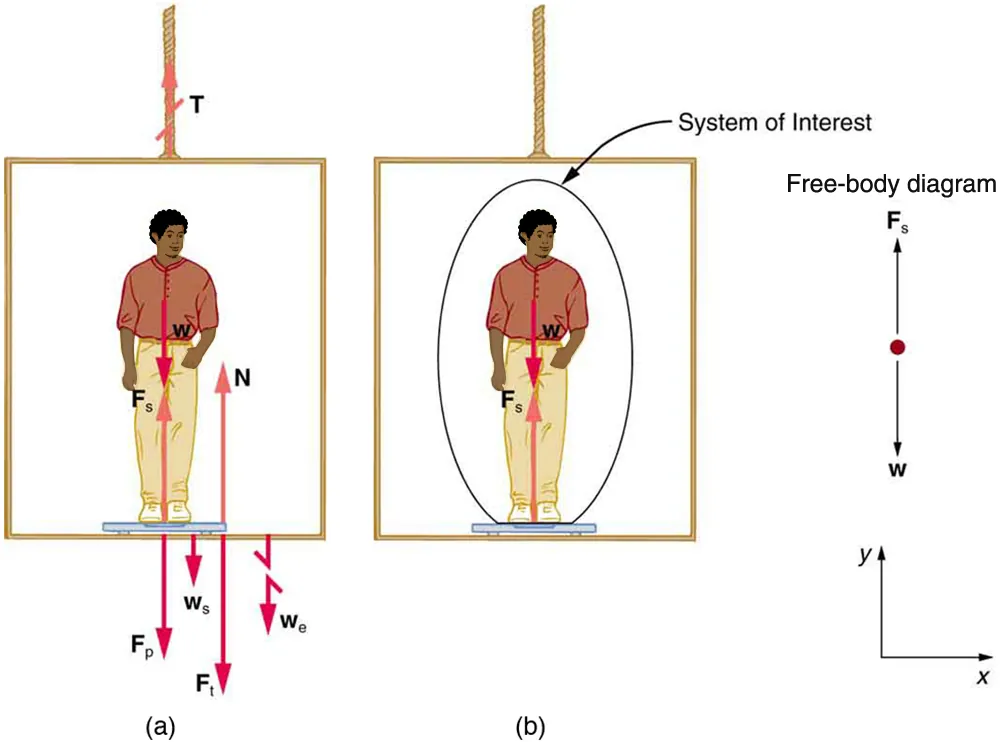

Figure 4.24 (a) The various forces acting when a person stands on a bathroom scale in an elevator. The arrows are approximately correct for when the elevator is accelerating upward—broken arrows represent forces too large to be drawn to scale. $T T size 12{T}$ is the tension in the supporting cable, $w w size 12{w}$ is the weight of the person, $w s w s size 12{w rSub { size 8{s} } } {}$ is the weight of the scale, $w e w e size 12{w rSub { size 8{e} } } {}$ is the weight of the elevator, $F s F s size 12{F rSub { size 8{s} } } {}$ is the force of the scale on the person, $F p F p size 12{F rSub { size 8{p} } } {}$ is the force of the person on the scale, $F t F t size 12{F rSub { size 8{t} } } {}$ is the force of the scale on the floor of the elevator, and $N N size 12{N}$ is the force of the floor upward on the scale. (b) The free-body diagram shows only the external forces acting on the designated system of interest—the person.

#### Strategy

If the scale is accurate, its reading will equal $FpFp size 12{F rSub { size 8{p} } } {}$, the magnitude of the force the person exerts downward on it. Figure 4.24(a) shows the numerous forces acting on the elevator, scale, and person. It makes this one-dimensional problem look much more formidable than if the person is chosen to be the system of interest and a free-body diagram is drawn as in Figure 4.24(b). Analysis of the free-body diagram using Newton’s laws can produce answers to both parts (a) and (b) of this example, as well as some other questions that might arise. The only forces acting on the person are his weight $ww size 12{w} {}$ and the upward force of the scale $FsFs size 12{F rSub { size 8{s} } } {}$. According to Newton’s third law $FpFp size 12{F rSub { size 8{p} } } {}$ and $FsFs size 12{F rSub { size 8{s} } } {}$ are equal in magnitude and opposite in direction, so that we need to find $FsFs size 12{F rSub { size 8{s} } } {}$ in order to find what the scale reads. We can do this, as usual, by applying Newton’s second law,

$Fnet=ma.Fnet=ma size 12{F rSub { size 8{"net"} } = ital "ma"} {}.$
4.78

From the free-body diagram we see that $Fnet=Fs−wFnet=Fs−w size 12{F rSub { size 8{"net"} } =F rSub { size 8{s} } - w} {}$, so that

$Fs−w=ma.Fs−w=ma size 12{F rSub { size 8{s} } - w= ital "ma"} {}.$
4.79

Solving for $FsFs size 12{F rSub { size 8{s} } } {}$ gives an equation with only one unknown:

$Fs=ma+w,Fs=ma+w size 12{F rSub { size 8{s} } = ital "ma"+w} {},$
4.80

or, because $w=mgw=mg$, simply

$Fs=ma+mg.Fs=ma+mg size 12{F rSub { size 8{s} } = ital "ma"+ ital "mg"} {}.$
4.81

No assumptions were made about the acceleration, and so this solution should be valid for a variety of accelerations in addition to the ones in this exercise.

#### Solution for (a)

In this part of the problem, $a=1.20 m/s2a=1.20 m/s2 size 12{a=1 "." "20"" m/s" rSup { size 8{2} } } {}$, so that

$Fs=(75.0 kg)(1.20 m/s2)+(75.0 kg)(9.80 m/s2),Fs=(75.0 kg)(1.20 m/s2)+(75.0 kg)(9.80 m/s2) size 12{F rSub { size 8{s} } = $$"75" "." "0 kg"$$ $$1 "." "20 m/s" rSup { size 8{2} }$$ + $$"75" "." "0 kg"$$ $$9 "." "80 m/s" rSup { size 8{2} }$$ } {},$
4.82

yielding

$Fs=825 N.Fs=825 N size 12{F rSub { size 8{s} } =8"25 N"} {}.$
4.83

#### Discussion for (a)

This is about 185 lb. What would the scale have read if he were stationary? Since his acceleration would be zero, the force of the scale would be equal to his weight:

F net = ma = 0 = F s − w F s = w = mg F s = ( 75.0 kg ) ( 9. 80 m/s 2 ) F s = 735 N. F net = ma = 0 = F s − w F s = w = mg F s = ( 75.0 kg ) ( 9. 80 m/s 2 ) F s = 735 N. alignl { stack { size 12{F rSub { size 8{"net"} } = ital "ma"=0=F rSub { size 8{s} } - w} {} # F rSub { size 8{s} } =w= ital "mg" {} # F rSub { size 8{s} } = $$"75" "." 0" kg"$$ $$9 "." "80 m/s" rSup { size 8{2} }$$ {} # F rSub { size 8{s} } ="735"" N" "." {} } } {}
4.84

So, the scale reading in the elevator is greater than his 735-N (165 lb) weight. This means that the scale is pushing up on the person with a force greater than his weight, as it must in order to accelerate him upward. Clearly, the greater the acceleration of the elevator, the greater the scale reading, consistent with what you feel in rapidly accelerating versus slowly accelerating elevators.

#### Solution for (b)

Now, what happens when the elevator reaches a constant upward velocity? Will the scale still read more than his weight? For any constant velocity—up, down, or stationary—acceleration is zero because $a=ΔvΔta=ΔvΔt size 12{a= { {Δv} over {Δt} } } {}$, and $Δv=0Δv=0 size 12{Δv=0} {}$.

Thus,

$Fs=ma+mg=0+mg.Fs=ma+mg=0+mg size 12{F rSub { size 8{s} } = ital "ma"+ ital "mg"=0+ ital "mg"} {}.$
4.85

Now

$Fs=(75.0 kg)(9.80 m/s2),Fs=(75.0 kg)(9.80 m/s2) size 12{F rSub { size 8{s} } = $$"75" "." "0 kg"$$ $$9 "." "80 m/s" rSup { size 8{2} }$$ } {},$
4.86

which gives

$Fs=735 N.Fs=735 N size 12{F rSub { size 8{s} } =7"35 N"} {}.$
4.87

#### Discussion for (b)

The scale reading is 735 N, which equals the person’s weight. This will be the case whenever the elevator has a constant velocity—moving up, moving down, or stationary.

The solution to the previous example also applies to an elevator accelerating downward, as mentioned. When an elevator accelerates downward, $aa size 12{a} {}$ is negative, and the scale reading is less than the weight of the person, until a constant downward velocity is reached, at which time the scale reading again becomes equal to the person’s weight. If the elevator is in free-fall and accelerating downward at $gg size 12{g} {}$, then the scale reading will be zero and the person will appear to be weightless.

### Integrating Concepts: Newton’s Laws of Motion and Kinematics

Physics is most interesting and most powerful when applied to general situations that involve more than a narrow set of physical principles. Newton’s laws of motion can also be integrated with other concepts that have been discussed previously in this text to solve problems of motion. For example, forces produce accelerations, a topic of kinematics, and hence the relevance of earlier chapters. When approaching problems that involve various types of forces, acceleration, velocity, and/or position, use the following steps to approach the problem:

Problem-Solving Strategy

Step 1. Identify which physical principles are involved. Listing the givens and the quantities to be calculated will allow you to identify the principles involved.
Step 2. Solve the problem using strategies outlined in the text. If these are available for the specific topic, you should refer to them. You should also refer to the sections of the text that deal with a particular topic. The following worked example illustrates how these strategies are applied to an integrated concept problem.

### Example 4.10

#### What Force Must a Soccer Player Exert to Reach Top Speed?

A soccer player starts from rest and accelerates forward, reaching a velocity of 8.00 m/s in 2.50 s. (a) What was his average acceleration? (b) What average force did he exert backward on the ground to achieve this acceleration? The player’s mass is 70.0 kg, and air resistance is negligible.

#### Strategy

1. To solve an integrated concept problem, we must first identify the physical principles involved and identify the chapters in which they are found. Part (a) of this example considers acceleration along a straight line. This is a topic of kinematics. Part (b) deals with force, a topic of dynamics found in this chapter.
2. The following solutions to each part of the example illustrate how the specific problem-solving strategies are applied. These involve identifying knowns and unknowns, checking to see if the answer is reasonable, and so forth.

#### Solution for (a)

We are given the initial and final velocities (zero and 8.00 m/s forward); thus, the change in velocity is $Δv=8.00 m/sΔv=8.00 m/s$. We are given the elapsed time, and so $Δt=2.50 sΔt=2.50 s size 12{Δt=2 "." "50"" s"} {}$. The unknown is acceleration, which can be found from its definition:

$a=ΔvΔt.a=ΔvΔt size 12{a= { {Δv} over {Δt} } } {}.$
4.88

Substituting the known values yields

$a = 8.00 m/s 2 . 50 s = 3 . 20 m/s 2 . a = 8.00 m/s 2 . 50 s = 3 . 20 m/s 2 .$
4.89

#### Discussion for (a)

This is an attainable acceleration for an athlete in good condition.

#### Solution for (b)

Here we are asked to find the average force the player exerts backward to achieve this forward acceleration. Neglecting air resistance, this would be equal in magnitude to the net external force on the player, since this force causes his acceleration. Since we now know the player’s acceleration and are given his mass, we can use Newton’s second law to find the force exerted. That is,

$Fnet=ma.Fnet=ma size 12{F rSub { size 8{"net"} } = ital "ma"} {}.$
4.90

Substituting the known values of $mm size 12{m} {}$ and $aa size 12{a} {}$ gives

$Fnet = (70.0 kg) (3.20 m/s2) = 224 N. Fnet = (70.0 kg) (3.20 m/s2) = 224 N.$
4.91

#### Discussion for (b)

This is about 50 pounds, a reasonable average force.

This worked example illustrates how to apply problem-solving strategies to situations that include topics from different chapters. The first step is to identify the physical principles involved in the problem. The second step is to solve for the unknown using familiar problem-solving strategies. These strategies are found throughout the text, and many worked examples show how to use them for single topics. You will find these techniques for integrated concept problems useful in applications of physics outside of a physics course, such as in your profession, in other science disciplines, and in everyday life. The following problems will build your skills in the broad application of physical principles.
