# 1.2Physical Quantities and Units

College Physics1.2 Physical Quantities and Units
Figure 1.16 The distance from Earth to the Moon may seem immense, but it is just a tiny fraction of the distances from Earth to other celestial bodies. (credit: NASA)

The range of objects and phenomena studied in physics is immense. From the incredibly short lifetime of a nucleus to the age of the Earth, from the tiny sizes of sub-nuclear particles to the vast distance to the edges of the known universe, from the force exerted by a jumping flea to the force between Earth and the Sun, there are enough factors of 10 to challenge the imagination of even the most experienced scientist. Giving numerical values for physical quantities and equations for physical principles allows us to understand nature much more deeply than does qualitative description alone. To comprehend these vast ranges, we must also have accepted units in which to express them. And we shall find that (even in the potentially mundane discussion of meters, kilograms, and seconds) a profound simplicity of nature appears—all physical quantities can be expressed as combinations of only four fundamental physical quantities: length, mass, time, and electric current.

We define a physical quantity either by specifying how it is measured or by stating how it is calculated from other measurements. For example, we define distance and time by specifying methods for measuring them, whereas we define average speed by stating that it is calculated as distance traveled divided by time of travel.

Measurements of physical quantities are expressed in terms of units, which are standardized values. For example, the length of a race, which is a physical quantity, can be expressed in units of meters (for sprinters) or kilometers (for distance runners). Without standardized units, it would be extremely difficult for scientists to express and compare measured values in a meaningful way. (See Figure 1.17.)

Figure 1.17 Distances given in unknown units are maddeningly useless.

There are two major systems of units used in the world: SI units (also known as the metric system) and English units (also known as the customary or imperial system). English units were historically used in nations once ruled by the British Empire and are still widely used in the United States. Virtually every other country in the world now uses SI units as the standard; the metric system is also the standard system agreed upon by scientists and mathematicians. The acronym “SI” is derived from the French Système International.

### SI Units: Fundamental and Derived Units

Table 1.1 gives the fundamental SI units that are used throughout this textbook. This text uses non-SI units in a few applications where they are in very common use, such as the measurement of blood pressure in millimeters of mercury (mm Hg). Whenever non-SI units are discussed, they will be tied to SI units through conversions.

Length Mass Time Electric Current
meter (m) kilogram (kg) second (s) ampere (A)
Table 1.1 Fundamental SI Units

It is an intriguing fact that some physical quantities are more fundamental than others and that the most fundamental physical quantities can be defined only in terms of the procedure used to measure them. The units in which they are measured are thus called fundamental units. In this textbook, the fundamental physical quantities are taken to be length, mass, time, and electric current. (Note that electric current will not be introduced until much later in this text.) All other physical quantities, such as force and electric charge, can be expressed as algebraic combinations of length, mass, time, and current (for example, speed is length divided by time); these units are called derived units.

### Units of Time, Length, and Mass: The Second, Meter, and Kilogram

#### The Second

The SI unit for time, the second (abbreviated s), has a long history. For many years it was defined as 1/86,400 of a mean solar day. More recently, a new standard was adopted to gain greater accuracy and to define the second in terms of a non-varying, or constant, physical phenomenon (because the solar day is getting longer due to very gradual slowing of the Earth’s rotation). Cesium atoms can be made to vibrate in a very steady way, and these vibrations can be readily observed and counted. In 1967 the second was redefined as the time required for 9,192,631,770 of these vibrations. (See Figure 1.18.) Accuracy in the fundamental units is essential, because all measurements are ultimately expressed in terms of fundamental units and can be no more accurate than are the fundamental units themselves.

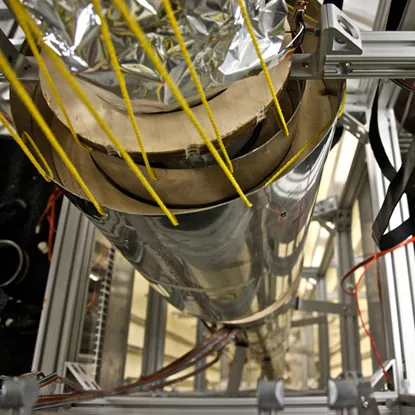

Figure 1.18 An atomic clock such as this one uses the vibrations of cesium atoms to keep time to a precision of better than a microsecond per year. The fundamental unit of time, the second, is based on such clocks. This image is looking down from the top of an atomic fountain nearly 30 feet tall! (credit: Steve Jurvetson/Flickr)

#### The Meter

The SI unit for length is the meter (abbreviated m); its definition has also changed over time to become more accurate and precise. The meter was first defined in 1791 as 1/10,000,000 of the distance from the equator to the North Pole. This measurement was improved in 1889 by redefining the meter to be the distance between two engraved lines on a platinum-iridium bar now kept near Paris. By 1960, it had become possible to define the meter even more accurately in terms of the wavelength of light, so it was again redefined as 1,650,763.73 wavelengths of orange light emitted by krypton atoms. In 1983, the meter was given its present definition (partly for greater accuracy) as the distance light travels in a vacuum in 1/299,792,458 of a second. (See Figure 1.19.) This change defines the speed of light to be exactly 299,792,458 meters per second. The length of the meter will change if the speed of light is someday measured with greater accuracy.

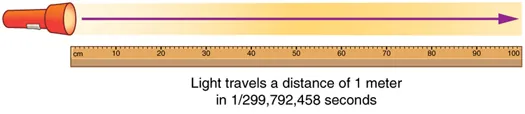

Figure 1.19 The meter is defined to be the distance light travels in 1/299,792,458 of a second in a vacuum. Distance traveled is speed multiplied by time.

#### The Kilogram

The SI unit for mass is the kilogram (abbreviated kg); it was previously defined to be the mass of a platinum-iridium cylinder kept with the old meter standard at the International Bureau of Weights and Measures near Paris. Exact replicas of the previously defined kilogram are also kept at the United States’ National Institute of Standards and Technology, or NIST, located in Gaithersburg, Maryland outside of Washington D.C., and at other locations around the world. The determination of all other masses could be ultimately traced to a comparison with the standard mass. Even though the platinum-iridium cylinder was resistant to corrosion, airborne contaminants were able to adhere to its surface, slightly changing its mass over time. In May 2019, the scientific community adopted a more stable definition of the kilogram. The kilogram is now defined in terms of the second, the meter, and Planck's constant, h (a quantum mechanical value that relates a photon's energy to its frequency).

Electric current and its accompanying unit, the ampere, will be introduced in Introduction to Electric Current, Resistance, and Ohm's Law when electricity and magnetism are covered. The initial modules in this textbook are concerned with mechanics, fluids, heat, and waves. In these subjects all pertinent physical quantities can be expressed in terms of the fundamental units of length, mass, and time.

### Metric Prefixes

SI units are part of the metric system. The metric system is convenient for scientific and engineering calculations because the units are categorized by factors of 10. Table 1.2 gives metric prefixes and symbols used to denote various factors of 10.

Metric systems have the advantage that conversions of units involve only powers of 10. There are 100 centimeters in a meter, 1000 meters in a kilometer, and so on. In nonmetric systems, such as the system of U.S. customary units, the relationships are not as simple—there are 12 inches in a foot, 5280 feet in a mile, and so on. Another advantage of the metric system is that the same unit can be used over extremely large ranges of values simply by using an appropriate metric prefix. For example, distances in meters are suitable in construction, while distances in kilometers are appropriate for air travel, and the tiny measure of nanometers are convenient in optical design. With the metric system there is no need to invent new units for particular applications.

The term order of magnitude refers to the scale of a value expressed in the metric system. Each power of $1010 size 12{"10"}$ in the metric system represents a different order of magnitude. For example, $101,102,103101,102,103 size 12{"10" rSup { size 8{1} } ,"10" rSup { size 8{2} } ,"10" rSup { size 8{3} } } {}$, and so forth are all different orders of magnitude. All quantities that can be expressed as a product of a specific power of $1010 size 12{"10"}$ are said to be of the same order of magnitude. For example, the number $800800 size 12{"800"}$ can be written as $8×1028×102$, and the number $450450$ can be written as $4.5×102.4.5×102.$ Thus, the numbers $800800$ and $450450$ are of the same order of magnitude: $102.102.$ Order of magnitude can be thought of as a ballpark estimate for the scale of a value. The diameter of an atom is on the order of while the diameter of the Sun is on the order of

### The Quest for Microscopic Standards for Basic Units

The fundamental units described in this chapter are those that produce the greatest accuracy and precision in measurement. There is a sense among physicists that, because there is an underlying microscopic substructure to matter, it would be most satisfying to base our standards of measurement on microscopic objects and fundamental physical phenomena such as the speed of light. A microscopic standard has been accomplished for the standard of time, which is based on the oscillations of the cesium atom.

The standard for length was once based on the wavelength of light (a small-scale length) emitted by a certain type of atom, but it has been supplanted by the more precise measurement of the speed of light. If it becomes possible to measure the mass of atoms or a particular arrangement of atoms such as a silicon sphere to greater precision than the kilogram standard, it may become possible to base mass measurements on the small scale. There are also possibilities that electrical phenomena on the small scale may someday allow us to base a unit of charge on the charge of electrons and protons, but at present current and charge are related to large-scale currents and forces between wires.

Prefix Symbol Value1 Example (some are approximate)
exa E $10 18 10 18 size 12{"10" rSup { size 8{"18"} } } {}$ exameter Em distance light travels in a century
peta P $10 15 10 15 size 12{"10" rSup { size 8{"15"} } } {}$ petasecond Ps 30 million years
tera T $10 12 10 12 size 12{"10" rSup { size 8{"12"} } } {}$ terawatt TW powerful laser output
giga G $10 9 10 9 size 12{"10" rSup { size 8{9} } } {}$ gigahertz GHz a microwave frequency
mega M $10 6 10 6 size 12{"10" rSup { size 8{6} } } {}$ megacurie MCi high radioactivity
kilo k $10 3 10 3 size 12{"10" rSup { size 8{3} } } {}$ kilometer km about 6/10 mile
hecto h $10 2 10 2 size 12{"10" rSup { size 8{2} } } {}$ hectoliter hL 26 gallons
deka da $10 1 10 1 size 12{"10" rSup { size 8{1} } } {}$ dekagram dag teaspoon of butter
$100100 size 12{"10" rSup { size 8{0} } } {}$ (=1)
deci d $10 − 1 10 − 1 size 12{"10" rSup { size 8{ - 1} } } {}$ deciliter dL less than half a soda
centi c $10 − 2 10 − 2 size 12{"10" rSup { size 8{ - 2} } } {}$ centimeter cm fingertip thickness
milli m $10 − 3 10 − 3 size 12{"10" rSup { size 8{ - 3} } } {}$ millimeter mm flea at its shoulders
micro µ $10 − 6 10 − 6 size 12{"10" rSup { size 8{ - 6} } } {}$ micrometer µm detail in microscope
nano n $10 − 9 10 − 9 size 12{"10" rSup { size 8{ - 9} } } {}$ nanogram ng small speck of dust
pico p $10 − 12 10 − 12 size 12{"10" rSup { size 8{ - "12"} } } {}$ picofarad pF small capacitor in radio
femto f $10 − 15 10 − 15 size 12{"10" rSup { size 8{ - "15"} } } {}$ femtometer fm size of a proton
atto a $10 − 18 10 − 18 size 12{"10" rSup { size 8{ - "18"} } } {}$ attosecond as time light crosses an atom
Table 1.2 Metric Prefixes for Powers of 10 and their Symbols

### Known Ranges of Length, Mass, and Time

The vastness of the universe and the breadth over which physics applies are illustrated by the wide range of examples of known lengths, masses, and times in Table 1.3. Examination of this table will give you some feeling for the range of possible topics and numerical values. (See Figure 1.20 and Figure 1.21.)

Figure 1.20 Tiny phytoplankton swims among crystals of ice in the Antarctic Sea. They range from a few micrometers to as much as 2 millimeters in length. (credit: Prof. Gordon T. Taylor, Stony Brook University; NOAA Corps Collections)
Figure 1.21 Galaxies collide 2.4 billion light years away from Earth. The tremendous range of observable phenomena in nature challenges the imagination. (credit: NASA/CXC/UVic./A. Mahdavi et al. Optical/lensing: CFHT/UVic./H. Hoekstra et al.)

### Unit Conversion and Dimensional Analysis

It is often necessary to convert from one type of unit to another. For example, if you are reading a European cookbook, some quantities may be expressed in units of liters and you need to convert them to cups. Or, perhaps you are reading walking directions from one location to another and you are interested in how many miles you will be walking. In this case, you will need to convert units of feet to miles.

Let us consider a simple example of how to convert units. Let us say that we want to convert 80 meters (m) to kilometers (km).

The first thing to do is to list the units that you have and the units that you want to convert to. In this case, we have units in meters and we want to convert to kilometers.

Next, we need to determine a conversion factor relating meters to kilometers. A conversion factor is a ratio expressing how many of one unit are equal to another unit. For example, there are 12 inches in 1 foot, 100 centimeters in 1 meter, 60 seconds in 1 minute, and so on. In this case, we know that there are 1,000 meters in 1 kilometer.

Now we can set up our unit conversion. We will write the units that we have and then multiply them by the conversion factor so that the units cancel out, as shown:

$80 m×1 km1000m=0.080 km.80 m×1 km1000m=0.080 km. size 12{"80"" m" times { {"1 km"} over {"1000 m"} } =0 "." "080""km"} {}$
1.1

Note that the unwanted m unit cancels, leaving only the desired km unit. You can use this method to convert between any types of unit.

Click Appendix C for a more complete list of conversion factors.

Lengths in meters Masses in kilograms (more precise values in parentheses) Times in seconds (more precise values in parentheses)
$10 − 18 10 − 18$ Present experimental limit to smallest observable detail $10 − 30 10 − 30 size 12{"10" rSup { size 8{ - "30"} } } {}$ Mass of an electron $10 − 23 10 − 23 size 12{"10" rSup { size 8{ - "23"} } } {}$ Time for light to cross a proton
$10 − 15 10 − 15 size 12{"10" rSup { size 8{ - "15"} } } {}$ Diameter of a proton $10 − 27 10 − 27 size 12{"10" rSup { size 8{ - "27"} } } {}$ Mass of a hydrogen atom $10 − 22 10 − 22 size 12{"10" rSup { size 8{ - "22"} } } {}$ Mean life of an extremely unstable nucleus
$10 − 14 10 − 14 size 12{"10" rSup { size 8{ - "14"} } } {}$ Diameter of a uranium nucleus $10 − 15 10 − 15 size 12{"10" rSup { size 8{ - "15"} } } {}$ Mass of a bacterium $10 − 15 10 − 15 size 12{"10" rSup { size 8{ - "15"} } } {}$ Time for one oscillation of visible light
$10 − 10 10 − 10 size 12{"10" rSup { size 8{ - "10"} } } {}$ Diameter of a hydrogen atom $10 − 5 10 − 5 size 12{"10" rSup { size 8{ - 5} } } {}$ Mass of a mosquito $10 − 13 10 − 13 size 12{"10" rSup { size 8{ - "13"} } } {}$ Time for one vibration of an atom in a solid
$10 − 8 10 − 8 size 12{"10" rSup { size 8{ - 8} } } {}$ Thickness of membranes in cells of living organisms $10 − 2 10 − 2 size 12{"10" rSup { size 8{ - 2} } } {}$ Mass of a hummingbird $10 − 8 10 − 8 size 12{"10" rSup { size 8{ - 8} } } {}$ Time for one oscillation of an FM radio wave
$10 − 6 10 − 6 size 12{"10" rSup { size 8{ - 6} } } {}$ Wavelength of visible light $1 1 size 12{"1"} {}$ Mass of a liter of water (about a quart) $10 − 3 10 − 3 size 12{"10" rSup { size 8{ - 3} } } {}$ Duration of a nerve impulse
$10 − 3 10 − 3 size 12{"10" rSup { size 8{ - 3} } } {}$ Size of a grain of sand $10 2 10 2 size 12{"10" rSup { size 8{2} } } {}$ Mass of a person $1 1 size 12{"1"} {}$ Time for one heartbeat
$1 1 size 12{"1"} {}$ Height of a 4-year-old child $10 3 10 3 size 12{"10" rSup { size 8{3} } } {}$ Mass of a car $10 5 10 5 size 12{"10" rSup { size 8{5} } } {}$ One day $8.64×104s8.64×104s size 12{8 "." "64" times "10" rSup { size 8{4} } s} {}$
$10 2 10 2 size 12{"10" rSup { size 8{2} } } {}$ Length of a football field $10 8 10 8 size 12{"10" rSup { size 8{8} } } {}$ Mass of a large ship $10 7 10 7 size 12{"10" rSup { size 8{7} } } {}$ One year (y) $3.16×107s3.16×107s size 12{3 "." "16" times "10" rSup { size 8{7} } s} {}$
$10 4 10 4 size 12{"10" rSup { size 8{4} } } {}$ Greatest ocean depth $10 12 10 12 size 12{"10" rSup { size 8{"12"} } } {}$ Mass of a large iceberg $10 9 10 9 size 12{"10" rSup { size 8{9} } } {}$ About half the life expectancy of a human
$10 7 10 7 size 12{"10" rSup { size 8{7} } } {}$ Diameter of the Earth $10 15 10 15 size 12{"10" rSup { size 8{"15"} } } {}$ Mass of the nucleus of a comet $10 11 10 11 size 12{"10" rSup { size 8{"11"} } } {}$ Recorded history
$10 11 10 11 size 12{"10" rSup { size 8{"11"} } } {}$ Distance from the Earth to the Sun $10 23 10 23 size 12{"10" rSup { size 8{"23"} } } {}$ Mass of the Moon $10 17 10 17 size 12{"10" rSup { size 8{"17"} } } {}$ Age of the Earth
$10 16 10 16 size 12{"10" rSup { size 8{"16"} } } {}$ Distance traveled by light in 1 year (a light year) $10 25 10 25 size 12{"10" rSup { size 8{"25"} } } {}$ Mass of the Earth $10 18 10 18 size 12{"10" rSup { size 8{"18"} } } {}$ Age of the universe
$10 21 10 21 size 12{"10" rSup { size 8{"21"} } } {}$ Diameter of the Milky Way galaxy $10 30 10 30 size 12{"10" rSup { size 8{"30"} } } {}$ Mass of the Sun
$10 22 10 22 size 12{"10" rSup { size 8{"22"} } } {}$ Distance from the Earth to the nearest large galaxy (Andromeda) $10 42 10 42 size 12{"10" rSup { size 8{"42"} } } {}$ Mass of the Milky Way galaxy (current upper limit)
$10 26 10 26 size 12{"10" rSup { size 8{"26"} } } {}$ Distance from the Earth to the edges of the known universe $10 53 10 53 size 12{"10" rSup { size 8{"53"} } } {}$ Mass of the known universe (current upper limit)
Table 1.3 Approximate Values of Length, Mass, and Time

### Example 1.1Unit Conversions: A Short Drive Home

Suppose that you drive the 10.0 km from your university to home in 20.0 min. Calculate your average speed (a) in kilometers per hour (km/h) and (b) in meters per second (m/s). (Note: Average speed is distance traveled divided by time of travel.)

Strategy

First we calculate the average speed using the given units. Then we can get the average speed into the desired units by picking the correct conversion factor and multiplying by it. The correct conversion factor is the one that cancels the unwanted unit and leaves the desired unit in its place.

Solution for (a)

(1) Calculate average speed. Average speed is distance traveled divided by time of travel. (Take this definition as a given for now—average speed and other motion concepts will be covered in a later module.) In equation form,

$average speed = distancetime.average speed = distancetime. size 12{"average speed = " { {"distance"} over {"time"} } } {}$
1.2

(2) Substitute the given values for distance and time.

1.3

(3) Convert km/min to km/h: multiply by the conversion factor that will cancel minutes and leave hours. That conversion factor is $60 min/hr60 min/hr size 12{"60 min/hr"}{}$. Thus,

1.4

Discussion for (a)

To check your answer, consider the following:

(1) Be sure that you have properly cancelled the units in the unit conversion. If you have written the unit conversion factor upside down, the units will not cancel properly in the equation. If you accidentally get the ratio upside down, then the units will not cancel; rather, they will give you the wrong units as follows:

1.5

which are obviously not the desired units of km/h.

(2) Check that the units of the final answer are the desired units. The problem asked us to solve for average speed in units of km/h and we have indeed obtained these units.

(3) Check the significant figures. Because each of the values given in the problem has three significant figures, the answer should also have three significant figures. The answer 30.0 km/hr does indeed have three significant figures, so this is appropriate. Note that the significant figures in the conversion factor are not relevant because an hour is defined to be 60 minutes, so the precision of the conversion factor is perfect.

(4) Next, check whether the answer is reasonable. Let us consider some information from the problem—if you travel 10 km in a third of an hour (20 min), you would travel three times that far in an hour. The answer does seem reasonable.

Solution for (b)

There are several ways to convert the average speed into meters per second.

(1) Start with the answer to (a) and convert km/h to m/s. Two conversion factors are needed—one to convert hours to seconds, and another to convert kilometers to meters.

(2) Multiplying by these yields

$Average speed=30.0kmh×1h3,600 s×1,000m1 km,Average speed=30.0kmh×1h3,600 s×1,000m1 km, size 12{"Average""speed"="30" "." 0 { {"km"} over {h} } times { {1" h"} over {"3,600 s"} } times { {1,"000"" m"} over {"1 km"} } } {}$
1.6
$Average speed=8.33ms.Average speed=8.33ms. size 12{"Average"`"speed"=8 "." "33" { {m} over {s} } } {}$
1.7

Discussion for (b)

If we had started with 0.500 km/min, we would have needed different conversion factors, but the answer would have been the same: 8.33 m/s.

You may have noted that the answers in the worked example just covered were given to three digits. Why? When do you need to be concerned about the number of digits in something you calculate? Why not write down all the digits your calculator produces? The module Accuracy, Precision, and Significant Figures will help you answer these questions.

### Nonstandard Units

While there are numerous types of units that we are all familiar with, there are others that are much more obscure. For example, a firkin is a unit of volume that was once used to measure beer. One firkin equals about 34 liters. To learn more about nonstandard units, use a dictionary or encyclopedia to research different “weights and measures.” Take note of any unusual units, such as a barleycorn, that are not listed in the text. Think about how the unit is defined and state its relationship to SI units.

### Check Your Understanding

Some hummingbirds beat their wings more than 50 times per second. A scientist is measuring the time it takes for a hummingbird to beat its wings once. Which fundamental unit should the scientist use to describe the measurement? Which factor of 10 is the scientist likely to use to describe the motion precisely? Identify the metric prefix that corresponds to this factor of 10.

#### Solution

The scientist will measure the time between each movement using the fundamental unit of seconds. Because the wings beat so fast, the scientist will probably need to measure in milliseconds, or $10−310−3 size 12{"10" rSup { size 8{ - 3} } } {}$ seconds. (50 beats per second corresponds to 20 milliseconds per beat.)

### Check Your Understanding

One cubic centimeter is equal to one milliliter. What does this tell you about the different units in the SI metric system?

#### Solution

The fundamental unit of length (meter) is probably used to create the derived unit of volume (liter). The measure of a milliliter is dependent on the measure of a centimeter.
