9.2 The Second Condition for Equilibrium

College Physics for AP® Courses9.2 The Second Condition for Equilibrium

Learning Objectives

By the end of this section, you will be able to:

  • State the second condition that is necessary to achieve equilibrium.
  • Explain torque and the factors on which it depends.
  • Describe the role of torque in rotational mechanics.

The information presented in this section supports the following AP® learning objectives and science practices:

  • 3.F.1.1 The student is able to use representations of the relationship between force and torque. (S.P. 1.4)
  • 3.F.1.2 The student is able to compare the torques on an object caused by various forces. (S.P. 1.4)
  • 3.F.1.3 The student is able to estimate the torque on an object caused by various forces in comparison to other situations. (S.P. 2.3)

Torque

The second condition necessary to achieve equilibrium involves avoiding accelerated rotation (maintaining a constant angular velocity. A rotating body or system can be in equilibrium if its rate of rotation is constant and remains unchanged by the forces acting on it. To understand what factors affect rotation, let us think about what happens when you open an ordinary door by rotating it on its hinges.

Several familiar factors determine how effective you are in opening the door. See Figure 9.6. First of all, the larger the force, the more effective it is in opening the door—obviously, the harder you push, the more rapidly the door opens. Also, the point at which you push is crucial. If you apply your force too close to the hinges, the door will open slowly, if at all. Most people have been embarrassed by making this mistake and bumping up against a door when it did not open as quickly as expected. Finally, the direction in which you push is also important. The most effective direction is perpendicular to the door—we push in this direction almost instinctively.

In the figure, six top views of a door are shown. In the first figure, a force vector is shown in the North West direction. The perpendicular distance of the force from the point of rotation is r. In the second figure, a force is applied in the opposite direction at the same distance from the hinges. In the third figure, a smaller force in applied at the same point. In the next figure, a horizontal force is applied at the same point. In this case, the perpendicular distance from the hinges is shown as r sin theta. In the next figure, force is applied at a distance near the hinges. In the final figure, the force is shown along the direction of hinges toward the handle of the door.

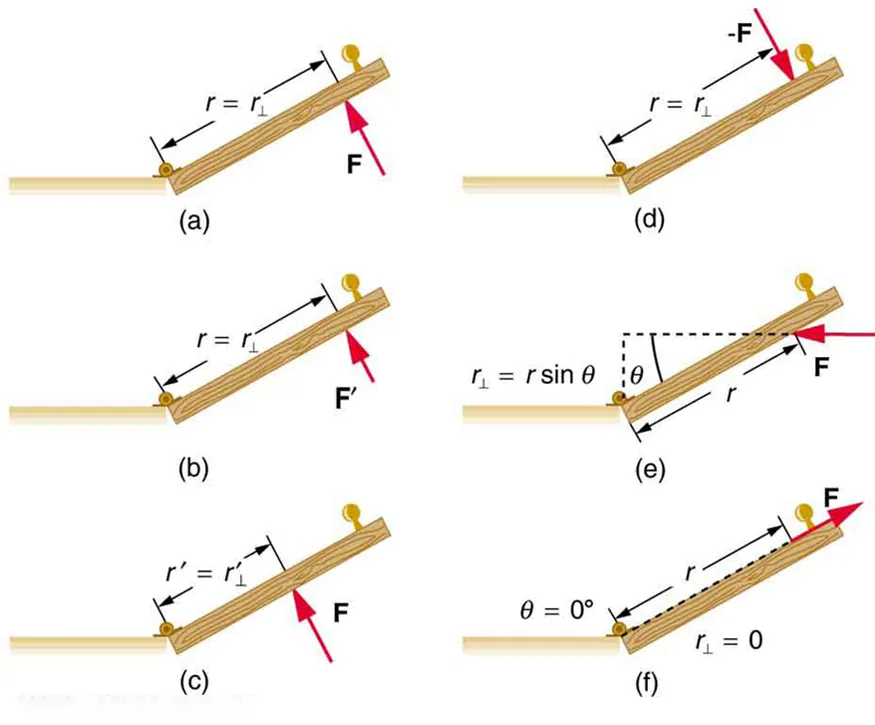

Figure 9.6 Torque is the turning or twisting effectiveness of a force, illustrated here for door rotation on its hinges (as viewed from overhead). Torque has both magnitude and direction. (a) Counterclockwise torque is produced by this force, which means that the door will rotate in a counterclockwise due to FF size 12{F} {}. Note that rr size 12{r} sub{} is the perpendicular distance of the pivot from the line of action of the force. (b) A smaller counterclockwise torque is produced by a smaller force F′F′ size 12{F} {} acting at the same distance from the hinges (the pivot point). (c) The same force as in (a) produces a smaller counterclockwise torque when applied at a smaller distance from the hinges. (d) The same force as in (a), but acting in the opposite direction, produces a clockwise torque. (e) A smaller counterclockwise torque is produced by the same magnitude force acting at the same point but in a different direction. Here, θθ size 12{θ} {} is less than 90º90º. (f) Torque is zero here since the force just pulls on the hinges, producing no rotation. In this case, θ=θ= size 12{θ=0°} {}.

The magnitude, direction, and point of application of the force are incorporated into the definition of the physical quantity called torque. Torque is the rotational equivalent of a force. It is a measure of the effectiveness of a force in changing or accelerating a rotation (changing the angular velocity over a period of time). In equation form, the magnitude of torque is defined to be

τ = rF sin θ τ = rF sin θ size 12{τ= ital "rF""sin"θ} {}
9.3

where ττ (the Greek letter tau) is the symbol for torque, rr is the distance from the pivot point to the point where the force is applied, FF is the magnitude of the force, and θθ size 12{θ} {} is the angle between the force and the vector directed from the point of application to the pivot point, as seen in Figure 9.6 and Figure 9.7. An alternative expression for torque is given in terms of the perpendicular lever arm rr size 12{r rSub { size 8{ ortho } } } {} as shown in Figure 9.6 and Figure 9.7, which is defined as

r=rsinθr=rsinθ size 12{r rSub { size 8{ ortho } } =r"sin"θ} {}
9.4

so that

τ=rF.τ=rF.
9.5
In the first part of the figure, a hockey stick is shown. At a point A near the bottom, a nail is fixed. A force is applied at a point near the holding grip of the hockey stick. A quarter circular arrow shows that the stick rotates in the counterclockwise direction. The perpendicular distance between the pivot point and the force vector direction is labeled as r-perpendicular, and the angle between the direction of force and the line joining the pivot A to the point of application of force is given as theta. In the second part of the figure, the pivot point is near the top of the stick and the point of application of the force is about the same as that in the first part of the figure. An upward quarter circle arrow shows that the stick rotates in the clockwise direction.

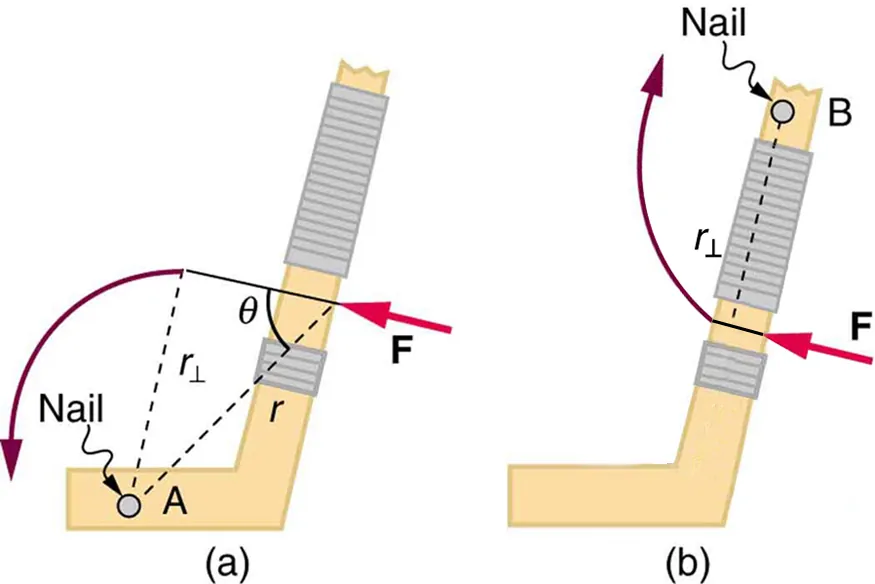

Figure 9.7 A force applied to an object can produce a torque, which depends on the location of the pivot point. (a) The three factors rr, FF, and θθ size 12{θ} {} for pivot point A on a body are shown here—rr is the distance from the chosen pivot point to the point where the force FF is applied, and θθ is the angle between FF and the vector directed from the point of application to the pivot point. If the object can rotate around point A, it will rotate counterclockwise. This means that torque is counterclockwise relative to pivot A. (b) In this case, point B is the pivot point. The torque from the applied force will cause a clockwise rotation around point B, and so it is a clockwise torque relative to B.

The perpendicular lever arm rr size 12{r rSub { size 8{ ortho } } } {} is the shortest distance from the pivot point to the line along which FF acts; it is shown as a dashed line in Figure 9.6 and Figure 9.7. Note that the line segment that defines the distance rr size 12{r rSub { size 8{ ortho } } } {} is perpendicular to FF, as its name implies. It is sometimes easier to find or visualize rr size 12{r rSub { size 8{ ortho } } } {} than to find both rr and θθ. In such cases, it may be more convenient to use τ=rFτ=rF size 12{τ=r rSub { size 8{ ortho } } F} {} rather than τ=rFsinθτ=rFsinθ size 12{τ= ital "rF""sin"θ} {} for torque, but both are equally valid.

The SI unit of torque is newtons times meters, usually written as N·mN·m. For example, if you push perpendicular to the door with a force of 40 N at a distance of 0.800 m from the hinges, you exert a torque of 32 N·m(0.800 m×40 N×sin 90º)32 N·m(0.800 m×40 N×sin 90º) relative to the hinges. If you reduce the force to 20 N, the torque is reduced to 16 N·m16 N·m, and so on.

The torque is always calculated with reference to some chosen pivot point. For the same applied force, a different choice for the location of the pivot will give you a different value for the torque, since both rr and θθ size 12{θ} {} depend on the location of the pivot. Any point in any object can be chosen to calculate the torque about that point. The object may not actually pivot about the chosen “pivot point.”

Note that for rotation in a plane, torque has two possible directions. Torque is either clockwise or counterclockwise relative to the chosen pivot point, as illustrated for points B and A, respectively, in Figure 9.7. If the object can rotate about point A, it will rotate counterclockwise, which means that the torque for the force is shown as counterclockwise relative to A. But if the object can rotate about point B, it will rotate clockwise, which means the torque for the force shown is clockwise relative to B. Also, the magnitude of the torque is greater when the lever arm is longer.

Making Connections: Pivoting Block

A solid block of length d is pinned to a wall on its right end. Three forces act on the block as shown below: FA, FB, and FC. While all three forces are of equal magnitude, and all three are equal distances away from the pivot point, all three forces will create a different torque upon the object.

FA is vectored perpendicular to its distance from the pivot point; as a result, the magnitude of its torque can be found by the equation τ=FA*d. Vector FB is parallel to the line connecting the point of application of force and the pivot point. As a result, it does not provide an ability to rotate the object and, subsequently, its torque is zero. FC, however, is directed at an angle ϴ to the line connecting the point of application of force and the pivot point. In this instance, only the component perpendicular to this line is exerting a torque. This component, labeled F, can be found using the equation F=FCsinθ. The component of the force parallel to this line, labeled F, does not provide an ability to rotate the object and, as a result, does not provide a torque. Therefore, the resulting torque created by FC is τ=F*d.

On the right of the diagram is a long light-brown rectangle with a solid black dot on the right end. Below the long rectangle is a double headed arrow pointing to vertical lines at either end of the block labeled with a d in the center. Below the left vertical line is a red arrow pointing up labeled FA. To the left of the left vertical line is a red arrow pointing to the right labeled FB. Above the light-brown long rectangle is a short line segment pointing up labeled FI. From the top of the FI line is another short line moving toward the left and labeled FII. There is red arrow labeled FC pointing at about 30 degrees down and to the right to close the triangle between FI, FII, and FC. The angle between FII and FC is labeled as theta.

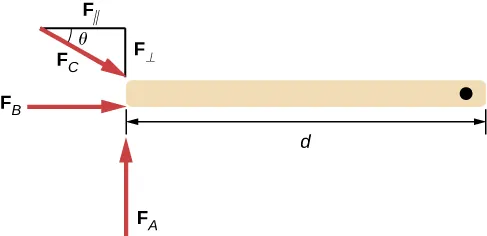

Figure 9.8 Forces on a block pinned to a wall. A solid block of length d is pinned to a wall on its right end. Three forces act on the block: FA, FB, and FC.

Now, the second condition necessary to achieve equilibrium is that the net external torque on a system must be zero. An external torque is one that is created by an external force. You can choose the point around which the torque is calculated. The point can be the physical pivot point of a system or any other point in space—but it must be the same point for all torques. If the second condition (net external torque on a system is zero) is satisfied for one choice of pivot point, it will also hold true for any other choice of pivot point in or out of the system of interest. (This is true only in an inertial frame of reference.) The second condition necessary to achieve equilibrium is stated in equation form as

net τ = 0 net τ = 0 size 12{"net "τ=0} {}
9.6

where net means total. Torques, which are in opposite directions are assigned opposite signs. A common convention is to call counterclockwise (ccw) torques positive and clockwise (cw) torques negative.

When two children balance a seesaw as shown in Figure 9.9, they satisfy the two conditions for equilibrium. Most people have perfect intuition about seesaws, knowing that the lighter child must sit farther from the pivot and that a heavier child can keep a lighter one off the ground indefinitely.

Two children are sitting on a seesaw. On the left side, a lighter child is sitting and on the right, a heavier one. The distance of the lighter child from the fulcrum is more than that of heavier child. At the fulcrum, an upward force vector labeled as F-p is shown. The weights of the two children, w-one and w-two, are shown as vectors in the downward direction, and the force at the fulcrum, F-p, is shown as a vector in the upward direction.

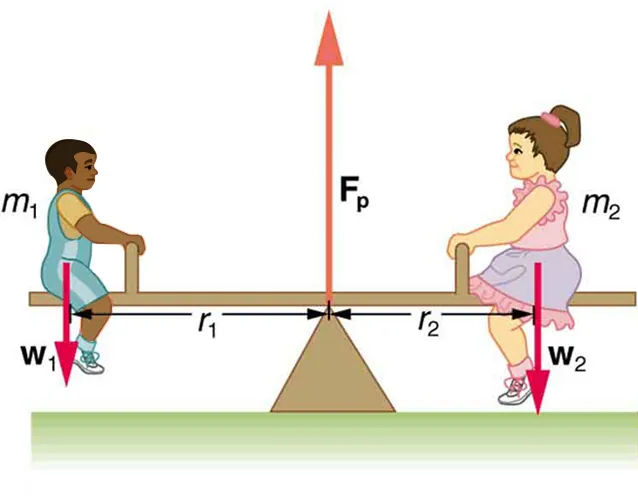

Figure 9.9 Two children balancing a seesaw satisfy both conditions for equilibrium. The lighter child sits farther from the pivot to create a torque equal in magnitude to that of the heavier child.

Example 9.1

She Saw Torques On A Seesaw

The two children shown in Figure 9.9 are balanced on a seesaw of negligible mass. (This assumption is made to keep the example simple—more involved examples will follow.) The first child has a mass of 26.0 kg and sits 1.60 m from the pivot.(a) If the second child has a mass of 32.0 kg, how far is she from the pivot? (b) What is FpFp, the supporting force exerted by the pivot?

Strategy

Both conditions for equilibrium must be satisfied. In part (a), we are asked for a distance; thus, the second condition (regarding torques) must be used, since the first (regarding only forces) has no distances in it. To apply the second condition for equilibrium, we first identify the system of interest to be the seesaw plus the two children. We take the supporting pivot to be the point about which the torques are calculated. We then identify all external forces acting on the system.

Solution (a)

The three external forces acting on the system are the weights of the two children and the supporting force of the pivot. Let us examine the torque produced by each. Torque is defined to be

τ=rFsinθ.τ=rFsinθ. size 12{τ= ital "rF""sin"θ} {}
9.7

Here θ=90ºθ=90º, so that sinθ=1sinθ=1 for all three forces. That means r=rr=r size 12{r rSub { size 8{ ortho } } =r} {} for all three. The torques exerted by the three forces are first,

τ 1 = r 1 w 1 τ 1 = r 1 w 1
9.8

second,

τ 2 = r 2 w 2 τ 2 = r 2 w 2
9.9

and third,

τp = rpFp = 0Fp = 0. τp = rpFp = 0Fp = 0.
9.10

Note that a minus sign has been inserted into the second equation because this torque is clockwise and is therefore negative by convention. Since FpFp acts directly on the pivot point, the distance rprp is zero. A force acting on the pivot cannot cause a rotation, just as pushing directly on the hinges of a door will not cause it to rotate. Now, the second condition for equilibrium is that the sum of the torques on both children is zero. Therefore

τ2=τ1,τ2=τ1, size 12{τ rSub { size 8{2} } =τ rSub { size 8{1} } } {}
9.11

or

r2w2=r1w1.r2w2=r1w1. size 12{r rSub { size 8{2} } w rSub { size 8{2} } =r rSub { size 8{1} } w rSub { size 8{1} } } {}
9.12

Weight is mass times the acceleration due to gravity. Entering mgmg for w w, we get

r2 m2g=r1 m1g. r2 m2g=r1 m1g.
9.13

Solve this for the unknown r2r2 size 12{r rSub { size 8{2} } } {}:

r2=r1m1m2.r2=r1m1m2. size 12{r rSub { size 8{2} } =r rSub { size 8{1} } { {m rSub { size 8{1} } } over {m rSub { size 8{2} } } } } {}
9.14

The quantities on the right side of the equation are known; thus, r2r2 size 12{r rSub { size 8{2} } } {} is

r2=1.60 m26.0 kg32.0 kg=1.30 m.r2=1.60 m26.0 kg32.0 kg=1.30 m. size 12{r rSub { size 8{2} } = left (1 "." "60"" m" right ) { {"26" "." 0" kg"} over {"32" "." " 0 kg"} } =1 "." "30"" m"} {}
9.15

As expected, the heavier child must sit closer to the pivot (1.30 m versus 1.60 m) to balance the seesaw.

Solution (b)

This part asks for a force FpFp. The easiest way to find it is to use the first condition for equilibrium, which is

net F=0.net F=0.
9.16

The forces are all vertical, so that we are dealing with a one-dimensional problem along the vertical axis; hence, the condition can be written as

net F y = 0 net F y = 0 size 12{"net "F rSub { size 8{y} } =0} {}
9.17

where we again call the vertical axis the y-axis. Choosing upward to be the positive direction, and using plus and minus signs to indicate the directions of the forces, we see that

Fpw1w2=0.Fpw1w2=0. size 12{F rSub { size 8{p} } - w rSub { size 8{1} } - w rSub { size 8{2} } =0} {}
9.18

This equation yields what might have been guessed at the beginning:

Fp=w1+w2.Fp=w1+w2. size 12{F rSub { size 8{p} } =w rSub { size 8{1} } +w rSub { size 8{2} } } {}
9.19

So, the pivot supplies a supporting force equal to the total weight of the system:

Fp=m1g+m2g.Fp=m1g+m2g. size 12{F rSub { size 8{p} } =m rSub { size 8{1} } g+m rSub { size 8{2} } g} {}
9.20

Entering known values gives

Fp = 26.0 kg9.80 m/s2+ 32.0 kg 9.80 m/s2 = 568 N. Fp = 26.0 kg9.80 m/s2+ 32.0 kg 9.80 m/s2 = 568 N.
9.21

Discussion

The two results make intuitive sense. The heavier child sits closer to the pivot. The pivot supports the weight of the two children. Part (b) can also be solved using the second condition for equilibrium, since both distances are known, but only if the pivot point is chosen to be somewhere other than the location of the seesaw's actual pivot!

Several aspects of the preceding example have broad implications. First, the choice of the pivot as the point around which torques are calculated simplified the problem. Since FpFp is exerted on the pivot point, its lever arm is zero. Hence, the torque exerted by the supporting force FpFp is zero relative to that pivot point. The second condition for equilibrium holds for any choice of pivot point, and so we choose the pivot point to simplify the solution of the problem.

Second, the acceleration due to gravity canceled in this problem, and we were left with a ratio of masses. This will not always be the case. Always enter the correct forces—do not jump ahead to enter some ratio of masses.

Third, the weight of each child is distributed over an area of the seesaw, yet we treated the weights as if each force were exerted at a single point. This is not an approximation—the distances r1r1 and r2r2 are the distances to points directly below the center of gravity of each child. As we shall see in the next section, the mass and weight of a system can act as if they are located at a single point.

Finally, note that the concept of torque has an importance beyond static equilibrium. Torque plays the same role in rotational motion that force plays in linear motion. We will examine this in the next chapter.

Take-Home Experiment

Take a piece of modeling clay and put it on a table, then mash a cylinder down into it so that a ruler can balance on the round side of the cylinder while everything remains still. Put a penny 8 cm away from the pivot. Where would you need to put two pennies to balance? Three pennies?
