Gregg Wolfe; Erika Gasper; John Stoke; Julie Kretchman; David Anderson; Nathan Czuba; Sudhi Oberoi; Liza Pujji; Irina Lyublinskaya; Douglas Ingram

Learning Objectives

By the end of this section, you will be able to:

Define linear momentum.
Explain the relationship between linear momentum and force.
State Newton’s second law of motion in terms of linear momentum.
Calculate linear momentum given mass and velocity.

The information presented in this section supports the following AP® learning objectives and science practices:

3.D.1.1 The student is able to justify the selection of data needed to determine the relationship between the direction of the force acting on an object and the change in momentum caused by that force. (S.P. 4.1)

Linear Momentum

The scientific definition of linear momentum is consistent with most people’s intuitive understanding of momentum: a large, fast-moving object has greater momentum than a smaller, slower object. Linear momentum is defined as the product of a system’s mass multiplied by its velocity. In symbols, linear momentum is expressed as

p = m v .

8.1

Momentum is directly proportional to the object’s mass and also its velocity. Thus the greater an object’s mass or the greater its velocity, the greater its momentum. Momentum $p$ is a vector having the same direction as the velocity $v$ . The SI unit for momentum is $kg \cdot m/s$ .

Linear Momentum

Linear momentum is defined as the product of a system’s mass multiplied by its velocity:

p = m v .

8.2

Example 8.1

Calculating Momentum: A Football Player and a Football

(a) Calculate the momentum of a 110-kg football player running at 8.00 m/s. (b) Compare the player’s momentum with the momentum of a hard-thrown 0.410-kg football that has a speed of 25.0 m/s.

Strategy

No information is given regarding direction, and so we can calculate only the magnitude of the momentum, $p$ . (As usual, a symbol that is in italics is a magnitude, whereas one that is italicized, boldfaced, and has an arrow is a vector.) In both parts of this example, the magnitude of momentum can be calculated directly from the definition of momentum given in the equation, which becomes

p = mv

8.3

when only magnitudes are considered.

Solution for (a)

To determine the momentum of the player, substitute the known values for the player’s mass and speed into the equation.

p_{player} = (110 kg) (8 . 00 m/s) = 880 kg \cdot m/s

8.4

Solution for (b)

To determine the momentum of the ball, substitute the known values for the ball’s mass and speed into the equation.

p_{ball} = (0.410 kg) (25.0 m/s) = 10.3 kg \cdot m/s

8.5

The ratio of the player’s momentum to that of the ball is

\frac{p_{player}}{p_{ball}} = \frac{880}{10.3} = 85 . 9 .

8.6

Discussion

Although the ball has greater velocity, the player has a much greater mass. Thus the momentum of the player is much greater than the momentum of the football, as you might guess. As a result, the player’s motion is only slightly affected if he catches the ball. We shall quantify what happens in such collisions in terms of momentum in later sections.

Momentum and Newton’s Second Law

The importance of momentum, unlike the importance of energy, was recognized early in the development of classical physics. Momentum was deemed so important that it was called the “quantity of motion.” Newton actually stated his second law of motion in terms of momentum: The net external force equals the change in momentum of a system divided by the time over which it changes. Using symbols, this law is

F_{net} = \frac{Δ p}{Δ t},

8.7

where $F_{net}$ is the net external force, $Δ p$ is the change in momentum, and $Δ t$ is the change in time.

Newton’s Second Law of Motion in Terms of Momentum

The net external force equals the change in momentum of a system divided by the time over which it changes.

F_{net} = \frac{Δ p}{Δ t}

8.8

Making Connections: Force and Momentum

Force and momentum are intimately related. Force acting over time can change momentum, and Newton’s second law of motion, can be stated in its most broadly applicable form in terms of momentum. Momentum continues to be a key concept in the study of atomic and subatomic particles in quantum mechanics.

This statement of Newton’s second law of motion includes the more familiar $F_{net} = m a$ as a special case. We can derive this form as follows. First, note that the change in momentum $Δ p$ is given by

Δ p = Δ (m v) .

8.9

If the mass of the system is constant, then

Δ (m v) = m Δ v .

8.10

So that for constant mass, Newton’s second law of motion becomes

F_{net} = \frac{Δ p}{Δ t} = \frac{m Δ v}{Δ t} .

8.11

Because $\frac{Δ v}{Δ t} = a$ , we get the familiar equation

F_{net} = m a

8.12

when the mass of the system is constant.

Newton’s second law of motion stated in terms of momentum is more generally applicable because it can be applied to systems where the mass is changing, such as rockets, as well as to systems of constant mass. We will consider systems with varying mass in some detail; however, the relationship between momentum and force remains useful when mass is constant, such as in the following example.

Example 8.2

Calculating Force: Venus Williams’ Racquet

During the 2007 French Open, Venus Williams hit the fastest recorded serve in a premier women’s match, reaching a speed of 58 m/s (209 km/h). What is the average force exerted on the 0.057-kg tennis ball by Venus Williams’ racquet, assuming that the ball’s speed just after impact is 58 m/s, that the initial horizontal component of the velocity before impact is negligible, and that the ball remained in contact with the racquet for 5.0 ms (milliseconds)?

Strategy

This problem involves only one dimension because the ball starts from having no horizontal velocity component before impact. Newton’s second law stated in terms of momentum is then written as

F_{net} = \frac{Δ p}{Δ t} .

8.13

As noted above, when mass is constant, the change in momentum is given by

Δ p = m Δ v = m (v_{f} - v_{i}) .

8.14

In this example, the velocity just after impact and the change in time are given; thus, once $Δ p$ is calculated, $F_{net} = \frac{Δ p}{Δ t}$ can be used to find the force.

Solution

To determine the change in momentum, substitute the values for the initial and final velocities into the equation above.

\begin{array}{l} Δ p & = & m (v_{f} - v_{i}) \\ = & (0.057 kg) (58 m/s - 0 m/s) \\ = & 3 .306 kg \cdot m/s \approx 3.3 kg \cdot m/s \end{array}

8.15

Now the magnitude of the net external force can determined by using $F_{net} = \frac{Δ p}{Δ t}$ :

\begin{array}{l} F_{net} & = & \frac{Δ p}{Δ t} = \frac{3.306 kg \cdot m/s}{5 . 0 \times 10^{- 3} s} \\ = & 661 N \approx 660 N, \end{array}

8.16

where we have retained only two significant figures in the final step.

Discussion

This quantity was the average force exerted by Venus Williams’ racquet on the tennis ball during its brief impact (note that the ball also experienced the 0.56-N force of gravity, but that force was not due to the racquet). This problem could also be solved by first finding the acceleration and then using $F_{net} = ma$ , but one additional step would be required compared with the strategy used in this example.

Making Connections: Illustrative Example

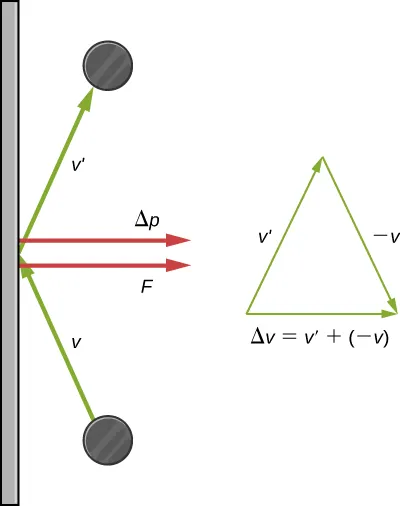

The image contains two diagrams. On the far left, there is a vertical surface. In the lower part of the left diagram, there is a gray circle near the surface, with an arrow labeled v pointing from the circle to the surface. In the upper part, there is a gray circle near the surface, with an arrow labeled v prime pointing from the surface to the circle. The two arrows meet point to end at the vertical surface. Where they meet, two additional arrows point out from the surface, one labeled delta p and one labeled f. On the right side of the image, an arrow labeled v prime points up and to the right at the same angle as the arrow labeled v prime in the diagram on the left. Another arrow, labeled negative v, points down and to the right, at the same angle but opposite direction as the arrow labeled v in the diagram on the left. The point of the first arrow (v prime) meets the end of the second arrow (negative v). A third arrow runs from the end of v prime to the point of negative v. This arrow is labeled delta v, equal to v prime plus negative v.

Figure 8.2 A puck has an elastic, glancing collision with the edge of an air hockey table.

In Figure 8.2, a puck is shown colliding with the edge of an air hockey table at a glancing angle. During the collision, the edge of the table exerts a force F on the puck, and the velocity of the puck changes as a result of the collision. The change in momentum is found by the equation:

Δp = m Δv = m v' - m v = m (v' + (- v))

8.17

As shown, the direction of the change in velocity is the same as the direction of the change in momentum, which in turn is in the same direction as the force exerted by the edge of the table. Note that there is only a horizontal change in velocity. There is no difference in the vertical components of the initial and final velocity vectors; therefore, there is no vertical component to the change in velocity vector or the change in momentum vector. This is consistent with the fact that the force exerted by the edge of the table is purely in the horizontal direction.
