31.7 Tunneling

College Physics for AP® Courses31.7 Tunneling

Learning Objectives

By the end of this section, you will be able to:

  • Define and discuss tunneling.
  • Define potential barrier.
  • Explain quantum tunneling.

Protons and neutrons are bound inside nuclei, that means energy must be supplied to break them away. The situation is analogous to a marble in a bowl that can roll around but lacks the energy to get over the rim. It is bound inside the bowl (see Figure 31.29). If the marble could get over the rim, it would gain kinetic energy by rolling down outside. However classically, if the marble does not have enough kinetic energy to get over the rim, it remains forever trapped in its well.

The figure shows a marble rolling in a semicircular bowl at the top of a volcano. A dashed line is shown just below the top of the bowl indicating maximum distance the marble can travel. A tunnel is shown on one side of the top of the volcano through which the marble can roll downhill.
Figure 31.29 The marble in this semicircular bowl at the top of a volcano has enough kinetic energy to get to the altitude of the dashed line, but not enough to get over the rim, so that it is trapped forever. If it could find a tunnel through the barrier, it would escape, roll downhill, and gain kinetic energy.

In a nucleus, the attractive nuclear potential is analogous to the bowl at the top of a volcano (where the “volcano” refers only to the shape). Protons and neutrons have kinetic energy, but it is about 8 MeV less than that needed to get out (see Figure 31.30). That is, they are bound by an average of 8 MeV per nucleon. The slope of the hill outside the bowl is analogous to the repulsive Coulomb potential for a nucleus, such as for an αα particle outside a positive nucleus. In αα decay, two protons and two neutrons spontaneously break away as a 4He4He size 12{"" lSup { size 8{4} } "He"} {} unit. Yet the protons and neutrons do not have enough kinetic energy to get over the rim. So how does the αα size 12{α} {} particle get out?

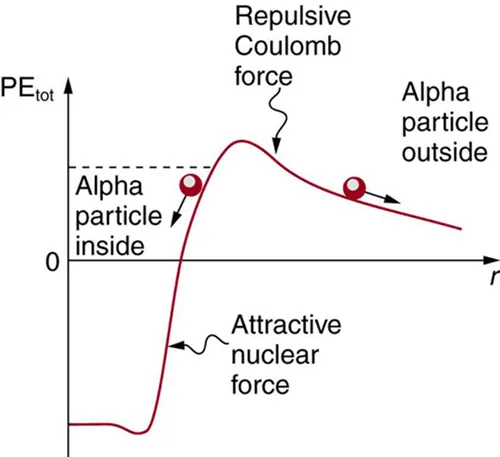

The image shows potential energy curve. The curve starts from negative Y axis to positive Y axis and alpha particles are shown trapped inside the nucleus due to attractive nuclear force. The alpha particles outside the range of nuclear force experience the repulsive Coulomb force which keeps them outside the nucleus.
Figure 31.30 Nucleons within an atomic nucleus are bound or trapped by the attractive nuclear force, as shown in this simplified potential energy curve. An αα size 12{α} {} particle outside the range of the nuclear force feels the repulsive Coulomb force. The αα size 12{α} {} particle inside the nucleus does not have enough kinetic energy to get over the rim, yet it does manage to get out by quantum mechanical tunneling.

The answer was supplied in 1928 by the Russian physicist George Gamow (1904–1968). The αα size 12{α} {} particle tunnels through a region of space it is forbidden to be in, and it comes out of the side of the nucleus. Like an electron making a transition between orbits around an atom, it travels from one point to another without ever having been in between. Figure 31.31 indicates how this works. The wave function of a quantum mechanical particle varies smoothly, going from within an atomic nucleus (on one side of a potential energy barrier) to outside the nucleus (on the other side of the potential energy barrier). Inside the barrier, the wave function does not become zero but decreases exponentially, and we do not observe the particle inside the barrier. The probability of finding a particle is related to the square of its wave function, and so there is a small probability of finding the particle outside the barrier, which implies that the particle can tunnel through the barrier. This process is called barrier penetration or quantum mechanical tunneling. This concept was developed in theory by J. Robert Oppenheimer (who led the development of the first nuclear bombs during World War II) and was used by Gamow and others to describe αα size 12{α} {} decay.

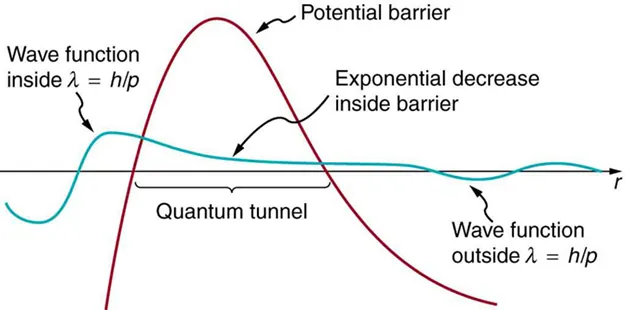

The image shows wave function curve and potential barrier quantum tunnel region. When the wave function curve passes through potential barrier it decreases exponentially.
Figure 31.31 The wave function representing a quantum mechanical particle must vary smoothly, going from within the nucleus (to the left of the barrier) to outside the nucleus (to the right of the barrier). Inside the barrier, the wave function does not abruptly become zero; rather, it decreases exponentially. Outside the barrier, the wave function is small but finite, and there it smoothly becomes sinusoidal. Owing to the fact that there is a small probability of finding the particle outside the barrier, the particle can tunnel through the barrier.

Good ideas explain more than one thing. In addition to qualitatively explaining how the four nucleons in an αα size 12{α} {} particle can get out of the nucleus, the detailed theory also explains quantitatively the half-life of various nuclei that undergo αα size 12{α} {} decay. This description is what Gamow and others devised, and it works for αα size 12{α} {} decay half-lives that vary by 17 orders of magnitude. Experiments have shown that the more energetic the αα size 12{α} {} decay of a particular nuclide is, the shorter is its half-life. Tunneling explains this in the following manner: For the decay to be more energetic, the nucleons must have more energy in the nucleus and should be able to ascend a little closer to the rim. The barrier is therefore not as thick for more energetic decay, and the exponential decrease of the wave function inside the barrier is not as great. Thus the probability of finding the particle outside the barrier is greater, and the half-life is shorter.

Tunneling as an effect also occurs in quantum mechanical systems other than nuclei. Electrons trapped in solids can tunnel from one object to another if the barrier between the objects is thin enough. The process is the same in principle as described for αα size 12{α} {} decay. It is far more likely for a thin barrier than a thick one. Scanning tunneling electron microscopes function on this principle. The current of electrons that travels between a probe and a sample tunnels through a barrier and is very sensitive to its thickness, allowing detection of individual atoms as shown in Figure 31.32.

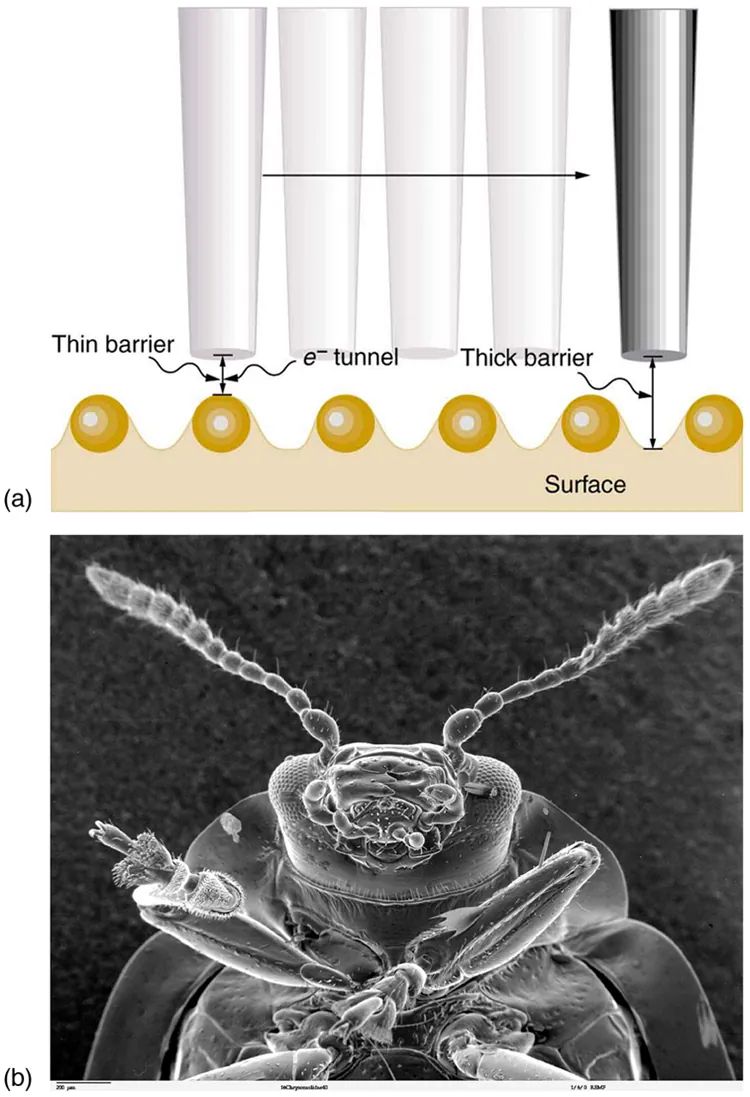

Figure a shows a wavy surface with a taper cylindrical probe traveling horizontally toward right. Wherever there is a crest the barrier between probe and surface is thick and the barrier is thin when there is a hill on the surface. Figure b shows a scanning tunneling electron microscope image of an insect.
Figure 31.32 (a) A scanning tunneling electron microscope can detect extremely small variations in dimensions, such as individual atoms. Electrons tunnel quantum mechanically between the probe and the sample. The probability of tunneling is extremely sensitive to barrier thickness, so that the electron current is a sensitive indicator of surface features. (b) Head and mouthparts of Coleoptera Chrysomelidae as seen through an electron microscope (credit: Louisa Howard, Dartmouth College)

Making Connections: Real World Connections

Wave functions for two different particles are graphically compared. The graph for particle X shows a lower amplitude and a broader spatial distribution compared to the graph for particle Y, which shows a higher amplitude and narrower spatial distribution.
Figure 31.33 The wave function for particle X has a lower amplitude and a broader spatial distribution compared to particle Y, indicating a greater uncertainty in the position of particle X. The amplitude of the wave function is a measure of the probability of finding the particle at a precise location in x.

Recall the discussion of wave-particle duality and the uncertainty principle in Sections 29.6 and 29.7. At the quantum level, particles such as electrons and alpha particles can be represented by a wave function. The wave function represents the probability of finding the particle at a given precise location. Because the location of an alpha particle is not certain, at any given time, there is a small chance that it will be located far away from its original location inside the nucleus, even at a distance that would place it outside the nucleus. There is a small probability each second of the alpha particle being found at this new position, effectively resulting in alpha decay.

The greater this probability, the less time it takes to happen and thus, the shorter the half-life of the decay sequence. Particle X above has a much greater uncertainty in its position, and if it represents an alpha particle inside a particular nucleus, it would take this alpha particle very little time to tunnel out of the nucleus in this way compared to particle Y, which has a very small positional uncertainty and is not likely to be found as far from its expected location in the nucleus.

PhET Explorations

Quantum Tunneling and Wave Packets

Watch quantum "particles" tunnel through barriers. Explore the properties of the wave functions that describe these particles.
