Learning Objectives

By the end of this section, you will be able to:

  • Discuss the rainbow formation by thin films.

The information presented in this section supports the following AP® learning objectives and science practices:

  • 6.D.1.1 The student is able to use representations of individual pulses and construct representations to model the interaction of two wave pulses to analyze the superposition of two pulses. (S.P. 1.1, 1.4)

The bright colors seen in an oil slick floating on water or in a sunlit soap bubble are caused by interference. The brightest colors are those that interfere constructively. This interference is between light reflected from different surfaces of a thin film; thus, the effect is known as thin film interference. As noticed before, interference effects are most prominent when light interacts with something having a size similar to its wavelength. A thin film is one having a thickness tt size 12{t} {} smaller than a few times the wavelength of light, λλ size 12{λ} {}. Since color is associated indirectly with λλ size 12{λ} {} and since all interference depends in some way on the ratio of λλ size 12{λ} {} to the size of the object involved, we should expect to see different colors for different thicknesses of a film, as in Figure 27.32.

Soap bubbles reflecting mostly purple and blue light with some regions of orange.
Figure 27.32 These soap bubbles exhibit brilliant colors when exposed to sunlight. (credit: Scott Robinson, Flickr)

What causes thin film interference? Figure 27.33 shows how light reflected from the top and bottom surfaces of a film can interfere. Incident light is only partially reflected from the top surface of the film (ray 1). The remainder enters the film and is itself partially reflected from the bottom surface. Part of the light reflected from the bottom surface can emerge from the top of the film (ray 2) and interfere with light reflected from the top (ray 1). Since the ray that enters the film travels a greater distance, it may be in or out of phase with the ray reflected from the top. However, consider for a moment, again, the bubbles in Figure 27.32. The bubbles are darkest where they are thinnest. Furthermore, if you observe a soap bubble carefully, you will note it gets dark at the point where it breaks. For very thin films, the difference in path lengths of ray 1 and ray 2 in Figure 27.33 is negligible; so why should they interfere destructively and not constructively? The answer is that a phase change can occur upon reflection. The rule is as follows:

When light reflects from a medium having an index of refraction greater than that of the medium in which it is traveling, a 180º 180º phase change (or a λ / 2 λ / 2 shift) occurs.

The figure shows three materials, or media, stacked one upon the other. The topmost medium is labeled n one, the next is labeled n two and its thickness is t, and the lowest is labeled n three. A light ray labeled incident light starts in the n one medium and propagates down and to the right to strike the n one n two interface. The ray gets partially reflected and partially refracted. The partially reflected ray is labeled ray one. The refracted ray continues downward in the n two medium and is reflected back up from the n two n three interface. This reflected ray, labeled ray two, refracts again upon passing up through the n two n one interface and continues upward parallel to ray one. Ray one and ray two then enter an observer’s eye.

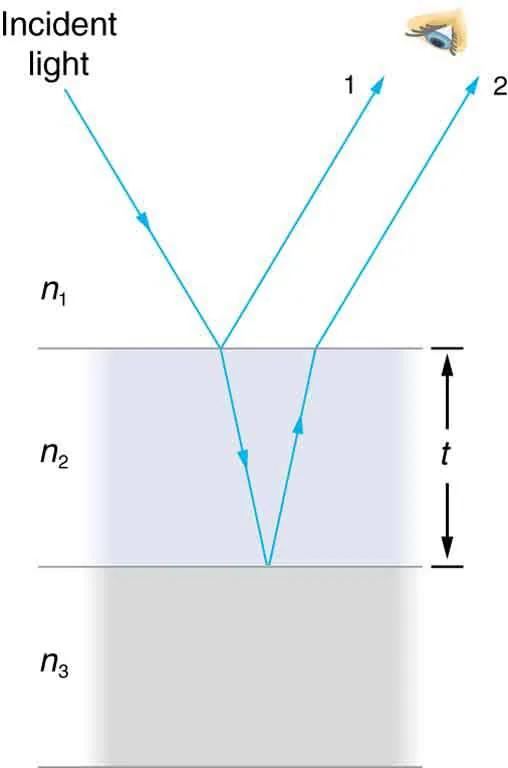

Figure 27.33 Light striking a thin film is partially reflected (ray 1) and partially refracted at the top surface. The refracted ray is partially reflected at the bottom surface and emerges as ray 2. These rays will interfere in a way that depends on the thickness of the film and the indices of refraction of the various media.

If the film in Figure 27.33 is a soap bubble (essentially water with air on both sides), then there is a λ/2λ/2 size 12{λ/2} {} shift for ray 1 and none for ray 2. Thus, when the film is very thin, the path length difference between the two rays is negligible, they are exactly out of phase, and destructive interference will occur at all wavelengths and so the soap bubble will be dark here.

The thickness of the film relative to the wavelength of light is the other crucial factor in thin film interference. Ray 2 in Figure 27.33 travels a greater distance than ray 1. For light incident perpendicular to the surface, ray 2 travels a distance approximately 2t2t size 12{2t} {} farther than ray 1. When this distance is an integral or half-integral multiple of the wavelength in the medium (λn=λ/nλn=λ/n size 12{λ rSub { size 8{n} } =λ/n} {}, where λλ size 12{λ} {} is the wavelength in vacuum and nn size 12{n} {} is the index of refraction), constructive or destructive interference occurs, depending also on whether there is a phase change in either ray.

Example 27.6

Calculating Non-reflective Lens Coating Using Thin Film Interference

Sophisticated cameras use a series of several lenses. Light can reflect from the surfaces of these various lenses and degrade image clarity. To limit these reflections, lenses are coated with a thin layer of magnesium fluoride that causes destructive thin film interference. What is the thinnest this film can be, if its index of refraction is 1.38 and it is designed to limit the reflection of 550-nm light, normally the most intense visible wavelength? The index of refraction of glass is 1.52.

Strategy

Refer to Figure 27.33 and use n1=1.00n1=1.00 size 12{n rSub { size 8{1} } ="100"} {} for air, n2=1.38n2=1.38 size 12{n rSub { size 8{2} } =1 "." "38"} {}, and n3=1.52n3=1.52 size 12{n rSub { size 8{3} } =1 "." "52"} {}. Both ray 1 and ray 2 will have a λ/2λ/2 size 12{λ/2} {} shift upon reflection. Thus, to obtain destructive interference, ray 2 will need to travel a half wavelength farther than ray 1. For rays incident perpendicularly, the path length difference is 2t2t size 12{2t} {}.

Solution

To obtain destructive interference here,

2t = λ n 2 2 , 2t = λ n 2 2 , size 12{2t= { {λ rSub { size 8{n rSub { size 6{2} } } } } over {2} } ,} {}
27.33

where λn2λn2 size 12{λ rSub { size 8{n rSub { size 6{2} } } } } {} is the wavelength in the film and is given by λn2=λn2λn2=λn2 size 12{λ rSub { size 8{n rSub { size 6{2} } } } = { {λ} over {n rSub {2} } } } {}.

Thus,

2t = λ / n 2 2 . 2t = λ / n 2 2 . size 12{2t= { { {λ} slash {n rSub { size 8{2} } } } over {2} } } {}
27.34

Solving for tt size 12{t} {} and entering known values yields

t = λ/n24=(550 nm)/1.384 = 99.6 nm. t = λ/n24=(550 nm)/1.384 = 99.6 nm. alignl { stack { size 12{t= { { {λ} slash {n rSub { size 8{2} } } } over {4} } = { { { \( "550"`"nm" \) } slash {1 "." "38"} } over {4} } } {} # ="99" "." 6`"nm" {} } } {}
27.35

Discussion

Films such as the one in this example are most effective in producing destructive interference when the thinnest layer is used, since light over a broader range of incident angles will be reduced in intensity. These films are called non-reflective coatings; this is only an approximately correct description, though, since other wavelengths will only be partially cancelled. Non-reflective coatings are used in car windows and sunglasses.

Thin film interference is most constructive or most destructive when the path length difference for the two rays is an integral or half-integral wavelength, respectively. That is, for rays incident perpendicularly, 2t=λn,2λn,3λn,…2t=λn,2λn,3λn,… or 2t=λn/2,3λn/2,5λn/2,…2t=λn/2,3λn/2,5λn/2,…. To know whether interference is constructive or destructive, you must also determine if there is a phase change upon reflection. Thin film interference thus depends on film thickness, the wavelength of light, and the refractive indices. For white light incident on a film that varies in thickness, you will observe rainbow colors of constructive interference for various wavelengths as the thickness varies.

Example 27.7

Soap Bubbles: More Than One Thickness can be Constructive

(a) What are the three smallest thicknesses of a soap bubble that produce constructive interference for red light with a wavelength of 650 nm? The index of refraction of soap is taken to be the same as that of water. (b) What three smallest thicknesses will give destructive interference?

Strategy and Concept

Use Figure 27.33 to visualize the bubble. Note that n1=n3=1.00n1=n3=1.00 size 12{n rSub { size 8{1} } =n rSub { size 8{3} } =1 "." "00"} {} for air, and n2=1.333n2=1.333 size 12{n rSub { size 8{2} } =1 "." "333"} {} for soap (equivalent to water). There is a λ/2λ/2 size 12{λ/2} {} shift for ray 1 reflected from the top surface of the bubble, and no shift for ray 2 reflected from the bottom surface. To get constructive interference, then, the path length difference (2t2t size 12{2t} {}) must be a half-integral multiple of the wavelength—the first three being λn/2,3λn/2λn/2,3λn/2 size 12{λ rSub { size 8{n} } /2,`3λ rSub { size 8{n} } /2} {}, and 5λn/25λn/2 size 12{5λ rSub { size 8{n} } /2} {}. To get destructive interference, the path length difference must be an integral multiple of the wavelength—the first three being 0,λn0,λn size 12{0,`λ rSub { size 8{n} } } {}, and 2λn2λn size 12{2λ rSub { size 8{n} } } {}.

Solution for (a)

Constructive interference occurs here when

2tc=λn2,3λn2,5λn2, ….2tc=λn2,3λn2,5λn2, …. size 12{2t rSub { size 8{c} } = { {λ rSub { size 8{n} } } over {2} } ,` { {3λ rSub { size 8{n} } } over {2} } ,` { {5λ rSub { size 8{n} } } over {2} } ", "` dotslow } {}
27.36

The smallest constructive thickness tctc size 12{t rSub { size 8{c} } } {} thus is

tc = λn4 = λ/n4 = (650nm)/1.3334 = 122 nm. tc = λn4 = λ/n4 = (650nm)/1.3334 = 122 nm. alignl { stack { size 12{t rSub { size 8{c} } = { {λ rSub { size 8{n} } } over {4} } = { {λ/n} over {4} } = { { { \( "650"`"nm" \) } slash {1 "." "333"} } over {4} } } {} # ="122"`"nm" {} } } {}
27.37

The next thickness that gives constructive interference is t′c=3λn/4t′c=3λn/4, so that

t′c=366 nm.t′c=366 nm. size 12{ { {t}} sup { ' } rSub { size 8{c} } ="366"`"nm"} {}
27.38

Finally, the third thickness producing constructive interference is t′′c≤5λn/4t′′c≤5λn/4 size 12{ { {t}} sup { '' } rSub { size 8{c} } <= 5λ rSub { size 8{n} } /4} {}, so that

t′′c=610nm.t′′c=610nm. size 12{ { {t}} sup { '' } rSub { size 8{c} } ="610"`"nm"} {}
27.39

Solution for (b)

For destructive interference, the path length difference here is an integral multiple of the wavelength. The first occurs for zero thickness, since there is a phase change at the top surface. That is,

td=0.td=0. size 12{t rSub { size 8{d} } =0} {}
27.40

The first non-zero thickness producing destructive interference is

2t′d=λn.2t′d=λn. size 12{2 { {t}} sup { ' } rSub { size 8{d} } =λ rSub { size 8{n} } } {}
27.41

Substituting known values gives

t′d = λn2=λ/n2=(650nm)/1.3332 = 244 nm. t′d = λn2=λ/n2=(650nm)/1.3332 = 244 nm. alignl { stack { size 12{ { {t}} sup { ' } rSub { size 8{d} } = { {λ"" lSub { size 8{n} } } over {2} } = { {λ/n} over {2} } = { { { \( "650"`"nm" \) } slash {1 "." "333"} } over {2} } } {} # ="244"`"nm" {} } } {}
27.42

Finally, the third destructive thickness is 2t′′d=2λn2t′′d=2λn size 12{2 { {t}} sup { '' } rSub { size 8{d} } =2λ rSub { size 8{n} } } {}, so that

t′′d = λn=λn=650nm1.333 = 488 nm. t′′d = λn=λn=650nm1.333 = 488 nm. alignl { stack { size 12{ { {t}} sup { '' } rSub { size 8{d} } =λ rSub { size 8{n} } = { {λ} over {n} } = { {"650"`"nm"} over {1 "." "333"} } } {} # ="488"`"nm" {} } } {}
27.43

Discussion

If the bubble was illuminated with pure red light, we would see bright and dark bands at very uniform increases in thickness. First would be a dark band at 0 thickness, then bright at 122 nm thickness, then dark at 244 nm, bright at 366 nm, dark at 488 nm, and bright at 610 nm. If the bubble varied smoothly in thickness, like a smooth wedge, then the bands would be evenly spaced.

Another example of thin film interference can be seen when microscope slides are separated (see Figure 27.34). The slides are very flat, so that the wedge of air between them increases in thickness very uniformly. A phase change occurs at the second surface but not the first, and so there is a dark band where the slides touch. The rainbow colors of constructive interference repeat, going from violet to red again and again as the distance between the slides increases. As the layer of air increases, the bands become more difficult to see, because slight changes in incident angle have greater effects on path length differences. If pure-wavelength light instead of white light is used, then bright and dark bands are obtained rather than repeating rainbow colors.

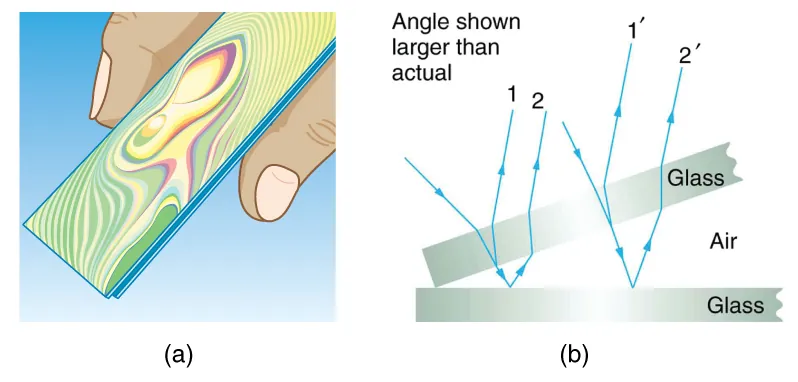

Figure A shows two microscope slides that have been pressed together. Multicolor swirling rainbow bands are visible coming from the slides. Figure B shows a cross section of two glass slides stacked one on top of the other. The lower slide is horizontal and the upper slide is tilted up at an angle that is larger than the actual angle between slides would be. Two rays come from above and impinge upon the slides. Their refraction and partial reflection is shown at each glass air interface.
Figure 27.34 (a) The rainbow color bands are produced by thin film interference in the air between the two glass slides. (b) Schematic of the paths taken by rays in the wedge of air between the slides.

An important application of thin film interference is found in the manufacturing of optical instruments. A lens or mirror can be compared with a master as it is being ground, allowing it to be shaped to an accuracy of less than a wavelength over its entire surface. Figure 27.35 illustrates the phenomenon called Newton’s rings, which occurs when the plane surfaces of two lenses are placed together. (The circular bands are called Newton’s rings because Isaac Newton described them and their use in detail. Newton did not discover them; Robert Hooke did, and Newton did not believe they were due to the wave character of light.) Each successive ring of a given color indicates an increase of only one wavelength in the distance between the lens and the blank, so that great precision can be obtained. Once the lens is perfect, there will be no rings.

This figure shows rainbow-colored concentric rings obtained when two plano-convex lenses are placed together with their flat surfaces in contact.
Figure 27.35 “Newton's rings” interference fringes are produced when two plano-convex lenses are placed together with their plane surfaces in contact. The rings are created by interference between the light reflected off the two surfaces as a result of a slight gap between them, indicating that these surfaces are not precisely plane but are slightly convex. (credit: Ulf Seifert, Wikimedia Commons)

The wings of certain moths and butterflies have nearly iridescent colors due to thin film interference. In addition to pigmentation, the wing’s color is affected greatly by constructive interference of certain wavelengths reflected from its film-coated surface. Car manufacturers are offering special paint jobs that use thin film interference to produce colors that change with angle. This expensive option is based on variation of thin film path length differences with angle. Security features on credit cards, banknotes, driving licenses and similar items prone to forgery use thin film interference, diffraction gratings, or holograms. Australia led the way with dollar bills printed on polymer with a diffraction grating security feature making the currency difficult to forge. Other countries such as New Zealand and Taiwan are using similar technologies, while the United States currency includes a thin film interference effect.

Making Connections: Take-Home Experiment—Thin Film Interference

One feature of thin film interference and diffraction gratings is that the pattern shifts as you change the angle at which you look or move your head. Find examples of thin film interference and gratings around you. Explain how the patterns change for each specific example. Find examples where the thickness changes giving rise to changing colors. If you can find two microscope slides, then try observing the effect shown in Figure 27.34. Try separating one end of the two slides with a hair or maybe a thin piece of paper and observe the effect.

Problem-Solving Strategies for Wave Optics

Step 1. Examine the situation to determine that interference is involved. Identify whether slits or thin film interference are considered in the problem.

Step 2. If slits are involved, note that diffraction gratings and double slits produce very similar interference patterns, but that gratings have narrower (sharper) maxima. Single slit patterns are characterized by a large central maximum and smaller maxima to the sides.

Step 3. If thin film interference is involved, take note of the path length difference between the two rays that interfere. Be certain to use the wavelength in the medium involved, since it differs from the wavelength in vacuum. Note also that there is an additional λ/2λ/2 size 12{λ/2} {} phase shift when light reflects from a medium with a greater index of refraction.

Step 4. Identify exactly what needs to be determined in the problem (identify the unknowns). A written list is useful. Draw a diagram of the situation. Labeling the diagram is useful.

Step 5. Make a list of what is given or can be inferred from the problem as stated (identify the knowns).

Step 6. Solve the appropriate equation for the quantity to be determined (the unknown), and enter the knowns. Slits, gratings, and the Rayleigh limit involve equations.

Step 7. For thin film interference, you will have constructive interference for a total shift that is an integral number of wavelengths. You will have destructive interference for a total shift of a half-integral number of wavelengths. Always keep in mind that crest to crest is constructive whereas crest to trough is destructive.

Step 8. Check to see if the answer is reasonable: Does it make sense? Angles in interference patterns cannot be greater than 90º90º size 12{"90"°} {}, for example.
