22.8 Torque on a Current Loop: Motors and Meters

College Physics for AP® Courses22.8 Torque on a Current Loop: Motors and Meters

Learning Objectives

By the end of this section, you will be able to:

  • Describe how motors and meters work in terms of torque on a current loop.
  • Calculate the torque on a current-carrying loop in a magnetic field.

Motors are the most common application of magnetic force on current-carrying wires. Motors have loops of wire in a magnetic field. When current is passed through the loops, the magnetic field exerts torque on the loops, which rotates a shaft. Electrical energy is converted to mechanical work in the process. (See Figure 22.35.)

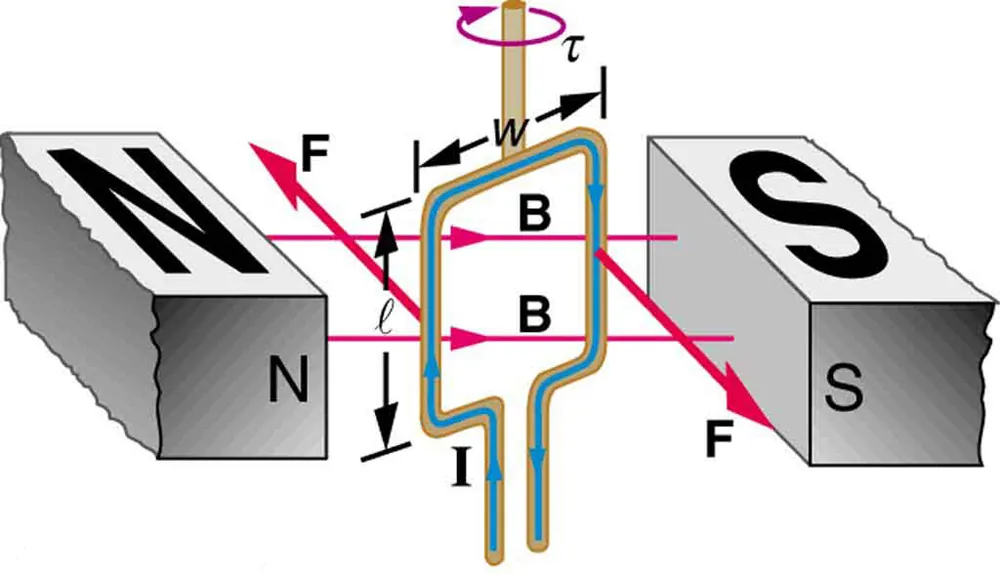

Diagram showing a current-carrying loop of width w and length l between the north and south poles of a magnet. The north pole is to the left and the south pole is to the right of the loop. The magnetic field B runs from the north pole across the loop to the south pole. The loop is shown at an instant, while rotating clockwise. The current runs up the left side of the loop, across the top, and down the right side. There is a force F oriented into the page on the left side of the loop and a force F oriented out of the page on the right side of the loop. The torque on the loop is clockwise as viewed from above.
Figure 22.35 Torque on a current loop. A current-carrying loop of wire attached to a vertically rotating shaft feels magnetic forces that produce a clockwise torque as viewed from above.

Let us examine the force on each segment of the loop in Figure 22.35 to find the torques produced about the axis of the vertical shaft. (This will lead to a useful equation for the torque on the loop.) We take the magnetic field to be uniform over the rectangular loop, which has width ww and height ll. First, we note that the forces on the top and bottom segments are vertical and, therefore, parallel to the shaft, producing no torque. Those vertical forces are equal in magnitude and opposite in direction, so that they also produce no net force on the loop. Figure 22.36 shows views of the loop from above. Torque is defined as τ=rFsinθτ=rFsinθ size 12{τ= ital "rF""sin"θ} {}, where FF size 12{F} {} is the force, rr is the distance from the pivot that the force is applied, and θθ is the angle between rr and FF. As seen in Figure 22.36(a), right hand rule 1 gives the forces on the sides to be equal in magnitude and opposite in direction, so that the net force is again zero. However, each force produces a clockwise torque. Since r=w/2r=w/2, the torque on each vertical segment is (w/2)Fsinθ(w/2)Fsinθ, and the two add to give a total torque.

τ = w 2 F sin θ + w 2 F sin θ = wF sin θ τ = w 2 F sin θ + w 2 F sin θ = wF sin θ size 12{τ= { {w} over {2} } F"sin"θ+ { {w} over {2} } F"sin"θ= ital "wF""sin"θ} {}
22.19

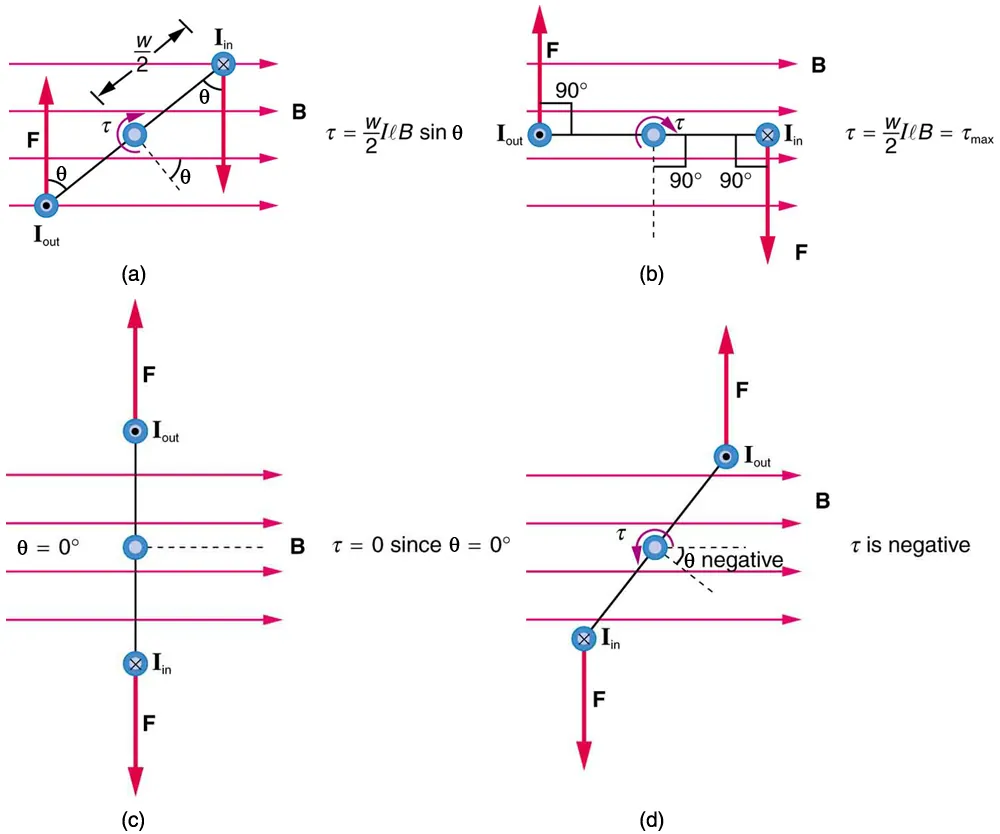

Diagram showing a current-carrying loop from the top, and four different times as it rotates in a magnetic field. The magnetic field oriented toward the right, perpendicular to the vertical dimension of the loop. In figure a, the top view of the loop is oriented at an angle to the magnetic field lines, which run left to right. The force on the loop is up on the lower left side where the current comes out of the page. The force is down on the upper right side where the loop goes into the page. The angle between the force and the loop is theta. Torque is clockwise and equals w over 2 times I l B sine theta. Figure b shows the top view of the loop parallel to the magnetic field lines. The force on the loop is up on the left side where I comes out of the page. The force on the loop is down on the right side where I goes into the page. The angle theta between the F and B is ninety degrees. Torque is clockwise and equals w over 2 I l B equals maximum torque. Figure c shows the top view of the loop oriented perpendicular to B. The force on the loop is up at the top, where I comes out of the page, and down at the bottom where I goes into the page. Theta equals 0 degrees. Torque equals zero since sine theta equals 0. In figure d the force is down on the lower left side of the loop where I goes in, and up on the upper right side of the loop where I comes out. The torque is counterclockwise. Torque is negative.
Figure 22.36 Top views of a current-carrying loop in a magnetic field. (a) The equation for torque is derived using this view. Note that the perpendicular to the loop makes an angle θθ size 12{θ} {} with the field that is the same as the angle between w/2w/2 size 12{w/2} {} and FF size 12{F} {}. (b) The maximum torque occurs when θθ size 12{θ} {} is a right angle and sinθ=1sinθ=1 size 12{"sin"θ=1} {}. (c) Zero (minimum) torque occurs when θθ size 12{θ} {} is zero and sinθ=0sinθ=0. (d) The torque reverses once the loop rotates past θ=0θ=0.

Now, each vertical segment has a length ll size 12{l} {} that is perpendicular to BB size 12{B} {}, so that the force on each is F=IlBF=IlB size 12{F= ital "IlB"} {}. Entering FF size 12{F} {} into the expression for torque yields

τ=wIlBsinθ.τ=wIlBsinθ. size 12{τ= ital "wIlB""sin"θ} {}
22.20

If we have a multiple loop of NN size 12{N} {} turns, we get NN size 12{N} {} times the torque of one loop. Finally, note that the area of the loop is A=wlA=wl size 12{A= ital "wl"} {}; the expression for the torque becomes

τ=NIABsinθ.τ=NIABsinθ. size 12{τ= ital "NIAB""sin"θ} {}
22.21

This is the torque on a current-carrying loop in a uniform magnetic field. This equation can be shown to be valid for a loop of any shape. The loop carries a current II size 12{I} {}, has NN size 12{N} {} turns, each of area AA size 12{A} {}, and the perpendicular to the loop makes an angle θθ size 12{θ} {} with the field BB size 12{B} {}. The net force on the loop is zero.

Example 22.5

Calculating Torque on a Current-Carrying Loop in a Strong Magnetic Field

Find the maximum torque on a 100-turn square loop of a wire of 10.0 cm on a side that carries 15.0 A of current in a 2.00-T field.

Strategy

Torque on the loop can be found using τ=NIABsinθτ=NIABsinθ size 12{τ= ital "NIAB""sin"θ} {}. Maximum torque occurs when θ=90ºθ=90º and sinθ=1sinθ=1 size 12{"sin"θ=1} {}.

Solution

For sinθ=1sinθ=1 size 12{"sin"θ=1} {}, the maximum torque is

τmax=NIAB.τmax=NIAB. size 12{τ rSub { size 8{"max"} } = ital "NIAB"} {}
22.22

Entering known values yields

τ max = 100 15.0 A 0.100 m 2 2 . 00 T = 30.0 N m. τ max = 100 15.0 A 0.100 m 2 2 . 00 T = 30.0 N m. alignl { stack { size 12{τ rSub { size 8{"max"} } = left ("100" right ) left ("15" "." 0" A" right ) left (0 "." "100"" m" rSup { size 8{2} } right ) left (2 "." "00"" T" right )} {} # " "="30" "." "0 N" cdot m "." {} } } {}
22.23

Discussion

This torque is large enough to be useful in a motor.

The torque found in the preceding example is the maximum. As the coil rotates, the torque decreases to zero at θ=0θ=0 size 12{θ=0} {}. The torque then reverses its direction once the coil rotates past θ=0θ=0 size 12{θ=0} {}. (See Figure 22.36(d).) This means that, unless we do something, the coil will oscillate back and forth about equilibrium at θ=0θ=0 size 12{θ=0} {}. To get the coil to continue rotating in the same direction, we can reverse the current as it passes through θ=0θ=0 size 12{θ=0} {} with automatic switches called brushes. (See Figure 22.37.)

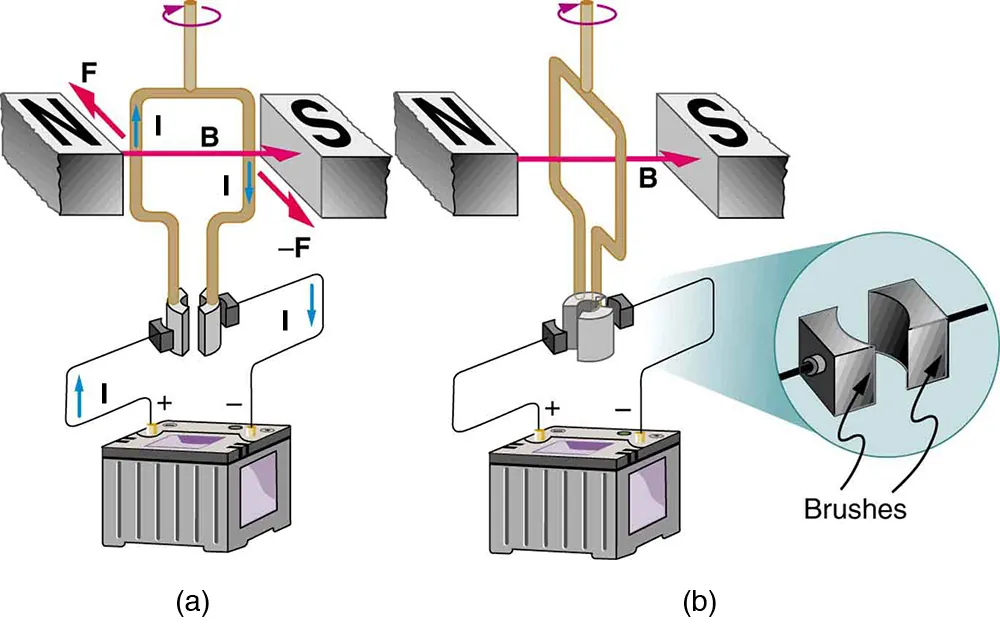

The diagram shows a current-carrying loop between the north and south poles of a magnet at two different times. The north pole is to the left and the south pole is to the right. The magnetic field runs from the north pole to the right to the south pole. Figure a shows the current running through the loop. It runs up on the left side, and down on the right side. The force on the left side is into the page. The force on the right side is out of the page. The torque is clockwise when viewed from above. Figure b shows the loop when it is oriented perpendicular to the magnet. In both diagrams, the bottom of each side of the loop is connected to a half-cylinder that is next to a rectangular brush that is then connected to the rest of the circuit.
Figure 22.37 (a) As the angular momentum of the coil carries it through θ=0θ=0 size 12{θ=0} {}, the brushes reverse the current to keep the torque clockwise. (b) The coil will rotate continuously in the clockwise direction, with the current reversing each half revolution to maintain the clockwise torque.

Meters, such as those in analog fuel gauges on a car, are another common application of magnetic torque on a current-carrying loop. Figure 22.38 shows that a meter is very similar in construction to a motor. The meter in the figure has its magnets shaped to limit the effect of θθ size 12{θ} {} by making BB size 12{B} {} perpendicular to the loop over a large angular range. Thus the torque is proportional to II size 12{I} {} and not θθ size 12{θ} {}. A linear spring exerts a counter-torque that balances the current-produced torque. This makes the needle deflection proportional to II size 12{I} {}. If an exact proportionality cannot be achieved, the gauge reading can be calibrated. To produce a galvanometer for use in analog voltmeters and ammeters that have a low resistance and respond to small currents, we use a large loop area AA size 12{A} {}, high magnetic field BB size 12{B} {}, and low-resistance coils.

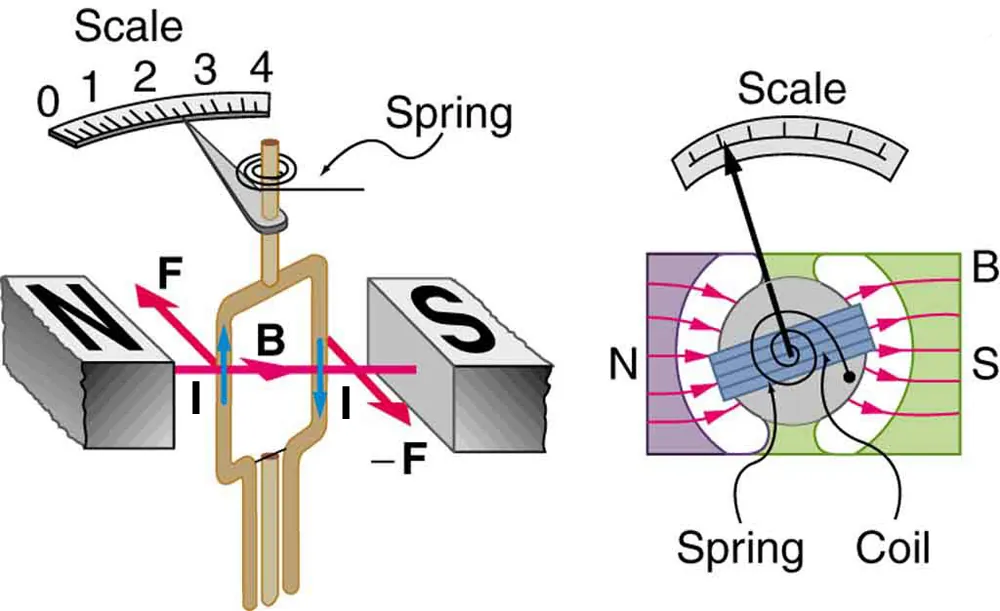

Diagram of a meter showing a current-carrying loop between two poles of a magnet. The torque on the magnet is clockwise. The top of the loop is connected to a spring and to a pointer that points to a scale as the loop rotates.
Figure 22.38 Meters are very similar to motors but only rotate through a part of a revolution. The magnetic poles of this meter are shaped to keep the component of BB size 12{B} {} perpendicular to the loop constant, so that the torque does not depend on θθ size 12{θ} {} and the deflection against the return spring is proportional only to the current II size 12{I} {}.
