College Physics for AP® Courses

21.1 Resistors in Series and Parallel

College Physics for AP® Courses21.1 Resistors in Series and Parallel
Buy book
  1. Preface
  2. 1 Introduction: The Nature of Science and Physics
    1. Connection for AP® Courses
    2. 1.1 Physics: An Introduction
    3. 1.2 Physical Quantities and Units
    4. 1.3 Accuracy, Precision, and Significant Figures
    5. 1.4 Approximation
    6. Glossary
    7. Section Summary
    8. Conceptual Questions
    9. Problems & Exercises
  3. 2 Kinematics
    1. Connection for AP® Courses
    2. 2.1 Displacement
    3. 2.2 Vectors, Scalars, and Coordinate Systems
    4. 2.3 Time, Velocity, and Speed
    5. 2.4 Acceleration
    6. 2.5 Motion Equations for Constant Acceleration in One Dimension
    7. 2.6 Problem-Solving Basics for One Dimensional Kinematics
    8. 2.7 Falling Objects
    9. 2.8 Graphical Analysis of One Dimensional Motion
    10. Glossary
    11. Section Summary
    12. Conceptual Questions
    13. Problems & Exercises
    14. Test Prep for AP® Courses
  4. 3 Two-Dimensional Kinematics
    1. Connection for AP® Courses
    2. 3.1 Kinematics in Two Dimensions: An Introduction
    3. 3.2 Vector Addition and Subtraction: Graphical Methods
    4. 3.3 Vector Addition and Subtraction: Analytical Methods
    5. 3.4 Projectile Motion
    6. 3.5 Addition of Velocities
    7. Glossary
    8. Section Summary
    9. Conceptual Questions
    10. Problems & Exercises
    11. Test Prep for AP® Courses
  5. 4 Dynamics: Force and Newton's Laws of Motion
    1. Connection for AP® Courses
    2. 4.1 Development of Force Concept
    3. 4.2 Newton's First Law of Motion: Inertia
    4. 4.3 Newton's Second Law of Motion: Concept of a System
    5. 4.4 Newton's Third Law of Motion: Symmetry in Forces
    6. 4.5 Normal, Tension, and Other Examples of Force
    7. 4.6 Problem-Solving Strategies
    8. 4.7 Further Applications of Newton's Laws of Motion
    9. 4.8 Extended Topic: The Four Basic Forces—An Introduction
    10. Glossary
    11. Section Summary
    12. Conceptual Questions
    13. Problems & Exercises
    14. Test Prep for AP® Courses
  6. 5 Further Applications of Newton's Laws: Friction, Drag, and Elasticity
    1. Connection for AP® Courses
    2. 5.1 Friction
    3. 5.2 Drag Forces
    4. 5.3 Elasticity: Stress and Strain
    5. Glossary
    6. Section Summary
    7. Conceptual Questions
    8. Problems & Exercises
    9. Test Prep for AP® Courses
  7. 6 Gravitation and Uniform Circular Motion
    1. Connection for AP® Courses
    2. 6.1 Rotation Angle and Angular Velocity
    3. 6.2 Centripetal Acceleration
    4. 6.3 Centripetal Force
    5. 6.4 Fictitious Forces and Non-inertial Frames: The Coriolis Force
    6. 6.5 Newton's Universal Law of Gravitation
    7. 6.6 Satellites and Kepler's Laws: An Argument for Simplicity
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  8. 7 Work, Energy, and Energy Resources
    1. Connection for AP® Courses
    2. 7.1 Work: The Scientific Definition
    3. 7.2 Kinetic Energy and the Work-Energy Theorem
    4. 7.3 Gravitational Potential Energy
    5. 7.4 Conservative Forces and Potential Energy
    6. 7.5 Nonconservative Forces
    7. 7.6 Conservation of Energy
    8. 7.7 Power
    9. 7.8 Work, Energy, and Power in Humans
    10. 7.9 World Energy Use
    11. Glossary
    12. Section Summary
    13. Conceptual Questions
    14. Problems & Exercises
    15. Test Prep for AP® Courses
  9. 8 Linear Momentum and Collisions
    1. Connection for AP® courses
    2. 8.1 Linear Momentum and Force
    3. 8.2 Impulse
    4. 8.3 Conservation of Momentum
    5. 8.4 Elastic Collisions in One Dimension
    6. 8.5 Inelastic Collisions in One Dimension
    7. 8.6 Collisions of Point Masses in Two Dimensions
    8. 8.7 Introduction to Rocket Propulsion
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  10. 9 Statics and Torque
    1. Connection for AP® Courses
    2. 9.1 The First Condition for Equilibrium
    3. 9.2 The Second Condition for Equilibrium
    4. 9.3 Stability
    5. 9.4 Applications of Statics, Including Problem-Solving Strategies
    6. 9.5 Simple Machines
    7. 9.6 Forces and Torques in Muscles and Joints
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  11. 10 Rotational Motion and Angular Momentum
    1. Connection for AP® Courses
    2. 10.1 Angular Acceleration
    3. 10.2 Kinematics of Rotational Motion
    4. 10.3 Dynamics of Rotational Motion: Rotational Inertia
    5. 10.4 Rotational Kinetic Energy: Work and Energy Revisited
    6. 10.5 Angular Momentum and Its Conservation
    7. 10.6 Collisions of Extended Bodies in Two Dimensions
    8. 10.7 Gyroscopic Effects: Vector Aspects of Angular Momentum
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  12. 11 Fluid Statics
    1. Connection for AP® Courses
    2. 11.1 What Is a Fluid?
    3. 11.2 Density
    4. 11.3 Pressure
    5. 11.4 Variation of Pressure with Depth in a Fluid
    6. 11.5 Pascal’s Principle
    7. 11.6 Gauge Pressure, Absolute Pressure, and Pressure Measurement
    8. 11.7 Archimedes’ Principle
    9. 11.8 Cohesion and Adhesion in Liquids: Surface Tension and Capillary Action
    10. 11.9 Pressures in the Body
    11. Glossary
    12. Section Summary
    13. Conceptual Questions
    14. Problems & Exercises
    15. Test Prep for AP® Courses
  13. 12 Fluid Dynamics and Its Biological and Medical Applications
    1. Connection for AP® Courses
    2. 12.1 Flow Rate and Its Relation to Velocity
    3. 12.2 Bernoulli’s Equation
    4. 12.3 The Most General Applications of Bernoulli’s Equation
    5. 12.4 Viscosity and Laminar Flow; Poiseuille’s Law
    6. 12.5 The Onset of Turbulence
    7. 12.6 Motion of an Object in a Viscous Fluid
    8. 12.7 Molecular Transport Phenomena: Diffusion, Osmosis, and Related Processes
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  14. 13 Temperature, Kinetic Theory, and the Gas Laws
    1. Connection for AP® Courses
    2. 13.1 Temperature
    3. 13.2 Thermal Expansion of Solids and Liquids
    4. 13.3 The Ideal Gas Law
    5. 13.4 Kinetic Theory: Atomic and Molecular Explanation of Pressure and Temperature
    6. 13.5 Phase Changes
    7. 13.6 Humidity, Evaporation, and Boiling
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  15. 14 Heat and Heat Transfer Methods
    1. Connection for AP® Courses
    2. 14.1 Heat
    3. 14.2 Temperature Change and Heat Capacity
    4. 14.3 Phase Change and Latent Heat
    5. 14.4 Heat Transfer Methods
    6. 14.5 Conduction
    7. 14.6 Convection
    8. 14.7 Radiation
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  16. 15 Thermodynamics
    1. Connection for AP® Courses
    2. 15.1 The First Law of Thermodynamics
    3. 15.2 The First Law of Thermodynamics and Some Simple Processes
    4. 15.3 Introduction to the Second Law of Thermodynamics: Heat Engines and Their Efficiency
    5. 15.4 Carnot’s Perfect Heat Engine: The Second Law of Thermodynamics Restated
    6. 15.5 Applications of Thermodynamics: Heat Pumps and Refrigerators
    7. 15.6 Entropy and the Second Law of Thermodynamics: Disorder and the Unavailability of Energy
    8. 15.7 Statistical Interpretation of Entropy and the Second Law of Thermodynamics: The Underlying Explanation
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  17. 16 Oscillatory Motion and Waves
    1. Connection for AP® Courses
    2. 16.1 Hooke’s Law: Stress and Strain Revisited
    3. 16.2 Period and Frequency in Oscillations
    4. 16.3 Simple Harmonic Motion: A Special Periodic Motion
    5. 16.4 The Simple Pendulum
    6. 16.5 Energy and the Simple Harmonic Oscillator
    7. 16.6 Uniform Circular Motion and Simple Harmonic Motion
    8. 16.7 Damped Harmonic Motion
    9. 16.8 Forced Oscillations and Resonance
    10. 16.9 Waves
    11. 16.10 Superposition and Interference
    12. 16.11 Energy in Waves: Intensity
    13. Glossary
    14. Section Summary
    15. Conceptual Questions
    16. Problems & Exercises
    17. Test Prep for AP® Courses
  18. 17 Physics of Hearing
    1. Connection for AP® Courses
    2. 17.1 Sound
    3. 17.2 Speed of Sound, Frequency, and Wavelength
    4. 17.3 Sound Intensity and Sound Level
    5. 17.4 Doppler Effect and Sonic Booms
    6. 17.5 Sound Interference and Resonance: Standing Waves in Air Columns
    7. 17.6 Hearing
    8. 17.7 Ultrasound
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  19. 18 Electric Charge and Electric Field
    1. Connection for AP® Courses
    2. 18.1 Static Electricity and Charge: Conservation of Charge
    3. 18.2 Conductors and Insulators
    4. 18.3 Conductors and Electric Fields in Static Equilibrium
    5. 18.4 Coulomb’s Law
    6. 18.5 Electric Field: Concept of a Field Revisited
    7. 18.6 Electric Field Lines: Multiple Charges
    8. 18.7 Electric Forces in Biology
    9. 18.8 Applications of Electrostatics
    10. Glossary
    11. Section Summary
    12. Conceptual Questions
    13. Problems & Exercises
    14. Test Prep for AP® Courses
  20. 19 Electric Potential and Electric Field
    1. Connection for AP® Courses
    2. 19.1 Electric Potential Energy: Potential Difference
    3. 19.2 Electric Potential in a Uniform Electric Field
    4. 19.3 Electrical Potential Due to a Point Charge
    5. 19.4 Equipotential Lines
    6. 19.5 Capacitors and Dielectrics
    7. 19.6 Capacitors in Series and Parallel
    8. 19.7 Energy Stored in Capacitors
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  21. 20 Electric Current, Resistance, and Ohm's Law
    1. Connection for AP® Courses
    2. 20.1 Current
    3. 20.2 Ohm’s Law: Resistance and Simple Circuits
    4. 20.3 Resistance and Resistivity
    5. 20.4 Electric Power and Energy
    6. 20.5 Alternating Current versus Direct Current
    7. 20.6 Electric Hazards and the Human Body
    8. 20.7 Nerve Conduction–Electrocardiograms
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  22. 21 Circuits, Bioelectricity, and DC Instruments
    1. Connection for AP® Courses
    2. 21.1 Resistors in Series and Parallel
    3. 21.2 Electromotive Force: Terminal Voltage
    4. 21.3 Kirchhoff’s Rules
    5. 21.4 DC Voltmeters and Ammeters
    6. 21.5 Null Measurements
    7. 21.6 DC Circuits Containing Resistors and Capacitors
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  23. 22 Magnetism
    1. Connection for AP® Courses
    2. 22.1 Magnets
    3. 22.2 Ferromagnets and Electromagnets
    4. 22.3 Magnetic Fields and Magnetic Field Lines
    5. 22.4 Magnetic Field Strength: Force on a Moving Charge in a Magnetic Field
    6. 22.5 Force on a Moving Charge in a Magnetic Field: Examples and Applications
    7. 22.6 The Hall Effect
    8. 22.7 Magnetic Force on a Current-Carrying Conductor
    9. 22.8 Torque on a Current Loop: Motors and Meters
    10. 22.9 Magnetic Fields Produced by Currents: Ampere’s Law
    11. 22.10 Magnetic Force between Two Parallel Conductors
    12. 22.11 More Applications of Magnetism
    13. Glossary
    14. Section Summary
    15. Conceptual Questions
    16. Problems & Exercises
    17. Test Prep for AP® Courses
  24. 23 Electromagnetic Induction, AC Circuits, and Electrical Technologies
    1. Connection for AP® Courses
    2. 23.1 Induced Emf and Magnetic Flux
    3. 23.2 Faraday’s Law of Induction: Lenz’s Law
    4. 23.3 Motional Emf
    5. 23.4 Eddy Currents and Magnetic Damping
    6. 23.5 Electric Generators
    7. 23.6 Back Emf
    8. 23.7 Transformers
    9. 23.8 Electrical Safety: Systems and Devices
    10. 23.9 Inductance
    11. 23.10 RL Circuits
    12. 23.11 Reactance, Inductive and Capacitive
    13. 23.12 RLC Series AC Circuits
    14. Glossary
    15. Section Summary
    16. Conceptual Questions
    17. Problems & Exercises
    18. Test Prep for AP® Courses
  25. 24 Electromagnetic Waves
    1. Connection for AP® Courses
    2. 24.1 Maxwell’s Equations: Electromagnetic Waves Predicted and Observed
    3. 24.2 Production of Electromagnetic Waves
    4. 24.3 The Electromagnetic Spectrum
    5. 24.4 Energy in Electromagnetic Waves
    6. Glossary
    7. Section Summary
    8. Conceptual Questions
    9. Problems & Exercises
    10. Test Prep for AP® Courses
  26. 25 Geometric Optics
    1. Connection for AP® Courses
    2. 25.1 The Ray Aspect of Light
    3. 25.2 The Law of Reflection
    4. 25.3 The Law of Refraction
    5. 25.4 Total Internal Reflection
    6. 25.5 Dispersion: The Rainbow and Prisms
    7. 25.6 Image Formation by Lenses
    8. 25.7 Image Formation by Mirrors
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  27. 26 Vision and Optical Instruments
    1. Connection for AP® Courses
    2. 26.1 Physics of the Eye
    3. 26.2 Vision Correction
    4. 26.3 Color and Color Vision
    5. 26.4 Microscopes
    6. 26.5 Telescopes
    7. 26.6 Aberrations
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  28. 27 Wave Optics
    1. Connection for AP® Courses
    2. 27.1 The Wave Aspect of Light: Interference
    3. 27.2 Huygens's Principle: Diffraction
    4. 27.3 Young’s Double Slit Experiment
    5. 27.4 Multiple Slit Diffraction
    6. 27.5 Single Slit Diffraction
    7. 27.6 Limits of Resolution: The Rayleigh Criterion
    8. 27.7 Thin Film Interference
    9. 27.8 Polarization
    10. 27.9 *Extended Topic* Microscopy Enhanced by the Wave Characteristics of Light
    11. Glossary
    12. Section Summary
    13. Conceptual Questions
    14. Problems & Exercises
    15. Test Prep for AP® Courses
  29. 28 Special Relativity
    1. Connection for AP® Courses
    2. 28.1 Einstein’s Postulates
    3. 28.2 Simultaneity And Time Dilation
    4. 28.3 Length Contraction
    5. 28.4 Relativistic Addition of Velocities
    6. 28.5 Relativistic Momentum
    7. 28.6 Relativistic Energy
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  30. 29 Introduction to Quantum Physics
    1. Connection for AP® Courses
    2. 29.1 Quantization of Energy
    3. 29.2 The Photoelectric Effect
    4. 29.3 Photon Energies and the Electromagnetic Spectrum
    5. 29.4 Photon Momentum
    6. 29.5 The Particle-Wave Duality
    7. 29.6 The Wave Nature of Matter
    8. 29.7 Probability: The Heisenberg Uncertainty Principle
    9. 29.8 The Particle-Wave Duality Reviewed
    10. Glossary
    11. Section Summary
    12. Conceptual Questions
    13. Problems & Exercises
    14. Test Prep for AP® Courses
  31. 30 Atomic Physics
    1. Connection for AP® Courses
    2. 30.1 Discovery of the Atom
    3. 30.2 Discovery of the Parts of the Atom: Electrons and Nuclei
    4. 30.3 Bohr’s Theory of the Hydrogen Atom
    5. 30.4 X Rays: Atomic Origins and Applications
    6. 30.5 Applications of Atomic Excitations and De-Excitations
    7. 30.6 The Wave Nature of Matter Causes Quantization
    8. 30.7 Patterns in Spectra Reveal More Quantization
    9. 30.8 Quantum Numbers and Rules
    10. 30.9 The Pauli Exclusion Principle
    11. Glossary
    12. Section Summary
    13. Conceptual Questions
    14. Problems & Exercises
    15. Test Prep for AP® Courses
  32. 31 Radioactivity and Nuclear Physics
    1. Connection for AP® Courses
    2. 31.1 Nuclear Radioactivity
    3. 31.2 Radiation Detection and Detectors
    4. 31.3 Substructure of the Nucleus
    5. 31.4 Nuclear Decay and Conservation Laws
    6. 31.5 Half-Life and Activity
    7. 31.6 Binding Energy
    8. 31.7 Tunneling
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  33. 32 Medical Applications of Nuclear Physics
    1. Connection for AP® Courses
    2. 32.1 Medical Imaging and Diagnostics
    3. 32.2 Biological Effects of Ionizing Radiation
    4. 32.3 Therapeutic Uses of Ionizing Radiation
    5. 32.4 Food Irradiation
    6. 32.5 Fusion
    7. 32.6 Fission
    8. 32.7 Nuclear Weapons
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
    13. Test Prep for AP® Courses
  34. 33 Particle Physics
    1. Connection for AP® Courses
    2. 33.1 The Yukawa Particle and the Heisenberg Uncertainty Principle Revisited
    3. 33.2 The Four Basic Forces
    4. 33.3 Accelerators Create Matter from Energy
    5. 33.4 Particles, Patterns, and Conservation Laws
    6. 33.5 Quarks: Is That All There Is?
    7. 33.6 GUTs: The Unification of Forces
    8. Glossary
    9. Section Summary
    10. Conceptual Questions
    11. Problems & Exercises
    12. Test Prep for AP® Courses
  35. 34 Frontiers of Physics
    1. Connection for AP® Courses
    2. 34.1 Cosmology and Particle Physics
    3. 34.2 General Relativity and Quantum Gravity
    4. 34.3 Superstrings
    5. 34.4 Dark Matter and Closure
    6. 34.5 Complexity and Chaos
    7. 34.6 High-Temperature Superconductors
    8. 34.7 Some Questions We Know to Ask
    9. Glossary
    10. Section Summary
    11. Conceptual Questions
    12. Problems & Exercises
  36. A | Atomic Masses
  37. B | Selected Radioactive Isotopes
  38. C | Useful Information
  39. D | Glossary of Key Symbols and Notation
  40. Answer Key
    1. Chapter 1
    2. Chapter 2
    3. Chapter 3
    4. Chapter 4
    5. Chapter 5
    6. Chapter 6
    7. Chapter 7
    8. Chapter 8
    9. Chapter 9
    10. Chapter 10
    11. Chapter 11
    12. Chapter 12
    13. Chapter 13
    14. Chapter 14
    15. Chapter 15
    16. Chapter 16
    17. Chapter 17
    18. Chapter 18
    19. Chapter 19
    20. Chapter 20
    21. Chapter 21
    22. Chapter 22
    23. Chapter 23
    24. Chapter 24
    25. Chapter 25
    26. Chapter 26
    27. Chapter 27
    28. Chapter 28
    29. Chapter 29
    30. Chapter 30
    31. Chapter 31
    32. Chapter 32
    33. Chapter 33
    34. Chapter 34
  41. Index

Learning Objectives

By the end of this section, you will be able to:

  • Draw a circuit with resistors in parallel and in series.
  • Use Ohm’s law to calculate the voltage drop across a resistor when current passes through it.
  • Contrast the way total resistance is calculated for resistors in series and in parallel.
  • Explain why total resistance of a parallel circuit is less than the smallest resistance of any of the resistors in that circuit.
  • Calculate total resistance of a circuit that contains a mixture of resistors connected in series and in parallel.

The information presented in this section supports the following AP® learning objectives and science practices:

  • 4.E.5.1 The student is able to make and justify a quantitative prediction of the effect of a change in values or arrangements of one or two circuit elements on the currents and potential differences in a circuit containing a small number of sources of emf, resistors, capacitors, and switches in series and/or parallel. (S.P. 2.2, 6.4)
  • 4.E.5.2 The student is able to make and justify a qualitative prediction of the effect of a change in values or arrangements of one or two circuit elements on currents and potential differences in a circuit containing a small number of sources of emf, resistors, capacitors, and switches in series and/or parallel. (S.P. 6.1, 6.4)
  • 4.E.5.3 The student is able to plan data collection strategies and perform data analysis to examine the values of currents and potential differences in an electric circuit that is modified by changing or rearranging circuit elements, including sources of emf, resistors, and capacitors. (S.P. 2.2, 4.2, 5.1)
  • 5.B.9.3 The student is able to apply conservation of energy (Kirchhoff’s loop rule) in calculations involving the total electric potential difference for complete circuit loops with only a single battery and resistors in series and/or in, at most, one parallel branch. (S.P. 2.2, 6.4, 7.2)

Most circuits have more than one component, called a resistor that limits the flow of charge in the circuit. A measure of this limit on charge flow is called resistance. The simplest combinations of resistors are the series and parallel connections illustrated in Figure 21.2. The total resistance of a combination of resistors depends on both their individual values and how they are connected.

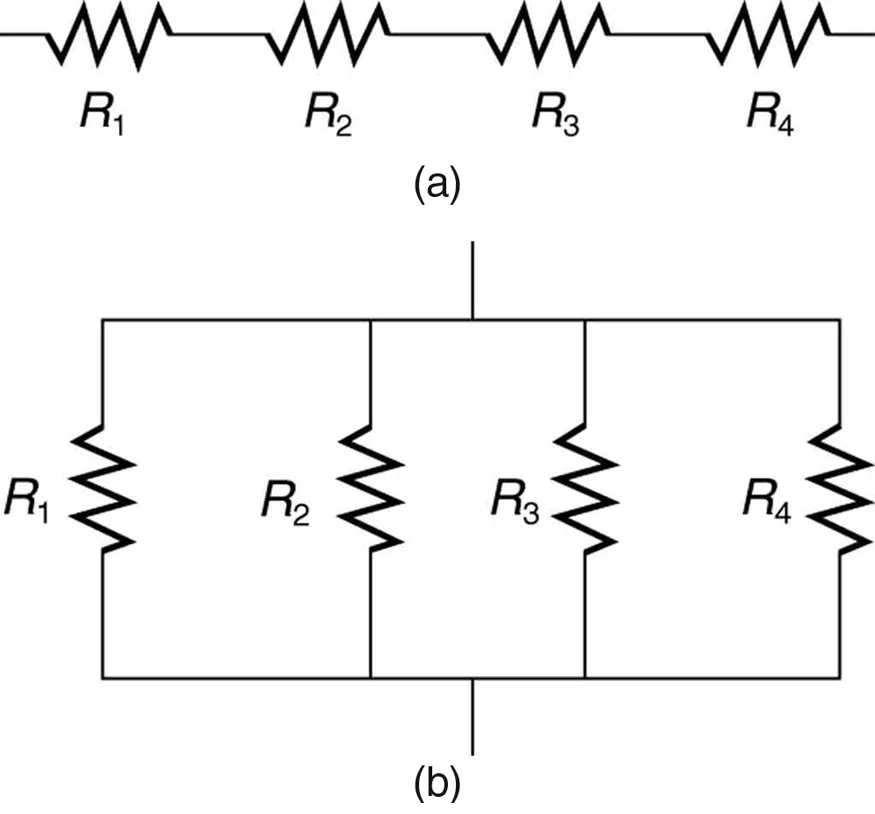

In part a of the figure, resistors labeled R sub 1, R sub 2, R sub 3, and R sub 4 are connected in series along one path of a circuit. In part b of the figure, the same resistors are connected along parallel paths of a circuit.
Figure 21.2 (a) A series connection of resistors. (b) A parallel connection of resistors.

Resistors in Series

When are resistors in series? Resistors are in series whenever the flow of charge, called the current, must flow through devices sequentially. For example, if current flows through a person holding a screwdriver and into the Earth, then R1R1 size 12{R rSub { size 8{1} } } {} in Figure 21.2(a) could be the resistance of the screwdriver’s shaft, R2R2 size 12{R rSub { size 8{2} } } {} the resistance of its handle, R3R3 size 12{R rSub { size 8{3} } } {} the person’s body resistance, and R4R4 size 12{R rSub { size 8{4} } } {} the resistance of her shoes.

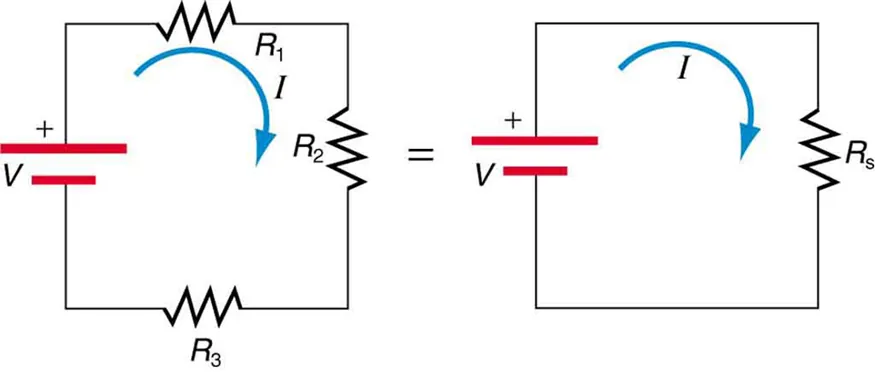

Figure 21.3 shows resistors in series connected to a voltage source. It seems reasonable that the total resistance is the sum of the individual resistances, considering that the current has to pass through each resistor in sequence. (This fact would be an advantage to a person wishing to avoid an electrical shock, who could reduce the current by wearing high-resistance rubber-soled shoes. It could be a disadvantage if one of the resistances were a faulty high-resistance cord to an appliance that would reduce the operating current.)

Two electrical circuits are compared. The first one has three resistors, R sub one, R sub two, and R sub three, connected in series with a voltage source V to form a closed circuit. The first circuit is equivalent to the second circuit, which has a single resistor R sub s connected to a voltage source V. Both circuits carry a current I, which starts from the positive end of the voltage source and moves in a clockwise direction around the circuit.
Figure 21.3 Three resistors connected in series to a battery (left) and the equivalent single or series resistance (right).

To verify that resistances in series do indeed add, let us consider the loss of electrical power, called a voltage drop, in each resistor in Figure 21.3.

According to Ohm’s law, the voltage drop, VV size 12{V} {}, across a resistor when a current flows through it is calculated using the equation V=IRV=IR size 12{V= ital "IR"} {}, where II size 12{I} {} equals the current in amps (A) and RR size 12{R} {} is the resistance in ohms ΩΩ size 12{ left ( %OMEGA right )} {}. Another way to think of this is that VV size 12{V} {} is the voltage necessary to make a current II size 12{I} {} flow through a resistance RR size 12{R} {}.

So the voltage drop across R1R1 size 12{R rSub { size 8{1} } } {} is V1=IR1V1=IR1 size 12{V rSub { size 8{1} } = ital "IR" rSub { size 8{1} } } {}, that across R2R2 size 12{R rSub { size 8{2} } } {} is V2=IR2V2=IR2 size 12{V rSub { size 8{2} } = ital "IR" rSub { size 8{2} } } {}, and that across R3R3 size 12{R rSub { size 8{3} } } {} is V3=IR3V3=IR3 size 12{V rSub { size 8{3} } = ital "IR" rSub { size 8{3} } } {}. The sum of these voltages equals the voltage output of the source; that is,

V=V1+V2+V3.V=V1+V2+V3. size 12{V=V rSub { size 8{1} } +V rSub { size 8{2} } +V rSub { size 8{3} } } {}
21.1

This equation is based on the conservation of energy and conservation of charge. Electrical potential energy can be described by the equation PE=qVPE=qV size 12{ ital "PE"= ital "qV"} {}, where qq size 12{q} {} is the electric charge and VV size 12{V} {} is the voltage. Thus the energy supplied by the source is qVqV size 12{ ital "qV"} {}, while that dissipated by the resistors is

qV1+qV2+qV3.qV1+qV2+qV3. size 12{ ital "qV" rSub { size 8{1} } + ital "qV" rSub { size 8{2} } + ital "qV" rSub { size 8{3} } } {}
21.2

Connections: Conservation Laws

The derivations of the expressions for series and parallel resistance are based on the laws of conservation of energy and conservation of charge, which state that total charge and total energy are constant in any process. These two laws are directly involved in all electrical phenomena and will be invoked repeatedly to explain both specific effects and the general behavior of electricity.

These energies must be equal, because there is no other source and no other destination for energy in the circuit. Thus, qV=qV1+qV2+qV3qV=qV1+qV2+qV3 size 12{ ital "qV"= ital "qV" rSub { size 8{1} } + ital "qV" rSub { size 8{2} } + ital "qV" rSub { size 8{3} } } {}. The charge qq size 12{q} {} cancels, yielding V=V1+V2+V3V=V1+V2+V3 size 12{V=V rSub { size 8{1} } +V rSub { size 8{2} } +V rSub { size 8{3} } } {}, as stated. (Note that the same amount of charge passes through the battery and each resistor in a given amount of time, since there is no capacitance to store charge, there is no place for charge to leak, and charge is conserved.)

Now substituting the values for the individual voltages gives

V=IR1+IR2 +IR3 =I(R1+R2+R3).V=IR1+IR2 +IR3 =I(R1+R2+R3). size 12{V= ital "IR" rSub { size 8{1} } + ital "IR" rSub { size 8{2} } + ital "IR" rSub { size 8{3} } =I \( R rSub { size 8{1} } +R rSub { size 8{2} } +R rSub { size 8{3} } \) } {}
21.3

Note that for the equivalent single series resistance RsRs, we have

V=IRs.V=IRs.
21.4

This implies that the total or equivalent series resistance RsRs of three resistors is Rs=R1+R2+R3Rs=R1+R2+R3 size 12{R rSub { size 8{s} } =R rSub { size 8{1} } +R rSub { size 8{2} } +R rSub { size 8{3} } } {}.

This logic is valid in general for any number of resistors in series; thus, the total resistance RsRs of a series connection is

Rs=R1+R2+R3+...,Rs=R1+R2+R3+..., size 12{R rSub { size 8{s} } =R rSub { size 8{1} } +R rSub { size 8{2} } +R rSub { size 8{3} } + "." "." "." } {}
21.5

as proposed. Since all of the current must pass through each resistor, it experiences the resistance of each, and resistances in series simply add up.

Example 21.1 Calculating Resistance, Current, Voltage Drop, and Power Dissipation: Analysis of a Series Circuit

Suppose the voltage output of the battery in Figure 21.3 is 12.0V12.0V size 12{"12" "." 0`V} {}, and the resistances are R1=1.00ΩR1=1.00Ω size 12{R rSub { size 8{1} } =1 "." "00" %OMEGA } {}, R2=6.00ΩR2=6.00Ω size 12{R rSub { size 8{2} } =6 "." "00" %OMEGA } {}, and R3=13.0ΩR3=13.0Ω size 12{R rSub { size 8{3} } ="13" "." 0 %OMEGA } {}. (a) What is the total resistance? (b) Find the current. (c) Calculate the voltage drop in each resistor, and show these add to equal the voltage output of the source. (d) Calculate the power dissipated by each resistor. (e) Find the power output of the source, and show that it equals the total power dissipated by the resistors.

Strategy and Solution for (a)

The total resistance is simply the sum of the individual resistances, as given by this equation:

R s = R 1 + R 2 + R 3 = 1.00 Ω+6.00 Ω+13.0 Ω =20.0 Ω. R s = R 1 + R 2 + R 3 = 1.00 Ω+6.00 Ω+13.0 Ω =20.0 Ω.
21.6

Strategy and Solution for (b)

The current is found using Ohm’s law, V=IRV=IR size 12{V= ital "IR"} {}. Entering the value of the applied voltage and the total resistance yields the current for the circuit:

I=VRs=12.0 V20.0 Ω=0.600 A.I=VRs=12.0 V20.0 Ω=0.600 A. size 12{I= { {V} over {R rSub { size 8{s} } } } = { {"12" "." 0" V"} over {"20" "." "0 " %OMEGA } } =0 "." "600"" A"} {}
21.7

Strategy and Solution for (c)

The voltage—or IRIR size 12{ ital "IR"} {} drop—in a resistor is given by Ohm’s law. Entering the current and the value of the first resistance yields

V1=IR1=(0.600 A)(1.0Ω)=0.600 V.V1=IR1=(0.600 A)(1.0Ω)=0.600 V. size 12{V rSub { size 8{1} } = ital "IR" rSub { size 8{1} } = \( 0 "." "600"" A" \) \( 1 "." 0 %OMEGA \) =0 "." "600"" V"} {}
21.8

Similarly,

V 2 = IR 2 = ( 0 . 600 A ) ( 6 . 0 Ω ) = 3 . 60 V V 2 = IR 2 = ( 0 . 600 A ) ( 6 . 0 Ω ) = 3 . 60 V size 12{V rSub { size 8{2} } = ital "IR" rSub { size 8{2} } = \( 0 "." "600"" A" \) \( 6 "." 0 %OMEGA \) =3 "." "60"" V"} {}
21.9

and

V3=IR3=(0.600 A)(13.0Ω)=7.80 V.V3=IR3=(0.600 A)(13.0Ω)=7.80 V. size 12{V rSub { size 8{3} } = ital "IR" rSub { size 8{3} } = \( 0 "." "600"" A" \) \( "13" "." 0 %OMEGA \) =7 "." "80"" V"} {}
21.10

Discussion for (c)

The three IRIR size 12{ ital "IR"} {} drops add to 12.0V12.0V size 12{"12" "." 0`V} {}, as predicted:

V1+V2+V3=(0.600+3.60+7.80)V=12.0 V.V1+V2+V3=(0.600+3.60+7.80)V=12.0 V. size 12{V rSub { size 8{1} } +V rSub { size 8{2} } +V rSub { size 8{3} } = \( 0 "." "600" +3 "." "60"+7 "." "80" \) " V"="12" "." 0" V"} {}
21.11

Strategy and Solution for (d)

The easiest way to calculate power in watts (W) dissipated by a resistor in a DC circuit is to use Joule’s law, P=IVP=IV size 12{P= ital "IV"} {}, where PP size 12{P} {} is electric power. In this case, each resistor has the same full current flowing through it. By substituting Ohm’s law V=IRV=IR size 12{V= ital "IR"} {} into Joule’s law, we get the power dissipated by the first resistor as

P1=I2R1=(0.600 A)2(1.00Ω)=0.360 W.P1=I2R1=(0.600 A)2(1.00Ω)=0.360 W. size 12{P rSub { size 8{1} } =I rSup { size 8{2} } R rSub { size 8{1} } = \( 0 "." "600"" A" \) rSup { size 8{2} } \( 1 "." "00" %OMEGA \) =0 "." "360"" W"} {}
21.12

Similarly,

P 2 = I 2 R 2 = ( 0 . 600 A ) 2 ( 6 . 00 Ω ) = 2 . 16 W P 2 = I 2 R 2 = ( 0 . 600 A ) 2 ( 6 . 00 Ω ) = 2 . 16 W size 12{P rSub { size 8{2} } =I rSup { size 8{2} } R rSub { size 8{2} } = \( 0 "." "600"" A" \) rSup { size 8{2} } \( 6 "." "00" %OMEGA \) =2 "." "16"" W"} {}
21.13

and

P3=I2R3=(0.600 A)2(13.0Ω)=4.68 W.P3=I2R3=(0.600 A)2(13.0Ω)=4.68 W. size 12{P rSub { size 8{3} } =I rSup { size 8{2} } R rSub { size 8{3} } = \( 0 "." "600"" A" \) rSup { size 8{2} } \( "13" "." 0 %OMEGA \) =4 "." "68"" W"} {}
21.14

Discussion for (d)

Power can also be calculated using either P=IVP=IV size 12{P= ital "IV"} {} or P=V2RP=V2R size 12{P= { {V rSup { size 8{2} } } over {R} } } {}, where VV size 12{V} {} is the voltage drop across the resistor (not the full voltage of the source). The same values will be obtained.

Strategy and Solution for (e)

The easiest way to calculate power output of the source is to use P=IVP=IV size 12{P= ital "IV"} {}, where VV size 12{V} {} is the source voltage. This gives

P=(0.600 A)(12.0 V)=7.20 W.P=(0.600 A)(12.0 V)=7.20 W. size 12{P= \( 0 "." "600"" A" \) \( "12" "." 0" V" \) =7 "." "20"" W"} {}
21.15

Discussion for (e)

Note, coincidentally, that the total power dissipated by the resistors is also 7.20 W, the same as the power put out by the source. That is,

P1+P2+P3=(0.360+2.16+4.68)W=7.20 W.P1+P2+P3=(0.360+2.16+4.68)W=7.20 W. size 12{P rSub { size 8{1} } +P rSub { size 8{2} } +P rSub { size 8{3} } = \( 0 "." "360"+2 "." "16"+4 "." "68" \) " W"=7 "." "20"" W"} {}
21.16

Power is energy per unit time (watts), and so conservation of energy requires the power output of the source to be equal to the total power dissipated by the resistors.

Major Features of Resistors in Series

  1. Series resistances add: Rs=R1+R2+R3+....Rs=R1+R2+R3+.... size 12{R rSub { size 8{s} } =R rSub { size 8{1} } +R rSub { size 8{2} } +R rSub { size 8{3} } + "." "." "." "." } {}
  2. The same current flows through each resistor in series.
  3. Individual resistors in series do not get the total source voltage, but divide it.

Resistors in Parallel

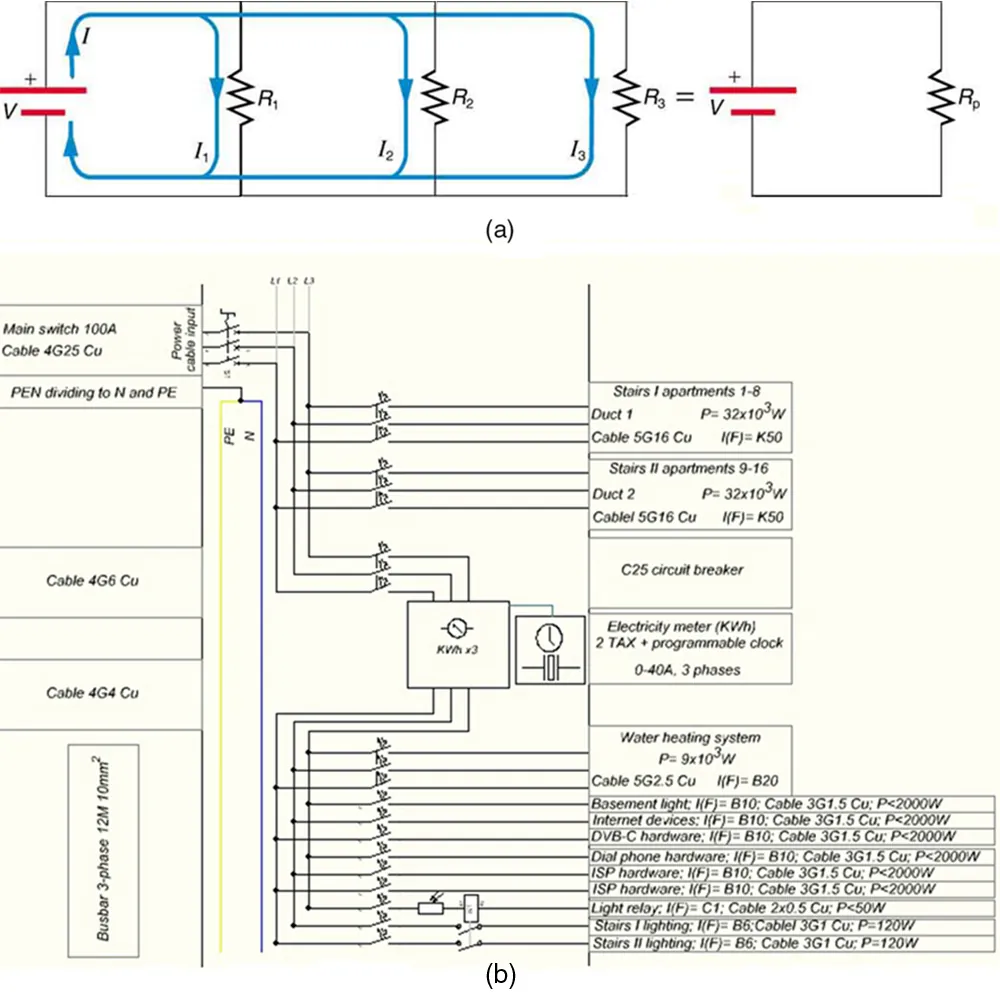

Figure 21.4 shows resistors in parallel, wired to a voltage source. Resistors are in parallel when each resistor is connected directly to the voltage source by connecting wires having negligible resistance. Each resistor thus has the full voltage of the source applied to it.

Each resistor draws the same current it would if it alone were connected to the voltage source (provided the voltage source is not overloaded). For example, an automobile’s headlights, radio, and so on, are wired in parallel, so that they utilize the full voltage of the source and can operate completely independently. The same is true in your house, or any building. (See Figure 21.4(b).)

Part a shows two electrical circuits which are compared. The first electrical circuit is arranged with resistors in parallel. The circuit has three paths, with a voltage source V at one end. Just after the voltage source, the circuit has current I. The first path has resistor R sub one and current I sub one after the resistor. The second path has resistor R sub two and current I sub two after the resistor. The third path has resistor R sub three with current I sub three after the resistor. The first circuit is equivalent to the second circuit. The second circuit has a voltage source V and an equivalent parallel resistance R sub p. Part b shows a complicated electrical wiring diagram of a distribution board that supplies electricity to a house.
Figure 21.4 (a) Three resistors connected in parallel to a battery and the equivalent single or parallel resistance. (b) Electrical power setup in a house. (credit: Dmitry G, Wikimedia Commons)

To find an expression for the equivalent parallel resistance RpRp size 12{R rSub { size 8{p} } } {}, let us consider the currents that flow and how they are related to resistance. Since each resistor in the circuit has the full voltage, the currents flowing through the individual resistors are I1=VR1I1=VR1 size 12{I rSub { size 8{1} } = { {V} over {R rSub { size 8{1} } } } } {}, I2=VR2I2=VR2 size 12{I rSub { size 8{2} } = { {V} over {R rSub { size 8{2} } } } } {}, and I3=VR3I3=VR3 size 12{I rSub { size 8{3} } = { {V} over {R rSub { size 8{3} } } } } {}. Conservation of charge implies that the total current II size 12{I} {} produced by the source is the sum of these currents:

I=I1+I2+I3.I=I1+I2+I3. size 12{I=I rSub { size 8{1} } +I rSub { size 8{2} } +I rSub { size 8{3} } } {}
21.17

Substituting the expressions for the individual currents gives

I=VR1+VR2+VR3=V1R1+1R2+1R3.I=VR1+VR2+VR3=V1R1+1R2+1R3. size 12{I= { {V} over {R rSub { size 8{1} } } } + { {V} over {R rSub { size 8{2} } } } + { {V} over {R rSub { size 8{3} } } } =V left ( { {1} over {R rSub { size 8{1} } } } + { {1} over {R rSub { size 8{2} } } } + { {1} over {R rSub { size 8{3} } } } right )} {}
21.18

Note that Ohm’s law for the equivalent single resistance gives

I=VRp=V1Rp.I=VRp=V1Rp. size 12{I= { {V} over {R rSub { size 8{p} } } } =V left ( { {1} over {R rSub { size 8{p} } } } right )} {}
21.19

The terms inside the parentheses in the last two equations must be equal. Generalizing to any number of resistors, the total resistance RpRp size 12{R rSub { size 8{p} } } {} of a parallel connection is related to the individual resistances by

1 R p = 1 R 1 + 1 R 2 + 1 R . 3 + . ... 1 R p = 1 R 1 + 1 R 2 + 1 R . 3 + . ... size 12{ { {1} over {R rSub { size 8{p} } } } = { {1} over {R rSub { size 8{1} } } } + { {1} over {R rSub { size 8{2} } } } + { {1} over {R rSub { size 8{ "." 3} } } } + "." "." "." "." } {}
21.20

This relationship results in a total resistance RpRp size 12{R rSub { size 8{p} } } {} that is less than the smallest of the individual resistances. (This is seen in the next example.) When resistors are connected in parallel, more current flows from the source than would flow for any of them individually, and so the total resistance is lower.

Example 21.2 Calculating Resistance, Current, Power Dissipation, and Power Output: Analysis of a Parallel Circuit

Let the voltage output of the battery and resistances in the parallel connection in Figure 21.4 be the same as the previously considered series connection: V=12.0 VV=12.0 V size 12{V="12" "." 0" V"} {}, R1=1.00ΩR1=1.00Ω size 12{R rSub { size 8{1} } =1 "." "00" %OMEGA } {}, R2=6.00ΩR2=6.00Ω size 12{R rSub { size 8{2} } =6 "." "00" %OMEGA } {}, and R3=13.0ΩR3=13.0Ω size 12{R rSub { size 8{3} } ="13" "." 0 %OMEGA } {}. (a) What is the total resistance? (b) Find the total current. (c) Calculate the currents in each resistor, and show these add to equal the total current output of the source. (d) Calculate the power dissipated by each resistor. (e) Find the power output of the source, and show that it equals the total power dissipated by the resistors.

Strategy and Solution for (a)

The total resistance for a parallel combination of resistors is found using the equation below. Entering known values gives

1Rp=1R1+1R2+1R3=11.00Ω+16.00Ω+113.0Ω.1Rp=1R1+1R2+1R3=11.00Ω+16.00Ω+113.0Ω. size 12{ { {1} over {R rSub { size 8{p} } } } = { {1} over {R rSub { size 8{1} } } } + { {1} over {R rSub { size 8{2} } } } + { {1} over {R rSub { size 8{3} } } } = { {1} over {1 "." "00" %OMEGA } } + { {1} over {6 "." "00" %OMEGA } } + { {1} over {"13" "." 0 %OMEGA } } } {}
21.21

Thus,

1Rp=1.00 Ω+0.1667Ω+0.07692Ω=1.2436Ω.1Rp=1.00 Ω+0.1667Ω+0.07692Ω=1.2436Ω. size 12{ { {1} over {R rSub { size 8{p} } } } = { {1 "." "00"} over { %OMEGA } } + { {0 "." "167"} over { %OMEGA } } + { {0 "." "0769"} over { %OMEGA } } = { {1 "." "244"} over { %OMEGA } } } {}
21.22

(Note that in these calculations, each intermediate answer is shown with an extra digit.)

We must invert this to find the total resistance RpRp size 12{R rSub { size 8{p} } } {}. This yields

R p = 1 1 . 2436 Ω = 0 . 8041 Ω . R p = 1 1 . 2436 Ω = 0 . 8041 Ω . size 12{R rSub { size 8{p} } = { {1} over {1 "." "2436"} } %OMEGA =0 "." "8041 " %OMEGA } {}
21.23

The total resistance with the correct number of significant digits is R p = 0 . 804 Ω . R p = 0 . 804 Ω . size 12{R rSub { size 8{p} } =0 "." "804" %OMEGA } {}

Discussion for (a)

RpRp is, as predicted, less than the smallest individual resistance.

Strategy and Solution for (b)

The total current can be found from Ohm’s law, substituting RpRp size 12{R rSub { size 8{p} } } {} for the total resistance. This gives

I=VRp=12.0 V0.8041 Ω=14.92 A.I=VRp=12.0 V0.8041 Ω=14.92 A. size 12{I= { {V} over {R rSub { size 8{p} } } } = { {"12" "." 0" V"} over {0 "." "804 " %OMEGA } } ="14" "." "92"" A"} {}
21.24

Discussion for (b)

Current II size 12{I} {} for each device is much larger than for the same devices connected in series (see the previous example). A circuit with parallel connections has a smaller total resistance than the resistors connected in series.

Strategy and Solution for (c)

The individual currents are easily calculated from Ohm’s law, since each resistor gets the full voltage. Thus,

I1=VR1=12.0 V1.00 Ω=12.0 A.I1=VR1=12.0 V1.00 Ω=12.0 A. size 12{I rSub { size 8{1} } = { {V} over {R rSub { size 8{1} } } } = { {"12" "." 0" V"} over {1 "." "00 " %OMEGA } } ="12" "." 0" A"} {}
21.25

Similarly,

I 2 = V R 2 = 12 . 0 V 6 . 00 Ω = 2 . 00 A I 2 = V R 2 = 12 . 0 V 6 . 00 Ω = 2 . 00 A size 12{I rSub { size 8{2} } = { {V} over {R rSub { size 8{2} } } } = { {"12" "." 0" V"} over {6 "." "00 " %OMEGA } } =2 "." "00"" A"} {}
21.26

and

I3=VR3=12.0 V13.0 Ω=0.92 A.I3=VR3=12.0 V13.0 Ω=0.92 A. size 12{I rSub { size 8{3} } = { {V} over {R rSub { size 8{3} } } } = { {"12" "." 0" V"} over {"13" "." "0 " %OMEGA } } =0 "." "92"" A"} {}
21.27

Discussion for (c)

The total current is the sum of the individual currents:

I1+I2+I3=14.92 A.I1+I2+I3=14.92 A. size 12{I rSub { size 8{1} } +I rSub { size 8{2} } +I rSub { size 8{3} } ="14" "." "92"" A"} {}
21.28

This is consistent with conservation of charge.

Strategy and Solution for (d)

The power dissipated by each resistor can be found using any of the equations relating power to current, voltage, and resistance, since all three are known. Let us use P=V2RP=V2R size 12{P= { {V rSup { size 8{2} } } over {R} } } {}, since each resistor gets full voltage. Thus,

P1=V2R1=(12.0 V)21.00 Ω=144 W.P1=V2R1=(12.0 V)21.00 Ω=144 W. size 12{P rSub { size 8{1} } = { {V rSup { size 8{2} } } over {R rSub { size 8{1} } } } = { { \( "12" "." 0" V" \) rSup { size 8{2} } } over {1 "." "00 " %OMEGA } } ="144"" W"} {}
21.29

Similarly,

P 2 = V 2 R 2 = ( 12 . 0 V ) 2 6 . 00 Ω = 24 . 0 W P 2 = V 2 R 2 = ( 12 . 0 V ) 2 6 . 00 Ω = 24 . 0 W size 12{P rSub { size 8{2} } = { {V rSup { size 8{2} } } over {R rSub { size 8{2} } } } = { { \( "12" "." 0" V" \) rSup { size 8{2} } } over {6 "." "00 " %OMEGA } } ="24" "." 0" W"} {}
21.30

and

P3=V2R3=(12.0 V)213.0 Ω=11.1 W.P3=V2R3=(12.0 V)213.0 Ω=11.1 W. size 12{P rSub { size 8{3} } = { {V rSup { size 8{2} } } over {R rSub { size 8{3} } } } = { { \( "12" "." 0" V" \) rSup { size 8{2} } } over {"13" "." "0 " %OMEGA } } ="11" "." 1" W"} {}
21.31

Discussion for (d)

The power dissipated by each resistor is considerably higher in parallel than when connected in series to the same voltage source.

Strategy and Solution for (e)

The total power can also be calculated in several ways. Choosing P=IVP=IV size 12{P= ital "IV"} {}, and entering the total current, yields

P=IV=(14.92 A)(12.0 V)=179 W.P=IV=(14.92 A)(12.0 V)=179 W. size 12{P= ital "IV"= \( "14" "." "92"" A" \) \( "12" "." 0" V" \) ="179" "." 1" W"} {}
21.32

Discussion for (e)

Total power dissipated by the resistors is also 179 W:

P 1 + P 2 + P 3 = 144 W + 24 . 0 W + 11 . 1 W = 179 W . P 1 + P 2 + P 3 = 144 W + 24 . 0 W + 11 . 1 W = 179 W . size 12{P rSub { size 8{1} } +P rSub { size 8{2} } +P rSub { size 8{3} } ="144"" W"+"24" "." 0" W"+"11" "." 1" W"="179"" W"} {}
21.33

This is consistent with the law of conservation of energy.

Overall Discussion

Note that both the currents and powers in parallel connections are greater than for the same devices in series.

Major Features of Resistors in Parallel

  1. Parallel resistance is found from 1Rp=1R1+1R2+1R3+...1Rp=1R1+1R2+1R3+... size 12{ { {1} over {R rSub { size 8{p} } } } = { {1} over {R rSub { size 8{1} } } } + { {1} over {R rSub { size 8{2} } } } + { {1} over {R rSub { size 8{3} } } } + "." "." "." } {}, and it is smaller than any individual resistance in the combination.
  2. Each resistor in parallel has the same full voltage of the source applied to it. (Power distribution systems most often use parallel connections to supply the myriad devices served with the same voltage and to allow them to operate independently.)
  3. Parallel resistors do not each get the total current; they divide it.

Combinations of Series and Parallel

More complex connections of resistors are sometimes just combinations of series and parallel. These are commonly encountered, especially when wire resistance is considered. In that case, wire resistance is in series with other resistances that are in parallel.

Combinations of series and parallel can be reduced to a single equivalent resistance using the technique illustrated in Figure 21.5. Various parts are identified as either series or parallel, reduced to their equivalents, and further reduced until a single resistance is left. The process is more time consuming than difficult.

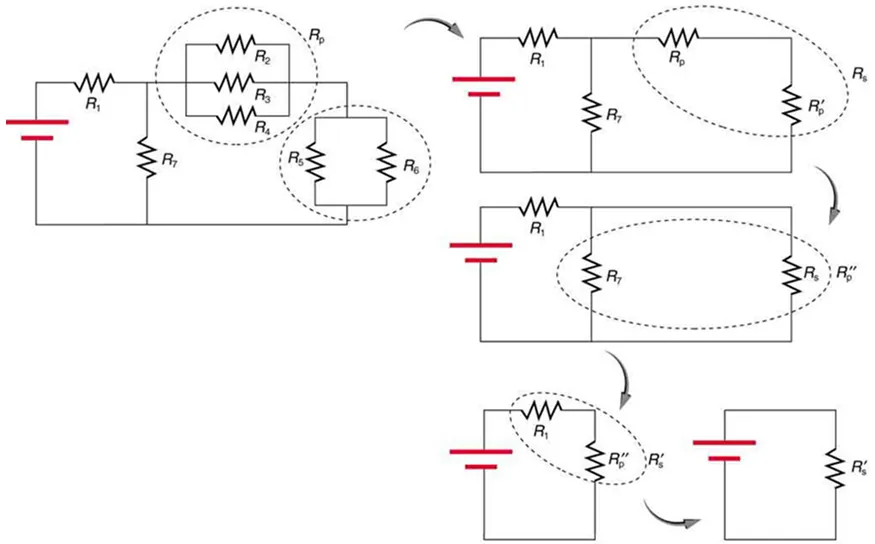

The diagram has a set of five circuits. The first circuit has a combination of seven resistors in series and parallel combinations. It has a resistor R sub one in series with a set of three resistors R sub two, R sub three, and R sub four in parallel and connected in series with a combination of resistors R sub five and R sub six, which are parallel. A resistor R sub seven is connected in parallel to R sub one and the voltage source. The second circuit calculates combinations of all parallel resistors in circuit one and replaces them with their equivalent resistance. It has a resistor R sub one in series with R sub p and R sub p prime. A resistor R sub seven is connected in parallel to R sub one and the voltage source. The third circuit takes the combination of the series resistors R sub p and R sub p prime and replaces it with R sub s. It has a resistor R sub one in series with R sub s. A resistor R sub seven is connected in parallel to R sub s and the voltage source. The fourth circuit shows a parallel combination of R sub seven and R sub s are calculated and replaced by R sub p double prime. The circuit now has a series combination voltage source, R sub one and R sub p double prime. The fifth circuit shows the final equivalent of the first circuit. It has a voltage source connecting across a final equivalent resistance R sub s prime.
Figure 21.5 This combination of seven resistors has both series and parallel parts. Each is identified and reduced to an equivalent resistance, and these are further reduced until a single equivalent resistance is reached.

The simplest combination of series and parallel resistance, shown in Figure 21.6, is also the most instructive, since it is found in many applications. For example, R1R1 size 12{R rSub { size 8{1} } } {} could be the resistance of wires from a car battery to its electrical devices, which are in parallel. R2R2 size 12{R rSub { size 8{1} } } {} and R3R3 size 12{R rSub { size 8{1} } } {} could be the starter motor and a passenger compartment light. We have previously assumed that wire resistance is negligible, but, when it is not, it has important effects, as the next example indicates.

Example 21.3 Calculating Resistance, IRIR size 12{ ital "IR"} {} Drop, Current, and Power Dissipation: Combining Series and Parallel Circuits

Figure 21.6 shows the resistors from the previous two examples wired in a different way—a combination of series and parallel. We can consider R1R1 size 12{R rSub { size 8{1} } } {} to be the resistance of wires leading to R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {}. (a) Find the total resistance. (b) What is the IRIR size 12{ ital "IR"} {} drop in R1R1 size 12{R rSub { size 8{1} } } {}? (c) Find the current I2I2 size 12{I rSub { size 8{2} } } {} through R2R2 size 12{R rSub { size 8{2} } } {}. (d) What power is dissipated by R2R2 size 12{R rSub { size 8{2} } } {}?

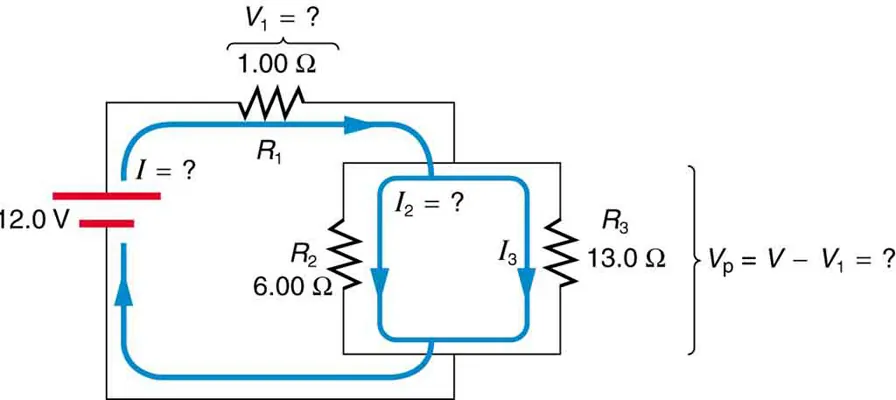

Circuit diagram in which a battery of twelve point zero volts is connected to a combination of three resistors. Resistors R sub two and R sub three are connected in parallel to each other, and their combination is connected in series to resistor R sub one. R sub one has a resistance of one point zero zero ohms, R sub two has a resistance of six point zero zero ohms, and R sub three has a resistance of thirteen point zero ohms.
Figure 21.6 These three resistors are connected to a voltage source so that R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {} are in parallel with one another and that combination is in series with R1R1 size 12{R rSub { size 8{1} } } {}.

Strategy and Solution for (a)

To find the total resistance, we note that R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {} are in parallel and their combination RpRp size 12{R rSub { size 8{p} } } {} is in series with R1R1 size 12{R rSub { size 8{1} } } {}. Thus the total (equivalent) resistance of this combination is

Rtot=R1+Rp.Rtot=R1+Rp. size 12{R rSub { size 8{"tot"} } =R rSub { size 8{1} } +R rSub { size 8{p} } } {}
21.34

First, we find RpRp size 12{R rSub { size 8{p} } } {} using the equation for resistors in parallel and entering known values:

1Rp=1R2+1R3=16.00Ω+113.0Ω=0.2436Ω.1Rp=1R2+1R3=16.00Ω+113.0Ω=0.2436Ω. size 12{ { {1} over {R rSub { size 8{p} } } } = { {1} over {R rSub { size 8{2} } } } + { {1} over {R rSub { size 8{3} } } } = { {1} over {6 "." "00" %OMEGA } } + { {1} over {"13" "." 0 %OMEGA } } = { {0 "." "2436"} over { %OMEGA } } } {}
21.35

Inverting gives

Rp=10.2436Ω=4.11Ω.Rp=10.2436Ω=4.11Ω. size 12{R rSub { size 8{p} } = { {1} over {0 "." "2436"} } %OMEGA =4 "." "11" %OMEGA } {}
21.36

So the total resistance is

Rtot=R1+Rp=1.00Ω+4.11 Ω=5.11 Ω.Rtot=R1+Rp=1.00Ω+4.11 Ω=5.11 Ω. size 12{R rSub { size 8{"tot"} } =R rSub { size 8{1} } +R rSub { size 8{p} } =1 "." "00" %OMEGA +4 "." "11 " %OMEGA =5 "." "11 " %OMEGA } {}
21.37

Discussion for (a)

The total resistance of this combination is intermediate between the pure series and pure parallel values (20.0 Ω20.0 Ω and 0.804 Ω0.804 Ω, respectively) found for the same resistors in the two previous examples.

Strategy and Solution for (b)

To find the IRIR size 12{ ital "IR"} {} drop in R1R1 size 12{R rSub { size 8{1} } } {}, we note that the full current II size 12{I} {} flows through R1R1 size 12{R rSub { size 8{1} } } {}. Thus its IRIR size 12{ ital "IR"} {} drop is

V1=IR1.V1=IR1. size 12{V rSub { size 8{1} } = ital "IR" rSub { size 8{1} } } {}
21.38

We must find II size 12{I} {} before we can calculate V1V1 size 12{V rSub { size 8{1} } } {}. The total current II size 12{I} {} is found using Ohm’s law for the circuit. That is,

I=VRtot=12.0 V5.11 Ω=2.35A.I=VRtot=12.0 V5.11 Ω=2.35A. size 12{I= { {V} over {R rSub { size 8{"tot"} } } } = { {"12" "." 0" V"} over {5 "." "11 " %OMEGA } } =2 "." "35"" A"} {}
21.39

Entering this into the expression above, we get

V1=IR1=(2.35 A)(1.00Ω)=2.35 V.V1=IR1=(2.35 A)(1.00Ω)=2.35 V. size 12{V rSub { size 8{1} } = ital "IR" rSub { size 8{1} } = \( 2 "." "35"" A" \) \( 1 "." "00" %OMEGA \) =2 "." "35"" V"} {}
21.40

Discussion for (b)

The voltage applied to R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {} is less than the total voltage by an amount V1V1 size 12{V rSub { size 8{1} } } {}. When wire resistance is large, it can significantly affect the operation of the devices represented by R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {}.

Strategy and Solution for (c)

To find the current through R2R2 size 12{R rSub { size 8{2} } } {}, we must first find the voltage applied to it. We call this voltage VpVp size 12{V rSub { size 8{p} } } {}, because it is applied to a parallel combination of resistors. The voltage applied to both R2R2 size 12{R rSub { size 8{2} } } {} and R3R3 size 12{R rSub { size 8{3} } } {} is reduced by the amount V1V1 size 12{V rSub { size 8{1} } } {}, and so it is

Vp=VV1=12.0 V2.35 V=9.65 V.Vp=VV1=12.0 V2.35 V=9.65 V. size 12{V rSub { size 8{p} } =V - V rSub { size 8{1} } ="12" "." 0" V" - 2 "." "35"" V"=9 "." "65"" V"} {}
21.41

Now the current I2I2 size 12{I rSub { size 8{2} } } {} through resistance R2R2 size 12{R rSub { size 8{2} } } {} is found using Ohm’s law:

I2=VpR2=9.65 V6.00 Ω=1.61 A.I2=VpR2=9.65 V6.00 Ω=1.61 A. size 12{I rSub { size 8{2} } = { {V rSub { size 8{p} } } over {R rSub { size 8{2} } } } = { {9 "." "65 V"} over {6 "." "00 " %OMEGA } } =1 "." "61"" A"} {}
21.42

Discussion for (c)

The current is less than the 2.00 A that flowed through R2R2 size 12{R rSub { size 8{2} } } {} when it was connected in parallel to the battery in the previous parallel circuit example.

Strategy and Solution for (d)

The power dissipated by R2R2 size 12{R rSub { size 8{2} } } {} is given by

P2=(I2)2R2=(1.61 A)2(6.00Ω)=15.5 W.P2=(I2)2R2=(1.61 A)2(6.00Ω)=15.5 W. size 12{P rSub { size 8{2} } = \( I rSub { size 8{2} } \) rSup { size 8{2} } R rSub { size 8{2} } = \( 1 "." "61"" A" \) rSup { size 8{2} } \( 6 "." "00" %OMEGA \) ="15" "." 5" W"} {}
21.43

Discussion for (d)

The power is less than the 24.0 W this resistor dissipated when connected in parallel to the 12.0-V source.

Applying the Science Practices: Circuit Construction Kit (DC only)

Plan an experiment to analyze the effect on currents and potential differences due to rearrangement of resistors and variations in voltage sources. Your experimental investigation should include data collection for at least five different scenarios of rearranged resistors (i.e., several combinations of series and parallel) and three scenarios of different voltage sources.

Practical Implications

One implication of this last example is that resistance in wires reduces the current and power delivered to a resistor. If wire resistance is relatively large, as in a worn (or a very long) extension cord, then this loss can be significant. If a large current is drawn, the IRIR size 12{ ital "IR"} {} drop in the wires can also be significant.

For example, when you are rummaging in the refrigerator and the motor comes on, the refrigerator light dims momentarily. Similarly, you can see the passenger compartment light dim when you start the engine of your car (although this may be due to resistance inside the battery itself).

What is happening in these high-current situations is illustrated in Figure 21.7. The device represented by R3R3 size 12{R rSub { size 8{3} } } {} has a very low resistance, and so when it is switched on, a large current flows. This increased current causes a larger IRIR size 12{ ital "IR"} {} drop in the wires represented by R1R1 size 12{R rSub { size 8{1} } } {}, reducing the voltage across the light bulb (which is R2R2 size 12{R rSub { size 8{2} } } {}), which then dims noticeably.

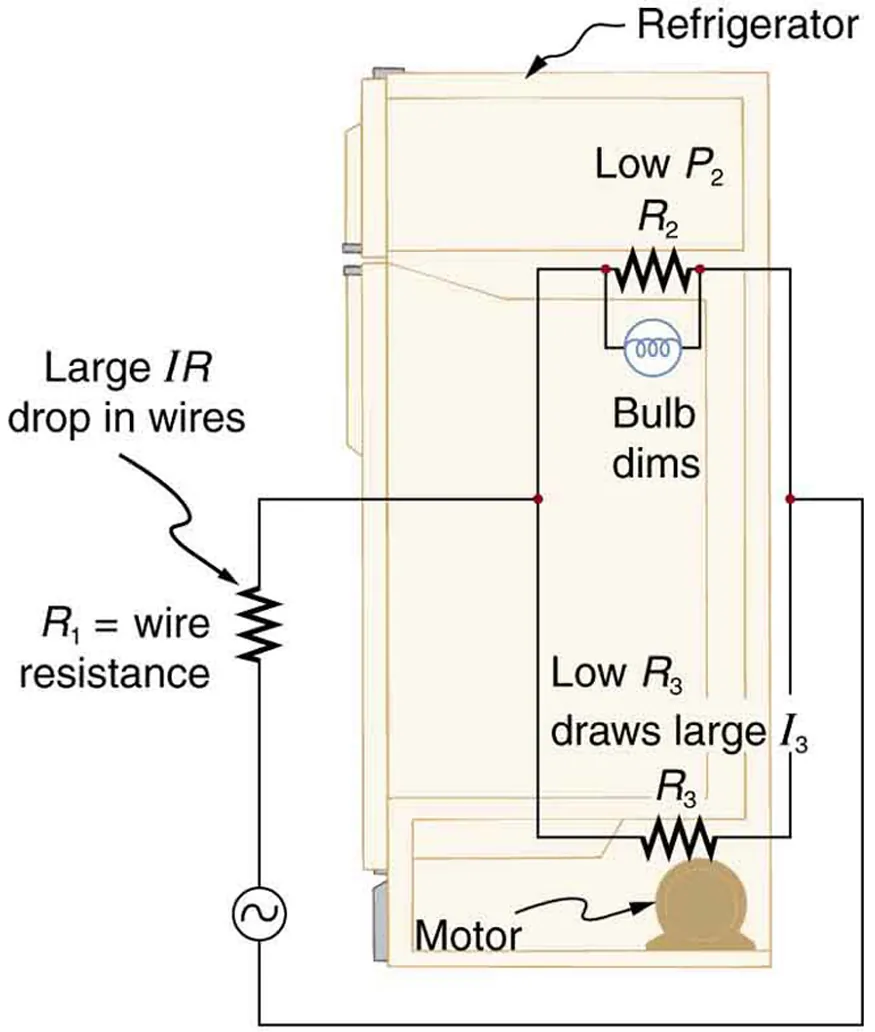

A conceptual drawing showing a refrigerator with its motor and light bulbs connected to a household A C circuit through a wire with resistance of R sub one. The bulb has a resistance R sub two, and the motor has a resistance R sub three.
Figure 21.7 Why do lights dim when a large appliance is switched on? The answer is that the large current the appliance motor draws causes a significant IRIR size 12{ ital "IR"} {} drop in the wires and reduces the voltage across the light.

Check Your Understanding

Can any arbitrary combination of resistors be broken down into series and parallel combinations? See if you can draw a circuit diagram of resistors that cannot be broken down into combinations of series and parallel.

Solution

No, there are many ways to connect resistors that are not combinations of series and parallel, including loops and junctions. In such cases Kirchhoff’s rules, to be introduced in Kirchhoff’s Rules, will allow you to analyze the circuit.

Problem-Solving Strategies for Series and Parallel Resistors

  1. Draw a clear circuit diagram, labeling all resistors and voltage sources. This step includes a list of the knowns for the problem, since they are labeled in your circuit diagram.
  2. Identify exactly what needs to be determined in the problem (identify the unknowns). A written list is useful.
  3. Determine whether resistors are in series, parallel, or a combination of both series and parallel. Examine the circuit diagram to make this assessment. Resistors are in series if the same current must pass sequentially through them.
  4. Use the appropriate list of major features for series or parallel connections to solve for the unknowns. There is one list for series and another for parallel. If your problem has a combination of series and parallel, reduce it in steps by considering individual groups of series or parallel connections, as done in this module and the examples. Special note: When finding R p R p size 12{R"" lSub { size 8{p} } } {} , the reciprocal must be taken with care.
  5. Check to see whether the answers are reasonable and consistent. Units and numerical results must be reasonable. Total series resistance should be greater, whereas total parallel resistance should be smaller, for example. Power should be greater for the same devices in parallel compared with series, and so on.
