20.5 Alternating Current versus Direct Current

College Physics for AP® Courses20.5 Alternating Current versus Direct Current

Learning Objectives

By the end of this section, you will be able to:

  • Explain the differences and similarities between AC and DC current.
  • Calculate rms voltage, current, and average power.
  • Explain why AC current is used for power transmission.

Alternating Current

Most of the examples dealt with so far, and particularly those utilizing batteries, have constant voltage sources. Once the current is established, it is thus also a constant. Direct current (DC) is the flow of electric charge in only one direction. It is the steady state of a constant-voltage circuit. Most well-known applications, however, use a time-varying voltage source. Alternating current (AC) is the flow of electric charge that periodically reverses direction. If the source varies periodically, particularly sinusoidally, the circuit is known as an alternating current circuit. Examples include the commercial and residential power that serves so many of our needs. Figure 20.19 shows graphs of voltage and current versus time for typical DC and AC power. The AC voltages and frequencies commonly used in homes and businesses vary around the world.

Part a shows a graph of voltage V and current I versus time for a D C source. The time is along the x axis and V and I are along the y axis. The graph shows that the voltage V sub D C and the current I sub D C do not vary with time. Part b shows the variation of voltage V and current I with time for an A C source. The time is along the horizontal axis and V and I are along the vertical axis. The graph for I is a progressing sine wave with a peak value I sub zero on the positive y axis and negative I sub zero on the negative y axis. The graph for V is a progressing sine wave with a higher amplitude than the current curve with a peak value V sub zero on the positive y axis and negative V sub zero on the negative y axis. The peak values of the voltage and current sine waves occur at the same time because they are in phase.
Figure 20.19 (a) DC voltage and current are constant in time, once the current is established. (b) A graph of voltage and current versus time for 60-Hz AC power. The voltage and current are sinusoidal and are in phase for a simple resistance circuit. The frequencies and peak voltages of AC sources differ greatly.
The potential difference variation of an alternating current voltage source with time is shown as a progressing sine wave. The voltage is shown along the vertical axis and the time is along the horizontal axis. Circuit diagrams show that current flowing in one direction corresponds to positive values of the voltage sine wave. Current flowing in the opposite direction in the circuit corresponds to negative values of the voltage sine wave. The maximum value of the voltage sine wave is plus V sub zero. The minimum value of the voltage sine wave is minus V sub zero.
Figure 20.20 The potential difference VV between the terminals of an AC voltage source fluctuates as shown. The mathematical expression for VV is given by V=V0sin 2 πftV=V0sin 2 πft size 12{V = V rSub { size 8{0} } "sin"" 2"π ital "ft"} {}.

Figure 20.20 shows a schematic of a simple circuit with an AC voltage source. The voltage between the terminals fluctuates as shown, with the AC voltage given by

V=V0sin 2πft,V=V0sin 2πft, size 12{V = V rSub { size 8{0} } "sin"" 2"π ital "ft"} {}
20.38

where VV size 12{V} {} is the voltage at time tt size 12{t} {}, V0V0 size 12{V rSub { size 8{0} } } {} is the peak voltage, and ff size 12{f} {} is the frequency in hertz. For this simple resistance circuit, I=V/RI=V/R size 12{I = ital "V/R"} {}, and so the AC current is

I=I0 sin 2πft,I=I0 sin 2πft, size 12{I = I rSub { size 8{0} } " sin 2"π ital "ft"} {}
20.39

where II size 12{I} {} is the current at time tt size 12{t} {}, and I0=V0/RI0=V0/R size 12{I rSub { size 8{0} } = V rSub { size 8{0} } ital "/R"} {} is the peak current. For this example, the voltage and current are said to be in phase, as seen in Figure 20.19(b).

Current in the resistor alternates back and forth just like the driving voltage, since I=V/RI=V/R size 12{I = ital "V/R"} {}. If the resistor is a fluorescent light bulb, for example, it brightens and dims 120 times per second as the current repeatedly goes through zero. A 120-Hz flicker is too rapid for your eyes to detect, but if you wave your hand back and forth between your face and a fluorescent light, you will see a stroboscopic effect evidencing AC. The fact that the light output fluctuates means that the power is fluctuating. The power supplied is P=IVP=IV size 12{P = ital "IV"} {}. Using the expressions for II size 12{I} {} and VV size 12{V} {} above, we see that the time dependence of power is P=I0V0sin2 2πftP=I0V0sin2 2πft size 12{P= I rSub { size 8{0} } V rSub { size 8{0} } "sin" rSup { size 8{2} } " 2"π ital "ft"} {}, as shown in Figure 20.21.

Making Connections: Take-Home Experiment—AC/DC Lights

Wave your hand back and forth between your face and a fluorescent light bulb. Do you observe the same thing with the headlights on your car? Explain what you observe. Warning: Do not look directly at very bright light.

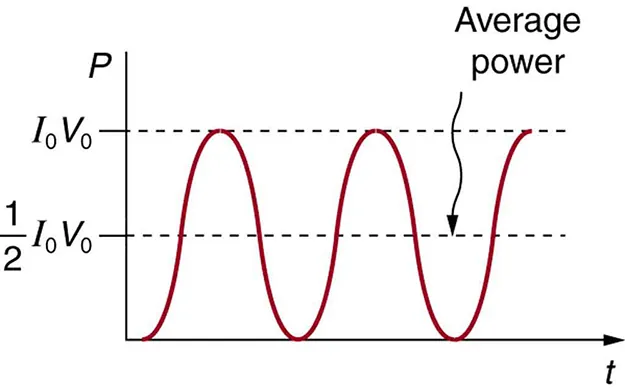

A graph showing the variation of power P with time t. The power is along the vertical axis and time is along the horizontal axis. The curve is a sine wave starting at the origin on the horizontal axis and having the crests and troughs both above the positive horizontal axis. The maximum value of power is given by the peak value, which is the product of I sub zero and V sub zero. The average power is indicated by a dotted line through the center of the wave parallel to the horizontal axis with a value half of the product of I sub zero and V sub zero.
Figure 20.21 AC power as a function of time. Since the voltage and current are in phase here, their product is non-negative and fluctuates between zero and I0V0I0V0 size 12{I rSub { size 8{0} } V rSub { size 8{0} } } {}. Average power is (1/2)I0V0(1/2)I0V0 size 12{ \( 1/2 \) I rSub { size 8{0} } V rSub { size 8{0} } } {}.

We are most often concerned with average power rather than its fluctuations—that 60-W light bulb in your desk lamp has an average power consumption of 60 W, for example. As illustrated in Figure 20.21, the average power PavePave size 12{P rSub { size 8{"ave"} } } {} is

Pave=12I0V0.Pave=12I0V0. size 12{P rSub { size 8{"ave"} } = { {1} over {2} } I rSub { size 8{0} } V rSub { size 8{0} } } {}
20.40

This is evident from the graph, since the areas above and below the (1/2)I0V0(1/2)I0V0 size 12{ \( 1/2 \) I rSub { size 8{0} } V rSub { size 8{0} } } {} line are equal, but it can also be proven using trigonometric identities. Similarly, we define an average or rms current IrmsIrms size 12{I rSub { size 8{"rms"} } } {} and average or rms voltage VrmsVrms size 12{V rSub { size 8{"rms"} } } {} to be, respectively,

I rms = I 0 2 I rms = I 0 2 size 12{I rSub { size 8{"rms "} } = { {I rSub { size 8{0} } } over { sqrt {2} } } } {}
20.41

and

Vrms =V02.Vrms =V02. size 12{V rSub { size 8{"rms "} } = { {V rSub { size 8{0} } } over { sqrt {2} } } } {}
20.42

where rms stands for root mean square, a particular kind of average. In general, to obtain a root mean square, the particular quantity is squared, its mean (or average) is found, and the square root is taken. This is useful for AC, since the average value is zero. Now,

Pave=IrmsVrms,Pave=IrmsVrms, size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } V rSub { size 8{"rms"} } } {}
20.43

which gives

Pave=I02V02=12I0V0,Pave=I02V02=12I0V0, size 12{P rSub { size 8{"ave"} } = { {I rSub { size 8{0} } } over { sqrt {2} } } cdot { {V rSub { size 8{0} } } over { sqrt {2} } } = { {1} over {2} } I rSub { size 8{0} } V rSub { size 8{0} } } {}
20.44

as stated above. It is standard practice to quote IrmsIrms size 12{I rSub { size 8{"rms"} } } {}, VrmsVrms size 12{V rSub { size 8{"rms"} } } {}, and PavePave size 12{P rSub { size 8{"ave"} } } {} rather than the peak values. For example, most household electricity is 120 V AC, which means that VrmsVrms size 12{V rSub { size 8{"rms"} } } {} is 120 V. The common 10-A circuit breaker will interrupt a sustained IrmsIrms size 12{I rSub { size 8{"rms"} } } {} greater than 10 A. Your 1.0-kW microwave oven consumes Pave=1.0 kWPave=1.0 kW size 12{P rSub { size 8{"ave"} } =1 "." 0`"kW"} {}, and so on. You can think of these rms and average values as the equivalent DC values for a simple resistive circuit.

To summarize, when dealing with AC, Ohm's law and the equations for power are completely analogous to those for DC, but rms and average values are used for AC. Thus, for AC, Ohm's law is written

Irms=VrmsR.Irms=VrmsR. size 12{I rSub { size 8{"rms"} } = { {V rSub { size 8{"rms"} } } over {R} } } {}
20.45

The various expressions for AC power PavePave size 12{P rSub { size 8{"ave"} } } {} are

Pave=IrmsVrms,Pave=IrmsVrms, size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } V rSub { size 8{"rms"} } } {}
20.46
Pave=Vrms2R,Pave=Vrms2R, size 12{P rSub { size 8{"ave"} } = { {V rSub { size 8{"rms"} } rSup { size 8{2} } } over {R} } } {}
20.47

and

Pave=Irms2R.Pave=Irms2R. size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } rSup { size 8{2} } R} {}
20.48

Example 20.9

Peak Voltage and Power for AC

(a) What is the value of the peak voltage for 120-V AC power? (b) What is the peak power consumption rate of a 60.0-W AC light bulb?

Strategy

We are told that VrmsVrms size 12{V rSub { size 8{"rms"} } } {} is 120 V and PavePave size 12{P rSub { size 8{"ave"} } } {} is 60.0 W. We can use Vrms =V02Vrms =V02 size 12{V rSub { size 8{"rms "} } = { {V rSub { size 8{0} } } over { sqrt {2} } } } {} to find the peak voltage, and we can manipulate the definition of power to find the peak power from the given average power.

Solution for (a)

Solving the equation Vrms =V02Vrms =V02 size 12{V rSub { size 8{"rms "} } = { {V rSub { size 8{0} } } over { sqrt {2} } } } {} for the peak voltage V0V0 size 12{V rSub { size 8{0} } } {} and substituting the known value for VrmsVrms size 12{V rSub { size 8{"rms"} } } {} gives

V0=2Vrms= 1.414(120 V)= 170 V.V0=2Vrms= 1.414(120 V)= 170 V. size 12{V rSub { size 8{0} } = sqrt {2} V rSub { size 8{"rms"} } =" 1" "." "414" \( "120"" V" \) =" 170 V"} {}
20.49

Discussion for (a)

This means that the AC voltage swings from 170 V to –170 V–170 V and back 60 times every second. An equivalent DC voltage is a constant 120 V.

Solution for (b)

Peak power is peak current times peak voltage. Thus,

P0=I0V0= 212I0V0= 2Pave.P0=I0V0= 212I0V0= 2Pave. size 12{P rSub { size 8{0} } = I rSub { size 8{0} } V rSub { size 8{0} } =" 2" left ( { {1} over {2} } I rSub { size 8{0} } V rSub { size 8{0} } right ) =" 2"P rSub { size 8{"ave"} } } {}
20.50

We know the average power is 60.0 W, and so

P0= 2(60.0 W)= 120 W.P0= 2(60.0 W)= 120 W. size 12{P rSub { size 8{0} } =" 2" \( "60" "." "0 W" \) =" 120 W"} {}
20.51

Discussion

So the power swings from zero to 120 W one hundred twenty times per second (twice each cycle), and the power averages 60 W.

Why Use AC for Power Distribution?

Most large power-distribution systems are AC. Moreover, the power is transmitted at much higher voltages than the 120-V AC (240 V in most parts of the world) we use in homes and on the job. Economies of scale make it cheaper to build a few very large electric power-generation plants than to build numerous small ones. This necessitates sending power long distances, and it is obviously important that energy losses en route be minimized. High voltages can be transmitted with much smaller power losses than low voltages, as we shall see. (See Figure 20.22.) For safety reasons, the voltage at the user is reduced to familiar values. The crucial factor is that it is much easier to increase and decrease AC voltages than DC, so AC is used in most large power distribution systems.

Photograph of transformers installed in transmission lines.
Figure 20.22 Power is distributed over large distances at high voltage to reduce power loss in the transmission lines. The voltages generated at the power plant are stepped up by passive devices called transformers (see Transformers) to 330,000 volts (or more in some places worldwide). At the point of use, the transformers reduce the voltage transmitted for safe residential and commercial use. (Credit: GeorgHH, Wikimedia Commons)

Example 20.10

Power Losses Are Less for High-Voltage Transmission

(a) What current is needed to transmit 100 MW of power at 200 kV? (b) What is the power dissipated by the transmission lines if they have a resistance of 1.00Ω1.00Ω size 12{1 "." "00" %OMEGA } {}? (c) What percentage of the power is lost in the transmission lines?

Strategy

We are given Pave=100 MWPave=100 MW size 12{P rSub { size 8{"ave"} } ="100"`"MW"} {}, Vrms=200 kVVrms=200 kV size 12{V rSub { size 8{"rms"} } ="200"`"kV"} {}, and the resistance of the lines is R=1.00ΩR=1.00Ω size 12{R=1 "." "00"` %OMEGA } {}. Using these givens, we can find the current (from P=IVP=IV size 12{P = ital "IV"} {}) and then the power dissipated in the lines (P=I2RP=I2R size 12{P = I rSup { size 8{2} } R} {}), and we take the ratio to the total power transmitted.

Solution

To find the current, we rearrange the relationship Pave=IrmsVrmsPave=IrmsVrms size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } V rSub { size 8{"rms"} } } {} and substitute known values. This gives

Irms=PaveVrms=100 × 106 W200 × 103 V= 500 A.Irms=PaveVrms=100 × 106 W200 × 103 V= 500 A. size 12{I rSub { size 8{"rms"} } = { {P rSub { size 8{"ave"} } } over {V rSub { size 8{"rms"} } } } = { {"100 " times " 10" rSup { size 8{6} } " W"} over {"200 " times " 10" rSup { size 8{3} } " V"} } =" 500 A"} {}
20.52

Solution

Knowing the current and given the resistance of the lines, the power dissipated in them is found from Pave=Irms2RPave=Irms2R size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } rSup { size 8{2} } R} {}. Substituting the known values gives

Pave=Irms2R=(500 A)2(1.00 Ω)= 250 kW.Pave=Irms2R=(500 A)2(1.00 Ω)= 250 kW. size 12{P rSub { size 8{"ave"} } = I rSub { size 8{"rms"} } rSup { size 8{2} } R = \( "500 A" \) rSup { size 8{2} } \( 1 "." "00 " %OMEGA \) =" 250 kW"} {}
20.53

Solution

The percent loss is the ratio of this lost power to the total or input power, multiplied by 100:

% loss=250 kW100 MW×100=0.250 %.% loss=250 kW100 MW×100=0.250 %. size 12{%" loss=" { {"250"" kW"} over {"100"" MW"} } ´"100"=0 "." "250 %"} {}
20.54

Discussion

One-fourth of a percent is an acceptable loss. Note that if 100 MW of power had been transmitted at 25 kV, then a current of 4000 A would have been needed. This would result in a power loss in the lines of 16.0 MW, or 16.0% rather than 0.250%. The lower the voltage, the more current is needed, and the greater the power loss in the fixed-resistance transmission lines. Of course, lower-resistance lines can be built, but this requires larger and more expensive wires. If superconducting lines could be economically produced, there would be no loss in the transmission lines at all. But, as we shall see in a later chapter, there is a limit to current in superconductors, too. In short, high voltages are more economical for transmitting power, and AC voltage is much easier to raise and lower, so that AC is used in most large-scale power distribution systems.
