### Learning Objectives

By the end of this section, you will be able to:

- Define electric current, ampere, and drift velocity.
- Describe the direction of charge flow in conventional current.
- Use drift velocity to calculate current and vice versa.

The information presented in this section supports the following AP® learning objectives and science practices:

**1.B.1.1**The student is able to make claims about natural phenomena based on conservation of electric charge.**(S.P. 6.4)****1.B.1.2**The student is able to make predictions, using the conservation of electric charge, about the sign and relative quantity of net charge of objects or systems after various charging processes, including conservation of charge in simple circuits.**(S.P. 6.4, 7.2)**

### Electric Current

Electric current is defined to be the rate at which charge flows. A large current, such as that used to start a truck engine, moves a large amount of charge in a small time, whereas a small current, such as that used to operate a hand-held calculator, moves a small amount of charge over a long period of time. In equation form, electric current $I$ is defined to be

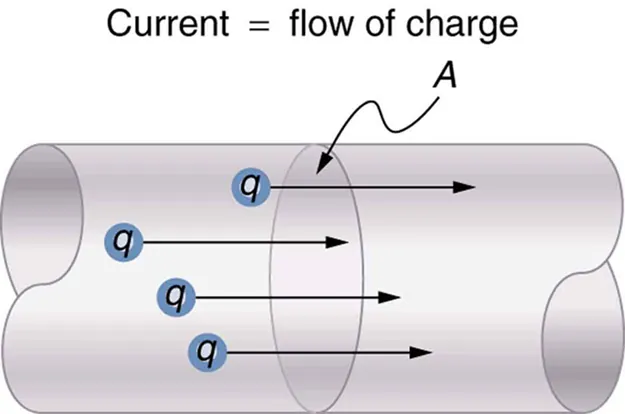

where $\mathrm{\Delta}Q$ is the amount of charge passing through a given area in time $\mathrm{\Delta}t$. (As in previous chapters, initial time is often taken to be zero, in which case $\mathrm{\Delta}t=t$.) (See Figure 20.2.) The SI unit for current is the ampere (A), named for the French physicist André-Marie Ampère (1775–1836). Since $I=\mathrm{\Delta}Q/\mathrm{\Delta}t$, we see that an ampere is one coulomb per second:

Not only are fuses and circuit breakers rated in amperes (or amps), so are many electrical appliances.

### Example 20.1

#### Calculating Currents: Current in a Truck Battery and a Handheld Calculator

(a) What is the current involved when a truck battery sets in motion 720 C of charge in 4.00 s while starting an engine? (b) How long does it take 1.00 C of charge to flow through a handheld calculator if a 0.300-mA current is flowing?

#### Strategy

We can use the definition of current in the equation $I=\mathrm{\Delta}Q/\mathrm{\Delta}t$ to find the current in part (a), since charge and time are given. In part (b), we rearrange the definition of current and use the given values of charge and current to find the time required.

#### Solution for (a)

Entering the given values for charge and time into the definition of current gives

#### Discussion for (a)

This large value for current illustrates the fact that a large charge is moved in a small amount of time. The currents in these “starter motors” are fairly large because large frictional forces need to be overcome when setting something in motion.

#### Solution for (b)

Solving the relationship $I=\mathrm{\Delta}Q/\mathrm{\Delta}t$ for time $\mathrm{\Delta}t$, and entering the known values for charge and current gives

#### Discussion for (b)

This time is slightly less than an hour. The small current used by the hand-held calculator takes a much longer time to move a smaller charge than the large current of the truck starter. So why can we operate our calculators only seconds after turning them on? It's because calculators require very little energy. Such small current and energy demands allow handheld calculators to operate from solar cells or to get many hours of use out of small batteries. Remember, calculators do not have moving parts in the same way that a truck engine has with cylinders and pistons, so the technology requires smaller currents.

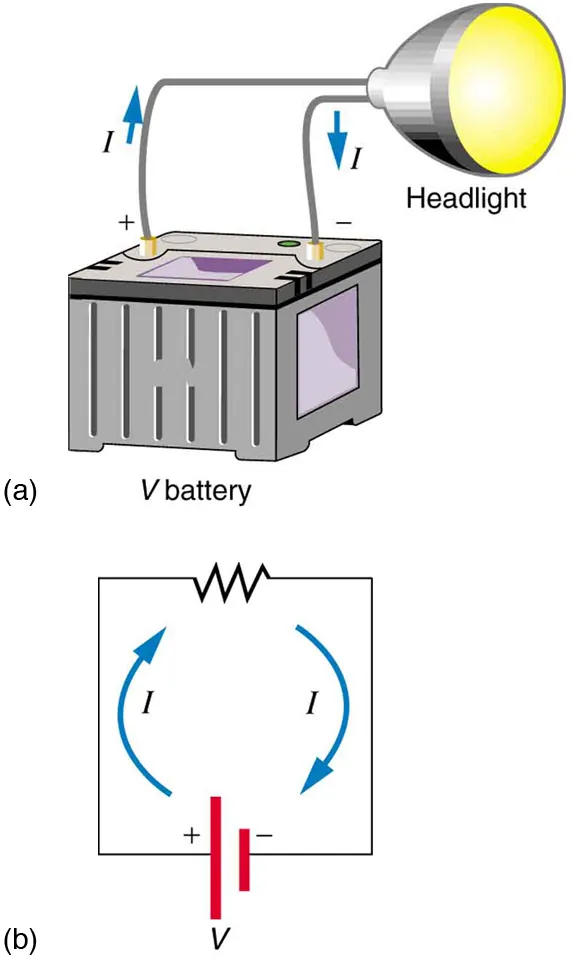

Figure 20.3 shows a simple circuit and the standard schematic representation of a battery, conducting path, and load (a resistor). Schematics are very useful in visualizing the main features of a circuit. A single schematic can represent a wide variety of situations. The schematic in Figure 20.3 (b), for example, can represent anything from a truck battery connected to a headlight lighting the street in front of the truck to a small battery connected to a penlight lighting a keyhole in a door. Such schematics are useful because the analysis is the same for a wide variety of situations. We need to understand a few schematics to apply the concepts and analysis to many more situations.

Note that the direction of current in Figure 20.3 is from positive to negative. *The direction of conventional current is the direction that positive charge would flow*. In a single loop circuit (as shown in Figure 20.3), the value for current at all points of the circuit should be the same if there are no losses. This is because current is the flow of charge and charge is conserved, i.e., the charge flowing out from the battery will be the same as the charge flowing into the battery. Depending on the situation, positive charges, negative charges, or both may move. In metal wires, for example, current is carried by electrons—that is, negative charges move. In ionic solutions, such as salt water, both positive and negative charges move. This is also true in nerve cells. A Van de Graaff generator used for nuclear research can produce a current of pure positive charges, such as protons. Figure 20.4 illustrates the movement of charged particles that compose a current. The fact that conventional current is taken to be in the direction that positive charge would flow can be traced back to American politician and scientist Benjamin Franklin in the 1700s. He named the type of charge associated with electrons negative, long before they were known to carry current in so many situations. Franklin, in fact, was totally unaware of the small-scale structure of electricity.

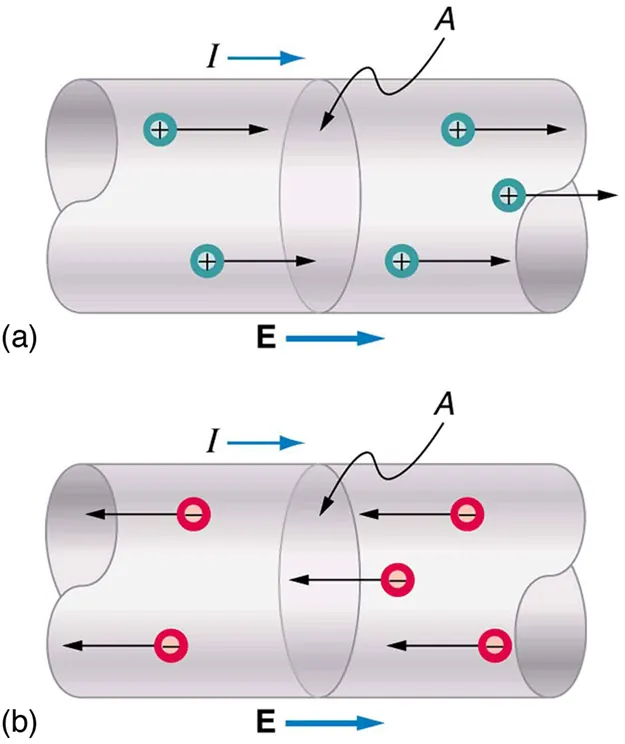

It is important to realize that there is an electric field in conductors responsible for producing the current, as illustrated in Figure 20.4. Unlike static electricity, where a conductor in equilibrium cannot have an electric field in it, conductors carrying a current have an electric field and are not in static equilibrium. An electric field is needed to supply energy to move the charges.

### Making Connections: Take-Home Investigation—Electric Current Illustration

Find a straw and little peas that can move freely in the straw. Place the straw flat on a table and fill the straw with peas. When you pop one pea in at one end, a different pea should pop out the other end. This demonstration is an analogy for an electric current. Identify what compares to the electrons and what compares to the supply of energy. What other analogies can you find for an electric current?

Note that the flow of peas is based on the peas physically bumping into each other; electrons flow due to mutually repulsive electrostatic forces.

### Example 20.2

#### Calculating the Number of Electrons that Move through a Calculator

If the 0.300-mA current through the calculator mentioned in the Example 20.1 example is carried by electrons, how many electrons per second pass through it?

#### Strategy

The current calculated in the previous example was defined for the flow of positive charge. For electrons, the magnitude is the same, but the sign is opposite, ${I}_{\text{electrons}}=-0.300\times {\text{10}}^{-3\phantom{\rule{0.25em}{0ex}}}\text{C/s}$ .Since each electron $({e}^{-})$ has a charge of $\mathrm{\u20131}\text{.}\text{60}\times {\text{10}}^{-\text{19}}\phantom{\rule{0.25em}{0ex}}\text{C}$, we can convert the current in coulombs per second to electrons per second.

#### Solution

Starting with the definition of current, we have

We divide this by the charge per electron, so that

#### Discussion

There are so many charged particles moving, even in small currents, that individual charges are not noticed, just as individual water molecules are not noticed in water flow. Even more amazing is that they do not always keep moving forward like soldiers in a parade. Rather they are like a crowd of people with movement in different directions but a general trend to move forward. There are lots of collisions with atoms in the metal wire and, of course, with other electrons.

### Drift Velocity

Electrical signals are known to move very rapidly. Telephone conversations carried by currents in wires cover large distances without noticeable delays. Lights come on as soon as a switch is flicked. Most electrical signals carried by currents travel at speeds on the order of ${\text{10}}^{8}\phantom{\rule{0.25em}{0ex}}\text{m/s}$, a significant fraction of the speed of light. Interestingly, the individual charges that make up the current move * much* more slowly on average, typically drifting at speeds on the order of ${\text{10}}^{-4}\phantom{\rule{0.25em}{0ex}}\text{m/s}$. How do we reconcile these two speeds, and what does it tell us about standard conductors?

The high speed of electrical signals results from the fact that the force between charges acts rapidly at a distance. Thus, when a free charge is forced into a wire, as in Figure 20.5, the incoming charge pushes other charges ahead of it, which in turn push on charges farther down the line. The density of charge in a system cannot easily be increased, and so the signal is passed on rapidly. The resulting electrical shock wave moves through the system at nearly the speed of light. To be precise, this rapidly moving signal or shock wave is a rapidly propagating change in electric field.

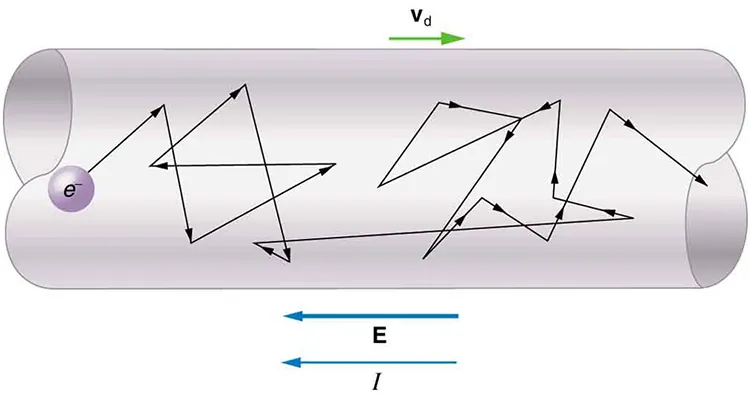

Good conductors have large numbers of free charges in them. In metals, the free charges are free electrons. Figure 20.6 shows how free electrons move through an ordinary conductor. The distance that an individual electron can move between collisions with atoms or other electrons is quite small. The electron paths thus appear nearly random, like the motion of atoms in a gas. But there is an electric field in the conductor that causes the electrons to drift in the direction shown (opposite to the field, since they are negative). The drift velocity ${v}_{\text{d}}$ is the average velocity of the free charges. Drift velocity is quite small, since there are so many free charges. If we have an estimate of the density of free electrons in a conductor, we can calculate the drift velocity for a given current. The larger the density, the lower the velocity required for a given current.

### Conduction of Electricity and Heat

Good electrical conductors are often good heat conductors, too. This is because large numbers of free electrons can carry electrical current and can transport thermal energy.

The free-electron collisions transfer energy to the atoms of the conductor. The electric field does work in moving the electrons through a distance, but that work does not increase the kinetic energy (nor speed, therefore) of the electrons. The work is transferred to the conductor's atoms, possibly increasing temperature. Thus a continuous power input is required to maintain current. An exception, of course, is found in superconductors, for reasons we shall explore in a later chapter. Superconductors can have a steady current without a continual supply of energy—a great energy savings. In contrast, the supply of energy can be useful, such as in a lightbulb filament. The supply of energy is necessary to increase the temperature of the tungsten filament, so that the filament glows.

### Making Connections: Take-Home Investigation—Filament Observations

Find a lightbulb with a filament. Look carefully at the filament and describe its structure. To what points is the filament connected?

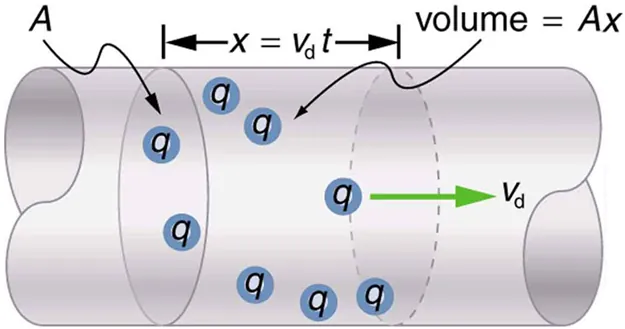

We can obtain an expression for the relationship between current and drift velocity by considering the number of free charges in a segment of wire, as illustrated in Figure 20.7. * The number of free charges per unit volume* is given the symbol $n$ and depends on the material. The shaded segment has a volume $\text{Ax}$, so that the number of free charges in it is $\text{nAx}$. The charge $\mathrm{\Delta}Q$ in this segment is thus $\text{qnAx}$, where $q$ is the amount of charge on each carrier. (Recall that for electrons, $q$ is $-1\text{.}\text{60}\times {\text{10}}^{-\text{19}}\phantom{\rule{0.25em}{0ex}}\text{C}$.) Current is charge moved per unit time; thus, if all the original charges move out of this segment in time $\mathrm{\Delta}t$, the current is

Note that $x/\mathrm{\Delta}t$ is the magnitude of the drift velocity, ${v}_{\text{d}}$, since the charges move an average distance $x$ in a time $\mathrm{\Delta}t$. Rearranging terms gives

where $I$ is the current through a wire of cross-sectional area $A$ made of a material with a free charge density $n$. The carriers of the current each have charge $q$ and move with a drift velocity of magnitude ${v}_{\text{d}}$.

Note that simple drift velocity is not the entire story. The speed of an electron is much greater than its drift velocity. In addition, not all of the electrons in a conductor can move freely, and those that do might move somewhat faster or slower than the drift velocity. So what do we mean by free electrons? Atoms in a metallic conductor are packed in the form of a lattice structure. Some electrons are far enough away from the atomic nuclei that they do not experience the attraction of the nuclei as much as the inner electrons do. These are the free electrons. They are not bound to a single atom but can instead move freely among the atoms in a “sea” of electrons. These free electrons respond by accelerating when an electric field is applied. Of course as they move they collide with the atoms in the lattice and other electrons, generating thermal energy, and the conductor gets warmer. In an insulator, the organization of the atoms and the structure do not allow for such free electrons.

### Example 20.3

#### Calculating Drift Velocity in a Common Wire

Calculate the drift velocity of electrons in a 12-gauge copper wire (which has a diameter of 2.053 mm) carrying a 20.0-A current, given that there is one free electron per copper atom. (Household wiring often contains 12-gauge copper wire, and the maximum current allowed in such wire is usually 20 A.) The density of copper is $8\text{.}\text{80}\times {\text{10}}^{3}\phantom{\rule{0.25em}{0ex}}{\text{kg/m}}^{3}$.

#### Strategy

We can calculate the drift velocity using the equation $I={\mathrm{nqAv}}_{\text{d}}$. The current $I=\mathrm{20.0\; A}$ is given, and $q=\phantom{\rule{0.25em}{0ex}}\u20131.60\times {10}^{\u201319}\text{C}$ is the charge of an electron. We can calculate the area of a cross-section of the wire using the formula $A=\pi {r}^{2},$ where $r$ is one-half the given diameter, 2.053 mm. We are given the density of copper, $8.80\times {10}^{3}\phantom{\rule{0.25em}{0ex}}{\text{kg/m}}^{3},$ and the periodic table shows that the atomic mass of copper is 63.54 g/mol. We can use these two quantities along with Avogadro's number, $6.02\times {10}^{23}\phantom{\rule{0.25em}{0ex}}\text{atoms/mol},$ to determine $n,$ the number of free electrons per cubic meter.

#### Solution

First, calculate the density of free electrons in copper. There is one free electron per copper atom. Therefore, is the same as the number of copper atoms per ${\mathrm{m}}^{3}$. We can now find $n$ as follows:

The cross-sectional area of the wire is

Rearranging $I=nqA{v}_{\text{d}}$ to isolate drift velocity gives

#### Discussion

The minus sign indicates that the negative charges are moving in the direction opposite to conventional current. The small value for drift velocity (on the order of ${\text{10}}^{-4}\phantom{\rule{0.25em}{0ex}}\text{m/s}$) confirms that the signal moves on the order of ${\text{10}}^{\text{12}}$ times faster (about ${\text{10}}^{8}\phantom{\rule{0.25em}{0ex}}\text{m/s}$) than the charges that carry it.
