Learning Objectives

By the end of this section, you will be able to:

Explain the relationship between vapor pressure of water and the capacity of air to hold water vapor.
Explain the relationship between relative humidity and partial pressure of water vapor in the air.
Calculate vapor density using vapor pressure.
Calculate humidity and dew point.

Figure 13.31 Dew drops like these, on a banana leaf photographed just after sunrise, form when the air temperature drops to or below the dew point. At the dew point, the air can no longer hold all of the water vapor it held at higher temperatures, and some of the water condenses to form droplets. (credit: Aaron Escobar, Flickr)

The expression “it’s not the heat, it’s the humidity” makes a valid point. We keep cool in hot weather by evaporating sweat from our skin and water from our breathing passages. Because evaporation is inhibited by high humidity, we feel hotter at a given temperature when the humidity is high. Low humidity, on the other hand, can cause discomfort from excessive drying of mucous membranes and can lead to an increased risk of respiratory infections.

When we say humidity, we really mean relative humidity. Relative humidity tells us how much water vapor is in the air compared with the maximum possible. At its maximum, denoted as saturation, the relative humidity is 100%, and evaporation is inhibited. The amount of water vapor the air can hold depends on its temperature. For example, relative humidity rises in the evening, as air temperature declines, sometimes reaching the dew point. At the dew point temperature, relative humidity is 100%, and fog may result from the condensation of water droplets if they are small enough to stay in suspension. Conversely, if you wish to dry something (perhaps your hair), it is more effective to blow hot air over it rather than cold air, because, among other things, hot air can hold more water vapor.

The capacity of air to hold water vapor is based on vapor pressure of water. The liquid and solid phases are continuously giving off vapor because some of the molecules have high enough speeds to enter the gas phase; see Figure 13.32(a). If a lid is placed over the container, as in Figure 13.32(b), evaporation continues, increasing the pressure, until sufficient vapor has built up for condensation to balance evaporation. Then equilibrium has been achieved, and the vapor pressure is equal to the partial pressure of water in the container. Vapor pressure increases with temperature because molecular speeds are higher as temperature increases. Table 13.5 gives representative values of water vapor pressure over a range of temperatures.

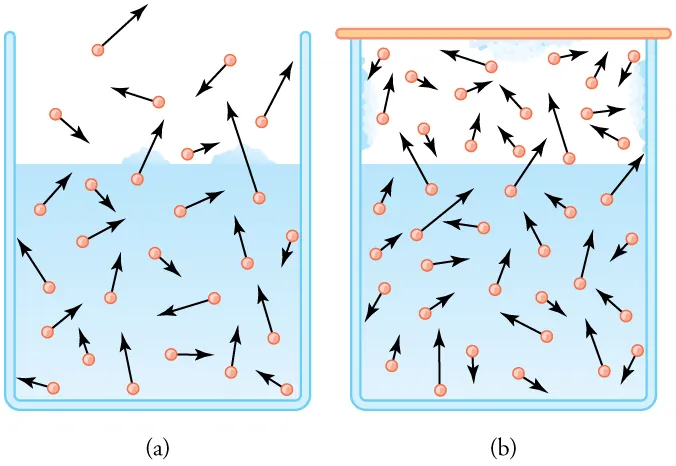

Two containers, each filled two-thirds with water. One is open to the atmosphere and the other is sealed at the top. The water molecules are depicted as circles with vector arrows of different lengths and directions to indicate velocity. In the sealed container the density of molecules in the air above the water is greater than in the unsealed container. In the sealed container, water is condensing along the walls and top of the upper part of the container.

Figure 13.32 (a) Because of the distribution of speeds and kinetic energies, some water molecules can break away to the vapor phase even at temperatures below the ordinary boiling point. (b) If the container is sealed, evaporation will continue until there is enough vapor density for the condensation rate to equal the evaporation rate. This vapor density and the partial pressure it creates are the saturation values. They increase with temperature and are independent of the presence of other gases, such as air. They depend only on the vapor pressure of water.

Relative humidity is related to the partial pressure of water vapor in the air. At 100% humidity, the partial pressure is equal to the vapor pressure, and no more water can enter the vapor phase. If the partial pressure is less than the vapor pressure, then evaporation will take place, as humidity is less than 100%. If the partial pressure is greater than the vapor pressure, condensation takes place. The capacity of air to “hold” water vapor is determined by the vapor pressure of water and has nothing to do with the properties of air.

Temperature $(º C)$	Vapor pressure (Pa)	Saturation vapor density (g/m³)
−50	4.0	0.039
−20	$1 . 04 \times 10^{2}$	0.89
−10	$2.60 \times 10^{2}$	2.36
0	$6.10 \times 10^{2}$	4.84
5	$8.68 \times 10^{2}$	6.80
10	$1.19 \times 10^{3}$	9.40
15	$1.69 \times 10^{3}$	12.8
20	$2.33 \times 10^{3}$	17.2
25	$3.17 \times 10^{3}$	23.0
30	$4.24 \times 10^{3}$	30.4
37	$6.31 \times 10^{3}$	44.0
40	$7.34 \times 10^{3}$	51.1
50	$1 . 23 \times 10^{4}$	82.4
60	$1.99 \times 10^{4}$	130
70	$3.12 \times 10^{4}$	197
80	$4.73 \times 10^{4}$	294
90	$7.01 \times 10^{4}$	418
95	$8.59 \times 10^{4}$	505
100	$1.01 \times 10^{5}$	598
120	$1.99 \times 10^{5}$	1095
150	$4.76 \times 10^{5}$	2430
200	$1.55 \times 10^{6}$	7090
220	$2.32 \times 10^{6}$	10,200

Table 13.5 Saturation Vapor Density of Water

Example 13.12

Calculating Density Using Vapor Pressure

Table 13.5 gives the vapor pressure of water at $20.0 º C$ as $2.33 \times 10^{3} Pa .$ Use the ideal gas law to calculate the density of water vapor in $g / m^{3}$ that would create a partial pressure equal to this vapor pressure. Compare the result with the saturation vapor density given in the table.

Strategy

To solve this problem, we need to break it down into a two steps. The partial pressure follows the ideal gas law,

PV = nRT,

13.70

where $n$ is the number of moles. If we solve this equation for $n / V$ to calculate the number of moles per cubic meter, we can then convert this quantity to grams per cubic meter as requested. To do this, we need to use the molecular mass of water, which is given in the periodic table.

Solution

1. Identify the knowns and convert them to the proper units:

temperature $T = 20 º C=293 K$
vapor pressure $P$ of water at $20 º C$ is $2 . 33 \times 10^{3} Pa$
molecular mass of water is $18.0 g/mol$

2. Solve the ideal gas law for $n / V$ .

\frac{n}{V} = \frac{P}{RT}

13.71

3. Substitute known values into the equation and solve for $n / V$ .

\frac{n}{V} = \frac{P}{RT} = \frac{2 . 33 \times 10^{3} Pa}{(8.31 J/mol \cdot K) (293 K)} = 0 . 957 {mol/m}^{3}

13.72

4. Convert the density in moles per cubic meter to grams per cubic meter.

ρ = (0.957 \frac{mol}{m^{3}}) (\frac{18 . 0 g}{mol}) = 17 . 2 {g/m}^{3}

13.73

Discussion

The density is obtained by assuming a pressure equal to the vapor pressure of water at $20.0 º C$ . The density found is identical to the value in Table 13.5, which means that a vapor density of $17.2 {g/m}^{3}$ at $20.0 º C$ creates a partial pressure of $2.33 \times 10^{3} Pa,$ equal to the vapor pressure of water at that temperature. If the partial pressure is equal to the vapor pressure, then the liquid and vapor phases are in equilibrium, and the relative humidity is 100%. Thus, there can be no more than 17.2 g of water vapor per $m^{3}$ at $20.0 º C$ , so that this value is the saturation vapor density at that temperature. This example illustrates how water vapor behaves like an ideal gas: the pressure and density are consistent with the ideal gas law (assuming the density in the table is correct). The saturation vapor densities listed in Table 13.5 are the maximum amounts of water vapor that air can hold at various temperatures.

Percent Relative Humidity

We define percent relative humidity as the ratio of vapor density to saturation vapor density, or

percent relative humidity = \frac{vapor density}{saturation vapor density} \times 100

13.74

We can use this and the data in Table 13.5 to do a variety of interesting calculations, keeping in mind that relative humidity is based on the comparison of the partial pressure of water vapor in air and ice.

Example 13.13

Calculating Humidity and Dew Point

(a) Calculate the percent relative humidity on a day when the temperature is $25.0 º C$ and the air contains 9.40 g of water vapor per $m^{3}$ . (b) At what temperature will this air reach 100% relative humidity (the saturation density)? This temperature is the dew point. (c) What is the humidity when the air temperature is $25.0 º C$ and the dew point is $- 10 . 0 º C$ ?

Strategy and Solution

(a) Percent relative humidity is defined as the ratio of vapor density to saturation vapor density.

percent relative humidity = \frac{vapor density}{saturation vapor density} \times 100

13.75

The first is given to be $9 . {40 g/m}^{3}$ , and the second is found in Table 13.5 to be $23 . {0 g/m}^{3}$ . Thus,

percent relative humidity = \frac{9 . {40 g/m}^{3}}{23 . {0 g/m}^{3}} \times 100 = 40 . 9 .%

13.76

(b) The air contains $9 . {40 g/m}^{3}$ of water vapor. The relative humidity will be 100% at a temperature where $9 . {40 g/m}^{3}$ is the saturation density. Inspection of Table 13.5 reveals this to be the case at $10.0 º C$ , where the relative humidity will be 100%. That temperature is called the dew point for air with this concentration of water vapor.

(c) Here, the dew point temperature is given to be $- 10 . 0 º C$ . Using Table 13.5, we see that the vapor density is $2 . {36 g/m}^{3}$ , because this value is the saturation vapor density at $- 10 . 0 º C$ . The saturation vapor density at $25.0 º C$ is seen to be $23 . {0 g/m}^{3}$ . Thus, the relative humidity at $25.0 º C$ is

percent relative humidity = \frac{2 . {36 g/m}^{3}}{23 . {0 g/m}^{3}} \times 100 = 10 . 3 % .

13.77

Discussion

The importance of dew point is that air temperature cannot drop below $10.0 º C$ in part (b), or $- 10 . 0 º C$ in part (c), without water vapor condensing out of the air. If condensation occurs, considerable transfer of heat occurs (discussed in Heat and Heat Transfer Methods), which prevents the temperature from further dropping. When dew points are below $0 ºC$ , freezing temperatures are a greater possibility, which explains why farmers keep track of the dew point. Low humidity in deserts means low dew-point temperatures. Thus condensation is unlikely. If the temperature drops, vapor does not condense in liquid drops. Because no heat is released into the air, the air temperature drops more rapidly compared to air with higher humidity. Likewise, at high temperatures, liquid droplets do not evaporate, so that no heat is removed from the gas to the liquid phase. This explains the large range of temperature in arid regions.

Why does water boil at $100 º C$ ? You will note from Table 13.5 that the vapor pressure of water at $100 º C$ is $1.01 \times 10^{5} Pa$ , or 1.00 atm. Thus, it can evaporate without limit at this temperature and pressure. But why does it form bubbles when it boils? This is because water ordinarily contains significant amounts of dissolved air and other impurities, which are observed as small bubbles of air in a glass of water. If a bubble starts out at the bottom of the container at $20 º C$ , it contains water vapor (about 2.30%). The pressure inside the bubble is fixed at 1.00 atm (we ignore the slight pressure exerted by the water around it). As the temperature rises, the amount of air in the bubble stays the same, but the water vapor increases; the bubble expands to keep the pressure at 1.00 atm. At $100 º C$ , water vapor enters the bubble continuously since the partial pressure of water is equal to 1.00 atm in equilibrium. It cannot reach this pressure, however, since the bubble also contains air and total pressure is 1.00 atm. The bubble grows in size and thereby increases the buoyant force. The bubble breaks away and rises rapidly to the surface—we call this boiling! (See Figure 13.33.)

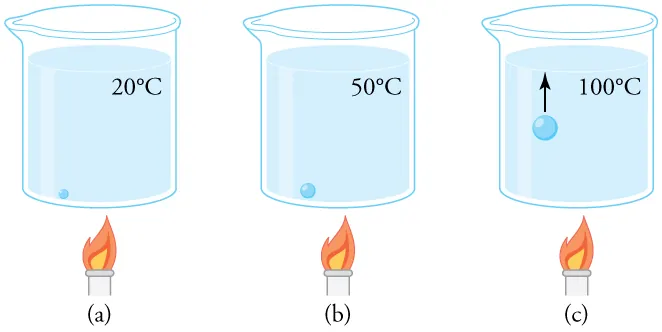

A beaker of water being heated over a flame. The beaker is shown at three different times. In the first, at twenty degrees C, a small bubble sits on the bottom of the beaker. In the second step, the water temperature is fifty degrees C and the bubble is larger, though still sitting on the bottom of the beaker. In the third step, the water temperature is one hundred degrees C. The bubble is larger and is rising toward the surface.

Figure 13.33 (a) An air bubble in water starts out saturated with water vapor at

20 º C

. (b) As the temperature rises, water vapor enters the bubble because its vapor pressure increases. The bubble expands to keep its pressure at 1.00 atm. (c) At

100 º C

, water vapor enters the bubble continuously because water’s vapor pressure exceeds its partial pressure in the bubble, which must be less than 1.00 atm. The bubble grows and rises to the surface.

Check Your Understanding

Freeze drying is a process in which substances, such as foods, are dried by placing them in a vacuum chamber and lowering the atmospheric pressure around them. How does the lowered atmospheric pressure speed the drying process, and why does it cause the temperature of the food to drop?

Solution

Decreased the atmospheric pressure results in decreased partial pressure of water, hence a lower humidity. So evaporation of water from food, for example, will be enhanced. The molecules of water most likely to break away from the food will be those with the greatest velocities. Those remaining thus have a lower average velocity and a lower temperature. This can (and does) result in the freezing and drying of the food; hence the process is aptly named freeze drying.

PhET Explorations

States of Matter

Watch different types of molecules form a solid, liquid, or gas. Add or remove heat and watch the phase change. Change the temperature or volume of a container and see a pressure-temperature diagram respond in real time. Relate the interaction potential to the forces between molecules.

Access multimedia content

Figure 13.34
