11.5 Pascal’s Principle

College Physics for AP® Courses11.5 Pascal’s Principle

Learning Objectives

By the end of this section, you will be able to:

  • Define pressure.
  • State Pascal's principle.
  • Understand applications of Pascal's principle.
  • Derive relationships between forces in a hydraulic system.

Pressure is defined as force per unit area. Can pressure be increased in a fluid by pushing directly on the fluid? Yes, but it is much easier if the fluid is enclosed. The heart, for example, increases blood pressure by pushing directly on the blood in an enclosed system (valves closed in a chamber). If you try to push on a fluid in an open system, such as a river, the fluid flows away. An enclosed fluid cannot flow away, and so pressure is more easily increased by an applied force.

What happens to a pressure in an enclosed fluid? Since atoms in a fluid are free to move about, they transmit the pressure to all parts of the fluid and to the walls of the container. Remarkably, the pressure is transmitted undiminished. This phenomenon is called Pascal's principle, because it was first clearly stated by the French philosopher and scientist Blaise Pascal (1623–1662): A change in pressure applied to an enclosed fluid is transmitted undiminished to all portions of the fluid and to the walls of its container.

Pascal's Principle

A change in pressure applied to an enclosed fluid is transmitted undiminished to all portions of the fluid and to the walls of its container.

Pascal's principle, an experimentally verified fact, is what makes pressure so important in fluids. Since a change in pressure is transmitted undiminished in an enclosed fluid, we often know more about pressure than other physical quantities in fluids. Moreover, Pascal's principle implies that the total pressure in a fluid is the sum of the pressures from different sources. We shall find this fact—that pressures add—very useful.

Blaise Pascal had an interesting life in that he was home-schooled by his father who removed all of the mathematics textbooks from his house and forbade him to study mathematics until the age of 15. This, of course, raised the boy's curiosity, and by the age of 12, he started to teach himself geometry. Despite this early deprivation, Pascal went on to make major contributions in the mathematical fields of probability theory, number theory, and geometry. He is also well known for being the inventor of the first mechanical digital calculator, in addition to his contributions in the field of fluid statics.

Application of Pascal's Principle

One of the most important technological applications of Pascal's principle is found in a hydraulic system, which is an enclosed fluid system used to exert forces. The most common hydraulic systems are those that operate car brakes. Let us first consider the simple hydraulic system shown in Figure 11.15.

A small force can be converted into a larger force when pressure is transmitted through liquids in different containers with pistons that are connected.
Figure 11.15 A typical hydraulic system with two fluid-filled cylinders, capped with pistons and connected by a tube called a hydraulic line. A downward force F1F1 size 12{F rSub { size 8{1} } } {} on the left piston creates a pressure that is transmitted undiminished to all parts of the enclosed fluid. This results in an upward force F2F2 size 12{F rSub { size 8{2} } } {} on the right piston that is larger than F1F1 size 12{F rSub { size 8{1} } } {} because the right piston has a larger area.

Relationship Between Forces in a Hydraulic System

We can derive a relationship between the forces in the simple hydraulic system shown in Figure 11.15 by applying Pascal's principle. Note first that the two pistons in the system are at the same height, and so there will be no difference in pressure due to a difference in depth. Now the pressure due to F1F1 size 12{F rSub { size 8{1} } } {} acting on area A1A1 size 12{A rSub { size 8{1} } } {} is simply P1=F1A1P1=F1A1 size 12{P rSub { size 8{1} } = { {F rSub { size 8{1} } } over {A rSub { size 8{1} } } } } {}, as defined by P=FAP=FA size 12{P= { {F} over {A} } } {}. According to Pascal's principle, this pressure is transmitted undiminished throughout the fluid and to all walls of the container. Thus, a pressure P2P2 size 12{P rSub { size 8{2} } } {} is felt at the other piston that is equal to P1P1 size 12{P rSub { size 8{1} } } {}. That is P1=P2P1=P2 size 12{P rSub { size 8{1} } =P rSub { size 8{2} } } {}.

But since P2=F2A2P2=F2A2 size 12{P rSub { size 8{2} } = { {F rSub { size 8{2} } } over {A rSub { size 8{2} } } } } {}, we see that F1A1=F2A2F1A1=F2A2 size 12{ { {F rSub { size 8{1} } } over {A rSub { size 8{1} } } } = { {F rSub { size 8{2} } } over {A rSub { size 8{2} } } } } {}.

This equation relates the ratios of force to area in any hydraulic system, providing the pistons are at the same vertical height and that friction in the system is negligible. Hydraulic systems can increase or decrease the force applied to them. To make the force larger, the pressure is applied to a larger area. For example, if a 100-N force is applied to the left cylinder in Figure 11.15 and the right one has an area five times greater, then the force out is 500 N. Hydraulic systems are analogous to simple levers, but they have the advantage that pressure can be sent through tortuously curved lines to several places at once.

Example 11.6

Calculating Force of Wheel Cylinders: Pascal Puts on the Brakes

Consider the automobile hydraulic system shown in Figure 11.16.

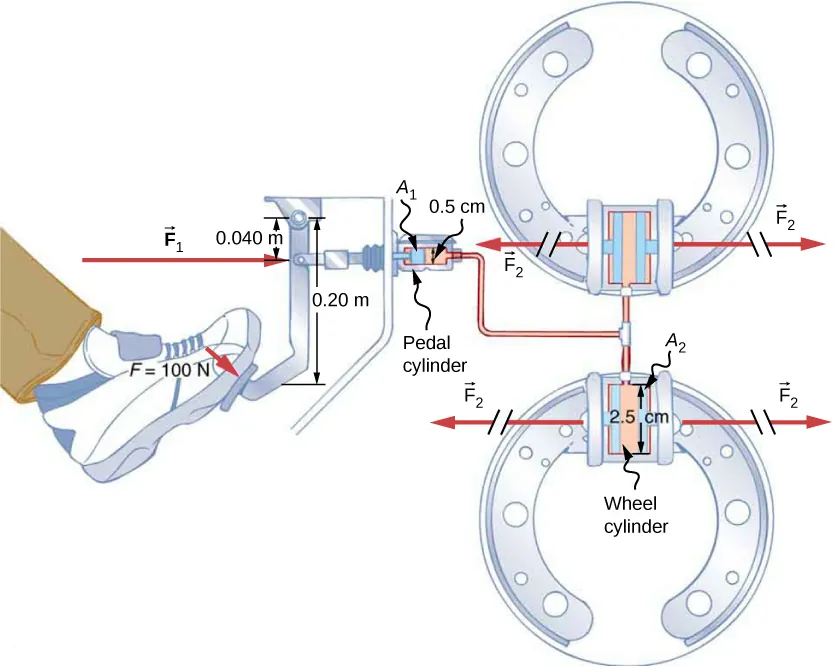

When the driver applies force on the brake pedal, the pedal cylinder transmits the same pressure to the wheel cylinders but results in a larger force due to the larger area of the wheel cylinders.
Figure 11.16 Hydraulic brakes use Pascal's principle. The driver exerts a force of 100 N on the brake pedal. This force is increased by the simple lever and again by the hydraulic system. Each of the identical wheel cylinders receives the same pressure and, therefore, creates the same force output F2F2 size 12{F rSub { size 8{2} } } {}. The circular cross-sectional areas of the pedal and wheel cylinders are represented by A1A1 size 12{A rSub { size 8{1} } } {} and A2A2 size 12{A rSub { size 8{2} } } {}, respectively.

A force of 100 N is applied to the brake pedal, which acts on the pedal cylinder—called the master—through a lever. A force of 500 N is exerted on the pedal cylinder. (The reader can verify that the force is 500 N using techniques of statics from Applications of Statics, Including Problem-Solving Strategies.) Pressure created in the pedal cylinder is transmitted to four wheel cylinders. The pedal cylinder has a diameter of 0.500 cm, and each wheel cylinder has a diameter of 2.50 cm. Calculate the force F2F2 size 12{F rSub { size 8{2} } } {} created at each of the wheel cylinders.

Strategy

We are given the force F1F1 size 12{F rSub { size 8{1} } } {} that is applied to the pedal cylinder. The cross-sectional areas A1A1 size 12{A rSub { size 8{1} } } {} and A2A2 size 12{A rSub { size 8{2} } } {} can be calculated from their given diameters. Then F1A1=F2A2F1A1=F2A2 size 12{ { {F rSub { size 8{1} } } over {A rSub { size 8{1} } } } = { {F rSub { size 8{2} } } over {A rSub { size 8{2} } } } } {} can be used to find the force F2F2 size 12{F rSub { size 8{2} } } {}. Manipulate this algebraically to get F2F2 size 12{F rSub { size 8{2} } } {} on one side and substitute known values:

Solution

Pascal's principle applied to hydraulic systems is given by F1A1=F2A2F1A1=F2A2 size 12{ { {F rSub { size 8{1} } } over {A rSub { size 8{1} } } } = { {F rSub { size 8{2} } } over {A rSub { size 8{2} } } } } {}:

F2=A2A1F1=πr22πr12F1=1.25 cm20.250 cm2×500 N=1.25×104 N.F2=A2A1F1=πr22πr12F1=1.25 cm20.250 cm2×500 N=1.25×104 N. size 12{F rSub { size 8{2} } = { {A rSub { size 8{2} } } over {A rSub { size 8{1} } } } F rSub { size 8{1} } = { {πr rSub { size 8{2} } rSup { size 8{2} } } over {πr rSub { size 8{1} } rSup { size 8{2} } } } F rSub { size 8{1} } = { { left (1 "." "25"`"cm" right ) rSup { size 8{2} } } over { left (0 "." "250"`"cm" right ) rSup { size 8{2} } } } times "500"`N=1 "." "25" times "10" rSup { size 8{4} } `N} {}
11.27

Discussion

This value is the force exerted by each of the four wheel cylinders. Note that we can add as many wheel cylinders as we wish. If each has a 2.50-cm diameter, each will exert 1.25×104 N.1.25×104 N. size 12{1 "." "25" times "10" rSup { size 8{4} } `N "." } {}

A simple hydraulic system, such as a simple machine, can increase force but cannot do more work than done on it. Work is force times distance moved, and the wheel cylinder moves through a smaller distance than the pedal cylinder. Furthermore, the more wheels added, the smaller the distance each moves. Many hydraulic systems—such as power brakes and those in bulldozers—have a motorized pump that actually does most of the work in the system. The movement of the legs of a spider is achieved partly by hydraulics. Using hydraulics, a jumping spider can create a force that makes it capable of jumping 25 times its length!

Making Connections: Conservation of Energy

Conservation of energy applied to a hydraulic system tells us that the system cannot do more work than is done on it. Work transfers energy, and so the work output cannot exceed the work input. Power brakes and other similar hydraulic systems use pumps to supply extra energy when needed.
