Paul Peter Urone; Roger Hinrichs

Learning Objectives

By the end of this section, you will be able to:

Discuss the pattern obtained from diffraction grating.
Explain diffraction grating effects.

An interesting thing happens if you pass light through a large number of evenly spaced parallel slits, called a diffraction grating. An interference pattern is created that is very similar to the one formed by a double slit (see Figure 27.16). A diffraction grating can be manufactured by scratching glass with a sharp tool in a number of precisely positioned parallel lines, with the untouched regions acting like slits. These can be photographically mass produced rather cheaply. Diffraction gratings work both for transmission of light, as in Figure 27.16, and for reflection of light, as on butterfly wings and the Australian opal in Figure 27.17 or the CD pictured in the opening photograph of this chapter. In addition to their use as novelty items, diffraction gratings are commonly used for spectroscopic dispersion and analysis of light. What makes them particularly useful is the fact that they form a sharper pattern than double slits do. That is, their bright regions are narrower and brighter, while their dark regions are darker. Figure 27.18 shows idealized graphs demonstrating the sharper pattern. Natural diffraction gratings occur in the feathers of certain birds. Tiny, finger-like structures in regular patterns act as reflection gratings, producing constructive interference that gives the feathers colors not solely due to their pigmentation. This is called iridescence.

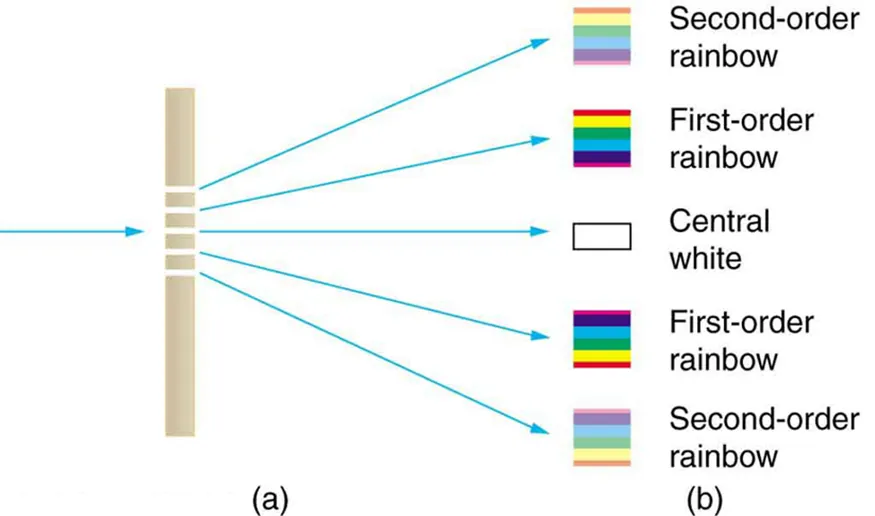

On the left side of the figure is a diffraction grating represented by a vertical bar with five horizontal slits cut through it. A single horizontal arrow, representing white light, points at the center slit from the left side. On the right side, five arrows spread symmetrically above and below the horizontal centerline. The arrow that is on the horizontal centerline points at a white block labeled central white. The first arrows above and below the centerline point to rainbow-colored blocks labeled first-order rainbow. The second arrows above and below the centerline point to slightly faded rainbow-colored blocks that are labeled second-order rainbow.

Figure 27.16 A diffraction grating is a large number of evenly spaced parallel slits. (a) Light passing through is diffracted in a pattern similar to a double slit, with bright regions at various angles. (b) The pattern obtained for white light incident on a grating. The central maximum is white, and the higher-order maxima disperse white light into a rainbow of colors.

Colorful photos of an Australian opal and a butterfly. The opal is full of fiery reds and yellows and deep blues and purples. The butterfly has its yellow wings spread and you can see its characteristic red, blue, and black spots and fringing.

Figure 27.17 (a) This Australian opal and (b) the butterfly wings have rows of reflectors that act like reflection gratings, reflecting different colors at different angles. (credits: (a) Opals-On-Black.com, via Flickr (b) whologwhy, Flickr)

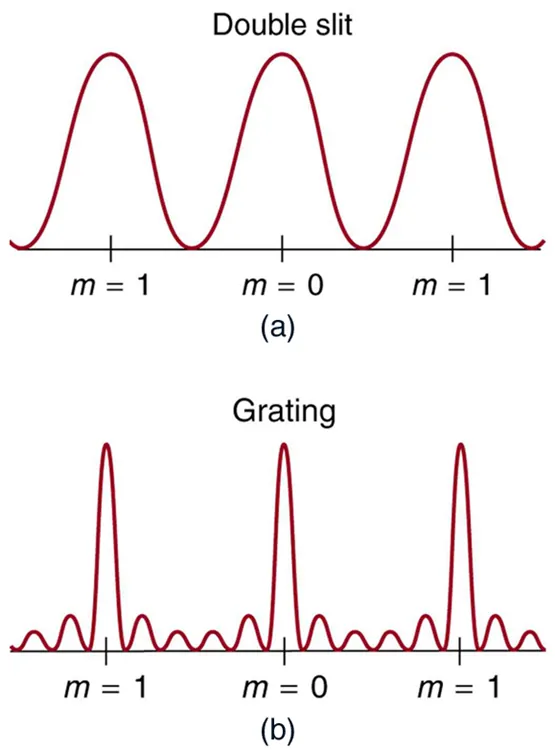

The upper graph, which is labeled double slit, shows a smooth curve similar to a sine curve that is shifted up so that its minimum value is zero. Three peaks are shown: the middle peak is labeled m equals zero and the left and right peaks are labeled m equals one. The lower graph, which is labeled grating, is aligned under the upper graph and also shows three peaks, with each peak aligned directly underneath the peaks in the upper graph. These three peaks are also labeled m equals zero or one, as in the upper graph. However, the peaks in the lower graph are much narrower and there are lots of small peaks appearing between large peaks.

Figure 27.18 Idealized graphs of the intensity of light passing through a double slit (a) and a diffraction grating (b) for monochromatic light. Maxima can be produced at the same angles, but those for the diffraction grating are narrower and hence sharper. The maxima become narrower and the regions between darker as the number of slits is increased.

The analysis of a diffraction grating is very similar to that for a double slit (see Figure 27.19). As we know from our discussion of double slits in Young's Double Slit Experiment, light is diffracted by each slit and spreads out after passing through. Rays traveling in the same direction (at an angle $θ$ relative to the incident direction) are shown in the figure. Each of these rays travels a different distance to a common point on a screen far away. The rays start in phase, and they can be in or out of phase when they reach a screen, depending on the difference in the path lengths traveled. As seen in the figure, each ray travels a distance $d sin θ$ different from that of its neighbor, where $d$ is the distance between slits. If this distance equals an integral number of wavelengths, the rays all arrive in phase, and constructive interference (a maximum) is obtained. Thus, the condition necessary to obtain constructive interference for a diffraction grating is

d sin θ = mλ, for m = 0, 1, –1, 2, –2, \dots (constructive),

27.11

where $d$ is the distance between slits in the grating, $λ$ is the wavelength of light, and $m$ is the order of the maximum. Note that this is exactly the same equation as for double slits separated by $d$ . However, the slits are usually closer in diffraction gratings than in double slits, producing fewer maxima at larger angles.

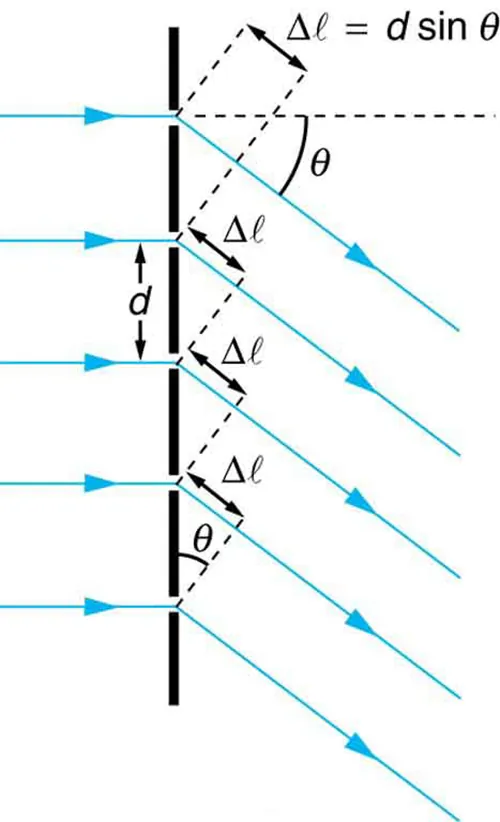

The figure shows a schematic of a diffraction grating, which is represented by a vertical black line into which are cut five small gaps. The gaps are evenly spaced a distance d apart. From the left five rays arrive, with one ray arriving at each gap. To the right of the line with the gaps the rays all point down and to the right at an angle theta below the horizontal. At each gap a triangle is formed where the hypotenuse is length d, one angle is theta, and the side opposite theta is labeled delta l. At the top is written delta l equals d sine theta.

Figure 27.19 Diffraction grating showing light rays from each slit traveling in the same direction. Each ray travels a different distance to reach a common point on a screen (not shown). Each ray travels a distance

d sin θ

different from that of its neighbor.

Where are diffraction gratings used? Diffraction gratings are key components of monochromators used, for example, in optical imaging of particular wavelengths from biological or medical samples. A diffraction grating can be chosen to specifically analyze a wavelength emitted by molecules in diseased cells in a biopsy sample or to help excite strategic molecules in the sample with a selected frequency of light. Another vital use is in optical fiber technologies where fibers are designed to provide optimum performance at specific wavelengths. A range of diffraction gratings are available for selecting specific wavelengths for such use.

Take-Home Experiment: Rainbows on a CD

The spacing $d$ of the grooves in a CD or DVD can be well determined by using a laser and the equation $d sin θ = mλ, for m = 0, 1, –1, 2, –2, \dots$ . However, we can still make a good estimate of this spacing by using white light and the rainbow of colors that comes from the interference. Reflect sunlight from a CD onto a wall and use your best judgment of the location of a strongly diffracted color to find the separation $d$ .

Example 27.3

Calculating Typical Diffraction Grating Effects

Diffraction gratings with 10,000 lines per centimeter are readily available. Suppose you have one, and you send a beam of white light through it to a screen 2.00 m away. (a) Find the angles for the first-order diffraction of the shortest and longest wavelengths of visible light (380 and 760 nm). (b) What is the distance between the ends of the rainbow of visible light produced on the screen for first-order interference? (See Figure 27.20.)

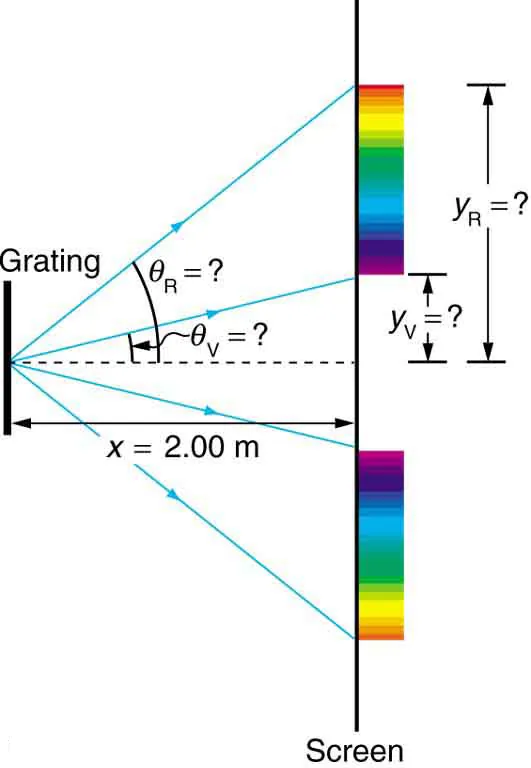

The image shows a vertical black bar at the left labeled grating. From the midpoint of this bar four lines fan out to the right, with two lines angled above the horizontal centerline and two lines angled symmetrically below the horizontal centerline. These four lines hit a vertical black line to the right that is labeled screen. On the screen between the two upper lines is a rainbow region, with violet nearer the centerline and red farther from the centerline. The same is true for the two lower lines, except that they are below the centerline instead of above. The distance from the centerline to the upper violet zone is labeled y sub v equals question mark and the distance from the centerline to the upper red zone is labeled y sub r equals question mark. The angle between the centerline and the line leading to the upper violet zone is labeled theta V equals question mark and the angle between the line leading to the upper red zone is labeled theta R equals question mark. The distance between the grating and the screen is labeled x equals two point zero zero meters.

Figure 27.20 The diffraction grating considered in this example produces a rainbow of colors on a screen a distance

x = 2 . 00 m

from the grating. The distances along the screen are measured perpendicular to the

x

-direction. In other words, the rainbow pattern extends out of the page.

Strategy

The angles can be found using the equation

d sin θ = mλ (for m = 0, 1, –1, 2, –2, \dots)

27.12

once a value for the slit spacing $d$ has been determined. Since there are 10,000 lines per centimeter, each line is separated by $1/10,000$ of a centimeter. Once the angles are found, the distances along the screen can be found using simple trigonometry.

Solution for (a)

The distance between slits is $d = (1 cm) / 10, 000 = 1 . 00 \times 10^{- 4} cm$ or $1 . 00 \times 10^{- 6} m$ . Let us call the two angles $θ_{V}$ for violet (380 nm) and $θ_{R}$ for red (760 nm). Solving the equation $d sin θ_{V} = mλ$ for $sin θ_{V}$ ,

sin θ_{V} = \frac{{mλ}_{V}}{d},

27.13

where $m = 1$ for first order and $λ_{V} = 380 nm = 3 . 80 \times 10^{- 7} m$ . Substituting these values gives

sin θ_{V} = \frac{3 . 80 \times 10^{- 7} m}{1 . 00 \times 10^{- 6} m} = 0 . 380.

27.14

Thus the angle $θ_{V}$ is

θ_{V} = {sin}^{- 1} 0 . 380 = 22 . 33º.

27.15

Similarly,

sin θ_{R} = \frac{7 . 60 \times 10^{- 7} m}{1.00 \times 10^{- 6} m} .

27.16

Thus the angle $θ_{R}$ is

θ_{R} = {sin}^{- 1} 0 . 760 = 49.46º.

27.17

Notice that in both equations, we reported the results of these intermediate calculations to four significant figures to use with the calculation in part (b).

Solution for (b)

The distances on the screen are labeled $y_{V}$ and $y_{R}$ in Figure 27.20. Noting that $tan θ = y / x$ , we can solve for $y_{V}$ and $y_{R}$ . That is,

y_{V} = x tan θ_{V} = (2.00 m) (tan 22.33º) = 0.815 m

27.18

and

y_{R} = x tan θ_{R} = (2.00 m) (tan 49.46º) = 2.338 m.

27.19

The distance between them is therefore

y_{R} - y_{V} = 1.52 m.

27.20

Discussion

The large distance between the red and violet ends of the rainbow produced from the white light indicates the potential this diffraction grating has as a spectroscopic tool. The more it can spread out the wavelengths (greater dispersion), the more detail can be seen in a spectrum. This depends on the quality of the diffraction grating—it must be very precisely made in addition to having closely spaced lines.
