23.3 Motional Emf

College Physics 2e23.3 Motional Emf

Learning Objectives

By the end of this section, you will be able to:

  • Calculate emf, force, magnetic field, and work due to the motion of an object in a magnetic field.

As we have seen, any change in magnetic flux induces an emf opposing that change—a process known as induction. Motion is one of the major causes of induction. For example, a magnet moved toward a coil induces an emf, and a coil moved toward a magnet produces a similar emf. In this section, we concentrate on motion in a magnetic field that is stationary relative to the Earth, producing what is loosely called motional emf.

One situation where motional emf occurs is known as the Hall effect and has already been examined. Charges moving in a magnetic field experience the magnetic force F=qvBsinθF=qvBsinθ, which moves opposite charges in opposite directions and produces an emf=Bℓvemf=Bℓv. We saw that the Hall effect has applications, including measurements of BB and vv. We will now see that the Hall effect is one aspect of the broader phenomenon of induction, and we will find that motional emf can be used as a power source.

Consider the situation shown in Figure 23.10. A rod is moved at a speed v v along a pair of conducting rails separated by a distance in a uniform magnetic field BB. The rails are stationary relative to BB and are connected to a stationary resistor RR. The resistor could be anything from a light bulb to a voltmeter. Consider the area enclosed by the moving rod, rails, and resistor. BB is perpendicular to this area, and the area is increasing as the rod moves. Thus the magnetic flux enclosed by the rails, rod, and resistor is increasing. When flux changes, an emf is induced according to Faraday’s law of induction.

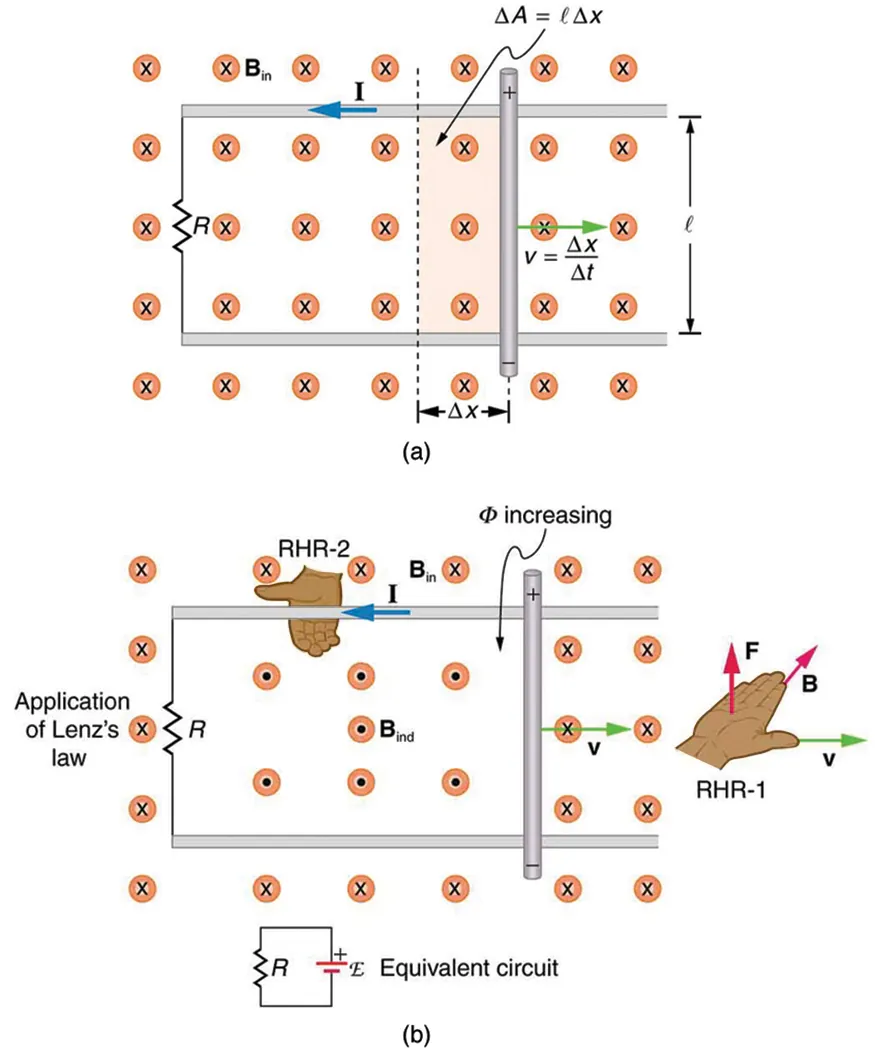

Part a of the figure shows two parallel rails held horizontal at distance l apart in a uniform magnetic field B in, directed toward the plane of the paper. A resistance R is connected at one of its ends. A rod is kept vertical at the middle on the rails and moved toward the right for a distance delta x with a velocity v. the velocity v is given by delta x divided by delta t. The rectangular area enclosed between the initial position of the rod and the final position after a movement of delta x is given as delta A equals l multiplied by delta x. There is a current induced, I in the upper rail toward left. The upper end of the rod is shown positive and the lower end negative. Part b of the diagram shows the same arrangement as in part a. Two parallel rails held horizontal at distance l apart in a uniform magnetic field B in, directed toward the plane of the paper. A resistance is connected at one of its ends. A rod is kept vertical at the middle on the rails and moved toward the right a distance delta x with a velocity v. Lenz’s law is applied and the direction of induced field and current is shown. There is a current induced I in the upper rail toward left. The upper end of the rod is shown positive and the lower end negative. The induced field B ind is shown in the area enclosed between the resistance R, the rod and the rails. The induced field is opposite to the applied field. The induced field points away from the paper. The flux phi is shown increasing in the enclosed area. A picture of the right hand with its fingers and thumb stretched is shown toward the right of the image to explain the right hand rule. An equivalent circuit of the above figure is shown to be equivalent to a cell of e m f connected across a resistance R.
Figure 23.10 (a) A motional emf=Bℓvemf=Bℓv is induced between the rails when this rod moves to the right in the uniform magnetic field. The magnetic field BB is into the page, perpendicular to the moving rod and rails and, hence, to the area enclosed by them. (b) Lenz’s law gives the directions of the induced field and current, and the polarity of the induced emf. Since the flux is increasing, the induced field is in the opposite direction, or out of the page. RHR-2 gives the current direction shown, and the polarity of the rod will drive such a current. RHR-1 also indicates the same polarity for the rod. (Note that the script E symbol used in the equivalent circuit at the bottom of part (b) represents emf.)

To find the magnitude of emf induced along the moving rod, we use Faraday’s law of induction without the sign:

emf=NΔΦΔt.emf=NΔΦΔt.
23.7

Here and below, “emf” implies the magnitude of the emf. In this equation, N=1N=1 and the flux Φ=BAcosθΦ=BAcosθ. We have θ = θ = and cosθ=1cosθ=1, since BB is perpendicular to A A. Now ΔΦ=Δ(BA)=BΔAΔΦ=Δ(BA)=BΔA, since BB is uniform. Note that the area swept out by the rod is ΔA=ΔxΔA=Δx. Entering these quantities into the expression for emf yields

emf=BΔAΔt=BΔxΔt.emf=BΔAΔt=BΔxΔt.
23.8

Finally, note that Δx/Δt=vΔx/Δt=v, the velocity of the rod. Entering this into the last expression shows that

emf=Bℓv(B,ℓ, andv perpendicular)emf=Bℓv(B,ℓ, andv perpendicular)
23.9

is the motional emf. This is the same expression given for the Hall effect previously.

Making Connections: Unification of Forces

There are many connections between the electric force and the magnetic force. The fact that a moving electric field produces a magnetic field and, conversely, a moving magnetic field produces an electric field is part of why electric and magnetic forces are now considered to be different manifestations of the same force. This classic unification of electric and magnetic forces into what is called the electromagnetic force is the inspiration for contemporary efforts to unify other basic forces.

To find the direction of the induced field, the direction of the current, and the polarity of the induced emf, we apply Lenz’s law as explained in Faraday's Law of Induction: Lenz's Law. (See Figure 23.10(b).) Flux is increasing, since the area enclosed is increasing. Thus the induced field must oppose the existing one and be out of the page. And so the RHR-2 requires that I be counterclockwise, which in turn means the top of the rod is positive as shown.

Motional emf also occurs if the magnetic field moves and the rod (or other object) is stationary relative to the Earth (or some observer). We have seen an example of this in the situation where a moving magnet induces an emf in a stationary coil. It is the relative motion that is important. What is emerging in these observations is a connection between magnetic and electric fields. A moving magnetic field produces an electric field through its induced emf. We already have seen that a moving electric field produces a magnetic field—moving charge implies moving electric field and moving charge produces a magnetic field.

Motional emfs in the Earth’s weak magnetic field are not ordinarily very large, or we would notice voltage along metal rods, such as a screwdriver, during ordinary motions. For example, a simple calculation of the motional emf of a 1 m rod moving at 3.0 m/s perpendicular to the Earth’s field gives emf=Bℓv=(5.0×105T)(1.0 m)(3.0 m/s)=150 μVemf=Bℓv=(5.0×105T)(1.0 m)(3.0 m/s)=150 μV. This small value is consistent with experience. There is a spectacular exception, however. In 1992 and 1996, attempts were made with the space shuttle to create large motional emfs. The Tethered Satellite was to be let out on a 20 km length of wire as shown in Figure 23.11, to create a 5 kV emf by moving at orbital speed through the Earth’s field. This emf could be used to convert some of the shuttle’s kinetic and potential energy into electrical energy if a complete circuit could be made. To complete the circuit, the stationary ionosphere was to supply a return path for the current to flow. (The ionosphere is the rarefied and partially ionized atmosphere at orbital altitudes. It conducts because of the ionization. The ionosphere serves the same function as the stationary rails and connecting resistor in Figure 23.10, without which there would not be a complete circuit.) Drag on the current in the cable due to the magnetic force F=IℓBsinθF=IℓBsinθ does the work that reduces the shuttle’s kinetic and potential energy and allows it to be converted to electrical energy. The tests were both unsuccessful. In the first, the cable hung up and could only be extended a couple of hundred meters; in the second, the cable broke when almost fully extended. Example 23.2 indicates feasibility in principle.

Example 23.2

Calculating the Large Motional Emf of an Object in Orbit

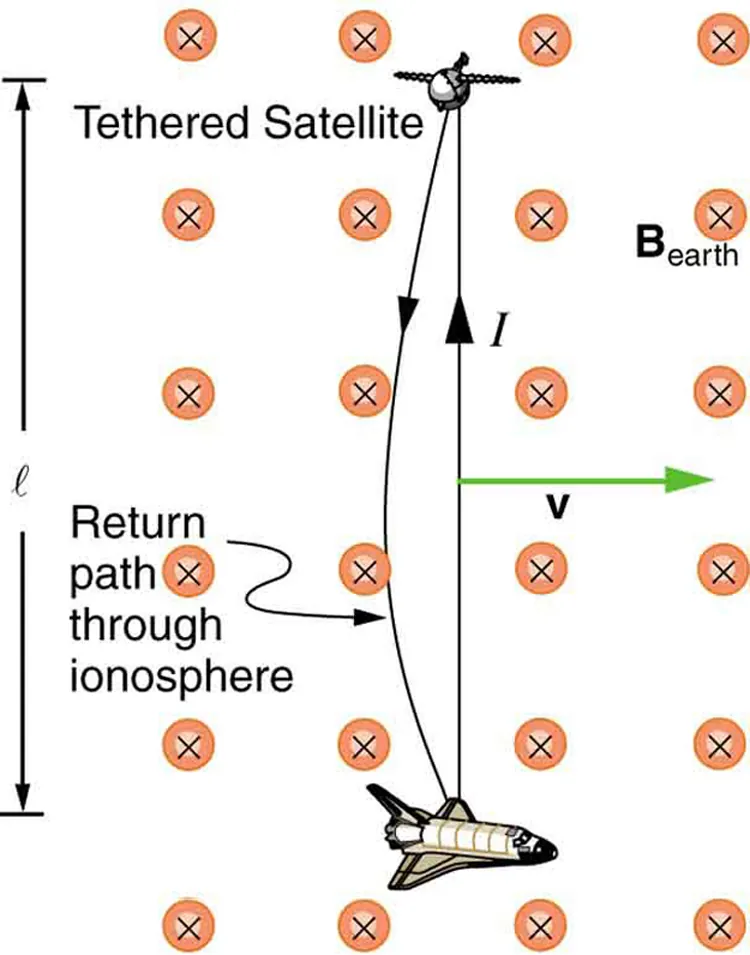

Figure shows a tethered satellite in Earth orbit. The Earth magnetic field is given as B Earth directed toward the plane of the paper. A tether satellite is a satellite connected to another by a space tether. An aircraft is shown flying at distance l below the tethered satellite. A current path is shown from the aircraft flying in the ionosphere to the tethered satellite and back.
Figure 23.11 Motional emf as electrical power conversion for the space shuttle is the motivation for the Tethered Satellite experiment. A 5 kV emf was predicted to be induced in the 20 km long tether while moving at orbital speed in the Earth’s magnetic field. The circuit is completed by a return path through the stationary ionosphere.

Calculate the motional emf induced along a 20.0 km long conductor moving at an orbital speed of 7.80 km/s perpendicular to the Earth’s 5.00×105T5.00×105T magnetic field.

Strategy

This is a straightforward application of the expression for motional emf— emf=Bℓvemf=Bℓv.

Solution

Entering the given values into emf=Bℓvemf=Bℓv gives

emf = Bℓv = ( 5.00 × 10 5 T ) ( 2 . 0 × 10 4 m ) ( 7 . 80 × 10 3 m/s ) = 7.80 × 10 3 V. emf = Bℓv = ( 5.00 × 10 5 T ) ( 2 . 0 × 10 4 m ) ( 7 . 80 × 10 3 m/s ) = 7.80 × 10 3 V.
23.10

Discussion

The value obtained is greater than the 5 kV measured voltage for the shuttle experiment, since the actual orbital motion of the tether is not perpendicular to the Earth’s field. The 7.80 kV value is the maximum emf obtained when θ = 90º θ = 90º and sinθ=1sinθ=1.
