22.10 Magnetic Force between Two Parallel Conductors

College Physics 2e22.10 Magnetic Force between Two Parallel Conductors

Learning Objectives

By the end of this section, you will be able to:

  • Describe the effects of the magnetic force between two conductors.
  • Calculate the force between two parallel conductors.

You might expect that there are significant forces between current-carrying wires, since ordinary currents produce significant magnetic fields and these fields exert significant forces on ordinary currents. But you might not expect that the force between wires is used to define the ampere. It might also surprise you to learn that this force has something to do with why large circuit breakers burn up when they attempt to interrupt large currents.

The force between two long straight and parallel conductors separated by a distance rr can be found by applying what we have developed in preceding sections. Figure 22.40 shows the wires, their currents, the fields they create, and the subsequent forces they exert on one another. Let us consider the field produced by wire 1 and the force it exerts on wire 2 (call the force F2F2). The field due to I1I1 at a distance rr is given to be

B 1 = μ 0 I 1 2πr . B 1 = μ 0 I 1 2πr .
22.30

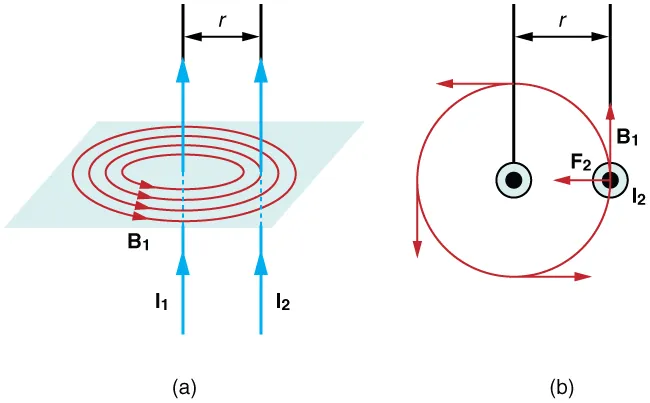

Figure a shows two parallel wires, both with currents going up. The magnetic field lines of the first wire are shown as concentric circles centered on wire 1 and in a plane perpendicular to the wires. The magnetic field is in the counter clockwise direction as viewed from above. Figure b shows a view from above and shows the current-carrying wires as two dots. Around wire one is a circle that represents a magnetic field line due to that wire. The magnetic field passes directly through wire two. The magnetic field is in the counter clockwise direction. The force on wire two is to the left, toward wire one.
Figure 22.40 (a) The magnetic field produced by a long straight conductor is perpendicular to a parallel conductor, as indicated by RHR-2. (b) A view from above of the two wires shown in (a), with one magnetic field line shown for each wire. RHR-1 shows that the force between the parallel conductors is attractive when the currents are in the same direction. A similar analysis shows that the force is repulsive between currents in opposite directions.

This field is uniform along wire 2 and perpendicular to it, and so the force F2F2 it exerts on wire 2 is given by F=IlBsinθF=IlBsinθ with sinθ=1sinθ=1:

F2=I2lB1.F2=I2lB1.
22.31

By Newton’s third law, the forces on the wires are equal in magnitude, and so we just write FF for the magnitude of F2F2. (Note that F1=F2F1=F2.) Since the wires are very long, it is convenient to think in terms of F/lF/l, the force per unit length. Substituting the expression for B1B1 into the last equation and rearranging terms gives

F l = μ 0 I 1 I 2 2πr . F l = μ 0 I 1 I 2 2πr .
22.32

F/lF/l is the force per unit length between two parallel currents I1I1 and I2I2 separated by a distance rr. The force is attractive if the currents are in the same direction and repulsive if they are in opposite directions.

This force is responsible for the pinch effect in electric arcs and plasmas. The force exists whether the currents are in wires or not. In an electric arc, where currents are moving parallel to one another, there is an attraction that squeezes currents into a smaller tube. In large circuit breakers, like those used in neighborhood power distribution systems, the pinch effect can concentrate an arc between plates of a switch trying to break a large current, burn holes, and even ignite the equipment. Another example of the pinch effect is found in the solar plasma, where jets of ionized material, such as solar flares, are shaped by magnetic forces.

The operational definition of the ampere is based on the force between current-carrying wires. Note that for parallel wires separated by 1 meter with each carrying 1 ampere, the force per meter is

F l = × 10 7 T m/A 1 A 2 2π 1 m = 2 × 10 7 N/m. F l = × 10 7 T m/A 1 A 2 2π 1 m = 2 × 10 7 N/m.
22.33

Since μ0μ0 is exactly ×107Tm/A×107Tm/A by definition, and because 1 T=1 N/Am1 T=1 N/Am, the force per meter is exactly 2×107N/m2×107N/m. This is the basis of the operational definition of the ampere.

The Ampere

The official definition of the ampere is:

One ampere of current through each of two parallel conductors of infinite length, separated by one meter in empty space free of other magnetic fields, causes a force of exactly 2×107 N/m2×107 N/m on each conductor.

Infinite-length straight wires are impractical and so, in practice, a current balance is constructed with coils of wire separated by a few centimeters. Force is measured to determine current. This also provides us with a method for measuring the coulomb. We measure the charge that flows for a current of one ampere in one second. That is, 1 C=1 As1 C=1 As. For both the ampere and the coulomb, the method of measuring force between conductors is the most accurate in practice.
