16.6 Uniform Circular Motion and Simple Harmonic Motion

College Physics 2e16.6 Uniform Circular Motion and Simple Harmonic Motion

Learning Objectives

By the end of this section, you will be able to:

  • Compare simple harmonic motion with uniform circular motion.
The figure shows a clock-wise rotating empty merry go round with iron bars holding the decorated wooden horse statues, four in each column.
Figure 16.15 The horses on this merry-go-round exhibit uniform circular motion. (credit: Wonderlane, Flickr)

There is an easy way to produce simple harmonic motion by using uniform circular motion. Figure 16.16 shows one way of using this method. A ball is attached to a uniformly rotating vertical turntable, and its shadow is projected on the floor as shown. The shadow undergoes simple harmonic motion. Hooke’s law usually describes uniform circular motions (ωω constant) rather than systems that have large visible displacements. So observing the projection of uniform circular motion, as in Figure 16.16, is often easier than observing a precise large-scale simple harmonic oscillator. If studied in sufficient depth, simple harmonic motion produced in this manner can give considerable insight into many aspects of oscillations and waves and is very useful mathematically. In our brief treatment, we shall indicate some of the major features of this relationship and how they might be useful.

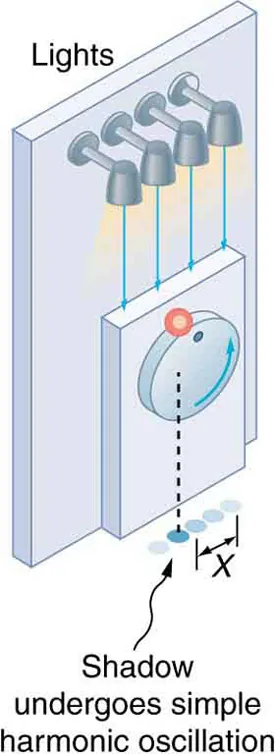

The given figure shows a vertical turntable with four floor projecting light bulbs at the top. A smaller sized rectangular bar is attached to this turntable at the bottom half, with a circular knob attached to it. A red colored small ball is rolling along the boundary of this knob in angular direction, and the lights falling through this ball are ball making shadows just under the knob on the floor. The middle shadow is the brightest and starts fading as we look through to the cornered shadow.
Figure 16.16 The shadow of a ball rotating at constant angular velocity ωω on a turntable goes back and forth in precise simple harmonic motion.

Figure 16.17 shows the basic relationship between uniform circular motion and simple harmonic motion. The point P travels around the circle at constant angular velocity ωω. The point P is analogous to an object on the merry-go-round. The projection of the position of P onto a fixed axis undergoes simple harmonic motion and is analogous to the shadow of the object. At the time shown in the figure, the projection has position xx and moves to the left with velocity vv. The velocity of the point P around the circle equals v¯maxv¯max.The projection of v¯maxv¯max on the xx-axis is the velocity vv of the simple harmonic motion along the xx-axis.

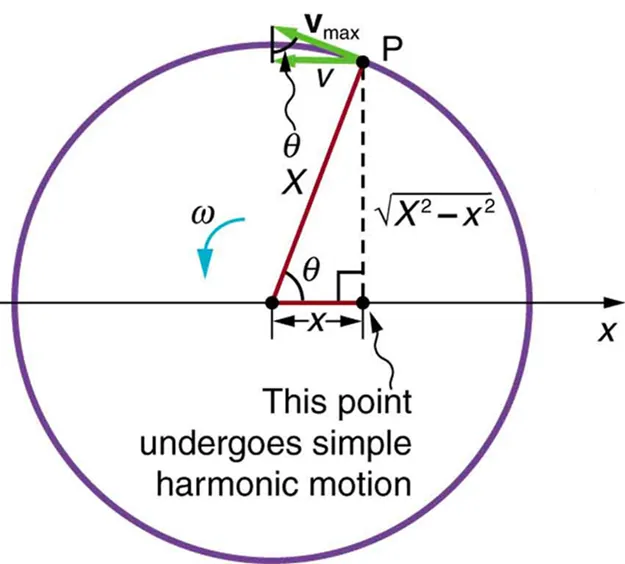

The figure shows a point P moving through the circumference of a circle in an angular way with angular velocity omega. The diameter is projected along the x axis, with point P making an angle theta at the centre of the circle. A point along the diameter shows the projection of the point P with a dotted perpendicular line from P to this point, the projection of the point is given as v along the circle and its velocity v subscript max, over the top of the projection arrow in an upward left direction.
Figure 16.17 A point P moving on a circular path with a constant angular velocity ωω is undergoing uniform circular motion. Its projection on the x-axis undergoes simple harmonic motion. Also shown is the velocity of this point around the circle, v¯maxv¯max, and its projection, which is vv. Note that these velocities form a similar triangle to the displacement triangle.

To see that the projection undergoes simple harmonic motion, note that its position xx is given by

x=Xcosθ,x=Xcosθ,
16.48

where θ=ωtθ=ωt, ωω is the constant angular velocity, and XX is the radius of the circular path. Thus,

x = X cos ω t . x = X cos ω t .
16.49

The angular velocity ωω is in radians per unit time; in this case radians is the time for one revolution TT. That is, ω=/Tω=/T. Substituting this expression for ωω, we see that the position xx is given by:

x ( t ) = X cos t T . x ( t ) = X cos t T .
16.50

This expression is the same one we had for the position of a simple harmonic oscillator in Simple Harmonic Motion: A Special Periodic Motion. If we make a graph of position versus time as in Figure 16.18, we see again the wavelike character (typical of simple harmonic motion) of the projection of uniform circular motion onto the xx-axis.

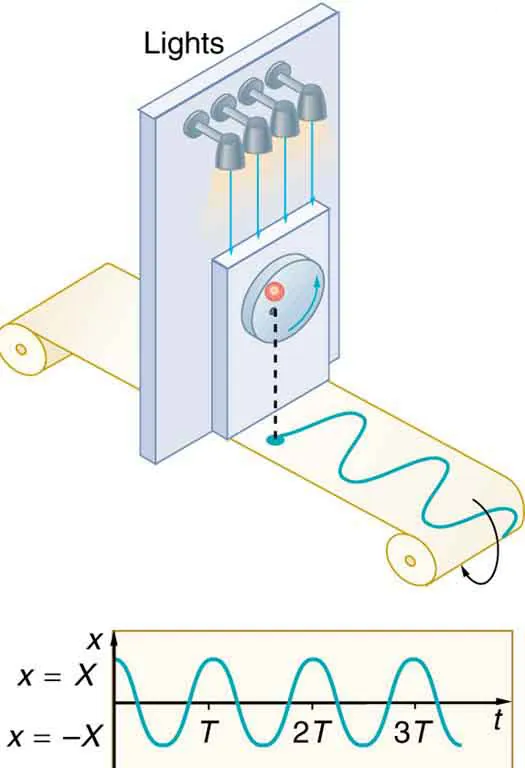

The given figure shows a vertical turntable with four floor projecting light bulbs at the top. A smaller sized rectangular bar is attached to this turntable at the bottom half, with a circular knob attached to it. A red colored small ball is rolling along the boundary of this knob in angular direction. The turnaround table is put upon a roller paper sheet, on which the simple harmonic motion is measured, which is shown here in oscillating waves on the paper sheet in front of the table. A graph of amplitude versus time is also given alongside the figure.
Figure 16.18 The position of the projection of uniform circular motion performs simple harmonic motion, as this wavelike graph of xx versus tt indicates.

Now let us use Figure 16.17 to do some further analysis of uniform circular motion as it relates to simple harmonic motion. The triangle formed by the velocities in the figure and the triangle formed by the displacements (X, x, X, x, and X2x2X2x2) are similar right triangles. Taking ratios of similar sides, we see that

v v max = X 2 x 2 X = 1 x 2 X 2 . v v max = X 2 x 2 X = 1 x 2 X 2 .
16.51

We can solve this equation for the speed vv or

v = v max 1 x 2 X 2 . v = v max 1 x 2 X 2 .
16.52

This expression for the speed of a simple harmonic oscillator is exactly the same as the equation obtained from conservation of energy considerations in Energy and the Simple Harmonic Oscillator.You can begin to see that it is possible to get all of the characteristics of simple harmonic motion from an analysis of the projection of uniform circular motion.

Finally, let us consider the period TT of the motion of the projection. This period is the time it takes the point P to complete one revolution. That time is the circumference of the circle XX divided by the velocity around the circle, vmaxvmax. Thus, the period TT is

T = 2πX v max . T = 2πX v max .
16.53

We know from conservation of energy considerations that

v max = k m X . v max = k m X .
16.54

Solving this equation for X/vmaxX/vmax gives

X v max = m k . X v max = m k .
16.55

Substituting this expression into the equation for TT yields

T=mk.T=mk.
16.56

Thus, the period of the motion is the same as for a simple harmonic oscillator. We have determined the period for any simple harmonic oscillator using the relationship between uniform circular motion and simple harmonic motion.

Some modules occasionally refer to the connection between uniform circular motion and simple harmonic motion. Moreover, if you carry your study of physics and its applications to greater depths, you will find this relationship useful. It can, for example, help to analyze how waves add when they are superimposed.

Check Your Understanding

Identify an object that undergoes uniform circular motion. Describe how you could trace the simple harmonic motion of this object as a wave.
