College Physics 2e

13.2 Thermal Expansion of Solids and Liquids

College Physics 2e13.2 Thermal Expansion of Solids and Liquids

Learning Objectives

By the end of this section, you will be able to:

  • Define and describe thermal expansion.
  • Calculate the linear expansion of an object given its initial length, change in temperature, and coefficient of linear expansion.
  • Calculate the volume expansion of an object given its initial volume, change in temperature, and coefficient of volume expansion.
  • Calculate thermal stress on an object given its original volume, temperature change, volume change, and bulk modulus.

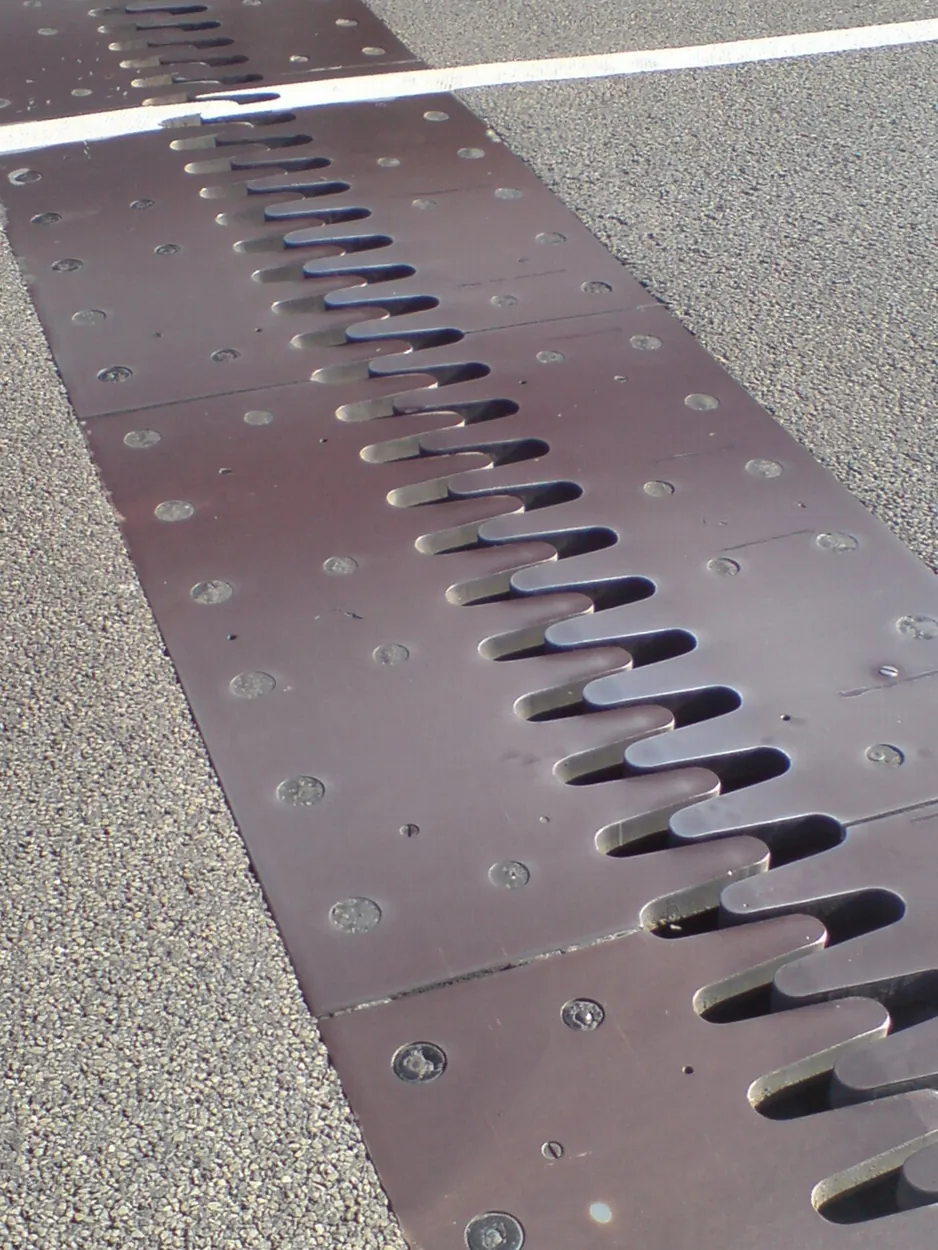

Figure 13.11 Thermal expansion joints like these in the Auckland Harbour Bridge in New Zealand allow bridges to change length without buckling. (credit: Ingolfson, Wikimedia Commons)

The expansion of alcohol in a thermometer is one of many commonly encountered examples of thermal expansion, the change in size or volume of a given mass with temperature. Hot air rises because air expands when its temperature increases, which causes the hot air’s density to be smaller than the density of surrounding air. As a result, the buoyant (upward) force on a given mass of air increases when the air is heated, resulting in a net upward force on that air mass. The same happens in all liquids and gases, driving natural heat transfer upwards in homes, oceans, and weather systems. Solids also undergo thermal expansion. Railroad tracks and bridges, for example, have expansion joints to allow them to freely expand and contract with temperature changes.

What are the basic properties of thermal expansion? First, thermal expansion is clearly related to temperature change. The greater the temperature change, the more a bimetallic strip will bend. Second, it depends on the material. In a thermometer, for example, the expansion of alcohol is much greater than the expansion of the glass containing it.

What is the underlying cause of thermal expansion? As is discussed in Kinetic Theory: Atomic and Molecular Explanation of Pressure and Temperature, an increase in temperature implies an increase in the kinetic energy of the individual atoms. In a solid, unlike in a gas, the atoms or molecules are closely packed together, but their kinetic energy (in the form of small, rapid vibrations) pushes neighboring atoms or molecules apart from each other. This neighbor-to-neighbor pushing results in a slightly greater distance, on average, between neighbors, and adds up to a larger size for the whole body. For most substances under ordinary conditions, there is no preferred direction, and an increase in temperature will increase the solid’s size by a certain fraction in each dimension.

Linear Thermal Expansion—Thermal Expansion in One Dimension

The change in length ΔLΔL is proportional to length LL. The dependence of thermal expansion on temperature, substance, and length is summarized in the equation

ΔL=αLΔT,ΔL=αLΔT,
13.7

where ΔLΔL is the change in length LL, ΔTΔT is the change in temperature, and αα is the coefficient of linear expansion, which varies slightly with temperature.

Table 13.2 lists representative values of the coefficient of linear expansion, which may have units of 1/ºC1/ºC or 1/K. Because the size of a kelvin and a degree Celsius are the same, both αα and ΔTΔT can be expressed in units of kelvins or degrees Celsius. The equation ΔL=αLΔT ΔL=αLΔT is accurate for small changes in temperature and can be used for large changes in temperature if an average value of αα is used.

Material Coefficient of linear expansion α(1/ºC)α(1/ºC) Coefficient of volume expansion β(1/ºC)β(1/ºC)
Solids
Aluminum 25 × 10 6 25 × 10 6 75 × 10 6 75 × 10 6
Brass 19 × 10 6 19 × 10 6 56 × 10 6 56 × 10 6
Copper 17 × 10 6 17 × 10 6 51 × 10 6 51 × 10 6
Gold 14 × 10 6 14 × 10 6 42 × 10 6 42 × 10 6
Iron or Steel 12 × 10 6 12 × 10 6 35 × 10 6 35 × 10 6
Invar (Nickel-iron alloy) 0 . 9 × 10 6 0 . 9 × 10 6 2 . 7 × 10 6 2 . 7 × 10 6
Lead 29 × 10 6 29 × 10 6 87 × 10 6 87 × 10 6
Silver 18 × 10 6 18 × 10 6 54 × 10 6 54 × 10 6
Glass (ordinary) 9 × 10 6 9 × 10 6 27 × 10 6 27 × 10 6
Glass (Pyrex®) 3 × 10 6 3 × 10 6 9 × 10 6 9 × 10 6
Quartz 0 . 4 × 10 6 0 . 4 × 10 6 1 × 10 6 1 × 10 6
Concrete, Brick (approximate) 12 × 10 6 12 × 10 6 36 × 10 6 36 × 10 6
Marble (average) 7 × 10 6 7 × 10 6 2 . 1 × 10 5 2 . 1 × 10 5
Liquids
Ether 1650 × 10 6 1650 × 10 6
Ethyl alcohol 1100 × 10 6 1100 × 10 6
Petrol 950 × 10 6 950 × 10 6
Glycerin 500 × 10 6 500 × 10 6
Mercury 180 × 10 6 180 × 10 6
Water 210 × 10 6 210 × 10 6
Gases
Air and most other gases at atmospheric pressure 3400 × 10 6 3400 × 10 6
Table 13.2 Thermal Expansion Coefficients at 20 º C 20 º C 1

Example 13.3

Calculating Linear Thermal Expansion: The Golden Gate Bridge

The main span of San Francisco’s Golden Gate Bridge is 1275 m long at its coldest. The bridge is exposed to temperatures ranging from 15ºC15ºC to 40ºC40ºC. What is its change in length between these temperatures? Assume that the bridge is made entirely of steel.

Strategy

Use the equation for linear thermal expansion ΔL=αLΔTΔL=αLΔT to calculate the change in length , ΔLΔL. Use the coefficient of linear expansion, αα, for steel from Table 13.2, and note that the change in temperature, ΔTΔT, is 55ºC55ºC.

Solution

Plug all of the known values into the equation to solve for ΔLΔL.

ΔL=αLΔT=12×106ºC1275 m55ºC=0.84 m.ΔL=αLΔT=12×106ºC1275 m55ºC=0.84 m.
13.8

Discussion

Although not large compared with the length of the bridge, this change in length is observable. It is generally spread over many expansion joints so that the expansion at each joint is small.

Thermal Expansion in Two and Three Dimensions

Objects expand in all dimensions, as illustrated in Figure 13.12. That is, their areas and volumes, as well as their lengths, increase with temperature. Holes also get larger with temperature. If you cut a hole in a metal plate, the remaining material will expand exactly as it would if the plug was still in place. The plug would get bigger, and so the hole must get bigger too. (Think of the ring of neighboring atoms or molecules on the wall of the hole as pushing each other farther apart as temperature increases. Obviously, the ring of neighbors must get slightly larger, so the hole gets slightly larger).

Thermal Expansion in Two Dimensions

For small temperature changes, the change in area ΔAΔA is given by

ΔA=2αAΔT,ΔA=2αAΔT,
13.9

where ΔAΔA is the change in area AA, ΔTΔT is the change in temperature, and αα is the coefficient of linear expansion, which varies slightly with temperature.

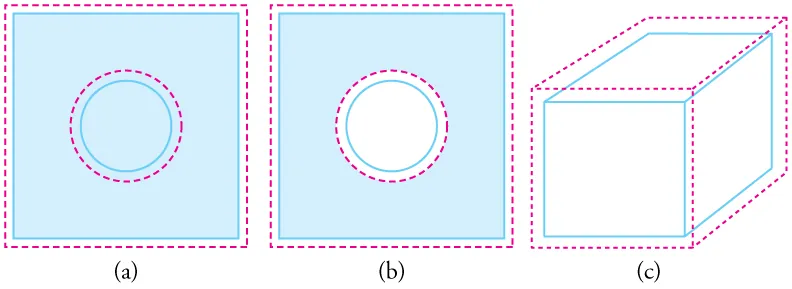

Part a shows the outline of a flat metal plate before and after expansion. After expansion, it has the same shape and ratio of dimensions as before, but it takes up a greater area. Part b shows the outline of a flat metal plate with a hole in it, before and after expansion. The hole expands. Part c shows the outline of a rectangular box before and after expansion. After expansion, the box has the same proportions as before expansion, but it has a greater volume.
Figure 13.12 In general, objects expand in all directions as temperature increases. In these drawings, the original boundaries of the objects are shown with solid lines, and the expanded boundaries with dashed lines. (a) Area increases because both length and width increase. The area of a circular plug also increases. (b) If the plug is removed, the hole it leaves becomes larger with increasing temperature, just as if the expanding plug were still in place. (c) Volume also increases, because all three dimensions increase.

Thermal Expansion in Three Dimensions

The change in volume ΔVΔV is very nearly ΔV=3αVΔTΔV=3αVΔT. This equation is usually written as

ΔV=βVΔT,ΔV=βVΔT,
13.10

where ββ is the coefficient of volume expansion and ββ. Note that the values of ββ in Table 13.2 are almost exactly equal to .

In general, objects will expand with increasing temperature. Water is the most important exception to this rule. Water expands with increasing temperature (its density decreases) when it is at temperatures greater than 4ºC (40ºF)4ºC (40ºF). However, it expands with decreasing temperature when it is between +4ºC+4ºC and 0ºC0ºC(40ºF(40ºF to 32ºF)32ºF). Water is densest at +4ºC+4ºC. (See Figure 13.13.) Perhaps the most striking effect of this phenomenon is the freezing of water in a pond. When water near the surface cools down to 4ºC4ºC it is denser than the remaining water and thus will sink to the bottom. This “turnover” results in a layer of warmer water near the surface, which is then cooled. Eventually the pond has a uniform temperature of 4ºC4ºC. If the temperature in the surface layer drops below 4ºC4ºC, the water is less dense than the water below, and thus stays near the top. As a result, the pond surface can completely freeze over. The ice on top of liquid water provides an insulating layer from winter’s harsh exterior air temperatures. Fish and other aquatic life can survive in 4ºC4ºC water beneath ice, due to this unusual characteristic of water. It also produces circulation of water in the pond that is necessary for a healthy ecosystem of the body of water.

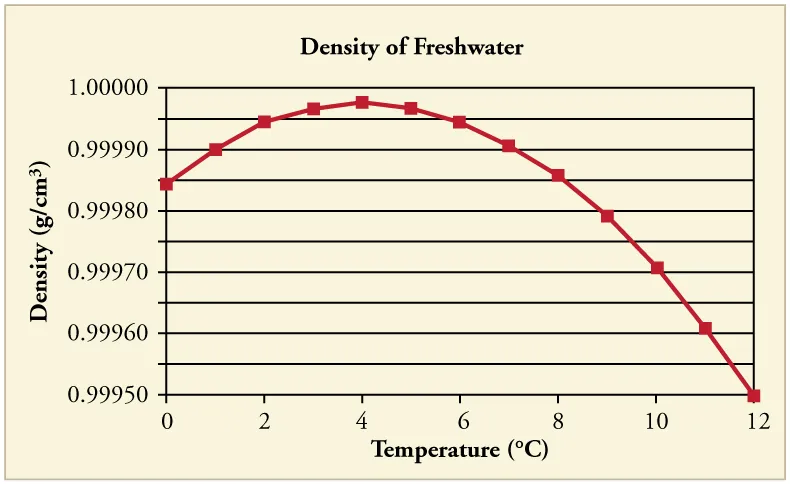

A graph of density of freshwater in grams per cubic centimeter versus temperature in degrees Celsius. The line is convex up. At zero degrees C, the density is just under zero point nine nine nine five grams per cubic centimeter. The density then increases at a decreasing rate until it hits a peak of about zero point nine nine nine nine seven grams per cubic centimeter at about four degrees C. Above four degrees C, the density decreases with increasing temperature.
Figure 13.13 The density of water as a function of temperature. Note that the thermal expansion is actually very small. The maximum density at +4ºC+4ºC is only 0.0075% greater than the density at 2ºC2ºC, and 0.012% greater than that at 0ºC0ºC.

Making Connections: Real-World Connections—Filling the Tank

Differences in the thermal expansion of materials can lead to interesting effects at the gas station. One example is the dripping of gasoline from a freshly filled tank on a hot day. Gasoline starts out at the temperature of the ground under the gas station, which is cooler than the air temperature above. The gasoline cools the steel tank when it is filled. Both gasoline and steel tank expand as they warm to air temperature, but gasoline expands much more than steel, and so it may overflow.

This difference in expansion can also cause problems when interpreting the gasoline gauge. The actual amount (mass) of gasoline left in the tank when the gauge hits “empty” is a lot less in the summer than in the winter. The gasoline has the same volume as it does in the winter when the “add fuel” light goes on, but because the gasoline has expanded, there is less mass. If you are used to getting another 40 miles on “empty” in the winter, beware—you may only get 38 miles in the summer.

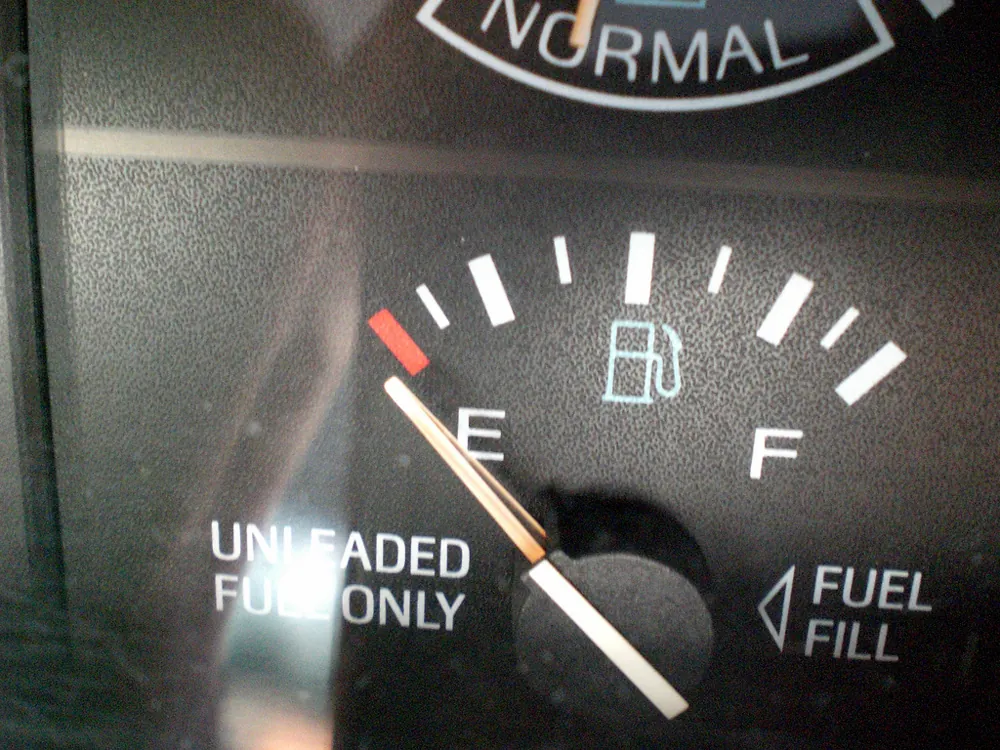

Fuel gauge pointing to empty.
Figure 13.14 Because the gas expands more than the gas tank with increasing temperature, you can’t drive as many miles on “empty” in the summer as you can in the winter. (credit: Hector Alejandro, Flickr)

Example 13.4

Calculating Thermal Expansion: Gas vs. Gas Tank

Suppose your 60.0-L (15.9-gal) steel gasoline tank is full of gas, so both the tank and the gasoline have a temperature of 15.0ºC15.0ºC. How much gasoline has spilled by the time they warm to 35.0ºC35.0ºC?

Strategy

The tank and gasoline increase in volume, but the gasoline increases more, so the amount spilled is the difference in their volume changes. (The gasoline tank can be treated as solid steel.) We can use the equation for volume expansion to calculate the change in volume of the gasoline and of the tank.

Solution

1. Use the equation for volume expansion to calculate the increase in volume of the steel tank:

ΔVs=βsVsΔT.ΔVs=βsVsΔT.
13.11

2. The increase in volume of the gasoline is given by this equation:

ΔVgas=βgasVgasΔT.ΔVgas=βgasVgasΔT.
13.12

3. Find the difference in volume to determine the amount spilled as

Vspill=ΔVgasΔVs.Vspill=ΔVgasΔVs.
13.13

Alternatively, we can combine these three equations into a single equation. (Note that the original volumes are equal.)

Vspill = βgasβsVΔT = 950 35 × 10 6 / º C 60.0L20.0ºC = 1.10L. Vspill = βgasβsVΔT = 950 35 × 10 6 / º C 60.0L20.0ºC = 1.10L.
13.14

Discussion

This amount is significant, particularly for a 60.0-L tank. The effect is so striking because the gasoline and steel expand quickly. The rate of change in thermal properties is discussed in Heat and Heat Transfer Methods.

If you try to cap the tank tightly to prevent overflow, you will find that it leaks anyway, either around the cap or by bursting the tank. Tightly constricting the expanding gas is equivalent to compressing it, and both liquids and solids resist being compressed with extremely large forces. To avoid rupturing rigid containers, these containers have air gaps, which allow them to expand and contract without stressing them.

Thermal Stress

Thermal stress is created by thermal expansion or contraction (see Elasticity: Stress and Strain for a discussion of stress and strain). Thermal stress can be destructive, such as when expanding gasoline ruptures a tank. It can also be useful: for example, when two parts are joined together by heating one in manufacturing, then slipping it over the other and allowing the combination to cool. Thermal stress can explain many phenomena, such as the weathering of rocks and pavement by the expansion of ice when it freezes.

Example 13.5

Calculating Thermal Stress: Gas Pressure

What pressure would be created in the gasoline tank considered in Example 13.4, if the gasoline increases in temperature from 15.0ºC15.0ºC to 35.0ºC35.0ºC without being allowed to expand? Assume that the bulk modulus BB for gasoline is 1.00×109 N/m21.00×109 N/m2. (For more on bulk modulus, see Elasticity: Stress and Strain.)

Strategy

To solve this problem, we must use the following equation, which relates a change in volume ΔVΔV to pressure:

ΔV = 1 B F A V 0 , ΔV = 1 B F A V 0 ,
13.15

where F/AF/A is pressure, V0V0 is the original volume, and BB is the bulk modulus of the material involved. We will use the amount spilled in Example 13.4 as the change in volume, ΔVΔV. To estimate the pressure when the gas is heated at a constant volume, we can calculate the change in volume that would occur if the gas were allowed to expand at a fixed pressure, and then calculate the additional pressure needed to reduce the volume to its original level.

Solution

1. Rearrange the equation for calculating pressure:

P = F A = ΔV V 0 B . P = F A = ΔV V 0 B .
13.16

2. Insert the known values. The bulk modulus for gasoline is B=1.00×109 N/m2B=1.00×109 N/m2. In the previous example, the change in volume ΔV=1.10 LΔV=1.10 L is the amount that would spill. Here, V0=60.0 LV0=60.0 L is the original volume of the gasoline. Substituting these values into the equation, we obtain

P = 1 . 10 L 60 . 0 L 1 . 00 × 10 9 Pa = 1 . 83 × 10 7 Pa . P = 1 . 10 L 60 . 0 L 1 . 00 × 10 9 Pa = 1 . 83 × 10 7 Pa .
13.17

Discussion

This pressure is about 2500lb/in22500lb/in2, much more than a gasoline tank can handle.

Forces and pressures created by thermal stress are typically as great as that in the example above. Railroad tracks and roadways can buckle on hot days if they lack sufficient expansion joints. (See Figure 13.15.) Power lines sag more in the summer than in the winter, and will snap in cold weather if there is insufficient slack. Cracks open and close in plaster walls as a house warms and cools. Glass cooking pans will crack if cooled rapidly or unevenly, because of differential contraction and the stresses it creates. (Pyrex® is less susceptible because of its small coefficient of thermal expansion.) Nuclear reactor pressure vessels are threatened by overly rapid cooling, and although none have failed, several have been cooled faster than considered desirable. Biological cells are ruptured when foods are frozen, detracting from their taste. Repeated thawing and freezing accentuate the damage. Even the oceans can be affected. A significant portion of the rise in sea level that is resulting from global warming is due to the thermal expansion of sea water.

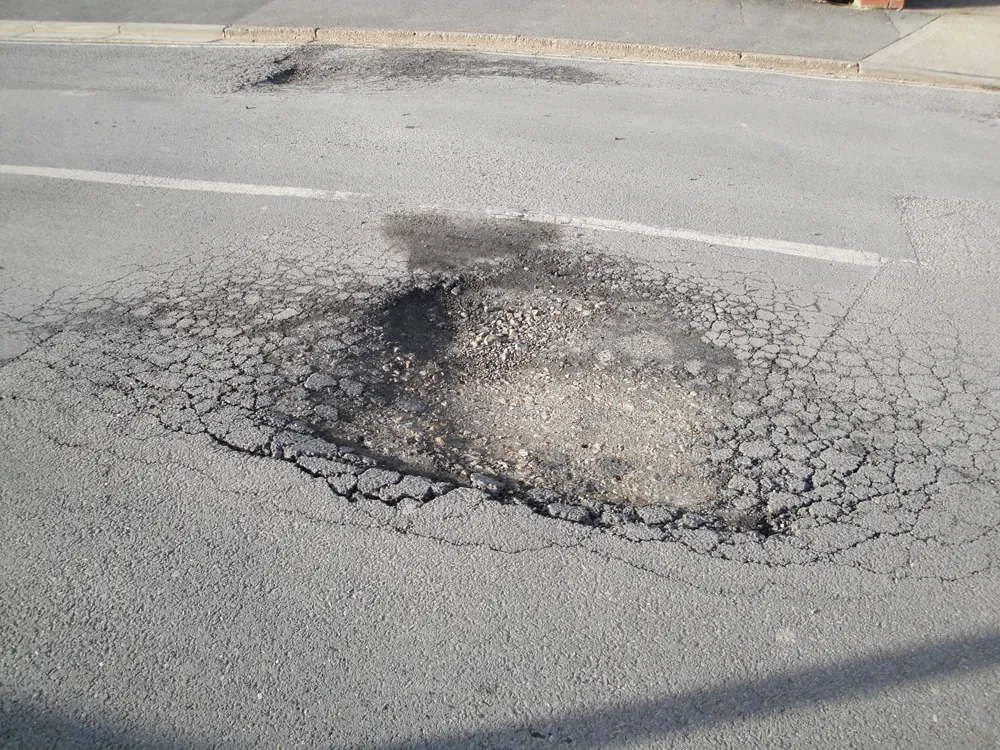

A cracked asphalt road with a pothole.
Figure 13.15 Thermal stress contributes to the formation of potholes. (credit: Editor5807, Wikimedia Commons)

Metal is regularly used in the human body for hip and knee implants. Most implants need to be replaced over time because, among other things, metal does not bond with bone. Researchers are trying to find better metal coatings that would allow metal-to-bone bonding. One challenge is to find a coating that has an expansion coefficient similar to that of metal. If the expansion coefficients are too different, the thermal stresses during the manufacturing process lead to cracks at the coating-metal interface.

Another example of thermal stress is found in the mouth. Dental fillings can expand differently from tooth enamel, causing pain when eating ice cream or having a hot drink. Cracks might occur in the filling. Metal fillings (gold, silver, etc.) are being replaced by composite fillings (porcelain), which have smaller coefficients of expansion closer to those of teeth.

Check Your Understanding

Two blocks, A and B, are made of the same material. Block A has dimensions l×w×h=L×2L×Ll×w×h=L×2L×L and Block B has dimensions 2L×2L×2L2L×2L×2L. If the temperature changes, what is (a) the change in ratio of the volumes (VB/VA) of the two blocks, (b) the change in the ratio of the cross-sectional areas lB×wB/lA×wAlB×wB/lA×wA, and (c) the change in the ratio of the heights (hB/hA) hB/hAhB/hA of the two blocks?

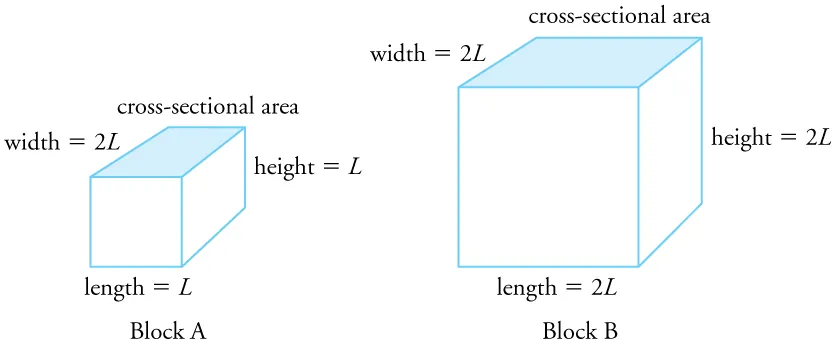

There are two rectangular blocks. Block A has its dimensions labeled length equals L, width equals two times L, height equals L. Block B has its dimensions labeled length, width, and height all equal to two times L.
Figure 13.16

Footnotes

  • 1 Values for liquids and gases are approximate.
