In this section, you will:
- Model exponential growth and decay.
- Use Newton’s Law of Cooling.
- Use logistic-growth models.
- Choose an appropriate model for data.
- Express an exponential model in base .
We have already explored some basic applications of exponential and logarithmic functions. In this section, we explore some important applications in more depth, including radioactive isotopes and Newton’s Law of Cooling.
Modeling Exponential Growth and Decay

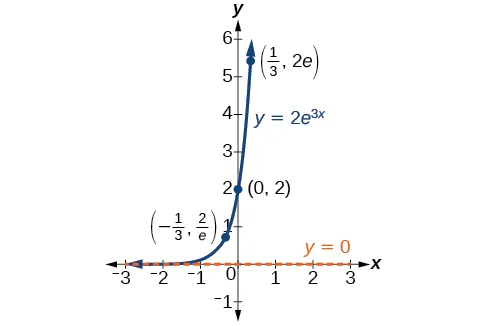

In real-world applications, we need to model the behavior of a function. In mathematical modeling, we choose a familiar general function with properties that suggest that it will model the real-world phenomenon we wish to analyze. In the case of rapid growth, we may choose the exponential growth function:
where is equal to the value at time zero, is Euler’s constant, and is a positive constant that determines the rate (percentage) of growth. We may use the exponential growth function in applications involving doubling time, the time it takes for a quantity to double. Such phenomena as wildlife populations, financial investments, biological samples, and natural resources may exhibit growth based on a doubling time. In some applications, however, as we will see when we discuss the logistic equation, the logistic model sometimes fits the data better than the exponential model.
On the other hand, if a quantity is falling rapidly toward zero, without ever reaching zero, then we should probably choose the exponential decay model. Again, we have the form where is the starting value, and is Euler’s constant. Now is a negative constant that determines the rate of decay. We may use the exponential decay model when we are calculating half-life, or the time it takes for a substance to exponentially decay to half of its original quantity. We use half-life in applications involving radioactive isotopes.
In our choice of a function to serve as a mathematical model, we often use data points gathered by careful observation and measurement to construct points on a graph and hope we can recognize the shape of the graph. Exponential growth and decay graphs have a distinctive shape, as we can see in Figure 2 and Figure 3. It is important to remember that, although parts of each of the two graphs seem to lie on the x-axis, they are really a tiny distance above the x-axis.
Exponential growth and decay often involve very large or very small numbers. To describe these numbers, we often use orders of magnitude. The order of magnitude is the power of ten, when the number is expressed in scientific notation, with one digit to the left of the decimal. For example, the distance to the nearest star, Proxima Centauri, measured in kilometers, is 40,113,497,200,000 kilometers. Expressed in scientific notation, this is So, we could describe this number as having order of magnitude

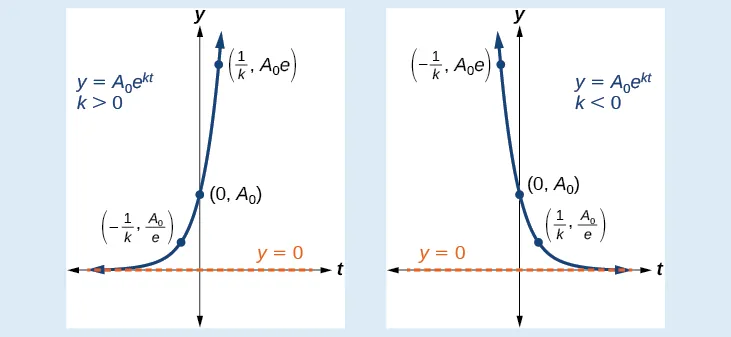

Characteristics of the Exponential Function,
Graphing Exponential Growth
A population of bacteria doubles every hour. If the culture started with 10 bacteria, graph the population as a function of time.
When an amount grows at a fixed percent per unit time, the growth is exponential. To find we use the fact that is the amount at time zero, so To find use the fact that after one hour the population doubles from to The formula is derived as follows

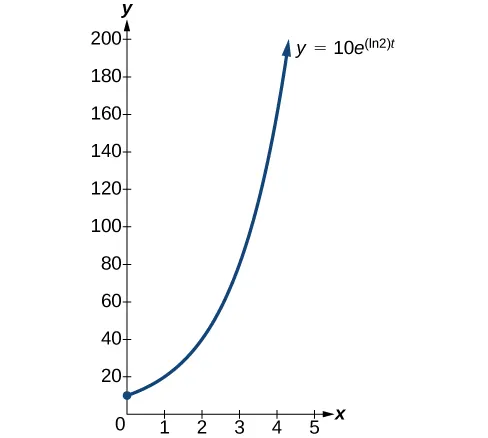

so Thus the equation we want to graph is The graph is shown in Figure 5.
The population of bacteria after ten hours is 10,240. We could describe this amount is being of the order of magnitude The population of bacteria after twenty hours is 10,485,760 which is of the order of magnitude so we could say that the population has increased by three orders of magnitude in ten hours.
We now turn to exponential decay. One of the common terms associated with exponential decay, as stated above, is half-life, the length of time it takes an exponentially decaying quantity to decrease to half its original amount. Every radioactive isotope has a half-life, and the process describing the exponential decay of an isotope is called radioactive decay.
To find the half-life of a function describing exponential decay, solve the following equation:
We find that the half-life depends only on the constant and not on the starting quantity
The formula is derived as follows
Since the time, is positive, must, as expected, be negative. This gives us the half-life formula
Given the half-life, find the decay rate.
- Replace by and replace by the given half-life.
- Solve to find Express as an exact value (do not round).
Note: It is also possible to find the decay rate using
Finding the Function that Describes Radioactive Decay
The half-life of carbon-14 is 5,730 years. Express the amount of carbon-14 remaining as a function of time,
This formula is derived as follows.
The function that describes this continuous decay is We observe that the coefficient of is negative, as expected in the case of exponential decay.
Try It #1
The half-life of plutonium-244 is 80,000,000 years. Find a function that gives the amount of plutonium-244 remaining as a function of time, measured in years.

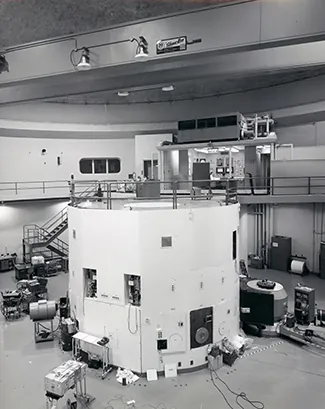

The formula for radioactive decay is important in radiocarbon dating, which is used to calculate the approximate date a plant or animal died. Radiocarbon dating was discovered in 1949 by Willard Libby, who won a Nobel Prize for his discovery. It compares the difference between the ratio of two isotopes of carbon in an organic artifact or fossil to the ratio of those two isotopes in the air. It is believed to be accurate to within about 1% error for plants or animals that died within the last 60,000 years.
Carbon-14 is a radioactive isotope of carbon that has a half-life of 5,730 years. It occurs in small quantities in the carbon dioxide in the air we breathe. Most of the carbon on Earth is carbon-12, which has an atomic weight of 12 and is not radioactive. Scientists have determined the ratio of carbon-14 to carbon-12 in the air for the last 60,000 years, using tree rings and other organic samples of known dates—although the ratio has changed slightly over the centuries.
As long as a plant or animal is alive, the ratio of the two isotopes of carbon in its body is close to the ratio in the atmosphere. When it dies, the carbon-14 in its body decays and is not replaced. By comparing the ratio of carbon-14 to carbon-12 in a decaying sample to the known ratio in the atmosphere, the date the plant or animal died can be approximated.
Since the half-life of carbon-14 is 5,730 years, the formula for the amount of carbon-14 remaining after years is
- is the amount of carbon-14 remaining
- is the amount of carbon-14 when the plant or animal began decaying.
This formula is derived as follows:
To find the age of an object, we solve this equation for
Out of necessity, we neglect here the many details that a scientist takes into consideration when doing carbon-14 dating, and we only look at the basic formula. The ratio of carbon-14 to carbon-12 in the atmosphere is approximately 0.0000000001%. Let be the ratio of carbon-14 to carbon-12 in the organic artifact or fossil to be dated, determined by a method called liquid scintillation. From the equation we know the ratio of the percentage of carbon-14 in the object we are dating to the initial amount of carbon-14 in the object when it was formed is We solve this equation for to get
Given the percentage of carbon-14 in an object, determine its age.
- Express the given percentage of carbon-14 as an equivalent decimal,
- Substitute for k in the equation and solve for the age,
Finding the Age of a Bone
A bone fragment is found that contains 20% of its original carbon-14. To the nearest year, how old is the bone?
We substitute for in the equation and solve for
The bone fragment is about 13,301 years old.
The instruments that measure the percentage of carbon-14 are extremely sensitive and, as we mention above, a scientist will need to do much more work than we did in order to be satisfied. Even so, carbon dating is only accurate to about 1%, so this age should be given as
Try It #2
Cesium-137 has a half-life of about 30 years. If we begin with 200 mg of cesium-137, will it take more or less than 230 years until only 1 milligram remains?
Calculating Doubling Time
For decaying quantities, we determined how long it took for half of a substance to decay. For growing quantities, we might want to find out how long it takes for a quantity to double. As we mentioned above, the time it takes for a quantity to double is called the doubling time.
Given the basic exponential growth equation doubling time can be found by solving for when the original quantity has doubled, that is, by solving
The formula is derived as follows:
Thus the doubling time is
Finding a Function That Describes Exponential Growth
According to Moore’s Law, the doubling time for the number of transistors that can be put on a computer chip is approximately two years. Give a function that describes this behavior.
The formula is derived as follows:
The function is
Try It #3
Recent data suggests that, as of 2013, the rate of growth predicted by Moore’s Law no longer holds. Growth has slowed to a doubling time of approximately three years. Find the new function that takes that longer doubling time into account.
Using Newton’s Law of Cooling
Exponential decay can also be applied to temperature. When a hot object is left in surrounding air that is at a lower temperature, the object’s temperature will decrease exponentially, leveling off as it approaches the surrounding air temperature. On a graph of the temperature function, the leveling off will correspond to a horizontal asymptote at the temperature of the surrounding air. Unless the room temperature is zero, this will correspond to a vertical shift of the generic exponential decay function. This translation leads to Newton’s Law of Cooling, the scientific formula for temperature as a function of time as an object’s temperature is equalized with the ambient temperature
This formula is derived as follows:
Newton’s Law of Cooling
The temperature of an object, in surrounding air with temperature will behave according to the formula
- is time
- is the difference between the initial temperature of the object and the surroundings
- is a constant, the continuous rate of cooling of the object
Given a set of conditions, apply Newton’s Law of Cooling.
- Set equal to the y-coordinate of the horizontal asymptote (usually the ambient temperature).
- Substitute the given values into the continuous growth formula to find the parameters and
- Substitute in the desired time to find the temperature or the desired temperature to find the time.
Using Newton’s Law of Cooling
A cheesecake is taken out of the oven with an ideal internal temperature of and is placed into a refrigerator. After 10 minutes, the cheesecake has cooled to If we must wait until the cheesecake has cooled to before we eat it, how long will we have to wait?
Because the surrounding air temperature in the refrigerator is 35 degrees, the cheesecake’s temperature will decay exponentially toward 35, following the equation
We know the initial temperature was 165, so
We were given another data point, which we can use to solve for
This gives us the equation for the cooling of the cheesecake:
Now we can solve for the time it will take for the temperature to cool to 70 degrees.
It will take about 107 minutes, or one hour and 47 minutes, for the cheesecake to cool to
Try It #4
A pitcher of water at 40 degrees Fahrenheit is placed into a 70 degree room. One hour later, the temperature has risen to 45 degrees. How long will it take for the temperature to rise to 60 degrees?
Using Logistic Growth Models
Exponential growth cannot continue forever. Exponential models, while they may be useful in the short term, tend to fall apart the longer they continue. Consider an aspiring writer who writes a single line on day one and plans to double the number of lines she writes each day for a month. By the end of the month, she must write over 17 billion lines, or one-half-billion pages. It is impractical, if not impossible, for anyone to write that much in such a short period of time. Eventually, an exponential model must begin to approach some limiting value, and then the growth is forced to slow. For this reason, it is often better to use a model with an upper bound instead of an exponential growth model, though the exponential growth model is still useful over a short term, before approaching the limiting value.
The logistic growth model is approximately exponential at first, but it has a reduced rate of growth as the output approaches the model’s upper bound, called the carrying capacity. For constants and the logistic growth of a population over time is represented by the model

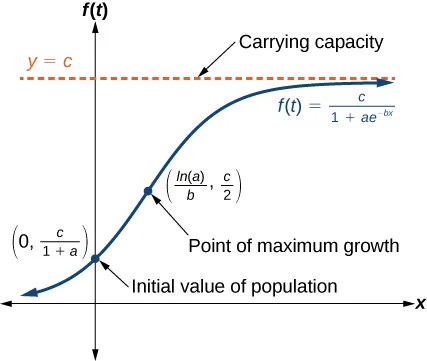

The graph in Figure 6 shows how the growth rate changes over time. The graph increases from left to right, but the growth rate only increases until it reaches its point of maximum growth rate, at which point the rate of increase decreases.
The logistic growth model is
- is the initial value
- is the carrying capacity, or limiting value
- is a constant determined by the rate of growth.
Using the Logistic-Growth Model
An influenza epidemic spreads through a population rapidly, at a rate that depends on two factors: The more people who have the flu, the more rapidly it spreads, and also the more uninfected people there are, the more rapidly it spreads. These two factors make the logistic model a good one to study the spread of communicable diseases. And, clearly, there is a maximum value for the number of people infected: the entire population.
For example, at time there is one person in a community of 1,000 people who has the flu. So, in that community, at most 1,000 people can have the flu. Researchers find that for this particular strain of the flu, the logistic growth constant is Estimate the number of people in this community who will have had this flu after ten days. Predict how many people in this community will have had this flu after a long period of time has passed.
We substitute the given data into the logistic growth model
Because at most 1,000 people, the entire population of the community, can get the flu, we know the limiting value is To find we use the formula that the number of cases at time is from which it follows that This model predicts that, after ten days, the number of people who have had the flu is Because the actual number must be a whole number (a person has either had the flu or not) we round to 294. In the long term, the number of people who will contract the flu is the limiting value,
Remember that, because we are dealing with a virus, we cannot predict with certainty the number of people infected. The model only approximates the number of people infected and will not give us exact or actual values.

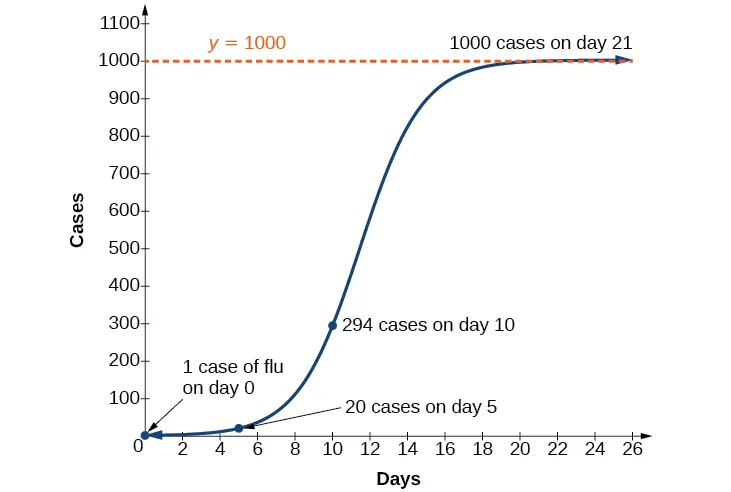

The graph in Figure 7 gives a good picture of how this model fits the data.
Try It #5
Choosing an Appropriate Model for Data
Now that we have discussed various mathematical models, we need to learn how to choose the appropriate model for the raw data we have. Many factors influence the choice of a mathematical model, among which are experience, scientific laws, and patterns in the data itself. Not all data can be described by elementary functions. Sometimes, a function is chosen that approximates the data over a given interval. For instance, suppose data were gathered on the number of homes bought in the United States from the years 1960 to 2013. After plotting these data in a scatter plot, we notice that the shape of the data from the years 2000 to 2013 follow a logarithmic curve. We could restrict the interval from 2000 to 2010, apply regression analysis using a logarithmic model, and use it to predict the number of home buyers for the year 2015.
Three kinds of functions that are often useful in mathematical models are linear functions, exponential functions, and logarithmic functions. If the data lies on a straight line, or seems to lie approximately along a straight line, a linear model may be best. If the data is non-linear, we often consider an exponential or logarithmic model, though other models, such as quadratic models, may also be considered.
In choosing between an exponential model and a logarithmic model, we look at the way the data curves. This is called the concavity. If we draw a line between two data points, and all (or most) of the data between those two points lies above that line, we say the curve is concave down. We can think of it as a bowl that bends downward and therefore cannot hold water. If all (or most) of the data between those two points lies below the line, we say the curve is concave up. In this case, we can think of a bowl that bends upward and can therefore hold water. An exponential curve, whether rising or falling, whether representing growth or decay, is always concave up away from its horizontal asymptote. A logarithmic curve is always concave away from its vertical asymptote. In the case of positive data, which is the most common case, an exponential curve is always concave up, and a logarithmic curve always concave down.
A logistic curve changes concavity. It starts out concave up and then changes to concave down beyond a certain point, called a point of inflection.
After using the graph to help us choose a type of function to use as a model, we substitute points, and solve to find the parameters. We reduce round-off error by choosing points as far apart as possible.
Choosing a Mathematical Model
Does a linear, exponential, logarithmic, or logistic model best fit the values listed in Table 1? Find the model, and use a graph to check your choice.

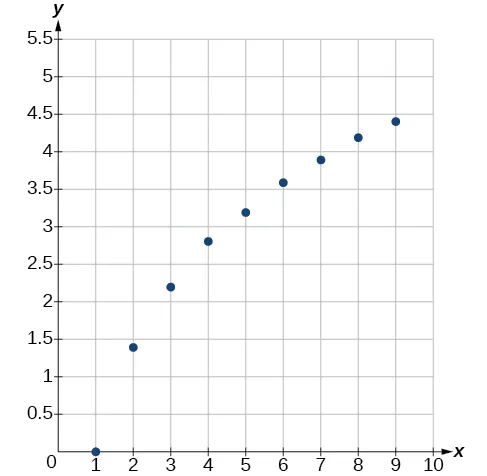

First, plot the data on a graph as in Figure 8. For the purpose of graphing, round the data to two decimal places.
Clearly, the points do not lie on a straight line, so we reject a linear model. If we draw a line between any two of the points, most or all of the points between those two points lie above the line, so the graph is concave down, suggesting a logarithmic model. We can try Plugging in the first point, gives We reject the case that (if it were, all outputs would be 0), so we know Thus and Next we can use the point to solve for
Because an appropriate model for the data is

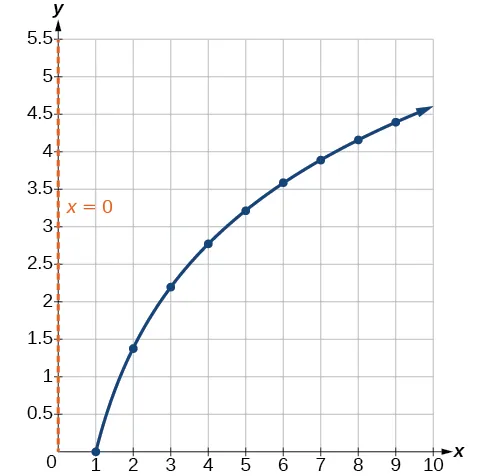

To check the accuracy of the model, we graph the function together with the given points as in Figure 9.
We can conclude that the model is a good fit to the data.
Compare Figure 9 to the graph of shown in Figure 10.
The graphs appear to be identical when A quick check confirms this conclusion: for

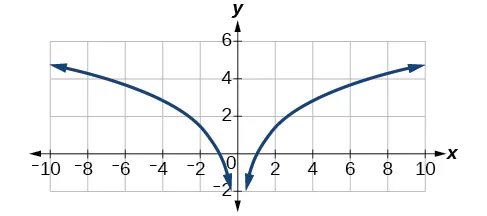

However, if the graph of includes a “extra” branch, as shown in Figure 11. This occurs because, while cannot have negative values in the domain (as such values would force the argument to be negative), the function can have negative domain values.
Try It #6
Does a linear, exponential, or logarithmic model best fit the data in Table 2? Find the model.
Expressing an Exponential Model in Base
While powers and logarithms of any base can be used in modeling, the two most common bases are and In science and mathematics, the base is often preferred. We can use laws of exponents and laws of logarithms to change any base to base
Given a model with the form change it to the form
- Rewrite as
- Use the power rule of logarithms to rewrite y as
- Note that and in the equation
Changing to base e
Change the function so that this same function is written in the form
The formula is derived as follows
Try It #7
Change the function to one having as the base.
Access these online resources for additional instruction and practice with exponential and logarithmic models.
6.7 Section Exercises
With what kind of exponential model would half-life be associated? What role does half-life play in these models?
What is carbon dating? Why does it work? Give an example in which carbon dating would be useful.
With what kind of exponential model would doubling time be associated? What role does doubling time play in these models?
Define Newton’s Law of Cooling. Then name at least three real-world situations where Newton’s Law of Cooling would be applied.
What is an order of magnitude? Why are orders of magnitude useful? Give an example to explain.
The temperature of an object in degrees Fahrenheit after t minutes is represented by the equation To the nearest degree, what is the temperature of the object after one and a half hours?
For the following exercises, use the logistic growth model
Find and interpret Round to the nearest tenth.
Find and interpret Round to the nearest tenth.
Find the carrying capacity.
Graph the model.
Determine whether the data from the table could best be represented as a function that is linear, exponential, or logarithmic. Then write a formula for a model that represents the data.
Rewrite as an exponential equation with base to five decimal places.
For the following exercises, enter the data from each table into a graphing calculator and graph the resulting scatter plots. Determine whether the data from the table could represent a function that is linear, exponential, or logarithmic.
For the following exercises, use a graphing calculator and this scenario: the population of a fish farm in years is modeled by the equation
Graph the function.
What is the initial population of fish?
To the nearest tenth, what is the doubling time for the fish population?
To the nearest whole number, what will the fish population be after years?
To the nearest tenth, how long will it take for the population to reach
What is the carrying capacity for the fish population? Justify your answer using the graph of
A substance has a half-life of 2.045 minutes. If the initial amount of the substance was 132.8 grams, how many half-lives will have passed before the substance decays to 8.3 grams? What is the total time of decay?
The formula for an increasing population is given by where is the initial population and Derive a general formula for the time t it takes for the population to increase by a factor of M.
Recall the formula for calculating the magnitude of an earthquake, Show each step for solving this equation algebraically for the seismic moment
What is the y-intercept of the logistic growth model Show the steps for calculation. What does this point tell us about the population?
Prove that for positive
For the following exercises, use this scenario: A doctor prescribes 125 milligrams of a therapeutic drug that decays by about 30% each hour.
To the nearest hour, what is the half-life of the drug?
Write an exponential model representing the amount of the drug remaining in the patient’s system after hours. Then use the formula to find the amount of the drug that would remain in the patient’s system after 3 hours. Round to the nearest milligram.
Using the model found in the previous exercise, find and interpret the result. Round to the nearest hundredth.
For the following exercises, use this scenario: A tumor is injected with grams of Iodine-125, which has a decay rate of per day.
To the nearest day, how long will it take for half of the Iodine-125 to decay?
Write an exponential model representing the amount of Iodine-125 remaining in the tumor after days. Then use the formula to find the amount of Iodine-125 that would remain in the tumor after 60 days. Round to the nearest tenth of a gram.
A scientist begins with grams of a radioactive substance. After minutes, the sample has decayed to grams. Rounding to five decimal places, write an exponential equation representing this situation. To the nearest minute, what is the half-life of this substance?
The half-life of Radium-226 is years. What is the annual decay rate? Express the decimal result to four decimal places and the percentage to two decimal places.
The half-life of Erbium-165 is hours. What is the hourly decay rate? Express the decimal result to four decimal places and the percentage to two decimal places.
A wooden artifact from an archeological dig contains 60 percent of the carbon-14 that is present in living trees. To the nearest year, about how many years old is the artifact? (The half-life of carbon-14 is years.)
A research student is working with a culture of bacteria that doubles in size every twenty minutes. The initial population count was bacteria. Rounding to five decimal places, write an exponential equation representing this situation. To the nearest whole number, what is the population size after hours?
For the following exercises, use this scenario: A biologist recorded a count of bacteria present in a culture after 5 minutes and 1000 bacteria present after 20 minutes.
To the nearest whole number, what was the initial population in the culture?
Rounding to six decimal places, write an exponential equation representing this situation. To the nearest minute, how long did it take the population to double?
For the following exercises, use this scenario: A pot of warm soup with an internal temperature of Fahrenheit was taken off the stove to cool in a room. After fifteen minutes, the internal temperature of the soup was
Use Newton’s Law of Cooling to write a formula that models this situation.
To the nearest minute, how long will it take the soup to cool to
To the nearest degree, what will the temperature be after and a half hours?
For the following exercises, use this scenario: A turkey is taken out of the oven with an internal temperature of and is allowed to cool in a room. After half an hour, the internal temperature of the turkey is
Write a formula that models this situation.
To the nearest degree, what will the temperature be after 50 minutes?
To the nearest minute, how long will it take the turkey to cool to
For the following exercises, find the value of the number shown on each logarithmic scale. Round all answers to the nearest thousandth.
Plot each set of approximate values of intensity of sounds on a logarithmic scale: Whisper: Vacuum: Jet:
Recall the formula for calculating the magnitude of an earthquake, One earthquake has magnitude on the MMS scale. If a second earthquake has times as much energy as the first, find the magnitude of the second quake. Round to the nearest hundredth.
For the following exercises, use this scenario: The equation models the number of people in a town who have heard a rumor after t days.
How many people started the rumor?
To the nearest whole number, how many people will have heard the rumor after 3 days?
As increases without bound, what value does approach? Interpret your answer.
For the following exercise, choose the correct answer choice.
A doctor injects a patient with 13 milligrams of radioactive dye that decays exponentially. After 12 minutes, there are 4.75 milligrams of dye remaining in the patient’s system. Which is an appropriate model for this situation?
